In Vitro Comparison of the Effect of Inhalation Delay and Flow Rate on the Emitted Dose from Three Valved Holding Chambers

Abstract

Abstract

Background:

Valved holding chambers (VHCs) are accessory devices for pressurized metered dose inhalers (pMDIs). Use of a VHC may help overcome coordination issues associated with drug delivery via the pMDI alone. Previous work has established that aspects of VHC use, including the time between actuation and inhalation (inhalation delay) and inhalation flow rate, can influence the amount of drug available to inhalation. This study compared the impact of inhalation delay and flow rate on the in vitro delivery of aerosol from different VHC brands.

Methods:

A custom-built inhalation delay test rig, which enabled automation of controlled inhalation delays (0, 5, or 10 sec), was developed. Extraction air flow was set to 5, 15, or 30 L/min. Delivery of albuterol (ProAir HFA 90 μg) to a filter (emitted dose) was assessed using three commercially available VHC brands (one conventional, two antistatic). Emitted dose under 27 different combinations of inhalation delay, flow rate, and VHC brand was determined in order to assess the effects of inhalation delay and flow rate. Pairwise comparisons of the different VHC brands with different inhalation delay/flow rate combinations were conducted to assess in vitro equivalence.

Results:

Emitted dose increased with flow rate and decreased with longer inhalation delays. Dependence on flow rate was similar for the two antistatic VHCs and more pronounced for the conventional VHC. The two antistatic VHCs showed equivalent results for the emitted dose of albuterol, across a range of flow rates and using different inhalation delays; the relation between the two antistatic VHCs fell within the±15% acceptance interval criteria for in vitro equivalence.

Conclusions:

The different inhalation delays and flow rates had similar effects on the delivery of drug via the three VHCs. The two antistatic VHCs were shown to be equivalent in vitro in terms of emitted dose of albuterol.

Introduction

Valved holding chambers (VHCs) are designed to overcome issues associated with drug delivery via pressurized metered dose inhalers (pMDIs). Use of a VHC can improve pulmonary targeting by reducing oropharyngeal impaction, and abrogate the detrimental effect of poor actuation–inhalation coordination on drug delivery.⁽¹⁾ The presence of a valve allows the aerosol plume to be held temporarily within the VHC,⁽²⁾ which may negate the requirement for perfect actuation–inhalation coordination. In this sense, drug delivery via a VHC has been described as “partially breath-actuated.^”(3) Despite these advantages, use of a VHC cannot entirely overcome the need for coordination. Once actuated into the VHC, impaction, gravitational sedimentation, and electrostatic attraction act on the aerosol particles, which, over time, can reduce the amount of drug available to inhalation.⁽⁴⁾ Within-chamber impaction of nonrespirable particles is a putative mechanism by which VHCs improve the respirable profile of aerosol.⁽³⁾

In the presence of a long delay between pMDI actuation and inhalation, the gravitational sedimentation of aerosol particles may have a detrimental effect on aerosol delivery. Inhalation delays as short as 5 sec have been shown to significantly reduce respirable output,⁽⁵⁾ and inhalation delays of 30 sec were shown to reduce patients' forced expiratory volume in 1 sec response to terbutaline.⁽⁶⁾ However, the sedimentation rate of particles with a mass median aerodynamic diameter in the respirable range is likely to be very slow (0.7 mm/sec).⁽⁷⁾ This implies that after 30 sec, particles within 21 mm of the base of the VHC will have settled, such that sedimentation would have a greater effect on small-volume VHCs compared with large-volume VHCs.

Electrostatic charge can develop on the surface of VHCs, particularly on conventional devices, which are manufactured from nonconducting plastics. Electrostatic attraction between aerosol particles and the charged surface of the VHC retains aerosol within the device.⁽⁸⁾ Consequently, drug delivery via a conventional VHC has been shown to be inversely proportional to the static charge on the surface of the device.⁽⁹⁾ An inhalation delay increases the amount of time that aerosol must remain suspended within the chamber, where interactions with electrostatic charge can reduce aerosol delivery.⁽¹⁰⁾ VHCs that are manufactured from charge-dissipative polymers are less susceptible to the accumulation of electrostatic charge, and these antistatic VHCs have been shown to deliver a greater, more consistent dose of drug, with a higher respirable fraction.⁽¹¹⁾ Given that antistatic VHCs have fewer forces acting to reduce aerosol delivery, the delivery from an antistatic VHC should also be less sensitive to the presence of an inhalation delay.

Inhalation technique, including inspiratory flow rate, can also influence drug delivery via a VHC. A slow (30 L/min) inhalation followed by a 10-sec breath-hold has been shown to improve lung deposition,⁽¹²⁾ and this technique is generally recommended.⁽¹³⁾ However, many patients, including infants and young children, inhale aerosol using tidal breaths and are unable to achieve a steady 30 L/min flow rate. Despite this, these patients still benefit from inhaling aerosol via a VHC in several tidal breaths.^(14,15) Although previous research has established the effect of static charge and inhalation delay on aerosol delivery, little attention has been paid to the interaction between inhalation flow rates, static charge, and inhalation delays on aerosol delivery.

Previous in vitro work has characterized the performance of the OptiChamber Diamond VHC when used to deliver aerosol produced by two different pMDI brands at 15 and 30 L/min extraction flow rates, without an inhalation delay.⁽¹⁶⁾ The present article reports on the interaction between clinically relevant inhalation delays (0, 5, and 10 sec) and extraction flow rates (5, 15, and 30 L/min), using a conventional VHC and two brands of antistatic VHC. The dose of albuterol delivered to a filter (emitted dose) was determined for each of the combinations of inhalation delay, flow rate, and VHC brand. The objectives of the study were: (i) to assess the effects of inhalation delay and flow rate, and to determine whether these effects differed between VHC brands; and (ii) to undertake pairwise comparisons between the three VHCs. These comparisons were intended to indicate whether the VHCs tested could be considered equivalent under the different in vitro test conditions.

Materials and Methods

Test products

Two brands of antistatic VHC, the OptiChamber Diamond VHC (Diamond; Respironics Respiratory Drug Delivery (UK) Ltd., a business of Philips Electronics UK Limited, Chichester, West Sussex, UK) and the AeroChamber Plus Z-Stat VHC (AC Z-Stat; Monaghan Medical Corp., Plattsburgh, NY), were compared with a conventional “static” brand of VHC, the AeroChamber Plus VHC (AC Plus; Monaghan Medical Corp.) (Fig. 1). Ten VHCs of each brand were tested. Forty-five suspension-based 200-dose albuterol (salbutamol) pMDIs (ProAir 90 μg HFA; Teva Respiratory, LLC, Horsham, PA) were used to compare the three VHC brands (five pMDIs for each of the nine inhalation delay/flow rate combinations).

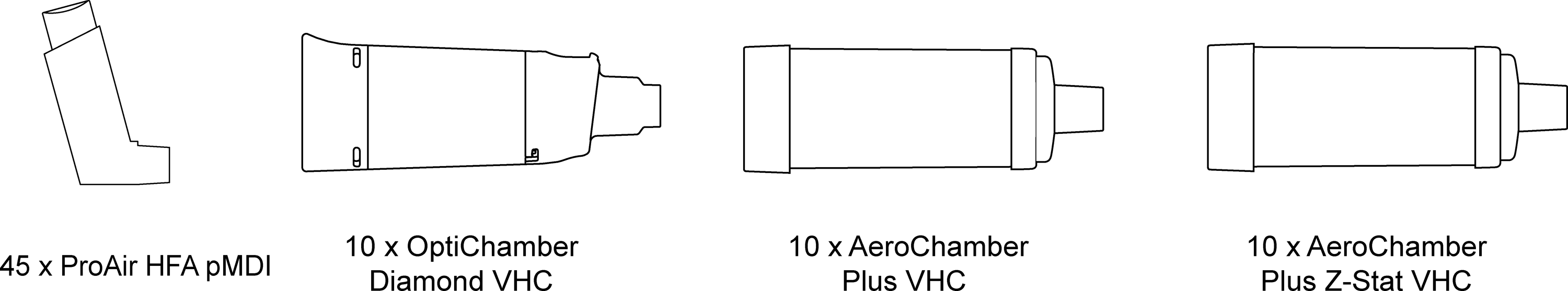

FIG. 1.

Test components; pMDI and VHCs.

Pretest conditions

Prior to use, all equipment and fluids were stabilized to ambient conditions for 2 hr. A mixed anionic/nonionic detergent (15–30% anionic surfactants, 5–15% nonionic surfactants) was used to create the warm soapy water in which the components were washed (Fairy Liquid; Proctor & Gamble UK, Weybridge, Surrey, UK).

Each VHC was washed with detergent, immersed in tap water, rinsed once under running fresh water, and left to air-dry in a drying cabinet. The pMDIs were primed, by actuating them three times to waste, before they were inserted into the experimental apparatus. Each pMDI actuator was washed, rinsed with deionized water, and air-dried, both before initial use and before each run during the study. Once dry, the canister was returned to the actuator, and the pMDI was primed using a single actuation. For each of the 45 pMDIs, the canister was used only with its supplied actuator.

Test plan

All tests were conducted according to a set test matrix, which was designed to take into account the possible effect of any systematic dose level trend through the life of the pMDI. Ten VHCs of each brand were assessed using five pMDIs, for each flow rate and delay time combination.

The same experimental design was used for all nine inhalation delay/flow rate combinations, and the same VHC units (10 of each type) were used in each of the nine investigations.

Custom-built inhalation delay test rig

A custom-built inhalation delay test rig was developed to allow the automation and control of the inhalation delays (Fig. 2). Incorporation of a shutter gate allowed two configurations: “delay” and “inhalation.” In delay configuration, the shutter gate was acted on by a compressed spring, but held closed by a solenoid. Activation of the solenoid facilitated rapid shutter gate opening (inhalation configuration). An extraction air flow was set at a rate of 5, 15, or 30 L/min. The VHCs were connected to the custom-built inhalation delay test rig using a custom adapter. The adapter was sealed with Parafilm M (Bemis Company, Inc., Oshkosh, WI). Air was extracted through the VHC to a low dead-space filter holder [Respironics Respiratory Drug Delivery (UK) Ltd.] and filter (67-mm 3M G-200 Filtrete^™ electrostatic filter; 3M Filtration Products, St. Paul, MN). In the delay configuration, the extraction flow circulated via a built-in air bypass channel, which prevented air within the VHC being disturbed. The custom rig also featured a delay timer (H5CR Multifunction Digital Timer; Omron Corp., Osaka, Japan), which was programmed with the chosen inhalation delay. An ultrasonic microphone sensor (Knowles Acoustics, Itasca, IL) was attached to the pMDI with a Velcro band. The microphone detected actuation, triggering the start of the delay timer. Once the inhalation delay had elapsed, the shutter gate opened and air was drawn through the VHC to the collection filter.

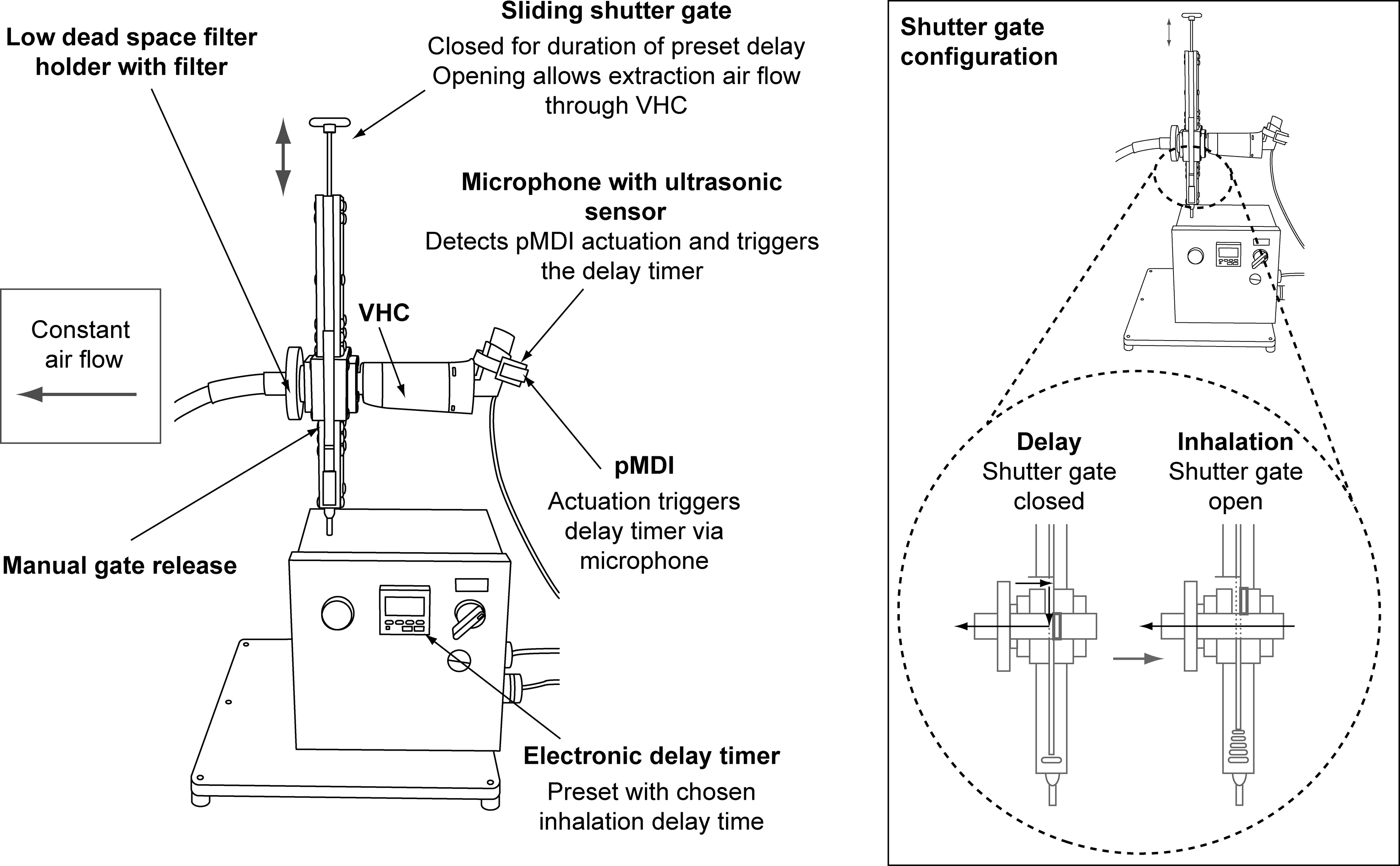

FIG. 2.

Custom-built inhalation delay test rig.

Quantification of the delay test rig showed that the actual delay between actuation and the opening of the shutter gate was 0.034–0.094 sec. Flow rate was observed to take a further 0.123–0.255 sec (±10%) to establish. Total delay was therefore no more than the programmed delay, plus a maximum of 0.349-sec intrinsic delay. Delay times presented are rounded to the nearest second.

Experimental procedure

Prior to each experiment, the delay timer was set to the relevant time interval and the extraction flow rate was preset. The test rig was activated, and the ultrasonic microphone sensor was attached to the actuator of a dummy pMDI. The sensitivity of the ultrasonic microphone sensor was gradually increased until it was set so that it was activated by actuation of the dummy pMDI. The filter was placed in a low dead-space filter holder and connected to the sliding shutter gate on the side with the air bypass channel (low dead-space filter holder with filter, Fig. 2). The other side of the filter holder was connected to a high-capacity vacuum pump (Copley HCP5; Copley Scientific Ltd., Nottingham, UK), and the exhaust of this pump was connected to the local exhaust ventilation extraction.

The TSI mass flow meter (TSI Incorporated, Shoreview, MN) was switched on, reset to 0, then connected between the VHC and test rig using a custom connector. The pMDI actuator mouthpiece was placed into the inlet of the VHC. The high-capacity vacuum pump was switched on and adjusted to achieve the predetermined flow rate. The TSI mass flow meter was then removed from the sliding gate, and the VHC was attached in its place via the mouthpiece adapter.

The ultrasonic sensor was fitted around the actuator of the pMDI in use, and the electronic delay timer was set to the required inhalation delay. The pMDI canister was removed from the actuator, shaken, and replaced. The sliding shutter gate was then closed (delay configuration, Fig. 2), and the pMDI actuated.

The sliding shutter gate opened automatically after the set inhalation delay (inhalation configuration, Fig. 2). Air was drawn through the VHC for 10 sec, after which the sliding shutter gate was manually closed. The pMDI canister was removed, shaken, and replaced.

The procedure was repeated a further nine times, to give a total of 10 actuations per filter; this number of actuations was chosen to ensure that the lower limit of quantitation was reached. One filter was collected for each of the 10 VHCs of each of the three brands. The amount of drug deposited within the VHC was determined after each sequence of 10 actuations.

Following each test, the filter was placed in a 50-mL centrifuge tube. The filter holder was attached to an elastomeric-lipped ISO connector (Intersurgical Ltd., Wokingham, UK) and placed over the centrifuge tube. An appropriate diluent (10% acetonitrile solution, 25 mL) was dispensed onto the inside surface of the filter holder to wash off any residual drug. The diluent was collected in the centrifuge tube, and the rinsed filter holder was removed. The tube, with filter and diluent, was then centrifuged at 2,800 rpm for 2 min, inverted, then centrifuged again at 2,800 rpm for 2 min. The centrifuge process was repeated, so that each tube was centrifuged a total of four times.

The amount of drug in eluate extracted from the filter was quantified using high-performance liquid chromatography (HPLC; see HPLC analysis).

HPLC analysis

The HPLC system (Agilent 1100 series; Agilent Technologies, Waldbronn, Germany) was fitted with the appropriate column (Genesis Phenyl, 4 μm, 150×4.5 mm, 22°C, 1 mL/min). Bracketing standards were made up and run, and the accuracy of the standards was checked. System suitability was then checked using five replicate injections of the bracketing standard to be used throughout the run. In order for the results of the run to be considered valid, the percentage relative standard deviation of bracketing standards had to be below 2% throughout the run, and the tailing factor (US Pharmacopeia method) had to be no greater than 2.0.

Statistical analysis

The dosing properties of the VHCs, under different delivery conditions, were compared using a regression model, in which flow rate (5, 15, 30 L/min), inhalation delay (0, 5, 10 sec), and VHC type were treated as fixed factors, and the pMDI (1, 2, 3,…45) was treated as a random factor. Residuals were assumed to be approximately independent and normally distributed, with equal variance. The response variables were log transformed before the model fit; based on results of the model fit, estimated dose levels (geometric means), relative differences, and corresponding confidence intervals were calculated by back-transformation of the parameter estimates.

Results are reported in the form of geometric mean emitted dose, and emitted dose as a percentage of label claim. Estimated mean relative differences, which provide between-VHC comparisons, are reported for emitted dose (Table 2). Special attention was given to the 90% confidence interval (CI₉₀) for the estimated relative difference in emitted dose between the VHC brands. This is based on a regulatory requirement for a claim of in vitro equivalence between a “Test” and “Reference” product: if a CI₉₀ for the mean Test/Reference ratio is within±15% (i.e., an acceptance interval of 85–118%), in vitro equivalence can be concluded.⁽¹⁷⁾

Results

The mean emitted dose collected under different combinations of flow rate, inhalation delay, and VHC brand are compared in Table 1. Data relating to in vitro equivalence (confidence limits and p values for between-VHC comparisons of emitted dose, under each flow rate/inhalation delay combination) are summarized in Table 2. Figures 3–5 illustrate the emitted dose, as a percentage of label claim, delivered under each of the flow rate/inhalation delay conditions, for each VHC brand. Mean emitted dose across the flow rates is also indicated.

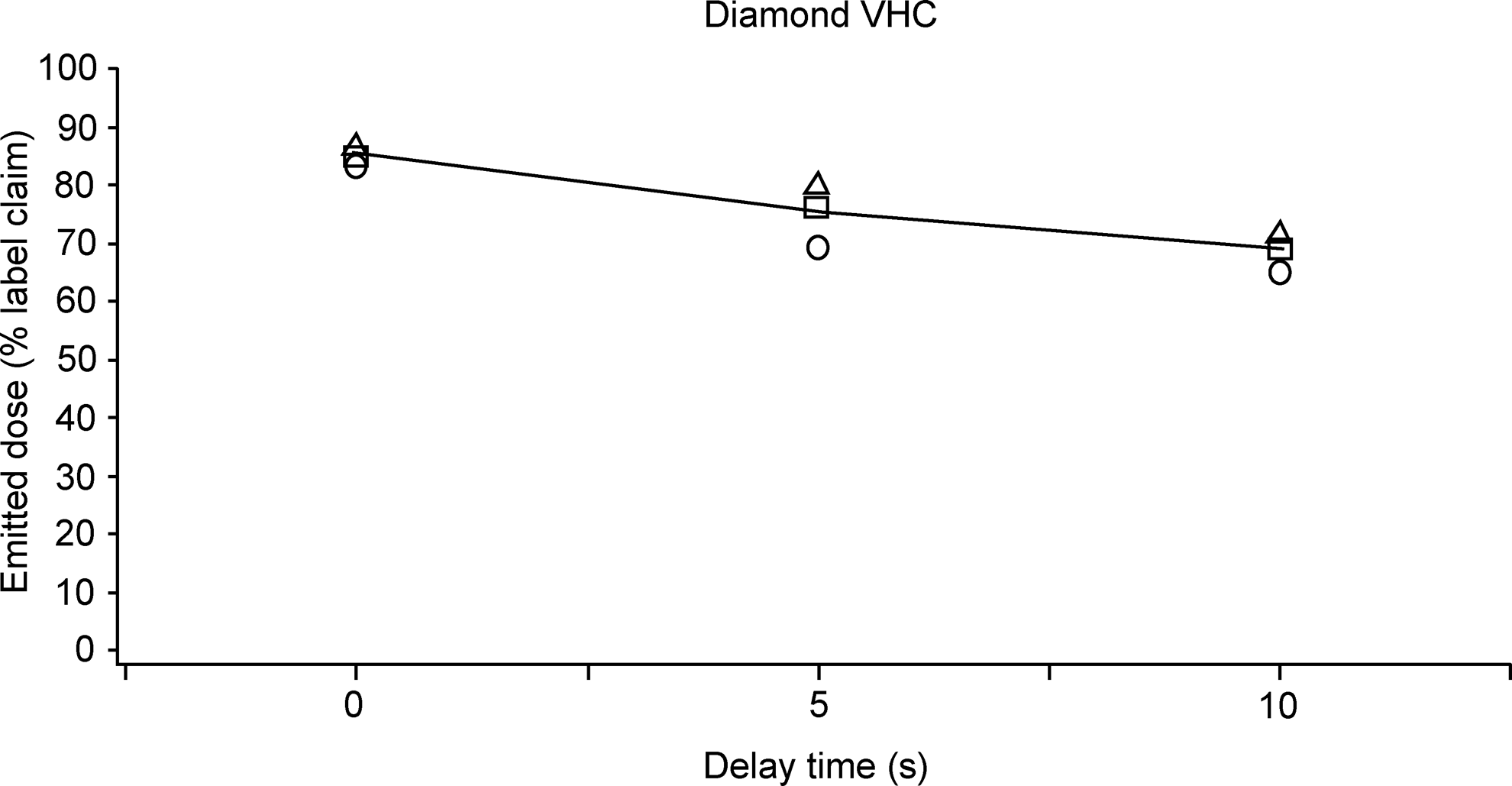

FIG. 3.

Emitted dose, as a percentage of label claim, delivered via the Diamond VHC under each flow rate/inhalation delay combination: ○, emitted dose at 5 L/min; □, emitted dose at 10 L/min; Δ, emitted dose at 30 L/min; −, mean emitted dose across flow rates.

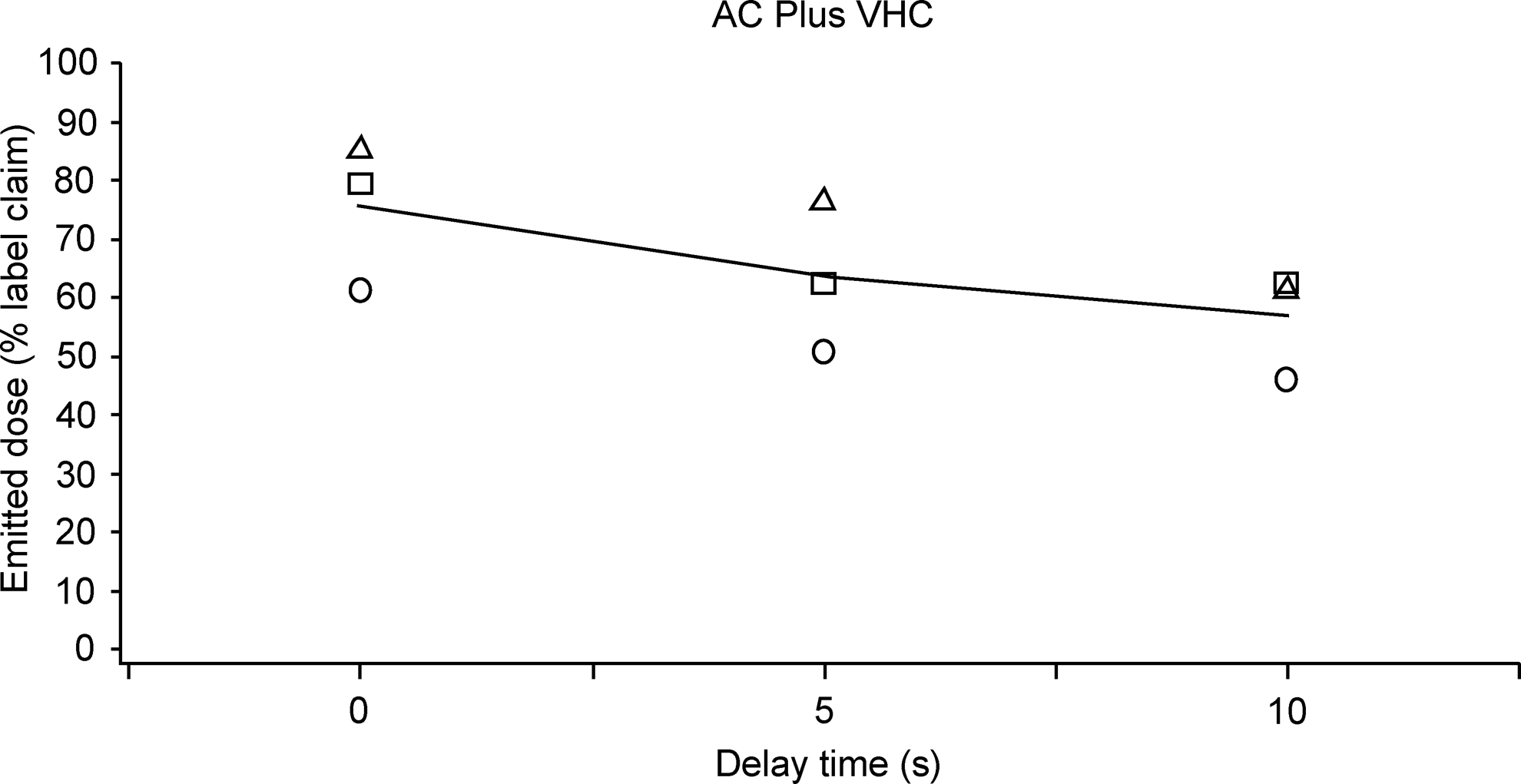

FIG. 4.

Emitted dose, as a percentage of label claim, delivered via the AC Plus VHC under each flow rate/inhalation delay combination: ○, emitted dose at 5 L/min; □, emitted dose at 10 L/min; Δ, emitted dose at 30 L/min; −, mean emitted dose across flow rates.

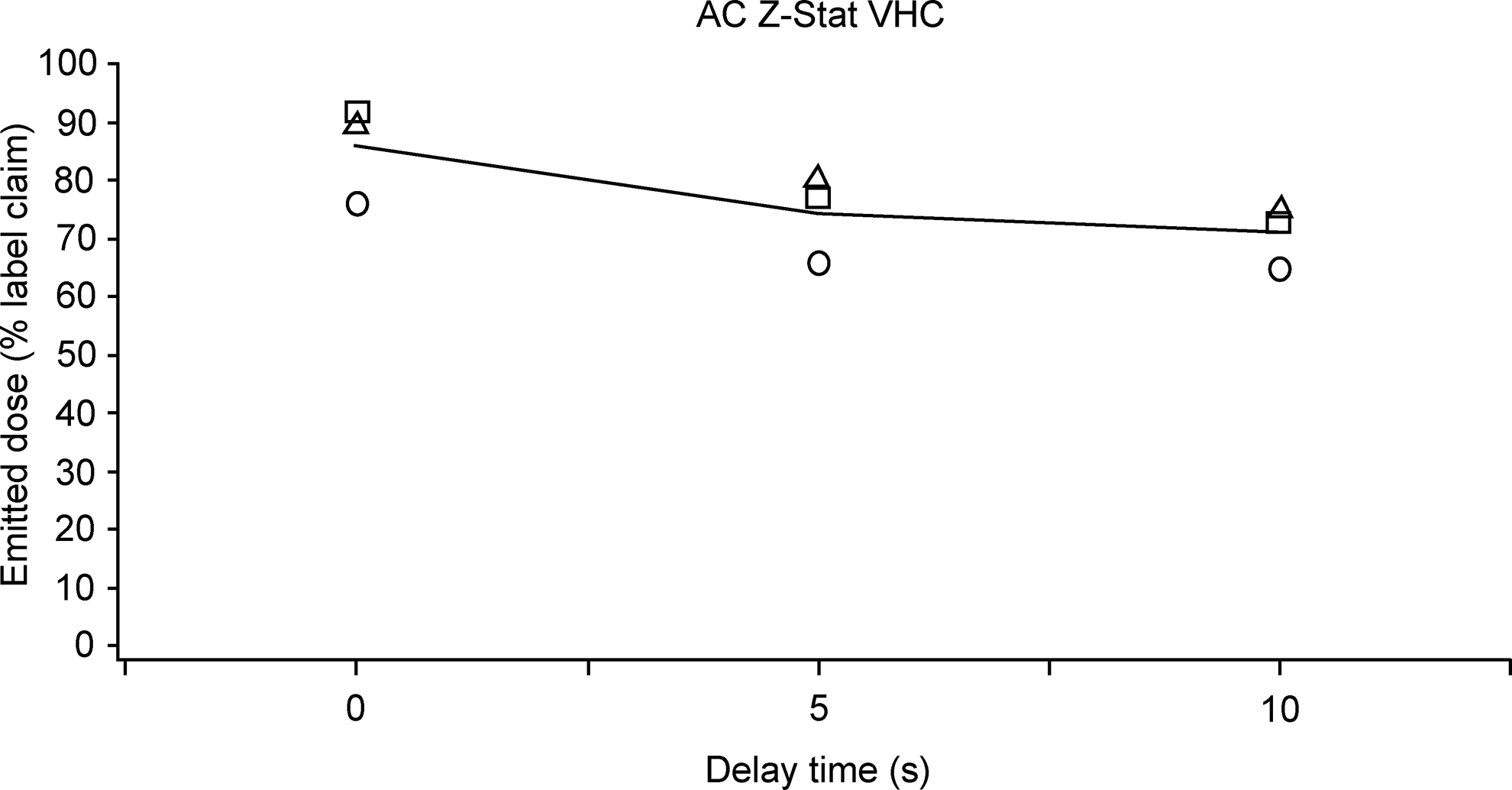

FIG. 5.

Emitted dose, as a percentage of label claim, delivered via the AC Z-Stat VHC under each flow rate/inhalation delay combination: ○, emitted dose at 5 L/min; □, emitted dose at 10 L/min; Δ, emitted dose at 30 L/min; −, mean emitted dose across flow rates.

Table 1.

Mean Emitted Dose (% Label Claim) for Each Test Condition

		Flow rate (L/min)
VHC	Delay (sec)	5	15	30
Diamond	0	83.4	85.2	87.4
Diamond	5	69.5	76.4	80.6
Diamond	10	65.1	69.5	72.0
AC Z-Stat	0	76.1	91.7	90.1
AC Z-Stat	5	66.0	77.1	81.0
AC Z-Stat	10	65.0	72.8	75.5
AC Plus	0	61.4	79.4	85.8
AC Plus	5	50.9	62.5	77.1
AC Plus	10	46.0	62.8	61.9

Table 2.

Percent Estimated Relative Difference in Emitted Dose, 90% Confidence Limits, and P Values by Flow Rate, Inhalation Delay, and VHC Brand

VHC	Flow rate (L/min)
Diamond	5	136	136	141	110	105	100
		125–147	126–148	130–153	101–119	97–114	92–109
		(p<0.0001)	(p<0.0001)	(p<0.0001)	(p=0.0627)	(p=0.2972)	(p=0.9684)
	15	107	122	111	93	99	96
		99–116	113–132	102–120	86–101	91–107	88–104
		(p=0.1504)	(p<0.0001)	(p=0.0367)	(p=0.1371)	(p=0.8494)	(p=0.3518)
	30	102	105	116	97	99	95
		94–111	96–113	107–126	90–105	92–108	88–103
		(p=0.6910)	(p=0.3669)	(p=0.0022)	(p=0.5452)	(p=0.9138)	(p=0.3410)
AC Z-Stat	5	124	130	141
		114–134	120–140	130–153
		(p<0.0001)	(p<0.0001)	(p<0.0001)
	15	115	123	116
		107–125	114–134	107–126
		(p=0.0034)	(p<0.0001)	(p=0.0025)
	30	105	105	122
		97–114	97–114	112–132
		(p=0.3145)	(p=0.3105)	(p<0.0001)
Delay (sec)		0	5	10	0	5	10
VHC		AC Plus			AC Z-Stat

Shaded cells indicate comparisons for which the 90% confidence interval falls within the 85–118% bracket.

There was a positive correlation between emitted dose and flow rate, such that higher flow rates were associated with greater emitted doses. This relationship was more pronounced with the AC Plus VHC, as indicated by the lower emitted dose achieved at 5 L/min flow rate, compared with either the Diamond VHC or the AC Z-Stat VHC, which showed more similarity. The emitted dose was typically reduced when the inhalation delay was increased (Table 1).

Between-VHC brand emitted dose comparisons; 5 L/min

At 5 L/min flow rate, with 0-sec inhalation delay, the CI₉₀ for all between-VHC brand comparisons fell outside the acceptance interval (85–118%); all differences were statistically significant (p<0.05), with the exception of the Diamond VHC versus AC Z-Stat VHC (Table 2). The corresponding CI₉₀ (101–119%) for this comparison was marginally outside the acceptance interval. Overall, the Diamond VHC and the AC Z-Stat VHC delivered a higher emitted dose, compared with the AC Plus VHC. When a 5-sec inhalation delay was incorporated, this pattern changed; a significantly lower dose was delivered via the AC Plus VHC, whereas the antistatic VHCs met the criteria for in vitro equivalence. The CI₉₀ for the comparison of either antistatic VHC with the AC Plus VHC fell outside of the acceptance interval.

When the inhalation delay was increased to 10 sec, the Diamond VHC was again equivalent to the AC Z-Stat VHC. The emitted doses from the antistatic VHCs were significantly greater than those delivered via the conventional AC Plus VHC (Tables 1 and 2).

Between-VHC brand emitted dose comparisons; 15 L/min

At 15 L/min flow rate, following a 0-sec inhalation delay, the dose emitted via the Diamond VHC and AC Z-Stat VHC met the criteria for in vitro equivalence. Emitted dose was also equivalent for the Diamond VHC versus the AC Plus VHC (Table 2).

Following a 5-sec inhalation delay, emitted dose delivered using the AC Plus VHC was lower than that delivered via the two antistatic VHCs. The two antistatic VHCs met the criteria for in vitro equivalence. In contrast, there was a significant difference between the dose emitted from the Diamond VHC versus the AC Plus VHC, and the AC Z-Stat VHC versus the AC Plus VHC.

Following a 10-sec inhalation delay, the Diamond VHC versus AC Plus VHC, and AC Z-Stat VHC versus AC Plus VHC, showed a significant difference and had corresponding CI₉₀ values that fell outside of the acceptance interval. The Diamond VHC versus AC Z-Stat VHC did not differ significantly, and therefore showed in vitro equivalence.

Between-VHC brand emitted dose comparisons; 30 L/min

When a 30 L/min extraction flow rate with 0-sec delay was used, none of the pairwise comparisons differed significantly. Given that all pairwise comparisons had CI₉₀ values that fell within the acceptance interval, under these in vitro conditions, the three VHCs can be considered equivalent. Similarly, in the presence of a 5-sec inhalation delay, none of the pairwise comparisons had a CI₉₀ that approached statistical significance.

With a 10-sec inhalation delay, only the comparison of the Diamond VHC with the AC Z-Stat VHC demonstrated in vitro equivalence. The remaining comparisons showed statistically significant differences and had CI₉₀ values that fell outside of the acceptance interval. Thus, of the VHCs tested, at 30 L/min flow rate, only the Diamond VHC versus the AC Z-Stat VHC showed in vitro equivalence, regardless of the inhalation delay tested.

Effect of inhalation delay on emitted dose

Emitted dose correlated negatively with inhalation delay at each of the flow rates tested (Figs. 3–5). Between-VHC comparisons across the different inhalation delay/flow rate conditions indicated that the AC Z-Stat VHC and the Diamond VHC performed comparably. In addition, both the AC Z-Stat VHC and the Diamond VHC were relatively unaffected by changes to flow rate and inhalation delay, compared with the conventional AC Plus VHC. Variability in emitted dose was also lower with the AC Z-Stat VHC and the Diamond VHC, compared with the AC Plus VHC.

Discussion

For the purpose of this study, emitted dose was considered to be representative of the dose of albuterol available to inhalation. The variables included in this article were intended to represent drug delivery under a range of clinically relevant conditions. The results showed equivalence for the Diamond VHC with the predicate device, the AC Z-Stat VHC.⁽¹⁶⁾

Emitted dose was representative of the dose of drug available to inhalation via each VHC, when ProAir HFA was used under the conditions tested. Our results indicated that for all three VHCs, the emitted dose was reduced when the length of the inhalation delay increased. This supports the need for some degree of coordination, regardless of VHC use. For all VHCs, irrespective of extraction flow rate, the emitted dose after 10-sec inhalation delay was approximately 80% of that delivered when no inhalation delay was incorporated.

The emitted dose increased with flow rate, and the relative increase was similar between inhalation delays, but different between VHCs. For both the Diamond VHC and the AC Z-Stat VHC, the emitted dose increased by 10–20% when the extraction flow increased from 5 to 30 L/min; for the “static” AC Plus VHC, the corresponding increase was approximately 40%.

Only the Diamond VHC and the AC Z-Stat VHC consistently fulfilled the±15% acceptance interval criteria for in vitro equivalence, across inhalation delays and flow rates, with a marginal exception for the 5 L/min results with 0-sec inhalation delay. Given that these were the only two antistatic VHCs in the experimental protocol, this was not surprising. At the higher flow rate of 30 L/min, and when inhalation delay was short (5 sec) or absent (0 sec), a greater number of pairwise VHC comparisons demonstrated performance equivalence in terms of emitted dose. This implies that the conventional AC Plus VHC can deliver a dose that is comparable to those of antistatic VHCs only under the more favorable conditions of shorter inhalation delays and higher flow rates.

Although the AC Plus VHC was washed prior to use in the study, it is plausible that the VHC material, which is more susceptible to the development of static charge, may confer a greater vulnerability to differences in conditions of use, such as flow rate and inhalation delay. It is well-established that, when a large number of doses are administered via a conventional VHC, the static charge on the VHC declines.⁽⁹⁾ This effect is known as VHC priming. In the present study, 10 consecutive actuations were performed. It is possible that this aspect of the study design would produce results that would minimize the issues associated with the use of conventional VHCs, due to the mitigating effect of coating the internal surface of the VHC with aerosol.

The respirable proportion of the emitted dose, and the proportion that would impact in the oropharynx, were not determined in the present study. Previous work using radiolabeled aerosol established that “low” flow rates (30 L/min) can achieve more favorable lung deposition, whereas higher flow rates (90 L/min) were associated with greater degrees of oropharyngeal impaction.⁽¹²⁾ A low flow rate of 30 L/min was found to be optimal, consistent with the work presented here. It is therefore unlikely that the emitted dose would consist of predominantly nonrespirable aerosol.

Conclusions

This article has reported the results of an in vitro investigation into the effect of inhalation delays, and clinically relevant flow rates, on the delivery of albuterol via different types (conventional or antistatic) and brands of VHC. The results indicated that the emitted dose increased with flow rate and decreased with longer inhalation delays. Flow rate dependence was similar for the two antistatic VHCs, the Diamond VHC and the AC Z-Stat VHC, and was less pronounced than that observed with the “static” VHC, the AC Plus VHC. For all VHCs tested, the emitted dose was reduced by approximately 20% as the inhalation delay was extended from 0 to 10 sec. In conclusion, the two antistatic VHCs, the Diamond VHC and the AC Z-Stat VHC, show equivalence in terms of the emitted dose of ProAir HFA, delivered across a range of flow rates, and using different inhalation delays; this equivalence fulfills the±15% acceptance interval criteria for in vitro equivalence.
