Abstract
Aims:
Bone is the most frequent site of prostate cancer (PCa) metastasis. Tumor cells interact with the bone microenvironment interrupting tissue balance. Heme oxygenase-1 (HO-1; encoded by Hmox1) appears as a potential target in PCa maintaining the cellular homeostasis. Our hypothesis is that HO-1 is implicated in bone physiology and modulates the communication with PCa cells. Here we aimed at (i) assessing the physiological impact of Hmox1 gene knockout (KO) on bone metabolism in vivo and (ii) determining the alterations of the transcriptional landscape associated with tumorigenesis and bone remodeling in cells growing in coculture (PCa cells with primary mouse osteoblasts [PMOs] from BALB/c Hmox1 +/+, Hmox1 +/−, and Hmox1 −/− mice).
Results:
Histomorphometric analysis of Hmox1 −/− mice bones exhibited significantly decreased bone density with reduced remodeling parameters. A positive correlation between Hmox1 expression and Runx2, Col1a1, Csf1, and Opg genes was observed in PMOs. Flow cytometry studies revealed two populations of PMOs with different reactive oxygen species (ROS) levels. The high ROS population was increased in PMOs Hmox1 +/− compared with Hmox1 +/+, but was significantly reduced in PMOs Hmox1 −/−, suggesting restrained ROS tolerance in KO cells. Gene expression was altered in PMOs upon coculture with PCa cells, showing a pro-osteoclastic profile. Moreover, HO-1 induction in PCa cells growing in coculture with PMOs resulted in a significant modulation of key bone markers such as PTHrP and OPG.
Innovation and Conclusion:
We here demonstrate the direct implications of HO-1 expression in bone remodeling and how it participates in the alterations in the communication between bone and prostate tumor cells.
Introduction
Prostate cancer (PCa) is the second-most frequently diagnosed cancer and the fifth leading cause of cancer-related deaths in men worldwide (5a). PCa progression is dominated by a constant tumor adaptation (32, 40). The acquisition of resistance to androgen deprivation therapy coincides with PCa bone metastases in most cases, indicating the presence of a bone/epithelial interaction that drives organ-specific progression. Bidirectional interaction between bone cells and PCa cells suggests that not only growth factors derived from the tumor can affect bone cells but also that cells from the bone microenvironment stimulate metastatic tumor growth (32, 37, 62).
Bone is a mineralized connective tissue that has four main cell types: osteoblasts, bone “lining” cells, osteocytes, and osteoclasts (14). This tissue has important functions such as locomotion, support and protection of soft tissues, calcium and phosphate reservoir, and bone marrow shelter (12, 52). Bone is a highly dynamic organ that is continuously degraded by osteoclasts and regenerated by osteoblasts (5, 9, 33, 56).
Osteoblasts are responsible for bone formation, synthesizing and secreting proteins to form the osteoid, which will then be mineralized and converted to mature bone (11). These cells derive from mesenchymal stem cells (MSCs), which can also be differentiated to other cell types, including adipocytes and chondrocytes (51). The commitment of MSCs toward a lineage of bone progenitor cells requires the expression of specific genes, followed by temporarily programmed steps that include the synthesis of bone morphogenetic proteins (BMPs) and members of the Wnt pathway (18). The expression of Runt-related transcription factor 2 (Runx2), Dlx5, and Osx is crucial for osteoblast differentiation (7, 64).
Innovation
Advanced prostate cancer exhibits bone dissemination as the preferable site for metastasis accompanied by an average survival of ∼40 months. Bone metastases are incurable and only palliative treatments are available. Our results showcase for the first time the direct effect of the heme oxygenase-1 gene (Hmox1 gene) on bone turnover and remodeling and demonstrate that its modulation on both prostate tumor cells and bone cells changes their communication altering the tumoral bone niche. A better understanding of how these processes influence the early onset of bone metastasis can shed light into more tailored therapies.
Osteoclasts are differentiated multinucleated cells that originate from mononuclear cells of hematopoietic stem cell lineage, under the influence of several factors (25). These factors include the macrophage colony stimulating factor (M-CSF or CSF-1), secreted by bone progenitor mesenchymal cells and osteoblasts, and RANKL (receptor activator for nuclear factor κ B ligand), secreted by osteoblasts, osteocytes, and stromal cells (42). The RANKL/RANK (receptor activator for nuclear factor κ B)/OPG (osteoprotegerin) axis is the main mediator of osteoclastogenesis (49).
The bone remodeling process is a highly complex cycle that is carried out by the concerted action of the cell types described above (52). Systemic factors for bone homeostasis maintenance include parathyroid hormone (PTH), calcitonin, 1,25-dihydroxy vitamin D3 (calcitriol), glucocorticoids, androgens, and estrogens (6, 36, 59, 70). PTH-related protein (PTHrP), which also binds to the PTH receptor, has been reported to influence bone remodeling (6).
PCa cell bone affinity may owe to the expression of genes that predispose cells to lodge in the bone marrow, although it is also possible that these cells acquire osteomimetic properties after being located within the bone compartment. Once in the bone, disseminated tumor cells or their progeny may have osteoblastic, osteoclastic, or both effects (13, 54). Metastatic tumor cells are not the only ones responsible for inducing bone destruction/formation. This process mainly involves osteoblasts and osteoclasts. PTHrP, interleukin (IL)-1, IL-6, and prostaglandin E2 (PGE2) can regulate the osteoblast production of RANKL/OPG and modulate osteoclast activation (44).
The concept that there are basically two types of bone metastases—osteoblastic or osteoclastic—might be too simplistic. The processes of resorption and bone formation are usually linked or coupled. There is plenty of evidence that both processes are activated in the majority of bone metastases (44).
Reactive oxygen species (ROS) can cause severe tissue damage due to the accumulation of changes in vital macromolecules. Currently, the mechanisms by which cells sense pro-oxidant states and activate signaling pathways to counteract changes are not completely known. However, the expression of heme oxygenase (HO) family enzymes (heme catabolizers) is a well-preserved strategy throughout evolution to counteract ROS (39).
HO-1 is a 32 kDa protein inducible through a variety of stimuli, including ROS and inflammatory cytokines (46). It is well known that inflammation favors PCa and its progression (41). Proinflammatory factors secreted by PCa and bone cells and the subsequent release of bone matrix factors mediate the paracrine/autocrine interaction between PCa cells, osteoblasts, and osteoclasts, ultimately determining the bone phenotype and PCa progression (15, 22). Oxidative stress is a natural consequence of the inflammatory process and acts as a modulator for the mineralized tissue function (63).
We previously demonstrated that HO-1 participates in PCa bone metastasis, restoring osteoblast proliferation (16), which was shown to be significantly inhibited by coculturing PC3 cells with primary mouse osteoblasts (PMOs) (67). We also found that HO-1 is capable of modulating signaling pathways relevant to bone metastasis, such as FoxO/β-catenin, and promotes bone remodeling when tumor cells are transplanted into the femur of SCID mice (16). More recently, we reported that HO-1 modulates cellular adhesions in PCa, increasing E-cadherin and β-catenin levels and its subsequent relocation to the plasma membrane, favoring a more epithelial phenotype (21).
We also reported that HO-1 induction alters the expression of different cytoskeletal genes and is associated with key factors that induce the remodeling of actin filaments in the filopodia, increasing adhesion and decreasing PCa cell invasiveness (48). However, the effect of HO-1 deficiency in the bone physiology and in the communication between PCa cells and cells of the bone stroma is yet to be fully explored.
Here, we thoroughly describe the direct effect of heme oxygenase-1 gene (Hmox1) total, partial, or absent expression in impairing bone turnover and remodeling. We further established coculture system models of human PCa cells with PMOs from Hmox1 transgenic mice, and delineated a set of osteoblastic and osteolytic genes (PTHrP, OPG, and RANKL) and analyzed how HO-1 expression levels affected this signature.
Results
Morphological, genetic, and physiological characterization of bone from knockout Hmox1 mice
We have previously used a coculture system of PC3 cells with PMOs to show that the decrease in PMO proliferation induced by tumor cells was restored when these cells were treated with hemin, a specific pharmacological inducer of HO-1. Hemin treatment increased the expression of DKK1 (inhibitor of Wnt/β-catenin pathway in bone remodeling) in cocultured PC3 cells, redirecting β-catenin toward the FoxO pathway in osteoblasts and activating the transcription of factors involved in counteracting oxidative stress. In addition, the intrabone inoculation of PCa cells overexpressing HO-1 (PC3HO-1) produced a robust bone remodeling (16). These findings suggested that HO-1 plays a key role in the control of inflammation, oxidative stress, and angiogenesis, which in turn altered the tumor microenvironment impacting on PCa bone progression.
In this work, we evaluated by histomorphometric analysis of femurs from male BALB/c Hmox1 +/+ (wild-type [WT]); Hmox1 +/− (heterozygous [Het]); Hmox1 −/− (knockout [KO]) mice, the involvement of HO-1 on bone remodeling. We also investigated the role of HO-1 deficiency in the communication through released soluble factors between osteoblasts and prostatic cancer cells, using a coculture system of PMOs isolated from the calvaria of the Hmox1 transgenic animals and PC3 cells.

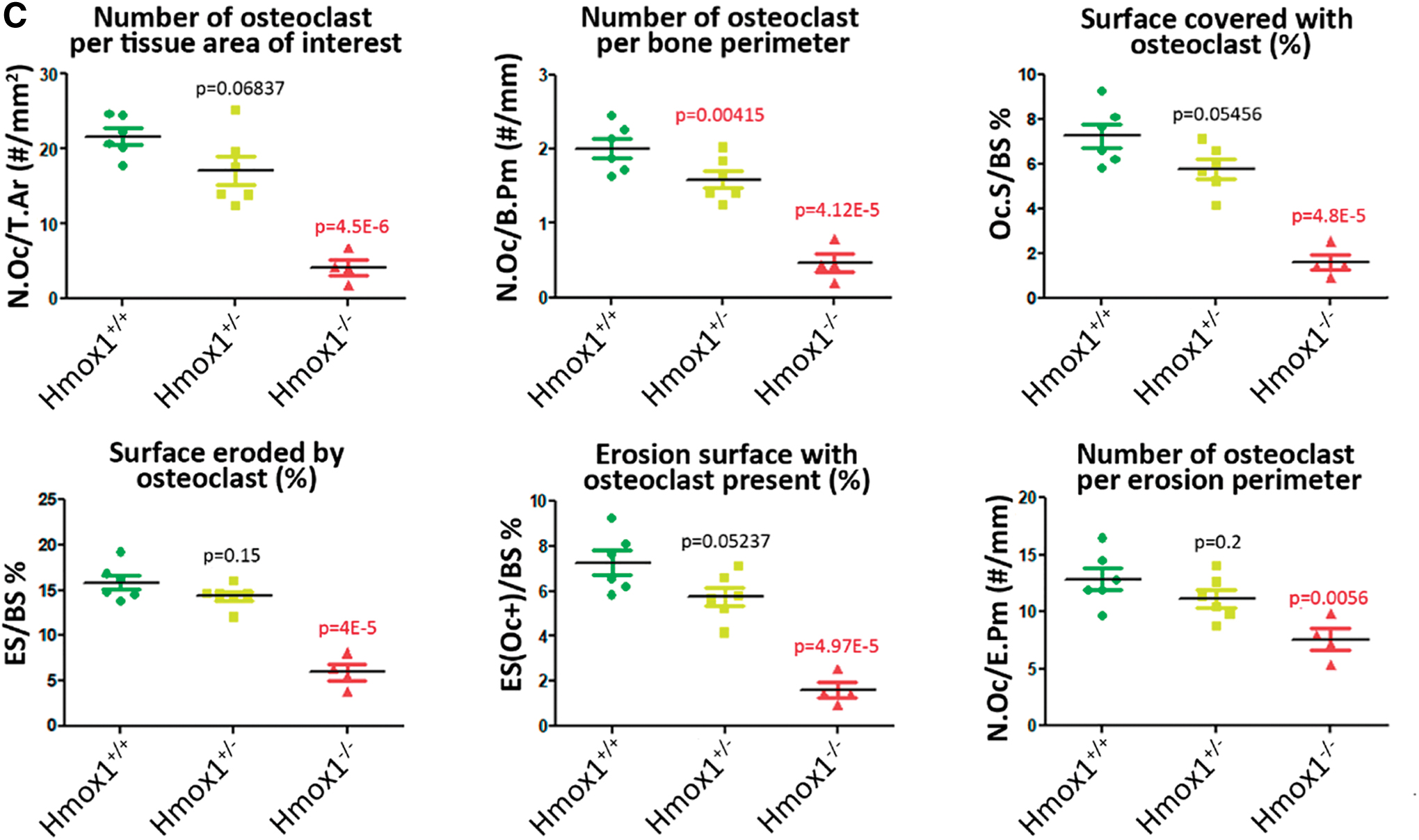

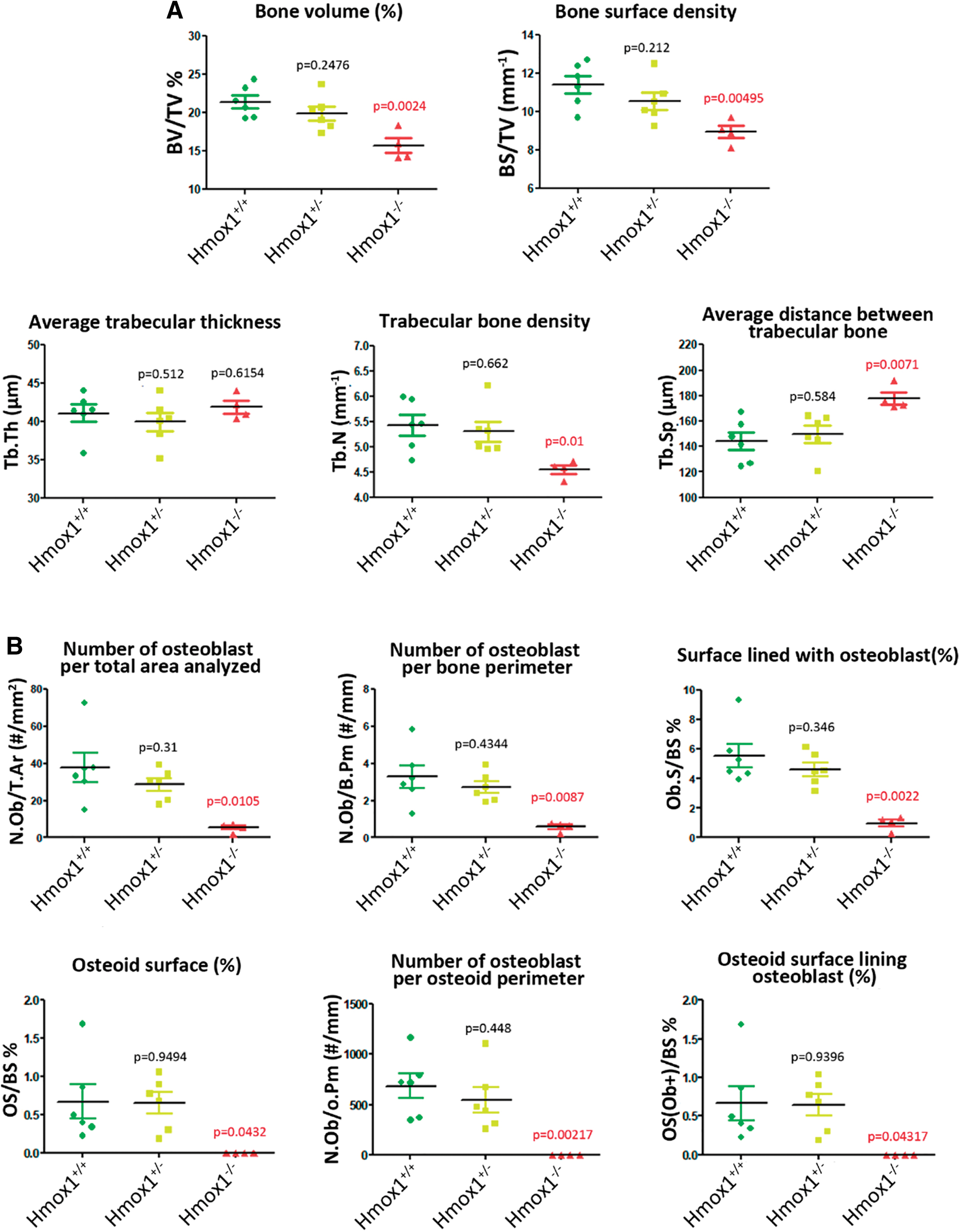

Histomorphometric analysis of femurs of the different groups was carried out to characterize the animal model and evaluate whether the different genetic backgrounds resulted in alterations in the physiology and, therefore, in the morphology of the bone tissue. Our results showed a significant decrease in bone volume, bone density, and trabecular bone density, with an increase in the average distance between trabeculae, in the Hmox1 −/− versus Hmox1 +/+ animals (Figs. 1 and 2A). In agreement with these results, a reduction was also seen in all the static parameters of bone formation, with a total loss of the osteoid surface (OS; used as a bone neoformation parameter), consistent with a reduction in the number of osteoblasts (Figs. 1A and 2B). Accordingly, a decrease in osteoclast number was observed, and the consequent reduction of the static resorption parameters (Figs. 1B and 2C).

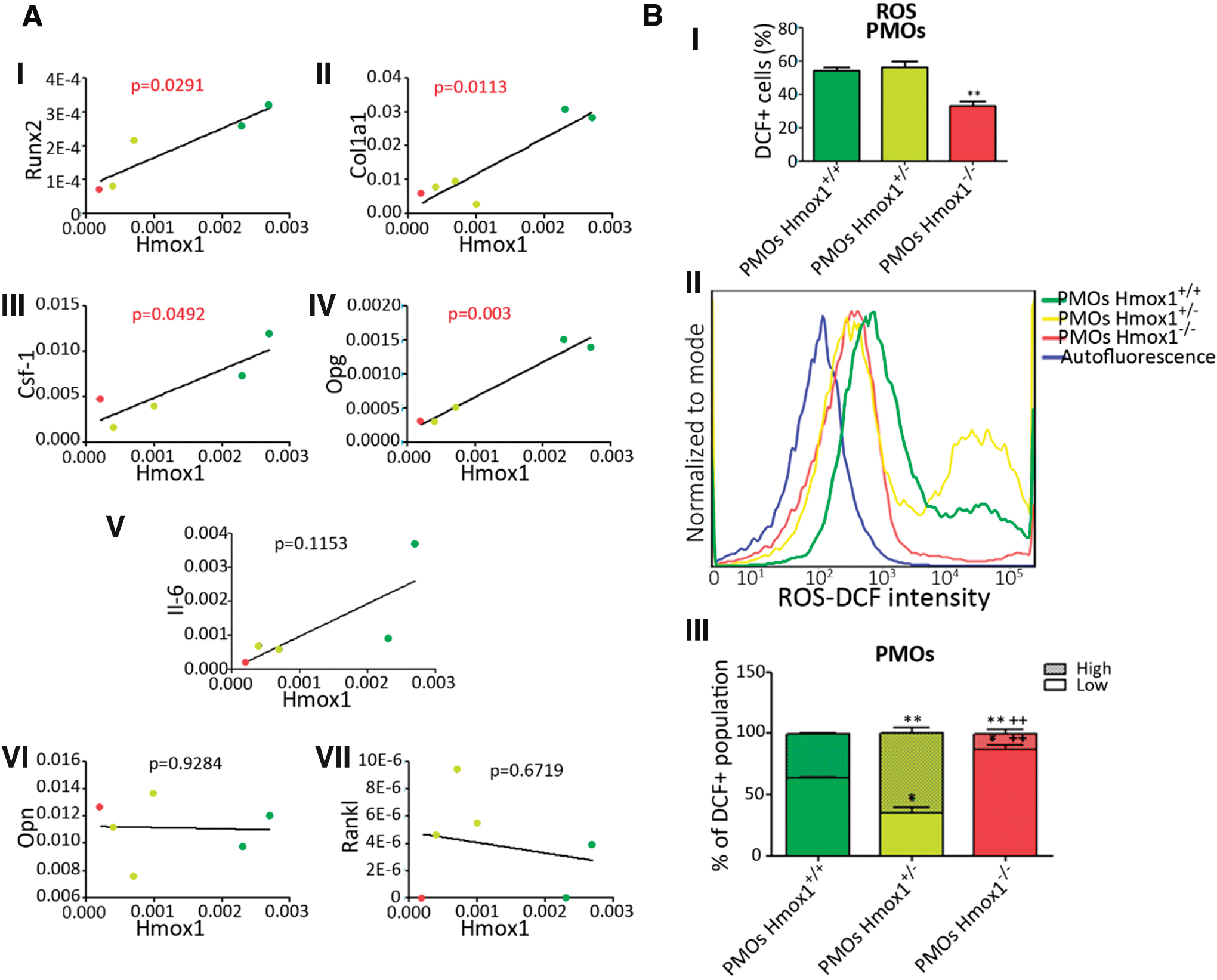

Considering the differences observed at the morphological level, we next sought to evaluate if these alterations could be explained by changes in the expression of genes related to bone metabolism. For this purpose, PMOs were isolated from the calvaria of the Hmox1 +/+, Hmox1 +/−, and Hmox1 −/− animals, and the expression of genes involved in bone physiology was analyzed by real-time quantitative polymerase chain reaction (RT-qPCR). We found a direct correlation between expression levels of Hmox1 and genes such as Runx2—osteoblast early differentiation associated gene—Col1a1—involved in the deposition of the collagen matrix—and Csf-1, Opg—secretion proteins that modulate osteoclast differentiation/activation (Fig. 3A). Other critical molecules involved in the activation and function of osteoclasts, such as Opn—mediates osteoclast adhesion for bone resorption—Il-6—osteoclast differentiation/activation modulator—and Rankl—osteoclast differentiation factor, showed a behavioral pattern independent of Hmox1 levels (Fig. 3A).
It was previously reported that HO-1 confers cytoprotection against inflammation and oxidative stress in several animal models (20). Oxidative stress is a natural consequence of the inflammatory process and acts as a modulator of the function of mineralized tissues (63). This impacts bone formation by inhibiting osteoblast differentiation and by promoting apoptosis (2). These effects are mediated, in part, by ROS generated in the context of oxidative stress. Taking this into account, we next evaluated ROS levels in PMOs obtained from Hmox1 +/+, Hmox1 +/−, and Hmox1 −/− mice by flow cytometry (Fig. 3B). A lower percentage of DCF+ cells in the Hmox1 −/− PMOs were observed when compared with those from the Hmox1 +/+ or Hmox1 +/− animals (Fig. 3B.I). When analyzing the frequency distribution for the DCF signal intensity (Fig. 3B.II), we identified two cell populations: “High” and “Low.” In addition, the “Low” population of Hmox1 +/− and Hmox1 −/− cells had a slightly lower fluorescence intensity compared with Hmox1 +/+ PMOs. On the contrary, the “High” populations had the same intensity, but the frequency was higher in Hmox1 +/− PMOs when compared with the Hmox1 +/+ PMOs. The frequency of cells in the “High” population for the Hmox1 −/− PMOs was barely present (Fig. 3B.III). Overall, these results might suggest that in the PMOs from the Hmox1 heterozygous animals, the increase in the “High” population might be due to the fact that these cells had fewer copies of Hmox1 (compared with WT animals), and therefore, a decreased ability to maintain redox homeostasis. In addition, in the case of Hmox1−/− PMOs, a striking decrease in the “High” population was observed, indicating that HO-1 loss might establish a maximum limit in ROS level tolerance for these cells. However, we cannot discard the possibility that the imbalance in the antioxidant state, produced as a consequence of Hmox1 loss, could trigger the activation of other antioxidant pathways.
Role of Hmox1 expression in osteoblasts upon interaction with PCa cells
Given the morphological, physiological, and genetic differences observed in the bones of animals with the different Hmox1 genetic backgrounds, we next analyzed the effect of the coculture of PC3 cells (pretreated or not with hemin, specific HO-1 chemical inducer) with PMOs isolated from Hmox1 +/+, Hmox1 +/−, and Hmox1 −/− animals to understand the relevance of HO-1 in bone metastases.

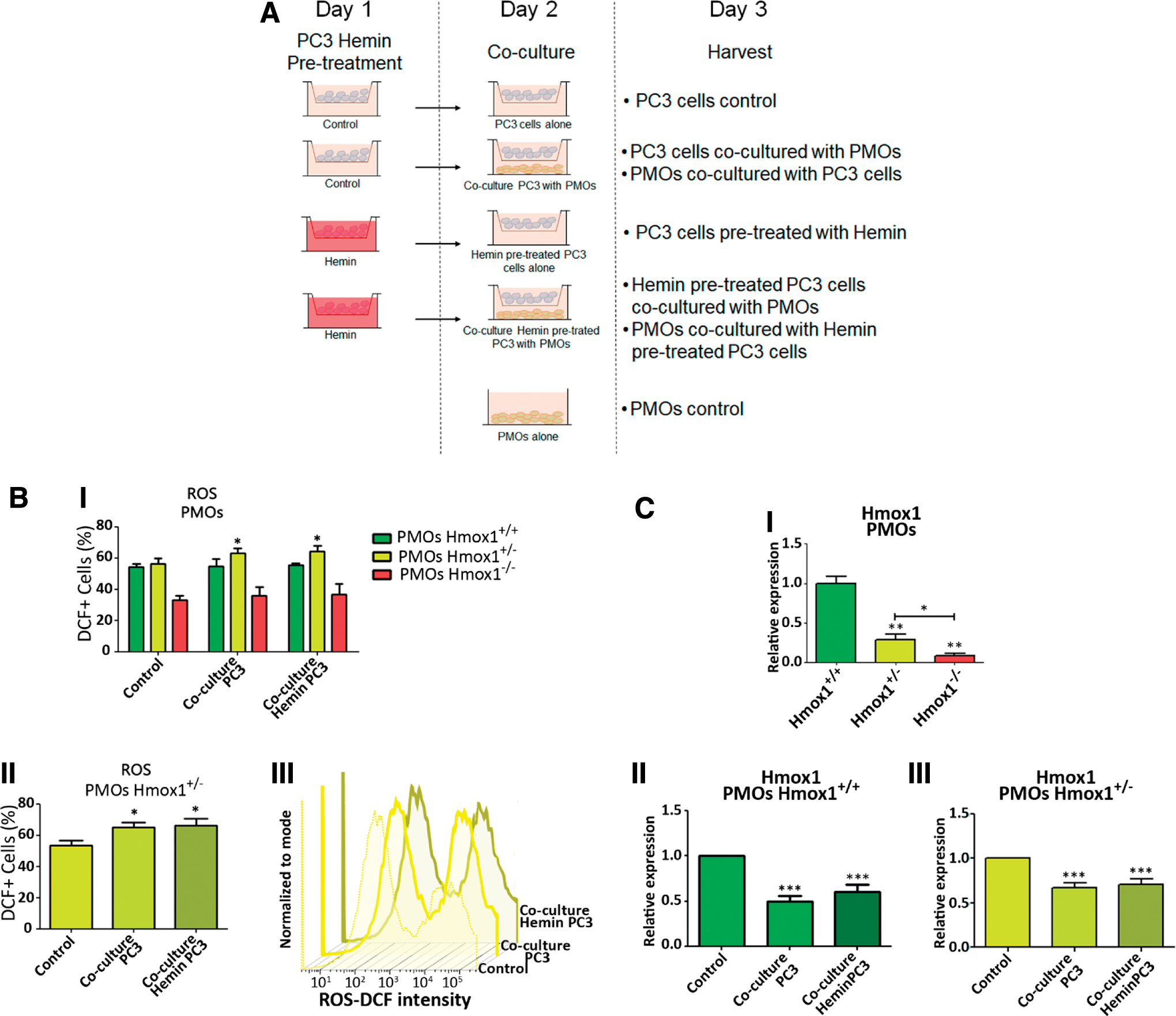

First, we compared ROS levels in PMOs from the three groups of animals between the different coculture conditions (Fig. 4A). Only the Hmox1+/ − PMOs showed an increase in the percentage of DCF+ cells when cocultured with PCa cells, whether they were pretreated or not with hemin (Fig. 4B). Considering the results from Figures 3B and 4, the stressor effect generated by the presence of PCa cells was evident only in Hmox1+/ − PMOs due to the diminished regulatory capacity. It is possible given that Hmox1 levels are lower in Hmox1+/ − compared with WT animals, this decrease in Hmox1 expression may have more significant consequences, evidenced by increased ROS levels in these cells.
Taking into consideration that a decrease in Hmox1 levels is also seen in WT animals, this reduction in Hmox1 net levels may not be as lower as in Hmox1+/ − animals, and hence may be sufficient enough to counteract oxidative stress. The next step was to evaluate Hmox1 gene expression in the coculture system. Messenger RNA (mRNA) levels of Hmox1 in both the Hmox1 +/+ and Hmox1 +/− PMOs were negatively modulated upon coculture with PC3 cells (pretreated or not with hemin) (Fig. 4C.II, III). Given that Hmox1 expression levels in PMO KO were extremely low (Fig. 4C.I), RT-qPCR quantification for this gene in PMO KO cocultured with PC3 cells was not sensitive enough for an accurate Hmox1 determination.

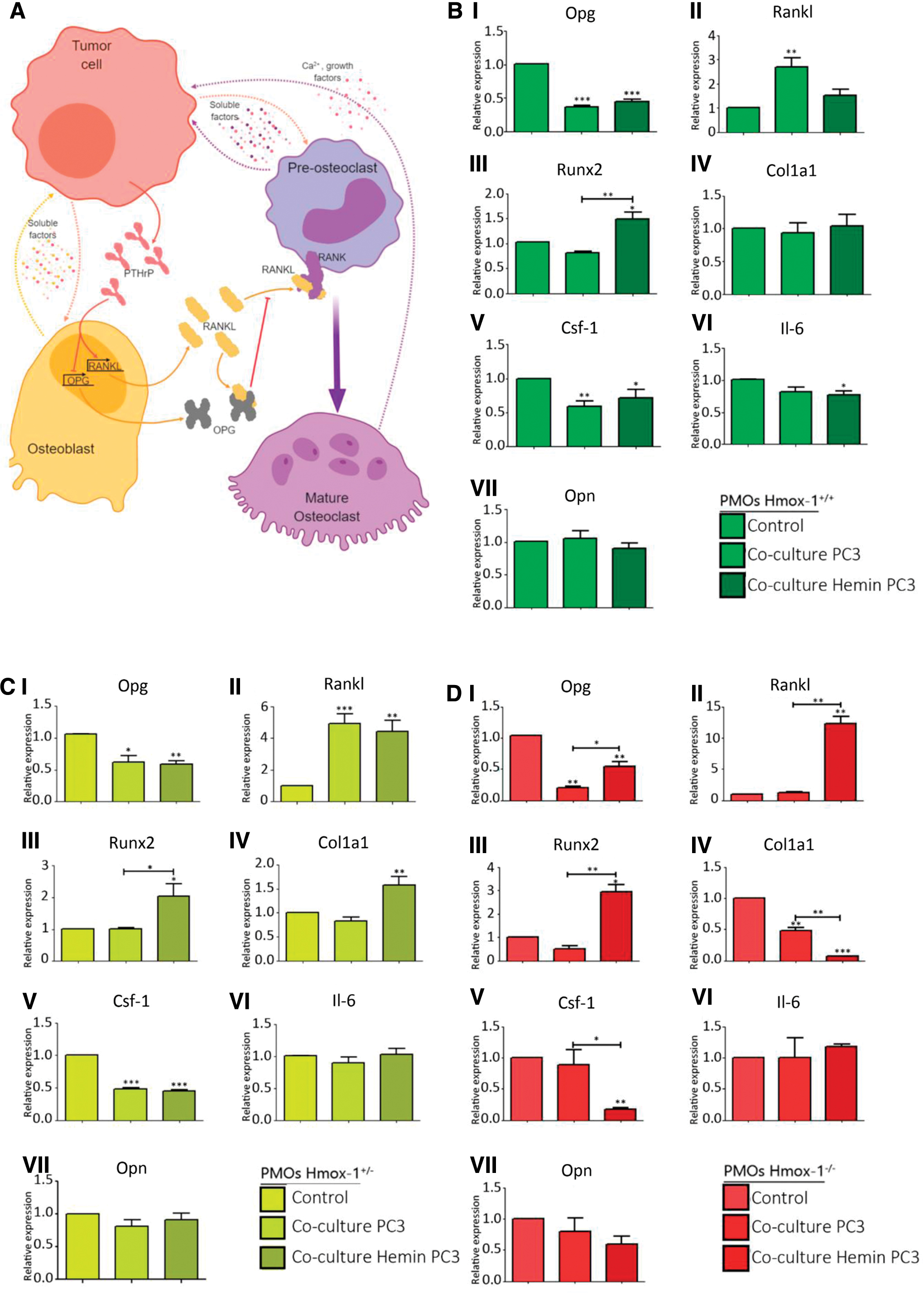

When analyzing the coculture effect on the expression of bone remodeling genes (Fig. 5A) in the Hmox1 +/+ PMOs, we found that the presence of tumor cells had a negative impact on Opg and Csf-1 expression, and this effect was maintained when PCa cells were pretreated with hemin (Fig. 5B–D). Furthermore, Rankl expression was positively regulated by the coculture (Fig. 5). This increase in addition to the decrease in Opg would cause an imbalance in the Rankl/Opg ratio that might favor the osteoclast activation in the bone microenvironment (Fig. 5A). Although hemin pretreatment of tumor cells had no further effect on Opg expression in Hmox1 +/+ PMOs after coculture, it was able to prevent the increase in Rankl expression. In line with this, the coculture with PCa cells pretreated with hemin induced an increase in the expression of Runx2 in Hmox1 +/+ PMOs (Fig. 5B), leading toward a less pro-osteoclastic profile. Other genes such as Il-6 suffered a small decrease, which was only significant compared with the coculture with PC3 cells pretreated with hemin (Fig. 5B). Col1a1 and Opn were not affected in any of the assayed conditions (Fig. 5B).
Regarding Opg, Runx2, Csf-1, and Opn expression in Hmox1 +/− PMOs (Fig. 5C), we observed the same effect described for Hmox1 +/+ PMOs. These results suggest that the response is not affected by Hmox1 basal levels in bone cells. Moreover, even in Hmox1 −/− PMOs, the coculture effects on Opg, Runx2, and Opn expression are preserved, whereas the expression of Csf-1 is only affected by the presence of tumor cells pretreated with hemin (Fig. 5D). The loss of Hmox1 avoided the effect of the coculture on Il-6 expression, evidenced by the lack of changes in Hmox1 +/− and Hmox1 −/− PMOs, under the tested conditions (Fig. 5C, D). Conversely, an increase in Col1a1 expression was evident in Hmox1 +/− PMOs when cocultured in the presence of hemin pretreated PC3 cells (Fig. 5C). This change in Col1a1 expression could be evidenced in Hmox1 +/− PMOs due to the lower basal levels of this gene with respect to Hmox1 +/+ PMOs. In the case of Hmox1 −/− PMOs, both experimental conditions led to a decrease in the expression of Col1a1 (Fig. 5D), showing a change in the coculture effect due to the lack of HO-1 in PMOs.
Although the increase in Rankl expression due to the coculture effect with PCa cells is still observed in Hmox1 +/− PMOs (Fig. 5C), the coculture with hemin pretreated tumor cells was not able to prevent Rankl induction, as observed in Hmox1 +/+ PMOs. On the contrary, the coculture with PCa cells was not able to induce the expression of Rankl in osteoblasts lacking Hmox1, while the presence of hemin pretreated tumor cells caused a significant overexpression of Rankl in Hmox1 −/− PMOs (Fig. 5D). These results imply that the coculture effect on Rankl expression is modulated by HO-1 not only in the tumor cell but also in the osteoblast.

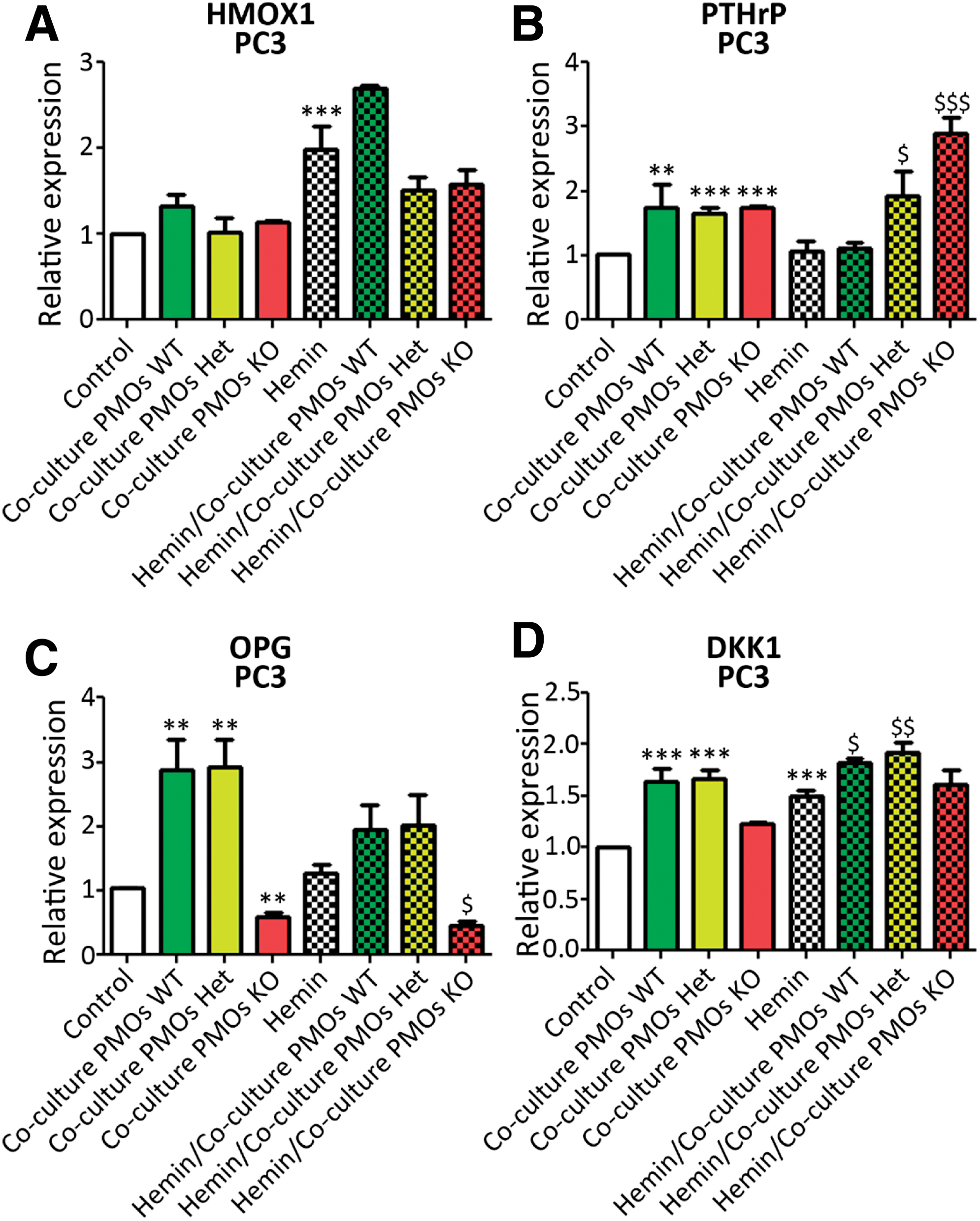

In the same way, the effect of the coculture was assessed in PCa cells. First, HMOX1 levels were measured, resulting in no significant alteration when the tumor cells were cocultured with the PMOs (Fig. 6A). When tumor cells were pretreated with hemin, the induction of HMOX1 was maintained in comparison with the coculture with Hmox1 +/+ PMOs, while the coculture with both Hmox1 +/− and Hmox1 −/− PMOs partially reversed the effect of the hemin pretreatment on HMOX1 levels in the PCa cells (Fig. 6A).
As previously mentioned, PTHrP can be produced by tumor cells with implications not only for the tumor cell but for bone physiology as well (44). Under our experimental conditions, PTHrP expression was increased in PC3 cells cocultured with PMOs, independent of the genotype (Fig. 6B). Hemin pretreatment was able to prevent the induction of PTHrP in the coculture with Hmox1 +/+ PMOs. This preventive capacity of hemin pretreatment was not only lost when tumor cells were cocultured with Hmox1 +/− PMOs but also enhanced the coculture effect when tumor cells were grown in the presence of Hmox1 −/− PMOs (Fig. 6B).
The PC3 cells express OPG (27). As observed for PTHrP, OPG expression increased in tumor cells that had been cocultured with Hmox1 +/+ or Hmox1 +/− PMOs, and this effect was prevented by hemin pretreatment (Fig. 6C). Besides, the coculture with Hmox1 −/− PMOs negatively affected the expression of OPG in the tumor cells, independently of whether they had been pretreated with hemin (Fig. 6C).
In the case of DKK1, a critical factor in bone remodeling, acting as an inhibitor of the Wnt/β-catenin pathway (45), its expression was upregulated in tumor cells cocultured with Hmox1 +/+ or Hmox1 +/− PMOs, but not when cocultured with Hmox1 −/− PMOs (Fig. 6D).
In summary, hemin pretreatment modulated the response of tumor cells to the coculture with the PMOs, and this modulation was different depending on the PMO Hmox1 genetic background. This clearly suggests that the HO-1 level in the PMOs is not only important for their physiology but is also relevant for their interaction with the tumor cells.
Discussion
Bone is a dynamic tissue that undergoes homeostatic remodeling mediated by the balanced activities of osteoblasts and osteoclasts (34). HO-1 plays a critical role in the physiology of this process (34, 55, 61). HO-1 was shown to maintain bone mass during physiological bone remodeling (34).
The histomorphometric analysis of mice femurs for the different genetic backgrounds (Hmox1 +/+, Hmox1 +/−, and Hmox1 −/−) presented in this work showed a decrease in bone volume concomitant with the loss of Hmox1. In line, a lower number of osteoblasts were observed, with the consequent reduction of osteogenic parameters. These results are consistent with the functions previously described for HO-1 (4, 60, 61). It was reported that HO-1 expression and activity are essential for the differentiation of MSCs toward an osteoblastic lineage, as well as vital for their growth (61). In addition, the inhibition of HO-1 favors the differentiation of MSCs toward the formation of adipocytes, with a decrease in osteoblast formation (4, 60, 61).
Although HO-1 induction was demonstrated to impair osteoclast differentiation (17, 34, 71) in transgenic mice, we showed that Hmox1 deficiency downregulated osteoclast number and activity. These results may appear contradictory at first. However, and taking into account the physiological context, the osteoblastic lineage is the main modulator of osteoclast differentiation and activation, so that the observed decrease in osteoblast number and activity in Hmox1-deficient mice may explain the decrease observed in both bone metabolism and osteoclast differentiation and activation. These results are further supported by the altered expression found in genes involved in osteoblast differentiation and/or regulation of bone physiology, concurrent with the general decrease in bone metabolism.
It was reported that the reduction in ROS levels mediated by HO-1 canonical activity, allowed the restoration of osteoblastic markers (4, 61). The PMOs isolated from the calvaria of mice used in this study showed heterogeneous levels of ROS within each genotype, identifying two populations with Low- and High-ROS levels. In the case of Hmox1 −/− PMOs, a striking decrease in the “High” population was observed, indicating that HO-1 loss might establish a maximum limit in ROS level tolerance for these cells, acting as a positive selection factor on cells with low levels of ROS and therefore with a decreased oxidative metabolism.
Of note, when working with PMOs, it is worth mentioning that the isolation of this particular cell linage requires HO-1 for differentiation (4, 60, 61); hence, Hmox1 deficiency might also severely impact on the number of PMOs. This evidence is in line with the histomorphometry analysis performed in this work, depicting a decrease in bone metabolism when analyzing the osteoblasts from femurs of KO Hmox1 transgenic mice compared with WT and/or heterozygous femurs. Whether the High-ROS level cell population, during the animal development, did initially exist in abundance and was then lost—unable to survive in a high ROS condition— is still to be elucidated.
Regarding the metastatic process, resorption may be a necessary step for tumor cell homing to bone (69). The consequent bone destruction releases growth factors such as transforming growth factors β (TGF-βs) and BMPs from the mineralized bone matrix, further enhancing tumor growth and survival in a vicious cycle (22). Tumor cells can stimulate osteoclast activity by directly altering the RANKL/OPG ratio, or secreting signaling molecules such as PTHrP to stimulate RANKL production by osteoblast (35, 66).
Considering the involvement of HO-1 in osteoblast differentiation (60), we next studied the effect of cocultures of human PCa cells (pretreated or not with hemin) and the WT or Hmox1-deficient PMOs. PCa cell coculture altered PMO gene expression, leading toward a pro-osteoclastogenic profile over an osteoblastic function. Hemin pretreated tumor cells could be modulating the interaction by soluble factors of cancer cells with PMOs, leading toward a more pro-osteoblastic profile. The observed changes on PMOs may be partly explained by the expression changes in PTHrP in the tumor cells. PTHrP was first isolated from human carcinomas (26, 29) and it is one of the main agents for the humoral hypercalcemia associated with various malignancies (19).
PTHrP is structurally associated with PTH, a hormone of vital importance in calcium metabolism (53). PTHrP is a key factor in osteolytic bone metastasis, it increases the production of RANKL and decreases the secretion of OPG from the osteoblasts and stromal cells (30), favoring osteoclastogenesis; however, its direct effects on osteoclasts remain elusive. In addition, breast and PCa cells that produce osteolytic metastases (i.e., MDA-MB-231, MDA-MB-435s, PC3) secreted PTHrP (23, 68). These results suggest that PTHrP could play a pivotal role in bone metastases formation and/or development. Conversely, engineered overexpression of PTHrP in breast or PCa cells increased metastases to the bone compartments and osteoclast-mediated bone destruction at the tumor/bone interface (24, 65).
Of note, PTHrP overexpression did not affect the formation of metastases to nonbone sites (24), and a PTHrP neutralizing antibody had no effect on visceral metastases caused by SBC-5 cells (43), suggesting an exclusive role of PTHrP on bone metastases (19). These results highlight the involvement of HO-1 in bone and tumor cell communication mediated by soluble factors. It is well known that PTHrP negatively regulates OPG (32). However, our results showcased that when PMOs, WT, were cocultured with PC3 cells pretreated with hemin, no changes were observed in PTHrP in PC3 cells, but Opg was downregulated in the PMOs. Thus, Opg modulation is clearly affected by other factors. In this regard, DKK1 might be involved in Opg downregulation in PMOs. DKK1 stimulates growth and osteolytic bone metastasis in PCa (50, 57).
Patients with multiple myeloma have DKK1 increased levels in the bone compartment, and thus, it has been proposed as an osteoblast suppression mechanism (19, 58). Furthermore, PC3 cells express and release DKK1 and silencing of this molecule resulted in an osteolytic to osteoblastic phenotypic shift (10, 50). DKK1 inhibits OPG release from osteoblasts (50). Thus, the decrease in Opg in WT and Het PMOs could be partly explained by the increase in DKK1 expression in PC3 cells when cocultured with PMOs. On the contrary, a drop in Opg expression is also seen in KO PMOs, but in this case, it appears not related to the DKK1 produced by the tumor cell, since no changes are seen in DKK1 expression in PC3 cells when cocultured with KO PMOs. In line with these results, OPG increases in human bone metastases compared with both primary tumor and nodule metastasis (8). PC3 cells express OPG (28), however, they do so at significantly lower levels compared with bone marrow stromal cells (47). This might suggest that beyond OPG bone function, the observed changes in OPG levels in malignant cells could have direct implications on the tumor since OPG can act as a decoy TRAIL receptor decreasing apoptosis mediated by this factor (27).

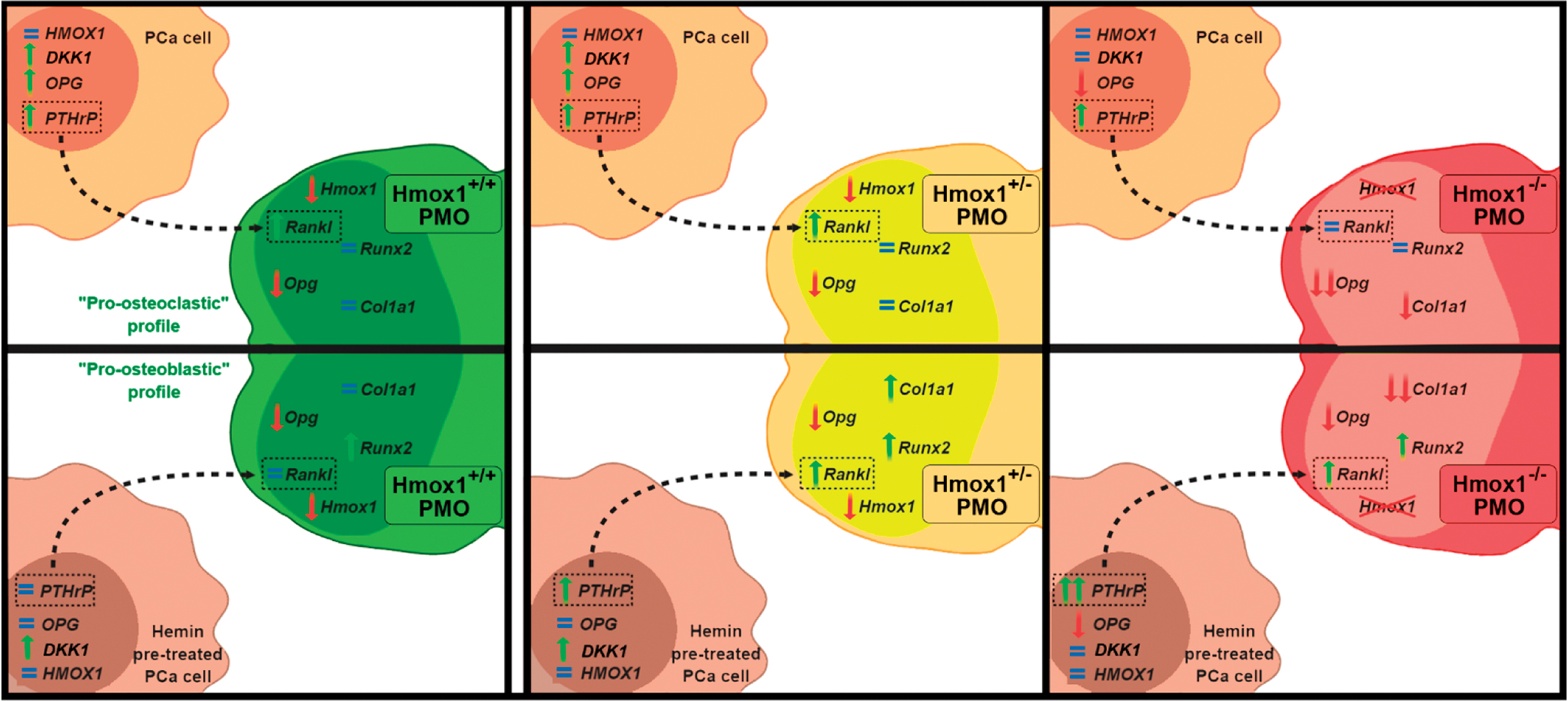

Figure 7 summarizes our proposed model on the crosstalk between tumor cells and PMOs, where the increase in PTHrP levels in tumor cells by the coculture stimulates Rankl expression in the PMOs (Hmox1 +/+ and Hmox1 +/−). This mechanism would favor the osteoclast differentiation and activation in the bone microenvironment. Hemin pretreatment of PCa cells interferes in the interaction with bone cells, preventing the stimulation of PTHrP in the tumor cell and the consequent change in Rankl levels in Hmox1 +/+ PMOs, favoring a pro-osteoblastic profile. This modulatory effect is lost when compared with the Hmox1+/ − PMO coculture, where despite hemin pretreatment, the induction of PTHrP in the tumor cell is maintained and therefore Rankl increases in the Hmox1 +/− PMOs. Finally, this mechanism results less sensitive in Hmox1 −/− PMOs, since a greater increase in PTHrP levels in the tumor cell is required for an increase in Rankl levels in the Hmox1 −/− PMOs to be evident (Fig. 7).
The molecular mechanisms that govern the distortion of the bone remodeling process occurring in metastatic cancer invading the bone are still poorly understood. The present results reveal the importance of HO-1 expression in bone, not only for the physiology of bone cells but also in the modulation of the communication between PMOs and PCa cells by soluble factors, where PTHrP/RANKL appear as a critical axis.
Materials and Methods
Animals
All animal experiments were conducted in accordance with the Animal Research: Reporting of In Vivo Experiments guidelines. Eight-week-old male BALBc/Hmox1+/+ , Hmox1+/ ,− or Hmox1 −/− mice, initially provided by Dr. Saw Feng-Yet, were housed in the animal facility of the Experimental Obstetrics and Gynecology of the Medical Faculty, Otto-von-Guericke University, Magdeburg.
PMO isolation
PMOs were isolated from the calvaria of mice (three per group per experiment) following the procedure described by Bakker and Klein-Nulend (3), with slight modifications. In brief, after dissection, calvarias were cut into small pieces and digested for 30 min in a shaking incubator at 37°C in 4 mL of α-MEM containing 2 mg/mL collagenase P (Roche Diagnostic GmbH, Mannheim, Germany). After this time, the last step was repeated by renewing the collagenase solution P. Then, the bone pieces were incubated (30 min in a shaking incubator at 37°C) in a solution of 2.5% trypsin plus 0.1% EDTA (Life Technologies, Inc.) in phosphate-buffered saline (PBS). A final incubation with collagenase P solution was performed (30 min in a shaking incubator at 37°C). The bone fragments were rinsed with α-MEM plus penicillin, streptomycin, and 10% fetal bovine serum (FBS). This last procedure was repeated three times, each time. Finally, the bone pieces were plated in three 25 cm2 flasks containing α-MEM plus penicillin, streptomycin, and 10% FBS. Once the cells migrated from the bone fragments to the plate and reached the desired confluence, they were trypsinized and replated in culture dishes to perform experiments.
Histomorphometric analysis
Mice were euthanized and the dissected bones fixed in buffered 4% formalin (pH: 7.4) for 24 h, rinsed with PBS, and stored in 70% ethanol until processing. Then were embedded in methyl methacrylate plastic resin and cut into consecutive longitudinal sections at 5 micron thickness for histomorphometric analysis. Osteoblast and osteoclast measurements were performed on toluidine blue and acid phosphatase tartrate-resistant (TRAP)/hematoxylin-stained sections, respectively. Measurements were performed on two sections separated by a distance of 40 μm, and then, data were pooled. The region of interest was located at the distal metaphysis of the femur starting 150 μm proximally from the growth plate and extending 1.3 mm toward the diaphysis. The measurement area excluded the 150 μm area adjacent to the cortical bone. On the toluidine blue-stained slides, all cancellous bone endosteal surface lengths were measured and categorized as OS, or osteoblast surface (Ob.S), in the presence or absence of osteoid. For surfaces identified as osteoblast surface, individual osteoblasts were counted and the data pooled. All other surfaces were considered quiescent. For the TRAP-stained slides, osteoclast surface (Oc.S) and/or erosion surface (ES) were identified, surface lengths measured, and the data pooled. For surface identified as Oc.S., the individual TRAP-positive, multinucleated osteoclasts were counted and the data pooled. Surface that was rough and scalloped in appearance, either with or without the presence of osteoclasts, was categorized as ES. The samples were analyzed using a microscope Leica DM 1000 with a 20 × objective, coupled to a Qimaging Bioquant® PV1 Camera for the acquisition of the images (at room temperature; medium: air). The software Bioquant Osteo 2017 was used for imaging and analysis. Images were first captured in Bioquant Image Format (
Cell lines
Human PC3 cells (ATCC® CRL-1435) were obtained from the American Type Culture Collection (Manassas, VA) and routinely cultured in RPMI 1640 (Invitrogen, Carlsbad, CA) supplemented with 10% FBS.
Hemin pretreatment of PCa cells and coculture system
An in vitro biocompartment culture system was used to study the interaction between PCa cells and bone as previously described and slightly modified (67). Briefly, on day 0, PC3 cells were seeded (100,000 cell/insert) in six-well plate cell culture inserts (0.4-mm pore; Falcon/Becton Dickinson Labware, Franklin Lakes, NJ), and on day 1, they were treated with hemin (50 μM; Sigma-Aldrich, St Louis, MO), a potent specific inducer of HO-1 (Hemin PC3). Controls received fresh medium. The PMOs were also seeded on day 1 in six-well tissue culture plates (200,000 cells/well). On day 2, the inserts containing the PC3 cells (pretreated or not with hemin) were extensively washed with PBS. Then, the inserts were placed into tissue culture plates containing the PMOs so that the two different cell types shared the culture medium but were not in physical contact. Coculturing of PC3 cells with PMOs was performed with α-MEM plus 2% FBS for 24 h. On day 3, the cells were collected and different parameters were analyzed. As control, each cell type (PC3 cells pretreated or not with hemin and PMOs) was grown alone. Cultures were done in triplicate and each experiment was assayed three times.
RNA isolation, complementary DNA synthesis, and quantitative real-time polymerase chain reaction
Total RNA was extracted from cells using the TRIzol® (Life Technologies, Inc.) reagent followed by RNA extraction with chloroform, precipitation with isopropanol, and washing with ethanol. RNA was then diluted in RNA-free water, quantification was performed by ultraviolet absorbance at 260 nm, and quality checked by measuring absorbance at 260/280 nm (Synergy HT; BioTek Instruments). RNA was storaged at −80°C until use. The RNA was reversed transcribed as follows: 2 μg of total RNA was incubated with oligo dTs and RNA-free water 10 min at 75°C and rested 2 min on ice. Incubation for 30 min at 37°C with dNTPs (2.5 mM), DNase I (2 U/μL), and Rnase inhibitor (40 U/μL) in a reaction buffer followed. Afterward, DNAse inactivation for 5 min at 75°C took place. After resting on ice for 2 min, reverse transcriptase (200 U/μL) was added together with Rnase inhibitor (40 U/μL) and complementary DNA (cDNA)-synthesis occurred at 42°C for 60 min. Samples were stored at −20°C subsequent to inactivation of reverse transcriptase for 5 min at 94°C. Real-time polymerase chain reaction (PCR) amplifications were performed with SYBR Green (Applied Biosystems) and an iQ5 Multicolor Real-Time PCR Detection System (BioRad). Each amplification reaction consisted of 1 μL cDNA, 6.5 μL SYBR Green PCR mastermix, 2 μL RNAse free water, 3 μL primer mix, and 0.5 μL fluorescein (50 nM). Primers used are listed in Table 1. PPIA and 36b4 were used as internal reference genes. Data obtained were analyzed using the method of 2−ΔΔCT (38).
Table of Used Primers Containing the Gene Name, Species, Sequences, and Annealing Temperature
Hmox1, heme oxygenase-1 gene.
Assessment of ROS by flow cytometry
After the coculture, the PMOs were washed twice with PBS and incubated with 6 μM 5,6-clorometil-2′7′-dichloro dihydro-fluorescein diacetate, acetyl ester (CM-H2DCFDA; Invitrogen, Munich, Germany) for 1 h at 37°C. Cells were washed and incubated for 15 min in full medium. Cells were then trypsinized and resuspended with PBS. H2DCFDA levels were measured by flow cytometry in the fluorescein isothiocyanate (FITC) channel (Attune NxT Flow Cytometer; Invitrogen, Munich, Germany) and analyzed with the FlowJo 7.6 software.
Statistical analysis
All results are shown as mean ± standard deviation of three separate independent experiments unless stated otherwise. RT-qPCR data sets were taken as paired samples and analyzed using the repeated measures analysis of variance (ANOVA) model. For other assays, the one-way ANOVA was used. Tukey post-test was used to ascertain statistical significance among the experimental conditions with a threshold of p < 0.05 (*), p < 0.01 (**), and p < 0.001 (***).
For gene expression level correlation analysis, the data were processed for outlier detection using the confidence ellipse method (1).
Footnotes
Acknowledgments
We are grateful to Dr. Mandy Busse for her assistance with the flow cytometry panels and handling, and to Stefanie Langwisch for her assistance with the experiments.
Authors' Contributions
Conception/design: G.G., A.C.Z., and E.V. Provision of reagents and facilities: N.N., A.C.Z., G.G., and E.V. Acquisition of data: N.A., M.S., and E.L. Analysis/interpretation of data: N.A., M.S., N.N., A.C.Z., G.G., and E.V. Writing of the article: N.A., A.C.Z., G.G., and E.V. Review of the article: N.A., N.N., J.C., E.L., G.G., A.C.Z., and E.V. Study supervision: A.C.Z., G.G., and E.V.
Author Disclosure Statement
The authors declare no potential conflicts of interest.
Funding Information
This work was supported by grants from AGENCIA-PICT 2015-1786 (Argentina), AGENCIA-PICT 2016-1366 (Argentina), UBACyT (Argentina), and the National Cancer Institute (Argentina). A.C.Z. received grants from the Deutsche Forschungsgemeinschaft (DFG, ZE 526/12-1). N.A. received a Boehringer Ingelheim Fonds travel grant.
