Abstract
Significance:
Flavonoids can interact with multiple molecular targets to elicit their cellular effects, leading to changes in signal transduction, gene expression, and/or metabolism, which can, subsequently, affect the entire cell and organism. Immortalized cell lines, derived from tumors, are routinely employed as a surrogate for mechanistic studies, with the results extrapolated to tissues in vivo.
Recent Advances:
We review the activities of selected flavonoids on cultured tumor cells derived from various tissues in comparison to corresponding primary cells or tissues in vivo, mainly using quercetin and flavanols (epicatechin and (−)-epigallocatechin gallate) as exemplars. Several studies have indicated that flavonoids could retard cancer progression in vivo in animal models as well as in tumor cell models.
Critical Issues:
Extrapolation from in vitro and animal models to humans is not straightforward given both the extensive conjugation and complex microbiota-dependent metabolism of flavonoids after consumption, as well as the heterogeneous metabolism of different tumors.
Future Directions:
Comparison of data from studies on primary cells or in vivo are essential not only to validate results obtained from cultured cell models, but also to highlight whether any differences may be further exploited in the clinical setting for chemoprevention. Tumor cell models can provide a useful mechanistic tool to study the effects of flavonoids, provided that the limitations of each model are understood and taken into account in interpretation of the data.
Introduction, Scope and Aims of This Review
P
Quercetin has been tested in several animal models of carcinogenesis, often co-administered at a high dose together with a strong cancer-promoting agent or in a model of cancer development, and the results do not always indicate a protective effect. For example, in rats treated with nitrosomethylurea to generate pancreatic cancer, quercetin promoted carcinogenesis (16). In contrast, when benzo(a)pyrene was used to generate lung cancer in Swiss albino mice, quercetin supplementation exerted a protective effect against cancer development, but crucially as a guide for mechanism of action, the effect was much more pronounced when quercetin was given as a chemopreventive agent rather than as a chemotherapeutic agent (110). When female ACI rats were given quercetin (2.5 g/kg food) for 8 months, there was no protection against breast cancer (224), but quercetin together with doxorubicin increased anti-tumor activity in mice with 4T1 breast cancer (63). These examples indicate that it is difficult to draw any general conclusions, and, therefore, specific animal studies are incorporated into the main body of the review when and where appropriate.
In humans, several trials have tested the efficacy of flavonoids on cancer risk and progression. A phase I trial of quercetin has been reported (71), and trials with flavonoids on cancer progression in cancer patients in phase I and II clinical trials have been reviewed (242). Epidemiological studies report that intake of quercetin-rich food reduced the risk of gastric cancer by 43% (66) and of colon cancer by 32% (241). Widely reported effects of quercetin have led to claims that high concentrations can inhibit the growth of cancer cells, and hence could aid chemoprevention.
Green tea is the most studied chemopreventive agent and so far, results obtained show some promise for further studies. In a study of more than 8000 individuals, daily consumption of green tea demonstrated delayed cancer onset; further, breast cancer patients experienced a lower recurrence rate and longer remission (73). However, high doses of green tea, generally above that possible to be obtained from the diet alone, that is, as a supplement in the form of an extract, may cause hepatotoxicity in some individuals (21, 108, 151, 177). It is highly doubtful whether nutritional doses could ever achieve a high enough concentration in blood or other tissues required to exert this effect (167). Very high transient blood concentrations can be achieved by pharmaceutical doses or by direct intravenous administration, as shown for quercetin (90). These factors must be addressed in any study proposing to use flavonoids, at dietary or pharmacological doses, as agents to reduce the risk of cancer or, indeed, of any chronic disease.
When considering the interaction of any molecule, whether a flavonoid, other phytochemical, nutrient, drug, or toxin, with a target, the absorption, metabolism, and excretion must be considered. The process of absorption can substantially modify the chemical structure of the parent molecule and, hence, change the nature of the compound encountered by the cell or tissue of interest. Pathways of flavonoid metabolism have been extensively reviewed (55), and will not be presented in detail here, but will be considered where directly relevant to the issue discussed. Quercetin bioavailability has been widely reported and is well understood; the interaction of quercetin and epicatechin with the intestine, leading to absorption, is summarized in Figure 1. Quercetin, epicatechin, and EGCG pharmacokinetics have been documented in detail and reviewed in humans (42, 43, 55), and the pathways of metabolism and excretion in the urine are adequately established (143, 157, 189). The areas that lack some important information concern the interaction of polyphenols with the gut microbiota, whereas the full profile of metabolites arising from gut microbiota catalysis has not yet been fully described in detail (188, 194, 228, 263). Typical concentrations of flavonoids and their gut microbiota-metabolites in blood have been reported in numerous publications after consumption of flavonoids from foods, supplements, or pharmaceutical preparations in both animals and humans in vivo (55, 143, 195, 263). Nevertheless, it is difficult to make a direct comparison between in vivo and in vitro concentrations, but some guidelines have been given (55, 125, 143, 262). When considering the extrapolation from animal pre-clinical studies to human intervention studies, we can use hesperidin as an example. If we assume that the concentration achieved in plasma is a suitable target comparison, then ∼15 mg (aglycone equivalents)/kg body weight administered to rats gave rise to a ∼0.6 μM peak concentration in plasma (149), whereas a much lower dose per kilogram body weight of 50 mg (aglycone equivalents)/70 kg to humans gave a similar concentration (∼0.5 μM) in plasma (143). It is also possible to take the approach we have recommended earlier (117), where the strategy is to first show an effect in humans, and then demonstrate the mechanism. In this way, arguments about which in vitro concentration to choose become less important since the effect is already demonstrated in vivo, and the goal of the in vitro experiments is to elucidate the mechanism, rather than prove the effect.
The first and critical step of any interaction of a flavonoid with a cell is consideration of the primary target. Several high-affinity molecular targets have been identified, which could trigger subsequent cellular events. In addition, if the target is intracellular, the flavonoid or derivative must enter the cell to reach it, by either passive diffusion or transporter-facilitated processes. Clearly, the expression of such transporters and target proteins is vital to enable the flavonoid to exert an effect, and, therefore, relative expression of these molecules in normal and tumor cells is important. Flavonoids will interact differently in various types of cells and tissues given the diverse profile of the required transporters, affecting their bioavailability and the abundance of their molecular targets and downstream effectors required to realize an effect. Based on these aspects, this review addresses two questions: To what extent can the effect of flavonoids on tumor cell models be extrapolated to in vivo effects? And, conversely, can flavonoids be used to selectively reprogram or even help to kill tumor cells? To answer these questions, the review will first consider some of the differences between tumor and normal cells that are relevant to flavonoid action, before discussing in more detail reported interactions of flavonoids with molecular targets in both settings.
Examples of Differences Between Tumor and Normal Cells Responsible for Differential Flavonoid Action
Most commonly used cell models in vitro to study flavonoid action
Cultured cells are a well-established in vitro experimental system that is extensively used when studying the effects of flavonoids on biological systems. Most of the cell lines used in the lab are immortalized and derived from a tumor tissue, which are then passaged, cultured, grown, and often differentiated. The latter retain functional aspects of their original phenotype. Human Caco-2 and Caco-2/TC7 cells have been isolated from the colon but are used as a model for the small intestine, as after the differentiation of confluent cultures, they form microvilli and express some small intestinal brush border marker enzymes such as sucrase. In conjunction with human studies, they constitute an indispensable proxy for absorption, disposition, metabolism and excretion studies of numerous drugs and phytochemicals, including flavonoids, and have been extensively characterized (27, 93, 230, 282, 286). Human cancer-derived HepG2 cells are believed to retain several hepatic functions and are, as such, used for in vitro hepatocellular studies. Various molecular analyses have documented differences to primary hepatocytes (46), and it is now becoming apparent that their glycolytic nature may be responsible for their failure to replicate effects reported in culture in human liver tissues in vivo or in hepatocytes ex vivo after liver tissue resection. Human MCF-7 and MDA-MB-231 cells have been commonly used as models for human breast cancer, and, given the lack of human cells, mouse INS-1 cells are one of the main lines studied as a model for pancreatic cells.
For tumor cells both in vivo and in vitro, the profiles of gene expression, transporters, and signaling pathways are somewhat different to normal cells. Tumor cells are cultured in vitro to provide a model for hepatotoxicity and chemoprevention studies. In some cases where tumor cells retain substantial characteristics of their original phenotype, they are used to provide information on mechanisms of action, which can then be extrapolated to the whole organism in vivo. Nonetheless, culturing practices, for example, concentration of nutrients in the medium, repetitive sub-culturing, culture vessel/material, length of differentiation, oxygen availability, and consistency between different batches can lead to significant inter-laboratory differences in observed effects and further complicate interpretation of reported data in the literature (4). Moreover, the concentration of the flavonoid employed is important. The intestine is exposed to high concentrations of flavonoids after oral ingestion, where millimolar concentrations can be found, whereas after absorption in the intestine, the maximum concentration is only a few micromolar. This also needs to be taken into account in the design of in vitro experiments, and when studying different cell types.
Differences in gene expression between normal and tumor cells
Transporter differences between Caco-2 cells and small intestinal tissue
When used as an intestinal in vitro model, Caco-2 cells are grown on filters for 21 days, and during this period the gene expression of many intestinal enzymes and drug transporters gradually increases (212). Caco-2 cells grown on a plastic support for only 4 days have a lower expression of transporters than cells grown on permeable filters for 21 days (4). Caco-2 cells (and their TC7 clone) provide an excellent example where it is essential to understand the experimental model to appropriately extrapolate results to in vivo. For example, the flavonoid quercetin is bioavailable in humans, and it is absorbed through the small intestine (192) (Fig. 1). The absorption and biological effects of quercetin in humans are the subject of numerous reviews (55, 143, 190). Quercetin exists in planta as a glycoside, and it is consumed mostly in this form (198). The glucoside is not absorbed intact, but must first be deglycosylated by a brush border enzyme, lactase phlorizin hydrolase (LPH) (52). This enzyme is highly abundant in the small intestine, but it is almost absent on the brush border of Caco-2 or Caco-2/TC7 cells (36, 207) (Fig. 1). Consequently, although Caco-2 or Caco-2/TC7 cells can be used as a model to examine the absorption or biological effects of quercetin as an aglycone, they cannot be used to examine the action of quercetin glycosides, or, indeed, any other phytochemical bound to a sugar moiety; this includes plant extracts where the active components are glycosylated. An exception is where a flavonoid glucoside can interact directly with proteins on the brush border surface as in the case of the sugar transporter glucose transporter (GLUT)2, to which some flavonoid glucosides bind and inhibit its glucose-transporting activity (114) (Fig. 1). This interaction involves direct binding to attenuate sugar transport, whereas the flavonoid glucoside itself is not a substrate of the transporter (79). In general, the absence of LPH in the cell model is clearly less important when the protein target is expressed on the surface of the cell and the glycoside can interact directly without prior deglycosylation being a requirement.
The transporter ABCC2 (Fig. 1) is higher in Caco-2 cells compared to intestinal enterocytes (68). This indicates that intestinal efflux of conjugated flavonoids will be emphasized in the cell model, and, hence, measured absorption will appear to be less than in the normal tissue. On the other hand, the conjugating enzymes, sulfotransferase (SULT) and uridine diphosphate glucuronosyl transferase (UGT), are present in both small intestinal enterocytes and Caco-2 cells, and so conjugation will occur in both. However, the profile of these phase II enzymes is different, not only between Caco-2, Caco-2/TC7 cells, and enterocytes, but also between the duodenum, jejunum, and ileum, and so the exact rates of conjugation and the profile of products will depend on the exact distribution and the enzyme specificities, which vary for each flavonoid and enzyme combination. For example, UGT8 and UGT9 are the most active on epicatechin, followed by UGT1A1 (285), and so the exact rate of conjugation will depend on the expression of these three isoforms. In the small intestine, 1A1 is high, with 1A8 and 1A9 ∼ 10-fold lower (181).
These examples highlight the complexity of using cultured immortalized cells for studies on flavonoids, indicating that appropriate interpretation of experimental data depends on a detailed underlying knowledge of the characteristics of the cellular system.
Flavonoid transporter differences between HepG2 cells and hepatocytes
Small-molecule effectors can interact with a cell by binding to surface proteins or by entering the cell by active, facilitated, or passive transport. Sufficiently hydrophobic and relatively small molecules, such as quercetin, epicatechin, and many synthetic drugs, can enter cells by passive diffusion and do not rely on active transport. In many cases, the concentration gradient for diffusion is maintained by further metabolism of the molecule once inside the cell. However, hydrophilic molecules such as glucose cannot enter cells by passive diffusion and are instead transported into the cell by transporters. These include a range of GLUTs, which are facilitative transporters and do not require energy (114), and additionally in the intestine and kidneys by sodium-dependent active transport (99). The profile of GLUTs is different in normal and tumor tissues, leading to potential differences in energy metabolism. In normal hepatocytes, GLUT2 is the main transporter, and this insulin-responsive transporter is translocated to the cell surface to allow glucose uptake when high concentrations are present, such as post-prandially after a sugar-containing meal. Hepatocytes also express GLUT10, GLUT9, and GLUT3 (111). The main functional GLUTs in HepG2 cells are GLUT1, which is highly expressed in many tumor cells, and GLUT9 (234); GLUT2 is expressed, but it may be localized internally (94), and GLUT3 mRNA is also highly expressed (Fig. 2). Even though GLUT1 is expressed at notably elevated levels in human cancers, it remains the rate-limiting step for glucose transport into cancer cells, and high expression is correlated with poor patient survival in most solid tumors (253). A summary of some of the differences described earlier in glucose utilization between hepatocytes and HepG2 cells is shown in Figure 3, and the distribution of GLUT transporter mRNA in hepatocytes and HepG2 cells is shown in Figure 2.
Attachment of a sugar or glucuronide moiety to a flavonoid such as quercetin prevents passive diffusion by increasing size and decreasing hydrophobicity (Fig. 1). The conjugation of flavonoids by phase II metabolism has been well documented (55), and the exact compounds in blood have been reported (1, 167). For the conjugates to enter cells, they must travel either by passive diffusion, which is slow for conjugates such as glucuronides and sulfates, or more rapidly by transporters such as organic anion transporter (OAT) (SLC22A family) or organic anion-transporting polypeptides (SLCO family) (9, 265, 266). The expression of these transporters is different between normal and tumor cells, and since OAT expression can be downregulated in the latter, the uptake of flavonoid conjugates into cells would be lower in cultured cells compared with normal cells in vivo (Fig. 2). In addition, many cancer cells show drug resistance (159), and have extremely high levels of efflux transporters, such as the ATP-binding cassette (ABC) transporters, which actively transport conjugated molecules, such as flavonoids and drugs, out of the cells. Elevated expression of P-glycoprotein (ABCB1) (38) and of multidrug resistance-associated protein (MRP)2 (ABCC2) (82, 124) is responsible for the reduced effectiveness of many anti-cancer drugs, although some lines of research argue that MRP2 is partially located intracellularly in all the cell lines, and even when overexpressed in HEK293 cells may remain intracellular and not be functional at the plasma membrane (4). Cancer cell lines generally have much lower levels of cytochrome P450s. For example, CYP1A2 is high in hepatocytes but absent in HepG2 cells, whereas HepG2 cells still express some, albeit low, of the CYP1A1 isoform. Because of these differences in CYP expression, hepatocytes are better than HepG2 cells for studying biotransformation of drugs and flavonoids. However, the response of xenobiotic metabolizing enzymes to inducers is similar in hepatocytes and HepG2 cells (260). Catechol-O-methyltransferase (COMT), the enzyme that methylates flavonoids containing a catechol group, is very high in both HepG2 cells (255) and in liver (92) (Fig. 2).
These transporter expression differences undermine the usefulness of cultured cells to study the effect of the relevant molecules such as flavonoid conjugates, and to more closely represent the situation occurring in vivo. Any exposure of cultured tumor cells to flavonoids will be much less effective than exposure to normal cells, since efflux transporter overexpression will remove the flavonoid (as conjugate) from the cell very rapidly compared with normal cells. In addition, in vivo, flavonoid conjugates, as reported for quercetin, may be deconjugated and therefore activated near sites of inflammation (75, 156, 239). Further, monocarboxylate transporter (MCT)1, which transports lactic and pyruvic acids and hence is of importance in glycolysis and gluconeogenesis, is highly expressed in most immortalized cell lines in terms of both gene and protein expression, and was also found to be functional in five out of six investigated cell lines, including HepG2, Caco-2, and Caco-2/TC7 cells (4). In general, MCT1 accepts short-chain monocarboxylates and small drugs with carboxylate groups such as salicylate as substrates, suggesting that care should be exercised when investigating small monocarboxylate compounds. It is fortunate that very few drug substrates have been identified for MCT1 (158), whereas inhibition of MCTs has been proposed as a therapeutic strategy to target metabolic pathways in cancer through blocking pyruvate metabolism, in addition to their effects on lactate efflux pathways (57).
In summary, differences in transporter expression between normal and tumor cells can substantially alter the interaction of a flavonoid with cellular processes, and in some cases, may prevent or diminish the flavonoid reaching a molecular site of action.
Metabolic differences between normal and tumor cells that could affect interactions with flavonoids
General metabolic differences between normal and tumor cells and redox status
Metabolic differences in energy storage and utilization are critical when considering the response of normal and tumor cells to effectors such as glucose, drugs, and phytochemicals, including flavonoids. As the major fuels for mitochondrial substrate oxidation to harness energy in the form of ATP, glucose and fatty acids compete with each other at the level of the pyruvate dehydrogenase complex (PDC). PDC is usually active in most healthy tissues in the well-fed state, and suppression of PDC by pyruvate dehydrogenase kinases (PDKs) is crucial to spare pyruvate and other three carbon substrates when glucose is low, termed metabolic flexibility.
Tumor cells, in general, exhibit several metabolic adaptations that allow them to grow rapidly, such as unregulated uptake of glucose mainly through GLUT1, increased anaerobic glycolysis with excess lactate production, and lowered mitochondrial ATP generation through the electron transport chain and oxidative phosphorylation (OXPHOS), processes that are collectively termed the “Warburg effect.” In addition to glycolysis, cancer cells also shunt glycolytic intermediates into the pentose phosphate pathway, serine biosynthesis, and lipid biosynthesis, as opposed to complete oxidation by mitochondrial respiration, and so efficiently generate NADPH, another factor that is essential for biosynthetic processes to enable cancer cell survival (32). In some tumors, this is achieved by limiting pyruvate utilization by mitochondria. Many cancer cells can also use alternative sources of energy such as amino acids, fatty acids, and lactate. Glutamine has been identified as a critical nutrient for cancer cells for glutathione synthesis and to replenish tricarboxylic acid (TCA) cycle intermediates for the biosynthesis of lipids and mitochondrial ATP production, complementing the altered state of glucose metabolism. Glutaminase inhibition led to cell cycle arrest similar to peroxisome proliferator-activated receptor (PPAR)γ activation through modulation of reactive oxygen species (ROS) in lung cancer cells, and both β oxidation and PDKs were found to be essential in the sequence of events (226).
The importance of these anaplerotic reactions for cancer cell survival is such that in cells derived from solid tumors undergoing loss of attachment (LOA) to the extracellular matrix, inhibition of glucose uptake and catabolism results in the loss of ATP and NADPH as a result of decreased flux through the pentose phosphate pathway. Under LOA conditions, characterized by high ATP demand, production of ROS is increased and linked to upregulation of antioxidant mechanisms and reactivation of fatty acid oxidation requiring maintenance of redox balance (32). An enhanced antioxidant response and increased detoxification capacity in subgroups of melanoma and lymphoma have been previously identified and characterized by high OXPHOS activity (31, 138, 245). More specifically, in lymphoma, the authors reported higher levels of reduced glutathione in the OXPHOS subgroup compared with the non-OXPHOS subgroup (31). Similarly, in melanoma, ROS levels were reduced in the OXPHOS subgroup due to enhanced ROS detoxification capacities mediated by PPARγ coactivator 1α (PGC-1α) (245). A dual capacity of tumor cells for glycolytic and OXPHOS metabolism has been put forward, redefining the “Warburg effect” and increasingly supporting the idea that it is the physiological stresses, dictated by the cancer microenvironment such as the lack of oxygen, which are the main drivers of the metabolic switch in tumor cells (80).
Mitochondrial function is responsible for the majority of oxygen consumption, accounting for 70%–90% of total oxygen consumption within the cell, whereas constant supply of electron donors (e.g., NADH) constitutes an important factor regulating mitochondrial respiration. Higher respiration rates are linked to higher levels of mitochondrial ROS production and may lead to increased proton leak and a drop in mitochondrial membrane potential in healthy cells (60). Poorly formed blood vessels in tumors constitute a bottleneck that limits oxygen supply to the growing tumor (211, 244). Oxygen consumption within the tumor causes an imbalance resulting in hypoxia and activation of downstream events, whereas the severity of the response is dependent on the level of oxygen deprivation (37). With respect to tumor growth characteristics, moderate hypoxia causes a slowing of tumor cell proliferation whereas severe hypoxia causes outright cell death (185). Regulating the redox potential by restricting mitochondrial respiration as well as low levels of electron donors will activate AMP-activated protein kinase (AMPK) and other related energy sparing pathways. This will lead to metabolic adaptation and improved metabolic status for the healthy tissue, and increased oxidative stress leading to senescence of cancer cells through restriction of biosynthetic pathways at the early stages of cancer chemoprevention. However, AMPK activation in the solid tumor microenvironment could enhance cancer cell survival through inhibition of fatty acid synthesis and preservation of NADPH (109). It comes as no surprise that AMPK has long been a target of cancer drug research and quercetin in that light is viewed as a beneficial agent (96).
Reducing hypoxia by decreasing oxygen consumption restores tumor growth in most cases of established cancers, with a compensatory increase in glycolysis. Anaerobic glycolysis is advantageous to cancer cells for survival under hypoxic conditions. In normal cells, ROS stemming from mitochondrial OXPHOS activate and stabilize hypoxia-inducible factor (HIF-1)α, inducing downstream controlled genes that stimulate anaerobic glycolysis to minimize the mitochondrial ROS-producing burden, and to mobilize antioxidant defenses. In cancer cells and especially in solid tumors where hypoxia is maintained, HIF-1α remains abnormally stabilized, and through upregulation of glycolytic enzymes and long-term inactivation of the PDC complex, owing to increased expression of PDKs (PDK1), reduced levels of ROS protect cancer cells from apoptosis (25, 26). In addition, glycolytic metabolites such as lactate and pyruvate also stabilize HIF-1α via a hypoxia-independent mechanism and establish a positive loop of HIF-1α activities, suggesting that obesity or insulin resistance could increase the development of cancers (57). Hypoxia in tumors also leads to overexpression of HIF-2α, which, subsequently, favors cancer cell survival, proliferation, and metastasis involving noncanonical glutamine metabolism as recently shown in human pancreatic ductal adenocarcinoma (PDAC) (76, 136).
Generally, ROS/RNS interact with certain amino acid residues of proteins (protein tyrosine phosphatases, protein tyrosine kinases [PTKs], and protein kinase C [PKC]) and, in turn, activate downstream kinase cascades such as phosphoinositide 3-kinase (PI3K) and mitogen-activated protein kinases (MAPKs). PTKs have been found to be hyperactivated in many cancer cells and are regarded as oncoproteins, whereas activation of the c-jun-N-terminal kinase (JNK) signaling pathway involving nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB) and MAPKs in cancer and inflammation are also linked to increased blood lactate levels through inactivation of the PDC complex (187).
Modulation of such metabolic pathways has for many years been the objective of various studies in an effort to maximize chemoprevention by altering the redox state of cancer cells without affecting healthy tissue. In that direction, PDKs are seen as potential molecular targets in antiglycolytic therapies for cancer, whereas in various cancer cell lines, inactivation of PDKs, by either chemical or molecular approaches, has led to an increased activity of PDC (19). In contrast, mining of microarray data from human tumor data sets has shown that PDK4 is commonly downregulated in tumors compared with their tissues of origin, whereas PDK1 expression is always high in liver metastases and either low or high at the primary tumor site. This suggests that the metabolic switch influencing tropism of cancer cells may occur when they acquire metastatic properties (64), pointing to differential regulation by distinct pathways in different cell types and suggesting varying dependencies on PDH flux between normal and transformed cells (89).
Currently, the diverse metabolic signatures of different cancers, the anaplerotic mechanisms that may be activated, depending on the stage of the cancer and the proliferation stage of the specific cancer in question, are posing a great challenge for cancer therapeutics. In an effort to achieve breakthroughs in drug discovery, research has expanded to devise a plethora of different inhibitors and combined therapies to halt cancer progression at the different stages (examples shown in Fig. 7) and polyphenols in that light are believed to have a role to play.
Metabolic differences between HepG2 cells and hepatocytes that could affect interactions with flavonoids
Hepatocytes generate a substantial proportion of their ATP through mitochondrial action, and high glucose may overload the electron transport chain in mitochondria, especially through leakage of complex I (193). Highly proliferative cells such as HepG2 generate most ATP by glycolysis, even though they have sufficient oxygen and normal, functional mitochondria, and cancer cells are resistant to compounds that impair mitochondrial activity (146). In normal hepatocytes, GLUT2 responds to high glucose and insulin, and it increases glucose uptake after, for example, a carbohydrate-rich meal (65, 197). However, differences in GLUTs discussed earlier lead to unregulated glucose uptake in HepG2 and other tumor cell lines. HepG2 cells retain some insulin responsiveness, but chronic high-glucose treatment of HepG2 cells leads to modified energy metabolism, through increased PDC E1α subunit protein and mRNA and increased total PDC activity (236), and also to insulin resistance, which includes loss of insulin-induced Akt phosphorylation and increased phosphorylation of insulin receptor substrate-1 (IRS-1) (174).
In vivo, chronically elevated plasma glucose leads to enhanced levels of intracellular ROS, insulin resistance, and perturbed metabolism in the liver, with the metabolic sensors AMPK and SIRT1 downregulated (178). In cultured human QZG hepatocytes, high glucose led to increased generation of ROS and lowered cell viability via PKC activation, decreased nuclear factor (erythroid-derived 2)-like 2 (Nrf2) and heme oxygenase 1 (HO-1) protein, and decreased both the phospho-Akt:Akt and the phospho-extracellular signal-regulated kinase (ERK):ERK ratios (257). High levels of glucose initially increased mRNA of base excision repair genes in HepG2 cells, and activity of poly[ADP-ribose]polymerase 1, leading to lowered cellular NAD+ and insulin receptor phosphorylation, but in the longer term, induced ROS accumulation and DNA damage (184). HepG2 cells express NADPH oxidase 1 (NOX1), which generates ROS under high glucose. NOX1 knockdown led to increased UTP-glucose-1-phosphate uridylyltransferase, which catalyzes the synthesis of UDP-glucose, the precursor for glycogen synthesis. Most cultured tumor cells, including HepG2, typically express elevated NOX1 and low rates of glycogen synthesis, enabling them to channel glucose to glycolysis rather than energy storage, to maintain their high energy utilization (18). Increased ROS from NOX1 induce HIF-1α target genes such as GLUT1 and glucose-6-phosphatase (78). Experimentally, glucose at a very high non-physiological concentration (>50 mM) has also been shown to cause apoptosis in HepG2 cells (35).
High-glucose-induced changes in lipid metabolism are observed in HepG2 cells, such as induced fatty acid synthase (FASN) activity via increased mRNA stability (213), increased accumulation of intracellular storage lipids (276), increased hepatic lipase (243), and changes in intracellular metabolites such as transient increases in glucose-6-phosphate, 3-phosphoglycerate, citrate, and lyso-phosphatidyl choline, and decreases in serine, acylcarnitines, and phosphatidyl ethanolamine (155). All these aspects contribute to tumor progression, and recently, acetyl-CoA carboxylase (ACC)α was reported to have a central role in mediating de novo lipogenesis for metabolic adaptation in human hepatocellular cancer (254). Similarly, de novo lipogenesis activation was also reported in an array of cancer cells following limitation of access to exogenous lipids as may occur in intact tumors (49).
The tumor-specific modulation of carnitine palmitoyl transferase (CPT)1A, the rate-limiting step in β oxidation, and of FASN, in human colorectal cancer and breast carcinomas, has also been reported. CPT1A was significantly decreased in the cytoplasm of tumorous samples, whereas FASN was increased in addition to a striking CPT1A nuclear localization both in the tumors and in vitro in epithelial neoplastic cells such as MCF-7, Caco-2, and HepG2 (152, 199). A link to histone acetylation and post-translational modifications was also apparent, since a correlation between nuclear CPT1A levels and histone deacetylase activity in tumorous tissues and neoplastic cell lines was reported. Caco-2 cells, when grown in vitro as colonocytes (without differentiation), preferentially oxidized butyrate instead of glucose as an energy source to produce acetyl-CoA for fatty acid synthesis. Butyrate pre-treated cells displayed a modulation of glutamine metabolism characterized by an increased incorporation of carbons derived from glutamine into lipids and reduced lactate production, reversing their initial highly glycolytic nature linked to PDC deactivation through upregulation of PDK4 involving hyperacetylation of histones at the PDK4 gene promoter level (19).
These phenotypic differences in metabolism may influence the effect of flavonoids on normal and tumor cells, depending on the environment encountered by the cell as defined, for example, by the concentration of glucose used in the medium and the frequency of medium changes, the use of nonessential amino acids, and glutamine that can top up the TCA cycle, in combination with growth factors and fatty acids in the form of fetal bovine serum. Notably, the presence of hepatic cells in vivo in close proximity to macrophages, adipocytes, and other satellite cells with a plethora of diversified signaling functions cannot be mimicked in vitro but can, nonetheless, significantly affect the bioactivity of flavonoids in both healthy and diseased individuals.
Interaction of Flavonoids with Tumor and Normal Cells
Molecular targets of quercetin and epicatechin
Direct interactions

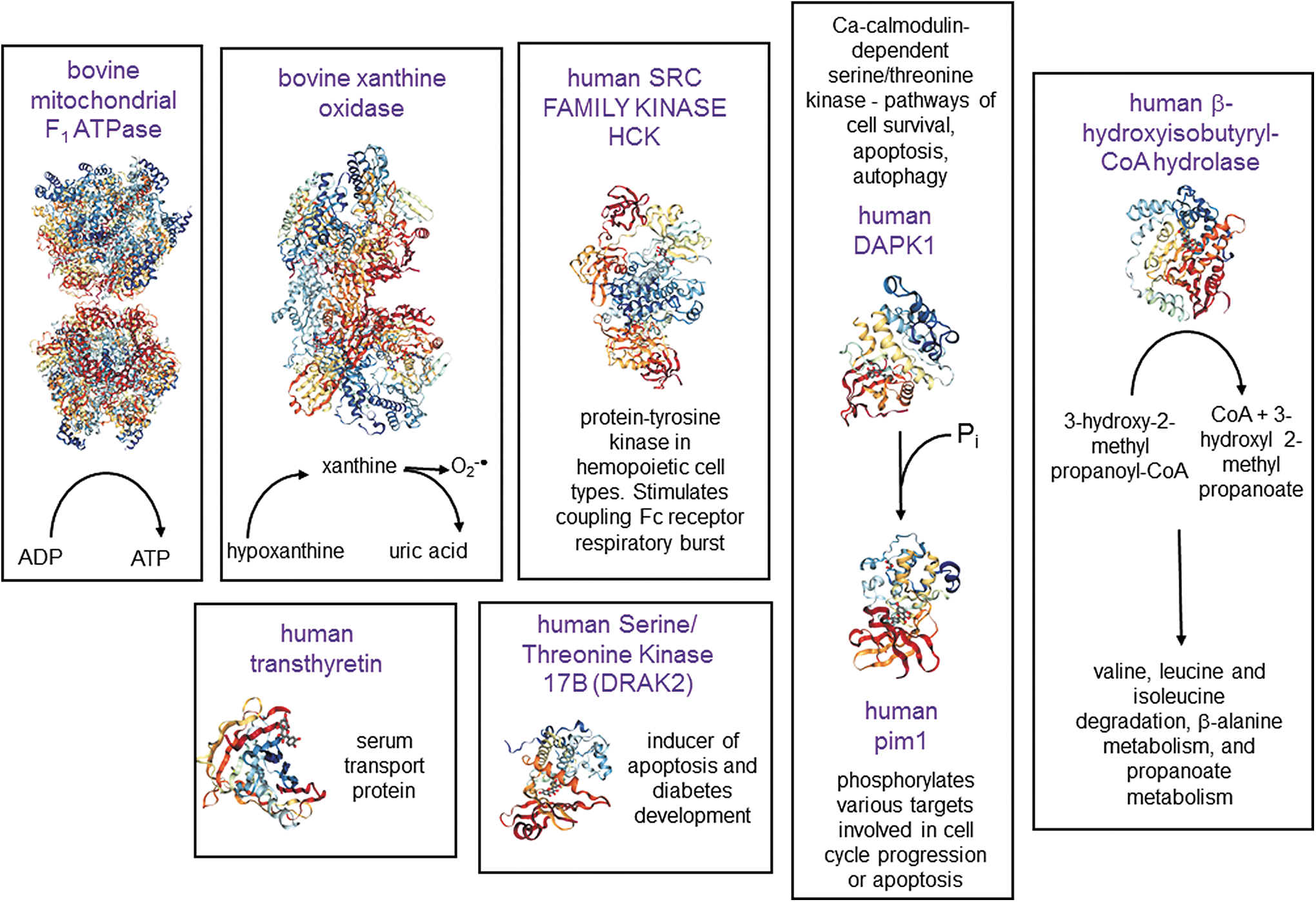

Irrespective of the cell physiology, any effect of a small molecule on a cell requires initial interaction with primary targets, followed by subsequent signal transduction and/or gene expression that will lead to functional effects. Although many proteins have been reported to interact directly with flavonoids, the strength of the interaction is critical; only sufficiently strong binding will lead to significant regulation. The crystal structure of several mammalian target proteins bound to quercetin has been reported, and these will form the basis of the interactions that will first be considered here (Fig. 4), followed by discussion of other potentially important targets.
Quercetin competitively inhibits bovine mitochondrial F1-ATPase, an ATP synthase, with an IC50 value of 2–6 μM (169), and such interaction could lead to numerous changes in overall cellular metabolism through secondary effects, since this mitochondrial protein is responsible for synthesizing most of the ATP fueling cellular processes in normal cells. Features of the crystal structure of the protein bound to quercetin show that it inhibits both synthetic and hydrolytic activities of the enzyme (83).
Xanthine oxidoreductase (XOR) is a molybdenum- and flavin-dependent enzyme that produces uric acid from hypoxanthine (Fig. 5). Under certain conditions, it can produce hydrogen peroxide and superoxide radicals, and for example, is the major source of superoxide in plasma after ischemia-reperfusion injury (182). Excess uric acid production is, therefore, accompanied by high levels of intracellular superoxide production. As a partial consequence of this, high plasma uric acid, derived from XOR, is also a marker of metabolic syndrome and gout risk (141) whereas mitochondria in cancer cells generate more superoxide anions when compared with their normal counterparts (251). Superoxide is also the primary cause of endothelial dysfunction in high-glucose-treated HUVECs (200). One of the main deleterious effects is the reaction of superoxide with nitric oxide (NO), which not only consumes NO but also produces damaging peroxynitrite (Fig. 5). Peroxynitrite leads to protein damage by nitration, and this reaction contributes, for example, to liver and renal mitochondrial damage in diabetic rats (137, 205). Although quercetin and conjugates can react directly with ROS/RNS such as superoxide (28, 240) and peroxynitrite (196), and flavonoids are potent chemical antioxidants in many assays (102), the rate of reaction and likely intracellular flavonoid concentrations make it unlikely that such a reaction is biologically significant in vivo (117, 118, 220). It is more likely that flavonoids affect these processes generating reactive species by attenuating the catalytic rate of XOR and other oxidative enzymes. Quercetin binds to the active site of XOR with a Ki of ∼1 μM (29), one of the few direct molecular interactions (51, 140) that has been shown to have a consequential effect in humans in vivo (215). The crystal structure of XOR complexed with quercetin has been reported (29). The action of flavonoids on XOR is illustrative of the current thinking behind the mechanism of action of flavonoids in vitro. Rather than acting as direct free radical scavengers, they attenuate the activity of some pro-oxidant enzymes; the damaging effect of these enzymes is mostly apparent only when they are running fast, that is, with high substrate concentration coupled with limiting availability of co-factors such as NAD+/NADH.
Serine/threonine kinase 17B (DRAK2) is an inducer of apoptosis (153). In pancreatic islet cells from mice overexpressing DRAK2 and fed with a high-fat diet, stimulation with inflammatory cytokines increased apoptosis and led to glucose intolerance and decreased insulin secretion (77, 145). DRAK2 plays a role in tumorigenesis, and mediates cyclooxygenase (COX)-2 overexpression in colorectal cancer cells, rendering them resistant to apoptosis (61). Quercetin binds to and interacts directly with DRAK2 (162, 218).
Death-associated protein kinase 1 (DAPK1) is a calcium/calmodulin-dependent serine/threonine kinase that is involved in various cellular signaling pathways triggering cell survival, apoptosis, and autophagy. DAPK1 phosphorylates Pim-1, resulting in inhibition of its catalytic activity, nuclear localization, and cellular function (275). Human Pim-1 is a Ca2+/calmodulin-regulated serine/threonine kinase, able to phosphorylate different targets, involved in cell cycle progression or apoptosis, and is induced by cytokines (13). Quercetin binds directly to both DAPK1 and Pim-1 (100), indicating its ability to inhibit multiple kinases.
In addition to binding to albumin for transport around the body (24), quercetin also binds to transthyretin, a serum transport protein that is highly expressed in the liver, at a different site to the one for thyroxine T4 (41). Transthyretin amyloidosis constitutes a form of cardiac hypertrophy and is characterized by increased levels of inflammation. Data on the functional effects of quercetin binding to transthyretin are not available in the literature, but such an interaction could potentially increase its local bioavailability. Transthyretin dysregulation has been linked to pre-eclampsia through establishment of hypoxic conditions (85).
The enzyme 3-hydroxyisobutyryl-CoA (HIB) hydrolase is found predominantly in the liver, heart, and kidney, and it converts HIB to free CoA and 3-hydroxyisobutyrate, which can be a precursor for hepatic gluconeogenesis. The enzyme also has roles in valine, leucine, and isoleucine degradation, β-alanine metabolism, and propanoate metabolism (97, 217). The activity of the enzyme is lower in livers with cirrhosis or hepatocellular carcinoma, suggesting a decrease in the capability of detoxifying HIB (105). Cirrhosis resulted in a significant decrease in HIB hydrolase activity and the branched chain amino-acid pathway, but it had no effect on citrate synthase activity. This suggests that the decrease in HIB hydrolase activity does not reflect a general decrease in mitochondria, but it may contribute to cellular damage, culminating in liver failure (238). Valine catabolism is unique compared with the other branched chain amino-acid pathways as the potentially toxic compound, methacrylyl-CoA, is formed as an intermediate, having considerable potential for cytogenic, mutagenic, and clastogenic actions (216). Quercetin interacts with the enzyme and forms a complex (Fig. 4); however, binding constants are not available in literature. Interestingly, tolcapone, a potent inhibitor of COMT for the treatment of Parkinson's disease, was found to have hepatotoxic effects due to off-target binding to HIB hydrolase, whereas no binding was seen for the less toxic COMT inhibitor entacapone. The mitochondrial toxicity profile of tolcapone, entacapone, and two other novel COMT inhibitors was consistent with the off-target interaction profile of the compounds, supporting the hypothesis that HIB hydrolase is a candidate off-target underlying related mitotoxicity of the drugs (248). Given the fact that quercetin also accumulates in mitochondria at high levels even at low concentrations (72, 179), potential toxic effects at high concentrations, especially in cancer cells, could also be mediated through HIB hydrolase.
In a molecular docking study, quercetin could be docked to the MEK1 pocket separate from but adjacent to the ATP binding site similar to that observed for PD318088, a highly selective MEK1 inhibitor that does not compete for ATP, in the crystal structure of the MEK1-PD318088 complex. The hydroxyl group at the 3′ position of the C ring of quercetin can make a critical hydrogen bond with the backbone amide group of Ser212 that would lock MEK1 into a catalytically inactive form by stabilizing the inactive conformation of the activation loop. The predicted binding mode of quercetin is also similar to that of PD318088. Binding of quercetin blocks the Raf/MEK/ERK/p90RSK pathway and leads to subsequent suppression of AP-1 and NF-κB activity. Quercetin inhibited MEK1 activity more strongly than Raf1 activity, suggesting that MEK1 is the most potent molecular target of quercetin for suppressing neoplastic transformation (129).
Other possible direct targets have been suggested by using biotinylated quercetin as a tag to identify proteins with a strong binding affinity from a soluble cell extract. Some proteins that were identified based on this methodology are casein kinase II, ubiquitin-activating enzyme E1, heat shock protein 70 and 90, an ATPase, and two mitochondrial ATP synthase subunits (256). Quercetin may also interact with membrane proteins directly such as sugar transporters. Although there are no external docking sites on the sugar transporter GLUT1 for quercetin, within the inner vestibule, glutamate and lysine residues hydrogen-bond quercetin, completely inhibiting glucose transfer when bound (48). Quercetin also inhibited GLUT2, but not GLUT5 nor SGLT1 (128).
A potentially important molecular target of EGCG from green tea is the strong binding (Ki = 40 nM) to the 67-kDa laminin receptor, which is expressed on a variety of tumor cells, and the expression level of this protein strongly correlates with the risk of tumor invasion and metastasis (233). EGCG also strongly interacts with human leukocyte elastase (HLE) with an inhibition constant of 0.4 μM. HLE is a serine protease found in the dense azurophil granules of poly-morphonuclear leucocytes and possesses the ability to cleave elastin, the major component of elastic fibers that surround blood vessels, lung tissues, and ligaments. HLE may be activated on exposure to various cytokines and chemo-attractants, including TNF-α, interleukin (IL)-8, C5a, and lipopolysaccharide. Abnormally elevated levels of HLE produced in the liver or deficiency in one of its natural inhibitors such as α1-protease inhibitor cause severe permanent tissue damage. Hence, HLE has been linked to many inflammatory disorders (160). High blood concentrations of poly-morphonuclear HLE and IL-6 are indicators for the occurrence of multiple organ failures at the early stage of acute pancreatitis (104). More recently, acute exacerbation of idiopathic pulmonary fibrosis was associated with elevated serum neutrophil elastase and the role of these serine proteases is well acknowledged in the clinic (229). Inhibition of some others described that direct binding targets of EGCG such as matrix metalloproteinase (MMP)-2, thrombin, and cathepsin G are much weaker (210).
When considering the importance of the binding interactions, it would certainly be reasonable to assume that the tighter binding of a ligand, the more likely the effect would be relevant and evidenced in vivo. In addition, the effect on a cell would depend on the level of expression of the target protein. If, for example, the enzyme XOR was absent from a tumor cell line, then the cell would not be expected to respond to the effects of quercetin on uric acid metabolism since XOR is the key site of interaction for this effect (Fig. 2).
Controversial role of Nrf2 in cancer—direct and indirect regulation by quercetin
Quercetin also interacts directly with Nrf2. Nrf2 is a well-studied transcription factor that binds to the antioxidant response element (ARE) in promoters of many detoxifying or antioxidant enzyme genes in response to various xenobiotics and stresses (5, 107, 246), and as a consequence, Nrf2 knockout mice are more susceptible to carcinogens (201). Nrf2 is also involved in protecting endothelial cells from glucose-induced oxidative stress (269) and in the expression of glyoxylase I, resulting in improved glucose homeostasis (270). Transcription of HO-1 is regulated through Nrf2 (123) via the ARE (5), and this responsive gene is often used as a marker of Nrf2 action. NQO1 (quinone reductase) was one of the first genes to be shown to contain an ARE and to require Nrf2 for transcription (70, 246). As part of the process of inducing NQO1, quercetin binds to the Nrf2 protein and increases its half-life four-fold (237). Chemically, quercetin can be oxidized to a quinone form via a semiquinone intermediate. The quinone form can then react with sulfhydryl groups to form a glutathione adduct (Fig. 6). This reaction can occur in cells (12), and consequently the 6- and 8-glutathionyl quercetin adducts are secreted into the medium. After consumption of quercetin in humans, glutathionyl quercetin adducts are found at low levels in urine, suggesting that the conjugation reaction can occur in vivo (101). The presence of ascorbate slows the oxidation of quercetin and inhibits formation of the quinone forms (131), but, once formed, quercetin quinone reacts preferentially with thiol groups compared with ascorbate (23). The quinone form of quercetin is only a poor substrate for NQO1 and although NQO1 is induced by quercetin, NQO1 does not provide protection from the effects of quercetin quinone (22). Although these conjugation reactions clearly occur both in vitro and in vivo, the predominant reaction of quercetin is conjugation with methyl, glucuronosyl, or sulfate groups (20, 55, 86), and as a result, these metabolites of quercetin dominate in urine (101, 166) and plasma (53, 166) (Figs. 1 and 6).
Keap-1 contains three crucial cysteine residues that play a role in the interaction with Nrf2, controlling its degradation via ubiquitin, and its response to oxidative stress. Both sulforaphane, a well-characterized inducer of NQO1 and HO-1, and oxidative stress stabilize Nrf2 by allowing it to escape Keap1-dependent degradation and activate genes by nuclear translocation and binding to the ARE. Cys151 is required for this process, and a post-translational modification of this residue is induced by oxidative stress (277). Since quercetin induces NQO1 and HO-1, it has been proposed that it could interact with Nrf2/Keap-1 to induce ARE-controlled enzymes (237), by forming protein adducts as shown in Figure 6. However, it is not known whether this occurs in cells. Quercetin binds to Nrf2 and stabilizes it, and it also binds directly to Keap-1, thus preventing its proteolytic degradation, and suggesting that the interaction of quercetin with the Cys151 is possible (237). However, some studies have suggested that quercetin does not interact with Nrf2 in endothelial cells (214), although we have data showing that quercetin is a potent HO-1 inducer in HUVECs (unpublished data). Further, stabilization of Nrf2 or of Keap-1 by interaction with cysteine residues requires catechol groups (225). Methylation of one of the hydroxyl residues of quercetin prevents the formation of thiol adducts (131), but since 4′-O-methylquercetin induces HO-1 in HepG2 cells (272), this suggests that interaction of the catechol group with thiol residues on Keap-1 or Nrf2 is not the only mechanism of induction of ARE-controlled genes by flavonoids. When treated with 20 μM quercetin, GSH concentration in HAEC transiently dropped by 20% and returned to baseline within 18 h. Since GSSG also decreased, this suggests that these changes were due to consumption of glutathione rather than thiol oxidation, and in support of this, quercetin glutathione conjugates were exported into the medium (132).
A substantial literature documents the chemopreventive effect of Nrf2 activators (268), particularly those that are naturally occurring. Nrf2 activators, such as sulforaphane, curcumin, and dithiolethiones (Oltipraz), have undergone clinical trials (142). However, some recent research implicating Nrf2 in tumor cell proliferation is causing controversy. Studies in breast cancer cells revealed that Nrf2 regulated the expression of growth factors, transmembrane receptors, kinases, and transcription regulators under hypoxia through the GSH signal that impinges on cell proliferation (204, 232). The hyper-activated Nrf2 can contribute to overexpression of target genes, leading to cancer cell survival and proliferation. In addition, Nrf2 can aid cancer cells in resisting chemotherapy and radiotherapy (268). Nrf2 overexpression enhanced resistance to chemotherapeutic drugs, such as cisplatin, doxorubicin, and etoposide, in cancer cells (258). In addition, Nrf2 silencing through RNA interference inhibited tumor growth and enhanced the efficacy of chemotherapy in nonsmall-cell lung carcinoma cells (222). The aberrant activation of Nrf2 was attributed to the radio resistance in NSCLC cells (221) and linked to upregulation of drug efflux pumps, such as ABCG2, which enhances the resistance to anticancer drugs in lung epithelial cells (223). Increased expression of the ABC transporters would also blunt interactions of polyphenols with cellular targets due to increased elimination of intracellularly formed metabolites.
In contrast with normal cells, Nrf2 protein constitutive upregulation in many tumors is due to somatic mutations in the Keap1 or Nrf2 genes (98). It has also been suggested that in certain settings Nrf2 augments purine nucleotide synthesis, thus supporting tissue hypertrophy. In human lung A549 cells constitutively overexpressing Nrf2 due to harboring of mutant Keap1, upregulation of Nrf2 led to increased utilization of glutamine by increasing GSH synthesis as a consequence of glutamate-cysteine ligase induction and increased decarboxylation of malate as a consequence of malic enzyme 1 induction (161). This change in cellular metabolism required both loss of Nrf2 repression by Keap1 and co-stimulation via the PI3K-Akt pathway as opposed to induction of antioxidant and detoxification genes, which requires only inhibition of Keap1. So far, a role for quercetin has only been described with regard to the cytoprotective role of Nrf2.
Recent work has further complicated the Nrf2 activation story as the acetylation–deacetylation status of Nrf2 was also found to define its nuclear translocation, its ability to promote transcription, and its egress from the nucleus to terminate its transcriptional activity (112). Specifically, SIRT1, which belongs to the family of NAD+-dependent deacetylases, was shown to decrease acetylation of Nrf2, as well as Nrf2-dependent transcription (103). Quercetin could affect SIRT1 through inhibition of NAD+-consuming enzymes such as CD38 and PARP (69, 81) and could, therefore, have an indirect effect on Nrf2 acetylation status, although this mechanism of action has not been explored.
On the basis of this evidence, there seems to be a dual role of Nrf2 in carcinogenesis: beneficial in the early stages where activation of the Nrf2 pathway leads to activation of cytoprotective genes and thus generation of antioxidant machinery that removes ROS, reactive aldehydes such as 4-hydroxynonenal, and xenobiotics from the cells; but detrimental in later stages of cancer by increasing resistance to conventional radio- and/or chemotherapy. Such effects are relevant to all stages of cancer progression, as shown in Figure 7, however to different extents.
Multimodal effects of quercetin and epicatechin on HepG2 cells and hepatocytes affecting cellular homeostasis.
The effect of quercetin on HepG2 cells is very concentration dependent, and there is abundant evidence to show that at >30 μM, the dominant effect is on the cell cycle progression, apoptosis, and cell death. At these concentrations, quercetin decreased cyclin D1 protein and induced G1 phase arrest (283), increased gene expression of the tumor suppressor p16 (278), and of Cdk inhibitors p21 and p27, whose loss can mediate a drug-resistance phenotype, increased tumor suppressor p53 (165), activated JNK and ERK signaling pathways (249), decreased survivin (BIRC5), an inhibitor of apoptosis that attenuates caspase activation, and Bcl-2 protein levels, increased caspase-3/caspase-9 activity (235), downregulated expression of PI3K, PKC, and COX-2, and enhanced the expression of B-cell lymphoma-2-like protein 4 (Bax) (150). At similar concentrations (50 μM for 48 h), quercetin downregulated the Ras GTPase-activating protein and β-tubulin and these effects were correlated with reduced cell migration ability. When 10 μM was directly compared with 100 μM, only the higher concentration of quercetin induced significant apoptosis (119), and several studies report that quercetin at <20 μM has only a minimal effect on HepG2 cell death. Further, the effect of quercetin on caspase-3 activity was maximal at 50 μM in HepG2 and declined at higher concentrations whereas this coincided with mitochondrial Bax activity (87). Low doses of quercetin (0.1–1 μM) increased Cu/Zn superoxide dismutase and glutathione peroxidase mRNA in tert-butyl hydroperoxide-treated HepG2 cells (6). High concentration effects have led to claims that quercetin can inhibit the growth of cancer cells and, hence, could act as a chemopreventive agent.
The effect of high concentrations of quercetin on cell death is less pronounced in primary human hepatocytes. Quercetin as high as 100 μM did not affect the viability of human hepatocytes as assessed by lactate dehydrogenase release into culture medium, and had no effect on CYP2E1 nor intracellular GSH concentration, and this high concentration actually protected cells from ethanol-induced toxicity through induction of HO-1 via the MAPK/Nrf2 pathways (273, 274). These reported differences between the cancer phenotype of immortalized cells and primary isolated cells can cloud judgement, since the potential molecular targets of a flavonoid are linked to the differential metabolic signature of the cells and also their tumor background.
Quercetin at >25 μM also lowered intracellular FASN mRNA and activity and overall modulated fatty acid synthesis (279). Oleic acid induced lipid droplet formation, increased triglycerides, the inflammatory cytokines TNF-α and IL-8, and increased insulin resistance as apparent by inhibition of insulin-stimulated glucose uptake. Quercetin at 10 μM protected against oleic acid-induced hepatic steatosis as shown by decreased triglyceride content, increased insulin-mediated glucose uptake, increased intracellular glutathione, decreased TNF-α and IL-8, increased total superoxide dismutase activity, catalase and glutathione peroxidase activities, increased albumin and urea, and decreased alanine aminotransferase activity (247).
As has been reported in several systems, quercetin is a potent competitive inhibitor of GLUT1 (147) whereas it was also reported to inhibit the uptake of glucose and of (nonmetabolized) deoxy-D-glucose in HepG2 cells, but over 12 h, increased mRNA expression of the main GLUTs GLUT1 and of GLUT9 (116), presumably as a response to the acute inhibition. Given the differential expression of GLUTs between cancer cell lines, normal tissues, and in cancer, this activity of quercetin may be of importance in potentiating cellular reprogramming and induction of apoptosis of cancer cells. Treatment of HepG2 cells with quercetin (50 μM for 48 h) led to ∼70 protein changes, notably involved in metabolism; cytoplasmic malate dehydrogenase and succinate dehydrogenase were substantially downregulated, whereas FASN, L-lactate dehydrogenase A chain, α-enolase, glyceraldenhyde-3-phosphate dehydrogenase, and phophoglycerate kinase were all upregulated (284).
In rat hepatocytes, fatty acid synthesis was reduced dose dependently by quercetin, between 2.5 and 50 μM (84), in broad agreement with the effect described earlier (279) on HepG2 cells. Cholesterol synthesis was unaffected in hepatocytes. Quercetin at 25 μM decreased ACC and diacylglycerol acyltransferase activities, but it did not affect FASN nor HMG-CoA reductase activities (84). This implies that although the overall effect of quercetin on rat hepatocytes is to decrease fatty acid synthesis, the mechanism may differ from that observed in human HepG2 cells, possibly because of the species difference in cell line origin. The product of ACC is malonyl-CoA, which implies that quercetin would decrease malonyl-CoA levels through decreased ACC activity. Incorporation of labeled acetate into VLDL-triglyceride was reduced by 36% in the presence of quercetin, and quercetin was, therefore, proposed to decrease both de novo fatty acid synthesis and triglyceride synthesis in rat hepatocytes (84).
High glucose decreased tyrosine-phosphorylated and total levels of IR, IRS-1 and −2, inactivated AMPK, and the PI3K/Akt pathway, decreased GLUT2, increased PEPCK, and diminished glucose uptake in HepG2 cells. Pre-treatment with epicatechin (10 μM) attenuated or prevented these changes, suggesting improved insulin sensitivity and delay of potential hepatic dysfunction (44). In the same cell line, high glucose increases phosphorylation of IRS-1, leading to lowered insulin-stimulated phosphorylation of Akt, and this effect is partially blocked by EGCG. These effects are mediated via EGCG-activated AMPK (139). In comparison and under normal glucose conditions, quercetin at the lowest concentration tested (10 μM) increased the phospho-Akt:Akt and phospho-ERK:ERK ratios, but notably this effect declined at higher concentrations and was reversed by 100 μM (87).
Phospho-Nrf2 increased after treatment of HepG2 cells with quercetin up to 10 μM, then decreased to below control values at 50 μM, as did the ratio of nuclear to cytosolic Nrf2 (88). Bell-shaped responses are commonly evidenced for Nrf2 activators and, although the reason behind this is not known, other post-transcriptional modifications and secondary interactions with deacetylases are believed to be involved (103). Similarly, quercetin at high, but not low (<10 μM), concentrations induced CYP1A1 mRNA and activity in HepG2 cells (249) but neither CYP2E1 protein nor activity (273) was affected by 100 μM treatment with quercetin. Using hepatocytes from two donors, quercetin at >80 μM did not induce the conjugating enzyme UGT1A1, the efflux transporters ABCB1 or ABCC2, nor the cytochrome P450s, CYP1A2, CYP2B6, and CYP3A4, whereas quercetin induced the expression of UGT1A1 and CYP1A2 in HepG2 cells (134). In human hepatocytes from one donor, quercetin at 10 μM produced no change in the conjugating enzymes UGT1A1 and SULT2A1, the transporters ABCG5 and ABCC3, nor in HNF4α, but at 50 and 250 μM some of these genes were downregulated (134). At 5–25 μM, quercetin induced the mRNA expression of several mitochondrial biogenesis activators (PGC1α, nuclear respiratory factor-1, and mitochondrial transcription factor A), mitochondrial DNA, and COX IV protein in HepG2 cells, through a mechanism involving HO-1 (203). At 100 μM, the induction of HO-1 by quercetin was accompanied by increased Nrf2 in the nucleus and this increase was abolished by MAPK inhibitors (274).
At high concentrations of quercetin, pregnane X receptor, constitutive androstane receptor, and the aryl hydrocarbon receptor were activated in HepG2 cells (134). Quercetin at 10 and 50 μM did not change the mRNA levels of β-catenin, c-fos, c-jun, GADD45, IL-1β, IL-1R, LBP, p21CIP1, and STAT3 in human hepatocytes, but quercetin at 10 μM (but not at 50 μM) modulated c-fos and LBP in HepaRG cells. There appeared to be no changes in transcriptomic profile in human hepatocytes by 10 and 50 μM quercetin, but only one donor was used (250).
In human hepatocytes, quercetin (20 μM) protected against formation of 14C-labeled PhIP-DNA adducts, but with substantial inter-individual variation in the extent of protection in the four donors tested. In HepG2 cells, quercetin also protected and the effect was dose dependent up to 20 μM. The number of PhIP-DNA adducts was dose dependent over a wide range of PhIP concentrations, and there were ∼30-fold more adducts in hepatocytes compared with HepG2 cells, due at least, in part, to higher CYP1A2 activity in hepatocytes (Fig. 2) (14). In HepG2 cells, quercetin at low concentrations (0.1 μM and above) inhibited activity of cytochrome P450, but it did not induce glutathione S-transferase, CYP1A1, c-fos, heat shock protein 70, tumor suppressor p53, transcription factor NF-κB nor DNA damage (171), and at 10 μM, did not increase NF-κB binding activity nor DNA strand breakage, but protected against hydrogen peroxide-induced increase in NF-κB activity and DNA strand breakage (170). NF-κB can be glutathionylated (186), and quercetin transiently decreased glutathione concentration in human aortic endothelial cells (132).
Interaction of quercetin with intestinal tissue and cells
The intestine is the primary site of interaction with orally consumed flavonoids. The concentration in the gut lumen to which the enterocytes are exposed can reach mM levels (261). Green tea catechins are present in their active forms, such as EGCG and epicatechin, but many other flavonoids such as quercetin are glycosylated (198), and experiments in vivo and in vitro need to be designed to take these factors into consideration (Fig. 1). When treated with quercetin in the aglycone form, some effects on the intestine are comparable both in vitro and in vivo. For example, quercetin enhanced barrier function in rat ileum and distal colon, and it also attenuated TNF-α- and interferon-γ-induced damage to HT-29/B6 cell monolayers (7). Using Caco-2 monolayers, the mechanism may be through the assembly of the tight junction proteins, ZO-2, occludin, and claudin-1 by inhibiting PKCδ (231). When a low dose of quercetin was given to BALB/c mice, changes in the small intestine gene expression involved downregulation of genes related to calcium signaling and lipid metabolism, and upregulation of genes related to ribosomal protein and xenobiotic metabolism (176). In human colonic LS180 cells and Caco-2 cells, quercetin suppressed endoplasmic reticulum stress caused by calcium dynamics dysregulation by the inhibition of PI3K (175). Quercetin inhibited TNF-induced interferon-γ-inducible protein 10 (IP-10) and macrophage inflammatory protein 2 (MIP-2) pro-inflammatory gene expression in murine small intestinal epithelial Mode-K cells. In comparison, quercetin given orally to heterozygous TNFδARE/WT mice, a model of experimental ileitis, inhibited IP-10 and MIP-2 gene expression in ileal epithelial cells without affecting tissue pathology (208).
In C57BL/6 mice fed quercetin, transcriptomic analysis showed that genes involved in fatty acid metabolism and glutathione metabolism were modulated in the small intestine (172). In the distal colon of rats fed quercetin chronically, transcriptomic analysis showed that the MAPK pathway was downregulated, tumor suppressor genes, including phosphatase and tensin homolog (PTEN), Tp53, and Msh2, cell cycle inhibitors, including MUTYH, a DNA glycosylase involved in DNA repair, and genes involved in phase I and II metabolism, including the flavin-containing dimethylaniline monooxygenase 5, epoxide hydrolase, and glutathione peroxidase, were upregulated, together with PPARα target genes, and enhanced expression of genes involved in mitochondrial fatty acid degradation. Transcriptome changes were poorly correlated with the proteome, but both indicated altered energy metabolism, and showed that quercetin evoked changes contrary to those observed in colorectal carcinogenesis. In vivo, tumor-protective mechanisms and a shift in energy production pathways indicated decreased cytoplasmic glycolysis and increased mitochondrial fatty acid degradation (59). In contrast, when Caco-2 cells were treated with quercetin (stabilized by ascorbate against degradation; see Fig. 6), genes involved in cell survival and proliferation were affected, genes involved in tumor suppression were downregulated, and oncogenes were upregulated (58). There are many studies on the interaction of quercetin with HT29 cells, but, in general, quercetin is much more toxic to proliferating cancer cells during replication compared with cells post-differentiation when the culture model is more representative of the established tissue phenotypic functionalities (3).
Effect of flavonoids on pancreas and pancreatic cells
Effect of quercetin on pancreas and pancreatic cells in vivo
Numerous in vitro studies on quercetin and pancreatic cells have been reported, and some of these have also been supported by studies on animal models in vivo. Quercetin given orally significantly attenuated the severity of cerulein-induced acute pancreatitis in mice as shown by reduction in pancreatic weight, pro-inflammatory cytokines, myeloperoxidase activity, increased anti-inflammatory cytokine IL-10, and suppression of pancreatic edema (34). Streptozotocin induces pancreatic damage via uptake into β cells via GLUT2 (67). Streptozotocin-treated rats can be a model for hyperglycemia, type 1 diabetes, or type 2 diabetes depending on the dose used (67); in the type 1 model, quercetin protected and preserved pancreatic β cell architecture, attenuated the increase in plasma glucose (2), and prevented islet cell degeneration (45). In rats fed a high-fat diet to induce hypertriglyceridemia with acute pancreatitis induced by an intraperitoneal injection of cerulein, quercetin reduced plasma amylase, attenuated pancreatic histopathological damage, reduced the mRNA and protein expression of inflammatory mediators NF-κB, IL-1β, IL-6, and TNF-α, and downregulated gene and protein expression levels of IRE1α, sXBP1, C/EBPα, and C/EBPβ (281).
Quercetin reduced serum insulin and leptin, blocked islet hyperplasia in fructose-fed rats, a model of type 2 diabetes, and also prevented fructose-induced β cell proliferation and insulin hypersecretion in INS-1 β-cells (133). Quercetin counteracted the cholesterol-induced activation of the NF-κB pathway in the pancreas of rats fed high cholesterol, normalizing the expression of pro-inflammatory cytokines (33). Dietary supplementation of quercetin attenuated the growth of transplanted pancreatic tumor xenografts in a nude mouse model (10). Many of these studies indicate a protective effect of quercetin against pancreatic cancer development, but the doses used in these studies were mostly pharmacological rather than dietary. In a study on 76 patients suffering acute pancreatitis, pre-operative treatment with quercetin substantially reduced the organ dysfunction rate as well as polyorgan insufficiency (50).
Effect of quercetin on pancreas and pancreatic cells in vitro
There is a scarcity of human cell lines available for studying pancreatic β cells and the most commonly used cell line, INS-1, is derived from mice. In this cell line and in isolated pancreatic islets from rats, quercetin stimulated insulin secretion by increasing Ca2+ influx through an interaction with L-type Ca2+ channels (15). Quercetin induces the microRNA let-7c in cells, and in vivo, xenotransplantation of PDAC cells with an intravenous injection of let-7c decreased tumor mass in the fertilized chick egg model (180). Quercetin downregulated cellular FLICE-like inhibitory protein, whose overexpression was able to rescue pancreatic cancer cells from TNF-related apoptosis-inducing ligand/quercetin-induced apoptosis (120). In Min6 cells, quercetin counteracted cholesterol-induced activation of the NF-κB pathway, normalized expression of pro-inflammatory cytokines (33), and inhibited the growth of two human pancreatic cancer cell lines by inducting apoptosis (10).
Interaction of epicatechin and green tea with pancreas and pancreatic cells
Epicatechin protected INS-1E pancreatic β cells from tert-butylhydroperoxide-induced damage, by preventing increased ROS, carbonyl groups, p-JNK expression, and cell death, and recovering insulin secretion (148). A combination of sulforaphane, quercetin, and green tea catechins inhibited PDAC progression by inducing the microRNA let7-a and inhibiting the proto-oncogene K-ras in two established, one primary PDAC cell line, and in nonmalignant pancreatic ductal cells (11). In premalignant and malignant K-ras-activated PDAC cells, epicatechin decreased proliferation, GTP-bound Ras protein, Akt phosphorylation, and NF-κB transcriptional activity, but it had no observable effect on normal pancreatic ductal epithelial cells. Further, oral administration of epicatechin-containing cocoa polyphenols inhibited the growth of K-ras-PDAC cell-originated tumors in a xenograft mouse model (219). In another in vitro study in human PDAC cells, the two minor green tea catechins, epicatechin gallate and catechin gallate, had much stronger anti-proliferative and anti-inflammatory effects, including inhibition of NF-κB, IL-8, and uPA, than EGCG (126). Epicatechin inhibited IL-1β-induced inducible nitric oxide synthase (iNOS) expression by downregulating NF-κB activation, and protecting RINm5F β cells and islets from the effects of IL-1β (122). In streptozotocin-treated rats, epicatechin protected from hyperglycemia and weight loss, and it preserved islet morphology and insulin release (121).
Effect of flavonoids on breast cancer tissue and cells
Effect of quercetin on breast cancer tissues and cells
The effect of quercetin on various cell models for breast cancer has been extensively studied. Most in vitro studies have been performed on estrogen receptor (ER)-positive MCF-7 and on ER-negative MDA-MB-231 cells, and a comparison between the two cell lines provides information on the role of the ER. Quercetin inhibited the growth of MCF-7 cells, promoted apoptosis by inducing G0/G1 phase arrest, and regulated the mRNA expression of survivin (56). At a very high concentration, quercetin at 150 μM induced apoptosis by direct activation of the caspase cascade through the mitochondrial pathway (40). Quercetin induced partial co-localization of phospho-Akt and phospho-AMPK in the nucleus of MCF-7 breast cancer cells (130). Quercetin-3-O-glucuronide, one of the main human phase II metabolites of quercetin in blood, showed ERα- and ERβ-dependent estrogenic activity in MCF-7 cells (209). Quercetin can reverse tamoxifen resistance in breast cancer MCF-7Ca/TAM-R cells, involving upregulation of ERα and downregulation of Her-2 (receptor tyrosine-protein kinase erbB-2), an epidermal growth factor receptor and oncogene target in breast cancer (252). In MDA-MB-453 cells, high concentrations of quercetin (100 μM) increased the number of sub-G1 phase cells, increased apoptosis, increased Bax expression, decreased Bcl-2 expression, and increased cleaved caspase-3 and poly[ADP-ribose]polymerase 1 expression (39). Quercetin (100 μM) showed cytotoxicity in MCF-7 cells, but not in MDA-MB-231, by suppressing expression of cyclin D1, p21, Twist, and phospho-p38MAPK, which induced apoptosis in MCF-7 cells (202). Quercetin-3-O-glucuronide at a very low concentration (0.1 μM) suppressed invasion of MDA-MB-231 breast cancer cells and MMP-9 induction, by controlling β2-adrenergic signaling (271). Quercetin with vitamin C decreased Nrf2 mRNA and protein levels and of endogenous ROS in MDA-MB 231, MDA-MB 468, A549, and MCF-7 breast cancer cells (164). Quercetin and EGCG concentration dependently inhibited deoxy-
Quercetin has been studied in animal models for anti-breast cancer activity. After 3 weeks, it decreased tumor growth, limited oncocyte proliferation, promoted tumor necrosis in female BALB/c nude mice injected with MCF-7 cells into the mammary fat, inhibited tumor calcineurin (calcium- and calmodulin-dependent serine/threonine protein phosphatase) activities, and inhibited angiogenesis. In vitro, it also inhibited calcineurin activity (280). Quercetin dose dependently decreased tumor number and volume in a transgenic C3(1)/SV40 Tag breast cancer mouse model of human breast cancer, and at the lowest dose of 0.2% of diet, 31 genes were downregulated and 9 genes were upregulated more than twofold (227). Quercetin improved the therapeutic index of the anthracycline antibiotic doxorubicin by its opposing effects on HIF-1α in 4T1 tumor cells and in murine normal spleen cells evaluated in BALB/c mice with 4T1 breast cancer. It suppressed intratumoral HIF-1α in a hypoxia-dependent manner in tumor cells, but in contrast increased its accumulation in normal cells (62). However, a study has claimed that quercetin does not confer protection against breast cancer, does not inhibit endogenous estrogen 17β-estradiol E(2)-induced oxidant stress, and may even exacerbate breast carcinogenesis in E(2)-treated female ACI rats (224).
Effect of epicatechin and green tea on breast cancer tissue and cells
MMPs play an important role in tissue reconstruction near proliferating cells of malignant neoplasms during cancer metastasis, whereas, significantly, low levels of tissue inhibitor of matrix metalloproteinase-3 (TIMP-3) protein expression in breast cancer have been reported to be correlated with an aggressive cancer phenotype. EGCG at 20 μM was reported to mediate epigenetic activation of TIMP-3 levels, resulting in suppression of invasiveness and gelatinolytic activity of MMP-2 and MMP-9 in MDA-MB-231 and MCF-7 breast cancer cells (54, 173). Although both EGCG and EGC at 30 μM inhibited heregulin-1-induced migration and invasion of MCF-7 cells, EGCG action was shown to be due to downregulation of the ErbB2/ErbB3/PI3K/Akt signaling, whereas (−)-epigallocatechin (EGC) exerted these effects through pathways involved in the inhibition of ErbB2/ErbB3 but not Akt (127). These data suggest that EGCG and EGC reduce MMP-9 expression through different signaling pathways and are in agreement with an indirect mechanism of action on MMPs as direct binding of EGCG to MMP-2 was very weak (210).
Inhibition of NF-κB activity is believed to disrupt the metastatic potential of mammary epithelial cells in a model system through regulation of genes linked to cell motility, invasion, and metastasis, including the genes encoding MMPs. The inhibitory effect of epicatechin at 10 μM on invasion of cancer cells into embryonic stem cell-derived, vascularized tissues was attributed to downregulation of MMP-9 expression (91). Finally, the inhibitory activity of EGCG in cancer progression and invasion was also seen in mouse mammary cancer cells through activation of Forkhead box O transcription factor, the major regulator of ERα signaling. This led to repression of epithelial-to-mesenchymal transformation, halting the generation of the mesenchymal phenotype that has highly invasive characteristics, causing the primary cancer to emigrate (17). The presence of ERα is considered a good prognostic factor and correlates with a higher degree of cancer differentiation (47), whereas recent research has shown that high levels of MMP-9 were negatively correlated with ER (267).
Synergistic Effects of Polyphenols in Chemotherapy
Green tea catechins have been tested as an adjuvant in chemotherapy. Some studies have reported beneficial effects of EGCG or green tea extract with anticancer drugs, such as bleomycin in cervical cancer cells, cisplatin in vitro in various cancer cell lines and in mouse models in vivo, tamoxifen in human breast cancer cells in vitro, and negative effects with bortezomib, diminishing its antitumor effects in CWR22 xenograft-bearing breast cancer mice (30). The positive reported outcomes of green tea catechins and mainly of EGCG were related to induction of apoptosis and ROS, caspase activity, and in the case of cisplatin reduction of drug resistance and amelioration of cisplatin treatment side effects. EGCG was found to inhibit the transport activity of P-glycoprotein (ABCB1) and may be an effective P-glycoprotein modulator, one of the main transporters conferring drug resistance, while it also increased chemotherapy drug accumulation in multidrug-resistant cells (259).
However, such interactions could also unexpectedly affect the pharmacokinetics and bioavailability of co-administered chemotherapeutic agents in cancer patients and, as such, influence its efficacy and toxicity profile. A total of 80 clinical trials involving both green tea and cancer are listed in
In comparison, a total of eight studies are listed in
Although studies in healthy volunteers are usually conducted in a randomized, placebo-controlled, cross-over, or parallel design depending on the power of the study, clinical trials on cancer patients are mainly open labeled and single-group assignment, the endpoint being closely relevant to the drug treatment and cancer condition. Although these parameters are dictated by the ethical aspects of the study when dealing with patients, nonetheless, they can compromise the significance of the effects.
Conclusions
The interplay between oxygen availability and metabolism is key to a detailed understanding of how a tissue responds to hypoxia, especially in the case of cancer. The orchestrated activities of related kinase cascades, nuclear factors, and transcriptional modifications define the fate of the cell whether activating antioxidant responses or entering the apoptotic phase. Phytochemicals and flavonoids, as such, are believed to have a role to play in maintaining the overall cellular redox balance, and evidence points to a beneficial impact through interactions with specific high-affinity molecular targets as described here. However, natural compounds cannot be seen as a panacea, especially when taking into account differences between biological settings in health and disease.
Given that quercetin, for example, is known to partly accumulate in mitochondria (72), there is no doubt that in compromised, damaged mitochondria with lower capacity for stress responses, potential bioactivities will be magnified. Although quercetin aglycone plasma levels are usually low, due to its extensive metabolism, circulating glucuronides, sulfates, and O-methylated forms of quercetin may also produce beneficial effects as both the flavonoid and the O-methylated flavonoid glucuronides may be de-conjugated by β-glucuronidases present in human tissues, in particular at the inflammatory sites (106, 113, 191). However, taking into account the fact that solid tumors usually have decreased blood flow and that the metabolic modifications in vivo to the quercetin structure restrict its bioavailability, together with the inhomogeneous nature of cancers, the window for clinical efficacy of quercetin in cancer seems to be narrow in the established tumor, not excluding possible beneficial effects on chemoprevention at the initial stages of cancer progression. Although green tea catechins have been widely studied for cancer chemoprevention, and epidemiology strongly supports a beneficial role, research outcomes summarized here highlight key activities in reversing root-and-cause inflammatory excursions and, therefore, improving the overall clinical symptoms of cancer. Intra-person variability and cancer type are also expected to impact the beneficial clinical potential of polyphenols considering changes in phase II detoxifying enzymes affecting hepatobiliary excretion.
Nonetheless, synergistic interactions of flavonoids with standard chemotherapeutics are becoming the objective of further research in the area as both in vitro and in vivo studies have indicated that both quercetin and EGCG could enhance their bioavailability and accumulation while sensitizing cancer cells to their actions and reversing side effects. From a clinical perspective, this would allow potential dose reduction of drug toxicity and help prevent severe side effects in the clinic, while providing another avenue to maximize outcomes at minimal cost.
