Bioreducible Polycations as Shuttles for Therapeutic Nucleic Acid and Protein Transfection

Abstract

Significance: Nucleic acids such as gene-encoding DNAs, gene-silencing small interfering RNAs, or recombinant proteins addressing intracellular molecular targets present a major new therapeutic modality, provided efficient solutions for intracellular delivery can be found. The different physiological redox environments inside and outside the cell can be utilized for optimizing the involved transport processes. Recent Advances: Intracellular delivery of nucleic acids or proteins requires dynamic carriers that discriminate between different cellular locations. Bioreducible cationic polymers can package their therapeutic cargo stably in the extracellular environment, but sense the reducing intracellular cytosolic environment. Based on disulfide cleavage, carriers are degraded into biocompatible fragments and release the cargo in functional form. Disulfide linkages between oligocations, between the carrier and the cargo, or spatial caging of complexed cargo by disulfides have been pursued, with polymers or precise sequence-defined peptides and oligomers. Critical Issues: A quantitative knowledge of the bioreductive capacities within different biological compartments and the involved cellular reduction processes would be greatly helpful for improved carriers with disulfides cleaved within the right compartment at the right time. Future Directions: Novel designs of multifunctional nanocarriers will incorporate macromolecular disulfide entry mechanisms previously optimized by natural evolution of toxins and viruses. In addition to extracellular stabilization and intracellular disassembly, tuned disulfides will contribute to deshielding at the cell surface, or translocation from intracellular compartments to the cytosol. Antioxid. Redox Signal. 21, 804–817.

Introduction

The therapy with bio-derived macromolecules such as proteins or nucleic acids such as plasmid DNA (pDNA) (61), small interfering RNA (siRNA) (20, 113), and microRNA (40, 53) is a field of major importance and continually growing interest. Life-threatening, severe diseases, including cancer, obtain a new chance for treatment by the use of gene therapy (6, 10) or intracellular protein therapy (30). In order to be used as therapeutics, these macromolecules should be stabilized against degradation in the bloodstream and clearance should be taken up by the target cells and reach the intracellular site of action.

Bacterial toxins developed sophisticated solutions for the transcellular and intracellular delivery of protein subunits. Viruses are the number one carriers for intracellular nucleic acid delivery. However, only minor changes in their structures can be made, the size and type of cargo is limited, and foreign proteins and viruses trigger immune reactions. Both such protein toxins and viral nanoparticles, on the one hand, present excellent natural examples for how to design carriers for intracellular delivery. On the other hand, synthetic carriers that mimic these transfer processes but are not dependent on naturally available nucleotides and amino acids gain more and more attention.

These synthetic carriers should handle a lot of challenging tasks. They should offer an optimal extracellular stability and an efficient uptake into the cell. Uptake usually results in delivery into endocytic vesicles, which often end in degradative lysosomes. Therefore, the same carriers should facilitate an escape from endosomes after uptake and release their nucleic acid or protein cargo to the cytoplasm, which is optionally followed by transfer to the nucleus (as required in the case of pDNA). In this process, the carriers should act similar to shuttles: Although stably associated with their cargo in a covalent or noncovalent manner in the early extracellular delivery steps, they should not disturb the protein or nucleic acid cargo in functionality inside the cell and should dissociate or disintegrate after delivery.

Not only the demands on delivery differ at the different extracellular and intracellular sites, but also the microenvironments provide unique different properties. Carriers can be designed to sense these environmental differences and to utilize them to undergo changes that are beneficial for the delivery process (116). The molecular programming of such dynamic carriers may include sensors that react to changes in enzyme activities, pH, or the redox microenvironment (Fig. 1). Among the different sensors, bioreducible elements are important tools that are used to distinguish between extra- and intracellular sites, where the redox potential displays big differences. As reviewed in the next sections, the use of disulfide bonds as sensors for reductive environments have a growing impact in the development of oligocation-based macromolecular drug carriers (48, 91, 104).

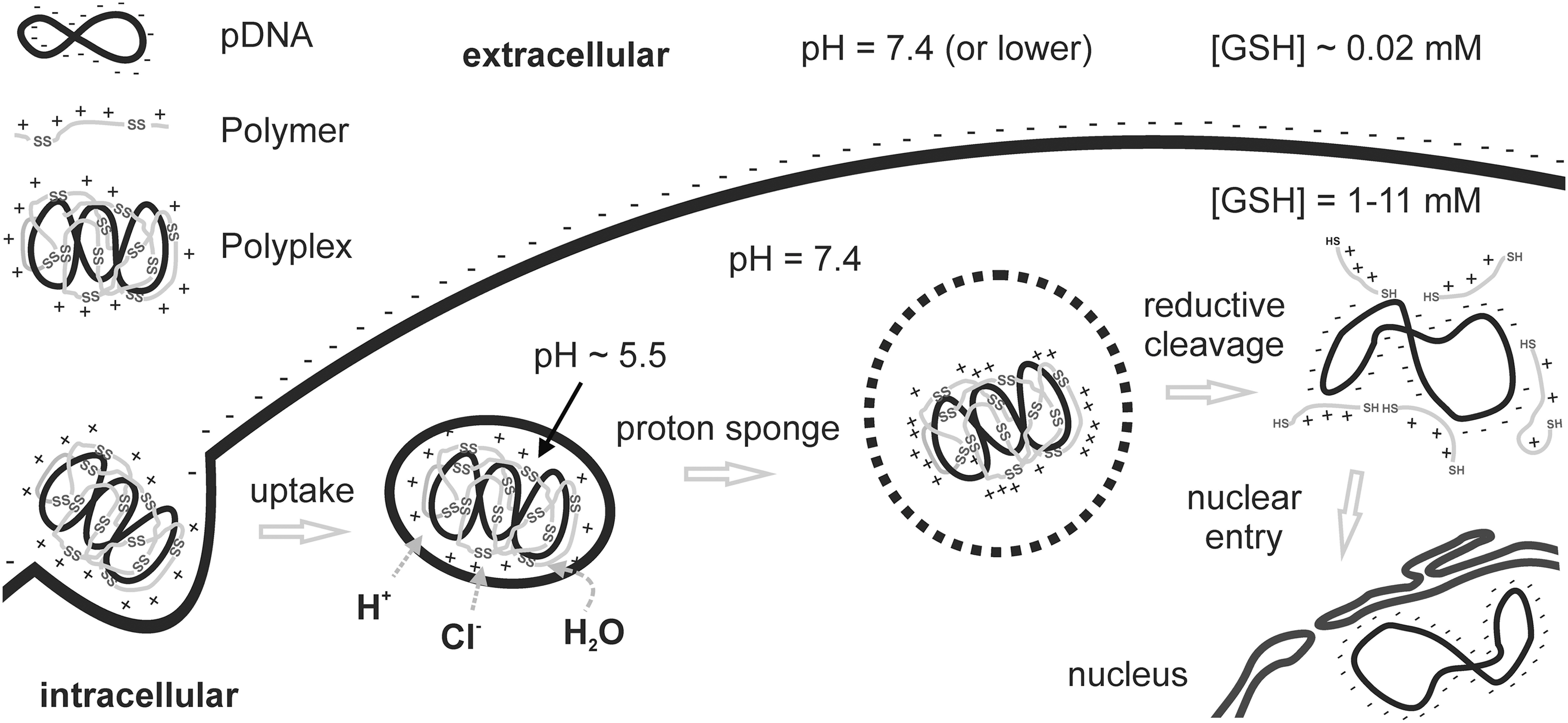

FIG. 1.

Dynamic nanocarriers utilizing different cellular microenvironments. Differences in pH (lower in endocytic vesicles and also in special extracellular tumor situations) and redox situation (higher intracellular glutathione [GSH] concentration) can be utilized in the delivery process. Polyplexes stabilized by disulfide formation get internalized by an electrostatic interaction with the cell membrane. Protonation of polymers in the acidifying vesicle triggers destabilizing membrane interactions that are necessary to induce endosomal escape into the cytosol. In the reductive environment of the cytosol, disulfide bonds are cleaved and the cargo is released. Plasmid DNA (pDNA) has to enter the nucleus to get transcribed.

Outside Stabile, Inside Labile—The Delivery Paradox

Polyplexes are nanoscaled, interelectrolyte complexes consisting of cationic polymers and negatively charged nucleic acids (23). The extracellular stability is of highest importance. In the bloodstream, these particles are exposed to nucleases, which can degrade the cargo, and other serum proteins, which can destabilize the complex by electrostatic exchange actions. In addition, nucleic acids are compacted to convenient polyplex sizes of virus-like dimensions (around 100 nm). In case of larger pDNA, this results in favorable compaction and protection. In case of small nucleic acids such as siRNA or oligonucleotides, this results in increased nanoparticle sizes due to packaging as multimers, which prevents the particles from being cleared too rapidly by the kidney (102). High-molecular-weight (HMW) polymeric carriers usually exhibit better transfection efficiency than do low-molecular-weight (LMW) carriers largely because of insufficient polyplex stability of the latter ones (55, 100, 119, 129, 130). LMW carriers, however, have significant advantages with regard to reduced cytotoxicity (124) and better biocompactibility; for example, a reduced complement activation (84) that is relevant for in vivo applications. Moreover, too tight binding by HMW polymers can hinder intracellular vector unpacking (41, 95) and, therefore, reduce transfection efficiency. pDNA should be accessible to the transcriptional machinery in the nucleus. siRNA should be accessible to the RNA-induced silencing complex (44), and the activity of therapeutic cargo proteins should not be affected by the carrier after delivery to the cytosol. Often, the window between sufficiently large polymer size for effectivity and sufficiently small polymer size for high biocompatibility was either small or nonexistent (7). To achieve a better carrier profile with stability on demand, strategies using biodegradable polymers have been explored. The concept often included bioreversible cross-linkage of nontoxic LMW oligomers into HMW carriers via hydrolysable ester, acetal bonds, or reducible disulfide bonds (4, 26, 31, 34, 49, 51, 79, 109). Thus, extracellular polyplex stability and transfection efficiency is partnered with intracellular disassembly and polymer degradation into nontoxic fragments.

Within physiological proteins, the presence of disulfide bonds dominates outside the cell, for secreted proteins, matrix proteins, or proteins at cell surfaces (21). Inside the cell, the combination of high glutathione (GSH) concentrations and enzymes from the thioredoxin family (39) forms a reductive environment of the cytosol. With a concentration of 1–11 mM GSH (94), the intracellular concentration of GSH is approximately 100–1000 times higher than outside the cell. This attribute can be also used by artificial reducible systems to be intracellularly cleaved and change their properties. Although extracellular stability is expected to be significantly improved by disulfides, the situation is not so clear-cut. Disulfide cleavages may also occur in the in vivo situation outside the cell (9). This was already observed in an early in vivo work using immunotoxins (60, 110). The liver as the major organ for GSH production (15, 127) has been considered as responsible for this extracellular degradation of disulfide bonds. Protein disulfide isomerases (PDI), widely known to be localized in the endoplasmatic reticulum (ER), can also occur on the cell surface of hepatocytes and may cleave disulfide bonds (77) Low concentrations of cysteine (∼8 μM) and GSH (∼2 μM) present in human plasma (43) are not considered to significantly contribute to extracellular bioreduction. The extracellular stability of disulfides can be tuned by their structural environment (110, 126); see also last section. Thus, appropriate redox chemistry is considered an excellent approach to solve the conflicting carrier requirements between extracellular stability and intracellular instability.

For example, in an early work, Rice and coworkers (68) introduced defined oligolysine structures containing one to five cysteine residues ( CWK₁₈, II, III, IV, V – Fig. 2). The oligomers became very reactive at pH 7.5; for example, oligomer V oxidized completely within 25 min. For this reason, the mercapto forms of oligomers were stored at low pH in the absence of oxygen until use. During the incubation with pDNA at physiological pH, the cysteines formed disulfide bonds. Polyplexes of oligolysines with more than three cysteines, which were able to cross-link in three dimensions, exhibited the best stability in a shear stress stability test and could outperform polylysine tremendously. Still, the structure with two cysteines that has only the possibility to polymerize in a linear way revealed the best results in transfection with stability properties which are comparable to polylysine polyplexes. The stability of the resulting particles was higher if the thiols of the cysteines were kept in the reduced form until they were incubated with the DNA. It seems that these bioreducible oligocations created a cage after complexing with the DNA template. This outcome was very promising, especially when considering that these oligolysine structures were not expected to have high transfection efficiency. Endosomal buffer capacity and endosomal escape activity of polylysines was known to be very modest. Based on analogous preoxidized polymers, containing Cys-Lys₁₀-Cys monomers ( CK₁₀C – Fig. 2), lipopolyplexes were generated (87) by a combination with a liposomal transfection agent for enhanced endosomal escape. This lipopolyplex system achieved 187-fold higher gene expression levels for pDNA compared with the analogous nonreducible lipopolylysine formulation. The effect of reducing agents for these polymers was demonstrated by adding 25 mM dithiothreitol (DTT) for 5 min to polyplexes in an ethidium bromide pDNA binding assay. In this assay, the pDNA polyplexes with nonreducible polylysine exhibited no significant changes. The pDNA polyplexes with reducible polymers, however, showed a more than twice higher fluorescence intensity than before the addition of DTT. The higher fluorescence intensity represents better accessibility of the DNA to the intercalator ethidium bromide. Importantly, in more general terms, the better accessibility based on bioreductive carrier cleavage improves pDNA delivery by facilitating the release of the nucleic acid in a form that is accessible for transcription into mRNA.

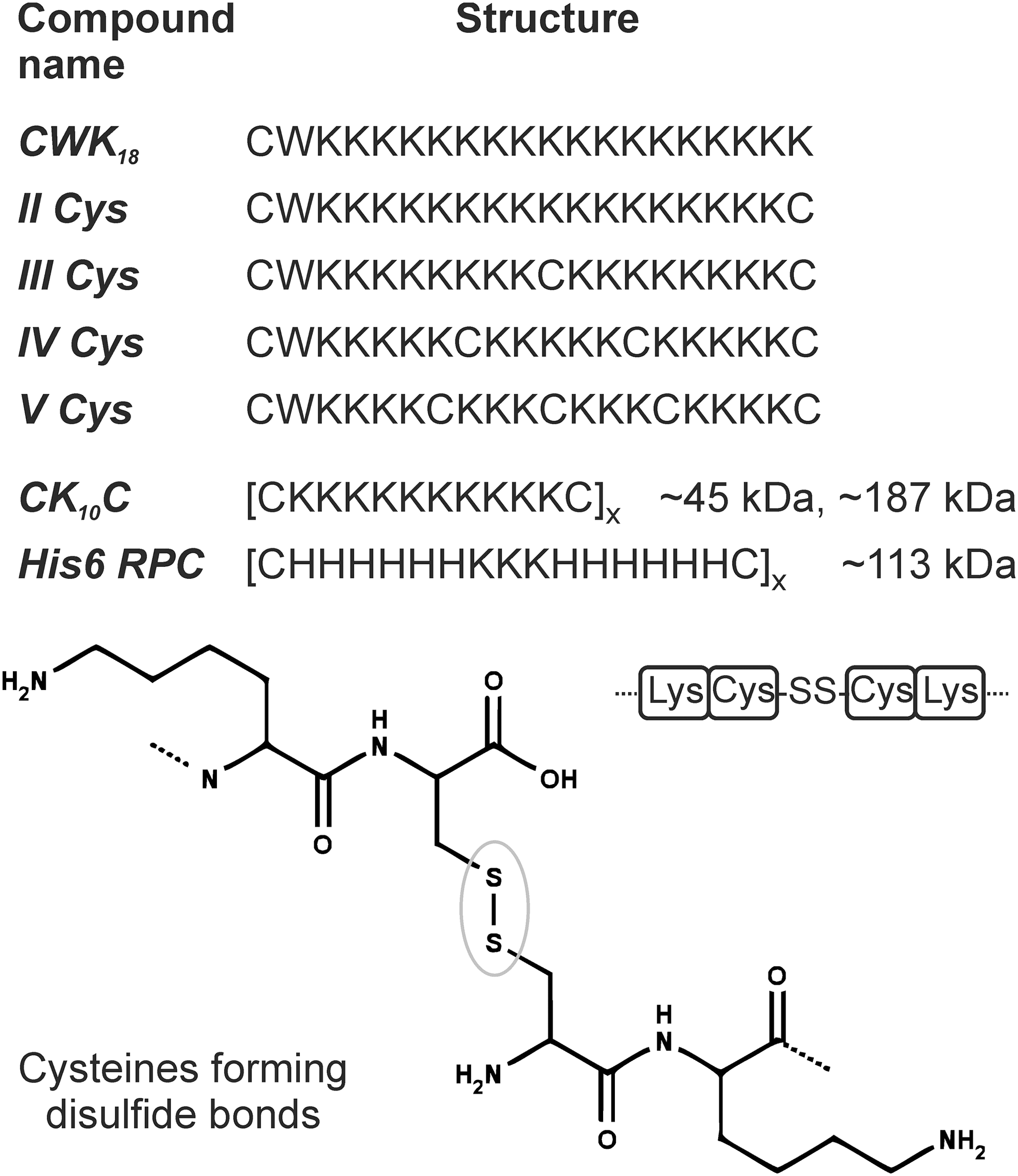

FIG. 2.

Polymers based on natural amino acids with cysteine for linking. Structures of oligomers (sequences from N→C-terminus) that are able to form bioreducible linkages by dimerization [ CWK18 (68)], in a linear [ II Cys (68), CK10C (87), His 6 (88)], or cross-linking [ III-V Cys (68)] way. C, cysteine; W, tryptophane; K, lysine; H, histidine.

Bioreducible pDNA Carriers with Endosomal Escape Function

For successful gene transfer, several delivery barriers should be overcome (see Fig. 1). Release from endosomes after cellular uptake presents a major bottleneck. Polyethylenimine (PEI), a polymer often used for pDNA transfections, combines optimized DNA binding ability and endosomal buffer capacity within one structure (3, 131). Its diaminoethane motif (108) offers a remarkable pH-reversible protonation and buffer capacity over a wide pH range, which turns it into an almost perfect “proton sponge” (1, 2, 105, 115). Endosomal protonation of PEI was discovered as an excellent way for triggering lipid membrane disruption and release into the cytosol. In sum, PEI has been established as being a very effective as well as a significantly cytotoxic (32, 74) gene carrier. In order to create a less toxic, bioreducible branched PEI, LMW (<4.6 kDa) linear PEI ( LPEI ) was cross-linked with dithiodipropionic acid di(N-succinimidyl ester) (DSP) or N,N′-bis-(tert-butoxycarbonyl)cystine linkages (Fig. 3) (4). Impressively, this bioreducible PEI version did not only display far lower cytotoxicity at higher PEI doses, but also significantly outperformed the transfection efficiency of standard branched PEI 25 kDa, LPEI 22 kDa, and several other commercially available reagents in seven cell lines (CHO-K1, COS-7, NIH/3T3, HepG2, HCT116, HeLa, and HEK-293 cells). For the maximum efficiency for these bioreducible polymers, N/P ratios (ratio between protonable nitrogens in polymer and phosphates in nucleic acid) between 18 and 30 were required, which were much higher than for nonbioreducible polymers.

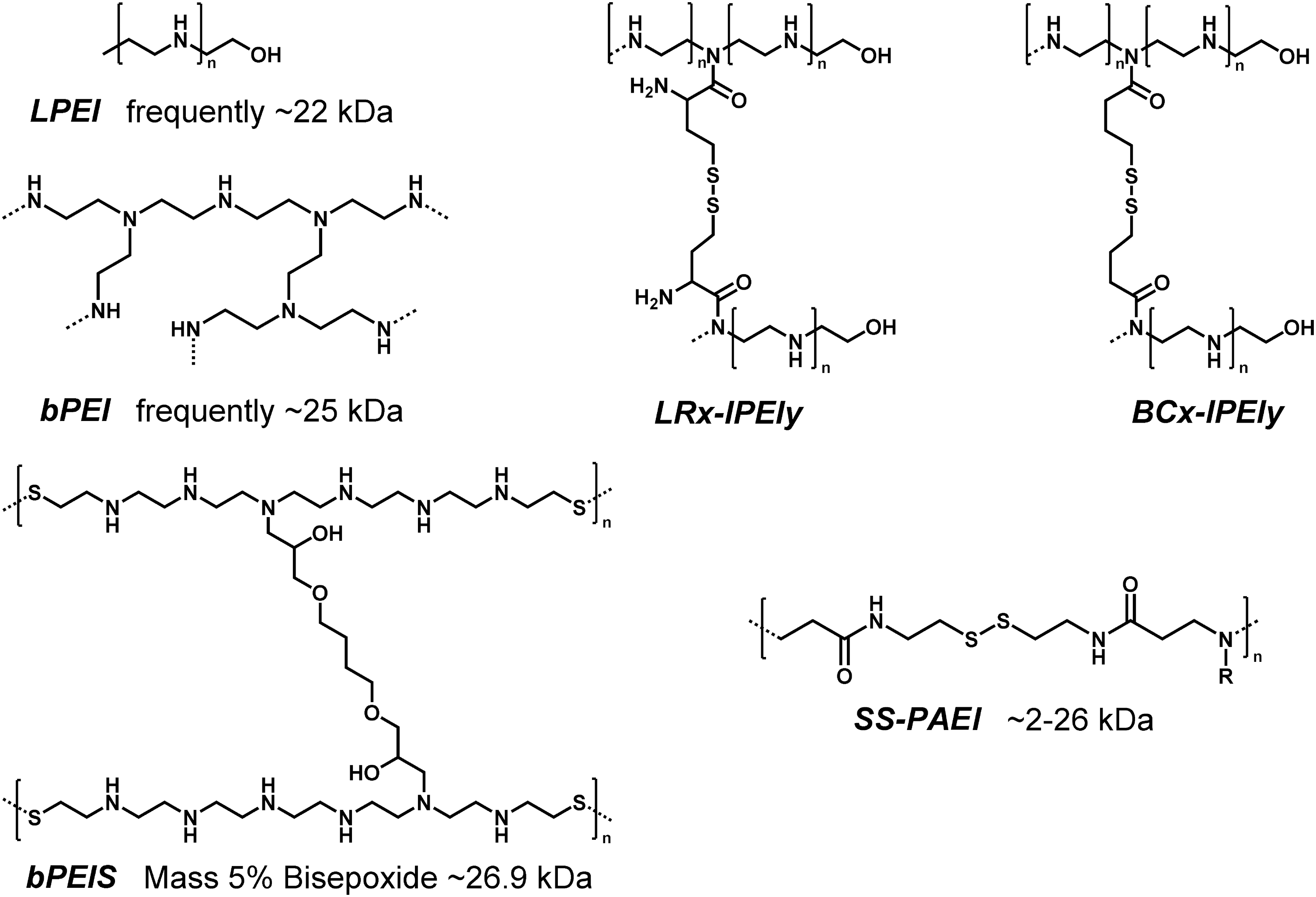

FIG. 3.

Structures of PEI and bioreducible polymers. Nondegradable linear LPEI and branched bPEI (left top). Bioreducible bPEI derivates ( LRx-lPEIy and BCx-lPEIy ) (4) based on LPEI and cross-linker (x denotes the molar ratio cross-linker/LPEI, and y denotes the MW (kDa) of the LPEI. For LRx-lPEIy , the molar ratio between linker and LPEI monomers was 0.5%–3%; for BCx-lPEIy , the molar ratio between linker and LPEI monomers was 3%–8%). bPEIS (52) contains a bioreducible diaminoethane system and a nondegradable cross-linker. SS-PAEI (12, 63, 64) consists of poly(amido ethylenimine) with bioreducible disulfide bonds and variable residues for functionalization (right bottom).

A related effort to produce a biodegradable PEI was taken by Park and coworkers (52). They synthesized a bioreducible linear PEI with a diaminoethane motif that was separated by a disulfide bond after every six protonatable amines ( PEIS ). An agarose gel shift showed a less than 2 h stability in a 5 mM GSH solution. As an additional development, these linear bioreducible PEIS were cross-linked to larger structures with different amounts of bisepoxide. This resulted in branched structures ( bPEIS – Fig. 3) with increased stability of more than 4 h in GSH-containing buffer. The transfection for the larger branched PEIS was better than for the smaller linear PEIS and could reach the same level as branched PEI 25 kDa at their own optimal N/P ratio. The addition of 5% bisepoxide showed best effects in general (results of five cell lines—C2C12, HEK 293, HeLa, HUVEC, and NIH3T3). By adding 10% serum, the transfection of bioreducible PEIS was reduced by approximately one log scale, which was more than for bPEI (approximately half a log scale). Due to the bioreducibility and the small, calculable degradation products, the cell viability tested with MTT assay was significantly improved. On the other hand, serum stability was an issue that still needed improvement.

Disulfide containing poly(amido ethylenimine)s ( SS-PAEIs – Fig. 3) are another class of bioreducible polymers (12, 63, 64). To form branched structures, agents containing at least two reactive amines such as ethylenediamine (EDA), diethylenetriamine (DETA), or triethylenetetramine (TETA) (12) were reacted by a Michael-type polyaddition with disulfide-containing bisacrylamides. The resulting polymers exhibit very good transfection results. Especially in 10% serum, they have great advantages compared with branched PEI 25 kDa. SS-PAEIs only had slightly lower transfection efficiency in serum (1.2 × difference for EDA polymers, 1.3 × difference for DETA polymers, and 11 × difference for TETA polymers) in BAEC cells, whereas bPEI had a dramatic loss with 500 × difference compared with the serum-free group. SS-PAEIs also offer another topology; comb-like structures can be achieved by introducing side chains into the bioreducible backbone (64). In addition, a variety of functional elements can be incorporated with these side chains. These elements can be tertiary amines for nucleic acid binding, imidazoles for endosomal buffering, or protected secondary amines such as diaminoethane structures or spermine (63), which can be unprotected after the polyaddition. Besides these cationic structures, other functional groups such as hydrophobic elements can be introduced (64). Polymers resulting from such reactions do not have a precise structure, but due to their bioreducibility the cleavage products are small. These bioreducible poly(amido amine)s as well as related polyaspartamide-based disulfide-containing brushed PEI derivatives (128) exhibited lower cytotoxicity and often more efficient gene delivery than branched PEI 25 kDa.

A modification that strongly improved the efficacy of polylysine and oligolysine shuttles was the introduction of histidines (73, 81, 88). The second imidazole nitrogen exhibits ideal basicity (pKa 6.0) for an increase of endosomal buffer capacity (lower protonation at physiological than at more acidic endosomal pH), thereby facilitating endosomal release by the “proton sponge effect” that was previously hypothesized for PEI. Thus, it was possible to mediate efficient delivery not only for pDNA but also for mRNA and much smaller siRNA (more information on siRNA delivery in the next section) with one single vector (88). A histidine/lysine ratio of 4:1 in a Cys-His₆-Lys₃-His₆-Cys monomer ( His6 RPC – Fig. 2) provided the best results.

Design of Precise Oligomers for pDNA Transfection

To combine the beneficial transfection properties of bioreducible PEI and related oligoethyleneimine polymers with a precise chemical structure, solid-phase-supported polymer synthesis (35 –38) was introduced. In particular, artificial amino acids containing short defined repeats of the diaminoethane motif were prepared in boc/fmoc protected form, which was appropriate for standard automated or manual peptide synthesis (96). These building blocks, optionally in combination with natural amino acids such as cysteine and other units, were incorporated into peptide-like oligomers. The artificial amino acids provide the oligomers with proton sponge capacity. For example, Stp (succinoyl tetraethylene pentamine) within a polyamide chain provides three protonatable amines, and the building block Sph (succinoyl pentaethylene hexamine) provides four protonatable amines (Fig. 4). By solid-phase synthesis technologies, such defined oligomers can be generated with high precision in libraries of various sequences and defined lengths. Initial screenings of such a small library based on the Stp building block were performed for pDNA transfer activity (98). Compared with standard polymers, the oligomers present LMW carriers. Consistent with their incomplete protonation at physiological pH, oligomers did not display significant cytotoxicity and were well biocompatible. Not unexpectedly, their limited size also provides limited polyplex stability. Compound 23 (Fig. 4) with 5 Stp units (representing 15 protonatable nitrogens) provided only very low polyplex stability in agarose gel electrophoresis assays and had no transfection efficiency at all. The incorporation of two cysteines, which after pDNA complexation form disulfide bonds by air oxidation, strongly improves polyplex stability and gene transfer activity. Compound 74 with two cysteines and only two Stps did not transfect, compound 51 with 3 Stps showed low but significant gene transfer for N/Ps > 6, and compounds 78 and 82 with 6 or 8 Stp units and the two terminal cysteines revealed much better transfection results for N/Ps ≥ 15 (98). These results indicate that even for oligocations which are able to interact with each other by disulfides a certain minimum of cationic binding units in each oligomer is required for activity. An additional measure for optimizing these LMW carriers was the attachment of hydrophobic fatty acids. These have stabilizing effects and mediate pH-dependent endosomolytic activity. In an optimized form, such carriers outperformed the gold standard LPEI 22 kDa (98).

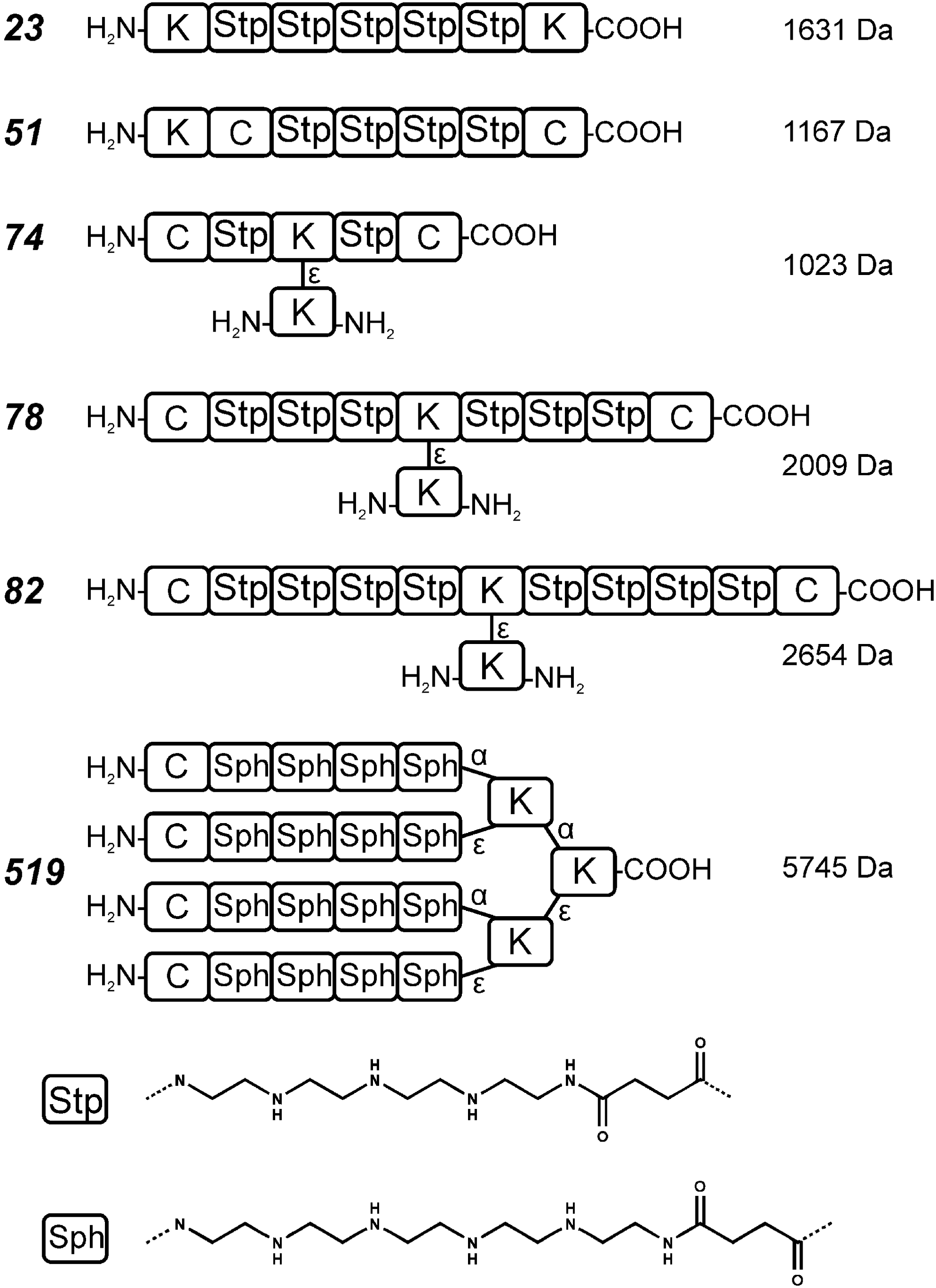

FIG. 4.

pDNA carrier polymers based on artificial amino acids. There is no gene transfer activity for small structures without cysteines such as compound 23 (98). Structures 51,74,78,82 with two cysteines (98) for linear linking profit from longer cationic binding regions. 519 (92) presents cross-linking ability in a four-arm structure with a longer diaminoethane motif (Sph).

Standard LPEI 22 kDa contains approximately 500 protonatable nitrogens. Synthesis of such large linear structures by solid-phase-assisted synthesis is not feasible. An approach to circumvent this limitation of length was the design of four-arm structures. These structures contain two consecutive lysines as branching points via both alpha- and epsilon amine modification followed by simultaneous elongation of each arm with two to five units of Stp, Sph, or other artificial amino acids. Optionally terminal cysteines were integrated (92). By this procedure, in a few coupling steps, easily carriers with approximately more than hundred nitrogens (approximately 68 protonatable nitrogens) were generated.

Screening for pDNA transfection showed the following: The number of nitrogens per building block (Sph containing 6N>Stp with 5N>Gtt with 4N) was more important for pDNA polyplex condensation and transfection than the total number of nitrogens per oligomer. Sph-based four-arm structures with three repeating units per arm (Sph₃, 72 ethylenimine nitrogens in total) displayed comparable transfection activity as LPEI already in the absence of cysteines, whereas Gtt-based four arms with four repeating units (Gtt₄, 64 ethylenimine nitrogens in total) were inactive. In all cases, the presence of terminal cysteines further enhanced transfection activity (92). Apparently, this bioreversible option for disulfide-based stabilization was beneficial. The transfection activity of the most potent cysteine-containing Sph four-arm compound 519 (Fig. 4) exceeded the gold standard LPEI by approximately 50-fold for the N/P ratio 12.

Cargo Matters: Reversible Disulfide Bonds Stabilizing siRNA Polyplexes

The delivery of siRNA with cationic systems poses different challenges than pDNA (57, 102, 118). Although both nucleic acids contain a negatively charged backbone (phosphodiester for physiological or phosphorothioate in case of some stabilized nucleid acids), the number of base pairs (bp) per molecule and their topology are different. With a 7 nm rod-shaped size, 21–23 bp, and 42–46 anionic charges per molecule (16, 117), siRNA is comparatively small and cannot offer thousands of negative charges that a long cyclic pDNA provides for binding. This results in a lower electrostatic stabilization, less gain in entropy by complex formation, and, therefore, less stable siRNA polyplexes. Most of the previously described systems for the transport of pDNA, including polylysine (71) and PEI (57), show much less efficiency in siRNA transfection unless appropriate modifications are introduced. One of the encouraging options presents the incorporation of bioreducible stabilizing disulfide bonds, by the cross-linking of siRNA into more “DNA-like” oligomers (58, 75), by linking siRNA with the cationic carrier (19, 70, 80), or by cross-linking the cationic carrier molecules.

Based on the knowledge of pDNA delivery systems, new carriers have been invented to accomplish the delivery of siRNA. The approximately 4 kDa pseudodendritic degradable oligomer HDO , consisting of 800 Da oligoethylenimine and 1,6-hexandiol diacrylate, was evaluated for siRNA delivery (29). This LMW polymer had previously been proved as an effective pDNA carrier (89), but it did not mediate siRNA delivery. Modification of siRNA/ HDO polyplexes with DSP provided bioreversible stabilization (Fig. 5, top), as demonstrated by improved siRNA binding ability in an agarose gel electrophoresis assay. The change in the structures of polyplexes could be monitored by the measurement of size and zeta potential. For example, the size of particles formed at N/P 4 increased from 113±3 nm to 197±3 nm, and the zeta potential decreased from 27.6±0.4 mV to 20.1±0.7 mV. Only the disulfide-stabilized siRNA/ HDO polyplexes were taken up by cells and resulted in efficient gene silencing.

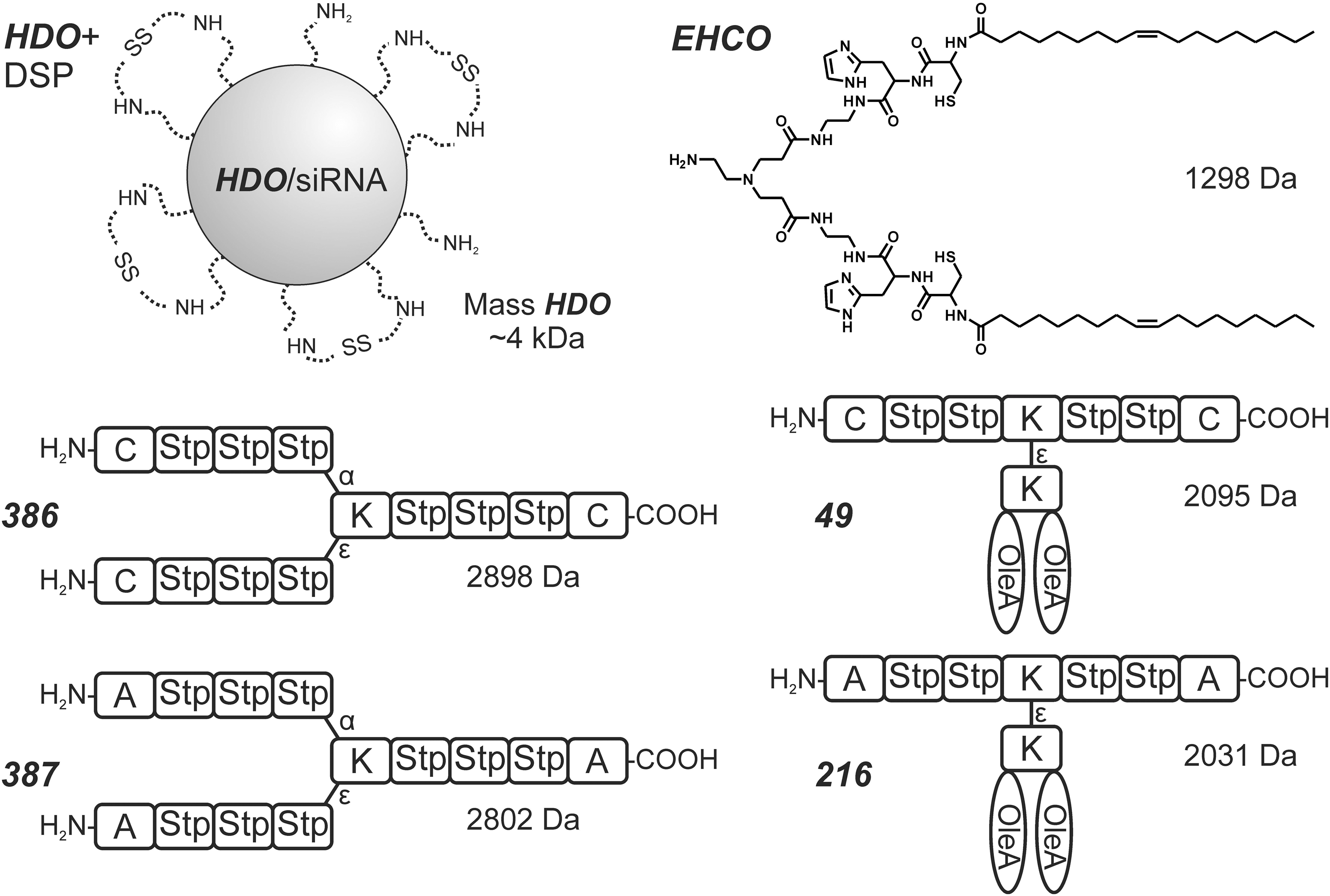

FIG. 5.

Carriers optimized for siRNA delivery. dithiodipropionic acid di(N-succinimidyl ester) (DSP) linked with free amines on the surface of HDO /siRNA polyplex (29). Active three-arm structure 386 and its inactive analogue 387 (28, 97). Lipooligomer EHCO (122) with histidine, cysteine, and oleic acid (OleA). Active t-shaped polymer 49 and its inactive analogue 216 (28).

The importance of disulfide-based cross-linking for siRNA can be observed when using precise sequence-defined oligomers that are built by solid-phase synthesis as described earlier. Three-arm structures such as 386 (Fig. 5) (28, 97) that contain Stp units for nucleic acid complexation were able to bind and transfect siRNA only when containing cysteines for cross-linking at the end of each arm. The structure 386 showed perfect binding in electrophoresis gel shifts for low N/P ratios from 3 onward, whereas control structure 387 was inactive. Analogously, four-arm structures (92), which can transfect pDNA even without cysteine incorporations, were inactive for siRNA delivery. Cysteines at the end of each arm ( 519- Fig. 4) resulted in enhanced transfection efficiency for pDNA and were absolutely required for siRNA-based gene silencing.

T-shaped lipooligomers such as 49 (Fig. 5) were also dependent on the two stabilizing cysteines. Both the alanine analog ( 216 ) and compound 49 reacted with N-ethylmaleimide, irreversibly blocked the thiol groups against disulfide-based stabilization, and lost the gene silencing activity (28). FCS measurements in 90% serum revealed that the size of 49 polyplexes for N/P 12 increased from 49 nm within 30 min to 68 nm at room temperature. At 37°C, the polyplex was stable after 10 min, but some dissociation was already observed after 30 min (111). Disulfide stabilization was also required for gene silencing using the lipooligomer EHCO (Fig. 5). (122). This solid-phase synthesis-derived siRNA carrier contains pH-sensitive EDA and histidine units, stabilizing cysteine and oleic acid units.

In order to improve polylysine properties, Kataoka and coworkers used a polyethylene glycol (PEG) -polylysine block polymer, which was reacted with iminothiolane (67). Next, a few thiols were incorporated onto lysines without losing cationic charges, because the primary amines are converted into positively charged amidines. With siRNA, so-called polyion complex (PIC) micelles are formed. The presence of the iminothiolane modification results in disulfide-based cross-linked polymers stabilizing the siRNA containing PIC micelles. These micelles were able to achieve 100-fold higher transfection efficiencies than the analogous micelle without cross-linking. Stability tests with increasing concentrations of sodium chloride revealed that the stability of cross-linked polyplexes was significantly increased and could be abolished with reducing agents. Polyplexes with unmodified PEGylated polylysine were not even stable at a physiological ionic strength.

Many multifunctional carriers for siRNA that are based on the same principle but including shielding and targeting domains also rely on disulfide bonds (18). For example, the folate receptor-targeted oligomer 356 (Fig. 6) formed stable nanosized siRNA complexes of only 6 nm hydrodynamic diameter. Replacing cysteines by serines (compound 420 ) resulted in a dramatic loss of siRNA binding as well as gene silencing activity. An additional use of bioreducible disulfides in this polyplex was the reversible covalent linkage of the siRNA with an endosomolytic influenza virus-derived peptide INF7 (Fig. 6), which was important for an efficient endosomal escape and cytosolic delivery.

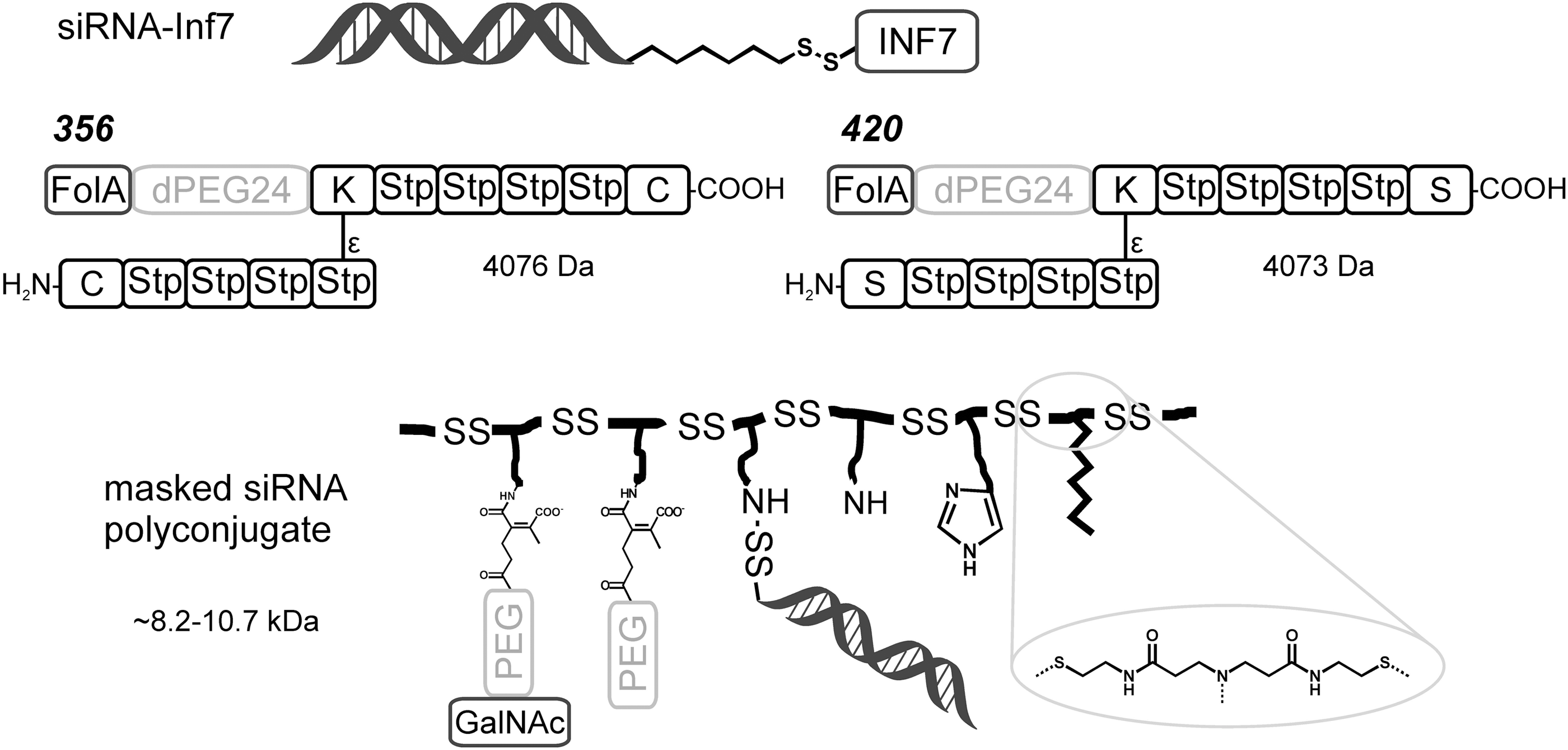

FIG. 6.

Multifunctional siRNA polyplexes containing pH- and redox-sensitive components. Active 356 forms an efficient carrier with siRNA-INF7, whereas control 420 with serine instead of cysteine shows low binding and transfection efficiency (18). The masked siRNA polyconjugate presents a shuttle with pH-reversible PEGylation with and without targeting ligand, covalently bound siRNA, imidazole residues, and fatty acids based on a bioreducible poly(amido amine) backbone (80).

This reversible linking can also be used for attaching siRNA directly to a carrier. Using click chemistry, a PEG folate was covalently attached to siRNA via a disulfide-containing linkage (19). In addition, polycations were attached in this manner. Disulfides have been used to connect siRNA covalently to a pH-responsive masked endosomolytic polylysine carrier (70). Wang and coworkers used it for coupling to a bioreducible poly(amido amine) backbone (Fig. 6, bottom) (80). The side chains of the backbone in this carrier were functionalized with hydrophobic modifications, imidazoles, and pH-reversible targeting ligands. These multifunctional systems with bioreducible properties demonstrated efficient, targeted gene silencing in vivo. The best performing polymer with a mixture of 40/30/30 molar ratio of 2-(2-aminoethoxy)ethyl/2-(1H-imidazol-4-yl)ethyl/dodecyl and a molar weight of ∼8.64 kDa showed 80% mRNA knockdown in mice.

Protein Delivery by Covalently Linked Bioreducible Shuttles

Recombinant proteins present an important and growing class of modern biotherapeutics. Many of them, such as monoclonal antibodies or recombinant growth factors, have targets on extracellular sites (106, 114). Other proteins contained as antigens within vaccines are internalized into phagocytic cells and are degraded into peptides during the immune response. An efficient technology for intracellular cytosolic delivery of intact proteins (“protein transduction”) would tremendously open the applicability of a new class of therapeutic proteins and antibody domains that aim at intracellular molecular targets.

Natural proteins teach us that intracellular protein transduction can be feasible. The human immunodeficiency virus 1 (HIV-1), trans-activator of transcription (TAT) protein (27, 33), or the Antennapedia homeobox protein can cross cytoplasm membranes and internalize into cells under physiological conditions (42). A series of bacterial cytotoxins internalize by endocytosis, followed by subsequent translocation of a cytotoxin subunit across the endosomal membrane. In some cases, the reduction of disulfide bonds facilitates this delivery process. Such reduction-activated cytotoxins have been utilized in drug delivery; for example, listeriolysin-SS-oligocation conjugates for pDNA delivery (11, 90) or numerous immunotoxins (24, 25, 101). Commonly used synthetic protein delivery systems include cationic lipids (13, 14, 62), protein transduction domains (45), such as natural penetratin (85, 93) and HIV-TAT (45, 103), or artificial oligoarginines (93) and cationic polymers (17, 30, 59).

The sequence-defined oligocationic carrier 386 described in the previous section can also be applied for protein delivery (Fig. 7) (65). This disulfide-conjugated carrier delivers its protein cargos by endocytosis and accomplishes the escape from the endosome via “proton sponge effect,”-facilitating diaminoethane motifs. The carrier showed a 20 times more efficient cellular internalization of a nuclear localization sequence (nls)-tagged enhanced green fluorescent protein (EGFP) peptide than TAT peptide-mediated delivery of tat-nls-GFP. Importantly, the carrier should not impair the function of the therapeutic protein. The bioreducible bond between the carrier and nlsEGFP was critical for nuclear localization. Analogous conjugates with irreversible thioether linkages were internalized into cells but remained entrapped in cytosolic structures and not transferred into the nucleus (66).

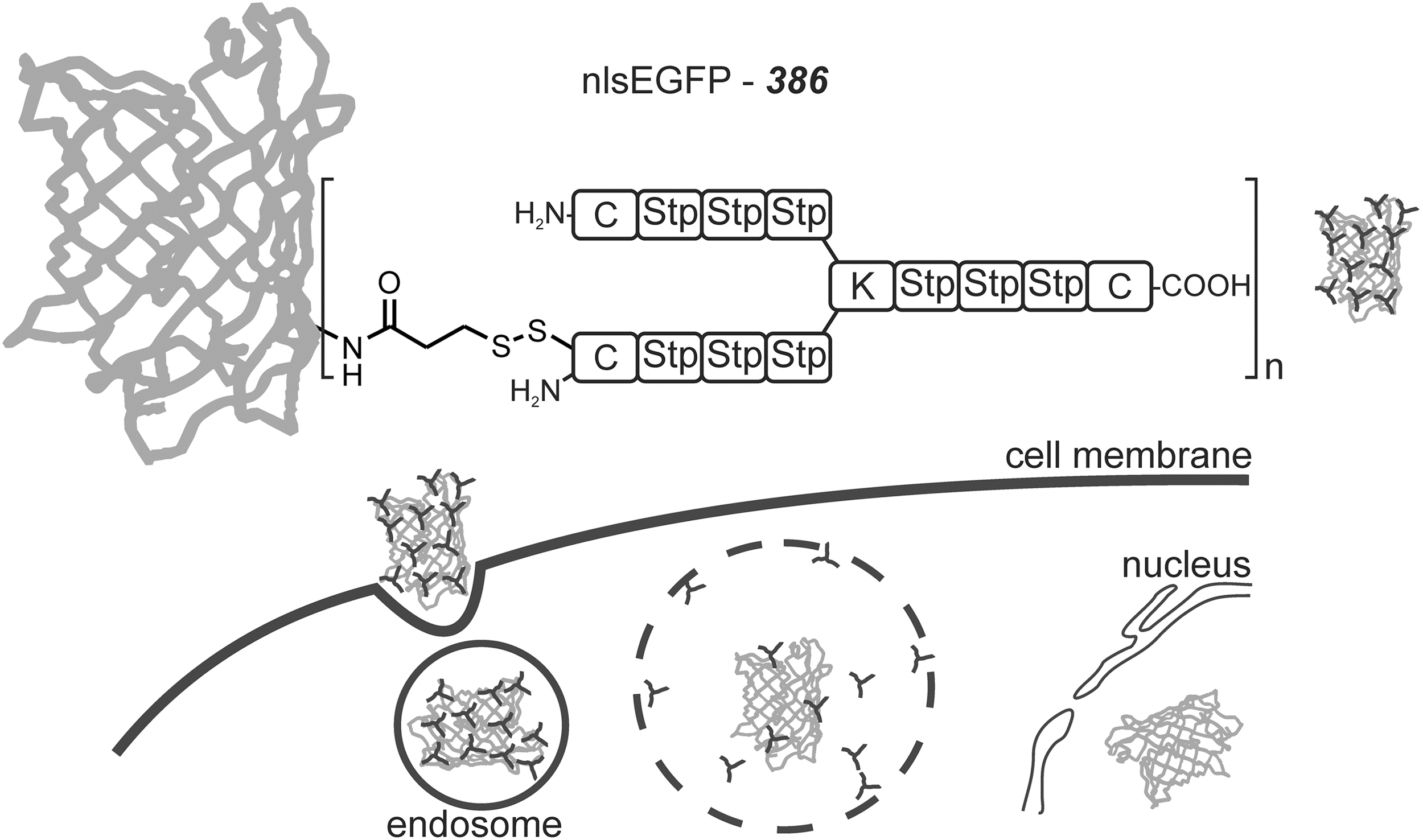

FIG. 7.

Protein transduction with cationic carrier. Green fluorescent protein (nlsEGFP) covalently modified with the three-arm carrier 386 via disulfide bonds (65) displays an enhanced uptake, escapes the endosome by the “proton sponge effect,” and after cleavage from the carrier, enters the nucleus via the incorporated nls peptide sequence.

Tuning the Timing and Extent of Bioreduction of Dynamic Carriers

The various approaches for dynamic stabilization of bioconjugates and nanoparticulate carriers reviewed in the earlier sections build on the favorable difference between extracellular/intracellular redox conditions and GSH concentration. However, the frequently claimed notions that a) “disulfide bonds are generally stable outside the cell” or b) that “they are easily cleaved in endosomes” should be questioned as already stated earlier in literature (22), and might be even, in part, misconceptions, or, at least, not generally valid.

Several disulfide-bonded protein conjugates and immunotoxins have been found to be cleaved in vivo after intravenous application (9, 60). The questions about the exact site of bioreduction might be less important for some nanocarrier designs but critical for others. The majority of the previously mentioned strategies build on cytosolic cleavage of multiple disulfide bonds of oligocationic carriers that had caged their cargo during the extracellular delivery. In those cases, it might be less important whether bioreduction of some fewer bonds starts at the cell surface, significantly takes place in the endosomal vesicle system, or largely happens in the cytosol. When cleavages of large numbers (approximately hundreds) of disulfide bonds per nanoparticles are required, the majority of cleavage processes can be assumed for the cytosolic location because of its larger reduction capacity.

Bioreducible disulfide linkages, however, have also been considered dynamic elements in earlier steps of the delivery process: For example, in the process of nanocarrier deshielding, which might be beneficial to occur at the cell surface or within endosomes, or for activation of endosomolytic domains within endosomal vesicles. The so-called “PEG dilemma” comprises the experiences that surface shielding of nanocarriers with PEG is very beneficial for extended blood circulation and (passive or active) tissue targeting, however, negatively affects intracellular uptake across endosomal membranes. Endosomal pH-sensitive cleavable PEGs are able to overcome this dilemma (46, 50, 72, 76, 121). Thus, bioreductive cleavage of disulfide-bound PEG at the cell surface would be a very useful process (8, 54, 82, 107). In our own research, productive deshielding of PEGylated pDNA/PEI polyplexes was far more successful in utilizing pH-labile bonded hydrazone (121) instead of disulfide-bonded (56) PEG chains.

Some approaches such as those reported by Lee and coworkers (90) successfully build on reductive liberation of endosomolytic agents within the endosome for subsequent cytosolic transport of the cargo. Such strategies are rationally supported by natural examples, including toxins and viral translocation that include a disulfide cleavage as a part of the translocation process (69, 78, 83, 86, 99, 112, 120, 123). For example, several toxins of the AB₅ family (A toxic subunit, B receptor-binding carrier units), including cholera toxin, shiga toxin, or pertussis toxin, enter cells by endocytosis. This is followed by retrograde transport into the ER lumen, where repair chaperone PDIs recognize single disulfide bonds as “misfolded protein domains.” Then, a physiological repair process named ER-associated degradation (ERAD) retro-translocates the A unit through a pore to the cytosol for proteasome-mediated degradation (Fig. 8) (120). AB-type toxins such as ricin or Pseudomonas exotoxin, or some viruses such as SV40 (99), also contain disulfide linkages, which require cleavage for cytosolic translocation, presumably mediated by PDIs. For translocation, diphtheria toxin requires an analogous cleavage by PDI in the endosomal compartment (86). It, however, should be kept in mind that bioreductive potential in standard acidifying endosomes might be more limited (22) and applicable for special cases only.

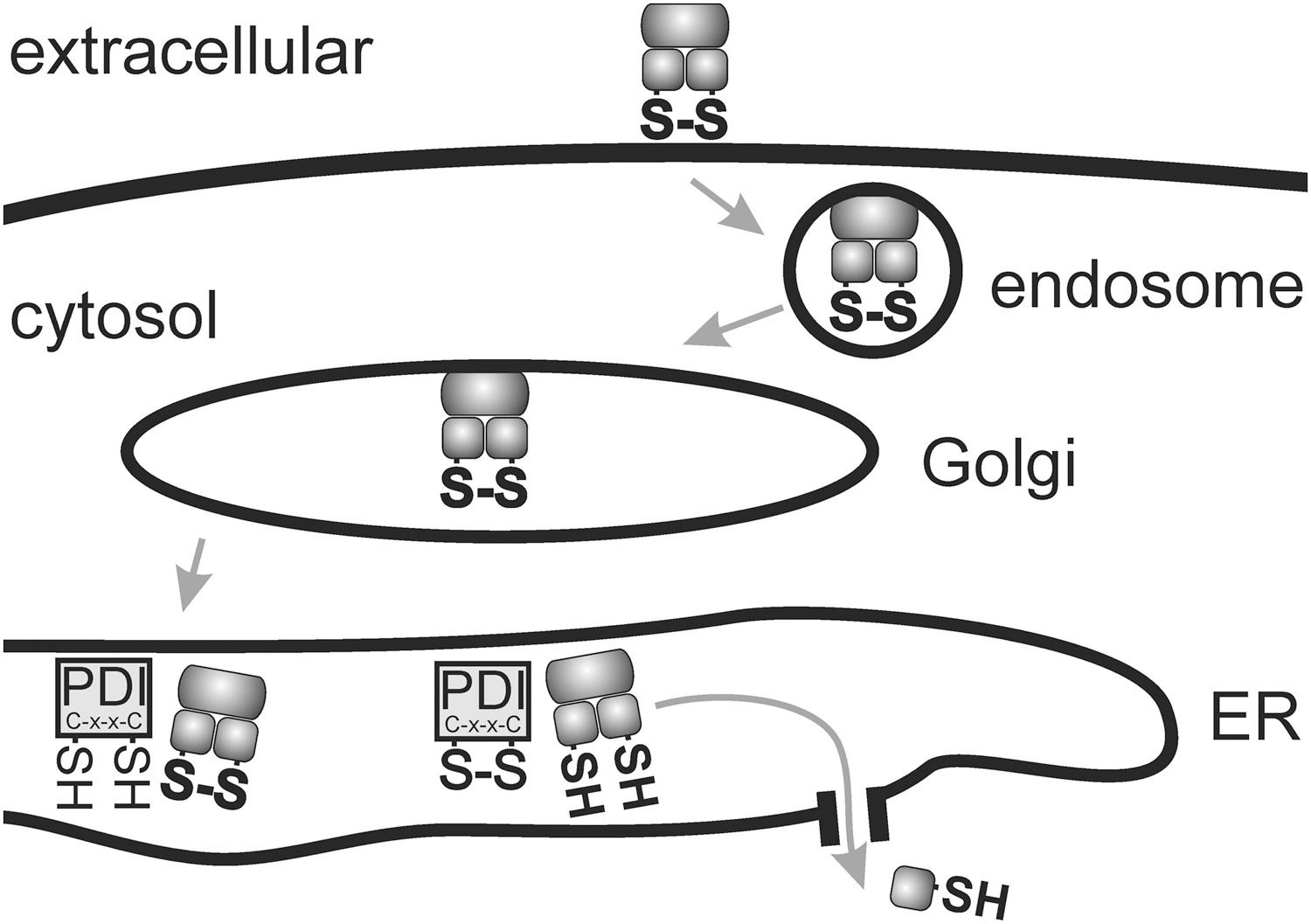

FIG. 8.

Retrograde transport followed by reductive translocation to the cytosol. Several protein toxins (e.g. Cholera toxin, Shiga toxin, Pertussis toxin, ricin, or Pseudomonas exotoxin A) attach to receptors on the surface of the cell and are transported via Golgi to the Endoplasmic Reticulum (ER) by retrograde transport. A key disulfide is recognized as a “misfolded ER substrate” and reduced in the presence of a protein disulfide isomerase (PDI) followed by translocation of a toxin fragment to the cytosol.

In sum, many bioreductive approaches are built merely on educated guesses that are supported by facts from nature and empirical findings and imagination (hopefully not too far from reality). A more quantitative understanding of the bioreductive behavior of cellular processes, however, would provide enormous help for improved designs and, thus, present important opportunities for the future.

In this direction, Leroux and coworkers (5) developed a well-characterized, defined dendrimeric oligomer probe for analysis of bioreductive disulfide cleavage in cellular systems. The probe consists of generation 3 dendrimer PAMAM-G3 with disulfide-linked dye (BODIPY)₂, which provides the ability to distinguish between reduction of internal (dendrimer core) and surface disulfide bonds. Applying this system in four cell lines with different reductive potency (HeLa, A549>PC3>Caco-2 cells), both interesting expected findings and surprising findings were made. For example, data based on pulsed thiol depletion and endocytosis inhibitor studies revealed the rather surprising finding that probe disulfide cleavage occurred exclusively at the extracellular cell surface, possibly triggered by cell surface oxidoreductases such as PDIs or chaperones (also belonging to the PDI family), with secreted thiols such as GSH acting as cofactors. Incubation with a cell membrane-impermeable oxidant completely suppressed bioreduction.

The same study evaluated bioreduction of the PAMAM probe after pDNA complex formation. Incorporation into such DNA polyplexes reduced the cell surface bioreduction, which is consistent with sterically restricted access of the probe to cell surface oxidoreductases. For the most reducing HeLa cell line, the logical distinction between cleavable disulfides in surface and core states became apparent. Moreover, the expected subsequent bioreduction after delivery into the acidic endosomal environment was incomplete. Intentionally, the authors had selected G3 PAMAM, which in contrast to higher-generation PAMAM or PEI does not have “proton sponge” based endosomal escape properties. The addition of chloroquine as an endosomolytic agent strongly enhanced bioreduction, which was consistent with endosomal escape and efficient reduction in the cytosol. As the authors note, “efficient bioreduction in the endosomes, while sometimes reported, is not a universal phenomenon and should be verified for each new system and its corresponding target cell line” (5).

How may we utilize an increased knowledge about reductive characteristics of different biological microenvironments? Not only the biological surrounding influences the fate of disulfide bonds, but also the molecular chemical environment of disulfide bonds within a dynamic carrier can be tuned. For example, by stabilizing disulfide bonds by bulky groups providing sterical hindrance (47, 110), different exposure (core or surface) within a nanoparticle system (as illustrated in the PAMAM polymer example discussed earlier), the electrostatic environment facilitating or restricting electrostatic interaction with a reducing agent (5, 125), or the number and positioning of multiple disulfide bonds (126).

The influence of bulky groups on disulfide stability was shown in vitro with structures with methyl, benzene, and cationic residues localized next to disulfide bonds (110). When treated with 0.03 mM DTT at pH 7.4, the stability was as follows: The most stable derivate was the one with methyl and benzene residue at the α-C next to the disulfide bond, followed by the same derivate without methyl group, followed by a structure with an alkyl chain next to the disulfide group. The presence of a cationic charge in δ-C position next to the disulfide resulted in a faster reduction than with all uncharged linkers mentioned earlier. Based on this information, the most stable and the most labile structure were incorporated in a linker to connect an antibody (OX7) with a Ricin A toxin subunit to form immunotoxins. These immunotoxins were tested in mice for stability in vivo. From the more stable disulfide-linked immunotoxin with methyl and benzene residue, 50% in active form and 50% in free antibody form were present in blood 48 h after an intravenous injection. In contrast, the bioreducible linkage with the cationic element in its environment reached the same cleavage stage (50/50 ratio immunotoxin/free antibody) after only 8 h (110). More recently (47), a systematic study of disulfide-linked antibody-maytansinoid immunotoxins was reported while evaluating the disulfide-linker stability and antitumoral activity in vivo in mice. Sterical hindrance (by methyl group substitutions flanking the disulfide bonds) enhanced stability to reductive cleavage by DTT and plasma stability in mice. In in vivo efficacy testing, a conjugate with intermediate disulfide bond stability (having two methyl groups on the maytansinoid side of the disulfide linkage but no methyl substitution on the antibody linker side) displayed the highest antitumoral efficacy.

Not only the sterical and electrostatic environment of disulfides, but also the reducing agents and the pH have a crucial influence on the stability of a disulfide bond. It has been shown that positively charged amino acids next to a cysteine in a peptide destabilized the disulfide bond between oxidized dimers in a 10 mM GSH solution at pH 4.9 (mimics late endosomal/lysosomal environment) (125) The influence was higher for amino acids with higher pKa values (highest for arginine with pKa 12.1) and if more positively charged amino acids were incorporated. The distance (α- or β- amino acid next to cysteine) played a minor role. Analogous negatively charged amino acids with low pKa values (glutamic acid with pKa 4.3 has the strongest influence) stabilized the disulfide bond. Consequently, the half life of structures with α- and β-arginine was only 0.17 h compared with 8.7 h for structures with α- and β-glutamic acid. If GSH, which is also present in its deprotonated GS ^— -form, was exchanged by cysteine as a reducing agent, which also can be deprotonated, the same tendency could be observed. If cysteamine, which does not have a negatively charged form, was used, the half life for all tested peptides was comparable. For higher pH values, such as pH 7.4 in the cytosol, the cleavage kinetics in GSH redox buffer accelerated profoundly (from 8.7 h for pH 4.9 to 0.1 h in half life for the structure with α- and β-glutamic acid). The higher amounts of charged GS ^— at higher pH seem to be responsible for this faster cleavage. Special formations of cysteines embedded in a peptidic environment can influence not only the kinetics but also the formation of disulfides in structures. A motif consisting of cysteine—any amino acid—cysteine (C-X-C) was evaluated for different flanking and central natural amino acids and revealed the best properties for the cationic amino acid arginine combined with the flanking amino acids glutamic acid (G-C-R-C-G) (126). The motif not only offered a prolonged resistance against a reducing solution with 0.02 mM GSH redox buffer (more than 60% remaining, compared with less than 10% for single cysteines after 6 h), but also formed orthogonal twin disulfide dimers in the presence of single cysteines selectively. The arginine was shown to strongly direct the equilibrium toward the twin disulfide dimers. Responsibility for this effect seems to be the positive charge that promotes the reactivity of thiolates, which are intermediately required to form a disulfide bond. The surrounding glutamic acids seem to stabilize the disulfide bond by reducing the rates of disulfides exchange in GSH redox buffer.

Conclusions

The bioreducible structure of disulfide bonds offers some most beneficial options to oligocationic carriers for gene and protein delivery. Importantly, it provides a straightforward option for the design of dynamic carriers and shuttles discriminating between intracellular and extracellular cytosolic locations. The stability of the cargo polyplex that is needed during the harsh extracellular conditions and during cellular uptake can be provided by cross-links in a two- or three-dimensional manner via covalent conjugation or caging of the cargo. While pDNA polyplexes can be built on purely electrostatic interactions with commonly HMW carriers, the smaller siRNAs and cargo proteins may critically depend on such disulfide stabilizations. Intracellularly, disulfide bonds are efficiently cleaved by the reductive environment, releasing the cargo in a functional form undisturbed from the delivery shuttle. As an additional benefit, bioreduction disassembles oligocationic carriers into smaller, usually nontoxic fragments. Chemical tuning of bioreductive elements for site-/time-specific cleavage presents an encouraging future option for activating delivery functions beyond simple assembly/disassembly, for example, triggered deshielding or unmasking of endosomolytic, cytosolic transport and cargo release elements.
