Peroxiredoxins (Prx) are central elements of the antioxidant defense system and the dithiol-disulfide redox regulatory network of the plant and cyanobacterial cell. They employ a thiol-based catalytic mechanism to reduce H2O2, alkylhydroperoxide, and peroxinitrite. In plants and cyanobacteria, there exist 2-CysPrx, 1-CysPrx, PrxQ, and type II Prx. Higher plants typically contain at least one plastid 2-CysPrx, one nucleo-cytoplasmic 1-CysPrx, one chloroplast PrxQ, and one each of cytosolic, mitochondrial, and plastidic type II Prx. Cyanobacteria express variable sets of three or more Prxs. The catalytic cycle consists of three steps: (i) peroxidative reduction, (ii) resolving step, and (iii) regeneration using diverse electron donors such as thioredoxins, glutaredoxins, cyclophilins, glutathione, and ascorbic acid. Prx proteins undergo major conformational changes in dependence of their redox state. Thus, they not only modulate cellular reactive oxygen species- and reactive nitrogen species-dependent signaling, but depending on the Prx type they sense the redox state, transmit redox information to binding partners, and function as chaperone. They serve in context of photosynthesis and respiration, but also in metabolism and development of all tissues, for example, in nodules as well as during seed and fruit development. The article surveys the current literature and attempts a mostly comprehensive coverage of present day knowledge and concepts on Prx mechanism, regulation, and function and thus on the whole Prx systems in plants. Antioxid. Redox Signal. 15, 1129–1159.
I. Introduction
Higher plant Prxs were first described in 1996, when the Hv-1-CysPrx (166) and the Hv-2-CysPrx (6) were reported from barley (Hordeum vulgare) and subsequently for many other species with oxygenic photosynthesis, including the cyanobacterium Synechocystis Pasteur culture collection (PCC)6803 (82), the liverwort Riccia fluitans (60), spinach (7), winter rye (16), and Arabidopsis thaliana (8). The third Prx type was isolated and described by Verdoucq et al. (178) and Rouhier et al. in ref. (151). Finally, the plant homolog of prokaryotic bacterioferritin comigratory protein then named PrxQ was identified in Sedum lineare (85). Each of these Prx types has been analyzed in quite some detail. The studies have proven their important roles in antioxidant defense and redox signaling during plant development and environmental acclimation. The following review surveys the current literature and attempts a mostly comprehensive coverage of present day knowledge and concepts on Prx mechanism, regulation, and function and thus on the whole Prx systems in plants. Recent research has assigned conformation- and redox-dependent functions to specific Prxs in plants that include site-specific peroxidase activity, role as redox sensor and chaperone, and as binding partner to target proteins.
II. Classification of Plant Prxs and Their Distribution in Plants and Cyanobacteria

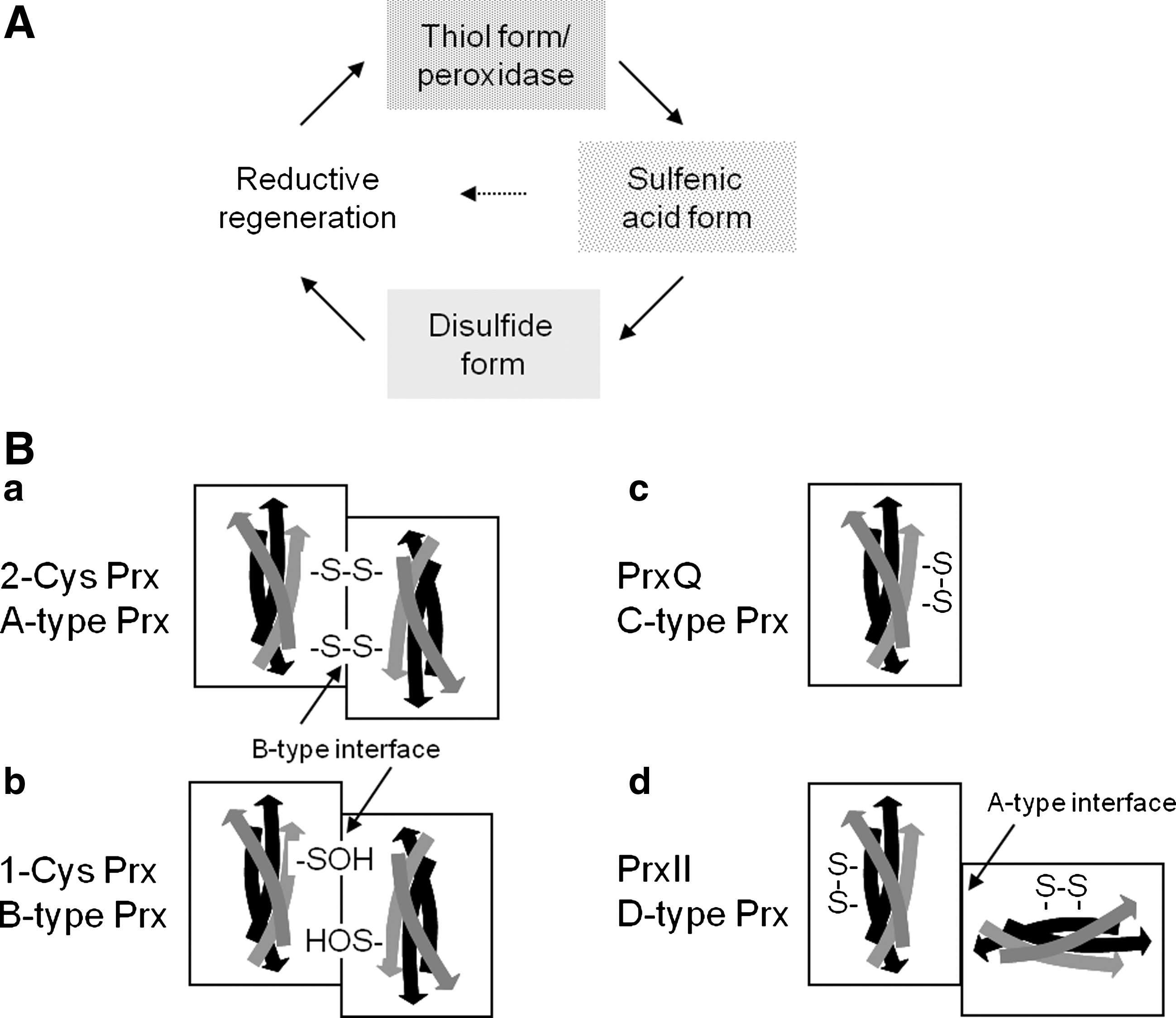

The Prx family can be divided in six groups, named A, B, C, D, E, and F, based on sequence and structure similarities and positions of conserved cysteinyl residues (57, 123, 124). Group E comprises bacterial peroxidases and group F Prx homologs in archaea. Prx from the groups A to D are common and conserved in higher plants, for example, the genome of A. thaliana encodes genes for each of the four types of Prx (61, 62) (Fig. 1B). According to the more commonly used nomenclature, the A-type Prx corresponds to the (typical) 2-Cys peroxiredoxin (2-CysPrx), the B-type Prx to the (typical) 1-Cys peroxiredoxin (1-CysPrx), the C-type Prx to peroxiredoxin Q (PrxQ), and the D-type Prx to type II peroxiredoxins (PrxII) (123). PrxQ and PrxII also are termed atypical 2-CysPrx (57). All the four Prx sub-classes are also present in the genomes of Populus trichocarpa, Oryza sativa, and the cyanobacterium Synechocystis sp. 6803 (Table 1). From these genome-wide searches it is concluded that higher plants have a minimum consensus set of six Prx, (i) an embryogenesis-related 1-CysPrx, (ii) a cytosolic typeII Prx (Arabidopsis thaliana [At]PrxIIB-like), (iii) a mitochondrial typeII Prx (AtPrxIIF-like), (iv) a plastid typeII Prx (AtPrxIIE-like), (v) a chloroplast PrxQ, and (vi) a chloroplast 2-CysPrx (42). This basic pattern is subject to significant variation between plant species (Table 1); for example, A. thaliana expresses two highly similar 2-CysPrx, denominated At-2-CysPrxA and At-2-CysPrxB, three cytosolic typeII Prx (PrxIIB, C, and D), and the peculiar PrxIIA whose functionality and expression are not entirely clear (61, 62).
Putative Prx pseudo genes.
Chl, chloroplast/plastid; Cyt, cytosol; Mit, mitochondrion; N, nucleus.

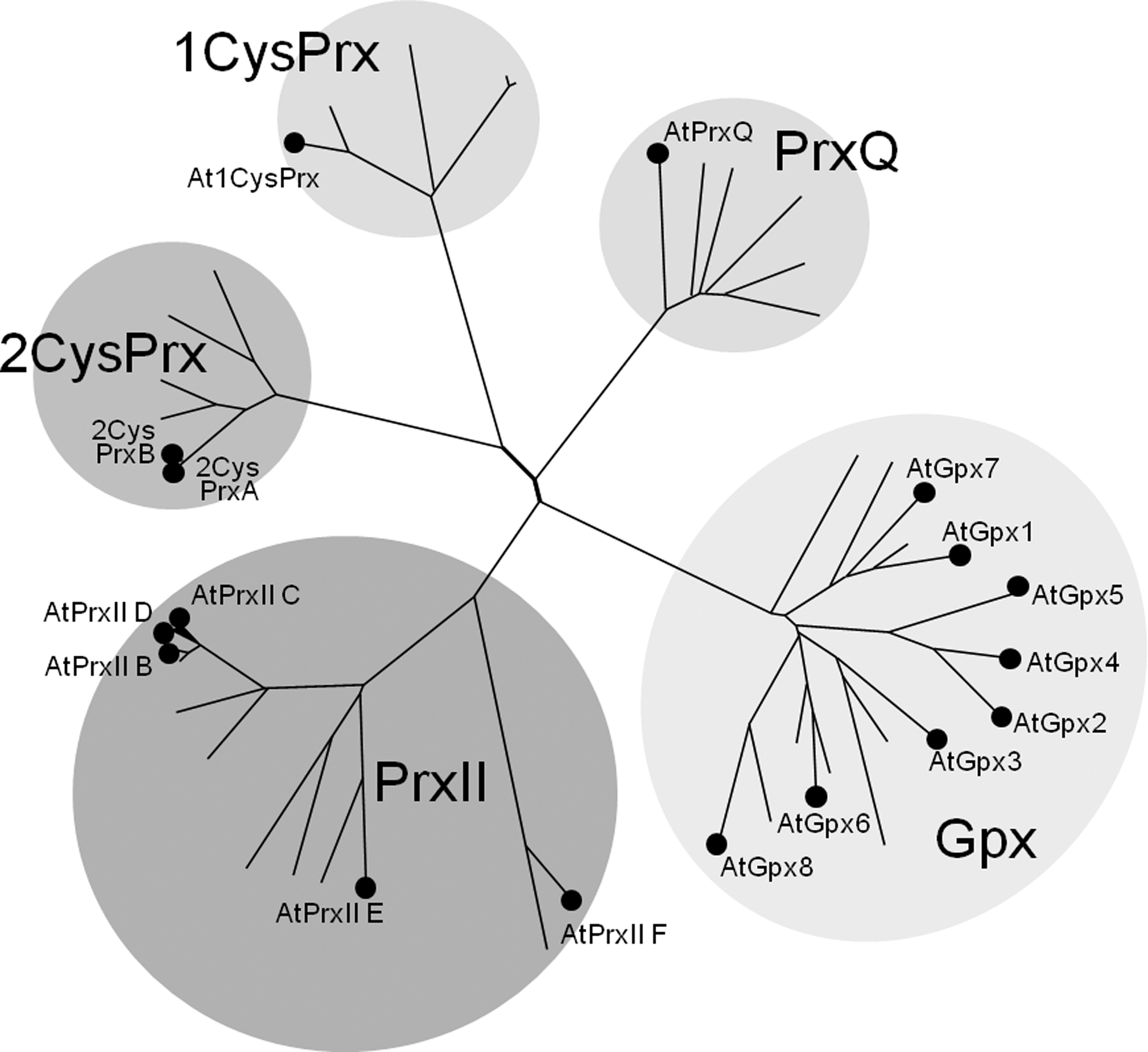

Figure 2 sorts the four types of eukaryotic Prx and in addition the group of glutathione peroxidases (Gpx) into a phylogenetic tree of sequence relatedness. The subfamilies are well distinguished and separated. The PrxII subfamily is diverse, due to early evolutionary separation into mitochondrial (PrxII F), plastidic (PrxII E), and cytosolic (PrxII B-D) forms. The genome survey of Bernroitner et al. (18) compares the antioxidant systems of simple and complex cyanobacteria: The small genomes of Prochlorococcus marinus genotypes only encode three Prx, that is, either one 2-CysPrx, one PrxQ, and one PrxII, or one 2-CysPrx and two PrxQ, whereas the genome of Nostoc punctiforme PCC73102 contains seven prx genes. N. punctiforme is a cyanobacterium with complex life cycle that includes differentiation of N2-fixing heterocysts, and hormogonia and akinetes for propagation (18). Including into our consideration the gene family sizes in yeast (five Prx) as well as human, mouse, and rat (six Prx) (57) the Prx family evolution shows tentative trends to increased member size in organisms with (i) larger genomes that coincides with (ii) more complex organization and (iii) oxygenic photosynthesis.
III. Peroxidase Activity of Peroxiredoxins
Prxs primarily function as thiol-dependent enzymes that decompose peroxides (57). Thus, they belong to the enzyme group of peroxidases (EC 1.11.1.) with the specific counting number 15 (EC 1.11.1.15). Their occurrence in essentially all organisms suggests that Prxs evolved as high-efficiency thiol-peroxidases very early during life evolution. At that time Prxs most likely detoxified small amounts of ROS that were released by metabolism in the prevailing microaerobic atmosphere of the earth. The peroxidase activity was maintained during subsequent evolution, but in addition new Prx properties such as regulation of quaternary structure, chaperone activity, and hyperoxidation switch emerged later on particularly in eukaryotes as discussed below. The mature molecular mass of proper Prx ranges between 17 and 24 kDa (150–220 amino acids). They catalyze the reduction of chemically diverse peroxides ranging from hydrogen peroxide, simple and complex alkyl hydroperoxides to peroxynitrite. In the literature Prxs have often been classified as low-efficiency peroxidases with low turnover number. Refined kinetic analyses changed this view since it was shown that the catalytic efficiency may be as high as for other enzymes like catalase, for example, in the case of bacterial alkylhydroperoxide reductase C (AhpC) time-resolved monitoring of the fluorescence decrease of the mutated electron donor AhpF in presence of hydroperoxides yielded a turnover rate of 53 s−1, a catalytic efficiency of ca. 4×107 l mol−1 s−1, and a 100-fold preference for hydrogen peroxide over cumene hydroperoxide (127, 128). However, it should be noted that in the study in 2008 Parsonage et al. determined the redox midpoint potential of this bacterial Prx AhpC to be as high as −178 mV. This characteristics might ease the catalytic turnover of this particular 2-CysPrx compared to other 2-CysPrx with much more negative midpoint redox potential (86). Two independent methods based on substrate competition of 2-CysPrx with horse radish peroxidase and monitoring peroxide-dependent disulfide bridge formation revealed a rate constant for hydroperoxide reduction of 1.3×107 l mol−1 s−1 for human peroxiredoxin 2 (Prdx2), a typical 2-CysPrx (135). Reported catalytic properties of 2-CysPrx vary considerably depending on experimental designs (2, 128, 135, 156). Detailed kinetic studies need also to be done for plant Prx. To complete the catalytic cycle after the peroxide reduction step (i) and the resolving step (ii), the sulfenic acid form of the catalytic CysP (peroxidatic cysteine in the catalytic center) in case of 1-CysPrx and the disulfide form of CysP in case of 2-CysPrx need to be reduced (Fig. 3). This step (iii) is the regeneration step. Thioredoxins, glutaredoxins, glutathione, cyclophilins, and ascorbate function as electron donors to regenerate the active form of thiol peroxidase in a Prx-specific manner as described in more detail below [e.g., refs. (86, 89, 92, 151)].

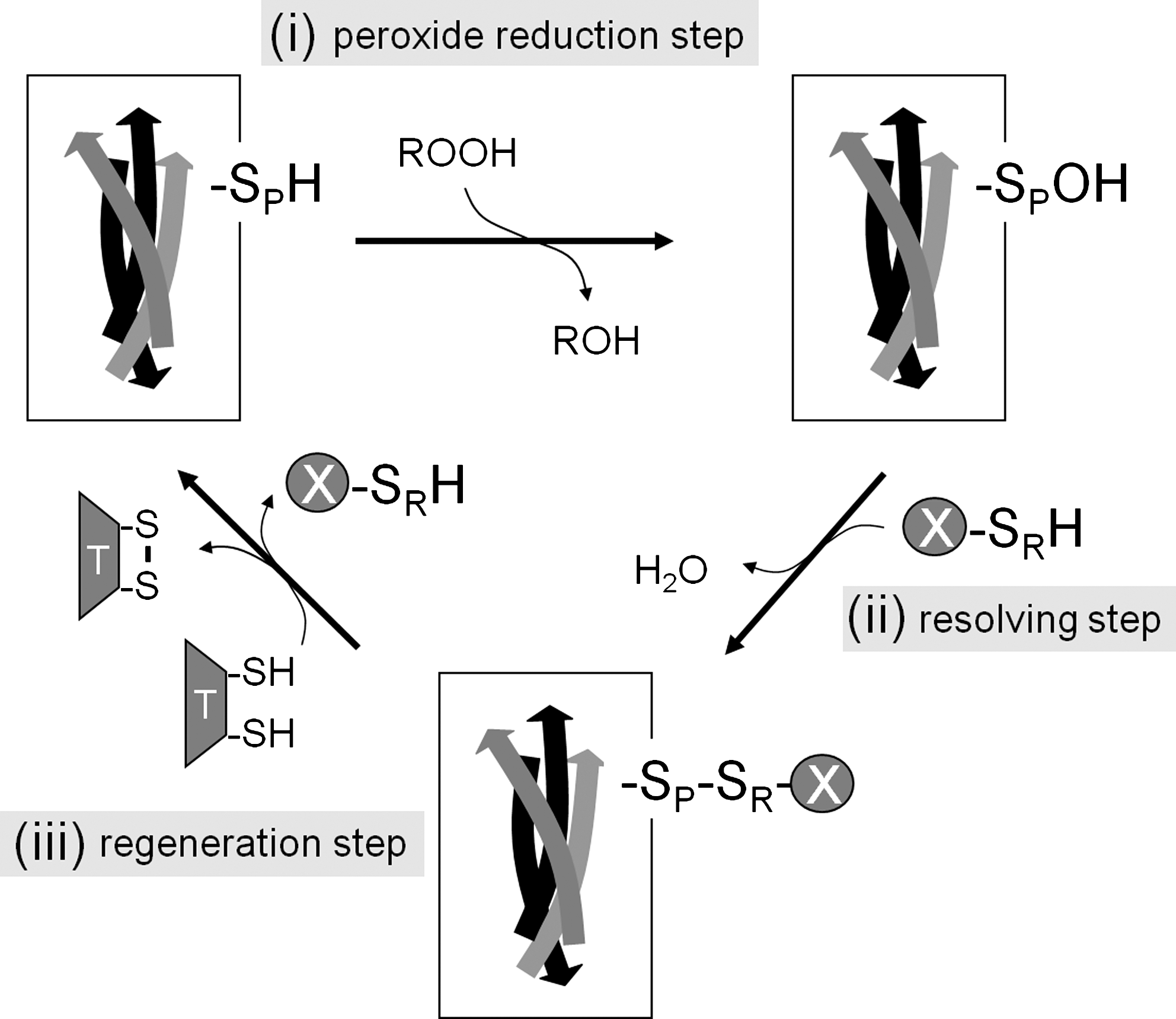

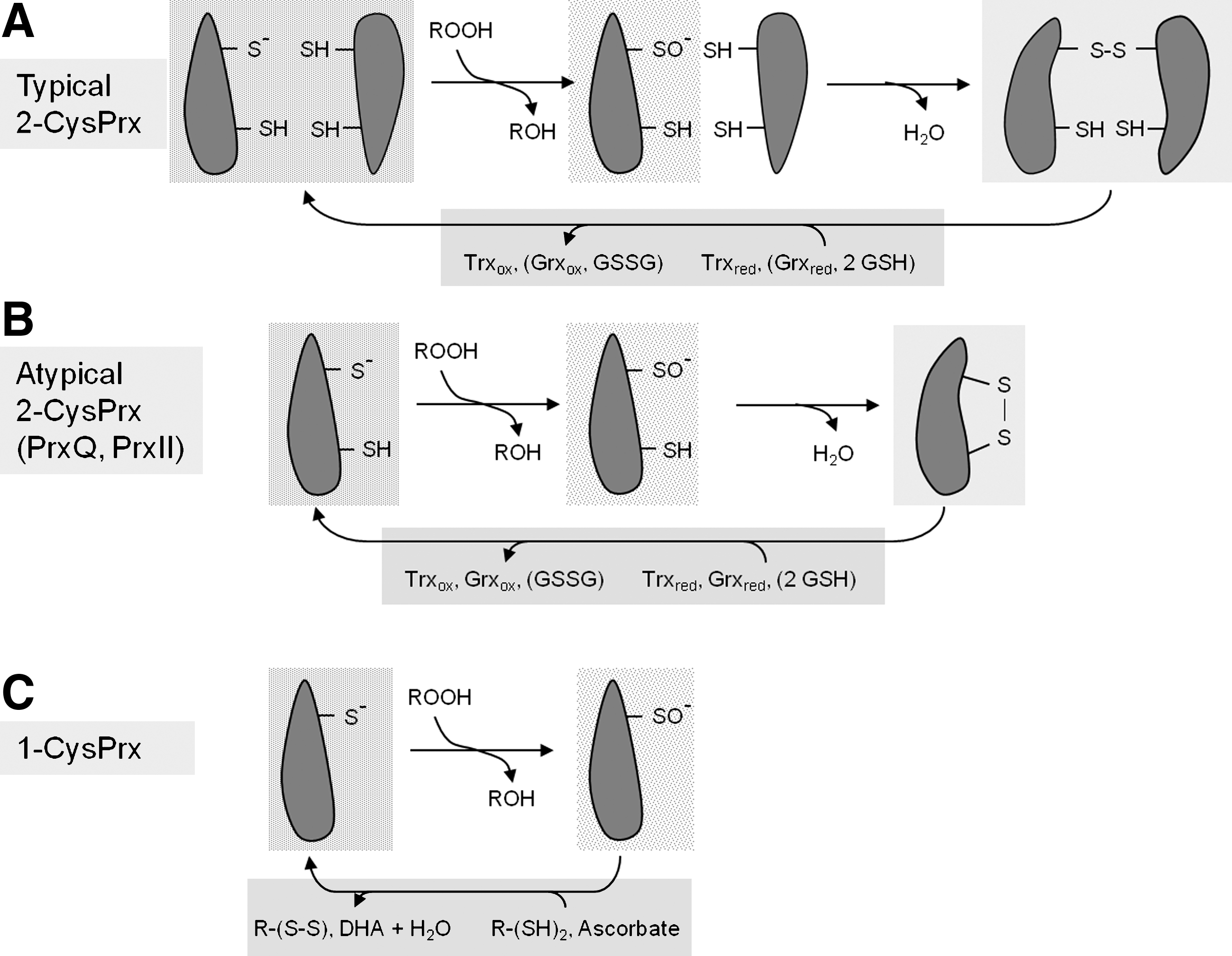

Irrespective of whether the catalytic cycle proceeds in two or three consecutive reactions a specific cysteine residue in the active site is characteristic for all Prxs and essential for any peroxidase activity (peroxidatic cysteine, CysP-SH). The thiolate of the CysP-SH attacks the peroxide substrate (Fig. 4). Mutagenesis of the cysteine results in loss of peroxidase activity of Prxs (26, 57, 86, 88, 151). Conserved amino acids in the catalytic center, usually Pro-, Thr/Ser- (S/TXXC), and Arg/Lys-residues, interfere with the CysP-SH and lower its pKa (124, 183). The CysP-SH of typical 2-CysPrx such as from Salmonella typhimurium and E. coli AhpCs or yeast thiol-specific antioxidant range between 5.4 and 6.0, which is about 2 pH values lower than the unperturbed Cys-SH (140, 176). As a consequence, the thiol of CysP-S− is highly active. The nucleophilic attack of the peroxide by CysP-S− results in the oxidation to S-hydroxycysteine (sulphenic acid, Cysp-SO−) and the reduction of the hydrogenperoxide, alkyl hydroperoxide, and peroxynitrite to water, the corresponding alcohol and nitrite, respectively. A second free thiol acts as the resolving cysteine (CysR-SH) and reacts with CysP-SO− to form the disulfide CysP-S-S-CysR.
CysP is generally located in the N-terminal protein part at about amino acid (aa) position 50, whereas the arrangement of the resolving cysteine (CysR) varies between the Prx groups (61, 152) (Fig. 5). CysR of typical 2-CysPrx (group A Prx) locates in the C-terminal part at around aa 170, for example, at aa 175 in the mature form of A. thaliana 2-CysPrxA. 2-CysPrx functions as obligate homodimer since the CysP forms an intermolecular disulfide-bridge with the CysR-SH of the other subunit polypeptide chain. In the oxidized form the two 2-CysPrx subunits are cross-linked by one or two disulfide bridges. The thiol-disulfide conversion of 2-CysPrx can be observed by band shifts in nonreducing SDS-polyacrylamide gels, and this allows for easy assessment of the redox state as long as other posttranslational modifications do not occur. There is no evidence that plant 2-CysPrx monomers exist in vivo or in vitro under native conditions. Only if reduced and denatured in the presence of urea or SDS, monomers are separated.
The recycling of CysP-SOH of 1-CysPrxs (Group B Prx) requires a resolving cysteine from another molecule or may proceed via ascorbate (see below). The other two Prx subgroups of plants form intramolecular disulfide bridges. PrxQ (Prx group C) and atypical 2-CysPrx (type II Prx; PrxII; Prx group D) share low amino acid sequence similarity and are also differentiated by the spacing of CysP and CysR on the same polypeptide by either 4 (PrxQ) or 24 amino acids (PrxII). More than 30 crystal structures from all four Prx types reveal that Prxs share the common and stable thioredoxin-like fold where seven β-sheets are surrounded by five α-helices (123, 124). The conservation of the thioredoxin fold as central structural feature suggests that the Prx family evolved from a thioredoxin-like ancestral protein. Interestingly, the sequence similarity between the four Prx subgroups is low. PrxQ and atypical 2-CysPrx only share about 5% of their amino acid sequence and the highest similarity is found between PrxQ and the typical 2-CysPrx subgroup with 34% identity. On the other hand, similarity between vertebrate and plant 2-CysPrx is high with about 50%–60%, and even slightly higher between plant and cyanobacterial and red algal 2-CysPrx (7, 82). This observation and in addition the fact that 2-CysPrx is still encoded by the plastome of Porphyra purpurea led to the evolutionary hypothesis that plant 2-CysPrx was introduced into plants via the endocytobiont that turned into the plastids (7).

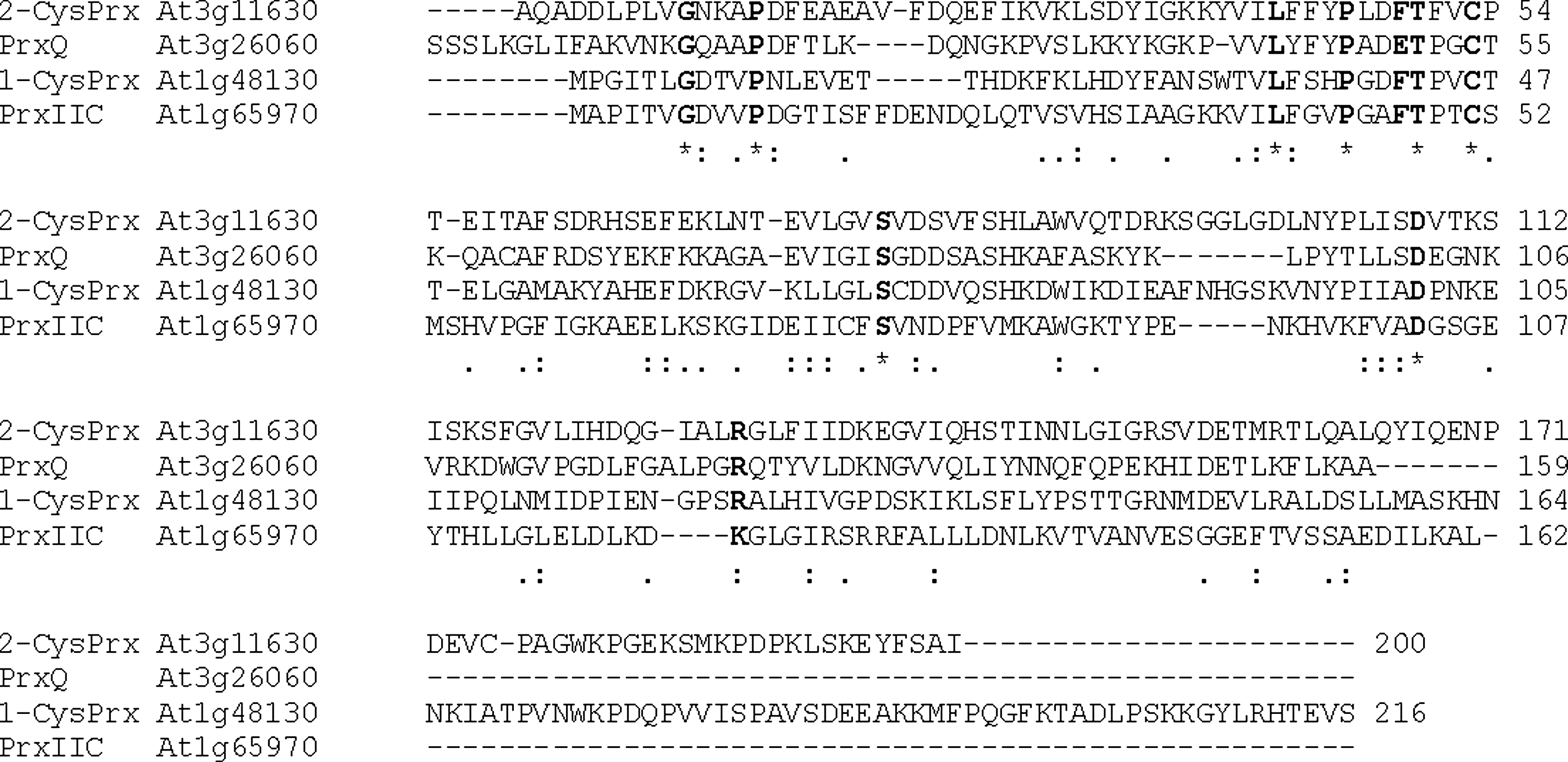

Several amino acid residues of the active site are conserved among the different members of the Prx family (Fig. 5). X-ray crystallography and nuclear magnetic resonance analyses in combination with results from biochemical analyses of site-directed mutagenized variants have identified the crucial amino acid residues required for catalytic mechanisms, structural flexibility, and oligomerization (52). The pKa of the active cysteine is lowered by the neighborhood of the catalytic triad consisting of Thr/Ser and Arg/Lys residues [for reviews see refs. (140, 176)]. Further, a conserved Pro residue and hydrophilic residues shield CysP from the bulk solvent. Trp and Phe residues are important for the conformational changes during the reaction cycle (87). The active site of the Gpx family differs from the one of the Prx family, suggesting different ancestors. The similar reaction mechanism may be considered as an example of convergent evolution. For this reason, the group of glutathione-peroxidase-like plant proteins will not be deeply discussed in this review despite the suggestion of categorizing them as fifth subtype of Prx (120).
IV. Conformational Dynamics and Interacting Partners of Prx In Vitro and In Vivo

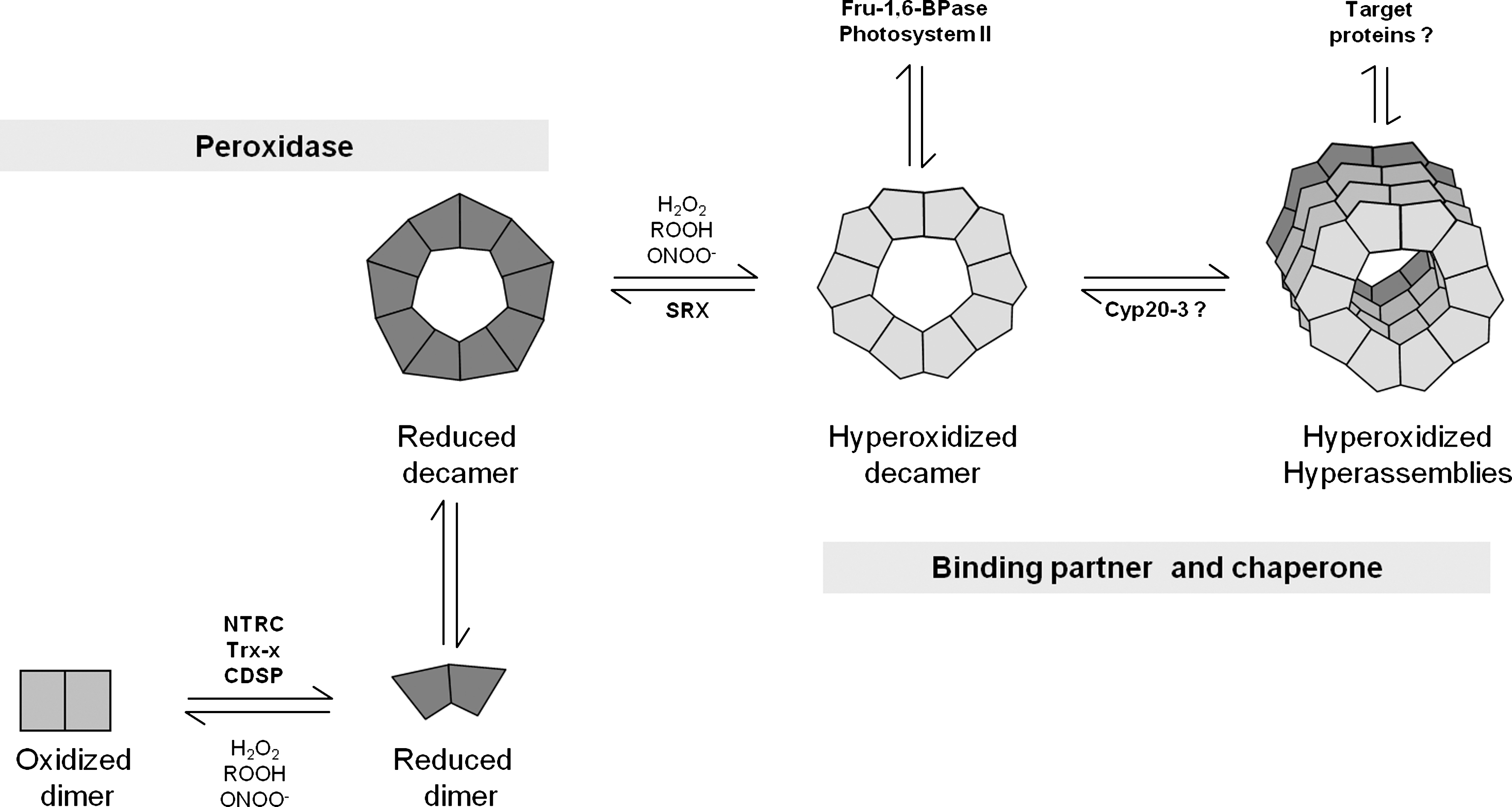

The tertiary and quaternary structures of Prx proteins depend on the redox state of the catalytic peroxidative cysteine CysP. In terms of functional unit during catalysis and as dicussed above (Fig. 4) 1-CysPrx, PrxQ, and PrxII act as monomers, whereas 2-CysPrxs function as obligate dimers. However, the regular quaternary assembly appears to be the dimer for both 2-CysPrx and 1-CysPrx, whereas based on results from size exclusion chromatography PrxQ and PrxII are reported either as monomers or dimers, or a mixture of both (14, 86, 133, 169). Some Prx dimers assemble to higher molecular mass complexes such as hexamers, decamers, dodecamers, dodecahedrons, and tube-like structures (14) (Fig. 6). In addition, many Prx interact with protein partners. Experimental and in silico approaches to elucidate and functionally understand these interactions in vitro and in vivo presently emerge as an important field in redox network understanding. In addition to pull down assays and yeast-2-hybrid screenings, methodological advances over the last years enable to address the composition and function of the cellular thiol-disulfide redox regulatory network, and the qualitative and quantitative interactions between its components. Prxs are part of the redox regulatory network of the cells and have been suggested to function as ROS traps and redox sensors (39) (Fig. 7). Essentially Prxs react with peroxides, turn oxidized and during reductive regeneration drain electrons from their respective electron donor (electron transmitter in Fig. 7). At this point the pioneering work of Arne Holmgren should be mentioned, which initially developed biochemical approaches to identify thioredoxin (Trx) target proteins (58, 59). It is suggested that the competition for electrons causes oxidation of other target proteins and regulates activities of components of the dithiol-disulfide redox network (39). The nature of protein targets within the thiol-disulfide network was addressed at the proteomics scale. Both, thioredoxins and glutaredoxins were modified by Cys→Ser mutations to abolish the activity of the resolving cysteine CysR (114, 178). After covalent bonding of these Trx and glutaredoxin (Grx) variants to chromatographic material, target proteins can be trapped under oxidizing conditions by formation of intermolecular disulfides. This type of experiment repeatedly identified Prx as targets of Trx and Grx; for example, using m-type Trx as bait Motohashi et al. (114) identified 2-CysPrx and PrxQ. Likewise using Trx-h Yamazaki et al. (186) trapped PrxIID. Rouhier et al. (153) immobilized PrxIIB, E, F, 2-CysPrx and PrxQ using GrxC4. However, the covalent trapping approach appears to lack specificity and additional evidence needs to be put forward to validate and understand the interactions. Isothermal titration microcalorimetry (ITC) is a powerful method to derive quantitative parameters on protein–protein interactions. ITC revealed a very tight redox-dependent interaction between mitochondrial PrxIIF and Trx-o in pea (13). The dissociation constant (KD) of this interaction is as low as 126±14 pM. ITC-analysis also showed an extremely high cooperativity in the dimer–decamer transition of reduced 2-CysPrx (12). Below a critical concentration of 1.5–2 μM, reduced 2-CysPrx decamers from human and plants disassemble to dimers. While ITC provides in vitro thermodynamic data, homomeric and heteromeric interactions of 2-CysPrx can be addressed in vivo using fluorescence resonance energy transfer (FRET) in transfected protoplasts. To this end 2-CysPrx was fused to yellow fluorescent protein (YFP) and interaction partners described in the literature were fused to cyan fluorescent protein (CFP). A. thaliana mesophyll protoplasts were transfected simultaneously with two constructs each. After exciting CFP, radiationless excitation of YFP and subsequent emission of YFP fluorescence only occurs if both partners are in close proximity in vivo. Measured FRET efficiencies of 18%–20% indicate interaction of 2-CysPrx with Cyp20-3 and NADPH-dependent thioredoxin reductase C (NTRC), whereas interaction with Trx-x is either too short-lived or absent to detect FRET (118). In addition, one-step FRET occurs between 2-CysPrx-YFP and 2-CysPrx-CFP when simultaneously introduced in the cells. The FRET efficiency distribution in this experiment changes in the presence of dithiothreitol or H2O2, indicating redox-dependent dynamics of 2-CysPrx conformation in vivo. Two-step FRET enables analysis of interactions of three and more interactors. Simultaneous cotransfection of protoplasts with 2-CysPrx fused to CFP, YFP, and mCherry, respectively, enables radiationless energy transfer from CFP via YFP to mCherry (two-step FRET). Occurrence of two-step FRET depends on close proximity of three flagged subunits and in the case of 2-CysPrx indicates existence of oligomeric 2-CysPrx in the chloroplast (159). These data sets prove that Prxs are parts of functional modules that may form stable but also dynamic complexes in dependence on redox environment and interacting partners.
V. Typical 2-Cys Peroxiredoxins
A. Characteristics of 2-CysPrxs
The group of typical 2-CysPrxs is characterized by the highest degree of sequence conservation among the four Prx groups present in eukaryotes. Four of the six Prxs in mammalian systems are 2-CysPrx (PrxI-IV), whereas mammalian genomes only encode one PrxII (Prx V) and one 1-CysPrx (Prx VI). Interestingly, the recently sequenced genome of the brown alga Ectocarpus siliculosus appears to code for only one Prx gene representing a typical 2-CysPrx and thus lacks other Prx types (34). Alternatively, additional Prx may be encoded by organellar subgenomes. In plants, the 2-CysPrx is targeted to the chloroplast (7) where a significant fraction associates with the thylakoid membrane in a redox state-dependent manner (86). The N-terminal domain carries the typical features of transit peptides. 2-CysPrxs exhibit conserved motifs such as the F-motif surrounding the CysP (FFYPLDFTFVCPTEI), the motif in the vicinity of the CysR (EVCP) and the GGLG and YF motifs found in eukaryotic Prxs, which are involved in sensitivity toward hyperoxidation (182). After reacting with the first peroxide substrate to the intermediary sulfenic acid, hyperoxidation of CysP to sulfinic or sulfonic acid derivatives occurs when the resolving reaction is too slow to form the disulfide before a second peroxide attacks. Reported catalytic efficiencies kcat/KM [l mol−1 s−1)] of plant 2-CysPrx with peroxide was 2.5×104 with the artificial regenerator dithiothreitol in pea [ref. (17); KM 27.6 μmol H2O2 l−1; kcat 0.69 s−1, with 4 mM DTT], 1.8×103 with Trx-x in Oryza sativa [ref. (133); 77.4 μmol tertiary butylhydroperoxide (tBOOH) l−1; kcat 0.14 s−1; 7.5 μM Trx-x] and 2.1×105 with NTRC [ref. (133); 21.8 μmol tBOOH l−1; kcat 4.62 s−1, 1 μM NTRC]. Thus, NTRC seems to most efficiently reduce plant 2-CysPrx, but as mentioned above, maximal catalytic efficiencies of plant 2-CysPrx still need to be determined, for example, by stop flow or other time-resolved methods.

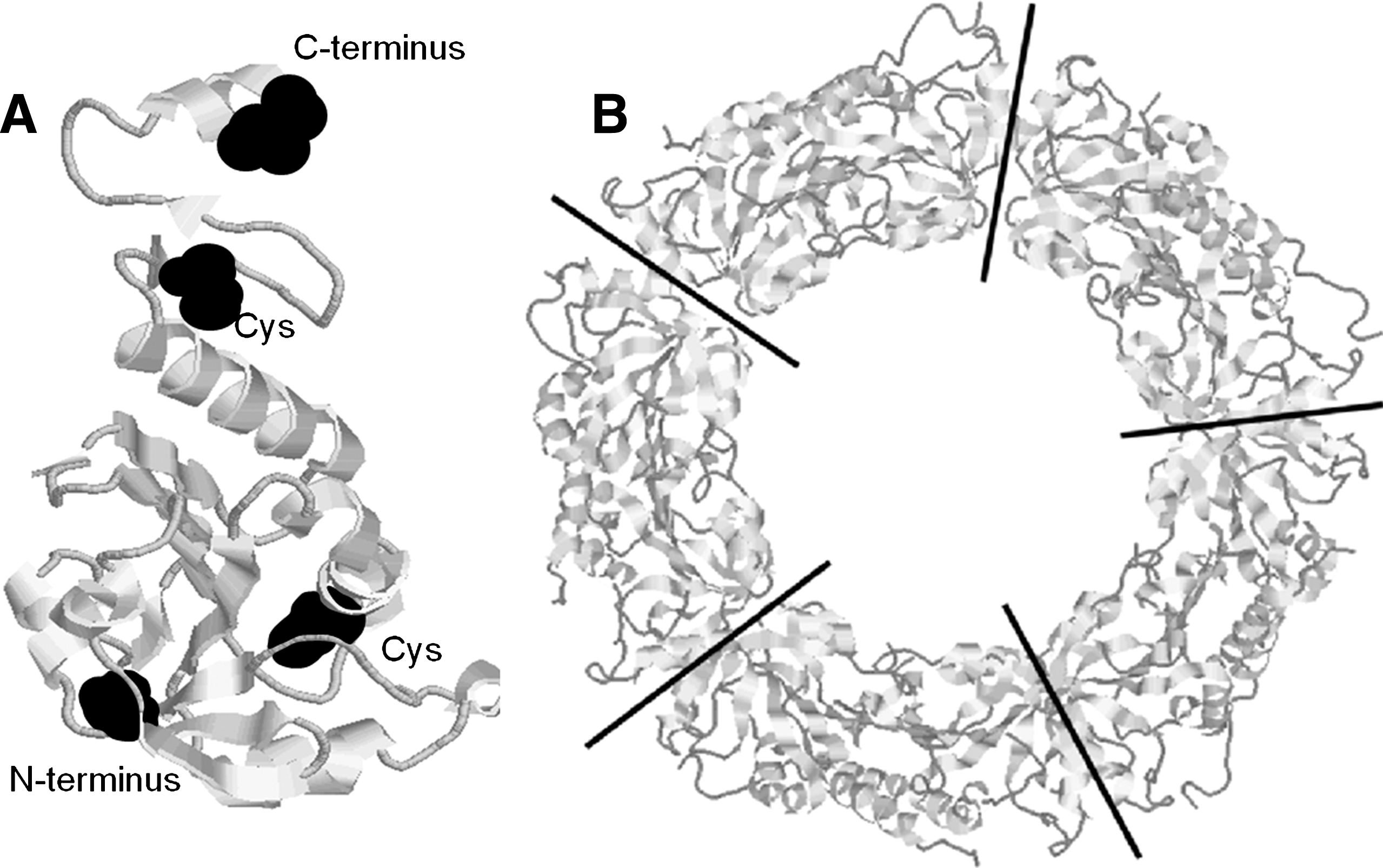

2-CysPrx functions as homodimer {α2} as elementary structural and catalytic unit. The core structure of each Prx subunit is a sevenstranded β-sheet typical for Trx fold proteins. The plane of the β-sheets orientates parallel to the interface of both subunits and is categorized as B-type interface (see above: Fig. 1B). Almost all 2-CysPrx homodimers have a high propensity to assemble to higher molecular mass structures, most commonly to decamers {(α2)5}. Dimers interact with interfaces roughly perpendicular to the central β-sheet planes. These interfaces are considered as A-type interfaces (52). The dimer–dimer interaction involves hydrophobic contact sites. Plant 2-CysPrxs exhibit redox-dependent dynamics in tertiary and quaternary structure. As a consequence 2-CysPrxs adopts at least five distinct conformations under control of the redox state and other posttranslational modifications (Fig. 8), namely, the conformations of (i) the oxidized dimer, (ii) the reduced dimer, (iii) the reduced decamer, (iv) the hyperoxidized decamer, and (v) higher mass aggregates of hyperoxidized decamers (118). The structural basis for the high propensity to hyperoxidation was approached by amino acid sequence comparisons between eukaryotic 2-CysPrx prone to hyperoxidation and prokaryotic 2-CysPrxs, which are highly resistant to hyperoxidation. A GGLG motif and the C-terminal helix with its buried YF motif are involved in a tighter structure of the fully folded form, slowing down the disulfide bridge formation during the catalytic cycle and increasing the propensity for hyperoxidation (182). There is broad acceptance of the hypothesis that the hyperoxidation evolved to enable redox-dependent ROS signaling, for example, to the nucleus under conditions of excessive peroxide formation. Recently, Pascual et al. (129) showed that 2-CysPrxs from some prokaryotes, including cyanobacteria, contain the GG(L/V/I)G and YF motifs characteristic of sensitive enzymes. 2-CysPrxs from the cyanobacterium Anabaena PCC7120 and Synechocystis sp. PCC6803 convert to the hyperoxidized form when reductant and high levels of peroxides are present simultaneously. The authors described a high similarity between the chloroplast and Anabaena antioxidant systems, which employ a hyperoxidation-sensitive 2-CysPrx and lack catalase. This mechanism may allow for the transient increase of H2O2 to act as messenger in retrograde signaling (129).
B. Reduction of oxidized 2-CysPrx

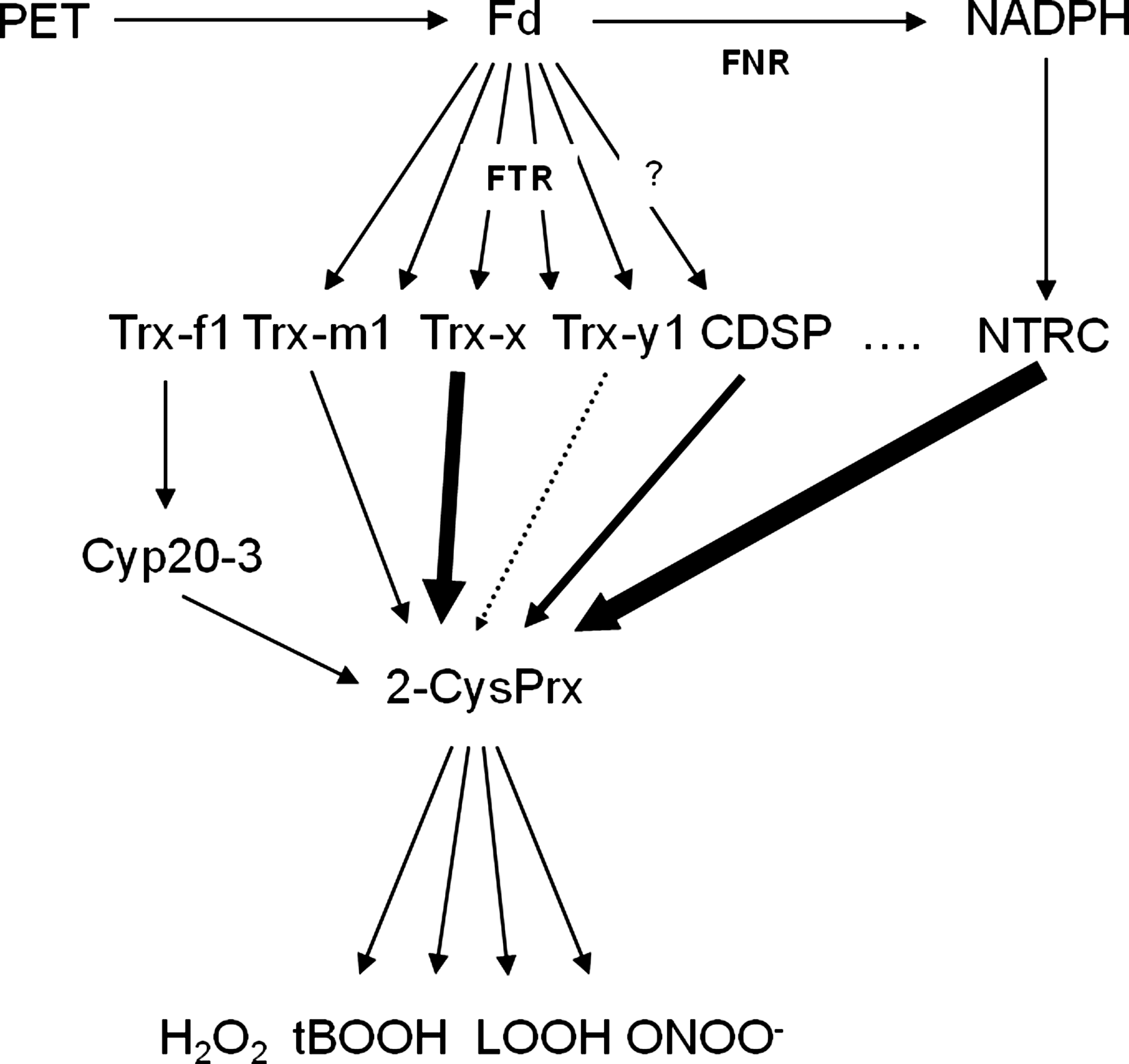

Plastids contain a thiol-disulfide redox network composed of input elements, redox transmitters, and target proteins (Fig. 7). The state of the network is defined by the balance between electron feeding into the network and drainage of electrons by O2, ROS, RNS, and metabolism. The plastids contain a large set of at least 11 thioredoxins in the stroma, namely, Trx-f1, f2, m1–m4, x, y1, y2, z, chloroplast drought-induced stress protein (CDSP), and, in addition, the NTRC protein, which is a dual-domain protein of NADPH-dependent thioredoxin reductase and a thioredoxin domain (105). NTRC was also identified as interactor of 2-CysPrx in a yeast-2-hybrid screen using 2-CysPrx as bait. Subsequent biochemical work revealed that NTRC efficiently donates electrons to 2-CysPrx (110). Collin et al. (35) compared Trx-m1, -m2, -f1, -f2, and -x for their efficiencies to regenerate 2-CysPrx. KM-values for Trx-interaction ranged between 25 and 279 μM, and thus their affinities appear to be quite low and limiting. The catalytic efficiency with tBOOH as substrate and Trx as regenerant reaches values between 0.33×103 and 7.3×103 l mol−1 s−1 (35), but was 2.1×105 l mol−1 s−1 for NTRC and 2-CysPrx in rice (133). Figure 9 summarizes present-day knowledge on the position of chloroplast 2-CysPrx within the dithiol-/disulfide redox regulatory network and the proposed electron flow into and electron drainage from the 2-CysPrx system. Various studies indicate that Trx-x and NTRC function as important electron donors, whereas additional donors such as Trx-f1, Trx-m1, CDSP32, and cyclophilin Cyp20-3 may serve as ancillary low-efficiency electron donors. Stimulated ROS production in stressed potato induces accumulation of the two-Trx modules carrying atypical thioredoxin termed CDSP32 (22). CDSP32-deficient potato transformants are more sensitive than wild type to oxidative stress treatments induced by application of methyl viologen or butylhydroperoxide (21, 23). The turnover achieved in the tests was close to 3 mol H2O2 .(mol CDSP32.min)−1 and thus lower than the values reported for 2-CysPrx regeneration with Trx-x or NTRC (35, 133). It should be noted that reduction of CDSP and Trx-x by ferredoxin-dependent thioredoxin reductase has not experimentally been demonstrated.
To assess the relative contribution of Trx-x and NTRC to 2-CysPrx reduction in vivo, Pulido et al. (142) compared the effect of deleting either one of both oxidoreductase systems in A. thaliana. While trx-x knock out plants are similar to wild type and maintain a fraction of 2-CysPrx in the reduced state, ntrc knock out plants accumulate only oxidized 2-CysPrx. In line with this result, extracts from wild-type and trx-x plants contain similar H2O2 amounts (0.77 μmol/g fresh weight), whereas H2O2 levels increase to 0.99 in ntrc plants (142). This assigns the predominating function in reductive regeneration of chloroplast 2-CysPrx to the NTRC system as suggested before by Kirchsteiger et al. (80).
C. Consequences of 2-CysPrx deficiency
Artificially induced 2-CysPrx deficiency in plants and cyanobacteria has been established by an antisense approach (8), by crossing two transfer DNA (T-DNA) lines carrying insertions in each of the two 2-CysPrx A and B genes of A. thaliana (142), and by insertional inactivation in Synechocystis PCC6803 (82, 185). It should be noted that a full knock out line lacking both 2-CysPrxA and 2-CysPrxB has not yet been established. The A. thaliana antisense lines showed severe 2-CysPrx deficiency during early plant development from germination to an age of about 4 weeks. Later on 2-CysPrx accumulated to wild-type levels (8). Accordingly, altered phenotypes of inhibited growth and chlorosis were only seen in young plants and seedlings, particularly when grown on agar plates. Pulido et al. (142) crossed two T-DNA insertion mutants of 2-CysPrxA and B to obtain Δ2cp. The mutant contains no detectable amounts of 2-CysPrx B transcripts and a very low 2-CysPrx A transcript level. Total 2-CysPrx protein accumulates to levels of about or below 5% of wild type. Biomass accumulation of the Δ2cp is inhibited by about 25% compared to wild type. The Δ2cp plants have lower photosynthetic pigment contents, such as total chlorophyll and carotenoids (142). The most severe effect of 2-CysPrx deficiency as measured by the dinitrophenyl hydrazine method is seen on protein carbonylation, which is increased 4.7-fold in Δ2cp (321.8±62.4) compared to wild type (68.8±13.1 nmol dinitrophenyl hydrazine mg−1 protein). This indicates severe oxidative stress despite the compensatory activation of antioxidant defense enzymes (9). This compensation is reflected by increased transcript accumulation and activities of stromal and thylakoid ascorbate peroxidase as well as monodehydroascorbate reductase (9). Attention in context of 2-CysPrx function was also given to cyanobacteria, which are considered as model systems to investigate mechanisms in and regulation of oxygenic photosynthesis. Synechocystis PCC6803 carrying an insertion in the 2-CysPrx gene (sll0755) grows slower than wild type in full strength medium. The inhibition is overcome in media with lowered Fe and micronutrient contents (82). 2-CysPrx lacking Synechocystis PCC6803 cannot support H2O2- and tBOOH-dependent oxygen evolution in the light (185). Tichy and Vermaas (173) analyzed the H2O2 detoxification capacity of Synechocystis PCC6803 and detected only two peroxidative activities, namely, that of the catalase peroxidase KatG and the thiol-dependent peroxidase Prx. The Prx-dependent activity is light dependent and sufficient to support wild type like growth of Synechocystis PCC6803 even in the absence of KatG. Table 2 compiles results from diverse genetic approaches undertaken to analyze the function of specific Prxs in higher plants or cyanobacteria. In each case modification of 2-CysPrx amounts affected traits related to photosynthesis. The other experiments dealing with PrxQ, 1-CysPrx, and PrxII will be discussed below.
The table summarizes transgenic experiments where Prx amounts have specifically been manipulated either in higher plants or cyanobacteria. Given are Prx type, species, introduced genetic modification, phenotype and reference.
VI. Peroxiredoxin Q, an Atypical 2-CysPrx of Chloroplasts and Cyanobacteria
PrxQ homologs (bacterioferritin comigratory protein, bacterioferritin comigratory protein; atypical 2-Cys Prx) are found in bacteria (Bcp protein) and some lower eukaryotes but are absent from mammals. PrxQ was the last member of the Prx family identified in plants (85). PrxQ is characterized by the positioning of its catalytic and resolving Cys-residues both in a single polypeptide spaced by four amino acids in Sl-PrxQ or At-PrxQ (Fig. 5). Thus, in Sedum lineare PrxQ Cys44 and Cys49 are essential for the thioredoxin-dependent peroxidase activity. Heterologous Sl-PrxQ expression suppresses the peroxide hypersensitivity of an E. coli bcp mutant, tentatively confirming its antioxidant activity in vivo. PrxQ functions as monomeric peroxidase with high reactivity toward H2O2 and butylhydroperoxide, and still significant activity toward lipid peroxides. Members of PrxQ type often constitute small gene families in cyanobacteria with significant variation in arrangement of Cys residues (169, 170). Two out of the five Prx encoded in the Synechocystis PCC6803 genome are PrxQ-like gene products, whereas the genome of Synechococcus elongatus PCC7942 contains four prxQ-like genes, namely, prxQ-A1, -A2, -A3, and B (170). Viability of E. coli BL21 cells expressing the cyanobacterial PrxQ-A1, A2, or A3 improves in the presence of toxic cumenehydroperoxide concentrations, whereas expression of the other PrxQ-B has no effect (169). This suggests a significant detoxification function of cyanobacterial Prx-Q. Interestingly, while the CysP is conserved among the various members of the cyanobacterial PrxQ families, the CysR usually located at position 5 downstream of CysP is lacking from, for example, PrxQ-A of Anabaena PCC7120, PrxQ-B1, and -B2 of Synechocystis PPC 6803 and PrxQ-B of Synechococcus elongatus PCC7942. The latter PrxQ-B lacks any other Cys-residue, whereas the other three sequences contain Cys residues at nonconserved positions (169, 170). The mechanism of the catalytic cycles of these atypical PrxQ is unknown. The variability of PrxQ primary structure and Cys arrangements suggests that in addition to typical and atypical representatives of 2-CysPrx, one has to distinguish between typical and atypical 1-CysPrx as well. PrxQ isoforms with single Cys residues should be assigned to the new group of atypical 1-CysPrx. Amino acids involved in the catalytic activity were addressed by site-directed mutagenesis of At-PrxQ. Arg181 appears to participate in the primary catalytic mechanism, Arg118 in conformational changes needed for accessing the catalytic site, and Thr107 and Thr111 in Trx-mediated regeneration (88). The results indicate mechanistic similarities between PrxQ and the related 2-CysPrx (87).
Plant PrxQ interacts with thioredoxins as first suggested by a proteomics approach where site-directed mutagenized spinach Trx-m lacking its resolving Cys was immobilized on cyanogen bromide-activated sepharose (114, 115). This analysis as that of Rey et al. (146) used stromal fractions of spinach and potato, respectively, for their proteomics screening. Target proteins are trapped on the column under oxidative conditions since the intermolecular disulfide bridges formed between Trx-m and the targets are not resolved due to the mutation of the second CysR. Among the mass-spectrometrically identified proteins were well-known targets of chloroplast redox regulation such as glyceraldehyde-3-phosphate dehydrogenase and sedoheptulose-1,7-bisphosphatase, and also At-2CysPrx, PrxQ and Cyp20-3 (114). Chloroplast location of Prx-Q was first shown by Rouhier et al. (149) in poplar. While thioredoxins are able to reduce Populus tremula PrxQ (Pt-PrxQ), various glutaredoxins and cyclophilin fail to support reductive regeneration of oxidized PrxQ (89, 149). The redox midpoint potential of the PrxQ catalytic dithiol/disulfide transition is −325 mV (pH 7.0). In a more detailed study, Trx-y2, which is expressed in photosynthetic tissues, efficiently reduced PrxQ, whereas it failed to effectively activate malate dehydrogenase and fructose-1,6-bisphosphatase (36). The newly identified At-Trx-z, which is associated with the transcriptional machinery of the chloroplast (5), is also unable to reduce PrxQ (Muthuramalingam M, Boernke F, Dietz KJ, unpublished). Focussing on the thiol regeneration systems, it is interesting that the Synechocystis PCC6803 genome encodes TrxA, TrxB, and TrxQ, which based on sequence similarity correspond to plant m-, x-, and y-type Trx. Both Synechocystis PCC6803 PrxQ1 and PrxQ2 are reduced by TrxA and TrxB (132), but with significant differences in kinetic characteristics. PrxQ1 has a KM for TrxB of 2.6±0.2 μM, a KM of 6.6±3 μM for TrxA, and the corresponding values for PrxQ2 are 17.3±2.5 and 12.2±3 μM, respectively. The study shows that cyanobacterial PrxQs are regenerated by Trx, whereas cyanobacterial GrxA and GrxB and glutathione are ineffective (132). Taken together, plant and cyanobacterial PrxQs with their negative midpoint redox potentials are functionally linked to the thioredoxin system with differences in electron transfer efficiency in vitro.
PrxQ and 2-CysPrx can also be trapped on a column loaded with the St-CDSP32 mutant C216S where the resolving Cys of the CDSP32 Trx domain is modified to serine resulting in covalent binding of potential target proteins (146). This in vitro approach shows the occurrence of heterodimers between CDSP32 and PrxQ as well as CDSP and 2-CysPrx, respectively, which was confirmed ex vivo by coimmunoprecipitation of CDSP32 with 2-CysPrx from control and wilted plants and with PrxQ from wilted plants (146). CDSP32 also donates electrons to PrxQ in an H2O2 reduction assay. However, the significance of this finding remains to be shown since the concentrations used in this assay (500 μM DTT, 40 μM CDSP32, and 2.5 μM PrxQ) were high and the activities with about 5 mol H2O2 .mol CDSP32−1 min−1 low; in addition, PrxQ is associated with thylakoid membrane or lumen as discussed next. Thorough kinetic and structural analyses of a bacterial PrxQ from the phytopathogenic bacterium Xylella fastidiosa also revealed high second-order rate constants for peroxinitrite and H2O2 in the order of 106–107 l mol−1 s−1 and significant structural reorganization during the catalytic cycle of PrxQ (63).
Higher plant PrxQ is associated with the thylakoids (88, 137, 149). It still is an open question whether the thylakoid association occurs from the stromal or lumen side. A thorough investigation of subchloroplast distribution assigns At-PrxQ to the chloroplast lumen (137). Washed thylakoid membranes contain the major fraction of chloroplast PrxQ, which in this study is only lost from the membrane fraction upon lysis of thylakoids by passage through a Yeda press. The PrxQ protein of intact thylakoids is resistant to thermolysin treatment, but digested after addition of detergent (137). However, also in this study, part of Prx Q was detected in the stromal fractions, confirming previous results where PrxQ was trapped on Trx columns with stroma protein preparations as prey (114, 146) or described as associated with the thylakoids from the stromal side (149) or suggested to be associated with photosystem II in the grana stacks (88). The suggested lumenal localization would assign an important function to PrxQ since it could be the only or the predominant peroxidase in the thylakoid lumen to protect lumen exposed proteins from peroxide-induced damage. On the other hand the lumenal localization poses the question as to the reductive regeneration of oxidized PrxQ during the catalytic cycle in the lumen. Reducing equivalents need to be transferred from the stroma to the lumen. One candidate system was described in context of Cytf/b6 assembly and involves high chlorophyll fluorescence 164, which accepts electrons from stromal Trx-m and transfers these reducing equivalents to the lumenal PSI-N subunit of photosystem I (113). Recently, an additional component of the thylakoid membrane named CcdA (cytochrome c defective A, a thylakoid protein proposed to transfer electrons) was suggested to mediate the transfer of redox equivalents from stromal Trx to high chlorophyll fluorescence 164 (112). In another proteomics study of luminal proteins, PrxQ was neither identified in A. thaliana nor in spinach (157). In addition, the transit sequence of PrxQ does not bear motifs such as the twin-arginine motif for import via the Tat pathway. Immunocytochemistry gave results supporting a localization on the stromal side of the thylakoids (88, 149). Thus, the exact location of PrxQ at the thylakoid membrane still awaits confirmation.
A. thaliana plants deficient in PrxQ phenotypically develop like wild type. However, prxQ knock down lines reveal a slightly decreased oxidative stress sensitivity, modified stoichiometry of photosynthetic complexes, altered transcript levels for proteins involved in maintaining the redox homeostasis and antioxidant defense (88), and slightly increased oxygen evolving capacity (137). The localization and the knock-out phenotype indicate a function of plant PrxQ in photosynthesis.
VII. 1-Cysteine Peroxiredoxin
Plants and cyanobacteria express members of the typical 1-CysPrx. The genomes of Synechocystis PCC6803 and Synechococcus PCC7942 encode one 1-CysPrx (slr1198 and gene 915, respectively). Synechocystis PCC6803 1-CysPrx has two additional Cys at unusual positions whose function is unknown. The cyanobacterial protein forms dimers in the presence of H2O2, is slowly reduced by E. coli TrxA, lacks peroxidase activity in the presence of glutathione (GSH) and Grx, and also has no phospholipase activity. This is in contrast to the human 1-CysPrx HsPrdx6, which is a bifunctional protein with both peroxidase and phospholipase activity (28, 99). The molecular structure of Mycobacterium tuberculosis AhpE, a 1-CysPrx, was resolved in the reduced and oxidized state. The AhpE protein conformation changes in dependence on the redox state of the catalytic Cys as seen by alterations in tryptophan fluorescence (65). Insertional inactivation of slr1198 inhibits growth of Synechocystis PCC6803 both under control and oxidative stress conditions (64). Its function in cyanobacteria essentially is not understood. The first mRNA-sequence of a higher plant 1-CysPrx was cloned and sequenced from Brome grass (Bromus secalinas) in an attempt to identify genes that are expressed in hydrated dormant embryos (50). However, a biochemical function was not assigned at that time. Transcript abundance of this gene named pBS128 increases upon abscisic acid (ABA) application and simultaneously ABA arrests germination. This coincidence led to the hypothesis that pBS128 fulfils a dormancy-related function. Likewise barley late embryogenesis abundant proteins were cloned by Aalen et al. (1), among which the clone B15C revealed amino acid sequence similarity to pBS128. Stacy et al. (166) could lateron classify both genes pBS128 from Brome grass and B15C from barley as 1-CysPrx. Recombinant expression of At-1-CysPrx decreases sensitivity of E. coli cells to cumene hydroperoxide (55). Green fluorescent protein-fusions with At-1-CysPrx are targeted to the nucleus as well as the cytosol. Expression of Hv1-CysPrx is observed in the late stage of seed development and is mostly confined to the aleurone layer and the embryo of barley grains (166) and A. thaliana seeds (54). It should be noted that At-1-CysPrx promoter-driven β-glucuronidase activity indicates expression in vegetative tissues such as cotyledons, hypocotyls, organ abscission, and stem branching zones and at the top end of the filament at the stage of pollination (53). At-1-CysPrx expression is unaltered in ABA-deficient mutants and lowered in ABA insensitive mutant abi3-1. This dependency again links 1-CysPrx function to ABA signaling. ABA is important in maintaining seeds in the dormant state. Seeds from RNAi-lines with decreased levels of At-1-CysPrx germinate earlier than wild-type seeds under stress imposed by adding 200 mM mannitol. On the contrary, A. thaliana plants overexpressing At1-CysPrx germinate less efficiently than wild type in the presence of osmotic, salt, and oxidative stress. Based on these findings, the authors propose the hypothesis that At1-CysPrx senses stressful conditions and is involved in delaying germination and seedling establishment in an unsuitable or suboptimal environment (55).
Transgenic tobacco overexpressing the rice 1-CysPrx (R1C-Prx) develops fewer lesions upon infiltration of 5 mM H2O2 (91). Typical 1-CysPrx (B-type Prx) do not possess a second Cys that could react with the sulfenic acid derivative of CysP once it has reacted with the peroxide substrate. Manevich et al. (98) and Ralat et al. (143) obtained evidence for the involvement of a π-type glutathione-S-transferase (π-GST) and Grx in the regenerative catalytic cycle of human isoform Hs-Prdx6. The results suggest that 1-CysPrx in the sulfenic acid form heterodimerizes with π-GST. In the presence of GSH, the heterocomplexed 1-CysPrx is glutathionylated catalyzed by π-GST. In the last step, the thiol form of 1-CysPrx is regenerated by reaction with reduced Grx. Monteiro et al. (109) identified a novel additional pathway for reduction of 1-CysPrx, which involves ascorbic acid. Ascorbate at 10 mM concentration protects glutamine synthetase from oxidative inactivation in a mixed function oxidation assay containing 1-CysPrx, Fe, and O2. A comparison of seven 1-CysPrx proteins from different organisms, including At1-CysPrx, revealed 93% peroxidase activity at 500 μM ascorbate compared to the same concentration of dithiothreitol (set to 100%) (109). The KM for ascorbate with H2O2 of human Prdx6 is 760 μM. The glutathione-dependent catalytic efficiency kcat/KM is estimated to be 3×106 l mol−1 s−1 and that for ascorbate-dependent H2O2 reduction 0.9×106 l mol−1 s−1 and thus in the range of the thiol-dependent enzyme catalysis (99). Metabolizing and particularly photosynthesizing plant cells contain ascorbic acid at millimolar concentrations. The ascorbate concentration and reduction state decrease during ageing and under environmental stresses (47). Apparently, ascorbate is a likely candidate to reduce the sulfenic acid form of 1-CysPrx in plants. Through this connection, the hypothesis on the stress-sensing function of seed 1-CysPrx of the Aalen-group (55) might be linked to the ascorbate level and its reduction state in seeds, which both decrease along with seed viability (38, 141).
VIII. Type II Peroxiredoxins, the Most Widely Distributed Atypical 2-CysPrxs in Plants
A. Principal features of type II Prx
The plant PrxII (atypical 2-CysPrx, type II Prx, and D-type Prx) with its two catalytic residues CysP and CysR spaced by 24 amino acids was independently identified by several groups in 1999. Choi et al. (31) isolated a cDNA from Chinese cabbage in a random sequencing project in a search for genes specifically expressed in flower buds. The encoded product CPrxII of 162 amino acids had a similar sequence as yeast PrxII pointing to homologous function (90). Recombinant CPrxII decomposes H2O2 and protects glutamine synthetase from oxidative inactivation about 6-times more efficient than Chinese cabbage 2-CysPrx (31). The higher turnover number of AtPrxII B, C, E, and F as compared to 2-CysPrx was also observed by Horling et al. (61, 62), however, using the artificial electron donor dithiothreitol. Verdoucq et al. (178) complemented the Δ trx yeast strain EMY63 with a plant thioredoxin variant where the resolving Cys was mutated to Ser (At-Trx3-C35S). Like for the in vitro thiol trapping system used in redox proteomics described above, this mutant strain allowed for covalent trapping of Trx targets in vivo. The authors isolated a protein complex consisting of At-Trx3 and the yeast gene product YLR109, which proved to have thiol peroxidase activity. YLR109 and the concomitantly identified and structurally related A. thaliana gene products At1g65970 or At1g60740 revealed intramolecular disulfide bond formation after reacting with the peroxide substrate and were assigned to the new subgroup of atypical 2-CysPrx, the type II Prx. In addition, Verdoucq et al. (178) showed that Trx regenerates oxidized type II Prx. Subsequently, Rouhier et al. (151) isolated a plant type II Prx from a cDNA library synthesized from poplar vascular tissue mRNA. With 162 amino acids and its peculiar arrangement of its catalytic cysteinyl residues spaced by 24 amino acids, this Pt-Prx was analyzed in detail as plant type II Prx distinct from 1-CysPrx, typical 2-CysPrx, and PrxQ (151). Pt-PrxII reduces H2O2, t-BOOH, and cumene hydroperoxide (COOH) and is regenerated by both thioredoxin and glutaredoxin. C51 is the peroxidatic residue indispensible for peroxide reduction, whereas the exchange of C76S reduces peroxidase activity to 25% but does not abolish it (150). From this finding it is concluded that type II Prxs can function as atypical 1-CysPrx. Glutaredoxin GrxC4 regenerates oxidized Pt-PrxII either in a dithiol or monothiol mechanism. Type II Prx are found in various phylogenetically distant groups; for example, among the six human Prx, only Prdx5 belongs to the group of type II Prx with an additional Cys at position 152. Prdx5 is regenerated by thioredoxin (175). Structure analysis of PrxII crystals by x-ray crystallography at 1.6 Å and in solution by nuclear magnetic resonance spectroscopy showed that also in the reduced state the structural and catalytic unit is the dimer. However, in contrast to the dimer interface of typical 2-CysPrx, which is oriented in parallel to the planes of the central β-sheets, the interface of PtPrxII is perpendicular to the planes of the β-sheets (45) (see above: Fig. 1B). It is noteworthy that the crystals were grown in the absence of reductant in this study and, nevertheless, contained the CysP and CysR in their reduced state showing a low inclination to autoxidation (45). The interface is composed of amino acid residues that are largely conserved among type II Prx (D-type Prx) and involves salt bridges and hydrophobic interactions. The monomer–monomer interface of PrxII resembles the dimer–dimer interface of typical 2-CysPrx (A-type Prx) (45). In terms of contact area, the type II Prx interaction site covers about 800Å2, the monomer–monomer interface of typical 2-CysPrx 1050–2100 Å2, whereas the dimer–dimer interface of 2-CysPrx is restricted to 600–650 Å2 (45). As a consequence, the order of stability among the interactions decreases in the order of [monomer–monomer of typical 2-CysPrx]>[monomer–monomer of PrxII]>[dimer–dimer of typical 2-CysPrx].

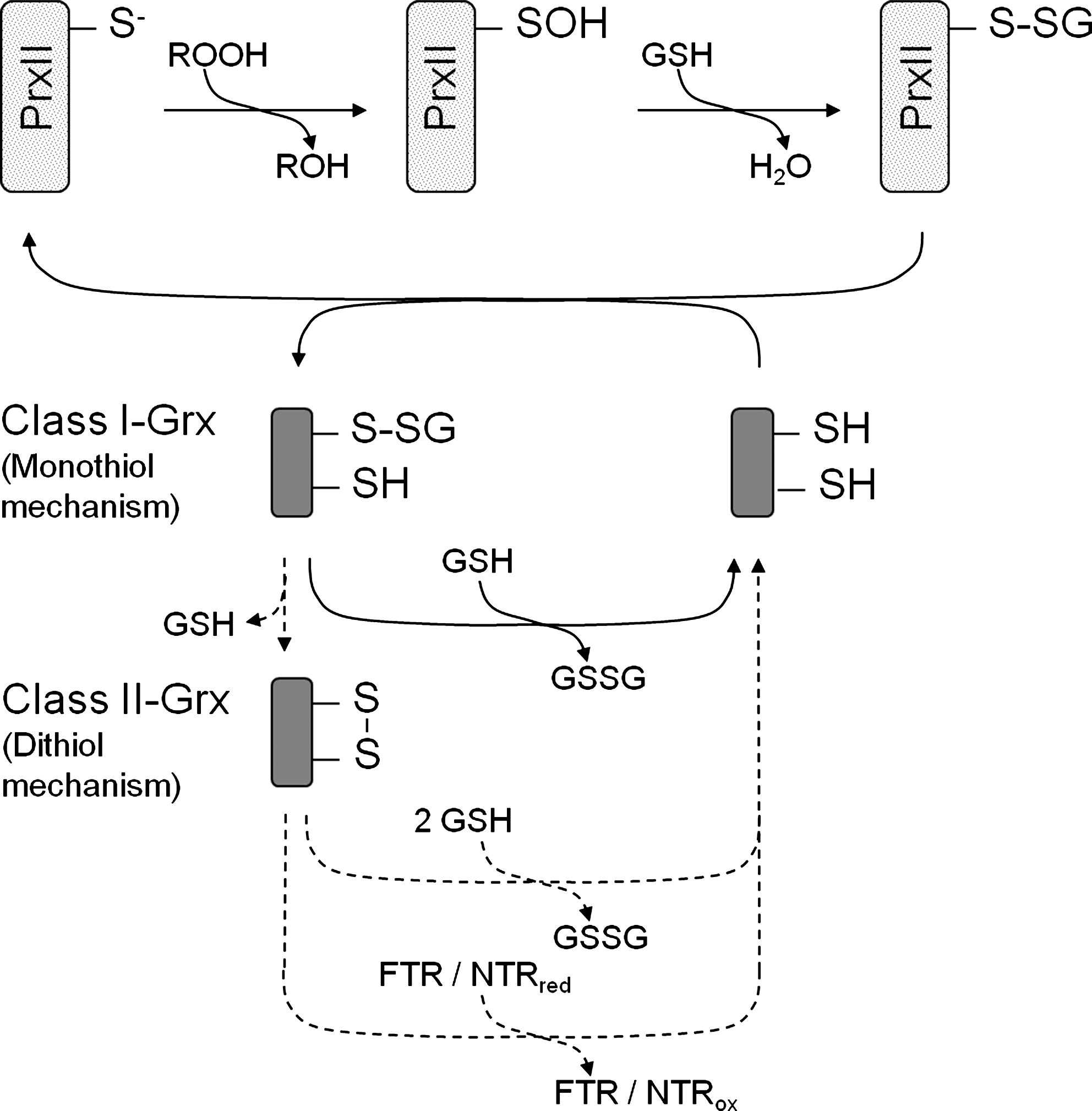

The regeneration mechanism of PrxII involves a glutathionylation step of the catalytic thiol after adopting its sulfenic acid state. Subsequently, a monothiol or dithiol-glutaredoxin, respectively, accepts the glutathione and the PrxII is released in its reduced state (Fig. 10). The mixed disulfide between Grx and glutathione Grx-S-SG is reduced by two pathways (Fig. 10) where a second glutathione attacks the mixed disulfide and an oxidized form of glutathione is produced (monothiol) (154). Alternatively, a second Cys within the Grx (dithiol) acts as resolving thiol, an intramolecular disulfide bridge is formed, and GSH released. The disulfide Grx is converted to the active dithiol state by either two molecules of glutathione or another reductant, for example, ferredoxin-dependent thioredoxin reductase. In addition to kinetic parameters the midpoint redox EM o of the dithiol/disulfide transition provides a thermodynamic characteristics on redox linkages. Less negative midpoint potentials often are taken as indicator for a linkage to the glutathione system, for example, through Grx, and more negative ones may indicate coupling to the thioredoxin system, which in the illuminated chloroplast, is linked to the photosynthetic electron transport via ferredoxin (39). Recent in vivo imaging of the redox environment in plant cell compartments has challenged this simplified view. The redox sensor ro-green fluorescent protein, which senses the glutathione redox state catalyzed via Grx, revealed a highly negative redox state of the glutathione system of around −310 mV in the unperturbed resting state (104). This indicates that the glutathione system can efficiently drive redox reactions under nonstress conditions, including reductive regeneration of Prx. Furtheron, the NADPH-dependent Trx system supports glutathione reduction (102), some proteins accept electrons from both Grx and Trx, which would enable slow redox equilibration between both systems (48, 151). There might exist more bidirectional electron flow among different Trx- and Grx-isoforms such as that observed between HvTrxh1 and HvTrxh2 (97). These observations suggest that the redox states of the distinct Grx and Trx branches in the thiol-disulfide redox network potentially equilibrate by multiple reactions, however, with distinct kinetic constraints.
Prxs interact with RNS in two ways. Lindermayr et al. (93) treated cell culture extracts with nitrosoglutathione (GSNO) or GSH and applied the biotin switch method to identify formerly nitrosylated proteins. In the S-nitrosylated proteome they detected PrxIIB (At1g65980), mitochondrial PrxIIF (At3g06050), and Gpx6 (At4g11600). In parallel, in NO-flushed leaves they identified chloroplast PrxIIE (At3g52960). Likewise, Romero-Puertas et al. (147) monitored the S-nitrosylated proteome of A. thaliana during hypersensitive response and also identified PrxIIE. Peroxynitrite (ONOO−) reduction activity was already reported for recombinant plant 2-CysPrx produced in E. coli (155), confirming previous results with 2-CysPrx from Salmonella typhimurium and Mycobacterium tuberculosis (24). At2-CysPrx complements the ROS and RNS-hypersensitive phenotype of the S. cerevisiae tsa1Δtsa2Δ double mutant. Heterologous expression of cyanobacterial 2-CysPrx and PrxQ-B from Synechococcus elongatus PCC7942 in E. coli enhances cell survival in presence of the ONOO−−donor morpholinosydnonimine (SIN-1) (169). Synechocystis PCC6803 expresses a PrxII type Prx (sll1621). Knock out strains carrying an antibiotic resistance cassette in sll1621 after homologous recombination scarcely grow at moderate light intensities of 50 μmol quanta.m−2 s−1 (64). A role of PrxII in light acclimation of Synechocystis PCC6803 is indicated by the upregulation of sll1621 transcript after transferring the cells to high light, but also after adding H2O2 or methylviologen (170). Interestingly, Synechocystis PrxII efficiently works with glutathione as electron donor with little stimulation after addition of Grx (64).
B. Cytosolic PrxII
The Arabidopsis genome encodes four cytosolic PrxII-type peroxiredoxins. AtPrxIIB, C, and D each are 162 amino acids long and exhibit highly similar amino acid sequences with 93%–99% identity. The polypeptide length is conserved among species (151). The gene model for AtPrxIIA (At1g65990.1) codes for a spliced transcript of 1662 bases, a protein of 552 amino acids with a predicted molecular mass of 62.65 kDa. This protein has a high similarity to PrxIIB/C/D over the first 88 amino acids. The C-terminal part resembles F-box proteins. A similar coding region is present in Arabidopsis lyrata with 71.2% identity, 78.9% similarity, and 6.6% gaps using EMBOSS Pairwise Alignment Algorithms. Clear evidence for the expression of PrxIIA is missing. Indirect hints are available from Western blot analysis using an antibody against PrxIIC. This antiserum should recognize PrxIIA due to its high similarity to PrxIIB/C/D in the N-terminus and labeled a band of 68 kDa in pea. Verification of the nature of this band is missing (51).
Peroxidative activity of cytosolic type II Prx was first examined in poplar by Rouhier et al. (151). In this seminal study it is shown that peroxide reduction of cytosolic PtPrxII is maintained by regeneration systems either comprised of cytosolic Chlamydomonas reinhardtii Trxh/A. thaliana thioredoxin reductase/NADPH or Grx/GSH/glutathione reductase. Site-directed mutagenesis identified Cys51 as peroxidatic CysP (150). This study also revealed that mixed disulfide formation generates a heterodimer between PtPrxII and Grx as intermediate of the catalytic cycle. Bréhélin et al. (20) localized AtPrxII B in the cytoplasm by protoplast fractionation as predicted based on the absence of signal and transit peptides. They also showed a tendency of AtPrxII B to dimerize and oligomerize when separated by SDS-PAGE in the absence of β-mercaptoethanol.
C. Plastid PrxIIE
PrxIIE resides in the chloroplast stroma and in contrast to 2-CysPrx (86) and PrxQ (88) is not associated with the thylakoids (20). Recombinant poplar PrxIIE lacking the transit peptide reduces H2O2 and tBOOH and is regenerated by Grx and Trx, most efficiently by chloroplast GrxS12 (48). PrxIIE reacts with peroxynitrate to the S-nitrosylated derivative. In vitro nitrosoglutathione and diethylamine-NONOate (DEA-NONOate) treatments, subsequent trypsination of the treated protein, and MS/MS analysis identified Cys121 as target of S-nitrosylation. Nitrosylated PrxIIE is catalytically inactive, but its activity is readily restored by reducing agents (148). Furtheron, PrxIIE detoxifies ONOO− to produce nitrite and water. The concentration of AtPrxII E protein is about 100-fold lower than that of At2-CysPrx (130). The lower concentration may be compensated by the higher catalytic turnover and easier regeneration compared to 2-CysPrx. Dietz et al. (42) suggested that PrxII E functions as soluble thiol-dependent peroxidase next to s-ascorbate peroxidase (Apx) in the stroma and quenches peroxides released from the thylakoids.
D. Mitochondrial PrxIIF

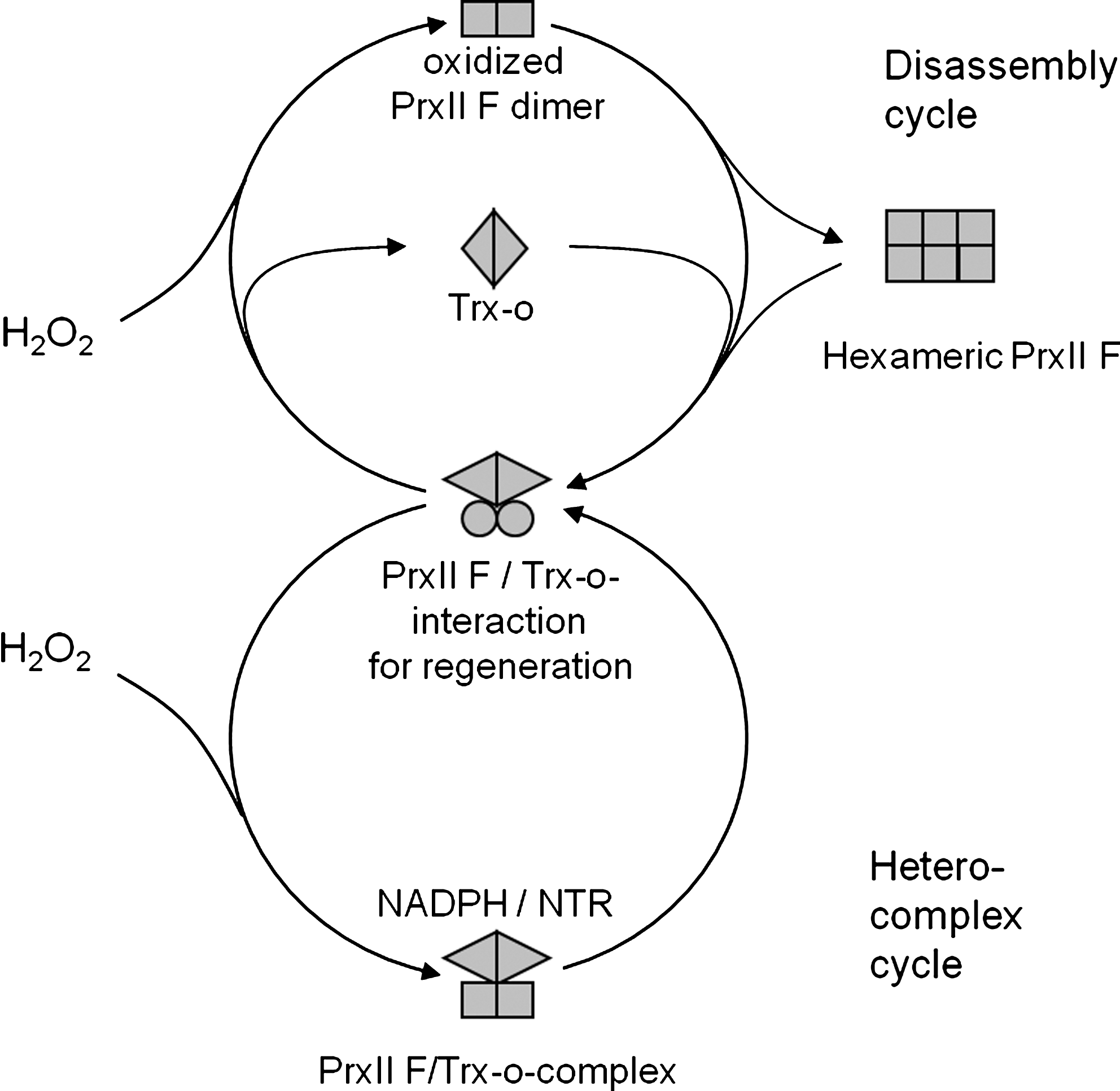

The plant mitochondrion contains the type II Prx named PrxII F, which was first identified in an exhaustive search for Prx genes of the A. thaliana genome (61). Rouhier et al. (153) performed a proteomic screen with the mutagenized and immobilized Pt-Grx variant Cys30Ser. After incubation of the chromatographic material with A. thaliana protein extracts under oxidizing conditions, covalently bound proteins were eluted by adding reductant and analyzed by mass spectrometry. Among the set of 94 bound and identified proteins were 5 Prxs, namely, At-2-Cys-Prx, At-PrxQ, At-PrxII B, At-PrxII E, and At-PrxII F (153). To validate the interaction, the authors characterized the catalytic interaction between PrxII F and Grx. PrxII F decomposes peroxides in the presence of glutaredoxins as reductant (46, 49, 153). Peroxidative turnover numbers are highest with tBOOH (30.5 min−1) and similar for COOH (23.4 min−1) and H2O2 (22.8 min−1), and correspondingly the KM values increase from 16 μM for tBOOH to 71 μM for H2O2 and 326 μM for COOH (49). AtPrxII F also reveals some activity with glutathione (45). PrxII F from Pisum sativum (PsPrxII F) (13) is active as peroxidase in presence of the mitochondrial Trx-o. Both redox partners PsPrxII F and PsTrx-o form mixed complexes in dependence of the redox state. Thereby, an ultratight binding between PsPrxII F and PsTrx-o is established with binding constants similar to antibody-antigen interactions (13). In addition, the PsPrxII F crystallizes as hexamer (15). Thus, there is evidence that mitochondrial PrxII F undergoes dynamic conformational and structural rearrangements and redox-dependent association with interacting proteins. The tentative catalytic and rearrangement cycle of PrxII F is depicted in Figure 11. The cycle may ease the reductive regeneration of PrxII F in the stable PrxII F/Trx-o interaction and, by switching to the disassembly cycle in triggering ROS signaling from the mitochondrion. In line with this hypothesis was the result that addition of heterocomplex to a peroxidase assay gave rise to higher detoxification rates than those determined in samples where the partners were added separately (13). The experimental data for PsPrxII F and the derived putative cycle suggest that atypical 2-CysPrxs are implicated in dynamic interaction networks and signaling. Alternatively, the existence of two cycles might be involved in regenerating eventually hyperoxidized PrxII F. In animals, Noh et al. (125) described targeting of sulfiredoxins to the mitochondrion to regenerate hyperoxidized 2-CysPrx Prdx3. Hyperoxidized AtPrxII F also occurs in plants (66). Plant sulfiredoxin shows dual targeting to both plastids and mitochondria and retroreduced hyperoxidized PrxII F (67a).
E. Cyanobacterial type II Prx
Most of the work on Prx function in cyanobacteria has been performed with the genetic model organism Synechocystis PCC6803 since its genome was completely sequenced as early as in 1996 (76). The Synechocystis PCC6803 genome encodes a single type II Prx of 21.2 kDa (sll1621) whose transcript accumulates more than 26-fold upon exposure to methylviologen in high light compared to control (83). After insertional inactivation of the prxII gene the mutant Synechocystis PCC6803 cells develop a high light-sensitive phenotype and stop growing 10 min after increasing the light intensity to 200 μmol quanta.m−2 s−1 (83). In another study, the PrxII-deficient mutant revealed severe growth inhibition even at 50 μmol quanta.m−2 s−1 (64). In wild-type Synechocystis PCC6803, the PrxII protein is estimated to amount to about 0.6% of cell protein. Recombinant sll1612-protein reduces peroxides in the substrate order of tBOOH>H2O2>> cumene hydroperoxide. Glutathione as reductant maintains the catalytic cycle with slide stimulation in the presence of Grx. Reported turnover numbers are 49.5 mol tBOOH.mol PrxII−1 min−1 in the presence of 0.72 mM GSH, and 55.8 mol tBOOH.mol PrxII−1 min−1 in the presence of GSH plus 0.26 μM Grx, respectively (64). In that work the Trx system was unable to support peroxide reduction, whereas data of a later study reveal that in an order of decreasing efficiency TrxQ>TrxA>TrxB are able to reduce PrxII (132). In fact the system consisting of PrxQ and TrxQ decomposes H2O2 with the highest catalytic efficiency observed in the study. The reported kcat/KM is 8.5×104 l mol−1 s−1 (132). Since typeII Prxs are missing from other cyanobacteria such as Synechococcus elongates PCC7942, the essential function of sll1612-PrxII in, for example, light acclimation of Synechocystis PCC6803 must have been taken over by other Prx or proteins. The most likely candidates are members of the PrxQ-like family, which are often present redundantly (169, 170).
IX. Plant Glutathione Peroxidases
Recently, plant glutathione peroxidase-like proteins (Gpx) were suggested to present a fifth class of Prx (120). Plant Gpx in comparison to their human homologs contain a cysteine instead of seleniumcysteine in their active site and exhibit a reaction mechanism similar to Prxs. Gpx reduce a broad range of hydroperoxides. During the catalytic cycle, they form an intramolecular disulfide bridge and are regenerated by Trxs. The Gpx family is encoded by eight genes in A. thaliana. All Gpx proteins share high amino acid sequence similarity (identities >70%) and are located in different subcellular compartments. When analyzing the relationship between the members of the Prx family and the Gpx proteins the highest similarity of about 14% is observed with PrxQ. All crystallized members of both protein families show a thioredoxin fold (120). However, evolutionarily Prx and Gpx are two distinct protein families. Therefore, a detailed description of the Gpx family is omitted in this context.
X. Posttranslational Regulation of Peroxiredoxin Activities
A. Hyperoxidation and sulfiredoxin

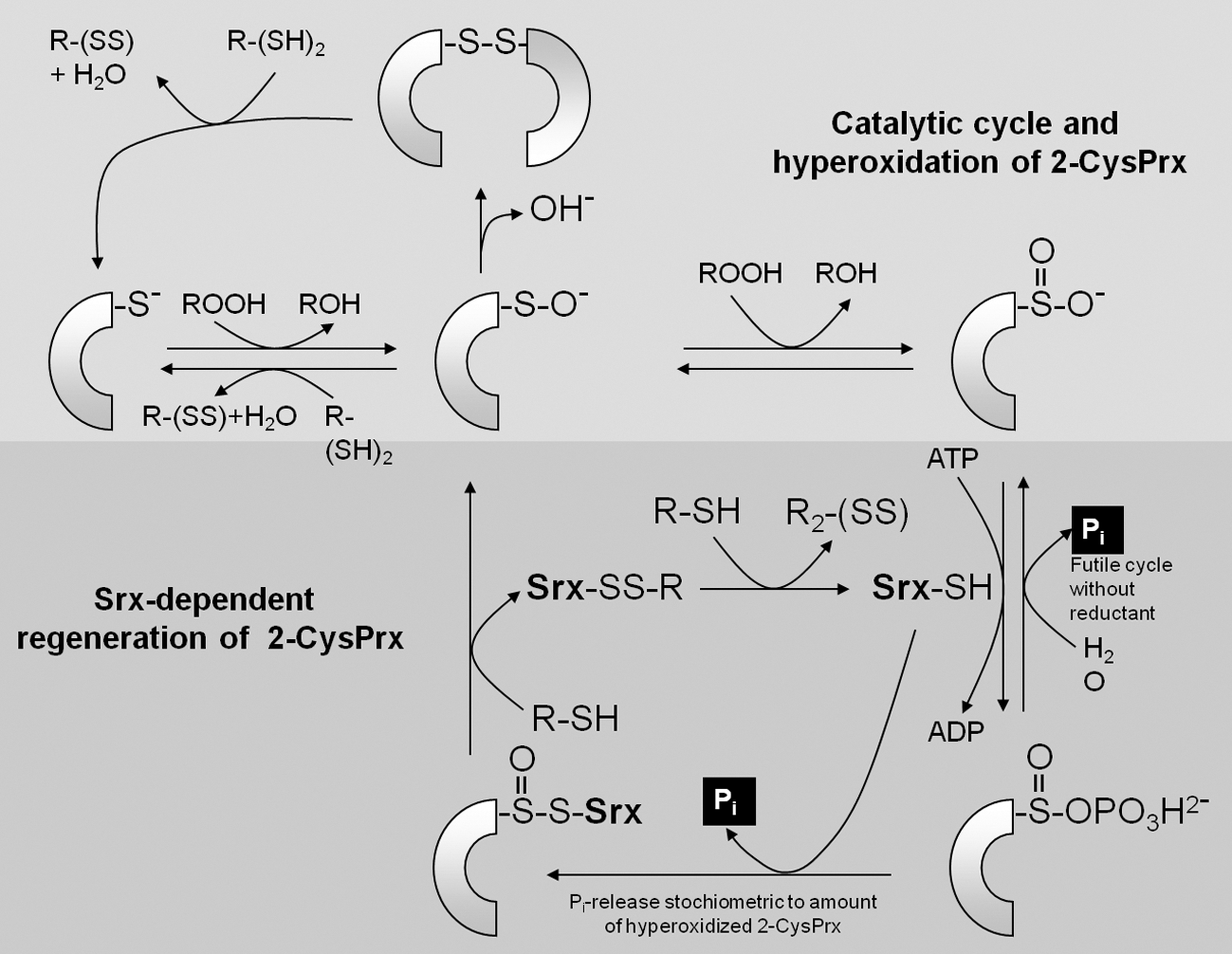

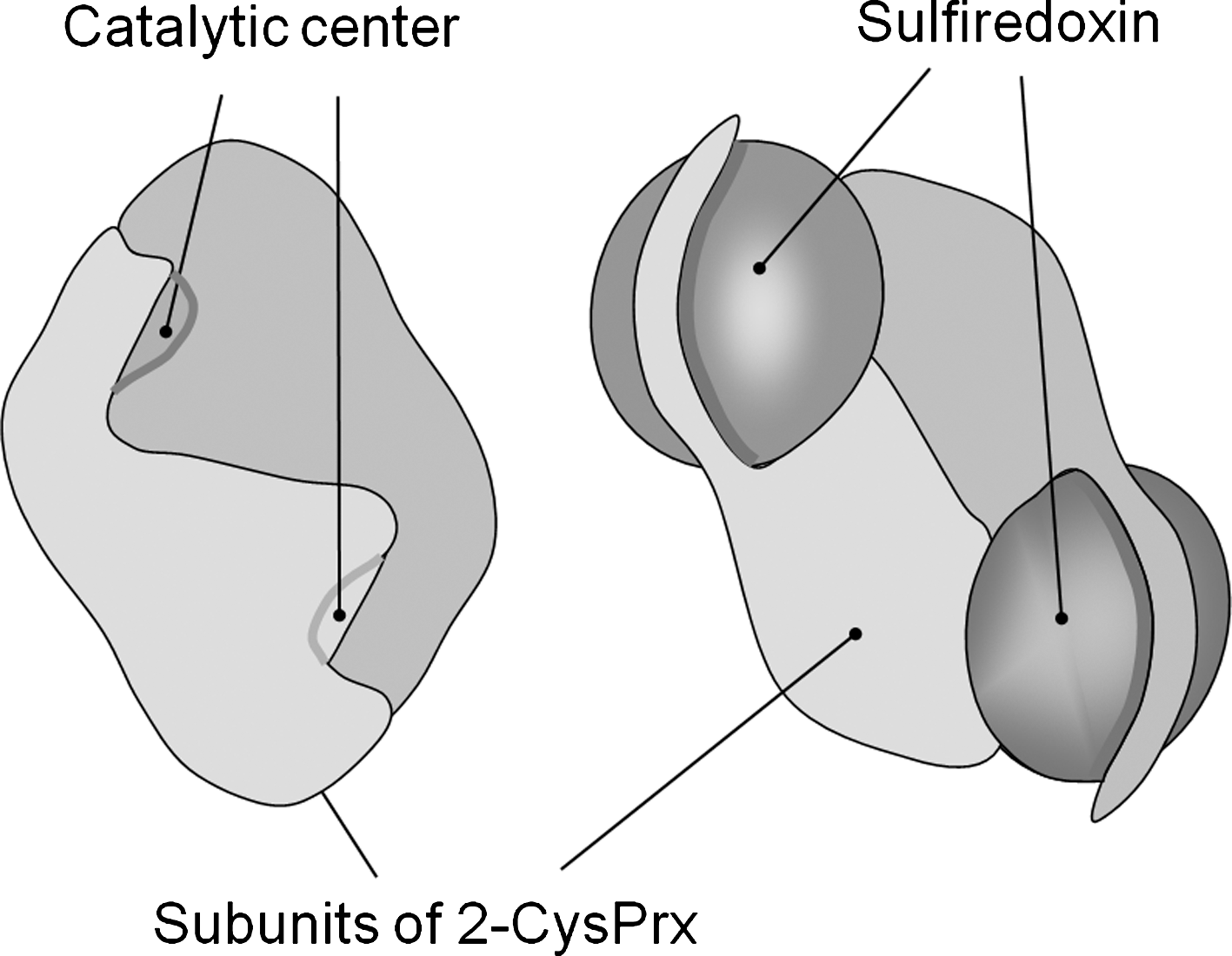

Eukaryotic genomes encode sulfiredoxins (Srx) that reduce hyperoxidized 2-CysPrx in a slow reaction with ATP and reductant as cosubstrates. Thereby, the inactive sulfinic acid form of CysP is converted to the sulfenic acid form and subsequently with reductant to the active thiol form and the 2-CysPrx can act on the next peroxide substrate. The srx gene codes for a protein with an N-terminal plastid targeting sequence and the mature Srx has a molecular mass of 11.5 kDa. A Cys residue in the C-terminal region and an adenylate binding region are implicated in the catalytic mechanism. Iglesias-Baena et al. (66, 67) determined the catalytic efficiency kcat/KM of Srx for its substrate, the hyperoxidized sulfinic acid form of 2-CysPrx, with 1.4×102 l mol−1 s−1. The catalytic cycle with 2-CysPrx involves three steps consisting of (i) Srx-phosphorylation, (ii) intermolecular conjugate formation between Prx-SOH and phosphorylated Srx, (iii) Srx release in presence of reductant yielding a sulfinic–phosphoric mixed anhydride of 2-CysPrx, (iv) release of phosphate with generation of disulfide-S-monoxide, and (v) reduction to active thiol form (74) (Fig. 12). Thus, with glutathione in the assay a Pi amount equivalent to Prx-SOO− content in the assay is released from ATP. In absence of reductant, a futile cycle is established releasing inorganic phosphate from the phosphointermediate at the expense of ATP. Iglesias-Baena et al. (66) determined the activity of the futile cycle by quantifying the liberated Pi. Wild-type Srx releases about 0.2 mol Pi mol−1 Srx min−1. The authors estimate the Srx amount in chloroplast extracts to 2 ng/μg protein, which is in a similar range as PrxQ (88), but threefold less than 2-CysPrx in barley (87) and A. thaliana (130). Considering the small molecular mass of Srx with 11.5 kDa compared to 24 kDa for 2-CysPrx, the Srx concentration appears to be only slightly lower than the 2-CysPrx concentration. Nevertheless, Srx must be considered to be a bottleneck limiting the reconvertion of 2-CysPrx-SOO− to the catalytically active thiol peroxidase. The slow reaction rate allows for accumulation of hyperoxidized 2-CysPrx-SOO− during oxidative stress. Wood et al. (182) compared the propensity to get hyperoxidized of prokaryotic and eukaryotic 2-CysPrx. Two motifs in the primary protein sequence are present in eukaryotes and correlate with the sensitivity to hyperoxidization. The authors developed the floodgate theory to link inactivation of peroxidase activity to the initiation of local cell signaling. Under normal conditions Prxs efficiently detoxify peroxides. If the cellular ROS concentration increases beyond a critical threshold, the turnover rate of reduced 2-CysPrx with peroxide increases as does the likelihood that CysP-SO− collides with another peroxide molecule before the CysR reacts with CysP-SO− to the disulfide form CysP-S-S-CysP. As a consequence hyperoxidized 2-CysPrx accumulates, also because the regeneration system with sulfiredoxins is slow. The Prx-dependent peroxide detoxification collapses and signaling linked to ROS may propagate in the cell. Data from cocrystallization of human Prdx1 and Srx with 0.26 nm resolution reveal the structural basis of interaction needed for Srx-dependent retroreduction of hyperoxidized 2-CysPrx (73). Major conformational rearrangements bring the hyperoxidized catalytic center of Prx in close contact with the Srx center; the Srx molecule is sandwiched between the active site surface of one PrdxI subunit and the C-terminal tail from the adjacent PrxI subunit (73) (Fig. 13). Further in silico structure modeling suggests that the Prx/Srx interaction is still possible in oligomers; however, high-molecular-mass assemblies others than toroids are destabilized in the presence of Srx. Thus, the authors suggest cellular functions of Srx as regulatory interactor in addition to its enzymatic function in Prx retroreduction (73).
B. Nitrosylation
Nitric oxide functions as signaling molecule in animals. Tentative evidence indicates a signaling and regulatory role of NO also in plants (111). GSNO formed by reaction of nitrous acid with glutathione or enzymatically is considered as storage pool of NO. GSNO also reacts with other thiols to form nitrosothiols. S-nitrosylation can modify protein function and activity as shown, for example, for methionine adenosyltransferases or glyceraldehyde-3-phosphate dehydrogenase under salt stress (94, 180). S-nitrosylation is a controlled and rapidly reversible posttranslational modification that mediates flexible and specific responses to environmental changes (101). Lindermayr et al. (93) searched for in vitro S-nitrosylated proteins in A. thaliana cell culture extracts by treatment with GSNO and subsequent labelling with biotin using the biotin switch method. By mass spectrometry, they identified the glutathione peroxidase (Gpx, At4g11600), PrxII F (At3g06050), and PrxII B (At1g65980) among other targets as being nitrosylated under these conditions. Ex vivo proteomics with A. thaliana undergoing hypersensitive response identified S-nitrosylated PrxII E, the chloroplast located type II Prx (147). S-nitrosylation inhibits peroxidase activity of AtPrxII E. PrxII E possesses peroxynitrite reductase activity, which is inhibited by S-nitrosylation (148). Based on these interdependencies between S-nitrosylation and ROS and RNS detoxification activity, it is tempting to assume that PrxII E plays a role as switch or at least modulator in ROS- and RNS-dependent cell signaling.
C. Other posttranslational Prx modifications
Some nonplant Prxs are subjected to posttranslational modifications apart from redox modification and S-nitrosylation of the cysteine residues. Chang et al. (27) described human Prdx1 phosphorylation by cyclin dependent kinase 2 (cdc2) in vitro and coappearance of phosphorylated Prdx1 protein in HeLa cells expressing Cdc2 (cyclin-dependent cell cycle kinase) during the cell cycle. In vitro peroxidase activity of phosphorylated Prdx1 drops to 20% of the nonphosphorylated form. Woo et al. (181) observed phosphorylation at Tyr 194 of membrane-associated human Prdx1, a typical 2-CysPrx, in response to growth factor application and during the wound healing response. Tyr194 phosphorylation inhibits peroxidase activity of Prdx1. Like hyperoxidation, this phosphorylation reaction is discussed as a mechanism to allow for local H2O2-dependent signaling in the cells. Likewise phosphorylation of human Prdx6, a 1-CysPrx, at Thr 177 increases the acidic and calcium-independent phospholipase 2 activity of this unique Prx (184). These three examples show the significance of phosphorylation in controlling Prx activity, for example, in humans. Large-scale phosphoprotein profiling in rice cell line in comparison with Medicago truncatula and A. thaliana (119) or analysis of the A. thaliana seedling phosphoproteins (145) did not identify Prxs as part of the plant phosphoproteome. Thus, at present evidence for phosphorylation-dependent regulation of plant Prxs at conventional sites (Ser, Thr, and Tyr) is missing. In plants, one report describes MgATP-dependent autophosphorylation of the resolving CysR175 yielding [Prx-(Cys175)-SO2PO3 2−] or [Prx-(Cys175)-SO3PO3 2−]. The authors interpreted this modification as a mechanism to link the energy state of the chloroplast to the activity state of chloroplast 2-CysPrx (3). In contrast to the phosphorylation reactions described above involved in regenerating hyperoxidized 2-CysPrx by Srx and regulatory phosphorylation, this reaction did not require a catalyst like protein kinases or sulfiredoxin. The significance of the Cys175 phosphorylation awaits clarification. In the same study, supplementation with MgATP inhibited the peroxidase activity of rapeseed 2-CysPrx concomitant with aggregation to a high-molecular-mass form >2.5×106 Da. The inhibition of peroxidase activity was restored after adding the Mg-chelator ethylenediamine tetraacetic acid.
Another posttranslational modification not investigated for plant Prxs is N-terminal acetylation. Thus, it was shown for human Prdx2 that its N-terminal acetylation enhances peroxidase activity and protects CysP against irreversible hyperoxidation (160). Glutathionylation of 2-CysPrx (At3g11630) was detected in a study aiming at defining the plant thiolation proteome of oxidatively stressed A. thaliana cells (44). Recovery of 2-CysPrx in this study could either be explained by glutathionylation of one of the two Cys contained in 2-CysPrx or by complexation of 2-CysPrx with another thiolated protein. The regulation of glutathionylation and dethionylation of Prx and the functional significance of this reversible posttranslational modification in plant metabolism still need to be explored.
XI. Role of Peroxiredoxins in Plant Metabolism

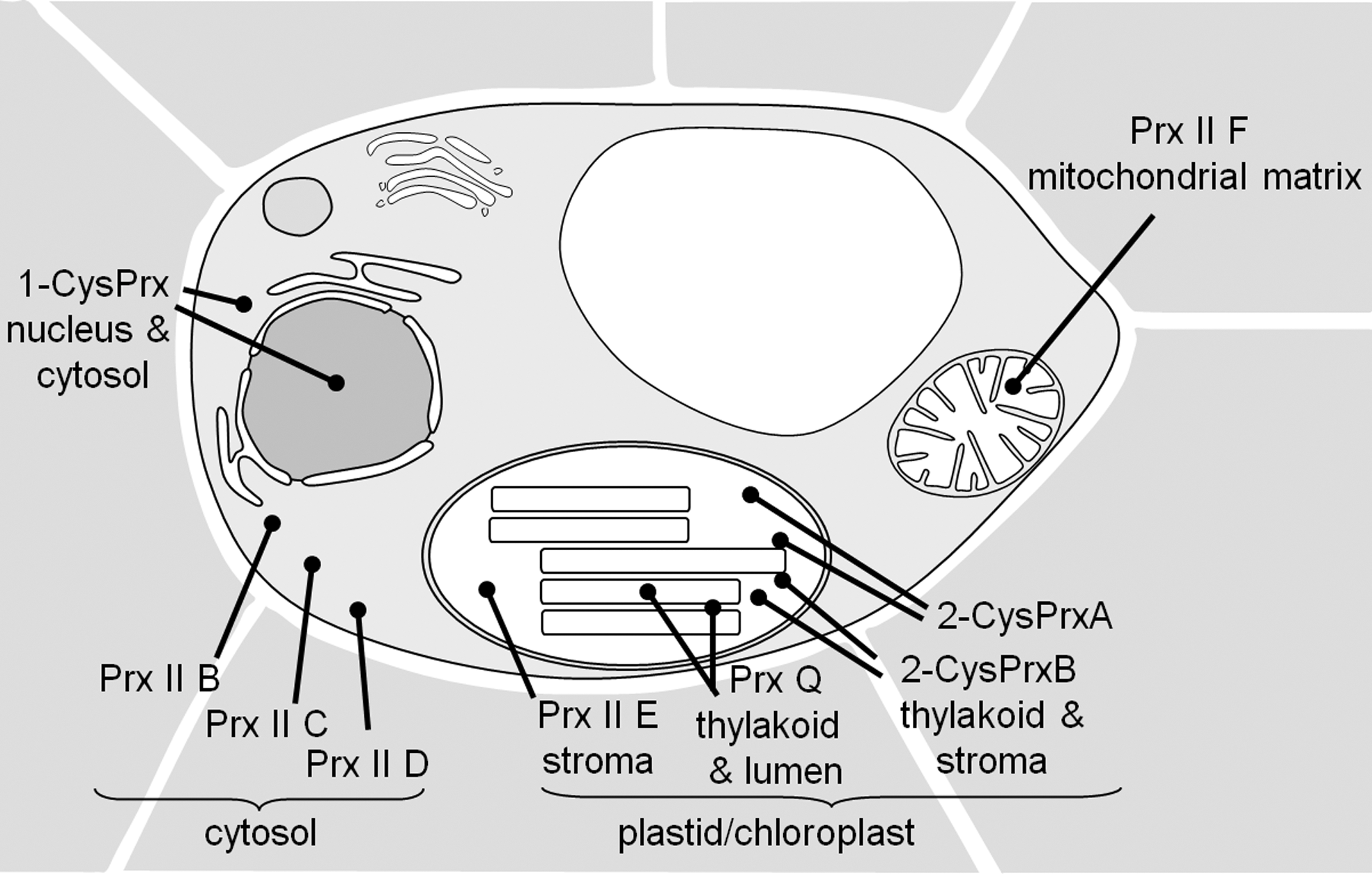

The multiple sites of subcellular Prx localization point to site-specific functions in plant cells (Fig. 14). The local distribution might be explained by three scenarios. The presence at multiple sites is needed to meet the requirements for local peroxide detoxification in general antioxidant defense. To achieve this function, Prx isoforms should be present in all metabolically active and relevant compartments. However, in addition to the (at least) nine expressed Prxs, A. thaliana encodes a set of other peroxidases consisting of nine ascorbate peroxidases and seven Gpx, and also three peroxisomal catalases (108). Thus, the question is: What makes Prx-dependent peroxide detoxification unique and irreplacible by other antioxidant systems during evolution? (i) Prxs use a thiol-based catalytic mechanism, employ oxidoreductases as cosubstrates, often cover a broad peroxide spectrum as substrates, efficiently function at low peroxide concentrations and thus may play a role in general antioxidant defense. The Prx type that fits best to this scenario of general antioxidative activity are the type II Prx, which are present in cytosol, plastid, and mitochondrion. (ii) Alternatively, Prx may function in specific metabolic context of the respective compartment, for example, in photosynthesis or respiration. This scenario will be discussed in the following section. (iii) The third scenario assigns a function to Prx as redox sensor, redox element in signaling networks, and as protein-protein interactors. This scenario requires the presence of specific Prx in specific subcompartments. This function will be addressed in the subsequent section dealing with Prx in cell signaling.
A. Plastids and photosynthesis
Three different types of Prx reside in the plastids (42). Recently, Pitsch et al. (138) conducted a detailed genome analysis for chloroplast antioxidant enzymes in the lycophyte Selaginella moellendorffii, the liver moss Physcomitrella patens and the unicellular alga Chlamydomonas reinhardtii. The spike moss S. moellendorffii diverged from the fern and seed plant lineage about 400 million years ago (11). The genome-wide search identified four 2-CysPrx, four PrxQ, and two PrxII targeted to the S. moellendorffii chloroplast, two 2-CysPrx, three PrxQ, and two PrxII in P. patens chloroplasts, and three 2-CysPrx, one PrxQ, and one PrxII in C. reinhardtii chloroplasts. The authors conclude on partially independent evolution of these chloroplast-targeted Prxs (138). Despite some variation, the general conclusion remains valid that chloroplast as usual Prx equipment contain at least one 2-CysPrx, one PrxQ, and one PrxII E (42).
Prx accumulate to high concentrations. At-2-CysPrxA has a value of 0.62% for relative protein abundance estimated from its spot volume in 2D separations and of 0.30 relative concentration as calculated by dividing the relative protein abundance by molecular mass. The values for At-2-CysPrx B are 0.61% for relative abundance and 0.28% for relative concentration. Thus, 2-CysPrxs are among the top 20 most abundant stromal proteins of A. thaliana with concentrations similar to phosphoglycerate kinase-1 (130). PrxIIE (0.24×10−2 relative concentration) is only present at 0.8% normalized concentration relative to 2-CysPrxA set 100% (130). In the context of the thiol-disulfide redox regulatory network, it should be noted that Trx-m1, -x, and -f1 are significantly lesser concentrated than the Prxs (0.10×10−2, 0.04×10−2, and 0.01×10−2 relative concentration, respectively), whereas peptidyl-prolyl-cis/trans-isomerase Cyp20-3 (27×10−2 relative concentration) is present at concentrations similar to each 2-CysPrx (130). The 2-CysPrx concentrations obtained in this proteomics study are similar to those estimated from dilutions series of chloroplast extracts and comparison of signal intensities with reference protein by Western blot analysis. By this approach König et al. (86) estimated the stromal 2-CysPrx concentration to 60 μM. One of the functions established for 2-CysPrx in vitro is the protection of protochlorophyllide synthesis, which takes place through the stimulation of an aerobic cyclase by the NTRC/2-CysPrx system (168). Only very small amounts of protochlorophyllide are formed in an in vitro test system in the absence of H2O2-scavenging systems. Addition of NTRC combined with 2-CysPrx enables chlorophyll precursor biosynthesis at rates similar to those after addition of catalase, which is absent from the chloroplasts (168). The stimulatory effect of the NTRC/2-CysPrx system suggests that H2O2 scavenging is important and through coupling to the NADPH-dependent NTRC system independent of light-driven generation of reducing equivalents (165). This coupling to NADPH/NTRC may be particularly important in darkened leaves or in seedlings and young leaves before photosynthesis is established, allowing the system to synthesize precursors for chlorophyll biosynthesis and assembly of the photosynthetic apparatus. In line with this hypothesis 2-CysPrx accumulation precedes expression of other antioxidants during early A. thaliana seedling development (131). Further, 2-CysPrx deficiency inhibits photosynthesis and chlorophyll accumulation during plant development (8). Disturbance in chlorophyll biosynthesis in Mg protoporphyrin monomethylester cyclase-deficient tobacco causes upregulation of 2-CysPrx protein amount (136). The early requirement for 2-CysPrx during seedling and leaf development and the effect of 2-CysPrx deficiency on photosynthesis might be interlinked through the protection of chlorophyll biosynthesis.

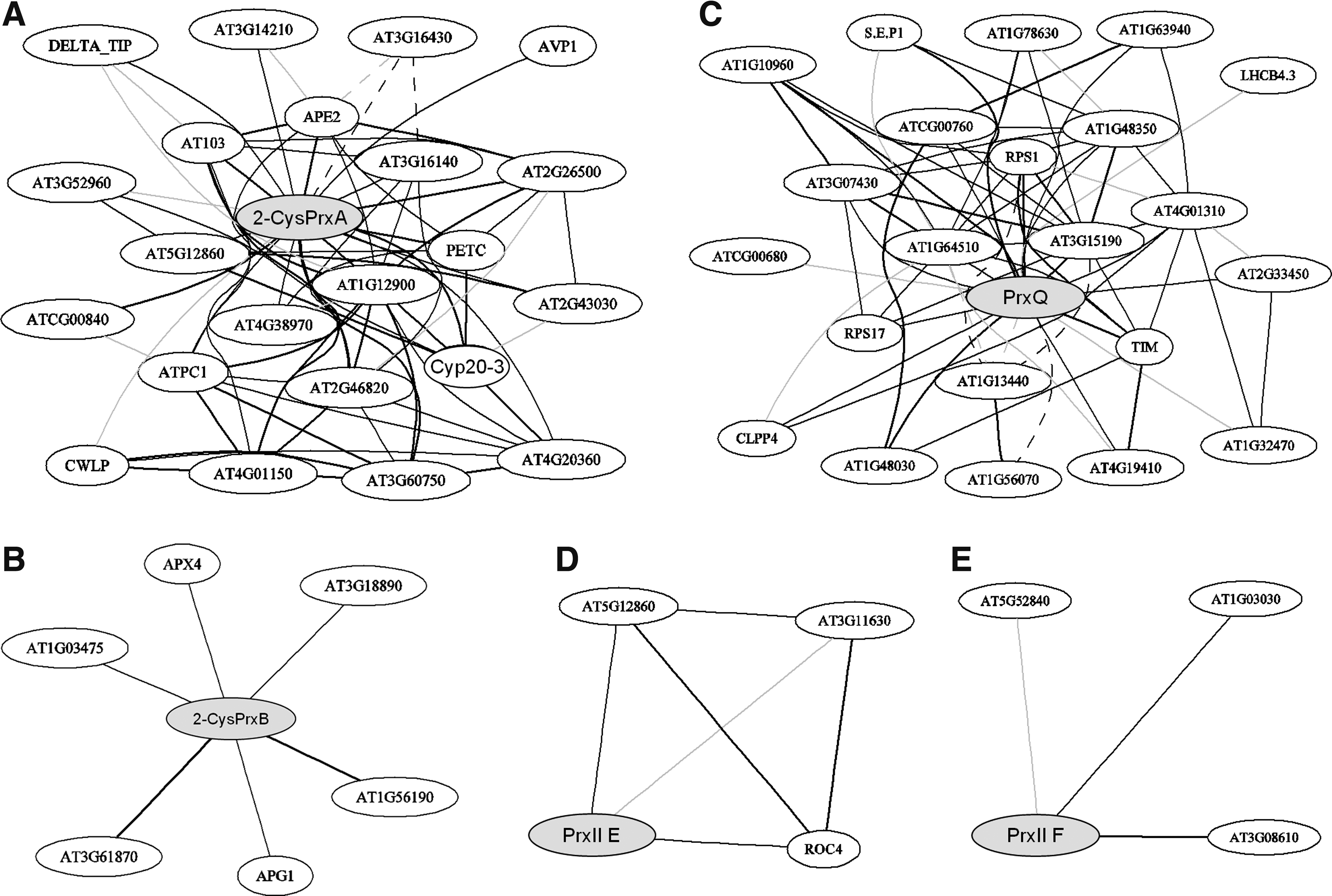

2-CysPrx appears to have a high propensity to interact with other proteins. The exergonic cleavage of fructose-1,6-bisphosphate to fructose-6-phosphate and inorganic phosphate by chloroplast fructose-1,6-bisphosphatase (FBPase) is a highly regulated key step in the Calvin cycle. Due to the basically irreversible nature of the reaction, the FBPase is under tight feedback and feedforward control by metabolites and also by the thioredoxin system (30). The oxidized disulfide form is insensitive toward substrate activation (144). Reduction of the disulfide bridge to the thiol form by thioredoxin f thus activates, reoxidation, for example, in darkness, inactivates FBPase, thereby controlling carbon fluxes in the Calvin cycle. Caporaletti et al. (25) observed that the oxidized form of 2-CysPrx activates the rapeseed FBPase independent of Trx-dependent reduction. The authors hypothesize that the regulatory interaction between 2-CysPrx as redox sensor and FBPase as one of the committed steps in the Calvin cycle allows for adjustment of Calvin cycle activity under conditions of oxidative stress.
Potato plants lacking the thioredoxin CDSP32, which is an electron donor to 2-CysPrx, are more sensitive to high light than wild type as revealed by inhibition of relative quantum yield of photosystem II (21). By quantifying lipid peroxidation products in leaf extracts or monitoring the chlorophyll thermoluminescence as marker of lipid peroxidation, CDSP32-deficient mutants accumulate lipid peroxides. The authors suggest that this is due to insufficient 2-CysPrx regeneration and hyperoxidation of 2-CysPrx (24). As a consequence, lipid peroxides would not be detoxified by the 2-CysPrx system and accumulate to toxic levels causing the inhibition of photosystem II.
2-CysPrx associates with the thylakoid membrane (86). Fractionation of thylakoids into photosynthetic complexes and coimmunoprecipitation revealed the association of 2-CysPrx protein with photosystem II (118). Quantum yield of photosystem II (ΦPSII) as determined by chlorophyll a fluorescence analysis is lower in young 2-CysPrx-deficient plants than in wild type (8). The difference in ΦPSII is enhanced in the presence of lincomycin, which inhibits organellar protein synthesis, suggesting that the 2-CysPrx-deficient mutants depend on organellar protein synthesis more than wild type. The data indicate that either 2-CysPrx protects photosystem II by localized peroxide detoxification or that the interaction affects properties of photosystem such as stability or turnover.
PrxQ represents about 0.3% of chloroplast protein (88). PrxQ is associated with the thylakoid membrane, most likely with the lumen (137) or intermembrane stacks (88). prxQ-knock out A. thaliana plants lack any conspicuous change in phenotype (88, 137). PSII content as determined from redox-dependent differential absorption spectroscopy relative to wild type is reduced by about 17–22% and the cytochrome-b6f content by about 6%–15% (88). The rate of oxygen evolution per chlorophyll is increased by about 15% in thylakoids from prxQ-knock out-plants compared to wild type (137). Without giving a clear and conclusive picture, the data indicate that PrxQ functions in immediate context of photosynthesis.
The physiological function of PrxII E as third plastid targeted Prx has not been studied in greater detail in context of photosynthesis, except for its role in peroxinitrite detoxification, S-nitrosylation, and pathogen-dependent signaling (148). Comparison of 4-week-old A. thaliana with modified PrxII E contents, which either were reduced to about 20% in a T-DNA insertion line or increased to 150% in overexpressing lines, and wild-type plants shows no significant differences in appearance, growth rate, chlorophyll content, and fresh weight (148).
B. Mitochondria and respiration
Plant mitochondria generate ROS during respiratory electron transport at complexes I and III, and from reduced ubiquinone (120). The uncoupling protein (UCP) and the alternative oxidase assist in minimizing O2 •− generation under conditions of overreduction. Apx, Gpx, and PrxII F detoxify H2O2 released from superoxide dismutation by MnSOD. Sweetlove et al. (172) applied oxidative stress to cultured A. thaliana cells by adding menadione a well known superoxide generator or H2O2 to the suspension medium, isolated mitochondria, and explored the changes in mitochondrial proteome. PrxII F was among the top 25 proteins whose abundance increased more than threefold (172). PrxIIF is targeted to the soluble matrix of the mitochondrion (13, 46, 49). Prx IIF is constitutively expressed in all tissues and catalyzes detoxification of various peroxides. Poplar PrxIIF in conjunction with poplar GrxC4 and in the presence of a glutathione regeneration system realizes peroxide turnover numbers of peroxide reduction ranging between 20 and 30 mol.(mol PrxII F min)−1 (49). Similar turnover numbers are reported for AtPrxII F/AtGrx-CxxS10 in the presence of saturating GSH concentrations or with AtTrx-o and AtNTRA (46). The Kcat/KM value of poplar PrxIIF with H2O2 is 5.35×103 l mol−1 s−1 and 3.19×104 with tBOOH. Thus, the mitochondrial PrxII F is regenerated by both the thioredoxin and the glutaredoxin system, and with lower activity by glutathione. A tight binding between PrxIIF and Trx-o occurs in the pea system with either recombinant proteins and in extracts from isolated mitochondria (13). The interaction was verified by three different methods, namely, ITC, size exclusion chromatography, and coimmunoprecipitation. Furtheron, PrxII F was crystallized and the published space coordinates show a hexameric arrangement as crystal unit in line with the chromatographic results (15). As discussed above, the assembled heterocomplex of Trx-o/PrxII F catalyzes peroxide detoxification more efficiently than the dimer and hexamer. Apparently, the pea mitochondrial Trx-o/PrxII F system undergoes surprising conformational dynamics with significance for PrxII F function.
The phenotype of PrxIIF knock out lines is inconspicuous under normal growth conditions but revealed inhibited root growth under stress conditions evoked by Cd or salicylhydroxamic acid administration (46). Elevated ascorbate peroxidase and glutathione peroxidase activities in the knock out lines indicate sufficient compensation of lacking PrxII F under unstressed conditions. A redox signaling function of PrxII F was proposed based on modified nuclear and mitochondrial gene expression in the knock out lines (46). Thus, under control conditions, PrxII F-knock out plants have elevated transcript levels encoding, for example, catalase, ferredoxin, PrxII B, and cyclophilin isoforms (46).
XII. Peroxiredoxins as Chaperone and in Plant Redox Signaling
A. Prx as chaperone
2-CysPrx in the high-molecular-mass conformation adopts the function as a molecular chaperone, which protects other proteins from denaturation. This was first observed by Jang et al. (70), who described chaperone function for the yeast 2-CysPrxs cPrxI and II. Oxidative and heat stresses convert the low-molecular-mass form to high-molecular-mass complexes in yeast. The conformational switch coincides with the transition from peroxidase to chaperone activity (70). The tests for chaperone activity employ heat-dependent aggregation of vertebrate citrate synthase and dithiothreitol-dependent aggregation of insulin, respectively. The aggregation of citrate synthase and insulin is suppressed in presence of hyperoxidized high-molecular-mass 2-CysPrx. These tests indicate binding of the particular 2-CysPrxs to exposed hydrophobic surfaces of denatured proteins. The same chaperone-like activity is also associated with plant 2-CysPrx as shown for rapeseed, Chinese cabbage, and A. thaliana using the same test assays (3, 79, 118). Kim et al. (79) analyzed recombinant Chinese cabbage 2-CysPrx and observed a switch between low- and high-molecular-weight form under oxidative stress. 2-CysPrx in the low-molecular-weight form expresses peroxidase activity, whereas high-molecular-weight forms show chaperone function. The authors suggest that the precise regulation of 2-CysPrx conformation and hence function might be involved in protecting plant chloroplasts from photo-oxidative stress. The validity of the hypothesis and the physiological significance of the chaperone function remain elusive so far.
B. Prx in ROS-dependent signaling
ROS play important roles as metabolic messengers in intracellular communication. Generation and modulation of subcellular ROS levels, ROS perception by sensors, and ROS reactions with diverse target molecules orchestrate gene expression and control gene product function (47). Thus, ROS act as crucial and ubiquitous cues in triggering cellular signaling networks and affect plant development and acclimation. Prxs are involved in ROS- and redox-dependent signaling by (i) modulating H2O2 concentrations, (ii) processing alkylhydroperoxides, (iii), draining electrons from redox transmitters within the thiol-disulfide redox regulatory network (Fig. 7), (iv) performing redox interactions with other proteins, (v) undergoing redox-dependent conformational changes with concomitant alterations in binding to other partners, and (vi) decomposing peroxinitrite (40). The latter mechanism will be discussed in a separate section on RNS-dependent signaling. Significant roles of Prxs in ROS signaling of nonplant species have been proven, for example, in yeast, where the H2O2-dependent activation of the transcription factor Pap1 is linked to a redox signal delivered via the Prx named Tpx1 to Pap1 (179) or Tpx1 regulates the peroxide-induced Sty1 activation as part of the stress-activated protein kinase pathway (177). The universal minicircle sequence-binding protein (UMSBP) recognizes the replication origin of the kinetoplast DNA, which is the mitochondrial DNA of trypanosomatids. UMSBP activity is under redox control where tryparedoxin peroxidase, a 2-CysPrx, directly oxidizes UMSBP protein, whereas tryparedoxin reduces it. The authors suggest a redox switch mechanism regulating DNA replication and segregation (162). Some evidence suggests that Prxs might associate with DNA under certain conditions (164).
Prxs decompose H2O2 in parallel to the other cellular systems. As discussed above, diverse data suggest that their catalytic efficiency is in the range of ascorbate peroxidase. There exist no reliable tests to determine total Prx activity in extracts or cell fractions due to the diversity and specificity of regeneration. Thus, neither E.coli TrxA, nor specific Grx-isoforms, nor the artificial electron donor dithiothreitol reduce all Prx with equal efficiency. Being aware of these shortcomings, the chloroplast Trx-dependent Prx activity was compared to Apx activity in lysed chloroplasts using TrxA as donor and the NADPH oxidation monitored (42). The result indicates a similar capacity of the Trx-dependent and the ascorbate-dependent H2O2 reduction in A. thaliana chloroplasts. Thus, under regular conditions, Prxs appear to effectively contribute to quenching of H2O2. This conclusion is supported by the finding that A. thaliana lines deficient of both 2-CysPrx isoforms accumulate more H2O2 (142). At elevated ROS levels, the hyperoxidation of 2-CysPrx arrests the peroxidase activity. The floodgate theory of Wood et al. (182) proposes that the hyperoxidation-linked inactivation of 2-CysPrx enables local accumulation of peroxides to trigger cellular signaling and appropriate (genetic) responses. Hyperoxidized 2-CysPrx is detectable in leaves using antibodies against sulfinic acid Prx and has been reported in several studies (24, 66, 67, 133, 146).
Some Prxs act on certain lipid peroxides (86). Lipid peroxide-derived oxylipins, including jasmonates, modulate nuclear gene expression (117). Prx activity with alkylhydroperoxides may interfere with lipid signaling by changing substrate concentrations for other reactions; likewise, changes in Prx activity may modify the effect that Prxs have on lipid signaling. Transgenic plants with low or lacking Prx activity have been studied in relation to the state of the antioxidant systems and protein carbonylation (9, 46, 88, 142) but not in relation to lipid peroxide accumulation and lipid signaling.

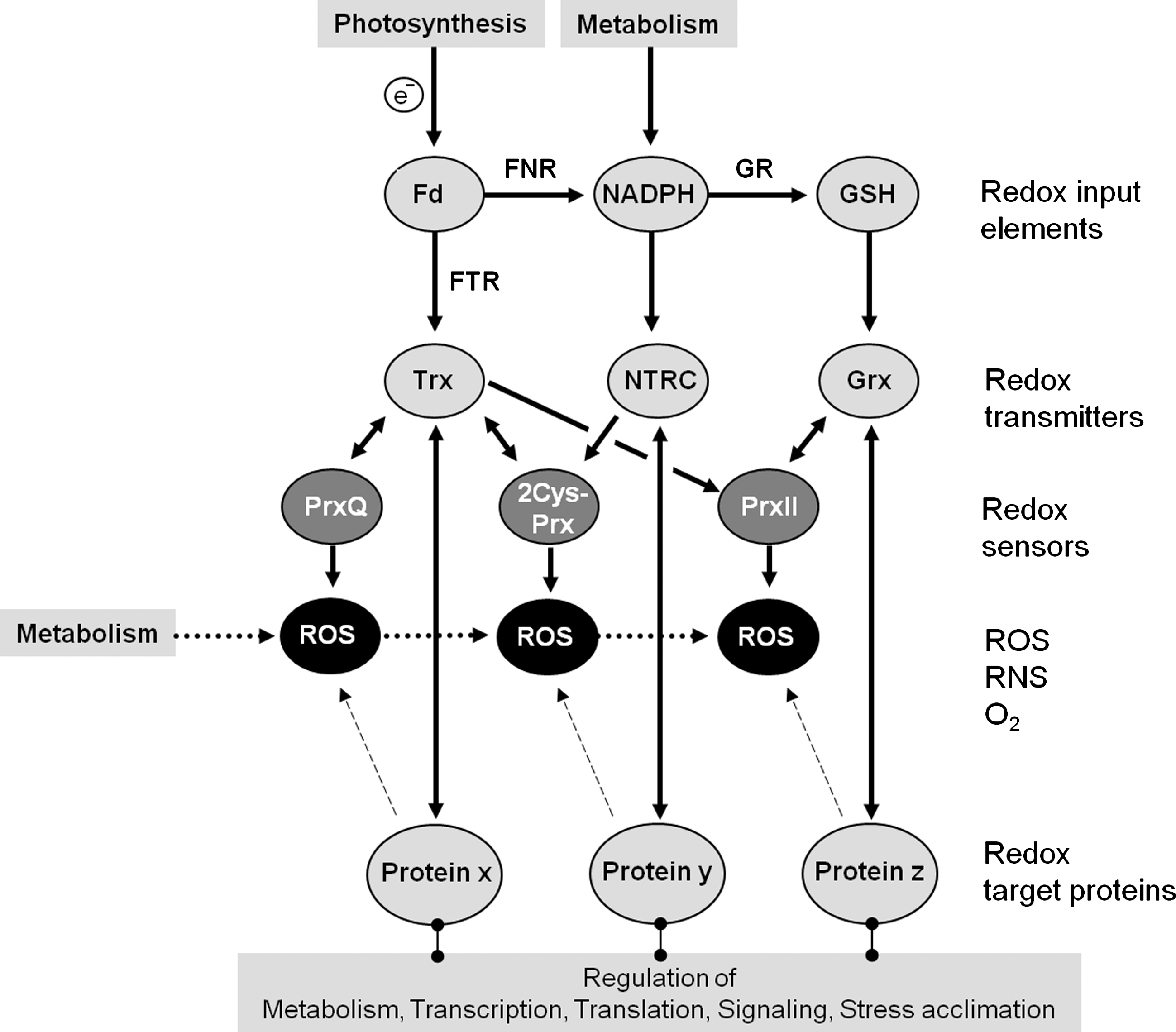

The thiol-disulfide redox network has been introduced above (Fig. 7) (39). Oxidized Prxs receive their electrons from specific redox transmitters. This is in contrast to H2O2 detoxification by ascorbate peroxidase, which directly oxidizes the low-molecular-mass antioxidant ascorbate during peroxide reduction. The redox transmitters such as NTRC, Trx-x, and CDSP32 also control the redox state of other target proteins. High rate drainage of electrons by the Prx system will effectively compete with other acceptors and cause a shift to a more oxidized state of the other targets. Starch synthesis is the example of another regulatory target of NTRC (106).
Prxs interact with other proteins and protein complexes, for example, At-2-CysPrx with fructose-1,6-bisphosphatase (25), with photosystem II (118) and chlorophyll biosynthetic complex (168), and PsPrxII F with PsTrx-o (13). The search for additional interactions has not been exhaustive and yeast-2-hybrid screens indicate that 2-CysPrx and PrxQ as bait attracts several prey proteins (Roloff, Klein and Dietz unpublished). In addition with 2-CysPrx (At3g11630) as input into the protein–protein interaction database BAR (
C. Prx in RNS-dependent signaling

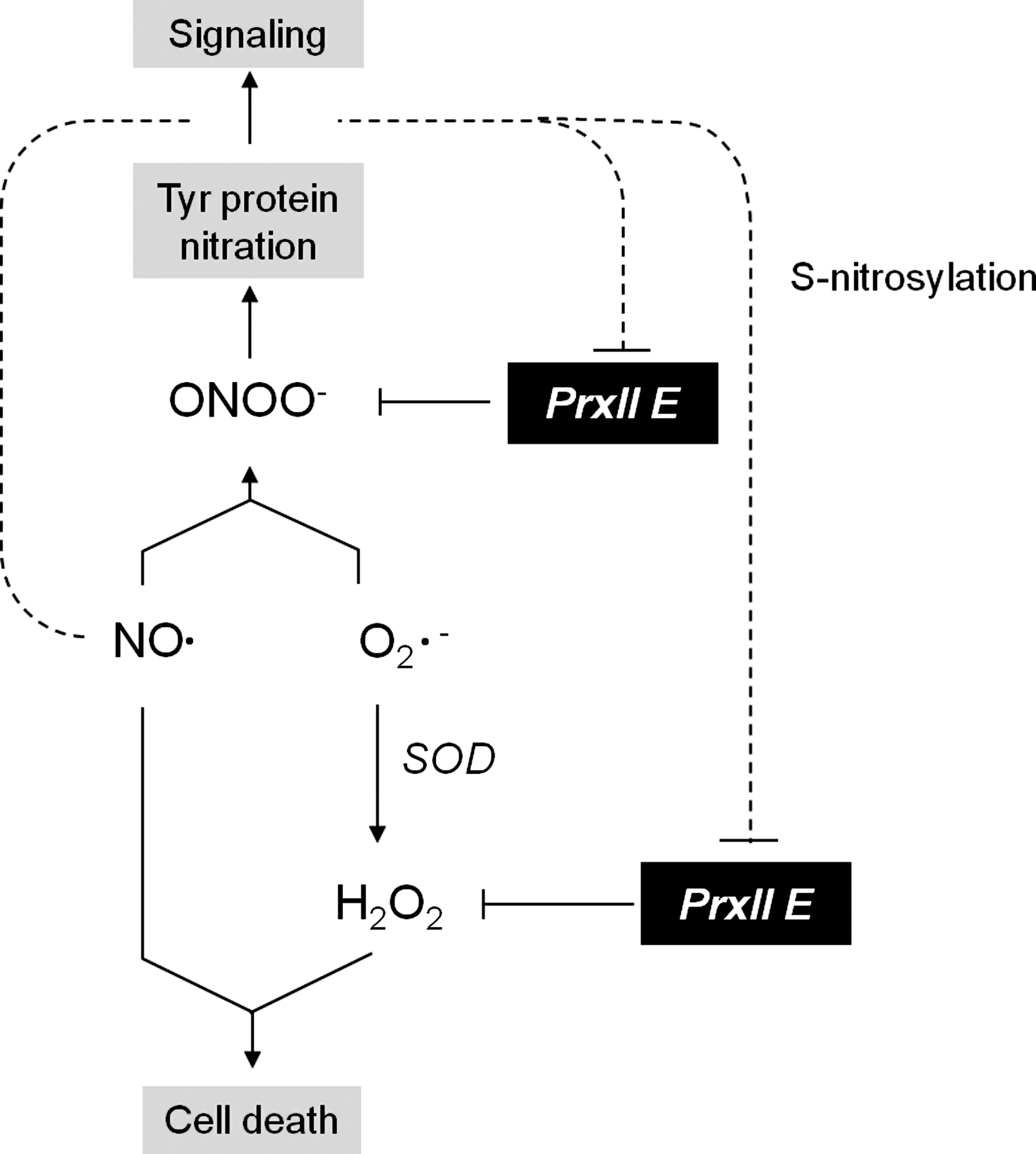

S-nitrosylation of type II Prx was described above and is established to modify peroxidase activity. In addition to the reaction with thiols, NO efficiently reacts with superoxide anion (O2 •−) to produce ONOO−. In fact this reaction proceeds at an about fourfold higher rate than disproportionation by superoxide dismutase (68). If NO and O2 •− are formed at the same subcellular site, the product ONOO− is released. Thus, ONOO− is likely to be continuously formed at low rates in photosynthesizing chloroplasts and in stimulated amounts during plant–pathogen interactions (148). ONOO− rapidly reacts with any type of molecules, including proteins causing protein nitration. In contrast to animal cells, where ONOO− induces cell death (19), plant cells can cope with high levels of ONOO− (37). Tyrosine nitration interferes with tyrosine phosphorylation and function of Tyr phosphoproteins either by inhibiting the normal function of the proteins or by inducing structural changes similar to those imposed by protein phosphorylation (81). Romero-Puertas et al. (148) suggest that modifying the S-nitrosylation state of PrxII E may modulate NO- and ROS-mediated signaling. Thereby, PrxII E might finetune the damaging and signaling effects of ONOO−. Exposure of wild-type or prxIIE knock down lines to high ONOO− concentrations does not induce cell death, suggesting that accumulating ONOO− is not a sufficient mediator in NO-induced cell death (148). The authors suggested a model where S-nitrosylation of PrxIIE regulates the transduction of NO- and ROS-linked signals by fine-tuning the damaging and signaling effects of its own radicals. The function of PrxII E in RNS signaling is summarized in Figure 15. As potential signaling route Romera-Puertas et al. (148) propose the modification of Tyr residues in proteins to yield nitrotyrosine derivatives. S-nitrosylation also inhibits the ONOO− detoxification activity of PrxII E, causing a dramatic increase of ONOO−-dependent nitrotyrosine residue formation (148). The balance between ROS, NO, and ONOO− determines PrxII E activity, which in turn modulates the cell death program and protein tyrosine nitration during, for example, hypersensitive response. Protein nitration is known as selective and reversible process (84) that affects signaling processes linked to protein Tyr phosphorylation. This is achieved either by inhibiting the protein activity normally associated with the phosphorylated form or by mimicking the conformational changes triggered by protein phosphorylation (148). A similar function as proposed for PrxII E in ONOO− signaling could also apply to 2-CysPrx, which has been shown to detoxify ONOO− (155).
XIII. Regulation of Peroxiredoxin Gene Expression
The specific contextual Prx function is defined by its substrate specificity, reaction with enzymatic or nonenzymatic reductants, subcellular localization, and cell-, tissue-, and signal-specific expression. prx transcript regulation has been addressed in targeted approaches specifically aiming at exploring prx responses and in whole genome gene chip analyses aiming at understanding global transcriptome responses.
A. Basal pattern of Prx expression and developmental control
The cytosolic and mitochondrial type II Prxs are expressed in all plant tissues, including cell suspension cultures and cell calli. AtPrxII B mRNA is present in all plant tissues and expressed at high levels in reproductive tissues of buds, flowers, siliques, and seeds (20). At-PrxII C and At-PrxII D mRNAs are low in most tissues except flowers and buds. Plastid PrxII E mRNA is found in most tissues being particularly high in seedlings, buds and cells from suspension cultures and then with decreasing amount in siliques, stems, seeds, flowers, leaves, and roots (20). Using reporter gene constructs consisting of the PrxII promoters and β-glucuronidase, AtPrxII C promoter activity was seen to be strongest in buds and mature pollen, that of PrxII D in mature and germinating pollen as well as fertilized ovules. The promoter of AtPrxII E mediates reporter expression in the stamen of young flowers, the embryo sac, and the albumen of seeds from maturing siliques (20).
Transcriptome analyses offer quite complete data sets for systems biology. Mathematical and statistical tools can be applied to these large data sets and reveal conditional regulatory dependencies and possibly interlinked biological functions (95). Coexpression analysis reveals that At-PrxIIC and PrxIID, which are not distinguished on the ATH1 gene chip, belong to a large group of highly coregulated transcripts, containing 259 transcripts sharing the very high Pearson correlation coefficient of >0.9 (100). Many coregulated transcripts are related to signaling such as mitogen activated protein kinases, Ca-binding proteins, GTPases, and transcription factors, to cell wall- and lipid-related genes and cytoskeleton (tubulin, actin). At-1-CysPrx transcript negatively correlates with many photosynthesis genes and as expected positively with transcripts coding for late embryogenesis abundant and seed storage proteins, dehydrins, and cell wall proteins. The group of highly coregulated transcripts >0.9 comprises 15 genes, with another set of 18 genes >0.8. Ma et al. (96) employed graphical Gaussian models (GGM) to search for partial coregulation networks from the Arabidopsis NASC database with about 22,200 genes, using more than 2000 gene chip experiments. The average network connectivity for a node (gene) was 5.5 (96). Figure 16 presents the result for five Prx genes. A coexpression network of 24 elements emerged with At-2-CysPrxA as seed and connected At-2-CysPrxA expression to photosynthesis-related transcripts such as those for photosystem I reaction center subunit PSI-H, FeS subunit of cytochrome b6f complex, γ-subunit of ATP synthase, fructose-bisphosphate aldolase, glyceraldehyde 3-phosphate dehydrogenase, phosphate/triose-phosphate translocator, and also to ribosomal proteins, PrxII E and Cyp20-3. This result underpins the clear functional link between 2-CysPrxA and photosynthesis also at the level of gene regulation. Surprisingly, the network emerging with 2-CysPrxB only contains nodes to six other transcripts, including Apx4 and an inner envelope protein (Fig. 16B). The distinct regulation of both isogenes may hint to different functional context despite the fact that biochemical differences between At2-CysPrxA and B appear to be missing. The network centered around PrxQ transcript has 23 components and contains transcripts involved in light and dark reactions of photosynthesis, for example, photosynthetic pigment binding proteins (CP47, LHCB4.3, and SEP1), triose phosphate isomerase, but also protein synthesis and turnover with caseinolytic protease and nine ribosomal subunits and an elongation factor (Fig. 16C). The relationship between expression of ribosome subunits and Prxs is interesting since Sideri et al. (163) observed an association of yeast Prx with ribosomes and proposed a specific role for Prx in protecting ribosomal activity under oxidative stress. The network with At-PrxII E only contained At-2-CysPrxA, Cyp20-3, and a putative dicarboxylate transporter, whereas At-PrxII F associated with NADH-ubiquinone oxidoreductase (At5g52840) and two other transcripts (Fig. 16D, E; see also Supplementary Table S1; Supplementary Data are available online at
Prx gene expression is under environmental and developmental control. The At-1-CysPrx expression occurs predominantly in aleurone layer and the embryo and also in specific vegetative tissues and is upregulated in the presence of ABA. Rice 1-CysPrx (R1C-Prx and OS1-CysPrx) is strongly expressed in imbibed rice seeds (91). Transcript amounts continuously decline from days 0 to 20 after imbibition when the mRNA essentially is undetectable. Likewise, Os-1CysPrx protein amount is maximal at days 0–5 and then declines as well to day 20. Haslekas et al. (53) analyzed the promoter of At-1-CysPrx for cis-regulatory elements and identified an antioxidant response promoter element (ARE) at position −363 bp, which mediates an about fivefold stimulation of reporter activity upon treatment with dihydroxybenzene hydroquinone (HQ). In addition, an ABA-responsive element was detected that may be activated by cooperative interaction of ABA insensitive 3 (ABI3) and ABI5 (53). Consistent with the hypothesis that ABI3 controls At1-CysPrx expression, and ectopic expression of ABI3 enables At-1-CysPrx expression in vegetative tissues. In the resurrection plant Xerophyta viscosa, the Xv-1-CysPrx has lost its predominant developmentally controlled expression pattern and is expressed throughout the vegetative tissue in a strongly stress-dependent manner (116).
B. Regulation of plastid Prx expression by retrograde signaling
Only few genes for plastid and mitochondrial proteins are encoded by the plastid and mitochondrial genomes. Therefore, coordination of nuclear gene expression with metabolic and developmental demand of the organelles is under control of signal exchange. Information and material flow from the nucleus/cytosol to the organelles is termed antherograde, the reverse direction from the organelles to the nucleus retrograde signaling (126, 134, 139). All prx genes are encoded by the nuclear genome of higher plants. While transcript regulation of Prxs in response to stresses and effectors has been studied in quite some detail, involved signaling cascades have only been addressed for 1-CysPrx and 2-CysPrx. Regulation of 1-CysPrx, which involves ABA-responsive elements and ABI3 and ABI5, has been described above in the paragraph on developmental control of gene expression. As to the latter example, 2-CysPrx has served as model to study redox-dependent retrograde signaling from the chloroplast to the nucleus (10, 56, 60, 161). The promoter of At-2-CysPrxA drives β-glucuronidase expression in transgenic A. thaliana in dependence on the electron pressure downstream of photosystem I. This conclusion is based on the observation that at constant light intensity, the reporter activity is stimulated at low CO2 concentration and suppressed at CO2 concentration of 2000 μl/l. High CO2 saturates the carboxylation reaction, maximally drains electrons by photochemistry and thus establishes less reducing conditions in the photosynthetic electron transport chain and stroma (10). Alternatively, increasing the light intensity at constant CO2 availability stimulates reporter activity. Consumption of electrons by nitrate reduction after KNO3 feeding also lowers At-2-CysPrx promoter activity. The redox-responsive promoter region could be narrowed down to a 216-bp fragment, which also mediates the ABA, ascorbate, and wounding responses (10). As first established in the liverwort, Riccia fluitans protein kinases are implicated in signaling the metabolic redox cue to 2-CysPrx gene expression. Thus, incubation of submersed Riccia fluitans thali or A. thaliana leaf sections with the protein kinase inhibitor staurosporin partially suppresses the ascorbate-dependent downregulation of 2-CysPrx promoter activity (10, 60). Two subsequent studies employed the redox sensitive promoter of At-2-CysPrxA (p2CPA) to advance the understanding on the mechanism of redox control of At-2-CysPrx expression. LUC reporter gene was expressed in transgenic A. thaliana under control of the 2184-bp promoter fragment of p2CPA (56). The lines were chemically mutagenized and screened for mutants with constitutively underexpressed 2-CysPrx. Obtained independent mutant lines display disturbed redox balance (rimb mutants:
C. Stress-dependent regulation
Abiotic and biotic stresses usually interfere with the redox state of the cells and often elicit generation of excess ROS and RNS (4, 71, 107, 174). Prx transcript regulation has been studied in quite some detail and shows regulatory variation in dependence on the type of Prx, plant species, stress-intensity, and developmental state. Prx transcripts respond to all kind of stresses, including low and high light, salinity, heavy metals, nutrient deprivation, temperature extremes, and chemical effectors. It is beyond the scope of this review to cover all these findings; thus, only a few examples are given. Regulation of PrxQ amounts involves strong transcript level adjustment; for example, PrxQ1 and PrxQ2 transcript amounts in Synechocystis PPC6803 increase in response to H2O2, high light, or nutrient deprivation (132, 170). Likewise, AtPrxQ transcript levels are upregulated during oxidative stress (62). In general, PrxQ transcript appears to be the most responsive one among the four plastid prx genes in A. thaliana. PrxQ transcript accumulates upon peroxide stress and decreases under reducing conditions (61, 62). In line with this transcriptional regulation, PrxQ protein amounts increase 1.8–2.8-fold in thylakoids isolated from effector-infiltrated leaves treated with H2O2, diamide or t-BOOH (137). Thylakoid PrxQ also increases in leaves infiltrated with ascorbate or at low light, but decreased in high light (137).
Poplar Prx-Q transcript and protein amounts respond to the fungal pathogen Melampsora laricii-populina, the causative agent of the poplar rust (149). They increase upon infection with a pathogenic race eliciting hypersensitive response but decrease during a compatible interaction between poplar and the rust fungus M. laricii-populina (149).
The 1-CysPrx transcript of the dehydration-tolerant Xerophyta viscosa is absent in fully hydrated tissue. Transcript accumulates in tissues under abiotic stresses such as dehydration, heat (42°C), high light intensity (1500 μmol quanta.m−2 s−1), NaCl (100 mM), and when treated with ABA (100 μM). Changes in Xv-1-CysPrx protein levels correlate well with transcript regulation (116). This result indicates a significant role of 1-CysPrx in extreme drought tolerance such as in resurrection plants and also shows that unusual regulation of Prx expression might contribute to special stress tolerance features.
In A. thaliana water deficit, chilling, and senescence only lead to small increases in PrxII F protein abundance, whereas photo-oxidative conditions or heavy metal treatment were uneffective (49). This result contrasted that by Finkemeier et al. (46), who observed increased AtPrxII F protein and transcript amounts in roots of Cd-treated plants. In pea leaves PrxII F protein accumulates upon cold and heavy-metal treatment (13). All these observations suggest that PrxII F functions in the general antioxidant defense of the plant mitochondrion with significance for ROS- and RNS-dependent signaling. Low light intensities decrease transcript amounts of the plastidic At-2-CysPrxA, At-2-CysPrxB, At-PrxQ, and cytosolic At-PrxII B, whereas plastidic At-PrxII E and mitochondrial At-PrxII F remain unaltered (62). The transcriptional response of the leaf antioxidant defense system was studied in nutrient-deprived, hydroponically grown A. thaliana (75). At-PrxII E, F and At-PrxQ transcripts are unresponsive to P-, N-, and S-deficiency. Strong upregulation of At-PrxIIC and D occurs under insufficient P nutrition both in young and old leaves.
This incomplete list of stresses that affect Prx gene expression demonstrates interesting correlations between various environmental perturbances and Prx gene expression and, in some studies, protein amounts. Manipulation of Prx amounts in transgenic plants offers access to a more causal understanding of these dependencies. Thus, the severe root growth inhibition of PrxII F-deficient A. thaliana lines in the presence of Cd and of salicylhydroxamic acid, an inhibitor of cyanide-insensitive respiration, indicates the importance of PrxII F-mediated ROS detoxification under conditions of abiotic stress (46). In another set of experiments, plants were produced that overexpress selected Prxs. Transgenic grass plants of Festuca arundinacea that overexpress 2-CysPrx are more tolerant to heat stress of 42°C and methylviologen treatment, respectively, as determined by decreased ion leakage, indicating less membrane damage, less inhibition of ΦPSII and less lipid peroxidation (78). The authors conclude that elevated levels of 2-CysPrx protect the plant tissue under stress either by increased peroxide detoxification capacity or by improved chaperone activity. At present it remains to be clarified which of both mechanisms stimulates stress tolerance of the transgenes. Kiba et al. (77) cloned PrxQ from Gentiana triflora GtPrxQ, originally identified as antifungal protein GfAFP1, and produced transgenic tobacco significantly overexpressing GtPrxQ. Leaves from the transgenic lines better resist to methylviologen treatment and show improved tolerance to infection with the fungal pathogen Botrytis cinerea (77). In another study, overexpression of PrxQ from Suaeda salsa, SsPrxQ, in A. thaliana supported performance of the transgenic lines during saline and cold stress (72). The results from transgenic approaches strengthen the notion that Prx function is linked to stress tolerance. However, in all these studies, the characterization remained on a preliminary level and neither addressed the tradeoffs of the plants for overexpressing 2-CysPrx or PrxQ nor provided any detailed analyses on responses in dependence of stress duration and intensities, nor explored the mechanisms involved in response elicitation.
XIV. Additional Functions of Peroxiredoxins in Plants
Most studies on Prx function focused on leaves and sometimes roots. Only few investigations addressed other developmental stages such as seedlings, nodules, reproductive organs, and fruits. This section describes reports on Prx expression in A. thaliana seedlings, pea nodules, and pea fruits. Upon seed germination and during early seedling development, Prxs are rapidly activated at the transcription level and accumulate to high protein amounts before other antioxidant systems such as ascorbate peroxidase (131). In fact one of the first 2-CysPrx BAS1 (initial name for plant 2-CysPrx) was identified from barley in a screen for genes highly expressed in the basal growing zone of gras leaves (6). In accordance with this assumed role in early development of seedlings, A. thaliana antisense lines expressing the 2-CysPrx gene in antisense orientation had a peculiar phenotype in early seedling establishment and development when grown on plates (8). Legumes develop a symbiosis with N2-fixing rhizobacteria. Western blot analyses reveal the presence of mitochondrial PrxIIF in pea nodules (51). The abundance of PrxIIF is unaffected by nodule aging or by application of external ascorbic acid. PrxQ and 2-CysPrx are absent from the nodules. An antibody directed against the cytosolic AtPrxIIC of 17 kDa failed to recognize the homologous protein but labeled a 68 kDa band. In 9-week-old nodules this band increases upon external feeding of ascorbate. The data show that Prx are present in nodules and might respond to the antioxidant state of the nodule cells. Nodule mitochondria sustain the energy-intensive process of nitrogen fixation, but at the same time release ROS at high rates. PrxIIF appears to play a role in this antioxidant defense network of nodules in addition to ascorbate peroxidase, heme peroxidase, and catalase (69). Fruits of snap pea (Pisum sativum) grown under nodulating and non-nodulating conditions were classified in three maturity stages. Prxs were quantified in the seeds and seedless pods by Western blot analysis (103). Ps2-CysPrx protein is detected in pods, whereas PsPrxQ is absent. PsPrxII F and cytosolic PrxII are present in seeds and pods. Cytosolic PrxIIs decrease in seeds, whereas they increase in pods during storage from immature to mature and overmature pea fuits. The authors suggest that maturation and storage of pea fruits entails a simultaneous downregulation of ROS as well as antioxidant levels, thereby avoiding the development of oxidative stress. Cytosolic PrxII are proposed to play a significant role in this process of fruit development and ripenening (103).
XV. Outlook
Fifteen years of plant Prx research has clarified the enzymatic activity as peroxidase, the interactor activity as chaperone and binding partner, and the redox-dependent conformational dynamics. In terms of understanding the peroxidase activity, the maximal catalytic efficiencies of plant Prx need to be determined by stop flow or other time-resolved methods. In addition, substantial evidence has been put forward to assign additional roles in cell signaling to Prx also in plants. Significant coexpression, proof of interactions, activity tests, and evolutionary conservation have proven that Prxs and their interacting partners form machines or modules in defense and signaling. The best studied example is the 2-CysPrx, which forms a module together with Trx or Trx-like protein, sulfiredoxin, and cyclophilin. The role of the chloroplast Cyp20-3 in this sensory module is not resolved but it is proposed that Cyp20-3 could play a role in disassembly of hyperaggregated 2-CysPrx complexes, for example, to ease regeneration (118). Likewise, the cellular function of Srx as regulatory interactor should be investigated since it controls 2-CysPrx activity by retroreduction (73). The immediate effect of 2-CysPrx on photosystem II is not understood. 2-CysPrx could be involved in localized peroxide detoxification or affect properties of the photosystem such as stability or turnover, and also the significance of the chaperone activity should be addressed under regular and stress conditions. In the end, the Prx-module within the redox regulatory network will have to be described by mathematical models, allowing us to simulate and predict its state and function. The simulation may provide explanations why, for example, distinct Grx and Trx branches exist in the thiol-disulfide redox network each with associated Prxs (Fig. 7) and how they equilibrate by multiple reactions with distinct kinetic constraints.
To understand the regulation of Prx functions in plant defense and signaling, the posttranslational modifications of plant and cyanobacterial Prxs need to be investigated in more detail by proteome analysis. Reversible phosphorylation, acetylation, nitration, and glutathionylation of Prxs and also of their binding partners represent important mechanisms that may control the activity and functionality of the signaling modules. It is known that genetic manipulation of Prx amounts and activities, for example, of 2-CysPrx, PrxQ, and PrxII F, induces changes in nuclear gene expression. These changes appear to be specific for each Prx and different from ROS-induced signaling. The pathways of signal transmission from the Prx modules to the target genes need to be resolved by target-up and signal-down dissection of the involved elements. The roles of Prxs in cell signaling should be differentiated between protein-specific initiation of signaling and effects on ROS and RNS signaling. In turn, regulation of Prx expression on the promoter and signaling level has only been investigated for At1-CysPrx and At2-CysPrx. Cis-elements and transcription factors are of interest that couple expressional regulation of the other Prxs to metabolic and environmental cues.
The least investigated Prx(s) are the cytosolic PrxII, which are present as three isoforms in A. thaliana, two isoforms in poplar, and with only one representative in rice (Table 1). The high similarity of the gene sequences might allow for RNAi or miRNA approaches in A. thaliana to suppress all isoforms simultaneously. Alternatively, the significance of PrxII B-like cytosolic PrxII could be addressed in rice. Such approaches will address the functions of Prxs in metabolism and development of organs other than leaves and roots, which have been studied in most detail up to now.
