Optimization of dry sliding wear characteristics of Al–25Zn/SiC hybrid composites by graphite reinforcement using artificial neural network and Taguchi's method
Restricted accessResearch articleFirst published online March, 2022
Optimization of dry sliding wear characteristics of Al–25Zn/SiC hybrid composites by graphite reinforcement using artificial neural network and Taguchi's method

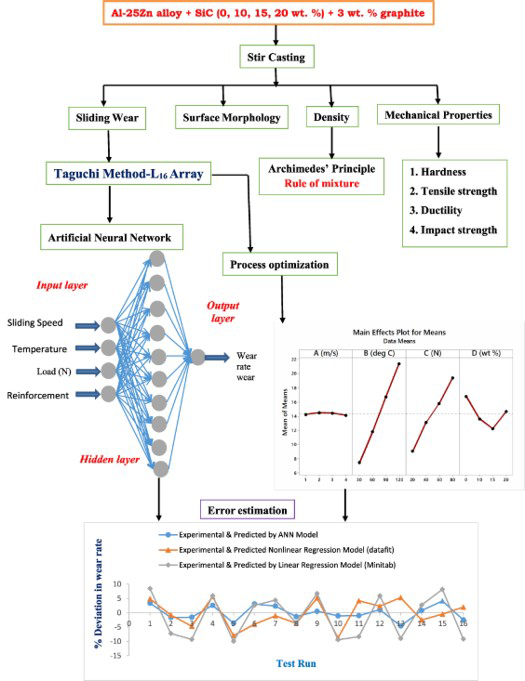

This paper proposes a unique Al25Zn/SiC/Graphite hybrid composite for plain bearing and other wear-resistant applications. Newly synthesized composites of Al–25Zn alloy reinforced with 3 wt-% graphite and 10, 15 and 20 wt-% SiC are tested using a pin on the disc tribometer following ASTM G-99 standard against EN24 disc. Sliding wear studies using the Taguchi L16 array are carried out for a set of parameters including pin temperature, speed, load and a constant sliding distance. The results reveal that adding 3 wt-% graphite into Al25Zn/SiC composites greatly enhances wear resistance, tensile strength, impact strength and ductility at the expense of hardness. The wear behaviour of the composites is predicted using an artificial neural network and a regression model. Adhesion is found the most common wear mechanism in matrix alloys, while abrasion and delamination in composites. Among the examined materials, the composite with 3 wt-% graphite and 15 wt-% SiC has the optimum combination of characteristics.
KennethH, AliE.The impact of tribology on energy use and CO2 emission globally and in combustion engine and electric cars. Tribol Int. 2019;135:389–396. doi:10.1016/j.triboint.2019.03.024.
2.
PerrinC, ShentonP, AidanD.Corporation (2001). Aluminum alloy and method for production thereof, Patent No. WO 01/34330 Al.
3.
KangHS.Hyundai Motor Company, Seoul (Kr) (2014). Wear resistant alloy having complex microstructure, Application No. 14/270,674, Patent No. US2014/0334970Al.
4.
TemelS, ZekiA.An investigation of lubricated friction and wear properties of Zn–40Al–2Cu–2Si alloy in comparison with SAE 65 bearing bronze. Wear. 2008;264:920–928. doi:10.1016/j.wear.2007.06.008.
5.
SavaskanT, TanHO.Fatigue behavior of Al-25Zn-3Cu alloy. Mater Sci Technol. 2014;30(8):938–943. doi:10.1179/1743284713Y.0000000362.
6.
SavaskanT, BicanO, AlemdagY.Developing aluminium–zinc-based a new alloy for tribological applications. J Mater Sci. 2009;44(8):1969–1976. doi:10.1007/s10853-009-3297-y.
7.
SavaskanT, BicanO.Dry sliding friction and wear properties of Al–25Zn–3Cu–(0–5) Si alloys in the as-cast and heat-treated conditions. Tribol Lett. 2010;40(3):327–336. doi:10.1007/s11249-010-9667-4.
8.
BicanO, SavaskanT.A comparative study of lubricated friction and wear behaviour of AL-25Zn-3Cu-3Si bearing alloy. J Eng Tribol. 2014;228(8):896–903. doi:10.1177/1350650114537473.
9.
AliPH, MerveC.Effects of titanium addition on structural, mechanical, tribological and corrosion properties of Al-25Zn-3Cu and Al-25Zn-3Cu-3si alloys. Trans Nonferr Metal Soc China. 2020;30:303–317. doi:10.1016/S1003-6326(20)65214-1.
10.
KiranTS, PrasannaKM.Dry sliding wear behaviour of heat treated hybrid metal matrix composite using Taguchi techniques. Mater Des. 2014;63:294–304. doi:10.1016/j.matdes.2014.06.007.
11.
BaradeswaranA, PerumalE.Study on mechanical and wear properties of Al7075/Al2O3/graphite hybrid composites. Compos Part B. 2014;56:464–471. doi:10.1016/j.compositesb.2013.08.013.
12.
StojanovicB, BabicM, MitrovicS, . Tribological characteristics of aluminium hybrid composites reinforced with SiC and graphite. A review. J Balkan Tribol Assoc. 2013;19:83–96.
13.
ShaikhMBN, ArifS, AzizaT, . Microstructural, mechanical and tribological behaviour of powder metallurgy processed SiC and RHA reinforced Al-based composites. Surf Interf. 2019;15:166–179. doi:10.1016/j.surfin.2019.03.002.
14.
RaoRN, DasS.Effect of matrix alloy and influence of SiC particle on the sliding wear characteristics of aluminium alloy composites. Mater Design. 2010;31(3):1200–1207. doi:10.1016/j.matdes.2009.09.032.
15.
GhoshSK, SahaP.Crack and wear behavior of SiC particulate reinforced aluminium based metal matrix composite fabricated by direct metal laser sintering process. Mater Design. 2011;32(1):139–145. doi:10.1016/j.matdes.2010.06.020.
16.
RaoTB.An experimental investigation on mechanical and wear properties of Al7075/SiCp composites: effect of SiC content and particle size. J Tribol. 2017;140(3):031601–8. doi:10.1115/1.4037845.
17.
RitapurePP, KhardeYR.SiC contents and pin temperature effect on tribological properties of Al25Zn/SiC composites. Int J Refract Metals Hard Mater. 2019;82:234–244. doi:10.1016/j.ijrmhm.2019.04.013.
18.
RajaramG, KumarnS, RaoTS, . Study on high temperature wear and its mechanism of Al-Si/graphite composite under dry sliding conditions. Tribol Int. 2010;43:2152–2158. doi:10.1016/j.triboint.2010.06.004.
19.
BabicM, SlobodanM, DzunicD.Tribological behaviour of composites based on ZA-27 alloy reinforced with graphite particles. Tribol Lett. 2010;37(2):401–410. doi:10.1007/s11249-009-9535-2.
20.
SeahKHW, SharmaSC, GirishBM.Mechanical properties of as-cast and heat-treated ZA-27/graphite particles composites. Compos Part A. 1997;28(3):251–256. doi:10.1016/S1359-835X(96)00117-0.
21.
SeahKHW, SharmaSC, GirishBM.Mechanical properties of cast ZA27-graphite particles composites. Mater Des. 1995;16(5):271–275. doi:10.1016/0261-3069(96)00001-5.
22.
RitapurePP, KhardeYR.Effect of graphite addition on mechanical properties and elevated temperature tribological behaviour of aluminium zinc alloy). 2nd International Conference on Tribology, TRIBOINDIA-2018, 13–15 December 2018, VJTI, Mumbai, India.
23.
RamanathanA, KrishnanP.A review on the production of metal matrix composites through stir casting – furnace design, properties, challenges, and research opportunities. J Manuf Process. 2019;42:213–245. doi:10.1016/j.jmapro.2019.04.017.
24.
HasimJ, LooneyL, HashimMSJ.The enhancement of wettability of SiC particles in cast aluminium matrix composites. J Mater Process Technol. 2001;119(1):329–335. doi:10.1016/S0924-0136(01)00919-0.
25.
MitraR, RaoVC, MaitiR, . Stability and response to rolling of the interfaces in cast Al-SiCp and Al-mg-SiCp composites. Mater Sci Eng A. 2004;379(1):391–400. doi:10.1016/j.msea.2004.03.024.
26.
RaoCR, StatistikerM.Linear statistical inference and its applications. New York: Wiley; 1973, doi:10.1002/9780470316436
27.
MahapatraSS, PatnaikA.Study on mechanical and erosion wear behaviour of hybrid composites using Taguchi experimental design. Mater Des. 2009;30(8):2791–2801. doi:10.1016/j.matdes.2009.01.037.
28.
PatiPR, SatapathyA.Triboperformance analysis of coating of LD slag premixed with TiO2 using experimental design and ANN. Tribol Trans. 2015;58(2):349–356. doi:10.1080/10402004.2014.971995.
29.
TitusT, SooryaPrakashK, KamarthinM.Optimizing the tribological behavior of hybrid copper surface composite using statistical and machine learning techniques. J Tribol. 2018;140(3):031610. doi:10.1115/1.4038688.
30.
GabrielV, JuanFDP, PabloC, . Artificial neural networks used in optimization problems. Neurocompouting. 2018;272(C):10–16. doi:10.1016/j.neucom.2017.04.075.
