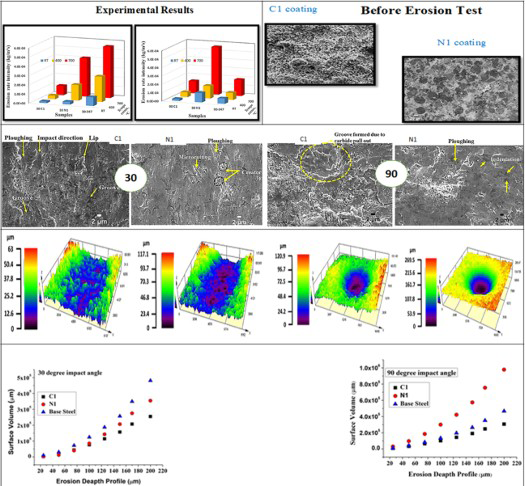

This work concerns a technique to produce thermal sprayed coatings using HVOF (high-velocity oxy-fuel) method as it is a widely used application in high-temperature erosion and corrosion environment. Two types of hard coatings Cr3C2-25NiCr and 35WC-Co/65NiCrBSi were sprayed on an SS-347 steel substrate. The erosion tests were done using high-temperature jet erosion set up to study the effect of velocity, temperature and impact angles on the coatings produced. The surface morphology of the samples was characterized using 3D laser confocal microscopy, light microscopy, scanning electron microscopy with EDAX and X-ray diffraction. Microhardness, porosity level and roughness parameters were evaluated to infer a probable mechanism of material removal. The Cr3C2-25NiCr coating exhibited ∼3.3 times higher erosion resistance than 35WC-Co/65NiCrBSi coating at 90° and 30° impact angles. SEM and 3D laser confocal images on the eroded surface of the coatings reveal the combination of ductile and brittle fracture of coating.
PawlowskiL.The science and engineering of thermal spray coatings. England: John Wiley & Sons; 2008.
2.
MiguelJM, GuilemanyJM, VizcainoS.Tribological study of NiCrBSi coating obtained by different processes. Tribol Int. 2003;36(3):181–187.
3.
SerresN, HlawkaF, CostilS, . Dry coatings and ecodesign. Part – 1 environmental performance & chemical properties. Surf Coat Technol. 2009;204(1–2):187–196.
4.
TobarMJ, AlvarezC, AmadoJM, . Morphology and characterization of laser clad composite NiCrBSi-WC coatings on stainless steel. Surf Coat Technol. 2006;200(22–23):6313–6317.
5.
WangH, XiaW, JinY.A study on abrasive resistance of Ni-based coatings with a WC hard phase. Wear. 1996;195(1–2):47–52.
6.
HelleA, AnderssonP, AhlroosT, . Erosive wear of coatings and methods to monitor coating wear—a literature study. Research Report No. BTUO43-041265. 2004.
7.
BergerL, VuoristoP, MantylaT, GrunerW.A study of the oxidation behaviour of WC-Co, Cr3C2-NiCr and TiC-Ni based materials in the thermal spray process. Proc. 15th Int. Thermal Spray Conference; Nice (France); 1998. p. 75–82.
8.
BeczkowiakL, KellerH, SchwierG. Carbide materials for HVOF applications powder and coating properties. Germany: H.C. Stack GmbH and Co. 1999.
9.
LoubiereS, LaurentC, BoninoJP, . Elaboration microstructure and reactivity of Cr3C2 powders of different morphology. Mater Res Bull. 1995;30(12):1535–1546.
10.
StaiaMH, ValenteT, BartuliC, . Part1: characterization of Cr3C2-25% NiCr reactive plasma sprayed coatings produced at different pressures. Surf Coat Technol. 2001;146–147:553–562.
11.
UusitaloMA, VuoristoPMJ, MantylaTA.High-temperature corrosion of coatings and boiler steels in the oxidising chlorine-containing atmosphere. Mater Sci Eng A. 2003;346(1–2):168–177.
12.
UusitaloMA, VuoristoPMJ, MantylaTA.High-temperature corrosion of coatings and boiler steels in reducing chlorine-containing atmosphere. Surf Coat Technol. 2002;161(2–3):275–285.
13.
SolomonNG.Erosion-resistant coatings for fluidised bed boilers. Mater Perform. 1998;37:38–43.
14.
LuerKR, DuPontJN, MarderAR.High-temperature sulfidation of Fe3Al thermal spray coatings at 600°C. Corrosion. 2000;56(2):189–198.
15.
MohantyM, SmithRW, De BonteM, . Sliding wear behaviour of thermally sprayed 75/25 Cr3C2/NiCr wear-resistant coating. Wear. 1996;198(1–2):251–266.
16.
KatsichC, BadischE.Effect of carbide degradation in a Ni-based hardfacing under abrasive and combined impact/abrasive conditions. Surf Coat Technol. 2011;206(6):1062–1068.
17.
StanciuEM, PascuA, ŢiereanMH, . Dual coating laser cladding of NiCrBSi and inconel 718. Mater Manuf Process. 2016;31(12):1556–1564.
18.
KarimiMR, SalimijaziHR, GolozarMA.Effects of remelting processes on porosity of NiCrBSi flame sprayed coatings. Surf Eng. 2016;32(3):238–243.
19.
RossoM, BennaniA. Studies of new applications of Nibased powders for hardfacing processes. PM World Congress Thermal Spraying/Spray Forming; 1998. Vol. 1, p. 524–530.
20.
KaimingW, YulongL, HanguangF, . A study of laser cladding NiCrBSi/Mo composite coatings. Surf Eng. 2018;34(4):267–275.
21.
SinghS, KaurM.Mechanical and microstructural properties of NiCrFeSiBC/Cr3C2 composite coatings – Part I. Surf Eng. 2016;32(7):464–474.
22.
SinghS, KaurM.Solid particle erosion behaviour of NiCrFeSiBC/Cr3C2 composite coatings – part II. Surf Eng. 2016;32(7):475–489.
23.
OtsuboF, EraH, KishitakeK.Structure and phases in nickel-base self-fluxing alloy coating containing high chromium and boron. J Therm Spray Technol. 2000;9(1):107–113. doi:10.1361/105996300770350131.
24.
SimunovicK, SlokarL, HavrlisanS.SEM/EDS investigation of one-step flame sprayed and fused Ni-based self-fluxing alloy coatings on steel substrates. Philos Mag. 2017;97(4):248–268. doi:10.1080/14786435.2016.1257167.
25.
GarciaA, FernandezMR, CuetosJM, . Study of the sliding wear and friction behavior of WC+NiCrBSi laser cladding coatings as a function of actual concentration of WC reinforcement particles in ball-on-disk test. Tribol Lett. 2016;63(3):41.
26.
AhnHS, LeeCH.A study on the wear characteristics of plasma sprayed NiCrSiB/WC-12Co mixed coating. Proceedings of the 15th International Thermal Spray conference; Nice, France; 1998. p. 175–180.
KimHJ, HwangSY, LeeCH, . Assessment of wear performance of flame sprayed and fused Ni-based coatings. Surf Coat Technol. 2003;172(2–3):262–269.
29.
SawaM, OohoriJ.OhmoriA, editors. Application of thermal spraying Technology at steelworks. Thermal Spraying: Current Status and Future trend. May 22–26. Kobe, Japan: High-Temperature Society of Japan; 1995; p. 37.
30.
FukudaY, KumonM.OhmoriA, editor. Application of high-velocity flame spraying for the heat exchanger tubes in coal-fired boilers. Thermal Spraying: Current Status and Future Trend. May 22–26. Kobe, Japan: High-Temperature Society of Japan; 1995; p. 107.
31.
WangBQ.Chromium-titanium carbide cement coating for elevated temperature erosion protection in fluidized bed combustion boilers. Wear. 1999;225–229:502–509.
32.
RenJ, LiuX-B, LuX-L, . Microstructure and tribological properties of self-lubricating antiwear composite coating on Ti6Al4V alloy. Surf Eng. 2017;33(1):20–26.
LawnBR, WilshawR.Review, indentation fracture: principles and applications. J Mater Sci. 1975;10(6):1049–1081.
35.
KoselTH.Solid particle erosion friction, lubrication and wear technology, Vol. 18. Materials Park (OH): ASM Handbook; 1992. p. 199–213.
36.
DearnleyPA.Introduction to surface engineering. England: Cambridge University Press; 2017.
37.
KaurM, SinghH, PrakashS. A survey of the literature on the use of high velocity oxy-fuel spray technology for high temperature corrosion and erosion-corrosion resistant coatings. Anti-Corros Methods Mater. 2008.
38.
RuffA W, IvesL K.Measurement of solid particle velocity in erosive wear. wear. 1975;35(1):195–199
39.
MovahediB.Fracture toughness and wear behavior of NiAl-based nanocomposite HVOF coatings. Surf Coat Technol. 2013;235:212–219.
40.
BaldaevLK, ArutyunovaIF, DmitrienkoLN.Thermal spray coatings deposited by a high-speed burner. Chem Pet Eng. 2001;37(9–10):487–489.
41.
WangBQ.Effect of alkali chlorides on erosion-corrosion of cooled mild steel and Cr3C2-NiCr coating. Wear. 1996;199(2):268–274.
42.
TomaD, BrandlW, MargineanG.Wear and corrosion behavior of thermally sprayed cermet coatings. Surf Coat Technol. 2001;138(2–3):149–158.
43.
GuilemanyJM, MiguelJM, VizcaínoS, . Role of heat treatments in the improvement of the sliding wear properties of Cr3C2–NiCr coatings. Surf Coat Technol. 2002;157(2–3):207–213.
44.
MaitiAK, MukhopadhyayN, RamanR.Effect of adding WC powder to the feedstock of WC–Co–Cr-based HVOF coating and its impact on erosion and abrasion resistance. Surf Coat Technol. 2007;201(18):7781–7788.
45.
MishraSB, PrakashS, ChandraK.Studies on erosion behaviour of plasma sprayed coatings on a Ni-based superalloy. Wear. 2006;260(4–5):422–432.
46.
LevyAV.The platelet mechanism of erosion of ductile metals. Wear. 1986;108(1):1–21.
47.
SundararajanG, RoyM.Solid particle erosion behaviour of metallic materials at room and elevated temperatures. Tribol Int. 1997;30(5):339–359.
VicenziJ, VillanovaDL, LimaMD, . HVOF-coatings against high temperature erosion (∼ 300° C) by coal fly ash in thermoelectric power plant. Mater Des. 2006;27(3):236–242.
50.
PoirierD, LegouxJG, LimaRS.Engineering HVOF-sprayed Cr3C2-NiCr coatings: the effect of particle morphology and spraying parameters on the microstructure, properties, and high temperature wear performance. J Therm Spray Technol. 2013;22(2–3):280–289.
51.
SinghSH, SinghSB, PrakashS.Solid particle erosion of HVOF sprayed NiCr and stellite-6 coatings. Surf Coat Technol. 2007;202(2):208–216.
52.
DavisAG, BooneDH, LevyAV.Erosion of ceramic thermal barrier coatings. Wear. 1986;110(2):101–116.
53.
HogmarkS, HedenqvistP.Tribological characterisation of thin, hard coatings. Wear. 1994;179(1–2):147–154.
54.
FinnieI.Erosion of metals by solid particles. J. Mater.1967;2:682.
55.
TillyGP.Sand erosion of metals and plastics: a brief review. Wear. 1969;14(4):241–248.
56.
KumarP, SidhuBS.Characterization and high-temperature erosion behavior of HVOF thermal spray Cermet coatings. J Mater Eng Perform. 2016;25(1):250–258.
57.
HidalgoV, VarelaFB, MenéndezAC, . Comparative study of high-temperature erosion wear of plasma-sprayed NiCrBSiFe and WC–NiCrBSiFe coatings under simulated coal-fired boiler conditions. Tribol Int. 2001;34(3):161–169.
58.
RoyM.Elevated temperature erosive wear of metallic materials. J Phys D Appl Phys. 2006;39(6):R101–R124.
59.
KatsichC, BadischE, RoyM, . Erosive wear of hard-faced Fe-Cr-C alloys at elevated temperature. Wear. 2009;267(11):1856–1864.
