Experimental investigation on the performance of AISI 440C martensitic stainless steel against the formation of white etching areas under sliding dynamic loading
Restricted accessResearch articleFirst published online March, 2022
Experimental investigation on the performance of AISI 440C martensitic stainless steel against the formation of white etching areas under sliding dynamic loading

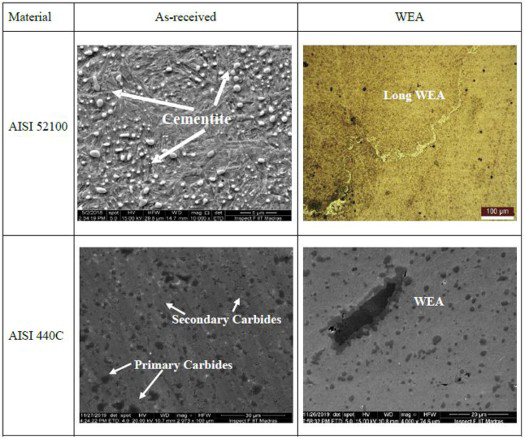

Bearings fail prematurely in transient operating conditions, as a result of flaking that causes changes in subsurface microstructure. In this type of failure, the formation of White Etching Cracks (WECs) is preceded by the formation of White Etching Areas (WEAs). Typically the WEAs are formed due to the dissolution of cementite into the matrix in AISI 52100 bearing steel. This feasibility work investigates the performance of AISI 440C steel against WEAs formation using dynamic load Pin-on-Disc tribometer. Experiments were performed at 4.5 Hz loading frequency, Hertzian pressure 2.02 GPa and sliding velocity of 0.2 ms-1 under the boundary lubrication using Poly Alpha Olefins (PAO). From post-test analysis, it is found that AISI 440C steel trapped more hydrogen than AISI 52100 bearing steel. The comprehensive analysis of materials and lubricants revealed that the performance of AISI 440C stainless steel against WEAs formation is better than that of AISI 52100 bearing steel.
Colin WalshPI. Wind energy in Europe in 2018. 8 (2018).
2.
CarrollJ, Alasdair McDonaldDM.Failure rate, repair time and unscheduled O&M cost analysis of offshore wind turbines. Wind Energy. 2016: 1107–1119. doi:10.1002/we
3.
EvansMH, WangL, WoodRJK.Formation mechanisms of white etching cracks and white etching area under rolling contact fatigue. Proc Inst Mech Eng, Part J: J Eng Tribol. 2014;228:1047–1062. doi:10.1177/1350650114525363.
4.
SreerajK, RamkumarP.Replication of white etching area evolution using novel modified dynamic load pin-on-disc tribometer on bearing steel. Tribol Int. 2018;126:336–343. doi:10.1016/j.triboint.2018.05.014
5.
EvansMH.An updated review: white etching cracks (WECs) and axial cracks in wind turbine gearbox bearings. Mater Sci Technol. 2016;32:1133–1169. doi:10.1080/02670836.2015.1133022
6.
SreerajK, RamkumarP.Comprehensive analysis of effects of dynamic load frequency and hydrogenation to instigate White Etching Areas (WEAs) formation under severe sliding condition of bearing steel. Tribol Int. 2020;144:106131. doi:10.1016/j.triboint.2019.106131
7.
GouldB, DemasNG, PollardG, . The effect of lubricant composition on white etching crack failures. Tribol Lett. 2019;67:1–14. doi:10.1007/s11249-018-1106-y.
8.
RichardsonAD, EvansM, WangL, . The effect of over-based calcium sulfonate detergent additives on white etching crack (WEC) formation in rolling contact fatigue tested 100Cr6 steel. Tribol Int. 2019;133:246–262. doi:10.1016/j.triboint.2019.01.005
9.
ĆwiekJ.Hydrogen Degradation of High-Strength Steels. 2009;37:193–212.
10.
EvansMH.White structure flaking (WSF) in wind turbine gearbox bearings: effects of “butterflies” and white etching cracks (WECs). Mater Sci Technol. 2012;28:3–22. doi:10.1179/026708311X13135950699254
11.
BirnbaumHK, SofronisP.Hydrogen-enhanced localized plasticity – a mechanism for hydrogen-related fracture. Mater Sci Eng: A. 1994;176:191–202.
12.
TysonW.Hydrogen in metals. Can Metall Q. 1979;18:1–11. doi:10.1179/cmq.1979.18.1.1.
13.
SallehSH, OmarMZ, SyarifJ, . Investigation of Microstructures and Properties of 440C Martensitic Stainless Steel. Int J Mech Mater Eng. 2009;4:123–126.
14.
BhadeshiaHKDH.Steels for bearings. Prog Mater Sci. 2012;57:268–435. doi:10.1016/j.pmatsci.2011.06.002.
15.
CirunaJA, SzieleitHJ.The effect of hydrogen on the rolling contact fatigue life of AISI 52100 and 440C steel balls. Wear. 1973;24:107–118. doi:10.1016/0043-1648(73)90207-X.
16.
KinoN, OtaniK.The influence of hydrogen on rolling contact fatigue life and its improvement. JSAE Rev. 2003;24:289–294. doi:10.1016/S0389-4304(03)00035-3.
GouldB, GrecoA.The influence of sliding and contact severity on the generation of white etching cracks. Tribol Lett. 2015;60. doi:10.1007/s11249-015-0602-6.
19.
GuzmánFG, OezelMO, JacobsG, . Influence of slip and lubrication regime on the formation of white etching cracks on a two-disc test rig. Lubricants. 2018;6:1–8. doi:10.3390/lubricants6010008.
20.
DowsonBJH. Minimum film thickness in elliptical contacts for different regimes of fluid-film lubrication. NASA Technical Paper; 1978.
21.
RichardsonAD, EvansMH, WangL, . The evolution of white etching cracks (WECs) in rolling contact fatigue-tested 100Cr6 steel. Tribol Lett. 2018;66:1–23. doi:10.1007/s11249-017-0946-1.
22.
EvansMH, RichardsonAD, WangL, . Confirming subsurface initiation at non-metallic inclusions as one mechanism for white etching crack (WEC) formation. Tribol Int. 2014;75:87–97. doi:10.1016/j.triboint.2014.03.012.
23.
BruceT, LongH, SlatterT, etal. Formation of white etching cracks at manganese sulfide (MnS) inclusions in bearing steel due to hammering impact loading. Wind Energy. 2016;19(10):1903–1915. doi:10.1002/we.v19.10.
24.
FricioniRB, EssigL. Inert gas fusion; 1986. doi:10.31399/asm.hb.v10.a0001747.
25.
ZengQ, DongG, YangY, . performance deterioration analysis of the used gear oil performance deterioration analysis of the used gear oil; 2016. doi:10.4236/aces.2016.62008
KoharaM, KawamuraT, EgamiM.Study on mechanism of hydrogen generation from lubricants. Tribol Trans. 2006;49:53–60. doi:10.1080/05698190500486324
28.
BridgmanPW.Viscosities to 30,000 kg/cm3. Proc Am Acad Arts Sci. 1949;77:117–128.
29.
LotfizadehDehkordiB, ShillerPJ, DollGL.Pressure- and temperature-dependent viscosity measurements of lubricants With polymeric viscosity modifiers. Front Mech Eng. 2019;5:1–9. doi:10.3389/fmech.2019.00018.
30.
YamadaH, UyamaH, MitamuraN. The effects of hydrogen on microstructural change and surface originated flaking in rolling contact fatigue. World Tribology Congress 2009 – Proceedings. 2, 11; 2009. doi:10.2474/trol.6.123.
