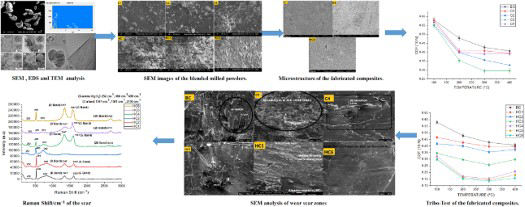

In this study, the influence of n-Al2O3 (aluminum oxide) and graphene nanoplatelet (GNP) on the tribological properties of a eutectic Al–Si (aluminum silicon) alloy was investigated. For Al–Si/n-Al2O3 (advanced composite), the coefficient of friction (COF) decreased by 34.41% and the wear resistance enhanced by 43.75% compared with base matrix alloys under high temperature (HT) conditions. For Al–Si/n-Al2O3/GNP (hybrid composite), COF decreased by 61.41% and the wear resistance improved by 96.87% at HT compared with base matrixes (eutectic Al–Si alloy). This finding was attributed to enhanced lubrication through GNP, glazed layer, thin tribooxide film (TTL) and mechanical mixed layer (MML) present on wear scars. Melt wear caused by scuffing was the main wear mechanism for the base composition at 300 and 400°C, and adhesion abrasion, crack formation and delamination pits were the wear mechanisms observed for the advanced and hybrid composites at extreme temperature conditions.
Highlights
Al–Si/ n-Al2O3 and Al–Si/ n-Al2O3/GNP composites were fabricated through spark plasma sintering.
The tribological performance of the fabricated composite samples was investigated under dry sliding at elevated operating temperatures (100–400°C).
The coefficient of friction and wear resistance improved with an increase in the secondary GNP reinforcement.
Transition in the wear regime occurred at approximately 0.8 of melting temperature.
The self-lubrication mechanism of GNP was observed on the wear track, which significantly reduced scar surface roughness.
LovellMR, KabirMA, MenezesPL, . Influence of boric acid additive size on green lubricant performance. Philosophical transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences. 2010;368:4851–4868.
RohatgiPK, PaiBC.Seizure resistance of cast aluminium alloys containing dispersed graphite particles of various sizes. Wear. 1980;59:323–332.
6.
AkhlaghiF, Zare-BidakiA.Influence of graphite content on the dry sliding and oil impregnated sliding wear behavior of Al 2024–graphite composites produced by in situ powder metallurgy method. Wear. 2009;266:37–45.
JinfengL, LongtaoJ, GaohuiW, . Effect of graphite particle reinforcement on dry sliding wear of SiC/Gr/Al composites. Rare Met Mater Eng. 1984;38:1894–1898.
9.
KumarS, PanwarRS, PandeyOP.Effect of dual reinforced ceramic particles on HT tribological properties of aluminum composites. Ceram Int. 2013;39:6333–6342.
10.
PauschitzA, RoyM, FranekF.Mechanisms of sliding wear of metals and alloys at elevated temperatures. Tribol Int. 2008;41:584–602.
11.
RajaramG, KumaranS, RaoTS, . Studies on HT wear and its mechanism of Al–Si/graphite composite under dry sliding conditions. Tribol Int. 2010;43:2152–2158.
12.
ZhanY, ZhangG.The role of graphite particles in the high-temperature wear of copper hybrid composites against steel. Mater Des. 2006;27:79–84.
13.
DasS, DasS, DasK.RETRACTED: abrasive wear of zircon sand and alumina reinforced Al–4.5 wt% Cu alloy matrix composites – a comparative study. Compos Sci Technol. 2007;67:746–751.
14.
KumarS, PanwarRS, PandeyOP.Effect of dual reinforced ceramic particles on high temperature tribological properties of aluminum composites. Ceram Int. 2013;39(6):6333–6342.
15.
MonikandanV, RajendrakumarP, JosephM.High temperature tribological behaviors of aluminum matrix composites reinforced with solid lubricant particles. Trans Nonferrous Met Soc China. 2020;30(5):1195–1210.
16.
ChakV, ChattopadhyayH.Fabrication and heat treatment of graphene nanoplatelets reinforced aluminium nanocomposites. Mater Sci Eng A. 2020;29:139657.
17.
PaulrajP, HarichandranR.The tribological behavior of hybrid aluminum alloy nanocomposites at high temperature: role of nanoparticles. J Mater Res Technol. 2020;9(5):11517–11530.
18.
SivamaranV, BalasubramanianV, GopalakrishnanM, . Mechanical and tribological properties of self-lubricating Al 6061 hybrid nano metal matrix composites reinforced by nSiC and MWCNTs. Surf Interfaces.2020;1(21):100781.
19.
AtlaS, KaujalaPL.Investigation of graphite effect on the mechanical and tribological properties of Al 7075-SiC-graphite hybrid metal matrix composites. Tribol-Finn J Tribol.2020;37(1−2):26–32.
20.
BabuJS, SrinivasanA, KangCG.Tribological and nano-scratch properties of aluminum (A356) based hybrid composites reinforced with MWCNTs/alumina fiber. Met Mater Int.2020;26:1–5.
21.
SinghJ, WaniMF.Fretting wear of spark plasma sintered Ti3SiC2/GNP ceramic composite against Si3N4. Ceram Int. 2020;47(4):5648–5655.
22.
IstgaldiH, AslMS, ShahiP, . Solid solution formation during spark plasma sintering of ZrB2–TiC–graphite composites. Ceram Int.2020;46(3):2923–2930.
23.
RezapourA, BalakZ.Fracture toughness and hardness investigation in ZrB2–SiC–ZrC composite. Mater Chem Phys.2020;241:122284.
24.
ZhangY, LiY, LiYC, . Effect of graphene content on microstructure and properties of Gr/Cu composites. In Mater Sci Forum. 2020;993:723–729, Trans Tech Publications Ltd.
25.
HerzallahH, ElsaydA, ShashA, . Effect of carbon nanotubes (CNTs) and silicon carbide (SiC) on mechanical properties of pure Al manufactured by powder metallurgy. J Mater Res Technol. 2020;9(2):1948–1954.
26.
RahimianM, EhsaniN, ParvinN, . The effect of particle size, sintering temperature and sintering time on the properties of Al–Al2O3 composites, made by powder metallurgy. J Mater Process Technol. 2009;209(14):5387–5393.
27.
SharmaA, SharmaVM, GugaliyaA, . Friction stir lap welding of AA6061 aluminium alloy with a graphene interlayer. Mater Manuf Process.2020;35(3):258–269.
28.
SahooB, NarsimhacharyD, PaulJ.Tribological behavior of solid-state processed Al-1100/GNP surface nanocomposites. J Mater Eng Perform.2018;27(12):6529–6544.
29.
SahooB, NarsimhacharyD, PaulJ.Tribological characteristics of aluminium-CNT/graphene/graphite surface nanocomposites: a comparative study. Surf Topogr: Metrol Prop.2019;7(3):034001.
30.
BermanD, ErdemirA, SumantAV.Few layer graphene to reduce wear and friction on sliding steel surfaces. Carbon N Y. 2013;54:454–459.
31.
BermanD, ErdemirA, SumantAV.Graphene: a new emerging lubricant. Mater Today. 2014;17(1):31–42.
32.
WuP, LiX, ZhangC, . Self-assembled graphene film as low friction solid lubricant in macroscale contact. ACS Appl Mater Interfaces. 2017;9(25):21554–21562.
33.
ZengX, PengY, LangH.A novel approach to decrease friction of graphene. Carbon N Y. 2017;118:233–240.
34.
ZhenJ, LiF, ZhuS, . Friction and wear behavior of nickel-alloy-based high temperature self-lubricating composites against Si3N4 and Inconel 718. Tribol Int. 2014;75:1–9.
35.
PuchyV, HvizdosP, DuszaJ, . Wear resistance of Al2O3–CNT ceramic nanocomposites at room and high temperatures. Ceram Int. 2013;39(5):5821–5826.
36.
BriscoeBJ, ScrutonB, WillisFR.The shear strength of thin lubricant films. Proceedings of the Royal Society of London. A. Mathematical and Physical Sciences. 1973;333(1592):99–114.
37.
CasimirD, AlghamdiH, AhmedIY, . Raman spectroscopy of Graphene, Graphite and Graphene Nanoplatelets. In: ChatchawalWongchoosuk, YotsarayuthSeekaew, editors. 2D materials. London: IntechOpen; 2019. p. 7–16.
38.
NietoA, LahiriD, AgarwalA.Synthesis and properties of bulk graphene nanoplatelets consolidated by spark plasma sintering. Carbon N Y. 2012;50(11):4068–4077.
39.
LiD, YeY, LiaoX, . A novel method for preparing and characterizing graphene nanoplatelets/aluminum nanocomposites. Nano Res. 2018;11(3):1642–1650.
40.
KumarPA, MadhuHC, PariyarA, . Friction stir processing of squeeze cast A356 with surface compacted graphene nanoplatelets (GNPs) for the synthesis of metal matrix composites. Mater Sci Eng: A.2020;769:138517.
41.
WilsonS, AlpasAT.Effect of temperature on the sliding wear performance of Al alloys and Al matrix composites. Wear. 1996;196:270–278.
42.
RajaramG, KumaranS, Srinivasa RaoT.High temperature tensile and wear behaviour of aluminum silicon alloy. Mater Sci Eng A. 2010;528:247–253.
43.
MondalDP, DasS, RaoRN, . Effect of SiC addition and running-in wear on the sliding wear behaviour of Al–Zn–Mg aluminium alloy. Mater Sci Eng A. 2005;402:307–319.
