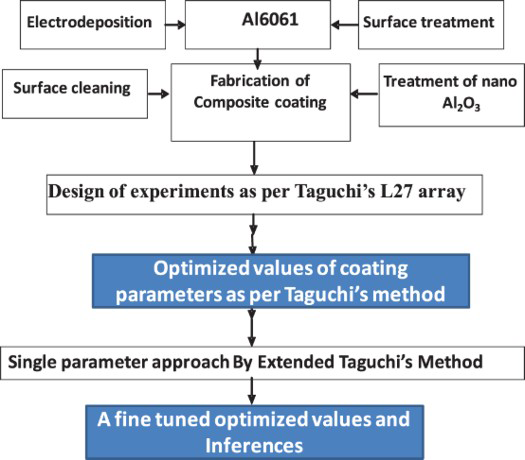

Electrodeposition of Ni-α nano Al2O3 particle was carried out on Aluminium 6061. The study optimized electrodeposition conditions were found to be 40°C, 2 A/dm2, 6 g/L of temperature, current density, and percentage of particle concentration respectively. Further Taguchi method was extended to fine tune the optimized conditions obtained by L27 orthogonal array of parameters for modified study which resulted in better wear resistance with coating conditions of 40°C, 1.75 A/dm2 and 4.5 g/L of temperature, current density and percentage of particle concentration respectively. The dispersion of particles was found more uniform with very few nickel crystals with dendrite structure.
CelisJP, RoosJR.Kinetics of the deposition of alumina particles from copper sulfate plating baths. J Electrochem Soc. 1977;124:1508–1511.
2.
DuL, XuB, DongS, . Study of tribological characteristics and wear mechanism of nano-particle strengthened nickel-based composite coatings under abrasive contaminant lubrication. Wear. 2004;257:1058–1063.
PradeepTS, DevaneyanS.Electro co-deposition and characterization of SiC in nickel metal matrix composite coatings on aluminium 7075. Procedia Eng. 2014;97:1496–1505.
5.
YangY, ChengYF.Mechanistic aspects of electrodeposition of NiCoSiC composite nano-coating on carbon steel. Electrochim Acta. 2013;109:638–644.
6.
GülH, KılıcF, AslanS, . Characteristics of electro-co-deposited Ni–Al 2 O 3 nano-particle reinforced metal matrix composite (MMC) coatings. Wear. 2009;267:976–990.
7.
VaeziMR, SadrnezhaadSK, NikzadL.Electrodeposition of Ni–SiC nano-composite coatings and evaluation of wear and corrosion resistance and electroplating characteristics. Colloids Surf A. 2008;315:176–182.
8.
MazaheriH, AllahkaramSR.Deposition, characterization and electrochemical evaluation of Ni–P–nano diamond composite coatings. Appl Surf Sci. 2012;258:4574–4580.
ShakoorRA, KahramanR, WawareU, . Properties of electrodeposited Ni–B–Al2O3 composite coatings. Mater Des. 2014;64:127–135.
11.
OgiharaH, UdagawaK, SajiT.Effect of boron content and crystalline structure on hardness in electrodeposited Ni-B alloy films. Surf Coatings Technol. 2012;206:2933–2940.
12.
ShresthaNK, MasukoM, SajiT.Composite plating of Ni/SiC using azo-cationic surfactants and wear resistance of coatings. Wear. 2003;254:555–564.
13.
GülH, KiliF, UysalM, . Effect of particle concentration on the structure and tribological properties of submicron particle SiC reinforced Ni metal matrix composite (MMC) coatings produced by electrodeposition. Appl Surf Sci. 2012;258:4260–4267.
14.
ShresthaNK, KawaiM, SajiT.Co-deposition of B4C particles and nickel under the influence of a redox-active surfactant and anti-wear property of the coatings. Surf Coatings Technol. 2005;200:2414–2419.
15.
LajevardiSa, ShahrabiT.Effects of pulse electrodeposition parameters on the properties of Ni-TiO2 nanocomposite coatings. Appl Surf Sci. 2010;256:6775–6781.
16.
SrivastavaM, William GripsVK, RajamKS.Influence of SiC, Si3N4 and Al2O3 particles on the structure and properties of electrodeposited Ni. Mater Lett. 2008;62:3487–3489.
17.
NarasimmanP, PushpavanamM, PeriasamyVM.Synthesis, characterization and comparison of sediment electro-codeposited nickel–micro and nano SiC composites. Appl Surf Sci. 2011;258:590–598.
18.
GyftouP, StroumbouliM, PavlatouEA, . Tribological study of Ni matrix composite coatings containing nano and micro SiC particles. Electrochim Acta. 2005;50:4544–4550.
19.
ChenL, WangL, ZengZ, . Effect of surfactant on the electrodeposition and wear resistance of Ni–Al2O3 composite coatings. Mater Sci Eng A. 2006;434:319–325.
20.
DehgahiS, AminiR, AlizadehM.Corrosion, passivation and wear behaviors of electrodeposited Ni-Al2O3-SiC nano-composite coatings. Surf Coatings Technol. 2016;304:502–511.
21.
JeyarajS, ArulshriKP, SivasankaranS.Investigations on effect of process parameters of electrodeposited Ni-Al2O3 composite coating using orthogonal array approach and mathematical modeling. Arch Civ Mech Eng. 2016;16:168–177.
22.
EslamiM, SaghafianH, Golestani-fardF, . Effect of electrodeposition conditions on the properties of Cu–Si3N4 composite coatings. Appl Surf Sci. 2014;300:129–140.
23.
ÖzkanS, HapçG, OrhanG.Electrodeposited Ni/SiC nanocomposite coatings and evaluation of wear and corrosion properties. Surf Coat Technol. 2013;232:734–741.
24.
MokabberT, RastegariS, RazavizadehH.Effect of electroplating parameters on properties of Zn–nano-TiO2 composite coatings. Surf Eng. 2013;29:41–45.
25.
BedirM, KorkmazD, BakkalogluOF, . Effect of pH values on the characterization of electrodeposited Zn–Mn coatings in chloride-based acidic environment. Int J Electrochem Sci. 2015;10:4513–4522.
26.
BasavarajappaS, ChandramohanG, Paulo DavimJ.Application of Taguchi techniques to study dry sliding wear behaviour of metal matrix composites. Mater Des. 2007;28:1393–1398.
27.
GadhariP, SahooP.Effect of process parameters on microhardness of Ni-P-Al 2 O 3 composite coatings. Procedia Mater Sci. 2014;6:623–632.
28.
RosaJL, RobinA, SilvaMB, . Electrodeposition of copper on titanium wires: Taguchi experimental design approach. J Mater Process Technol. 2009;209:1181–1188.
29.
YaghoubinezhadY, AfsharA.Experimental design for optimizing the corrosion resistance of pulse reverse electrodeposited graphene oxide thin film. J. Solid State Electrochem. 2015;19:1367–1380.
30.
BahadormaneshB, GhorbaniM, KordkolaeiNL.Electrodeposition of nanocrystalline Zn/Ni multilayer coatings from single bath: influences of deposition current densities and number of layers on characteristics of deposits. Appl Surf Sci. 2017;404:101–109.
31.
KrishnaveniK, Sankara NarayananTSN, SeshadriSK.Electrodeposited Ni–B coatings: formation and evaluation of hardness and wear resistance. Mater Chem Phys. 2006;99:300–308.
32.
JiangSW, YangL, PangJN, . Electrodeposition of Ni-Al2O3 composite coatings with combined addition of SDS and HPB surfactants. Surf Coat Technol. 2016;286:197–205.
33.
FengQ, LiT, YueH, . Preparation and characterization of nickel nano-Al2O3 composite coatings by sediment co-deposition. Appl Surf Sci. 2008;254:2262–2268.
34.
SasiA, MondalM, DayalS, . Electro deposition of nickel-alumina composite coating. Mater Today Proc. 2015;2:3042–3048.
35.
YangYF, GongZQ, DengLY, . Electrodeposition of Ni-Cr alloy on aluminum substrate. J Cent South Univ Technol. 2006;13:219–224.
36.
HinoM, MurakamiK, MitookaY, . Effects of zincate treatment on adhesion of electroless Ni-P coating onto various aluminum alloys. Trans Nonferrous Met Soc China. 2009;19:814–818.
37.
NeşeliS, YaldizS, TürkeşE.Optimization of tool geometry parameters for turning operations based on the response surface methodology. Measurements. 2011;44:580–587.
38.
AalAA, IbrahimKM, HamidZA.Enhancement of wear resistance of ductile cast iron by Ni–SiC composite coating. Wear. 2006;260:1070–1075.
39.
ShiL, SunC, GaoP, . Mechanical properties and wear and corrosion resistance of electrodeposited Ni–Co/SiC nanocomposite coating. Appl Surf Sci. 2006;252:3591–3599.
40.
KuoS, ChenY, GerM, . Nano-particles dispersion effect on Ni/Al2O3 composite coatings. Mater Chem Phys. 2004;86:5–10.
