Abstract
The need to reduce the energy consumed and the carbon footprint generated by firing ceramics has stimulated research to develop consolidation techniques operating at lower temperatures, ideally not exceeding 300 °C. This has been realised in Ultra Low Energy Sintering (ULES) using high pressure (hundreds of MPa) in the presence of a transient liquid phase, which accelerates plasticity, grain boundary/surface diffusion and mass transport. Several ULES techniques have been developed in the past 50 years, and a common feature of all of them is low temperature consolidation, through mechanisms not yet fully understood, enabling multi-material integration (e.g. organics and inorganics). This research could transform the traditional firing of functional and structural materials. Early stage work on ULES, started in the 1960s, clearly demonstrated cohesion between the compacted particles exceeding what was possible if simply produced by Van der Waals bonding, suggesting the formation of primary inter-particle bonds. Surprisingly, metals Cold Sintered (CS) in dry conditions at room temperature can be even stronger than their counterparts sintered at high temperatures (typically ≈ 2/3 Tm). Hydrothermal Hot Pressing (HHP) was originally conceived in the context of sustainability and environmental preservation, with some examples being the concept of ‘synthetic rock’ for immobilisation of toxic/radioactive waste and the consolidation of high surface area porous ceramics for filtration. Follow up work on HHP considered the possibility of recreating in the lab bio-mineralisation using hydroxyapatite and bioglass (including hybrids) as proof of concept. Recent work on the Cold Sintering Process has demonstrated the potential to bridge the processing gap of multi-material devices (sensors, batteries, 5G antennas, electronic components and biomaterials), enabling integration of polymers, ceramics and metals without degradation of the individual components both at the bulk and interface level. The absence of heating unlocks grain boundary design to an unprecedented level, offering further degrees of freedom in tuning functional properties.
This review provides a wide perspective on room temperature consolidation, and covers the related but fragmented work published (≈ 450 papers) during the past 50 years, encompassing the relevant work developed in different disciplines including chemistry, physics, biology and geoscience. Liquid-assisted or liquid-mediated phenomena involving diffusion, plasticity, rheology, and grain growth are still largely unexplored in material science. The purpose of bringing together this literature is to build a general and multidisciplinary knowledge to guide future research directions. Both the reduction of energy consumption and carbon footprint are driving the growing interest in ULES, which could reinvent the concept of sintering, ‘rendering kilns obsolete’. Also, ULES has the potential to produce new classes of materials that cannot be fabricated using conventional routes.
Keywords
Introduction
Most ceramics are prepared using green forming followed by firing, which is a highly energy intensive process involving temperatures usually above 1000 °C. Because of this, ceramics have higher embodied energy (energy dissipated to create 1 kg of usable material, see figure 4.19 in Ref [1]) compared to polymers or metals. The firing of construction bricks is currently responsible for ≈41 teragrams of CO2 emissions into the atmosphere per annum [2]. Most of the energy used for heating is irreversibly dissipated through the furnace insulation and lost during cooling. Since sintering is a process driven by reduction of surface energy, a possible way to reduce energy consumption might involve selective heating of the surface of the particles. This approach, idealised in electromagnetic assisted processing techniques (e.g. microwave and spark plasma sintering), has not proven realistic. The idea of promoting atomic diffusion at a particle's surface without providing additional heat, is possible in the presence of a liquid, typically water, that is capable of dissolving/interacting and promoting mass transport between the sintering particles.
By lowering the sintering temperature to near room temperature (<300 °C), the embodied energies for conventionally hot fired ceramics in the case of industrial production, range between 40 (alumina) and 200 MJ kg–1 (boron carbide) [1], are expected to be lowered by at least one order of magnitude. Sohrabi [3] on the lab scale calculated that the energy consumed in the consolidation of BaTiO3 powder can be lowered by two orders of magnitude from 2800 to 30 MJ kg–1 using the Cold Sintering Process (CSP). Energy calculations, done at lab scale level by researchers at the University of Sheffield, suggest that the consolidation of 1 kg of ZnO requires 291 MJ kg–1 based on hot-firing, equivalent to a climate change impact of 42.5 kg CO2. On the other hand, cold sintering requires only 162 MJ kg–1, resulting in a carbon footprint of 23.6 kg CO2 [4].
Taking inspiration from inorganic materials produced in nature, there are plenty of everyday examples of inorganic materials formed at room temperature without the need of additional heat. These include sedimentary rocks produced by lithification (literally, the process of turning particles into stone), stalactites from precipitation of minerals from mineralised water dripping through cave ceilings, bones/teeth from bio-mineralisation, construction of buildings from cementation and spicules (sea sponges) from the polycondensation of silicic acid. For several centuries scientists have tried to emulate these processes. Research is still not sufficiently advanced to replicate hierarchical structures as in nature; the difficulties are related either to the lengthy timescales involved – the lithification process can take several thousands of years – or because of the inherent complexity in bio-chemical systems.
Several consolidation techniques for compaction of powders at near room temperature have been proposed. This review covers the complexity of phenomena occurring under Ultra Low Energy Sintering (ULES) conditions, bringing together highly multidisciplinary aspects of natural science and material science, including chemical weathering/geology, thermodynamics of liquids solutions, metallurgy/plasticity, hydrothermal crystal growth and biomineralisation as illustrated in Figure 1.

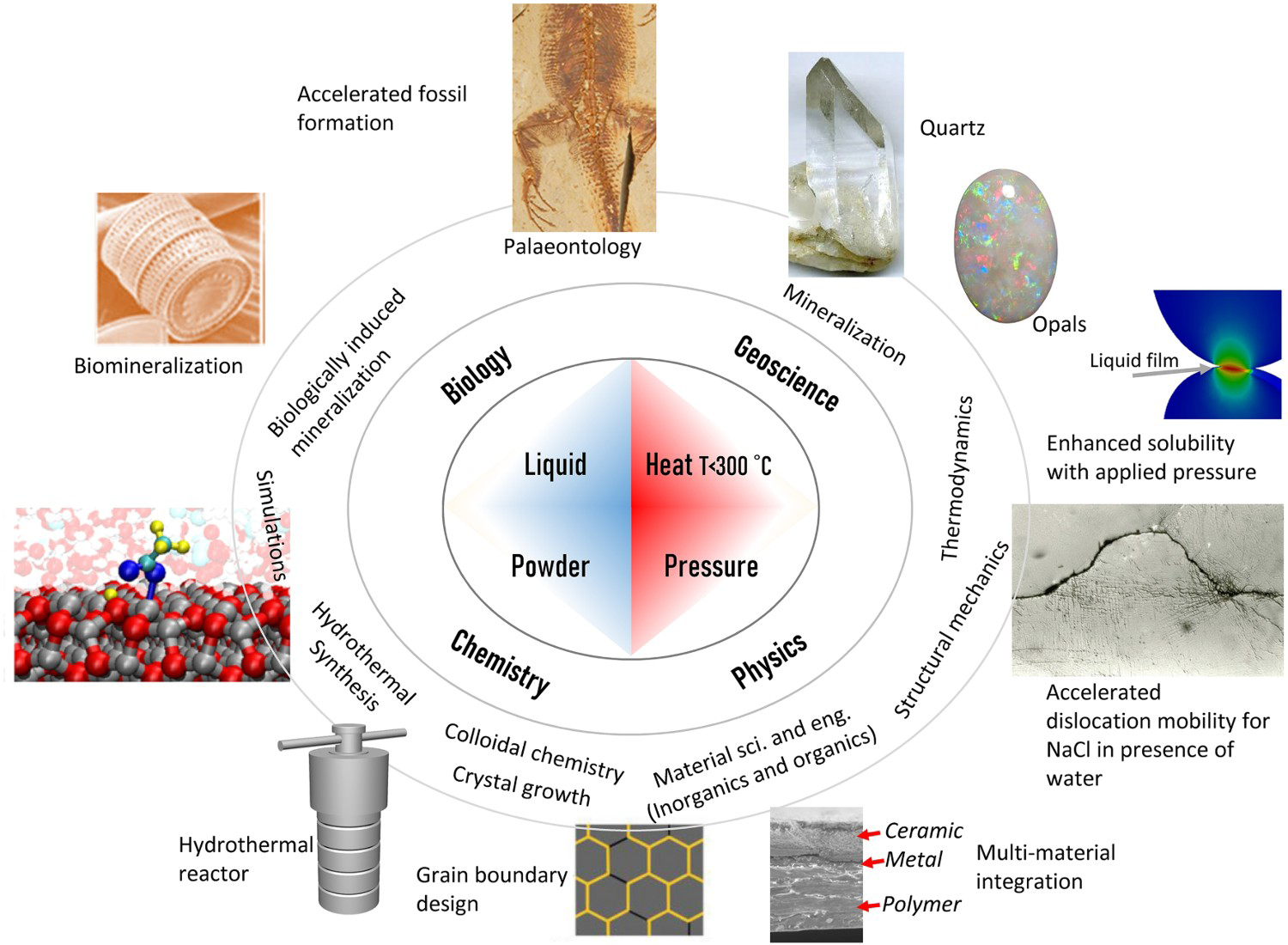

Branches of science underpinning ULES. The combination of four components: liquid, powder, heat and pressure, requires a multi-disciplinary approach covering physics, chemistry, geoscience and biology. A synergistic knowledge-base, built up from a wide range of disciplines, ranging from material science and engineering to palaeontology [5], could aid the understanding of these techniques to support their technological and scientific impact.
This review embraces the fragmented relevant literature published in the past 50 years and provides a general knowledge-base on ULES. Our ambitions are: (i) to capture the originality of early work (starting from the 1960s) in order to substantiate more recent publications; (ii) define guidelines to describe the consolidation mechanisms by linking together knowledge well-established in different fields; (iii) predict a processing window (i.e. pressure, type and amount of liquid, setups and temperature) for different materials based on their ionic, metallic or covalent bonding.
Going back to early civilisation, we can easily imagine that our ancestors might have squeezed in their palms some wet soil trying to make it stronger or harder. A similar situation might arise when a child instinctively tries to put back together a broken toy.
Isaac Newton was the first to suggest that two particles brought into close contact would adhere, ‘two polish'd marbles by immediate contact stick together’ [6]. The possibility of compacting particles together has a more recent history. Between 1800 and 1820, William Hyde Wollaston was the first to recognise particle bonding [6] by compacting platinum mud (and later other rare metals) to produce dense and strong wires. Platinum is a high melting point material (1768 °C), and at that time it was difficult to draw it into wires using ordinary melting and casting techniques. Wollaston, who was a chemist, prepared particles of platinum, and then produced a mixture of these particles dispersed in water (‘platinum mud’). In order to make a dense block he developed a press, shown in Figure 2, composed of a hollow brass die into which he fitted a ≈ 25 mm diameter piston. Applying a weight of 30 tonnes to the ram, equivalent to a pressure of the order of 500 MPa, increased the packing density from 20% to nearly 50%. The result was a pellet that was ‘hard and firm’. After heating in a Staffordshire coke furnace and forging, a 99% dense material suitable for making platinum wire with the ‘highest tenacity’ was produced. The work by Wollaston is often recalled in the early literature on Van der Waals interactions, however, metallic bonds could have formed during pressing as described in section 3.1.1.
(a) Wollaston Press developed in 1829 for compaction of loose platinum mud into a firm pellet [7]. (b) Extract from early work by Brill and Melczynski dated 1964 [8] on hydrothermal sintering. At the time, the authors did not intend to continue studies because they could not find any useful application. (c) Setup developed by Turba and Rump [9] for carrying out ‘cold sintering’ experiments: a systematic correlation between strength of barite pellets and amount of water was found.
In 1964, Brill and Melczynski [8] from the Fritz-Haber-Institut in Germany, in a paper entitled ‘Hydrothermal Sintering’, proposed a low temperature (< 100 °C) consolidation method for metal powders. They reported
We found that the iron particles always cake together if they are placed in close contact with one another and then treated with warm water or boiled with water. The hydrothermally sintered solids are strong enough to be turned on a lathe; the exposed surface acquires the typical appearance of iron.
In 1964, Turba and Rump [9,10], using the setup shown in Figure 2(c), investigated the mechanism of cohesion in BaSO4 powders compacted both in dry as well as moisturised conditions. For dry-pressed BaSO4, they concluded that Van der Waals forces were the most significant particle-particle interactions. Under wet conditions, other effects should be taken into account, such as local fusion phenomena, solvent actions and chemical reactions. In their analysis, they focused on a fundamental aspect of ULES, inter-particle bonding formation; the measured adhesion after wet compaction was significantly larger than the Van Der Waals interaction for dry-pressed BaSO4. They concluded that the increased cohesion strength might have been due to the presence of water that might have induced particle cohesion/bonding under the compacting pressure. The idea to precisely measure the amount of absorbed water, and not to assume that a powder stored in air is ‘dry’, should be accepted as a common practise in the modern literature.
To gain a full perspective on ULES, it is essential to analyse the rather fragmented relevant literature. This review aims to build a shared knowledge common to all ULES techniques covering organic (polymers and biological) and inorganic compounds (ceramic, salts and metals) where their upper processing temperature limit is 300 °C. Both ULES in wet and dry conditions are discussed as the techniques might share common consolidation mechanisms related to the application of high pressure (>300 MPa) or the combination of pressure and presence of a liquid. Typically, ULES of metals and polymers is done in dry conditions (see Section 2.2) while other materials are processed in wet conditions by adding a liquid (see Section 2.3)
Overview of ULES processes
This section presents the most significant developments and summarises the milestones, as presented in Figure 3. Chronologically, the techniques appear in the following order: Hydrothermal Reaction Sintering (HRS) in 1976 [11]; Cold Sintering (CS) in 1979 [12]; Hydrothermal Hot Pressing (HHP) in 1984 [75]; reactive Hydrothermal Liquid-Phase Densification (rHLPS) in 2007 [76] and CSP in 2016 [77].

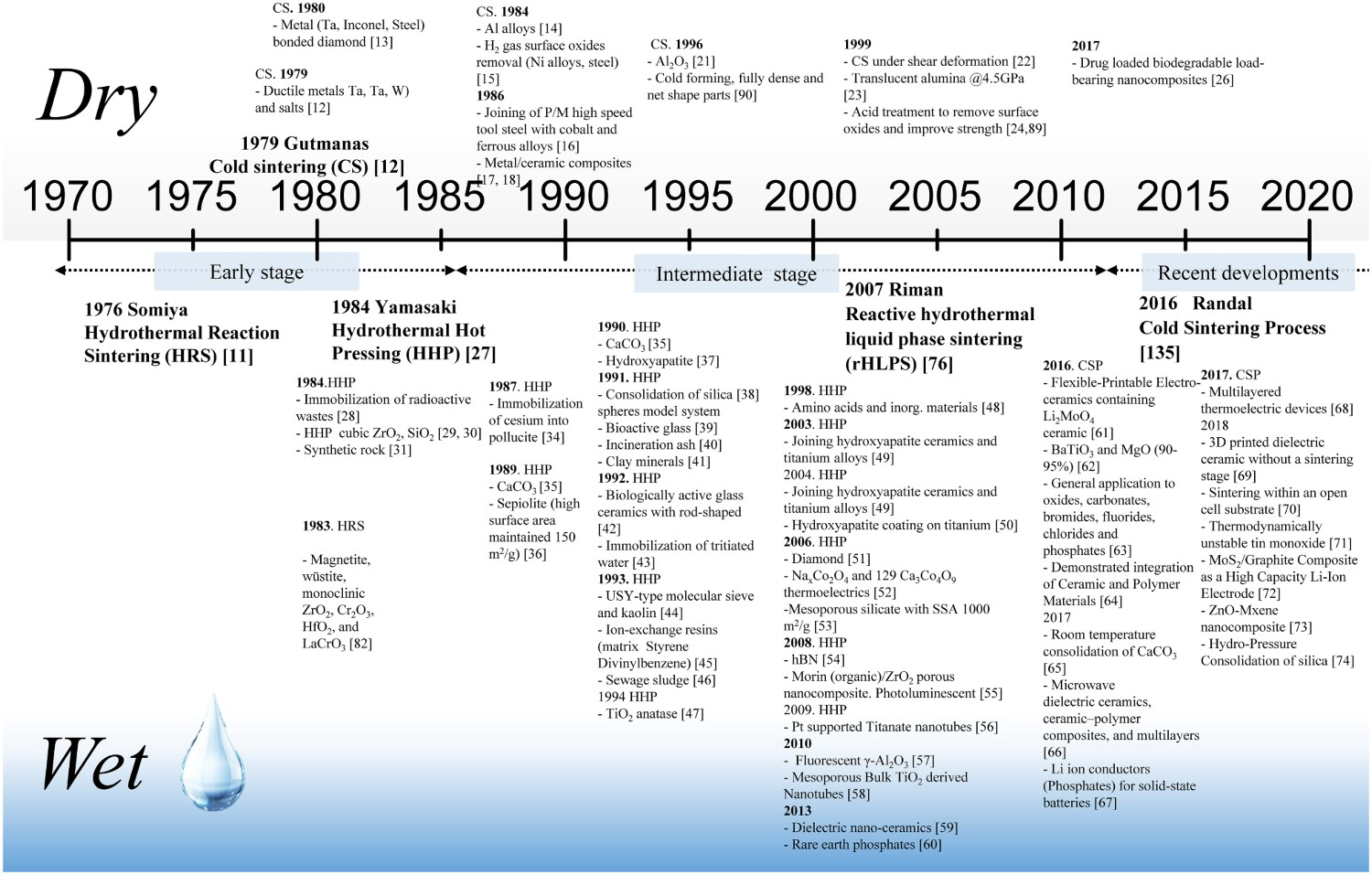

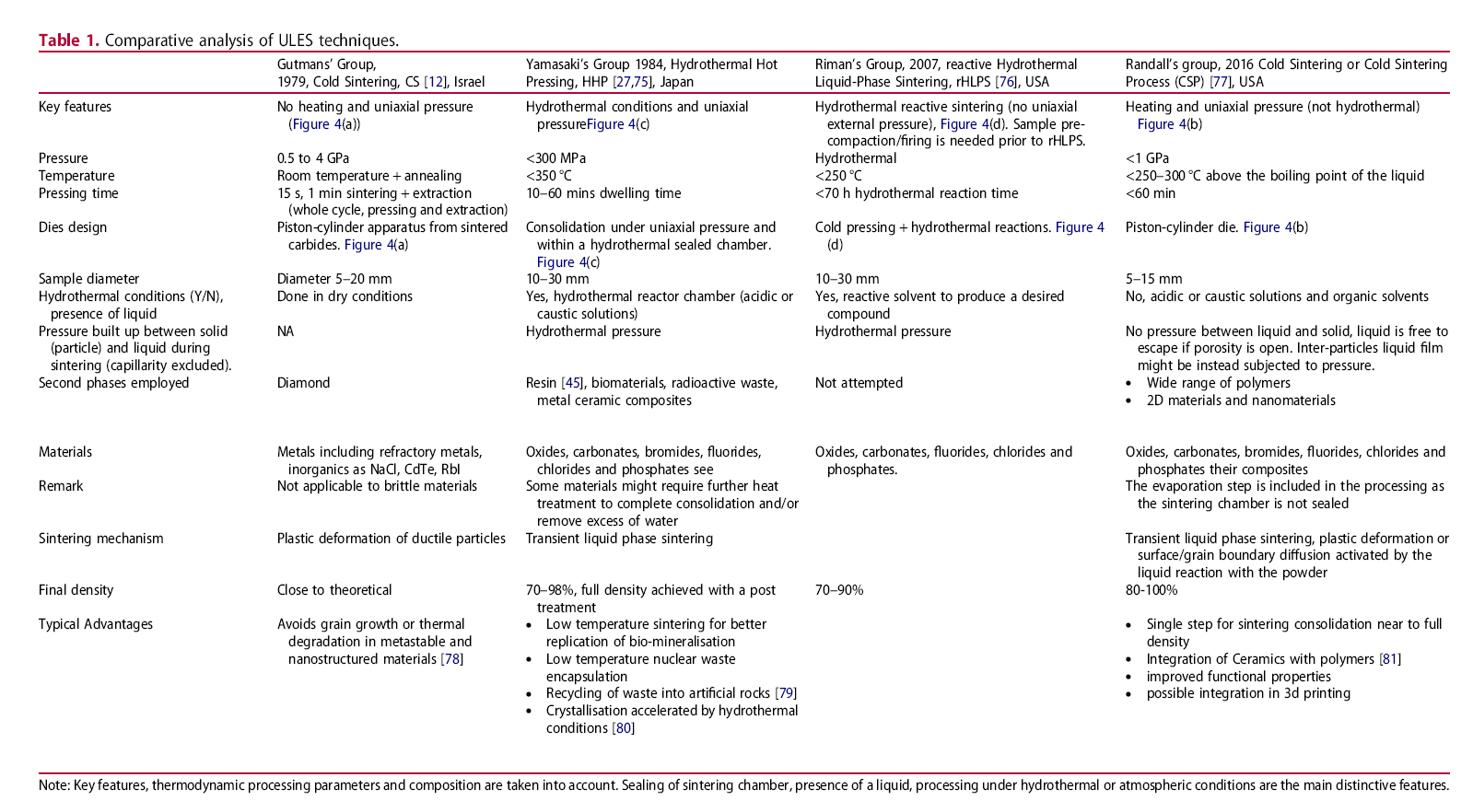

The differentiation between the sintering techniques is clearly presented in Table 1. The Salient features of each technique are schematically presented in Figure 4. The aim of this clear differentiation is to define direct correlations between the processing parameters and microstructures and properties of the materials produced by these techniques. The number of publications on ULES per year is given in Figure 5.

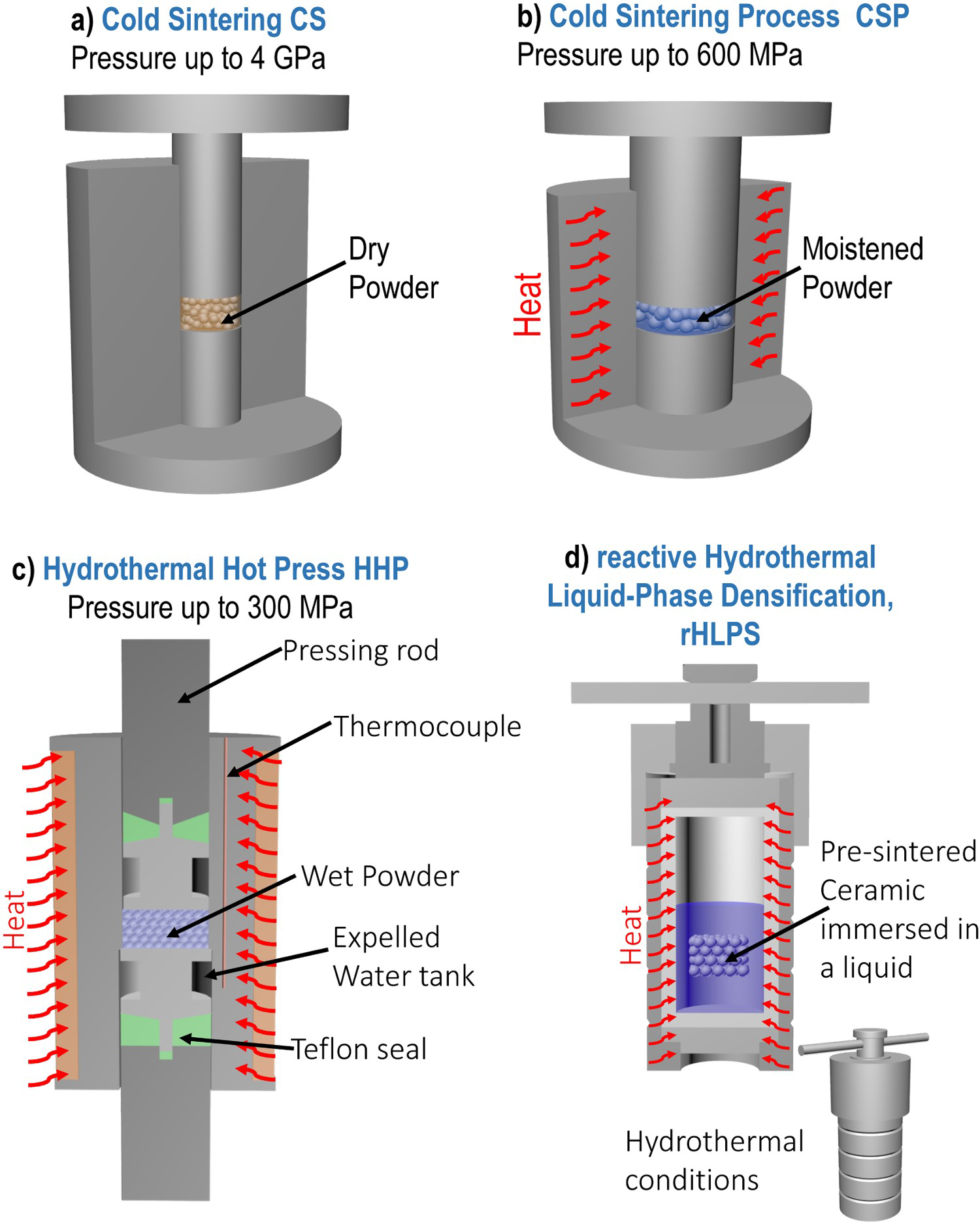

Experimental setups used for ULES. The main differences are presented in Table 1. (a) CS, (b) CSP, (c) HHP, and (d), rHLPS. Number of publications on ULES per year, as of June 2019: (a) in dry conditions using CS; (b) in the presence of a liquid using HHP and CSP. Comparative analysis of ULES techniques. Note: Key features, thermodynamic processing parameters and composition are taken into account. Sealing of sintering chamber, presence of a liquid, processing under hydrothermal or atmospheric conditions are the main distinctive features.
Hydrothermal Reaction Sintering (HRS) [11,82] employs as a starting material a metallic pre-compacted powder that is oxidised by a supercritical water solvent heated within a millimetre-sized metal sealed capsule (made of platinum which is permeable to generated hydrogen) where the self-generated pressure can reach 100 MPa with a temperature approaching 1000 °C (which is well above the 300 °C discussed above, but still well below the traditional consolidation temperatures). To date, 16 papers (22 including literature in the Japanese language) have been published on HRS. Owing to the complex experimental setup and very small size of the samples, the technique has not found any applications. HRS might be reconsidered in the future as sintering techniques employing supercritical water are expected to be developed.
A more versatile approach to consolidate ceramic powders named HHP was proposed by Yamasaki in 1984 [29]; published first in Japanese and two years later in English. To date 207 articles have been published on HHP, indicating a well-developed scientific literature on the topic. Most of the work on HHP, 170 papers in total, has been published by Japanese groups, with 57 papers by Yamasaki Nakamichi's and 42 by Yanagisawa Kazumichi's groups. The HHP literature is diverse and well worth examining. There are several links to sustainable processing of ceramics inspired by geological rock formation and bio mineralisation. The initial research on HHP was mostly driven by the need for encapsulation of radioactive waste by the development of bio-inspired processing routes. In HHP, the sintering environment replicates hydrothermal processing conditions because the environment is sealed, unlike in CSP where the processing vessel is not completely sealed to allow evaporation of the liquid phase. The hydrothermal processing environment has an effect on both the crystal growth and the densification kinetics.
rHLPS was patented in 2012 by Riman et al. [76]. Follow up work on BaTiO3 was published by Vakifahmetoglu et al. in 2016 [83]. The experimental setup is shown in Figure 4, in which a partially sintered (porous) material undergoes a chemical reaction (e.g. Ba(OH)2

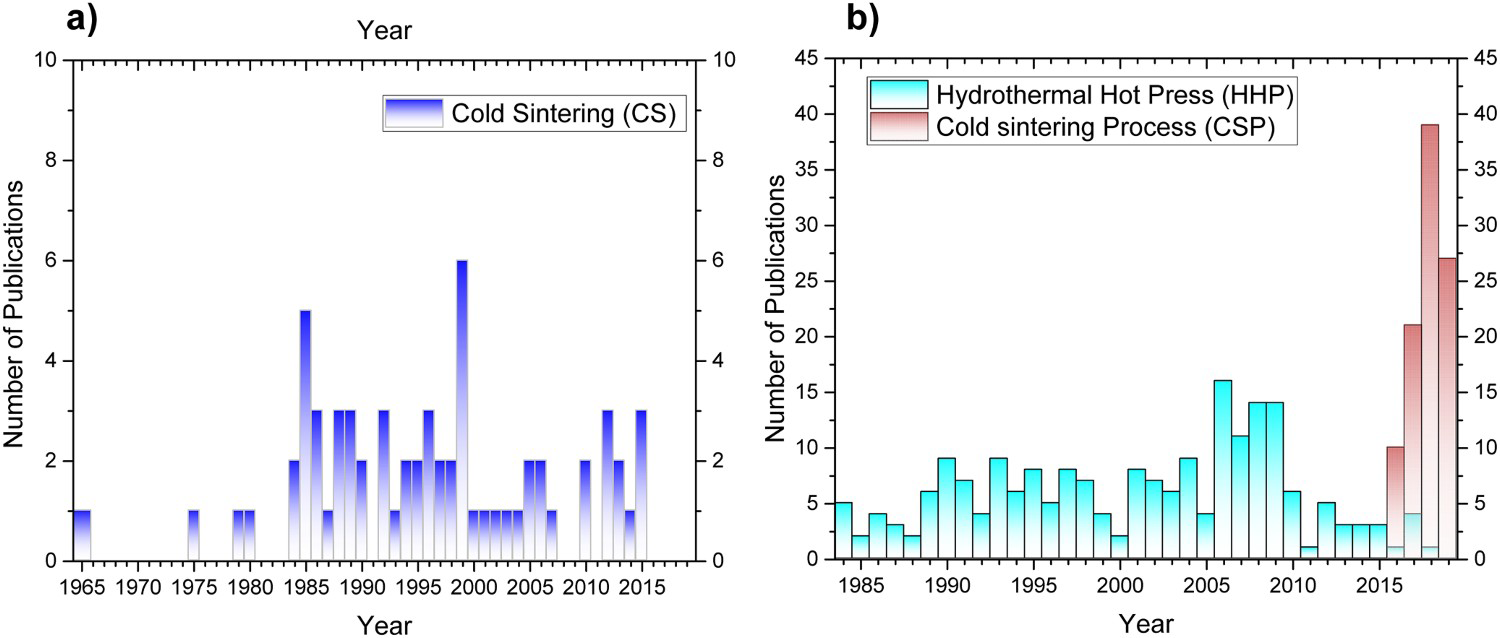

While the trends in the number of publications on HHP and CS have been rather discontinuous over the past 4 decades, interest in CSP has recently experienced a very rapid growth. Since 2016, 92 papers have been published on the CSP –, with Professor Randal's group publishing most of 77 of them [77], – with the number of publications expected to grow exponentially over the next couple of years.
Cold compaction of KBr and other halide salts is a common practice for producing optically transparent samples for infrared spectroscopy. The materials to be investigated are mixed with a transparent solid matrix (typically KBr). Starting from 1952, Schiedt and Reinwein [84] along with Stimson and O'Donnell [85] employed cold compaction for preparing samples of KBr or alternatively Csl, KCl, AgCl samples for infrared spectroscopy. Powders were pressed in evacuable pellet press dies. Vacuuming prior to pressing allows removal of occluded air, which avoids cracking of samples. Mirror polished pressing punches allow the samples to be optically transparent and suitable for infrared spectroscopy without further preparation. However, such work was motivated to produce samples for infrared spectroscopy rather than research on ULES.
Coming back to dry consolidations routes, CS has been used to consolidate ductile metallic powders. Professor Gutmanas’ group from Israel published 22 papers on ‘cold sintering’ starting from 1979[12], with 10 papers from Balkan countries, 7 from China and 5 from Brazil.
The early work on room temperature compaction [12] of metallic powders was initiated in 1979 by Gutmanas’ group. It involved the densification of ‘ductile powders’ like Al, Cu, Co, Fe, and Fe-Ti alloys (316L, Inconel 600 and Ti6AlV) and refractory metals such as Nb, Mo, Ta and W. The consolidation was possible under a plastic deformation regime as discussed inSection 3. Ionic salts like RbI were also consolidated using CS. However, other brittle materials, including InSb, NaCl, TiC, WC and MgO, could not be densified, which was attributed to their limited plasticity and high yield stress at room temperature. The idea to use high pressure to promote bonding was also applied in 1986 in the CS of ferrous powders [86] and metal matrix composites containing reinforcing ceramics (CrO2 [17], VC [87], and WC [88]).
Another good example of the use of CS is the production of diamond composites metal matrix cutting tools [13]. The room temperature processing avoided any diamond graphitisation, and a post heat treatment allowed the formation of interfacial carbides, which contributed to an improved interfacial strength. Good evidence of the relationship between particle surface condition and inter-particle adhesion was demonstrated by hydrogen treatment, which induced chemical reduction of the powder particles, contributing to a pronounced increase in the rupture strength [15]. Analogously, a clear demonstration of the benefit of surface cleaning on CS was shown by Lashmore et al. [24] and Dariel et al. [89]. Their work suggests that acidic washing of the starting silver powders was sufficient to remove surface oxides, thus allowing a self-soldering effect of silver during CS.
Follow-up studies attempted consolidation of ZrO2, α-Al2O3 [19] and γ-Al2O3 [23] by employing pressures even higher than 4 GPa, with densities exceeding 90% achieved in the case of zirconia because of its pressure induced phase transformation. Extensive work on high pressure sintering of ceramics was done by Augusto Neto in his master's thesis back in 1990 [19]. Alumina powder compacted under such high pressure at room temperature reached a relative density of 85–90%, but its hardness was ten times lower than conventionally sintered ceramics. This was not due to residual porosity, but probably to the limited adhesion between the particles.
Starting from 1996, CS has been proposed as a mass production technique for consolidation of net-shaped parts made of aluminium/copper, copper coated tungsten and nickel/aluminium [90]. Agatonovic et al. [22] combined uniaxial pressure with rotation of the pressing piston up to an angular displacement of 1000 ° for consolidation of molybdenum powders. Compared to materials consolidated in dry conditions, materials processed in the presence of an acid had a 5-fold increase in rupture strength. Recent work has been reported by Gutmanas et al. [26] on drug loaded biodegradable scaffolds for bone ingrowth produced using CS. The use of room temperature processing allowed the integration of dissimilar materials, while another advantage was the incorporation of drugs (antibiotics and anticancer) for enhancing the biological properties of the scaffolds.
Key features of liquid-assisted ultra low energy sintering: Materials and applications
Early stage
Early work on ULES in the presence of a liquid phase dates back to 1973 when Roy et al. [91] prepared very high compressive strength cements (≈ 700 MPa) by pressing them at 250 °C under a pressure of 345 MPa. A small amount of water was added to anhydrous cement resulting in a final degree of hydration of about 30% (well below fully hydrated as in the case of casting). The 5-fold improvement in compressive strength was related to the reduced porosity of samples compacted under an applied pressure.
In 1976, Hirano and Somiya [11] at the Tokyo Institute of Technology developed the HRS approach for making dense materials starting from a metallic pre-compacted powder under hydrothermal treatment in an airtight Pt capsule permeable to H2 at 850 °C for 1–3 h. The high temperature reaction between the metal powder and H2O allowed the formation of the oxide, with a concomitant release of H2 through the permeable membrane (capsule size: 2.7 mm in internal diameter 0.15 mm thick, and 35 mm long). Materials processed by this technique include ZrO2, Al2O3, HfO2 [82], Al2O3–ZrO2, iron oxides [92], Cr2O3 [11] and LaCrO3. The sintering temperatures were typically lowered by 300–500 °C compared to conventional sintering temperatures. A limitation of the technique is the high cost of the Pt capsule.
Hydrothermal hot pressing
According to Yamasaki et al. [75] ‘The hydrothermal hot-pressing method has two characteristics: continuous compression of samples under hydrothermal conditions and space for water retreat’. The combination of these two features clearly represents a novel processing technique. Initial work on HHP was reported in 1986 (1984 in Japanese language). The work has been applied to many materials (see Figure 7 below). It is worth highlighting that the solubility and reactivity of many inorganic compounds increases under hydrothermal conditions [93].
Wide range of materials
Several crystalline and amorphous materials [75] have been consolidated by HHP at 350 °C, including SiO2 [31], ZrO2, TiO2 [94], CaCO3, Ca(OH)2, Al(OH)3, plastics, cement, etc. Even translucent cubic zirconia [95] was prepared from a co-precipitated gel by hydrothermal hot-pressing at 350 °C and subsequent sintering at 1350 °C. Consolidation and crystallisation of amorphous titania by hydrothermal hot-pressing with a Vickers hardness 7.83 GPa was achieved at 350 °C (slightly above the typical temperature limit for ULES) under 200 MPa by Yanagisawa et al. [47]. In 2006, Yokosawa et al. [51] attempted HHP of diamond powder in the presence of a chlorinated hydrocarbon under a pressure of 1 GPa (their equipment was particularly advanced and was able to apply pressure up to 5 GPa). Raman spectroscopy of the sintered material detected only sp3 bonds, suggesting the formation of diamond to diamond bonding.
Silica and its allotropes are some of the most studied materials processed by HHP. Low-temperature hydrothermal sintering of dense nanometric α-quartz suggests that water played a key role [96,97]. Costa et al. [98] identified, using Raman spectroscopy, an accelerated condensation reaction of silanol groups in the presence of water.
The applications of HHP are well widespread and range from thermoelectrics to biomaterials. For example, Katsuyama et al. consolidated NaxCo2O4 [52] and Ca3Co4O9 [99] thermoelectrics using HHP, and they reported an increase in the power factor induced by preferred crystallographic orientation promoted by the uniaxial pressure. The hydrothermal hot-pressing method [60] was proposed to avoid thermal decomposition of rare earth phosphates, which are susceptible to thermal decomposition. Samples of lanthanum and yttrium ortho- and poly-phosphates LaPO4, La(PO3)3 [100], YPO4, Y(PO3)3 were fabricated using HHP.
The below HHP work is grouped with respect to their applications.
Nuclear encapsulation, high surface area and filtration
Initial work on HHP was driven by the need to develop sintering techniques with reduced sintering temperatures for the immobilisation of radioactive waste [31] containing caesium. Silica was chosen as the immobilising material, and the process was likened to ‘lithification’ [31]. Here, particular attention was devoted to the strength and leaching resistance of the sintered materials, as the matrix encapsulating radioactive waste is required to have a long service life. Immobilisation of tritiated water (an undesired by product from nuclear reactors) using hydrothermal hot-pressing [101] was also adopted, allowing the development of materials with excellent leaching resistance. Ion-exchange resins [45] were also consolidated by HHP with the aim of reducing the volume of the radioactive waste. The recurring concept of synthetic rock was employed to produce artificial pollucite (a zeolite mineral (Cs,Na)2Al2Si4O12·2H2O used for Cs encapsulation) [102] and for consolidation of sepiolite (Mg4Si6O15(OH)2·6H2O) while maintaining its high surface area exceeding 150 m2 g–1 [103].
Preparation of molecular sieves by HHP was proposed by Meng et al. [44]. Zeolite derived from fly ash (ZFA) prepared by HHP was applied to ammonium removal from sea water [104]. By optimising the processing conditions, Nakahira et al. [105] were able to maintain the large surface area – of over 700 m2 g–1 –of the starting Y-zeolite powder in the fabricated HHP compacts. HHP is also capable of consolidating bulky mesoporous silica achieving a dense microstructure free from large voids while maintaining a high value of specific surface area exceeding 1000 m2 g–1 [106]. Bulky mesoporous silica Pd-MCM-41 (palladium catalyst supported on mesoporous catalyst) processed by HHP resulted in a high surface area of over 1000 m2 g [107]. In a follow-up work by Kubo et al. [56], Pt-supported titanate nanotubes and their photocatalytic properties were investigated.
Waste valorisation and recycling
Alkali-activated incinerator ashes [108] are currently becoming an environmental friendly alternative to cement and bricks. Recycling technologies around HHP were reviewed by Yamasaki Nakamichi [109] in 2005. Sludge ash, which is a by-product of waste water treatment [110], ashes from incinerators [111], waste glasses [112], steelmaking slag [113], and blast furnace slag [114] were consolidated by HHP, suggesting a viable recycling and valorisation route for these materials. In 2008, reuse of glass from cathode-ray tube TVs by HHP was proposed by Matamoros-Veloza et al. [115]. Their approach was to apply HHP to finely ground powder followed by foaming at 600 °C, resulting in a low thermal conductivity of 0.21W (m K)–1. More recently, in 2005 Xue et al. [116] and later on Song et al. [117], employed HHP (45 min and 7 MPa at 200 °C) as a sustainable method for immobilising heavy metal ions, with a good fixation effect on metals such as Cu, Zn, Cd and Pb within an inert matrix derived from fly ash. Using waste glass from TV screens, preparation of porous glass with low thermal conductivity (0.2 W (m K)–1) [118] was achieved by HHP followed by foaming (induced by entrapped water) at 750 °C for 1 h. A similar approach was also applied to other systems resulting in a final density as low as 0.40 g cm–3 obtained for SiO2 (α-cristobalite and quartz) and CaSiO3 (wollastonite) [119].
Bio-related
Because of its mild processing conditions, HHP is clearly a consolidation technique closer to biomineralisation compared to conventional sintering (see Figure 1). Translucent hydroxyapatite ceramics were produced using HHP (300 °C, 50 MPa) starting from amorphous calcium phosphate [103].
Bioactive glasses in the Na2O–CaO–SiO2–P2O5 system [39] processed by HHP at 350 °C under 50 MPa were almost pore free, consisting of homogenously precipitated rod-shaped crystals of NaCa2HSi3O9 and Na2Ca2Si3O9 with length ∼3 µm and width ∼0.3 µm. The Vickers hardness and the compressive strength of the glass-ceramics were 3 GPa and 460 MPa, respectively. The fracture toughness increased by a factor of 5 up to 2.5 ± 0.3 MPa m1/2 compared to that of bioglass prepared using conventional sintering. Gamoh and Yamasaki [48] exploited the HHP conditions for enhancing polymerisation of amino acids while consolidating inorganic materials, making HHP (270 °C, 60 MPa) an ideal technique for integration of inorganic/organic materials. [120]
Similar to the joining under dry conditions mentioned in Section 2.2, hydroxyapatite (HA) and titanium (Ti) were bonded by HHP [49], with a HA coating sintered and adhered to a titanium (Ti) rod using HHP at 135 °C under 40 MPa [121]. The in-situ formation of hydroxyapatite-whisker ceramics during HHP (300 °C, 40 MPa) was demonstrated by Li et al. [122], with an enhancement of bending strength up to 56 MPa achieved in the presence of an ammonia solution, which promoted the growth of the elongated crystals. HHP made possible the consolidation of hydroxyapatite loaded with adipic acid intercalated complexes, which had better biocompatibility compared to unloaded ones [123]. Onoki et al. [124] prepared apatite chitosan polymer composites at 150 °C for 2 h at 40 MPa; their investigation suggests that HHP allows a fine mixture (submicrometre scale) not achievable with other techniques. Irie et al. used HHP (50 °C, 2 MPa) to fabricate DNA/polycation complexes for clinical treatments requiring thin membranes or films, such as protective membranes for stomatitis and incised oral wounds [125].
Integration of organics, inorganics and thermally fragile materials
Examples of organic–inorganic integration clearly highlight the merits of HHP in suppressing thermal degradation of the consolidating constituents, and this opens up the possibility of creative innovations and unexplored applications. The reinforcement of chitosan (a sugar) with xonotlite (calcium silicate hydrate) fibres [126] and calcium silicate compacts with rice husk were achieved using HHP (150 °C, 20 MPa) by Udawatte et al. [127]. Likewise, Sun et al. [128] employed short polyvinyl alcohol (PVA) fibres to improve the mechanical properties of brittle fly ash samples, with the constituents solidified using HHP (150 °C, 20 MPa). This promoted a transition from brittle to ductile behaviour, with a 6-fold increase in the strain to failure for samples loaded with 1 wt-% of fibres. ZrO2/morin [55] and γ-Al2O3 [129] /fluorescein (morin and fluorescein are natural and synthetic molecules used as dyes, respectively) composites were prepared using HHP (200 °C, 90 MPa) by Liu et al.. In the latter, the photoluminescence of the fluorescein within the porous nano solid was enhanced as compared to pure fluorescein. This was attributed to the local interaction of the organic molecule with the surface atoms of the γ-Al2O3 pores.
Xie et al. sintered to full density a new Sn1.24Ti1.94O3.66(OH)1.50F1.42 phase with a decomposition temperature of only 300 °C, which could only be densified by HHP [130] (at 270 °C and 80 MPa for 4 h). Interestingly the colour of the final material could be tuned from yellow to reddish-brown by increasing the amount of water. Dense compacts of titanate nanotubes (H2Ti n O2n + 1) were prepared by HHP (200 °C, 40 MPa) [131]. Because of the mild processing conditions, the resulting materials had dense microstructures, and their high BET surface areas and tubular nanostructure were maintained.
Reactive hydrothermal liquid phase sintering
Several compositions have been processed by rHLPS [76] at 240 °C including BaTiO3, SrTiO3, Ba0.5Sr0.5TiO3, Pb(Zr,Ti)O3, CoFeO, NiMoO and others. Work on this technique has been rather limited because of the slow reaction kinetics, for example 72 h was needed to produce a 90% dense BaTiO3 [83]. Since the process involves the use of pressure, comparative analysis between rHLPS and HHP could help to decouple the effects of chemical reactions from consolidation; this could pave the way for hybrid techniques where the compacting uniaxial pressure is for example applied after a hydrothermal reaction reaches completion.
Pressure-less wet ULES and 3D shaping
Professor Jantunen's group at the University of Oulu, Finland has carried out related but different research from CSP and other pressure-assisted sintering techniques. They widely employed water-soluble lithium molybdate and processed at room temperature (drying is done in a subsequent step and not while pressing as in CSP) in the absence of uniaxial pressure. By using water and water-soluble Li2MoO4 powder, 3D printed dielectric ceramics can be produced without heating under pressure-less conditions [69]. Moreover, electroceramic composites constituted by barium strontium titanate and lithium molybdate were consolidated at room temperature [132]. Their work [133] aimed at increasing the bulk density by reducing the amount of water entrapped in the material, suggesting that improved dielectric properties could be achieved when using coarse particles. Coming back to net shape manufacturing, the only other example of 3D shaping and ULES in the literature was reported by Jiang [134] et al. for silica using isostatic pressing (300 MPa at room temperature) and a shaped rubber mould.
Cold sintering process (Randall's method)
The CSP was developed at Pennsylvania State University by Prof Clive Randall along with his co-workers S. Funahashi, J. Guo, H. Guo, K. Wang, and A. L. Baker. An initial patent application was submitted in 2015 (US Provisional Patent Application 62/234,389) and several publications appeared between July and August 2016 [63,64,81,135]. The recent published work on CSP has been reviewed by Maria et al. [136], in which they state, ‘We define CSP as the process where an inorganic powder is densified in the presence of a transient liquid phase at a phase fraction typically between 1 and 10 vol.-%.’ They also stated,
Cold sintering of materials includes using a process of combining at least one inorganic compound, e.g., ceramic, in particle form with a solvent that can partially solubilise the inorganic compound to form a mixture; and applying pressure and a low temperature to the mixture to evaporate the solvent and densify at least one inorganic compound to form sintered materials
CSP has been demonstrated to be a powerful tool to engineer microstructures, particularly at the grain boundary level, of hybrid organic–inorganic materials and two-dimensional (2D) materials. CSP allows precise microstructural design of composites, allowing control over their electrical, thermal, and mechanical properties, such as permittivity, electrical breakdown strength, and thermal expansion coefficient [137]. An added benefit of the CSP is in the consolidation of thermodynamically unstable compounds. This has been well demonstrated by Bang et al. [71] who applied CSP to SnO, a thermodynamically unstable phase undergoing thermal decomposition into SnO2 and Sn at relatively low temperatures, achieving densification of up to 89% in 100 min under an uniaxial pressure of 350 MPa.
CSP work can be grouped according to the nature of the electrical conductivity of the materials and their applications in different fields, as discussed below.
Dielectric materials (ferroelectrics)
Dielectric materials find applications in many electronic components, including filters, couplers, baluns, antennas, and capacitors. Operational devices are composed of multi-layered ceramics, and CSP has opened up the novel possibility of being able to fabricate such devices without the need of a firing step. A demonstrated advantage of CSP applied to dielectrics is the possibility of multi-material integration. Conventional sintering and assembly of a working device requires several steps with repeated heating, including forming (tape casting), multilayer assembly, firing, metallisation of electrodes, integration with a substrate. CSP allows in a single step the integration of organics and inorganics, and it has the potential to surpass conventional processing routes by offering unprecedented ‘all in one step’ solutions to manufacture devices. It also opens up the possibility of densifying metamaterials with engineered arrangements of dissimilar materials with diverse dielectric properties.
In initial work by Baker et al. [81], they screen printed a paste (milled powder, with poly(propylene carbonate) with Ethylene Glycol Diacetate Butyl Benzyl Phthalate S-16) containing Lithium Molybdenum Oxide powder to produce printed capacitors on nickel and PET foils. The integration of these dissimilar and oxygen sensitive materials (without the need of an inert processing atmosphere) demonstrates a clear advantage of CSP compared to conventional sintering. The ink was deposited and subjected to a uniaxial pressure of 70–100 MPa at room temperature. The materials were dense, and the Li2MoO4 capacitors had dielectric properties similar to those of conventionally processed materials.
CSP has also been applied to other ferroelectric materials such as KH2PO4, NaNO2, and BaTiO3 [135]. The properties of KH2PO4 and NaNO2 were found to be comparable to those of conventional sintered materials even when processed at T < 120 °C under 350 MPa without the need of any further treatment. In the case of BaTiO3, a further annealing at 900 °C was necessary to complete the consolidation/reaction and achieve properties comparable to conventionally made counterparts (sintered at 1200–1300 °C). The 50 nm starting nanoparticles of BaTiO3 were consolidated at 180 °C under a pressure of 430 MPa to achieve a relative density of 95%. After annealing at 900 °C in a conventional furnace the relative density remained unchanged, and the dielectric constant reached ∼1760 and the loss was 0.03.
K0.5Na0.5NbO3 [138] and Na0.5Bi0.5TiO3 [139] piezoelectric ceramics were prepared using CSP (120 °C, 350 MPa) followed by annealing at 1050–1150 °C. In comparison to K0.5Na0.5NbO3 produced using conventional sintering at 1200 °C, CSP was found to maintain potassium-rich phases in the pressed materials, and enhance green density and sinterability. The reduced sintering temperature of 1145 °C (by ≈ 50 °C) minimised the volatilisation of the alkali metals, contributing to good ferroelectric, piezoelectric, and dielectric properties. Its piezoelectric coefficient, dielectric constant, dielectric loss at 10 kHz, and remnant polarisation and coercive field were 131 pC/N, 10922, 0.0486, 17.3 C cm–2 and 8.3 kV cm–1, respectively.
Microwave dielectric ceramics
Microwave dielectric ceramics are employed in modern wireless communication systems as resonators, filters and capacitors [140]. These applications require a permittivity εr between 15 and 100, a MW quality factor Qf exceeding 5000, and a near-zero temperature coefficient of resonant frequency. Most of the selected materials (Li2MoO4 Na2Mo2O7, K2Mo2O7 and NaCl) have good solubility (> 8 g L–1) in water, resulting in relatively easy full consolidation even at room temperature and a pressure below 200 MPa. These materials are not currently employed as commercial microwave materials. A clear advantage of preparing these materials by CSP was the absence of any undesired inter-diffusion between layers and delamination, which are typical issues during conventional processing.
CSP was used to produce microwave and packaging dielectric substrates in the form of bulk monoliths, multilayers and ceramic–polymer composites [140]. The microwave dielectric properties were comparable with materials prepared using conventional sintering and were selected to demonstrate the feasibility of CSP in microwave and packaging substrate applications [66]. Selected dielectric ceramics could be densified up to 95%. Good microwave dielectric properties (permittivity, 5.6–37.1; Qf, 1700–30500 GHz) were obtained by CSP processing (T < 200 °C, 30–350 MPa) [66].
Bulk Na0.5Bi0.5MoO4–Li2MoO4 [140] microwave ceramic composites were prepared using CSP at 150 °C and 200 MPa for 30 min. A dielectric lens made of functionally graded ceramics was also fabricated. Na2Mo2O7 ceramics with polyetherimide (PEI) composites [141] were cold-sintered to realise high performance composites and integrated multilayer circuits. Furthermore, the characteristic dielectric breakdown strength of the ceramic-polymer composite obtained from a Weibull analysis increased dramatically from 55.1 to 107.5 MV m–1 with 10–20 vol.-% PEI additions. In the case of high PEI content, where there was more segregation of the polymer within the ceramic matrix, there was a gradual decrease in the dielectric breakdown strength. A Na2Mo2O7–PEI–Ag bulk ring resonators [141] was obtained by post screen printing. As a prototype of integrated multilayer circuits, Na2Mo2O7–PEI–Ag multilayer ring resonators with good microwave dielectric properties were produced.
Microwave dielectric ceramics have also been prepared using water soluble NaCl samples. The presence of NaCl accelerated the densification of the Al2SiO5–NaCl composite [142]. Comparing dry pressing to CSP, Hong et al. [143,144] found that the presence of water promoted microstructural homogeneity, inducing a much higher Qf compared to dry conditions. The optimal microwave dielectric properties of ϵr = 5.55, Qf = 49,600 GHz and f = −173 ppm °C–1 were obtained for CSPed NaCl ceramic with an applied pressure of 300 MPa at room temperature. Following a similar idea, Induja and Sebastian prepared an Al2O3–NaCl composite [145].
Li2Mg3TiO6 [146] ceramics with ultrafine grains were prepared using a CSP followed by post-annealing at 950 °C. Samples CSPed at 180 °C under 300 MPa yielded a high relative density of ∼ 90%. Liu et al. correlated Qf values from 17,790 to 47,960 GHz with different grain sizes of 100–1200 nm.
Semiconductors and proton conductors
Because of its easy processability and wide range of applications, one of the most investigated CSPed materials is ZnO, with 16 papers already published on the material [68,73,147-150]. A new type of ZnO-PTFE (polytetrafluoroethylene) nanocomposite varistor was fabricated by CSP at 285 °C and 300 MPa [148]. The PTFE segregated to the ZnO grain boundaries on a nanometer length scale (1–10 nm) allowing control of the varistor behaviour. Cold sintered ceramic nanocomposites of 2D-MXene and ZnO [73] were fabricated using CSP at 300 °C for 1 h at 250 MPa. The 2D Ti3C2T x MXene was distributed evenly at the grain boundaries, preventing grain coarsening. The addition of up to 5 wt-% Ti3C2T x , contributed to an increase by 1–2 orders of magnitude of the electrical conductivity. Lowum et al. reported the strength of CSPed [151] ZnO using a ball-on-three-balls biaxial bending test method. The samples followed a Weibull distribution with an average strength of 64.4 MPa and a Weibull modulus of 8.
Negative temperature coefficients of electrical resistivity and thermal expansion were reported for cold sintered V2O5 ceramics and co-sintered V2O5-PEDOT:PSS composites [152]. Resulting materials had an electrical response comparable to counterparts produced using traditional firing. CSP and co-firing of multilayer thermoelectric devices was demonstrated by Funahashi et al. [68]; integrated ZnO and Ca3Co4O9 (n-type and p-type) multi-layered thermoelectric oxides were fabricated at a sintering temperature below 300 °C, and a PTFE insulator was interposed between the thermoelectric legs.
Nakaya et al. CSPed the proton electrolyte material CsH2PO4 [153] at 120 and 200 °C under 300 MPa for 1 h. Significant grain growth occurred during the CSP processing (from 2 to 100 µm), providing an improved ionic conductivity of 2.3010−4 Scm−1 at 200 °C due to the smaller number of grain boundaries and the high crystallinity of the compound.
Battery materials
Recent progress in the development of solid state electrolytes has been reviewed by Liu et al. [154]. CSP clearly has merit in allowing multi-material integration for both liquid and solid electrolyte based batteries, with the possibility to control the intergranular composition being another advantage of CSP. The research on solid electrolytes with high ionic conductivity, good electrochemical stability, and resistance to Li dendrite formation remains an open challenge. A promising approach to overcome this issue is the use of multiple components. Lee at al. [155] prepared ceramic-salt composite electrolytes CSPed at 130 °C under 380 MPa. As a model system, composites of Li1.5/Al0.5Ge1.5(PO4)3 (LAGP) with bis(trifluoromethanesulfonyl)imide (LiTFSI) salts were cold sintered. Ionic conductivities in excess of 10−4 S cm−1 at 20 °C were reported[155].
Pereira da Silva et al. compared the ionic conductivity of scandium-substituted NASICON (Na3.4Sc0.4Zr1.6Si2PO12) using Field Assisted Sintering Technology (FAST/SPS) and CSP (250 °C and 300 MPa) [156]. Both techniques allowed the fabrication of electrolytes with electrical resistivity an order of magnitude higher than the ones obtained by conventional sintering because of their small grain size. Leng et al. [157] fabricated a Mg-doped NASICON (Na3.256Mg0.128Zr1.872Si2PO12) solid state electrolyte by CS at 140 °C under 470 MPa to ∼83% of its theoretical density. Subsequent low-temperature annealing at 800 °C was found to substantially increase the electrical conductivity to >0.5 mS cm–1, with a concomitant increase in the grain boundary conductivity. Moreover, annealing at 1100 °C increased the conductivity to ∼1.36 mS cm–1 – double that of dry-pressed specimens sintered under the same conditions. The authors noted that processing temperatures below 800 °C opened up new possibilities in the consolidation of ‘thermally-fragile’ ceramic solid electrolytes for both Li+ and Na+. Liu et al. [158] processed using CSP Li1.3Al0.3Ti1.7(PO4)3 (LATP) at 120 °C under 420 MPa followed by annealing at 650 °C. They also compared samples prepared using several solvents and reported an increase in ionic conductivity induced by the nanoprecipitates formed at the grain boundary during CSP.
Berbano et al. fabricated a Li1.5Al0.5Ge1.5(PO4)3 solid electrolyte [159] using CSP (20–160 °C 400 MPa). They produced 80% dense electrolytes at 120 °C in 20 min. Post heat treatment at 650 °C resulted in a Li-ion conductivity of 5.4 × 10−5 S cm–1 at 25 °C. Improvement in ionic conductivities up to 1 × 10−4 S cm–1 were achieved using CSP for a LAGP-(PVDF-HFP) composite system sintered at temperatures below 200 °C and soaked in a liquid electrolyte. A clear advantage of CSP is the opportunity to build multilayer battery technology by avoiding thermal degradation and thermal stresses due to the coupling of materials with different CTE (coefficients of thermal expansion).
Seo et al. [160] employed CSP to consolidate LiFePO4 based cathode composites, achieving dense materials at 240 °C and 600 MPa. The cold-sintered composite cathodes, assembled in a half-cell, exhibited a high volumetric capacity ∼340 mAh cm–3 and a gravimetric capacity ∼158 mAh g–1. Binderless LiFePO4 cathodes with high volumetric capacity [161] were also produced.
V2O5 and carbon-nanofiber composites were prepared by Heidary et al. [162] at 120 °C (350 MPa, 20 min) for use as cathode materials. They showed that by adjusting the carbon nano fiber loading, the electrical conductivity and volumetric capacity was increased. CS of a covalently bonded (within the S–Mo–S layers) MoS2/graphite composite for use as a high capacity Li-Ion electrode was demonstrated, with fabrication of highly dense electrochemically active MoS2/graphite composites achieved with a relative density of 88%, using processing conditions of 140 °C, 520 MPa for 60 min [72]. The specific capacity of the composite electrode was ∼950 mAh g–1 at 0.1 A g–1. The addition of AHM (Ammonium heptamolybdate) and thiourea allowed consolidation of the MoS2 phase, which could not be obtained in the presence of water.
Materials and general mechanisms of ULES (inter-particle bonding and consolidation)
Formation of inter-particle primary bond in ULES

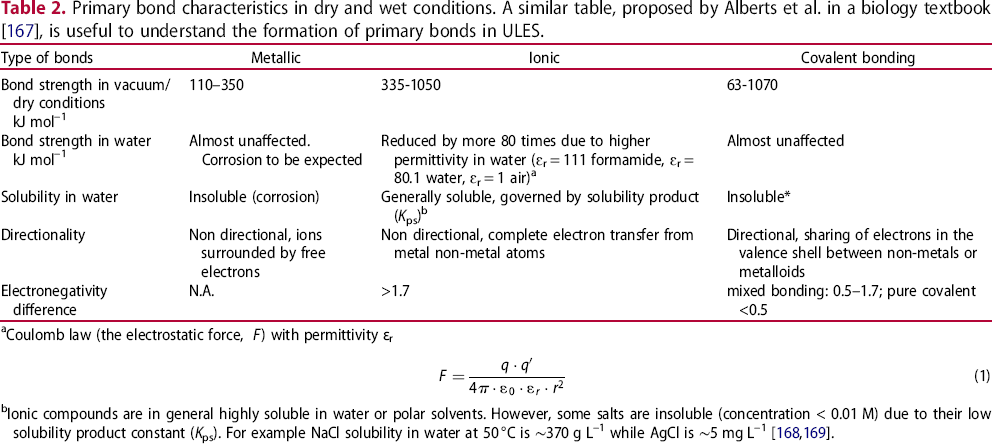

Primary bond characteristics in dry and wet conditions. A similar table, proposed by Alberts et al. in a biology textbook [167], is useful to understand the formation of primary bonds in ULES.
Primary bond characteristics in dry and wet conditions. A similar table, proposed by Alberts et al. in a biology textbook [167], is useful to understand the formation of primary bonds in ULES.
aCoulomb law (the electrostatic force,
) with permittivity εr
bIonic compounds are in general highly soluble in water or polar solvents. However, some salts are insoluble (concentration < 0.01 M) due to their low solubility product constant (Kps). For example NaCl solubility in water at 50 °C is ∼370 g L–1 while AgCl is ∼5 mg L–1 [168,169].
In dry (vacuum) conditions, the formation of primary bonds between metal particles is possible in the case of ideally clean metallic surfaces. Cold bonding or cold welding finds technological uses for cold welding of screws, nails and plates (different metals like Ti, Al, etc.) through the removal of the protective oxide at the contacting surfaces. The joining of metals together on the basis of this principle, referred to as ‘cold welding’[170], is clearly demonstrated in the work of Goldman et al. [15] on Nickel and Nickel-based alloys by applying a pressure of 3 GPa at room temperature. Spontaneous cold welding (pressureless at room temperature) is mostly applicable to noble metals like Au and Ag in the forms of nanowires or nanoparticles [170], but seems to not be applicable to other metals or materials. The formation of primary bonds between particles in dry conditions at room temperature in the case of ionic, covalent or mixed bonded materials is controlled by diffusion, which might be significant even at room temperature for compounds having low melting points. An added complexity in this analysis is the changes in diffusion coefficient with applied pressure discussed in Ref. [171]. A more exotic way to encourage the formation of bonds near room temperature under dry conditions is through surface activation by ion beam bombardment [172] or cold plasma treatment [173]. The latter is not applicable by definition to the case of ULES.
More work needs to be done to clarify the formation of inter-particle chemical bonds in dry (vacuum) conditions. Only a few works on dry pressing of ionic salts exist, including NaCl and RbI [143]. These compounds possess two independent slip systems active at room temperature, thus enabling dislocation motion, deformation and eventually micro cracking. At least five independent slip systems are required to produce a completely congruent deformation by plastic flow without the formation of voids and cracks. However, these experiments were carried out in air, consequently the powders might have contained a certain amount of residual moisture and so consequently, the results are not conclusive. Further work is needed for a comparative analysis of the effect of dry and liquid conditions on assisted deformation assisted sintering.
CS is mostly applicable to metals or cermets (Figure 7) consolidated at room temperature in dry conditions where plastic deformation is achieved by dislocation motion, and twinning [174]. Densification typically requires very short times, usually < 15 s [175] and it follows the pressure application, where at the beginning of the process the particles rearrange without yielding. With further increasing pressure, localised yielding takes place at the particle-particle contacts, which propagates along the freshly formed grain boundaries as the material plastically deforms, finally resulting in a dense bulk component. Plastic flow requires a minimum volumetric strain energy according to the von Mises criterion. However, some limitations of the model exist as powders are compressible and the yield stress of particulate materials strongly deviates from that of the dense material [176-178]. A variety of empirical relationships have been developed to correlate pressure and density [179182]. Probably, the most accepted equation is the one developed in 1998 by Panelli and Filho:
and
are two constants; the former referring to the resistance of the material to plastic flow, with the latter depending on the tap density. An application of Equation (2) is reported below in Figure 8. A more empirical relationship [12] suggests that the maximum achievable density
of a material follows the relationship
is the yield stress. According to this relation, a relative density of 98.9% is achieved when
and a density of 99.75% when
.
Referring to Table 2, under dry conditions, excluding thermally activated diffusion (applicable to materials with melting points of < 900 K)[12], it is difficult to achieve the formation of primary bonds between particles in ionically or covalently bonded materials. Raymond Franssen [183] (1993) reported that dry sodium chloride grain boundaries are essentially immobile – suggesting very limited diffusion –at temperatures below 400 °C. This is in contrast to the accelerated grain boundary migration in the presence of water even at room temperature [184]. It is well established that the presence of a liquid promotes the formation of inter-particles bonds with a strength well exceeding those of Van Der Waals bonds as discussed in Ref. [10] (see Section 1.2).
A parameter of primary importance in wet ULES is the solubility of the powder in water/liquid. Solubility constants describing the combination of common cations and anions are available in solubility tables and dedicated handbooks [168,185]. Because the amount of water is below 10 vol.-%, consolidation in wet ULES is typically achieved by partial solubilisation rather than complete solution precipitation as in the case of evaporites [186].
When a solid substance is in contact with a liquid, four different phenomena can be observed: (1) dissolution; (2) chemical reactions; (3) absorption limited to the surface; (4) electrostatic/steric repulsion/wetting. The first two are favourable in promoting consolidation in ULES. Solvates formed from the interaction between solvent and solute might have profoundly different physical and chemical properties from those of the starting parent materials. Such differences might explain why, in some instances, sinterability only occurs in the presence of a liquid rather than in dry conditions. In ULES any liquid could be employed, the liquid should be selected accounting for processability (solubility, evaporation temperature) and targeted chemical reactions.
Another way to describe solvation and hydration is through the free energy change of both solute and solvent. The process is parameterised through the standard molar Gibbs free energy of new compound formation (ΔGfo), which expresses the change in the Gibbs free energy [187-189]. The ΔGfo of hydration is known for several materials [187] at 1 atm and 298.15 K. External pressure in CSP and HHP processes might affect these values as theorised in Ref [190]. Hydroscopic compounds tend to chemically absorb water on the surface of their particles, suggesting the possible formation of secondary phases that could play a significant role in accelerating consolidation.
Processing route, solubility, ionic species.
Processing route, solubility, ionic species.
The solubility limit can also be affected by external physical conditions, such as temperature and pressure [212,221,228], and internal chemical parameters (pH and the nature of the solvent). The higher the solubility limit the higher the quantity of dissolved species taking part in the sintering. The interphase formed between the sintering particles can be either amorphous or crystalline, and detailed analysis of the formed interphase is scarce in the literature. Schenk and Urai [184] studied the interphase that formed in NaCl using cryo-SEM, allowing a complete identification of water-rich boundaries that would not be possible using conventional SEM. Such inter-particle boundaries are highly mobile in the presence of a water-rich phase (brine or film). In wet ULES the use of additional heating might contribute to the drying of these grain boundaries. Further work should be dedicated to understanding the relationship between the nature of grain boundaries (i.e. crystalline or amorphous), their thickness and processing parameters (pressure application, temperature, heating and cooling rates) on the grain boundary characteristics. The nature of grain boundaries in samples made by wet ULES can be distinctly different to those processed by conventional means.
The thermodynamic stability of cation–ligand complexes is governed by the properties of the ligands, ions and the type of bonding. The cation–ligand interaction is an example of the Lewis acid–base interaction. [163] Lewis bases (ligands) can be divided into two main categories:
Hard bases, including small, relatively non-polarisable donor atoms (e.g. C, N, O, and F); Soft bases, containing larger, relatively polarisable donor atoms (e.g. P, S, Cl, Br, I).
Based on the soft–hard definition [163], we can explain why in nature most first-row transition metals are isolated as oxide ores (hard nature), while copper, zinc and most of the second- and third-row transition metals occur in nature as sulfides (soft nature). Atoms in the periodic table [229] can be grouped as hard cations (all electrons removed from the outer shell), like Na+, K+, Mg2+ shown in Figure 6 (a), intermediate cations (some electrons remain in the outer shell), early transition metals cations and hard–soft anions. Dissolved metal ions form metal aquo complexes with the general formula
, in which oxygen atoms of the water molecules form covalent bonds with the metal ion. Unavoidably aquo complexes tend to hydrolyse by the following acid–base reaction as described by Richens [230].
As a matter of fact, very weak acids, such as Na+ and K+ (z/r ∼ 1) show an almost imperceptible hydrolysis. Divalent ions with a large radius, such as Ca2+, Zn2+, and Pb2+ non metal ions with five of higher oxidation states forms oxo-ion. For example vanadium (V) ion V5+ (z/r ∼ 8) forms VO2+ cation and the resulting aquo oxo-ion complex has the following structure [VO(H2O)5]2+.

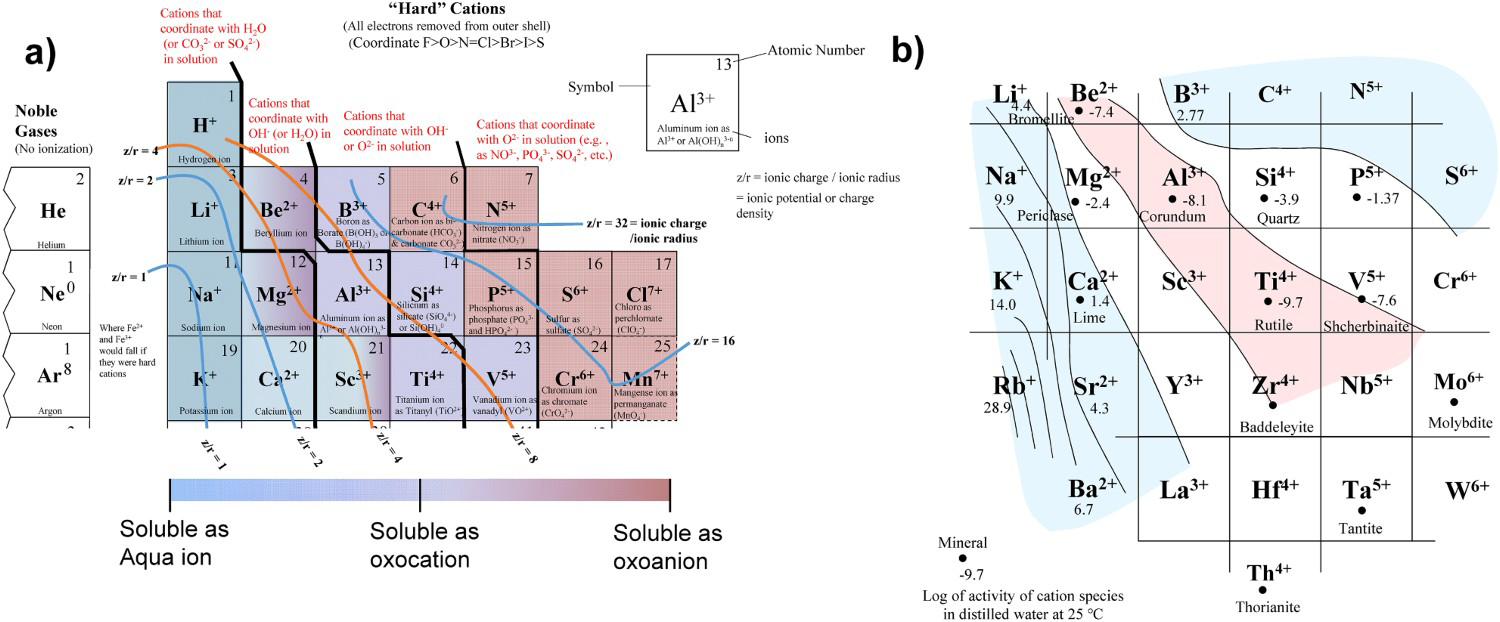

(a) Aqueous geochemistry and speciation of ‘Hard’ (also referred to as ‘Type A’) Cations (All electrons removed from outer shell). Extract of periodic table from an Earth Scientist's Periodic Table [229]. Ionic potentials follow the order F > O>N = Cl > Br > I>S (isolines). (b) Logarithm of the solubility of their oxide in water at 25 °C [229].
Hydrolysis is directly correlated to the ionic potential of metal ions, however, it can be suppressed by acidification of water if necessary to avoid species precipitation during CSP. For example, the CSP of ZnO occurs in acid solution because it limits hydrolysis, see Equation (4). The mechanism of dissolution precipitation preferentially involves the aqua complex
instead of hydroxides. Aqua complexes and metal hydroxides can be dehydrated by thermal treatment at a range of temperatures from 50 °C to 600 °C. Low hydrolysable CuBr2·4H2O becomes anhydrous below 100 °C while NaOH is converted to Na2O above 500 °C. The presence of water can be expected in wet ULES materials if the dehydration temperature exceeds the sintering temperature. In such cases, further heat treatment might be necessary to completely remove water. Conversely, CSP is rarely reported for species that undergo extensive hydrolysis, e.g. Be2+ (z/r ∼ 8), Fe3+ (z/r ∼ 6) or Al3+ (z/r ∼ 8).
As presented in Figure 6, the solubility of hard cations is linked to the ratio of ionic charge to ionic radius (z/r), known as the ionic potential. As shown in Figure 6 (a), hard cations with an ionic potential of 1+ in water like Li+, Na+, K+, tend to form hydrated cations (aquo-ions), whereas hard cations of ionic potential of 2 and 3 like Mg2+, Ca2+ Be2+, Al3+, Si4+ form hydro complexes like BeOH+,
,
,
. The coordination number, n, of a substance with water (·nH2O) depends strongly on thermodynamic properties such as the ionicity of the bond, the cation's electronegativity, the ionic radius, and the volumetric water capacity [231]. The polynuclear hydrolysis products are unstable ions (i.e.
) which have a tendency to precipitate and hinder sintering (not promoting mass transport).
For oxides and fluorides, higher solubility occurs for weak cation to anion attraction (low ionic potential of the cation or large ionic radius). For nitrates and sulfates high solubility corresponds to high ionic potential. This behaviour is for complexes of halides of silver, mercury (soft cations), sodium and magnesium (hard cations) (see inset 8 in Ref [229]). In Figure 6(a) hard cations are grouped with respect to their coordination (see red text), suggesting a relationship with the preferred anions (OH–, NO3–, PO43–, SO42–) for promoting dissolution in wet ULES. This, for example, is consistent with the enhanced solubility of SiO2 in a basic environment.
The ionic potential expresses the density of charge of each ion and it is considered to be a useful parameter to normalise its ‘ionic strength’, i.e. how strongly it attracts oppositely charged ions, repels like-charged ions, and how easily the ion can interact with O2– (or other anions) to form stable bonds [229]. A relationship between ionic potential and solubility of the oxides was presented by Railsback in 2003 [229]. Figure 6(b) reveals that the highest stability and reduced solubility is displayed for oxides with metal ions having an ionic potential falling in the range 4 to 8. Group IV metal oxides indeed, are among the least soluble metal oxides, showing the lowest amount of dissolved ionic species, see Figure 6(b). Outside this range, the solubility limit and kinetics of materials increases (see V2O5 and silica based compounds in Table 3).
For ionic substances, the higher the permittivity of the solvent (ε), the greater the ability of the solvent to dissolve an ionic lattice by decreasing the intermolecular energy of ions and polar substances. Since the strength of an ionic bond follows Coulomb's Law, it is directly proportional to the product of the charges on the ions, inversely proportional to the square of their distance, and inversely proportional to the dielectric constant of the solvent [232,233].
The ability to ‘dissolve’ a solid should not be confused with solubility. Dissolution of a covalent network solid implies the breaking of covalent bonding or chemical reactions between solute and solvent, e.g solvolysis (hydrolysis for water). The dissolution of a pure covalent network is an irreversible process, and only few examples in the literature are reported for wet ULES of covalent materials. For some materials insoluble even in strong acid or alkaline conditions, CSP is still applicable but the formation of the supersaturated liquid, needed to trigger the densification, is reached by tailored chemical reactions paths. It is possible to play with the chemistry of the solvent, which determines the solubility, the rate of dissolution and the nature of the dissolved species. For example, ZrO2 has different dissolution dynamics if suspended in HF, HNO3 or H2SO4 [215,234,235]. Or it is possible to pre-load the ionic species in the solvent. For example, Y3+(aq) ions have been obtained by dissolution of Y(NO3)3 in water [136,236]. Another example of pre-loading was used for covalent bonds, such as MoS2/graphite composites which were cold pressed at 520 MPa for 1 h and reached a density of 90%. In this case, the dissolution of Mo and S inorganic/organic precursors in water contributed to the formation of covalent bonds [72]. Using a similar approach, diamond film was formed starting from 1,1,1- trichloroethane under alkaline HHP conditions (≈1 GPa, 10 M NaOH, 300 °C, in the presence of a catalyst) compacted using diamond-substrates.
The use of a water based solvent might result in the formation of hydroxides during wet ULES, which would require temperatures well above 300 °C to convert the desired oxide phase, as in the case of ZnO [147]. To avoid the formation of undesirable hydroxides (due to hydrolysis) the use of non-aqueous liquids in CSP is desirable but is limited to a few stable molecules. Dimethyl sulfoxide (DMSO), ketones and dimethyl formamide (DMF) are some examples of polar aprotic solvents able to dissolve cations avoiding hydrolysis. C1-12 alcohols, carboxylic acids and nitro compounds belong to the class of protic solvents. Hong et al. [237] have shown the CSP of low permittivity metaboric acid using ethanol as protic non aqueous solvent obtaining better results than by dry CSP. DMSO has been attempted with good results in the CSP of ZnO and MnO by Kang et al. [147].
Table 3 reports the solubility at 25 °C and the resulting ionic species for several ceramics which are typically processed using ULES in presence of an aqueous solution. The efficiency of the HHP and CSP reactions is related to both the solubility limit and the kinetics of dissolution. Different allotropic forms could have different solubility limits, such as for amorphous silica and quartz [193,197] (see Table 1). The pH of the solvent also strongly affects the dissolution kinetics – for instance, lower values of pH increase the kinetics of dissolution of ZnO in aqueous solution [204,238,239]. Similarly, the size of the particle increases the velocity of the reaction, as the k coefficient is directly proportional to the surface area of solid particles [240-242]. The data reported in the table matches well with the distribution of papers shown in Figure 7.

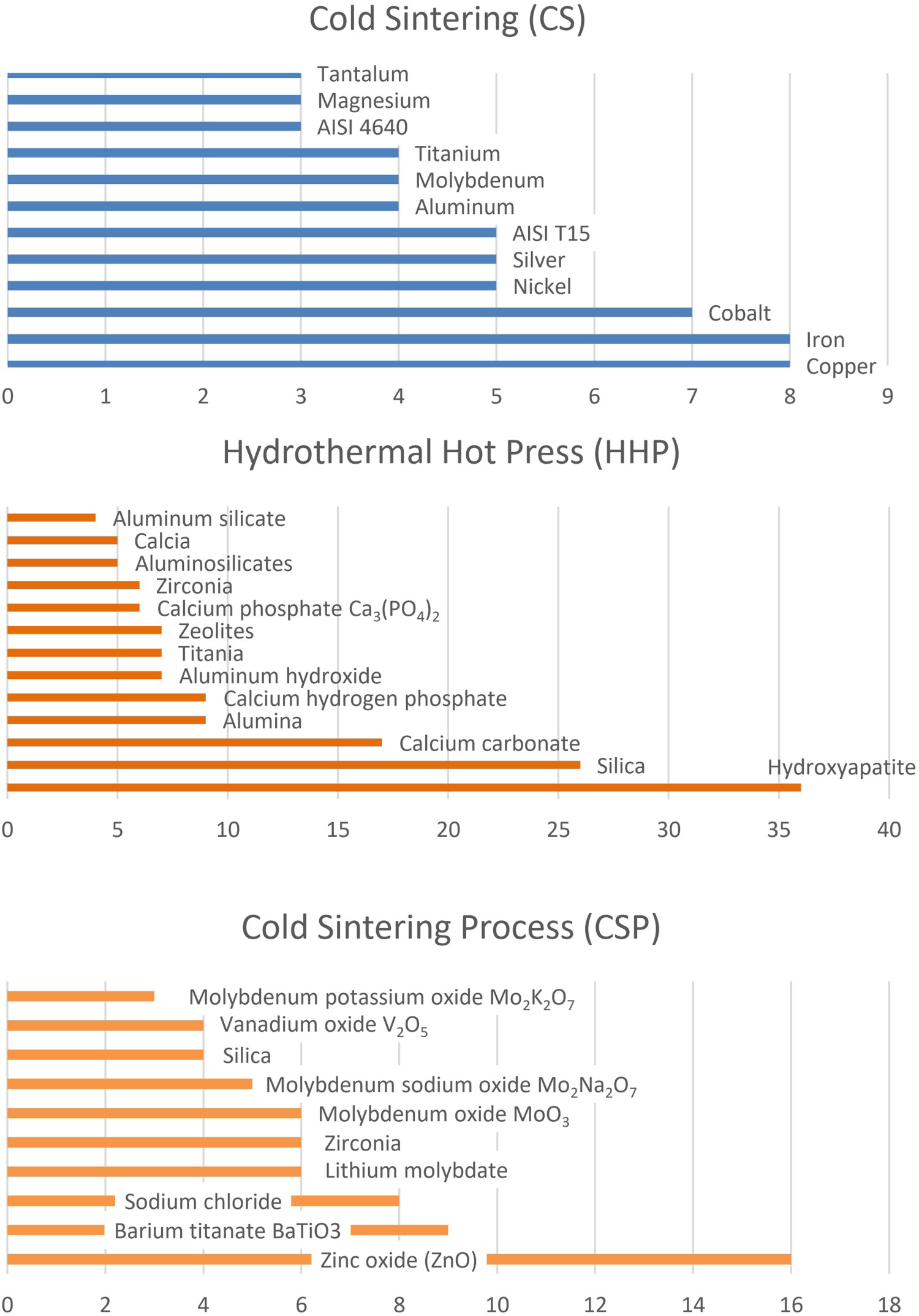

Cumulative number of papers of typical materials processed using CS, HHP and CSP. According to Marie et al. [136], more than 50 materials have been processed using CSP. Considering the chemical composition presented in Table 1 and their combinations (metals/ceramics and organics/ceramics) the list of materials processable by ULES could become endless.
It is worth recalling that sintering is controlled by a thermodynamic factor (driving force) and by a kinetic factor (atomic mobility). The driving force is a gradient in the chemical potential of atoms induced by pressure differences at the microstructural level, driving material to the neck surface. In conventional sintering these pressure gradients are caused by surface tensions and curvature. In ULES, in particular HHP and CSP, the application of an external pressure during room temperature consolidation therefore has the effect of increasing this driving force.
The external pressure is also expected to modify the solubility of the ceramic system [243] according to:
and
are the solubility in the absence and presence of an external pressure (
), respectively;
and
are the molar volume of the solid and the apparent molar volume of the solid dissolved in the liquid, respectively;
is the absolute temperature and
is the perfect gas constant.
The application of an external pressure (Pe, is expected to clearly increase the solubility at the inter-particle contact point as depicted in Figure 8(a) because of constriction effects. This aspect is discussed in more details in Ref. [246]. However, exceptions exist where the solubility decreases as pressure increases. The most important factors affecting

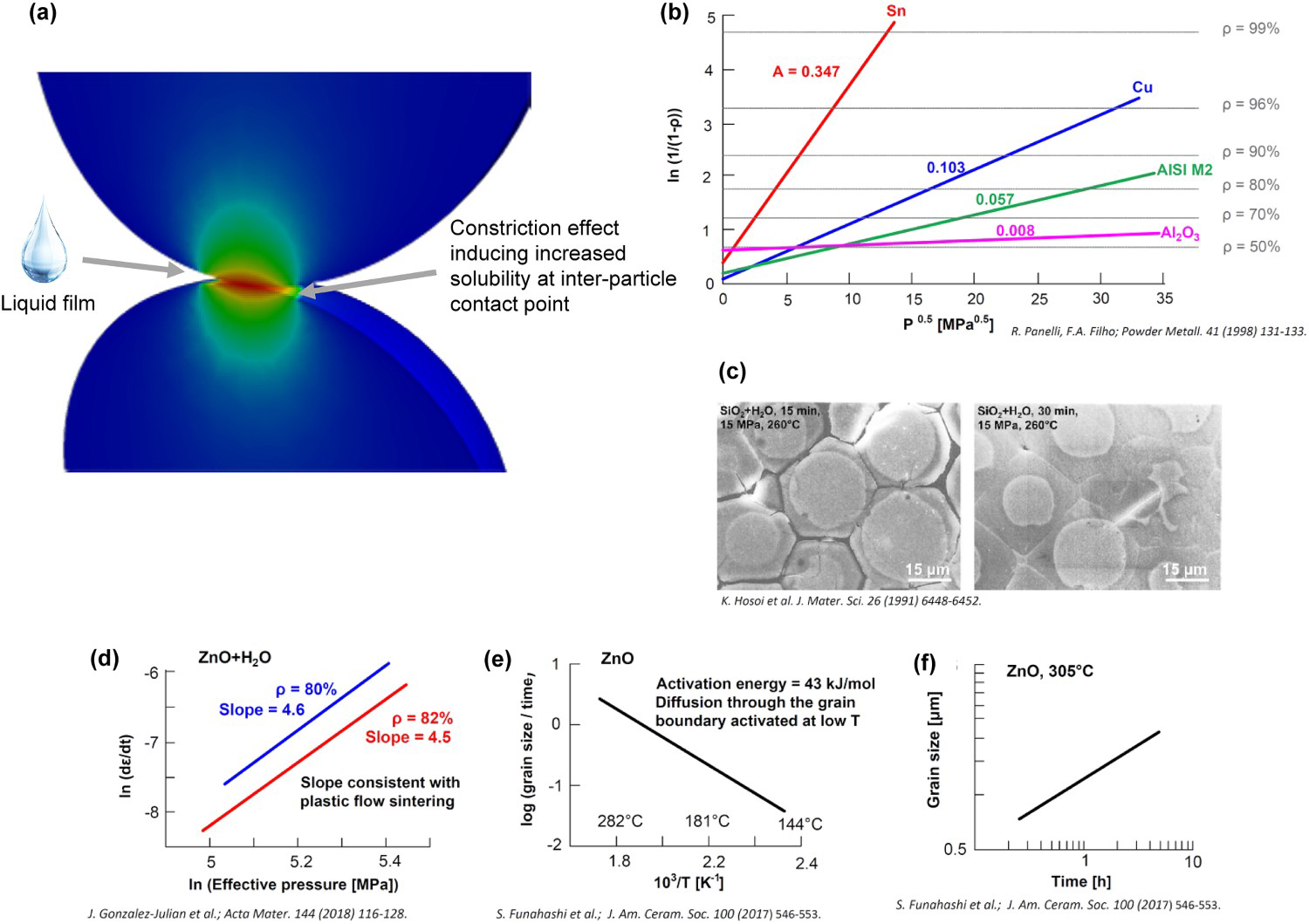

An overview of the room temperature consolidation mechanisms in metals and ceramics: (a) Hertizian contact between two sintering particles showing an increased stress at the contact point which might contribute to increased solubility at the neck during ULES; (b) Application of the Panneli and Filho equation applied to several dry pressed materials (adapted from [179]); (c) formation of a hydrated layer during HHP of silica (taken from [244] and re-printed with the permission of the editor); (d) sintering kinetics during CSP of ZnO showing plastic flow sintering (adapted from [245]); (e) and (f) grain growth kinetics in ZnO during CSP, indicating that grain boundary diffusion is activated even at low temperature (adapted from [204]).
are the differences between the compressibility of the solvent and the solute and the polarity of the system, substances dissolved as ions in polar liquids usually exhibiting
(and thus pressure-enhanced solubility) [247]. Since CSP and HHP are in general carried out using water as a solvent, this results in a solubility increase with the pressure. Exceptions are for instance represented by systems containing molten silicates and solid silicate minerals, where the solubility decreases with the pressure [247]. Similarly, the solubility can be enhanced by increasing the temperature of the system. However, opposite trends are seen for a number of compounds like calcium chromate, calcium carbonate, calcium hydroxide, calcium sulfate and cerous sulfate [248].
Nano sized particles are subjected to strong internal stresses (
, where
is the particle size and
the surface tension) due to the surface tension. The solubility of the particulate, by reducing the radius, is therefore enhanced by a factor
given by the Ostwald-Freundlich equation. This effect is significant for very small particles, and for 15 nm particles the solubility is increased by several folds (even up to 10 times), and the resulting solution is unstable and Ostwald ripening will occur. These sizes, even if they are significantly smaller than the typical particle size in ULES, might still play a significant role in mass transport during sintering [249]. Future work should be dedicated to these unknown aspects.
The sintering mechanisms active during ULES, both on the atomistic and particle size scale, are the subject of continuing debate. Whereas the mechanisms leading to metal powder compaction during dry cold pressing in CS are quite well established (see Figure 8(b)), open questions remain concerning the role of water in HPP and CSP. Using atomistic simulations Sengul et al. [249] suggested hydroxylation during CSP in the presence of acetic acid solution, which generates surface complexes, accelerating the surface diffusion by an order of magnitude.
An overview of the possible sintering mechanisms active during near room temperature consolidation is presented in Figure 8. Densification requires atomic flow from the neck centre to its surface; thus, it requires mass transport phenomena to be activated. Mass transport can take place through plastic flow (i.e. dislocation motion and twinning in CS), viscous flow or atomic diffusion. Indeed, solid state atomic diffusion in metals and ceramics at room temperature is unlikely in most cases because of the relatively large energy barrier for diffusion (usually of the order of a few hundreds of kJ mol–1). Diffusion can, however, be activated in the liquid phase or in highly defective interfaces resulting from the reaction between the liquid and the solid. From this point of view, the addition of a liquid phase is expected to change the kinetics of sintering rather than its thermodynamics.
Theoretical mechanisms of consolidation have been discussed in a separate paper in the case of wet conditions (CSP/HHP) [246]. The work suggests that consolidation does not follow conventional liquid phase sintering (LPS) based on pressure-assisted dissolution in liquid water (in the neck centre) and precipitation (in the neck external surface). The limited knowledge in material science on mechanisms of consolidation in wet ULES could clearly benefit from the deeper understanding in geology, which uses NaCl as a model system. Fluid assisted grain boundary migration has been demonstrated by Schenk and Urai [184] to be effective in reducing dislocation density in NaCl. Dislocations can be annealed out even at room temperature because their stored elastic energy is sufficient to drive the process. Dislocation creep process takes place within the crystal lattice of the halite grains, and this mechanism becomes even more effective when water generates interactions within the bulk of a grain. Solution precipitation creep, or ‘pressure solution’, is a process, which occurs at the grain boundaries, and therefore relevant to sintering. Schutjens and Spiers [250], using contact dissolution analysis, reported that in the presence of a small amount of grain boundary brine (saturated NalCl solution), atoms dissolve at highly stressed boundaries, and diffuse through the fluid towards less stressed areas where they crystallise. This process results in intergranular sliding and rotation (grain rearrangement), and it has been demonstrated to be responsible for the compaction of salt particles [184,251].
In synthesis the mechanisms operating during CSP/HHP, they are not limited to dissolution/re-precipitation processes through a liquid phase. They are expected to be various and dependent on the interactions between the solvent and the material to be sintered. These mechanisms could involve:
Liquid-assisted lubrication. The presence of water facilitates the sliding, rotation and rearrangement of grains. This is expected to occur in the initial part of sintering and represents a key feature of any LPS process [243,252]. However, this mechanism only has the effect of increasing the initial density of the compact and does not produce real sintering with neck formation. Formation of a thick second phase on the powder surface. The formation of a hydrated (or any reaction with other liquids) second phase on the particle surface causes plastic flow sintering under the effect of the external pressure. Hydrated compounds usually have a relatively low plastic flow stress. However, to attain high densification levels the hydrated layer should be thick enough to accommodate the sintering deformations. This is the case for silicate glass spheres processed under hydrothermal conditions, where a hydrated layer of several micrometres forms in a few minutes at 260 °C by a reaction with water [244] (Figure 8(c)). These effects are accelerated in a caustic environment [253]. Here a key role involves the free energy of hydration of the oxide [190], which governs the formation of the corresponding hydroxide. Other factors that are expected to influence the hydroxide formation are its morphology, its solubility and permeability by water. Formation of lattice disorder by water-material reaction. Lattice defects can be formed by the interaction between water and the material on the particle surface. As sintering proceeds, and surfaces are converted to grain boundaries, defects are expected to concentrate in these regions. Defects might influence the local grain boundary diffusivities and plastic flow stresses. Liquid penetration from the surface of the particle toward its core might be accelerated by micro cracking [254] under the applied pressures. Gonzalez-Julian et al. [245] pointed out that the formation of protonated disorder at the grain boundaries of ZnO during CSP (
Liquid-assisted dislocation motion and recrystallisation. Plastic deformation by dislocation motion appears to have a dominant effect in some alkali halides in the presence of water as also confirmed by Kingery et al. [255]. Here the authors concluded that although LPS cannot be completely ruled out, a pivotal role during densification is played by plastic flow, which is strongly accelerated by the presence of water. The origin of this enhancement is not completely clear, but might be linked to some geological studies on rocksalt creep by Urai et al. [251]. They found that even a few ppm (> 10 ppm) of adsorbed water brine at the grain boundary of natural rocks favours dynamic recrystallisation processes, which reduce the dislocation density and the plastic flow stress (reduction of the order 25–50% [251]). Liquid phase-assisted pore shape modification. Water is expected to accumulate in porosity. There it accelerates mass transport from convex to concave pore surfaces (thus promoting neck growth). However, this kind of mass transport (analogous to surface diffusion-controlled sintering) does not produce densification, as the total pore volume does not change. It only produces a modification of the pore shape. This phenomenon appears quite similar to crystal caking, where hygroscopic salts tend to agglomerate forming solid lumps [256].
) facilitates densification by grain boundary sliding or plastic deformation [245] (Figure 8(c)). The pivotal role of such densification mechanisms was also confirmed by the measurement of a non-linear densification rate vs. pressure relation, which cannot be accounted for by LPS, but is instead consistent with plastic deformation [245]. The presence of ‘special’ grain boundaries in CSPed ZnO is also supported by Funahashi et al. [204], who observed unexpected grain growth kinetics at only 305 °C (Figure 8 (e,f)). Grain coarsening was strongly accelerated in CSP and governed by a very low activation energy: 43 kJ mol–1, instead of ∼200 kJ mol–1 for conventional sintering. In other words, ZnO produced by CSP has an activation energy for diffusion through the grain boundary of about 20% of the theoretical value. While this is a very rough approximation (not accounting for the diffusion pre-exponential constant), it does suggest that diffusion through grain boundaries may well be activated during CSP. If one also assumes a similar decrease in the activation energy for diffusion parallel to the grain boundary, then, it is even more probable that grain boundary diffusion-based sintering is activated during CSP of ZnO.
Other phenomena take place beyond sintering in CSP and HHP, especially if the water load is high enough to produce a ceramic suspension in the early stages of the process; these are associated with Ostwald ripening and re-crystallisation. The ULES temperatures and pressures are expected to increase the solubility of ceramics, thus accelerating mass transport phenomena as in hydrothermal crystal growth. This results in accelerated coarsening mechanisms (Ostwald ripening). On the other hand, the possibility of dissolution and re-precipitation might allow the formation of new phases, as in the case of the natural formation of quartz crystals due to the dissolution and re-precipitation of volcanic silicate rocks [257].
Conclusions and future trends
A key aspect of Ultra-low energy sintering (ULES) is the reduced (even exceeding 90%) external energy requirement (and associated CO2 footprint) compared to conventional sintering processes, and consequently its potentials as a sustainable manufacturing process for advanced materials. ULES could replicate biomineralisation and lithification processes, which are the greenest way of producing ceramics and their composites. The versatility of ULES opens up the possibility of ‘all-in-one-step’ consolidation of inorganics and hybrid organics/inorganics to produce advanced functional devices (sensors, batteries, 5G antennas, meta-materials, multi-layer capacitors and bio-composites). The low processing temperature brings other advantages, such as suppression of volatilisation of hazardous elements seen in conventional processing, elimination of heat distortion, avoidance of thermal decomposition/degradation, thus paving the way for unexplored inter-particle grain boundary design.
While the process is defined by four main parameters – liquid, powder, heat and pressure – it involves complex and partially unknown phenomena. It is proposed that a synergistic knowledge-base, ranging from material science and engineering to palaeontology, from physics to chemistry could aid our understanding of these techniques to advance their technological/scientific impact. Unlike conventional firing techniques, ULES offers the unprecedented opportunity to integrate sintering with biology, chemistry, geology and engineering. A multidisciplinary scientific approach in understanding ULES could provide a paradigm shift in materials processing leading to a significant impact on the energy, health and environmental sectors.
A survey of different techniques related to ULES suggests different effects in dry, wet and hydrothermal conditions. The comparative analysis allows us to build a general understanding and promote the development of hybrid techniques, where the amount of liquid related effects can be modulated during each stage of sintering.
Several fundamental questions related to ULES still remain open. The particle surface modification induced by a pressurised liquid, which is clearly a distinctive feature of ULES, remains rather unexplored. We have limited understanding about the inter-particle grain boundary formation during sintering, which is essential in order to control the chemistry, stoichiometry, microstructure and atomic ordering of the final body. Considering the different ULES techniques, we are still unable to rationalise the processing parameters (pressure, temperature, time and amount of liquid) during different stages of sintering. Apart from plastic deformation induced effects, without any doubt, the presence of liquid is a key parameter to accelerate densification in ULES. However, liquid drying rate, which is currently poorly controlled during sintering, is expected to push the development of experimental setups with improved control and reproducibility. Taking inspiration from nature (bio-mineralisation, lithification, evaporites), future work should clearly suggest alternative approaches to enhance ULES densification by replacing the use of brutal forces (≈0.5 GPa), which are only applicable to small samples (≈10 mm diameter), with a more gentle approach possibly based on prolonged pressing times (from minutes to tens of hours) and more optimised chemical reactions during sintering. Future work should use model systems to build sintering models able to capture the dynamic evolution of liquid-assisted ULES. A deep understanding of past work allows us to define working principles and the potential of the technique. The lack of understanding of the sintering mechanisms from the material science perspective can be addressed through established knowledge in the field of geology where plasticity, grain boundary mobility and recrystallisation have been investigated for many years.
In the future, mass production of ceramics using ULES is expected to provide a significant breakthrough in establishing a greener manufacturing route, while opening the door to new materials and applications. The exponential growth of research into ULES is expected to support the development of a wide range of functional materials; this can only be achieved by understanding the triangle of processing-microstructures-properties. Materials properties can be tailored at the grain boundary level by identify a suitable liquid (‘a sauce’) able to engineer chemical composition, grain boundary mobility and degree of crystallisation.
