Phosphate glass fibres with therapeutic ions release capability

Abstract

Phosphate-based glasses (PBG) have low melting temperatures and can be obtained by melt-quenching and sol-gel methods. The most significant characteristic of PBG is their ability to dissolve completely in aqueous solution within different timeframes. This solubility can reduce the need for revision surgeries and makes PBG well-suited for soft tissue regeneration. Phosphate glass fibres (PGF) due to their geometry and volume–surface area ratio are the subject of a growing number of studies on resorbable composites. Medical applications include bone fixation devices, nerve tissue scaffolds and wound healing. PBG can be doped with various ions to enhance their biological, chemical and structural properties allowing the preparation of fibres with designed properties and with the ability to release biologically active ions upon degradation. The aim of this review is to look in detail at the influence of different dopants on PGF behaviour, both at a structural and biological level.

Keywords

Phosphate glass fibres soluble glasses therapeutic ions metal ions bone bone fixation devices soft tissue regeneration hard tissue regeneration

Phosphate-based glasses

Phosphate-based glasses (PBG) may be divided into three groups according to their P₂O₅ content. Ultraphosphate glasses (2.5 ≤ [O]/[P] < 3) contain more than 50 mol-% of P₂O₅, while metaphosphate glasses ([O]/[P] = 3) contain 50 mol-% of P₂O₅ in the glass. The structure of these two types of glasses is built upon chains and rings however chains represent more of a polymeric linear structure than a 3-D network. Polyphosphate glasses with [O]/[P] > 3 have less than 50 mol-% of P₂O₅ and the glass network preferentially forms chains and rings terminated by Q¹ diamers [1,2]. Invert glasses are a class of phosphate glasses called ‘pyrophosphate’ with less than 33.3 mol-% of P₂O₅ formed by orthophosphate and pyrophosphate groups. Invert phosphate glasses are more resistant to hydrolysis but difficult to manufacture due to a narrow processing window [3] (define as the onset of crystallisation temperature decrease by glass transition temperature [4]).

In glass technology, oxides can be divided into three groups: (i) network forming oxides (e.g. SiO₂, P₂O₅, B₂O₃), (ii) network modifying oxides (e.g. CaO, MgO, SrO, BaO, PbO, ZnO, Na₂O, Li₂O, K₂O) and (iii) intermediate oxides (e.g. oxides of: Ga, Ti, C, V, Bi, Mo, W, S, Se, Te) [5] which can act as both network formers and network modifiers. In addition, many other elements can be used as dopants to improve the properties of PBG. Crystallisation tendency, mechanical properties and stability against hydrolytic attack are all features which are dependent upon the charge-to-size ratio of the network modifier ion. This ratio determines the strength of the ionic cross-links between two non-bridging oxygens. A large charge-to-size ratio results in creating bonds more resistant to hydrolysis and lowers the crystallisation tendency. When the phosphate structure is more disrupted, and the phosphate structural domains are smaller, the tendency for the glass to crystallise is higher. Moreover, a decrease into the cross-linking of PBG results in a lowering of the glass transition temperature.

The ability to control properties is a great challenge when designing materials for medical applications as they need to have very specific chemical composition and physical and biological properties. PBG with the appropriate composition can be highly soluble so that when they are implanted into the body they will dissolve completely after a certain period of time. Indeed, phosphate glasses can be considered as a reservoir of biologically active ions, which can be released in the body upon dissolution of the glass.

The inclusion of trace elements into PBG not only improves their properties but can also have beneficial effects from a biological perspective (Figure 1). Trace element biology relates to a number of various chemical elements that occur naturally in very small amounts in organisms and are essential for many physiological and biochemical processes [6]. In addition to the active research in the areas of pharmaceutics and medical devices, there are examples of the application of phosphate glasses in the agriculture and veterinary fields [7]. The trace elements such as copper, cobalt or selenium have been added to PBG to obtain a soluble glass bolus for the veterinary application. Molybdenum deficiency in plants has been fought through controlled release of ions from PBG [8].

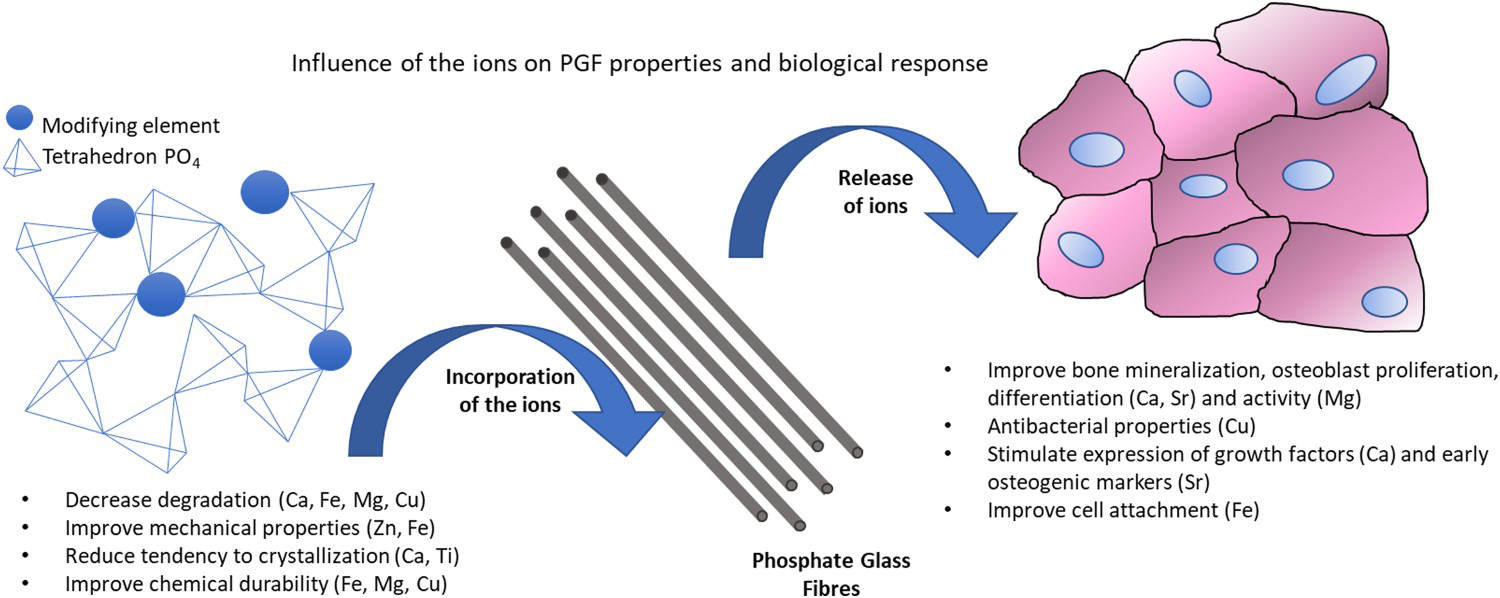

Figure 1

Influence of metallic ions on PGF properties and cell response.

Phosphate glass fibres

Phosphate glass fibres (PGF) have an interesting morphology which gives them an advantage over traditional bulk glasses. This morphology means they exhibit great potential as materials for regeneration of tissue with a medium to high anisotropy like muscle or ligament [5].

In the work of Massera et al. [9] the authors focused on the differences between glass fibres and bulk glasses in the composition 50P₂O₅–40CaO–10Na₂O (mol-%). The fibres were obtained via the melt–drawn spinning process. Both bulk glass samples and fibres were incubated in simulated body fluid and Tris(hydroxymethyl)aminomethane (TRIS) solution. The following observations were made based on DTA thermograms and Raman analysis: (i) fibre drawing leads to preferential orientation of P–O–P bond (most likely along the axis) and (ii) tendency to crystallisation is lower for fibres than for bulk materials [9].

No other significant differences were observed proving that fibres have the same structural properties as bulk glasses. However, the main difference between them is the thermal history considering that melt-spun fibres undergo fast cooling (which helps avoid crystallisation) but bulk glasses are annealed to control their cooling rate [10]. Those results have been confirmed by Munoz et al. [11] who showed no significant structural differences between bulk glasses and glass fibres.

Solubility of PBG and PGF

PBG and PGF can resorb completely in aqueous solution [12]. However, for practical reasons glasses with very limited durability are not always desired. For example, PBG with very fast dissolution rates has been shown to decrease proliferation [13] and disturb the expression of the bone-associated proteins [13]. The high solubility of PBG is caused by the presence of Q³ tetrahedra characteristic of pure vitreous P₂O₅. Introducing R₂O oxides results in depolymerisation of the Q³ units and the formation of new Q² units, however the incorporation of Na₂O does not reduce the solubility of binary PBG. As an alternative, the RO/P₂O₅ system has been developed and investigated by Toyoda et al. [14] who showed that the viscosity of glass decreases with the ionic radius of the glass modifier. Despite improving the durability, CaO–P₂O₅ glasses are difficult to process due to their high thermal expansion coefficients. To overcome the described difficulties associated with binary systems, the P₂O₅–CaO–Na₂O ternary composition has been extensively investigated showing both promising biological properties [15 -18] and reasonable degradation rates [19]. Several studies have been carried out on this material proving its potential for use in medical applications [13].

Biological response to PBG and PGF

The influence on soft and hard tissue of PBG has been comprehensively investigated using glasses in the system: 50P₂O₅–(48–30) CaO–(20–2) Na₂O (mol-%) [20]. Four different human cell lines were used: MG63 cells (human osteosarcoma delivery cell line) as representative of osteoblastic behaviour, human oral osteoblast (HOB), human oral fibroblast (HOF) and human tendon fibroblast (HTF). Tests showed that glasses with less than 40% CaO do not support MG63 attachment while the best cell attachment was observed for glasses with 48% of CaO. Despite the fact that round HOB cells were observed on all glasses, only fibres with composition 50P₂O₅–48CaO–2Na₂O (mol-%) led to the best response of bone sialoprotein and osteonectin – the proteins responsible for bone mineralisation. Similar results were reported for HOF and primary cells, where adhesion was not observed for all glasses apart for those with the highest amount of calcium oxide. Spread morphology and cytoskeleton of HOF cells were also observed to be similar to those of the positive control. It has been proven that ternary PBG with a high level of CaO (45 mol-%) and 50% of P₂O₅ are suitable for both hard and soft tissue regeneration by supporting cell attachment, proliferation and further survival of the cell [20]. The studies have been confirmed by Salih et al. [13,21] who investigated ternary phosphate glass compositions on two human osteoblast cell lines, MG63 and HOS (TE85). The results showed that a higher amount of CaO (40 mol-%) in glasses with fixed 45 mol-% of P₂O₅ is beneficial for adhesion and cell proliferation. Skelton et al. [15] performed studies on PBG with 50 mol-% of P₂O₅ investigating their role in osteoblast and osteoblast-like proliferation, differentiation and death using human bone marrow stromal cells (hBMSCs) and human foetal osteoblast 1.19 (HFOB). Again, a strong correlation between dissolution rate and cell response was reported. Degradation and processes related to it like ion release, hydration and hydrolysis have a great impact on cells. Moreover, the loss of surface integrity associated with glass dissolution can disturb adhesion of cells leading to poor proliferation or differentiation. Nevertheless, glasses with 48 mol-% CaO have been proven to support osteogenic proliferation and early differentiation [15] and other studies presented in this review suggest promising biological properties of PGF of different elemental compositions.

Manufacturing and modifications methods

There are several fibre manufacturing methods however not all phosphate glass compositions allow successful preparation of continuous fibres [22]. For example, glasses with higher P₂O₅ content (for example 50, 55 mol-%) have a higher amount of infinitely long Q² chains which make them easier to be pulled as opposed to glasses with many short Q¹ units [22].

In general, PGF are obtained by three methods: (a) melt-drawing spinning process, (b) preform technique and (c) pulling from melting solution (Figure 2). Only by using drums with controlled rotation speeds can the fibres be produced with consistent, controllable diameters, with faster rotation delivering smaller diameters: 40 µm (300 rev min⁻¹), 40–23 µm (400 rev min⁻¹), 25–20 µm (880 rev min⁻¹), 20–15 µm (1200 rev min⁻¹), 15–8 µm (1600 rev min⁻¹) and ∼10 µm (2000 rev min⁻¹) [17,19,23 -31].

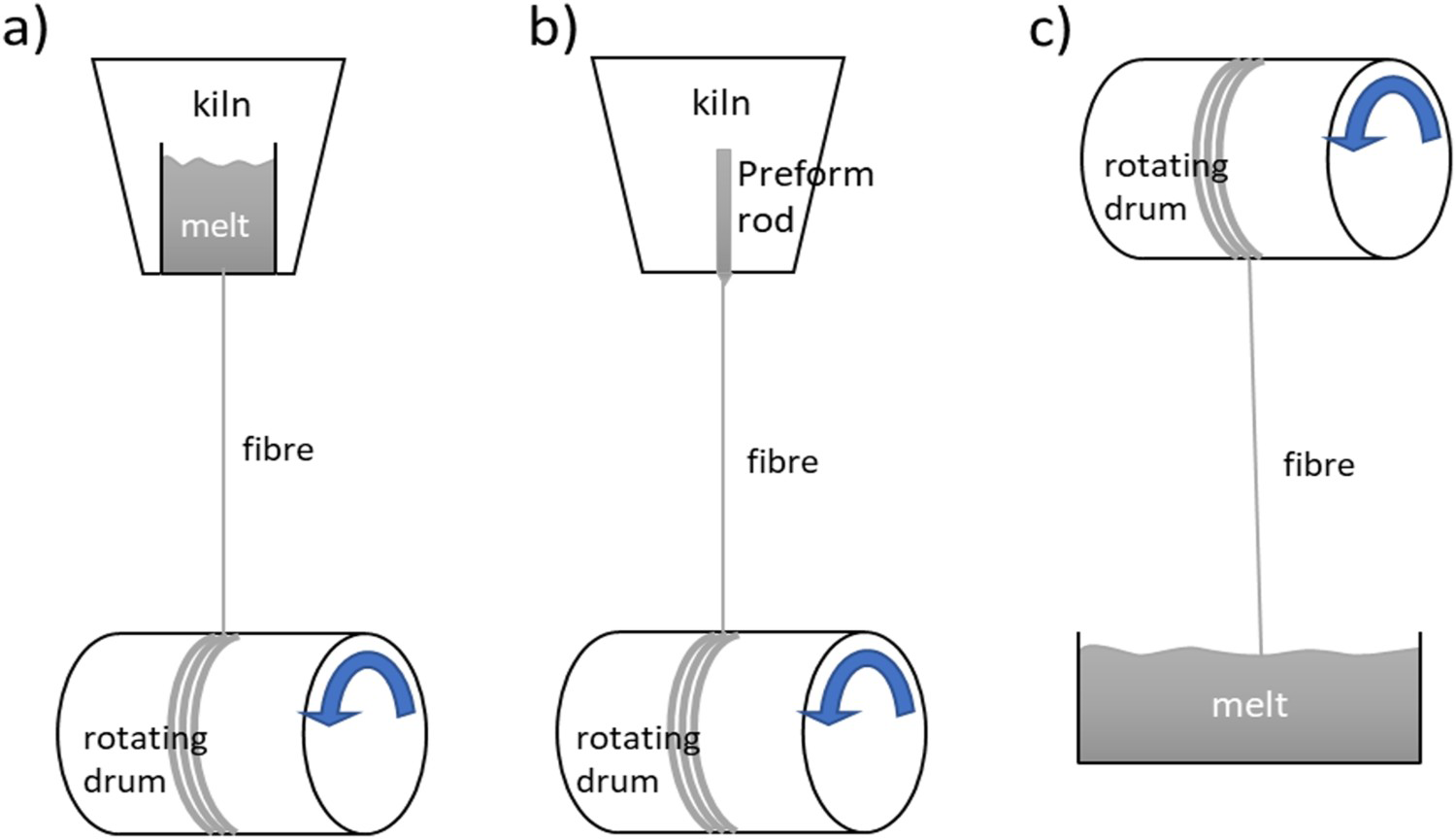

Figure 2

Techniques for PGF manufacturing: (a) melt-drawing spinning process, (b) preform technique, (c) pulling from melting solution, adapted from Colquhoun and Tanner [32]. CopyRights CC BY 3.0. DOI:10.1088/1748-6041/11/1/014105.

Delivery of therapeutic ions – component ions

Most PGF developed for medical application are based on ternary phosphate glasses in the system: Na₂O–CaO–P₂O₅. This base composition is interesting because it contains only elements present in the human body (P, Ca, Na 1, 1.5 and 0.2 wt-% respectively) with important biological roles. Moreover, it is chemically similar to the inorganic phase of human bone [33].

Phosphorus

Orthophosphate PO₄³⁻ is the most abundant form of phosphorus in the body and it is mostly present in bone where it forms hydroxyapatite. Moreover, PO₄³⁻ plays an important role in the cell signalling system, regulation of protein synthesis, skeleton development and bone integrity [34]. Phosphorus is also present in adenosine triphosphate (ATP) and Guanosine-5′-triphosphate (GTP) – the biomolecules responsible for energy transport. In addition, phosphorus is a component of the phospholipids which are important in the development of the cell membrane and stimulate the expression of matrix Gla protein (MGP), a key regulator in bone formation [35].

Other important properties and roles of phosphorus include linkage units of the sugar esters of DNA and RNA; coenzymes such as FMN, NADH, NADPH; signalling molecules such as CAMP [36].

As a network forming oxide P₂O₅ plays a crucial role in the glass manufacturing process. A glass network is made by linkages between the phosphate tetrahedra with the addition of metal oxides causing depolymerisation of the phosphorus-oxygen bond in P–O–P [37]. Pure P₂O₅ glass is rarely used because of its high solubility since P–O–P bonds hydrolyse easily. However, the degradation products are non-toxic and well known to the body due to their natural presence [18]. The addition of Ca and Na results in cleavage of P–O–P linkages due to the creation of non-bonding oxygens (NBO). Even when calcium ions are in contact with two NBO, a link with stronger effects on the network connectivity is created [19].

Calcium

Calcium (Ca) takes part in many biochemical reactions and in every metabolic pathway there is a calcium-dependent step. It controls the mechanical stability of cell walls and membranes and the filament tension in many cells [36]. Intercellular Ca²⁺ level controls processes like muscle contraction, transport processes, cell division and growth, enzyme activation and metabolic processes. Ca is intimately associated with foetal development and hormonal activities [38]. Calcium is an important component of mineralised biological tissues such as shells, teeth and bone (the largest reservoir of calcium in the body) and is typically expressed as calcium salts, carbonates and phosphate-based biominerals. Also, important organelles like mitochondria and chloroplasts depend on a highly controlled calcium level. Calcium controls neuromuscular excitability, proper heart beating, blood clotting, and the degree of hydration of the cytoplasm. Addition of calcium into PBG results in favoured osteoblast proliferation and differentiation, ECM mineralisation and the activation of Ca sensing receptors in osteoblast cells to increase the expression of growth factors such as IGF-I or IGF-II [33].

In phosphate glass networks, calcium has two structural functions, it can both modify the primary glass structure and provide inter-chain cross-linking. In PGF specifically calcium ions provide the cross-link between non-bonding oxygens of the different chains making the fibres more durable, given that Ca decreases degradation and improves the mechanical properties of the glass. Increasing calcium oxide (CaO) can reduce the tendency of crystallisation [2], however only to a certain level. Glasses with 35–40 mol-% of CaO and low sodium level (<15 mol-%) are prone to crystalise [27]. CaO appears in almost all known phosphate glasses for biomedical applications as one of the major components and the Ca amount differs according to the application. High levels of CaO result in Ca/P ratios that are similar to that of the mineral phase of bone, Ca/P ratio is equal to 1.67. Binary calcium phosphate fibres are a popular group of materials which support bone ingrowth [39].

Sodium

Sodium (Na) is an important element in the human body. Na plays many roles: it controls osmotic pressure in conjunction with K⁺ and Cl⁻, controls the electrolytic balance, membrane potential, and condensation of polyelectrolytes. Na along with K takes part in passive diffusion, active transport and ion exchange across membranes. Sodium is also an important component of gastric fluid [36]. Na₂O is important for glass manufacturing because it is an effective flux and reduces the viscosity of the glass melt. However, Na₂O reduces the resistance to chemical attack and weakens the mechanical properties of glasses [11]. According to Van Wazer's reorganisation theory monovalent oxide modifiers like Na₂O disturb the structure of P₂O₅ by breaking bridging oxygen bonds and forming non-bridging oxygens [40]. On the other hand, Na₂O increases the thermal expansion of glass [41], while also increasing solubility and the tendency to crystallise [2].

Delivery of therapeutic ions – dopants

The ternary system ‘P₂O₅–CaO–Na₂O’ has been widely investigated to determine the correlation between composition and cellular activity. However, to achieve better flexibility or durability, incorporation of a quaternary component is usually considered. Indeed some interesting PGF contain five or more different oxides to not only improve biocompatibility or mechanical properties but also to increase the processing windows [2].

Some of the well-known dopants are able to change the biological features of phosphate glasses improving: cell attachment and proliferation and in the downstream steps: tissue regeneration, surface properties of the material, degradation rate and dissolution rate.

The high dissolution rate of PBG and ion release can cause potential risk of allergic reaction or toxicity of dopants. Still little is known about the function of some elements and especially about their safe dose limits; the same element may cause a positive effect in small amounts and become dangerous at higher concentrations [42]. In recent years numerous research activities have taken place to find possible new applications for PGF doped with different oxides, especially as scaffolds for tissue regeneration or as reinforcement of bone fixation devices [43,44].

Table 1 summarises the different elements assessed in the baseline ‘P₂O₅–CaO–Na₂O’ compositions. A commentary on each element follows in which their role in the human body and their impact on phosphate glass fibre properties are discussed.

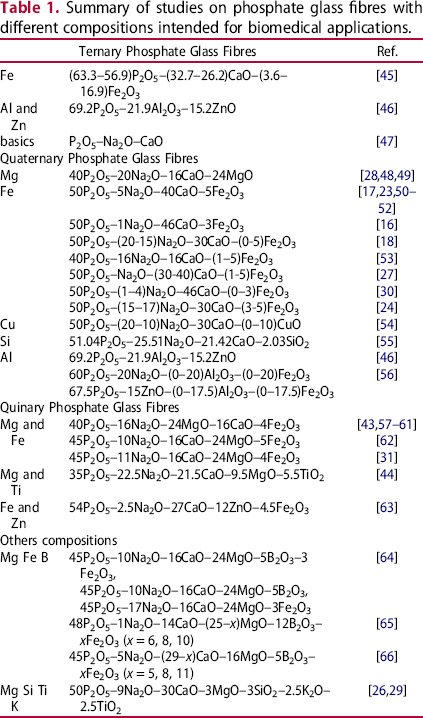

Table 1

Summary of studies on phosphate glass fibres with different compositions intended for biomedical applications.

Ternary Phosphate Glass Fibres		Ref.
Fe	(63.3–56.9)P₂O₅–(32.7–26.2)CaO–(3.6–16.9)Fe₂O₃	[45]
Al and Zn	69.2P₂O₅–21.9Al₂O₃–15.2ZnO	[46]
basics	P₂O₅–Na₂O–CaO	[47]
Quaternary Phosphate Glass Fibres
Mg	40P₂O₅–20Na₂O–16CaO–24MgO	[28,48,49]
Fe	50P₂O₅–5Na₂O–40CaO–5Fe₂O₃	[17,23,50 -52]
	50P₂O₅–1Na₂O–46CaO–3Fe₂O₃	[16]
	50P₂O₅–(20-15)Na₂O–30CaO–(0-5)Fe₂O₃	[18]
	40P₂O₅–16Na₂O–16CaO–(1–5)Fe₂O₃	[53]
	50P₂O₅–Na₂O–(30-40)CaO–(1-5)Fe₂O₃	[27]
	50P₂O₅–(1–4)Na₂O–46CaO–(0–3)Fe₂O₃	[30]
	50P₂O₅–(15–17)Na₂O–30CaO–(3-5)Fe₂O₃	[24]
Cu	50P₂O₅–(20–10)⁠Na₂O–30CaO–(0–10)CuO	[54]
Si	51.04P₂O₅–25.51Na₂O–21.42CaO–2.03SiO₂	[55]
Al	69.2P₂O₅–21.9Al₂O₃–15.2ZnO	[46]
	60P₂O₅–20Na₂O–(0–20)Al₂O₃–(0–20)Fe₂O₃	[56]
	67.5P₂O₅–15ZnO–(0–17.5)Al₂O₃–(0–17.5)Fe₂O₃	[56]
Quinary Phosphate Glass Fibres
Mg and Fe	40P₂O₅–16Na₂O–24MgO–16CaO–4Fe₂O₃	[43,57 -61]
	45P₂O₅–10Na₂O–16CaO–24MgO–5Fe₂O₃	[62]
	45P₂O₅–11Na₂O–16CaO–24MgO–4Fe₂O₃	[31]
Mg and Ti	35P₂O₅–22.5Na₂O–21.5CaO–9.5MgO–5.5TiO₂	[44]
Fe and Zn	54P₂O₅–2.5Na₂O–27CaO–12ZnO–4.5Fe₂O₃	[63]
Others compositions
Mg Fe B	45P₂O₅–10Na₂O–16CaO–24MgO–5B₂O₃–3 Fe₂O₃, 45P₂O₅–10Na₂O–16CaO–24MgO–5B₂O₃, 45P₂O₅–17Na₂O–16CaO–24MgO–3Fe₂O₃	[64]
	48P₂O₅–1Na₂O–14CaO–(25–x)MgO–12B₂O₃–xFe₂O₃ (x = 6, 8, 10)	[65]
	45P₂O₅–5Na₂O–(29–x)CaO–16MgO–5B₂O₃–xFe₂O₃ (x = 5, 8, 11)	[66]
Mg Si Ti K	50P₂O₅–9Na₂O–30CaO–3MgO–3SiO₂–2.5K₂O–2.5TiO₂	[26,29]

Iron in PGF

Iron (Fe) is often used as a dopant in PGF. Iron plays an essential role in the human body by being responsible for a number of biological processes: Fe is a component of haemoglobin, takes part in cell division and respiratory processes [67]. Iron oxide (Fe₂O₃) has a large impact on the properties of phosphate glasses such as solubility or degradation, however in industry Fe₂O₃ has been used mostly as a colourant [68].

Fe increases T_g (glass transition) and T_s (temperature of softening), chemical durability, glass density and decreases solubility or ion release [56,69]. Total surface energy also decreased with increasing Fe₂O₃ content. At low temperatures, iron increases the viscosity of the glass melt especially at higher phosphate levels, however, it is still the amount of phosphate which retains the greatest influence on glass viscosity [70]. Biological properties of Fe₂O₃ have shown that PGF with 4 or 5 mol-% of Fe₂O₃ in a glass network provide better cell attachment as well as proliferation and differentiation compared to undoped fibres. However, the improved biocompatibility of Fe-PGF is attributed to their enhanced durability. Fe replaces P in P–O–P network and creates strong cross-linking P–O–Fe units which also reduce the tendency to crystallise [69]. It is not clear if Fe(II) or Fe(III) is present in the network, nevertheless it has been proven that Fe(III) is more likely to behave as a network former than as a network modifier [27].

The medical applications are bone fixation devices, dental application and nerve tissue regeneration. Fe-doped PGF were used with coupling agents to improve bone-ligament integration [30] and to treat traumas covering not only bone damage but also the surrounding soft tissue. Moreover, Fe-PGF has been used to investigate the role of annealing in slowing down the degradation of PGF by 50% [63].

As a scaffold, Fe-doped PGF were used for muscle delivery system to treat Duchenne Muscular Dystrophy [27]. To date the only effective treatment is muscle transplantation which delivers the normal gene into a diseased area, however the described procedure has two main disadvantages: risk of rejection and low survival rate of implanted cells. Furthermore, the mobility of injected myoblasts is limited [27]. Application of Fe-doped PGF is beneficial considering the predictable dissolution time and relative high solubility. Additionally, implantation of long fibres allows better cell attachment. Glasses with 50P₂O₅–(30, 35, 40)CaO–(20–x)Na₂O–xFe₂O₃ (x = 1–5) (mol-%) composition have been proven to have good cell attachment and enhance proliferation and differentiation of muscle precursor cells [27].

Magnesium in PGF

Next to Fe₂O₃, magnesium oxide (MgO) is most often used as a dopant in PGF, and similar to iron, magnesium (Mg) is a trace element in the human body. In contrast to Fe₂O₃, the main role of MgO is to improve the biological properties of PBG. In glass technology magnesium oxide is mostly used as a colourant (giving grey colour), moreover MgO, like CaO, can lower the annealing point of doped glasses [68].

Seventy-five per cent of magnesium in the human body resides in bone but it is also present in skeletal muscle and soft tissues. Indeed, most Mg-dependent functions are related with bone tissues: stimulating new bone formation and increasing bone cell adhesion and stability [33,56]. Mg increases alkaline phosphatase (ALP) activity and short-term oral magnesium supplementation can minimise bone turnover markers in young adult males and post-menopausal osteoporotic women [42]. Moreover, Mg plays numerous important roles in cell functions: stabilisation of lipid membranes, nucleic acids and ribosomes [71] chelation of anions to prevent them taking part in hydrolysis or assisting chemical reactions; structure stabilisation and maintaining the electrical potential of the cell membranes of neuromuscular cells. Magnesium, together with calcium, is present in membranes where it provides a cross-linking activity for carboxylated and phosphorylated anionic polymers. Finally, Mg takes part in transport processes and ion pumping processes in cells.

The structural and biological properties of MgO-doped PBG were exhaustively described by Ahmed et al. [72]. Glasses were doped with 10, 20 and 30 mol-% MgO; increasing MgO content results in linear increases in T_g, cross-link density and the chemical durability. Degradation of these glasses decreases with increasing MgO content as monovalent Na⁺ is substituted by divalent cation Mg²⁺ in the glass network. Glasses with 30% MgO tended to crystallise on the surface upon cooling to room temperature. However, rapid changes in coordination number of Mg²⁺ ions have an anomalous effect on the physical properties of phosphate glasses [69]. Biological tests have shown higher osteoblast activity for glasses with 20–30 mol-% MgO, however no apparent relationship between glass composition and cell attachment has been observed in correlation to MgO content. PGF with MgO have been used for reinforcement of bone fixation devices, in nerve tissue regeneration and as drug delivery systems [29].

Copper in PGF

Copper oxide (CuO) has been used in glass technology for many years. The antibacterial properties of copper have also been well exploited since ancient times as evidenced by its use to sterilise water [73]. Of more current relevance, CuO influences the properties of PBG, in particular, the degradation rate or ion release.

Cu is a biologically important element. Significant amounts of cellular copper are found in human endothelial cells when undergoing angiogenesis, promoting synergic stimulation effects on angiogenesis when associated with angiogenic growth factor FGF-2. Cu stimulates proliferation of human endothelial cells and induces higher differentiation of mesenchymal stem cells towards the osteogenic lineage [33]. The important oxidase enzyme ceruloplasmin, present in plasma and used to transport proteins, requires Cu where it helps to metabolise iron. Deficiency of copper results in iron overload in the tissues of the brain and liver, however high doses of copper may result in its accumulation in the liver [73]. Cu is a cofactor for superoxide dismutase (enzyme catalyses O₂^- into O₂ or H₂O₂) and lysyl oxidase (critical role in biogenesis of connective tissue). The GHK-Cu complex increases messenger RNA production of various extracellular matrices such as collagen, elastin, proteoglycan or glycosaminoglycans in fibroblasts. Inorganic copper was used in implants and research proved that 56 ng of copper sulphate per implant achieves a positive effect on blood vessel ingrowth [42,73]. Copper is essential for cross-linking of collagen and elastin which is important to form a strong, flexible connective tissue in skin and bone and also plays an important role in bone resorption. It has been proven that osteoclasts produce Cu/Zn superoxide dismutase (SOD), a decrease of Cu/Zn SOD activity due to inadequate copper levels leads to increasing bone resorption [73].

Cu-PGF were used to obtain materials for wound healing application. PGF with 10 mol-% of CuO have shown antibacterial properties by killing the opportunistic pathogen Staphylococcus epidermidis [54]. Many PBG with antibacterial dopants like Ag, Zn, Cu, Ga, etc. [74 -76] have been reported however only one example of incorporation of copper into PGF is available [54].

Research by Knowles et al. has proven that addition of CuO increases the T_g of the glass, as well as T_s, hardness and the chemical durability. In the glass, instead of P–O–Na bonds, P–O–Cu bonds were formed due to the higher electronegativity of copper ions vs. sodium ions. Substitution of Cu results in an increase in cross-link density and a decrease in degradation rate [54].

Boron in PGF

Boron oxide (B₂O₃) is one of the network-former oxides, however, it is also often used as a flux. Addition of boron (B) improves both chemical resistance and mechanical properties of glasses. Glasses containing B₂O₃ are characterised by low thermal expansion and resistance of thermal shock [41]. It has been shown that crystallisation temperature increases with increasing B₂O₃ content [73,77].

In organisms, B stimulates RNA synthesis in fibroblast cells, stimulates bone formation, and is responsible for expression of RUNX2, a growth factor for osteoblastic differentiation and bone formation [78]. Boron works together with calcium and is present in the bone and neural systems. One of boron's main roles is to metabolise the major minerals: calcium, magnesium and phosphates. Deficiency causes a reduction in the urinary excretion of Ca, Mg and P, elevates the serum concentration of estradiol-17β and testosterone and can even cause calcium loss / bone demineralisation in postmenstrual women. Boric acid reduces the time required in intensive wound care by 66% due to an ability to activate the key enzymes involved in fibroblast formation which improves extracellular-matrix turnover [78]. B significantly improves wound healing, an anti-inflammatory effect from boron was observed as a result of inhibition of the oxidative burst by leukocytes and excessive activity by neutrophils [78]. Addition of borate improves the bioactivity of PBG by promoting hydroxyl group formation at the surface of glasses and some borate glasses have been proven to bond to bone at levels comparable to Bioglass 45S5 [77].

Addition of 5 mol-% B₂O₃ into PGF with composition: 45P₂O₅–16CaO–24MgO–5Na₂O (mol-%) significantly increases tensile strength (50%) and modulus (11%). However, similar increases were reported from a synergistic effect of adding 5 mol-% of B₂O₃ and 3 mol-% of Fe₂O₃. A 22% decrease in the dissolution rate was observed by adding either 5 mol-% of B₂O₃ or 3 mol-% Fe₂O₃ while in glasses doped with both B₂O₃ and Fe₂O₃ there was only an 11% decrease in dissolution rate. Both B and Fe-doped PGF show similar degradation rate of 20 µm diameter fibre samples. Despite this B₂O₃ significantly improves the mechanical properties of the fibres, whereas the glasses with iron have shown better biological properties on human osteosarcoma [64]. Lower biocompatibility of high-boron phosphate glasses is associated with extensive release of B³⁺ ions [69].

Strontium in PGF

Strontium (Sr) is an alkaline earth metal which has found application in osteoporosis treatment [79]. Strontium reduces bone resorption, stimulates bone formation and increases replication of preosteoblastic cells [79,80]. Moreover, a correlation between an increase in the amount of Sr in bone and compressive strength has been found [81]. There are several similarities between calcium and strontium: they have similar metabolic pathways by gastrointestinal tract (absorption) and the urinary systems (extraction) and both are concentrated in the bone [80]. However, high similarities may lead to complication due to replacement of calcium with strontium in bone [79]. Nevertheless, many soluble phosphate glasses have been proposed as a system of controlled strontium release [79,80,82,83].

Several studies have shown the influence of strontium on PBG. The substitution of calcium with strontium results in increased glass density and molar volume due to the larger ionic radius of Sr²⁺ compared to Ca²⁺. Weaker Sr–O bonds lead to a slight decrease in T_g while T_m was significantly lower [79]. High amounts of Sr decrease the processing window and can cause problems with fibre drawing [79] however according to Massera et al., glasses doped with 20 mol-% of Sr were characterised with good stability and possibility to draw fibres [84].

Studies on 40P₂O₅–25CaO–5Na₂O–(30-x)MgO–xSrO [mol-%] phosphate glasses have shown an improved cell proliferation (1% of Sr), hMSC osteogenic differentiation (5%) and an increase in early osteogenic markers such as COL1 and RUNX and later markers ALP and OC [83]. Based on this evaluation, the optimal Sr concentration in PBG has been set as 5 mol-% [83].

PGF doped with strontium were used to produce porous scaffolds for bone tissue regeneration as proposed by Zheng et al. [85,86].

Potassium in PGF

Sodium and potassium oxides (Na₂O, K₂O) impart similar properties to glassy materials being powerful fluxing (melting) alkaline materials. However, replacing with sodium and potassium results in melts of higher viscosity and lower thermal expansion [68].

Addition of mixed alkali oxides to glasses results in higher durability and electrical resistance [41]. Increasing the amount of alkali ions in PBG is known to decrease connectivity of the glass structure by creating non-bridging oxygens, hence increasing the thermal expansion coefficient and solubility [56].

Potassium is an essential element for human health. The main roles for K are regulation of acid–base balance, energy metabolism, controlling blood pressure, membrane transport, distribution of fluid within the body, transmission of nerve impulses and maintaining cardiac function [87]. K controls the electric potential of cell membranes as one of the outer membrane ions. It also takes part in regulating osmotic balance.

K₂O has been used to produce PGF for nerve tissue regeneration. PGF labelled as TiPS 2.5 contained 50P₂O₅–30CaO–12Na₂O–3SiO₂–2.5K₂O–2.5TiO₂ (mol-%). PGF were suitable for glial cells and axonal growth. Neonatal olfactory bulb ensheathing cells (NOBEC) were well spread on the fibre surface and active proliferation was also observed. Some of the cells presented cytoplasmic processes extending along the fibres. TiPS 2.5 were also used to test Dorsal Root Ganglia neurons which showed a pseudo-unipolar morphology [26]. Moreover, K₂O was used to obtain hollow glass fibres for a controlled release system [29].

Silica in PGF

Silicon oxide (SiO₂) is mainly used as a network-former. Silica-based bioactive glasses are being extensively studied for their potential to bond to hard and soft [88] tissue and their ability to release biologically active ions [33]. A particular silica-based glass called Bioglass 45S5 has great biological potential [89]. Silica-based glasses produced by both melt-quench and sol-gel are less soluble than the PBG described in this review.

Silicon (Si) is also an important element in human health, it is essential for metabolic processes and formation and calcification of bone tissue [33]. Dietary intake of Si increases bone mineral density, while Si–O in an aqueous environment induces HA precipitation and Si(OH)₄ stimulates collagen I formation and osteoblastic differentiation [33]. Si along with Ca plays an important role in the early stages of calcification [42]. Silica can be used as a dopant to modify the properties of PBG.

Glasses with composition 50P₂O₅–40CaO–5SiO₂–5Fe₂O₃ (mol-%) degrade faster than those without silica. Si–O–P bonds are more sensitive to hydrolytic activity because inclusion of Si acts to disconnect the network of phosphate glasses. It also results in faster ion release in water in line with the dissolution rate [42,90].

PGF containing Si have been used as materials for bone fixation devices, in soft tissue regeneration, in muscle delivery systems and scaffolds for nerve tissue regeneration [90].

Titanium in PGF

Titanium (Ti) is a popular and widely investigated element in biomaterials [91]. Titanium alloys are the most widely used metals in orthopaedic implants. Titanium oxide (TiO₂) has been incorporated into different glasses, both silica and phosphate types, due to the expected improvement of the biological response. However, TiO₂ also has other effects on glass properties, Ti: improves the resistance to acid attack, inhibits crystallisation, decreases solubility and increases the processing window [2]. Owing to a high charge-to-size ratio of Ti⁴⁺, titanium has strong ionic strength. Phosphate glasses with a lower content of P₂O₅ and shorter chains were shown to crystallise more easily, while an addition of Ti⁴⁺ with strong ionic cross-linking prevents it [2].

The viscosity of glass melts increases with TiO₂ content [26] due to the formation of covalent Ti–O–P bonds or ionic cross-links between phosphate chains. Ti stabilises glass networks, increases glass characteristic temperatures, increases density and prevents lowering of pH during dissolution [26].

The lower solubility of Ti-doped PBG improves cell adhesion which results in superior proliferation assays with murine pre-osteoblast cells [44]. Titanium has been used in PGF (TiPS) for nerve tissue regeneration and muscle delivery systems. Additionally, Ti is used in invert PGF with composition 35P₂O₅–27.5CaO–22.5Na₂O–9.5MgO–5.5TiO₂ (mol-%) as a bone regeneration material [44].

Aluminium in PGF

In spite of the fact that aluminium (Al) cannot form a glass alone, Al takes part in the glass network as an intermediate oxide [68]. Aluminium increases chemical durability has no effect on thermal expansion coefficient and induces a lower dissolution rate [28,56]. Aluminium can work as a network former by creating AlO₄ units which can bond to P=O bonds, causing double bond removal (reduction) with the ‘O’ changing to a bridging oxygen. Addition of Al₂O₃ into a glass network and substituting sodium with alumina can increase the strength of PBG [56]. Aluminium is essential for plant development, e.g. club moss, hydrangea and tea plant but there is no definite general biological role in humans or higher animals [92].

Al-doped PGF with composition 62.9P₂O₅–21.9Al₂O₃–15.2ZnO (mol-%) were used as a muscle delivery system [46]. Moreover, different fibres containing Al₂O₃ have been considered as reinforcement for medical fixation devices [56].

Zinc in PGF

In traditional glass manufacturing, zinc (Zn) has been used as a flux [68]. Recent research has proven that zinc is beneficial for osteoblast attachment but only up to certain levels after which it becomes toxic for cells [93]. Wang et al. [94] proved that zinc concentration within range from 0 to 0.59 ± 0.03 mg⁻¹ was confirmed to promote bone growth in vivo.

Zinc has many advantages: it shows an anti-inflammatory effect and stimulates bone formation in vitro by activation of protein synthesis in osteoblasts and increased ATPase activity. It regulates transcription of osteoblast differentiation genes, collagen I, ALP, osteopontin and osteocalcin [33]. Zn plays a role in bone healing and the absence of it may cause blindness. Zinc is the most common trace element metal ion present in the cytoplasm of advanced aerobic cells. The structural role of zinc is to stabilise filamentary, keratin-like structures for the organisation of chromosomes [36].

Mechanical tests on PGF have shown doubling of the tensile strength values (from range between 2.8–4.2 GPa and 4.2–7.2 GPa) when substituting Na with Zn [56]. Also, a significant decrease in the degradation rate has been observed. Zn-doped PGF were used in regeneration of craniofacial muscle tissue [46] and reinforcing materials for bone fixation devices [27].

Applications of phosphate glass fibres

PGF are used both for hard and soft tissue regeneration, as a scaffold, wound dressing or reinforcement for bone fixation devices. The application is strongly correlated with the glass composition. Table 2 summarises the use of PGF for medical applications.

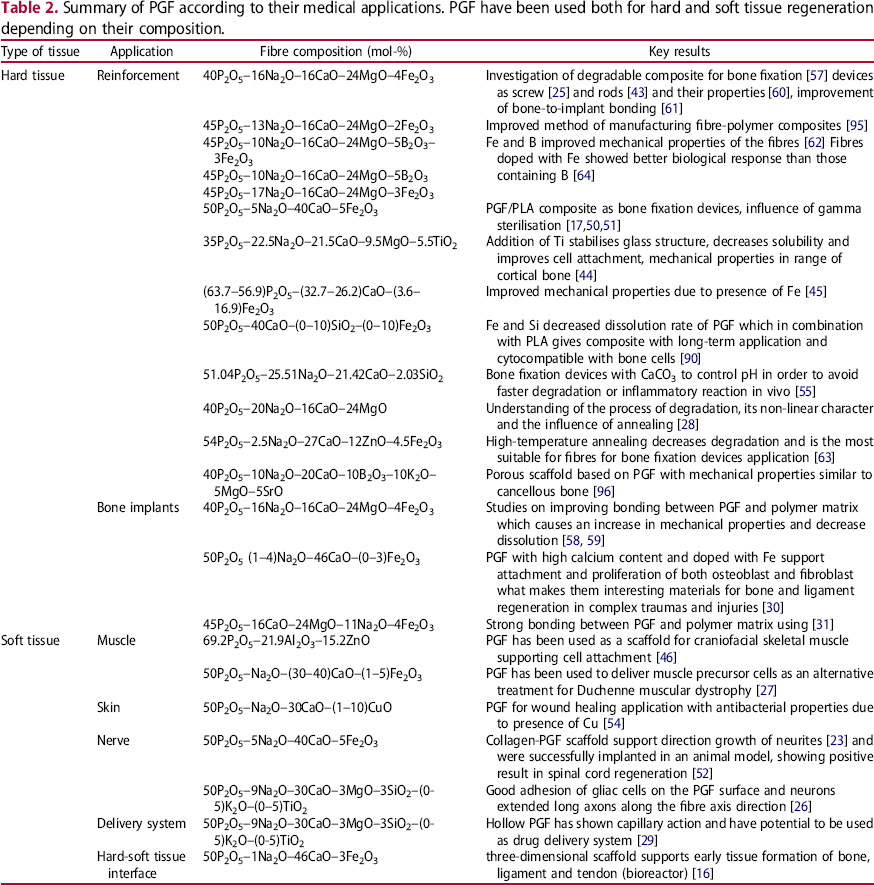

Table 2

Summary of PGF according to their medical applications. PGF have been used both for hard and soft tissue regeneration depending on their composition.

Type of tissue	Application	Fibre composition (mol-%)	Key results
Hard tissue	Reinforcement	40P₂O₅–16Na₂O–16CaO–24MgO–4Fe₂O₃	Investigation of degradable composite for bone fixation [57] devices as screw [25] and rods [43] and their properties [60], improvement of bone-to-implant bonding [61]
		45P₂O₅–13Na₂O–16CaO–24MgO–2Fe₂O₃	Improved method of manufacturing fibre-polymer composites [95]
		45P₂O₅–10Na₂O–16CaO–24MgO–5B₂O₃–3Fe₂O₃	Fe and B improved mechanical properties of the fibres [62] Fibres doped with Fe showed better biological response than those containing B [64]
		45P₂O₅–10Na₂O–16CaO–24MgO–5B₂O₃
		45P₂O₅–17Na₂O–16CaO–24MgO–3Fe₂O₃
		50P₂O₅–5Na₂O–40CaO–5Fe₂O₃	PGF/PLA composite as bone fixation devices, influence of gamma sterilisation [17,50,51]
		35P₂O₅–22.5Na₂O–21.5CaO–9.5MgO–5.5TiO₂	Addition of Ti stabilises glass structure, decreases solubility and improves cell attachment, mechanical properties in range of cortical bone [44]
		(63.7–56.9)P₂O₅–(32.7–26.2)CaO–(3.6–16.9)Fe₂O₃	Improved mechanical properties due to presence of Fe [45]
		50P₂O₅–40CaO–(0–10)SiO₂–(0–10)Fe₂O₃	Fe and Si decreased dissolution rate of PGF which in combination with PLA gives composite with long-term application and cytocompatible with bone cells [90]
		51.04P₂O₅–25.51Na₂O–21.42CaO–2.03SiO₂	Bone fixation devices with CaCO₃ to control pH in order to avoid faster degradation or inflammatory reaction in vivo [55]
		40P₂O₅–20Na₂O–16CaO–24MgO	Understanding of the process of degradation, its non-linear character and the influence of annealing [28]
		54P₂O₅–2.5Na₂O–27CaO–12ZnO–4.5Fe₂O₃	High-temperature annealing decreases degradation and is the most suitable for fibres for bone fixation devices application [63]
		40P₂O₅–10Na₂O–20CaO–10B₂O₃–10K₂O–5MgO–5SrO	Porous scaffold based on PGF with mechanical properties similar to cancellous bone [96]
	Bone implants	40P₂O₅–16Na₂O–16CaO–24MgO–4Fe₂O₃	Studies on improving bonding between PGF and polymer matrix which causes an increase in mechanical properties and decrease dissolution [58, 59]
		50P₂O₅ (1–4)Na₂O–46CaO–(0–3)Fe₂O₃	PGF with high calcium content and doped with Fe support attachment and proliferation of both osteoblast and fibroblast what makes them interesting materials for bone and ligament regeneration in complex traumas and injuries [30]
		45P₂O₅–16CaO–24MgO–11Na₂O–4Fe₂O₃	Strong bonding between PGF and polymer matrix using [31]
Soft tissue	Muscle	69.2P₂O₅–21.9Al₂O₃–15.2ZnO	PGF has been used as a scaffold for craniofacial skeletal muscle supporting cell attachment [46]
	Muscle	50P₂O₅–Na₂O–(30–40)CaO–(1–5)Fe₂O₃	PGF has been used to deliver muscle precursor cells as an alternative treatment for Duchenne muscular dystrophy [27]
	Skin	50P₂O₅–Na₂O–30CaO–(1–10)CuO	PGF for wound healing application with antibacterial properties due to presence of Cu [54]
	Nerve	50P₂O₅–5Na₂O–40CaO–5Fe₂O₃	Collagen-PGF scaffold support direction growth of neurites [23] and were successfully implanted in an animal model, showing positive result in spinal cord regeneration [52]
	Nerve	50P₂O₅–9Na₂O–30CaO–3MgO–3SiO₂–(0-5)K₂O–(0–5)TiO₂	Good adhesion of gliac cells on the PGF surface and neurons extended long axons along the fibre axis direction [26]
	Delivery system	50P₂O₅–9Na₂O–30CaO–3MgO–3SiO₂–(0-5)K₂O–(0-5)TiO₂	Hollow PGF has shown capillary action and have potential to be used as drug delivery system [29]
	Hard-soft tissue interface	50P₂O₅–1Na₂O–46CaO–3Fe₂O₃	three-dimensional scaffold supports early tissue formation of bone, ligament and tendon (bioreactor) [16]

PGF for hard tissue regeneration

In bone tissue regeneration applications, bioactive glasses and ceramic materials are frequently studied because of their interesting ability to bond to bone – their bioactivity [97]. PBG are not an exception, however PGF, because of their geometrical characteristics have been mainly studied for bone fixation devices. Numerous articles describe the advantages of using PGF in combination with resorbable polymers such as PLA, PCL or PLGA [17,43,44,50,51,55,58,59,62,90,98 -101] The aim is to obtain bone fixation devices with a modulus similar to that of natural bone, which also disappears completely after the healing process is completed. This disappearance will necessarily be associated with a decrease in mechanical properties that will be offset by the presence of newly formed bone. PLA, PCL and PLGA have much lower mechanical properties than cortical or cancellous bone so reinforcing PGF are used to improve the mechanical performance of such polymers. The measured values for polymers are as follows: PLA tensile modulus 4.4 GPa; PCL tensile strength 190 MPa; PGA tensile strength 57 MPa, tensile modulus 6.5 GPa [102], while mechanical properties of cortical bone reaches values of 50–150 MPa and 7–30 GPa, for flexure strength and elastic modulus, respectively [32]. Composites obtained from resorbable polymers and PGF allow the creation of materials more suitable for bone application [103]. Bioresorbable screws, rods or nails are examples of PGF-based composites for bone regeneration [27,57,90]. Such components are also a convenient alternative for metallic implants which commonly have elastic moduli which are too high. Mismatch in elastic modulus may cause stress shielding in the surrounding bone and absence of mechanical stimulation [32], which results in a weakening of the bone [104]. The most common fibres used in these applications are Fe-doped PGF and B-doped PGF. Those dopants have been shown to improve mechanical properties and to decrease solubility of PGF. The most suitable duration for composites for bone application before complete dissolution should be around 6–8 weeks [32].

Novajra et al. [21] and Zheng et al. [86] suggested using PGF-based 3D porous scaffolds for bone regeneration. Both systems are promising materials for bone regeneration due to their suitable mechanical properties (yield stress 0.38 and modulus 2.84 MPa) similar to cancellous and trabecular bone (compressive strengths of 0.15 MPa and 2–3.5 MPa respectively), good cell response and stimulation of hydroxyapatite formation. Chen et al. proposed a modification of stainless steel bone implants by embedding a short PGF on their surface using electrophoretic deposition (EPD). Addition of fibres is expected to improve bone-to-implant bonding as it enhances proliferation and migration of MC3T3-E1 cells [61].

PGF for soft tissue regeneration

PGF are frequently studied for use in soft tissue regeneration, especially in nerve tissue regeneration, wound healing and muscle delivery systems. However, compared to their application as hard tissue regeneration materials, their use in soft tissue healing is not as widespread. Nonetheless, the unique properties of PGF have been appreciated and are slowly receiving recognition also in soft tissue regeneration.

An especially interesting and promising application of PGF is in nerve regeneration [23,25,52]. Reported by Joo et al. for the first time, treatment with PGF resulted in full regeneration after spinal cord injury in a rat model. 18 µm fibres with composition 50P₂O₅–40CaO–5Na₂O–5Fe₂O₃ (mol-%) were used to produce 3D collagen scaffolds which were implanted into the animal transected spinal cords. High levels of Ca and Fe in the glasses enabled the preparation of less soluble fibres which better supported neuronal growth. After 12 weeks, the locomotion ability was improved and the result for PGF-collagen scaffolds was better than for PGF-free ones. The positive impact of PGF on neuronal growth was confirmed due to the capacity of aligned PGF to provide directional guidance for outgrowing axons [52].

50P₂O₅–30CaO–9Na₂O–3SiO₂–3MgO–(5–x)K₂O–xTiO₂ (mol-%) fibres were used for nerve regeneration and it was proven that neurites outgrew along the direction of the fibre axis. The fibre surfaces provided support for cell attachment and proliferation due to higher stabilisation (lower solubility) and stiffness. Additionally, the tendency for growth along the fibre axis increased with decreasing fibre diameter [26]. Similar studies were performed on a peripheral nerve injury which can heal unaided but only in a very limited way [23]. The fibre/collagen scaffolds were manufactured using 50P₂O₅–40CaO–5Na₂O–5Fe₂O₃ (mol-%) glass fibres. To investigate the influence of the fibres on nerve regeneration an animal model (12-week adult rats) was used. After 12 weeks, the results for collagen (Coll) and PGF/Coll were similar however the first sign of regeneration appeared 2 weeks earlier for scaffolds with fibres (6 instead of 8 weeks) [23].

PGF for both hard and soft tissue regeneration

Properties to support both soft and hard tissue regeneration are especially important in applications where both bone and ligament regeneration must be supported in the tissue interface regeneration filed. Many traumas cover not only bone damage but also the surrounding soft tissue [30]. For example, three-dimensional scaffold using PGF was made to produce soft-hard tissue integration at the bone-ligament interface. 50P₂O₅–46CaO–(4–1)Na₂O–(1–3)Fe₂O₃ (mol-%) fibres were produced and tested with HOB and HOF cells. During these studies, it was proven that 3% of Fe₂O₃ supports cell attachment and proliferation. Cells of both types were flat and showed spread morphology which suggested very good attachment and integration with the material's surface [30].

Other biomedical applications of PGF

Hollow 50P₂O₅–30CaO–9Na₂O–3SiO₂–3MgO–2.5K₂O–2.5TiO₂ (mol-%) PGF were used as a controlled release system that offered an alternative for oral drug administration to avoid liver damage caused by drugs absorbed through the gastrointestinal tract. Such fibres act as capillaries and are able to transport solutions and release them from extremities (70% after 5 h and 100% after 24 h). Such a system may be especially interesting to transport biologically active molecules [29].

A similar system has been investigated using 50P₂O₅–30CaO–(17–15)Na₂O–(3–5)Fe₂O₃ (mol-%) PGF with diameter 32 ± 7 µm. PGF have been fabricated which degrade upon soaking to spontaneously form capillary channels. The process seems to start after 1 week when cracks appeared and after 3 months fibres were replaced by hollow tubes that formed over the following 6 to 18 months. Incubation in deionised water caused depolymerisation of the glass network due to a combination of surface hydration and internal hydrolysis reactions. Another explanation of the observed behaviour is the difference in chain strength between the outer and the core part of the fibres. The rapid cooling during manufacturing of fibres tends to create stronger bonds on the outer layer. Such fibres have potential application as controlled drug delivery systems. Moreover, PGF showed congruent degradation with zero order release which makes them suitable materials for antibacterial applications in their own right, as potential sources of antibacterial elements such as Ag or Cu [24].

A unique application of soluble 50P₂O₅–30CaO–20Na₂O (mol-%) PGF has been reported by Alshomer et al. [105] who used them as a sacrificial material for scaffolds for tendon regeneration. To produce a patterned surface, PGF have been put on the interface of liquid polymer Polyhedral Oligomeric Silsesquioxane Poly (Carbonate-urea) Urethane (POSS-PCU). The scaffold was placed in deionised water until complete dissolution of the PGF and demonstrated good cell response [105].

Summary

PGF are interesting materials with a wide range of medical applications which can be used in contact with both hard and soft tissues. PGF offer useful variation in shape (high aspect ratio) which hold great promise in medical applications. Modification of fibre composition can be employed to enhance the mechanical properties of PGF, used for example in bone fixation devices, or increase their solubility for application as drug delivery systems. Moreover, addition of certain ions can improve the biological response and expand the possible applications: nerve tissue regeneration, wound healing, muscle cell delivery system, bone regeneration and bone-ligament regeneration are all examples which are highlighted and discussed. Owing to their potential high solubility, PGF can be considered as a source of therapeutic ions which can be beneficial for cells, but in higher doses may bring about undesirable effects. Appropriate design of the chemical and physical properties of PGF requires an informed awareness of the possible impacts upon a patient's body. This information is critically important to mitigate the hazardous effects of certain metallic ions in order to broaden the medical applications of PGF.

Footnotes

Disclosure statement

No potential conflict of interest was reported by the authors.
