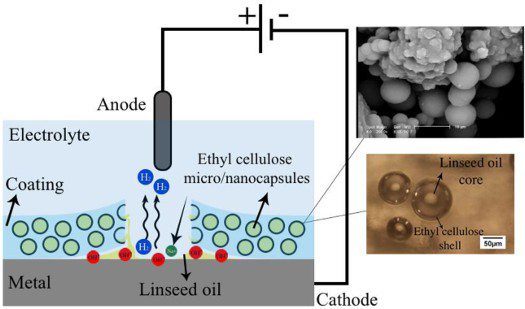

The effect of ethyl cellulose (EC) micro/nanocapsules containing linseed oil (LO) on the cathodic disbonding of self-healing composite coatings is investigated by cathodic disbonding test and electrochemical impedance spectroscopy (EIS). Results reveal that the presence of EC nanocapsules significantly improves the cathodic disbonding resistance of the coatings so that the rates of disbonded area under the simulated condition of cathodic protection decrease from 3.882 mm2 h for the blank coating to 0.025 mm2 h for the nanocapsules containing coating. It may be ascribed to the releasing LO and filling the defects at the coating/substrate interface by oxidative polymerisation mechanism. EIS test results indicate that the corrosion resistance of the coatings is improved in the presence of EC nanocapsules. In addition, the coating resistance to cathodic disbonding and corrosion increase by decreasing capsule sizes. Finally, a proposed mechanism of ion diffusion through the self-healing coating's defect is schematically illustrated.
ZhangFJuPPanM. Self-healing mechanisms in smart protective coatings: a review. Corros Sci. 2018; 144: 74–88. doi: 10.1016/j.corsci.2018.08.005.
2.
CuiGBiZZhangR. A comprehensive review on graphene-based anti-corrosive coatings. Chem Eng J. 2019; 373: 104–121. doi: 10.1016/j.cej.2019.05.034.
3.
CalabreseL.Anticorrosion behavior of zeolite coatings obtained by in situ crystallization: a critical review. Materials (Basel). 2019; 12 (1): 59. doi: 10.3390/ma12010059.
4.
CuiX, Zhu G, Pan Y, . Polydimethylsiloxane-titania nanocomposite coating: fabrication and corrosion resistance. Polymer (Guildf). 2018; 138: 203–210. doi: 10.1016/j.polymer.2018.01.063.
5.
DuanG, Yang L, Liao S, . Designing for the chemical conversion coating with high corrosion resistance and low electrical contact resistance on AZ91D magnesium alloy. Corros Sci. 2018; 135: 197–206. doi: 10.1016/j.corsci.2018.02.051.
6.
AlbiniM, Letardi P, Mathys L, . Comparison of a bio-based corrosion inhibitor versus benzotriazole on corroded copper surfaces. Corros Sci. 2018; 143: 84–92. doi: 10.1016/j.corsci.2018.08.020.
7.
QiangYZhangSTanB. Evaluation of Ginkgo leaf extract as an eco-friendly corrosion inhibitor of X70 steel in HCl solution. Corros Sci. 2018; 133: 6–16. doi: 10.1016/j.corsci.2018.01.008.
8.
UmorenSAEduokUM.Application of carbohydrate polymers as corrosion inhibitors for metal substrates in different media: a review. Carbohydr Polym. 2016; 140: 314–341. doi: 10.1016/j.carbpol.2015.12.038.
9.
RefaitPJeanninMSabotR. Corrosion and cathodic protection of carbon steel in the tidal zone: products, mechanisms and kinetics. Corros Sci. 2015; 90: 375–382. doi: 10.1016/j.corsci.2014.10.035.
10.
PopovBNLeeJ-WDjukicMB.Hydrogen permeation and hydrogen-induced cracking. In: KutzM, editor. Handbook of environmental degradation of materials. 3rd ed. Burlington (MA): William Andrew Publishing; 2018; Chapter 7, p. 133–162. doi:10.1016/B978-0-323-52472-8.00007-1.
11.
PriceSJFigueiraRB.Corrosion protection systems and fatigue corrosion in offshore wind structures: current status and future perspectives. Coatings. 2017; 7 (2): 25. doi: 10.3390/coatings7020025.
12.
KimY-SKimJChoiD. Optimizing the sacrificial anode cathodic protection of the rail canal structure in seawater using the boundary element method. Eng Anal Bound Elem. 2017; 77: 36–48. doi: 10.1016/j.enganabound.2017.01.003.
13.
WangXWangZChenY. Effect of a DC stray current on the corrosion of X80 pipeline steel and the cathodic disbondment behavior of the protective 3PE coating in 3.5% NaCl solution. Coatings. Jan. 2019; 9 (1): 29. doi:10.3390/coatings9010029.
14.
GhanbariAAttarMM.The effect of zirconium-based surface treatment on the cathodic disbonding resistance of epoxy coated mild steel. Appl Surf Sci. 2014; 316: 429–434. doi: 10.1016/j.apsusc.2014.07.178.
15.
CuiY-YBuR-TWangD-Y. Effects of direct stray current on the performance of cathodic disbonding epoxy powder coatings. Pet Sci. 2019; 16 (6): 1417–1429. doi: 10.1007/s12182-019-00381-5.
16.
RamezanzadehBAhmadiAMahdavianM.Enhancement of the corrosion protection performance and cathodic delamination resistance of epoxy coating through treatment of steel substrate by a novel nanometric sol-gel based silane composite film filled with functionalized graphene oxide nanosheets. Corros Sci. 2016; 109: 182–205. doi: 10.1016/j.corsci.2016.04.004.
17.
HangTTX, Duong NT, Truc TA, . Effects of hydrotalcite intercalated with corrosion inhibitor on cathodic disbonding of epoxy coatings. J Coat Technol Res. 2015; 12 (2): 375–383. doi: 10.1007/s11998-014-9642-3.
18.
NabavianSNaderiRAsadiN.Determination of optimum concentration of benzimidazole improving the cathodic disbonding resistance of epoxy coating. Coatings. 2018; 8 (12): 471. doi: 10.3390/coatings8120471.
19.
MahdavianMNaderiRPeighambariM. Evaluation of cathodic disbondment of epoxy coating containing azole compounds. J Ind Eng Chem. 2015; 21: 1167–1173. doi: 10.1016/j.jiec.2014.05.030.
20.
RoyDSimonGPForsythM.Blends of maleic-anhydride-grafted polyethylene with polyethylene for improved cathodic disbondment performance. Polym Int. 2001; 50 (10): 1115–1123. doi: 10.1002/pi.753.
21.
RalkhalSRamezanzadehBShahrabiT.Studying dual active/barrier and self-healing reinforcing effects of the neodymium (III)-benzimidazole hybrid complex in the epoxy coating/mild steel system. J Alloys Compd. 2019; 790: 141–155. doi: 10.1016/j.jallcom.2019.03.170.
22.
MohammadkhaniRRamezanzadehMSaadatmandiS. Designing a dual-functional epoxy composite system with self-healing/barrier anti-corrosion performance using graphene oxide nano-scale platforms decorated with zinc doped-conductive polypyrrole nanoparticles with great environmental stability and non-toxicity. Chem Eng J. 2020; 382: 122819. doi: 10.1016/j.cej.2019.122819.
23.
KhunNWFrankelGS.Cathodic delamination of polyurethane/multiwalled carbon nanotube composite coatings from steel substrates. Prog Org Coat. 2016; 99: 55–60. doi: 10.1016/j.porgcoat.2016.05.002.
24.
AlibakhshiEGhasemiEMahdavianM. A comparative study on corrosion inhibitive effect of nitrate and phosphate intercalated Zn-Al- layered double hydroxides (LDHs) nanocontainers incorporated into a hybrid silane layer and their effect on cathodic delamination of epoxy topcoat. Corros Sci. 2017; 115: 159–174. doi: 10.1016/j.corsci.2016.12.001.
25.
NardeliJVFugivaraCSTarybaM. Self-healing ability based on hydrogen bonds in organic coatings for corrosion protection of AA1200. Corros Sci. 2020; 177: 108984. doi: 10.1016/j.corsci.2020.108984.
26.
NardeliJVFugivaraCSTarybaM. Biobased self-healing polyurethane coating with Zn micro-flakes for corrosion protection of AA7475. Chem Eng J. 2021; 404: 126478. doi: 10.1016/j.cej.2020.126478.
27.
NardeliJVFugivaraCSTarybaM. Novel healing coatings based on natural-derived polyurethane modified with tannins for corrosion protection of AA2024-T3. Corros Sci. 2020; 162: 108213. doi: 10.1016/j.corsci.2019.108213.
28.
FuK, Lu C, Liu Y, . Mechanically robust, self-healing superhydrophobic anti-icing coatings based on a novel fluorinated polyurethane synthesized by a two-step thiol click reaction. Chem Eng J. 2021; 404: 127110. doi: 10.1016/j.cej.2020.127110.
29.
PiotrSKingaPStanislawB.Self-healing polyurethane-based nanocomposites modified with carbon fibres and carbon nanotubes. Adv Polym Technol. 2020; 2020: 1–13. doi: 10.1155/2020/4518512.
30.
Fathi FathabadiHJavidiM.Self-healing and corrosion performance of polyurethane coating containing polyurethane microcapsules. Mar. 2021. doi: 10.21203/rs.3.rs-348120/v1.
31.
AbbaspoorSAshrafiASalehiM.Synthesis and characterization of ethyl cellulose micro/nanocapsules using solvent evaporation method. Colloid Polym Sci. 2018; 296 (9): 1509–1514. doi: 10.1007/s00396-018-4371-2.
32.
AbbaspoorSAshrafiAAbolfarsiR.Development of self-healing coatings based on ethyl cellulose micro/nano-capsules. Surf Eng. 2019; 35 (3): 273–280. doi: 10.1080/02670844.2018.1502966.
33.
ASTM G8-96. Standard test methods for cathodic disbonding of pipeline coatings, ASTM International, west conshohocken, PA, 2019, www.astm.org. ASTM Int. 2019. doi: 10.1520/G0080-07.
34.
DeflorianFRossiS.An EIS study of ion diffusion through organic coatings. Electrochim Acta. 2006; 51 (8): 1736–1744. doi: 10.1016/j.electacta.2005.02.145.
35.
MirabediniSMDutilIFarnoodRR.Preparation and characterization of ethyl cellulose-based core–shell microcapsules containing plant oils. Colloids Surf, A. 2012; 394: 74–84. doi: 10.1016/j.colsurfa.2011.11.028.
36.
BiHSykesJ.An investigation of cathodic oxygen reduction beneath an intact organic coating on mild steel and its relevance to cathodic disbonding. Prog Org Coat. 2015; 87: 83–87. doi: 10.1016/j.porgcoat.2015.05.015.
37.
LligadasGRondaJCGaliàM. Plant oils as platform chemicals for polyurethane synthesis: current state-of-the-Art. Biomacromolecules. 2010; 11 (11): 2825–2835. doi: 10.1021/bm100839x.
38.
MahdaviFTanMYJForsythM.Electrochemical impedance spectroscopy as a tool to measure cathodic disbondment on coated steel surfaces: capabilities and limitations. Prog Org Coat. 2015; 88: 23–31. doi: 10.1016/j.porgcoat.2015.06.010.
39.
ToloeiAAtashinSBahrololoomME.A new approach in modifying polymeric coatings to increase corrosion resistance properties. ISRN Mater Sci. 2013; 2013: 1–7. doi: 10.1155/2013/648246.
40.
LiaoZZhangTQiaoS. Preparation and electrochemical properties of graphene/epoxy resin composite coating. IOP Conf Ser Earth Environ Sci. 2017; 94: 012072. doi: 10.1088/1755-1315/94/1/012072.
