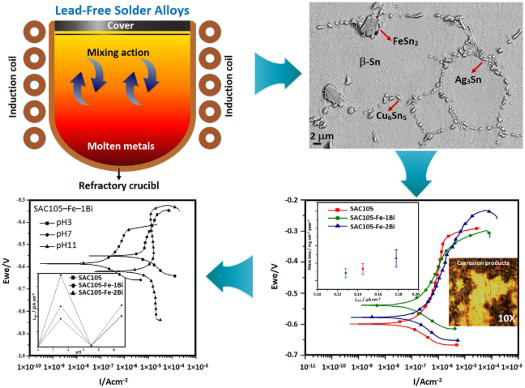

The present study attempted to assess the corrosion performance of iron (Fe) and bismuth (Bi) added Sn–1Ag–0.5Cu (SAC105) lead-free solder alloy in NaCl-based solutions. Potentiodynamic polarisation measurements indicated that in acidic or alkaline solutions, corrosion potential (Ecorr) shifted to more negative (active) values and the corrosion current density (icorr) visibly increased. In a neutral pH solution, SAC105 solder alloys exhibited notable corrosion resistance owing to the stability of passive film formed on the surface of solder alloys. Potentiodynamic polarisation curves also showed that the addition of 0.05 wt% Fe and 1 wt% Bi improved the corrosion rate of SAC105 and lowered the Ecorr towards more noble value due to the reduced micro-galvanic interaction between the cathodic Ag3Sn IMCs and the anodic Sn matrix. Immersion tests revealed that the mass loss increased in the order: SAC105–Fe–2Bi > SAC105 > SAC105–Fe–1Bi.
FayekaMFazalMHaseebA.Effect of aluminum addition on the electrochemical corrosion behavior of Sn–3Ag–0.5Cu solder alloy in 3.5 wt% NaCl solution. J Mater Sci Mater Electron. 2016; 27 (11): 12193–12200.
2.
LiDConwayPPLiuC.Corrosion characterization of tin–lead and lead free solders in 3.5wt.% NaCl solution. Corros Sci. 2008; 50 (4): 995–1004.
3.
WangMWangJFengH. Effects of microstructure and temperature on corrosion behavior of Sn–3.0Ag–0.5Cu lead-free solder. J Mater Sci Mater Electron. 2012; 23 (1): 148–155.
4.
ZengKTuK-N.Six cases of reliability study of Pb-free solder joints in electronic packaging technology. Mater Sci Eng R Rep. 2002; 38 (2): 55–105.
5.
NordinNSaidSRamliR. Impact of aluminium addition on the corrosion behaviour of Sn–1.0Ag–0.5Cu lead-free solder. RSC Adv. 2015; 5 (120): 99058–99064.
6.
LinQYeCSuiR. Wetting of amorphous and partial crystalline Co73Si10B17 by Sn and Sn-based lead-free solders. Microelectron Reliab. 2019; 98: 112–118.
7.
BangJYuD-YKoY-H. Intermetallic compound growth between Sn-Cu-Cr lead-free solder and Cu substrate. Microelectron Reliab. 2019; 99: 62–73.
8.
AliBSabriMFMSaidSM. Microstructural and tensile properties of Fe and Bi added Sn-1Ag-0.5Cu solder alloy under high temperature environment. Microelectron Reliab. 2018; 82: 171–178.
9.
SayyadiRNaffakh-MoosavyH.The role of intermetallic compounds in controlling the microstructural, physical and mechanical properties of Cu-[Sn-Ag-Cu-Bi]-Cu solder joints. Sci Rep. 2019; 9 (1): 8389.
10.
El-DalyAEl-TaherAGoudaS.Development of new multicomponent Sn–Ag–Cu–Bi lead-free solders for low-cost commercial electronic assembly. J Alloys Compd. 2015; 627: 268–275.
11.
MedgyesBHorváthBIllésB. Microstructure and elemental composition of electrochemically formed dendrites on lead-free micro-alloyed low Ag solder alloys used in electronics. Corros Sci. 2015; 92: 43–47.
12.
MahdavifardMHSabriMFMShnawahDA. The effect of iron and bismuth addition on the microstructural, mechanical, and thermal properties of Sn–1Ag–0.5Cu solder alloy. Microelectron Reliab. 2015; 55 (9-10): 1886–1890.
13.
NordinNSaidSRamliR. Microstructure of Sn–1Ag–0.5Cu solder alloy bearing Fe under salt spray test. Microelectron Reliab. 2014; 54 (9-10): 2044–2047.
NordarinaJMohdHAhmadA. Corrosion behaviour of Sn-based lead-free solders in acidic solution. IOP Conference Series: Materials Science and Engineering; 2018, IOP Publishing. p. 012003.
16.
SongFLeeSR.‘Corrosion of Sn-Ag-Cu lead-free solders and the corresponding effects on board level solder joint reliability’, 56th Electronic Components and Technology Conference 2006; 2006, IEEE. 8 pp.
17.
GarciaLROsórioWRGarciaA.The effect of cooling rate on the dendritic spacing and morphology of Ag3Sn intermetallic particles of a SnAg solder alloy. Mater Des. 2011; 32 (5): 3008–3012.
18.
OchoaFWilliamsJChawlaN.Effects of cooling rate on the microstructure and tensile behavior of a Sn-3.5wt.%Ag solder. J Electron Mater. 2003; 32 (12): 1414–1420.
19.
ShnawahDASabriMFMBadruddinIA. Study on coarsening of Ag3Sn intermetallic compound in the Fe-modified Sn–1Ag–0.5Cu solder alloys. J Alloys Compd. 2015; 622: 184–188.
20.
AhmidoASabbarAZouihriH. Effect of bismuth and silver on the corrosion behavior of Sn–9Zn alloy in NaCl 3wt.% solution. Mater Sci Eng B. 2011; 176 (13): 1032–1036.
21.
LiFVerdingovasVMedgyesB. Corrosion reliability of lead-free solder systems used in electronics. 2017 40th International Spring Seminar on Electronics Technology (ISSE); 2017, IEEE. p. 1-6.
22.
NurwahidaMMukridzMAhmadA. ‘Corrosion properties of SAC305 solder in different solution of HCl and NaCl. IOP Conference Series: Materials Science and Engineering; 2018, IOP Publishing. p. 012004.
23.
JafferyHASabriMFMSaidSM. Electrochemical corrosion behavior of Sn-0.7Cu solder alloy with the addition of bismuth and iron. J Alloys Compd. 2019; 810: 151925.
24.
OsórioWRGarciaLRPeixotoLC. Electrochemical behavior of a lead-free SnAg solder alloy affected by the microstructure array. Mater Des. 2011; 32 (10): 4763–4772.
25.
SawyerDTSobkowiakARobertsJL.Electrochemistry for chemists. 2nd ed. New York: J. Wiley & Sons, Inc.; 1995.
26.
CaiZSuhlingJCLallP. Mitigation of lead free solder aging effects using doped SAC-X alloys. 13th InterSociety Conference on Thermal and Thermomechanical Phenomena in Electronic Systems; 2012, IEEE. p. 896-909.
27.
ShnawahDA-ASaidSBMSabriMFM. Novel Fe-containing Sn–1Ag–0.5Cu lead-free solder alloy with further enhanced elastic compliance and plastic energy dissipation ability for mobile products. Microelectron Reliab. 2012; 52 (11): 2701–2708.
28.
MahdavifardMSabriMSaidS. Effects of Fe and Bi minor alloying on mechanical, Thermal, and microstructural properties of Sn-0.7Cu solder alloy. J Electron Mater. 2016; 45 (7): 3673–3682.
29.
HodúlováEPalcutMLechovičE. Kinetics of intermetallic phase formation at the interface of Sn–Ag–Cu–X (X=Bi, In) solders with Cu substrate. J Alloys Compd. 2011; 509 (25): 7052–7059.
30.
WuCYuDLawC. Properties of lead-free solder alloys with rare earth element additions. Mater Sci Eng R Rep. 2004; 44 (1): 1–44.
31.
AndersonIEHarringaJL.Suppression of void coalescence in thermal aging of tin-silver-copper-X solder joints. J Electron Mater. 2006; 35 (1): 94–106.
32.
GaoLXueSZhangL. Effect of alloying elements on properties and microstructures of SnAgCu solders. Microelectron Eng. 2010; 87 (11): 2025–2034.
33.
DittrichMSchumacherG.Evolution of crystallite size, lattice parameter and internal strain in Al precipitates during high energy ball milling of partly amorphous Al87Ni8La5 alloy. Mater Sci Eng: A. 2014; 604: 27–33.
34.
KimY-YSchenkASIhliJ. A critical analysis of calcium carbonate mesocrystals. Nat Commun. 2014; 5: 4341.
35.
SunFFroesFS.Synthesis and characterization of mechanical-alloyed Ti–xMg alloys. J Alloys Compd. 2002; 340 (1-2): 220–225.
LiuRScullyJWilliamsG. Reducing the corrosion rate of magnesium via microalloying additions of group 14 and 15 elements. Electrochim Acta. 2018; 260: 184–195.
38.
SarrafMRazakBANasiri-TabriziB. Nanomechanical properties, wear resistance and in-vitro characterization of Ta 2 O 5 nanotubes coating on biomedical grade Ti–6Al–4V. J Mech Behav Biomed Mater. 2017; 66: 159–171.
39.
RosalbinoFAngeliniEZanicchiG. Corrosion behaviour assessment of lead-free Sn–Ag–M (M=In, Bi, Cu) solder alloys. Mater Chem Phys. 2008; 109 (2-3): 386–391.
40.
Wierzbicka-MiernikAGuspielJZabdyrL.Corrosion behavior of lead-free SAC-type solder alloys in liquid media. Arch Civil Mech Eng. 2015; 15 (1): 206–213.
41.
WangMWangJFengH. Effect of Ag3Sn intermetallic compounds on corrosion of Sn-3.0Ag-0.5Cu solder under high-temperature and high-humidity condition. Corros Sci. 2012; 63: 20–28.
42.
MohantyUSLinK-L.Corrosion behavior of Pb-free Sn-1Ag-0.5Cu-XNi solder alloys in 3.5% NaCl solution. J Electron Mater. 2013; 42 (4): 628–638.
43.
PistoriusPBursteinG.Aspects of the effects of electrolyte composition on the occurrence of metastable pitting on stainless steel. Corros Sci. 1994; 36 (3): 525–538.
ZhongSWangJLiuH. Influence of alloying with bismuth on electrochemical behaviour of lead-calcium-tin grid alloys. J Power Sources. 1997; 66 (1-2): 107–113.
46.
RosalbinoFAngeliniEZanicchiG. Electrochemical corrosion study of Sn–3Ag–3Cu solder alloy in NaCl solution. Electrochim Acta. 2009; 54 (28): 7231–7235.
47.
RoutPKGhoshMGhoshK.Effect of solution pH on electrochemical and stress corrosion cracking behaviour of a 7150 Al–Zn–Mg–Cu alloy. Mater Sci Eng A. 2014; 604: 156–165.
48.
WangYChengGWuW. Effect of pH and chloride on the micro-mechanism of pitting corrosion for high strength pipeline steel in aerated NaCl solutions. Appl Surf Sci. 2015; 349: 746–756.
49.
RodriguezJChenoyLRoobroeckA. Effect of the electrolyte pH on the corrosion mechanisms of Zn-Mg coated steel. Corros Sci. 2016; 108: 47–59.
50.
ZaidBSaidiDBenzaidA. Effects of pH and chloride concentration on pitting corrosion of AA6061 aluminum alloy. Corros Sci. 2008; 50 (7): 1841–1847.
51.
CicolinDTruebaMTrasattiS.Effect of chloride concentration, pH and dissolved oxygen, on the repassivation of 6082-T6 Al alloy. Electrochim Acta. 2014; 124: 27–35.
