Abstract

The corrosion behaviour of 2101 duplex stainless steel (DSS) in NaCl solution was studied and compared with that of 2205 DSS. The effects of chloride concentration and solution temperature on pitting corrosion behaviour were focused. The relative sensitivity to pitting corrosion of the constituent phases in both 2101 and 2205 DSSs was also explored. Pitting corrosion susceptibility was evaluated by conducting cyclic polarisation curve measurement. The corrosion morphology was examined by a scanning electron microscope equipped with energy dispersive spectrometer. The experimental results showed that the pitting corrosion resistance of 2101 DSS was inferior to that of 2205 DSS by exhibiting a lower threshold chloride concentration and a lower critical pitting temperature. For both 2101 and 2205 DSSs, the ferrite phase was more susceptible than austenite phase to pitting corrosion.

This paper is part of a supplementary issue from the 17th Asia-Pacific Corrosion Control Conference (APCCC-17).

Keywords

Duplex stainless steel pitting corrosion critical temperature critical chloride concentration nucleation site

Introduction

Duplex stainless steels (DSSs) contain approximately equal volume fractions of austenite (γ) and ferrite (α) phase. Due to their good corrosion resistance, they are widely used in many applications such as condenser, desalinator, heat exchanger, etc. [1]. Since the price of nickel is not stable and fluctuates unpredictably, therefore, the development of DSSs has followed lean route after the introduction of the modern 22%Cr duplex grades. In lean duplex grades, Ni is partially replaced by Mn and N, while Cr and Mo contents are also slightly reduced to reach economical purposes. Among the lean grade of DSSs, 2101 DSS, comprising less than 2% Ni, is one of the attractive alloys recently. Zhang et al. [2] had addressed that 2101 DSS has better pitting corrosion resistance than 304 austenitic SS. Gao et al. [3] had also pointed out that it has lower susceptibility to form precipitates as compared with the famous 2205 DSS. However, the studies on corrosion behaviours of 2101 DSS are still limited, especially its pitting corrosion resistance in chloride (Cl⁻) ion-containing environments. It is well known that pitting corrosion susceptibility of stainless steels depends very much on the environmental conditions in service [4]. A few studies have been conducted to determine the critical pitting temperature of 2101 DSS in NaCl solution at certain concentrations [2,5,6]. However, the roles of the constituent phases in 2101 DSS on its pitting corrosion behaviour are seldom explored. In this study, hence, the relative susceptibility between austenite and ferrite phase to pitting corrosion nucleation is focused. In the meantime, the effects of chloride concentration and solution temperature on pitting corrosion behaviour of 2101 DSS are also studied, in comparison with those of 2205 DSS.

Experimental

Materials and microstructures

The as-received hot-rolled 2101 and 2205 DSSs were solution annealed at 1100°C for 30 min and then water quenched for subsequent uses. The solution annealed alloys were cut into plates each with a dimension of 10 × 10 × 2 mm. Three-dimensional (short transverse (S), transverse (T), and longitudinal (L) direction) metallography of 2101 and 2205 DSS were performed using an optical microscope. For metallographical observation, each plate-shape sample was ground successively with different grit SiC papers and finally polished with 1 µm diamond paste before etching in a Murukami etching solution (20 g KOH + 20 g K₃Fe(CN)₆ + 100 ml H₂O) at 95°C for 3 min. The duplex microstructure was revealed after etching, and the volume fractions of α and γ phases in three directions of each DSS were determined using a metallographicanalysis software. The gross chemical composition of each DSS was analysed by glow discharge mass spectroscopy (GDS), while the chemical compositions of the constituent phases were determined by using the energy dispersive spectrometer (EDS) attached to a scanning electron microscope (SEM). The gross chemical compositions of 2101 and 2205 DSSs and those of their constituent phases are listed in Table 1. Since EDS analysis could only give a semi-quantitative result of a localised area, the chemical compositions for minor alloying elements in Table 1 might not totally reflect the true values. The trace amount of nitrogen could not even be determined accurately, thus, it is assumed that all nitrogen is present in the γ phase as shown in Table 1.

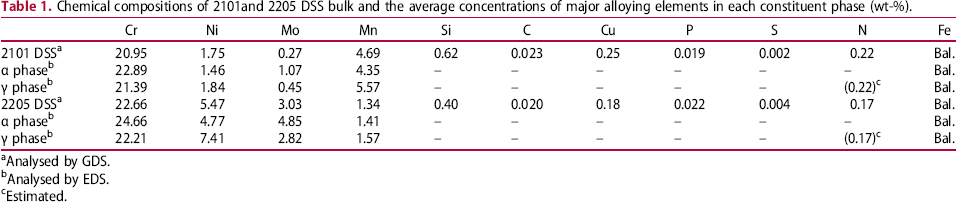

Table 1

Chemical compositions of 2101and 2205 DSS bulk and the average concentrations of major alloying elements in each constituent phase (wt-%).

	Cr	Ni	Mo	Mn	Si	C	Cu	P	S	N	Fe
2101 DSS^a	20.95	1.75	0.27	4.69	0.62	0.023	0.25	0.019	0.002	0.22	Bal.
α phase^b	22.89	1.46	1.07	4.35	–	–	–	–	–	–	Bal.
γ phase^b	21.39	1.84	0.45	5.57	–	–	–	–	–	(0.22)^c	Bal.
2205 DSS^a	22.66	5.47	3.03	1.34	0.40	0.020	0.18	0.022	0.004	0.17	Bal.
α phase^b	24.66	4.77	4.85	1.41	–	–	–	–	–	–	Bal.
γ phase^b	22.21	7.41	2.82	1.57	–	–	–	–	–	(0.17)^c	Bal.

^aAnalysed by GDS.

^bAnalysed by EDS.

^cEstimated.

Electrochemical test

Cyclic polarisation curve measurements were conducted in deaerated NaCl solutions with different concentrations (250, 2500, and 21300 ppm, respectively) and at various temperatures (ranging from 10 to 75°C). The solution annealed sample as mentioned above was embedded in epoxy resin with the plane perpendicular to the rolling direction (L plane) exposed. The exposed surface was successively ground with SiC papers to a grit of #1000 and then polished with 1 µm diamond paste. This sample was used as the working electrode, while a platinum foil and a saturated calomel electrode (SCE) were used as the counter and the reference electrode, respectively. All the potentials reported in this paper are referred with respect to SCE. The testing solution was purged with nitrogen gas for 40 min before and throughout conducting potentiodynamic polarisation test. The potential was scanned from −600 mV vs. open circuit potential towards anodic direction at a scan rate of 1 mV/sec. When the current density was up to 1 mA/cm² or the potential reached at + 1500 mV, the potential was scanned back until intersecting the original curve.

Results and discussion

Microstructures

Three-dimensional metallographs of both 2101 and 2205 DSS are shown in Figure 1.

Figure 1

Three-dimensional metallographs of (a) 2101 and (b) 2205 DSS after solution annealing at 1100°C.

The bright area is γ phase which distributes as an island in the continuous α phase with a dark colour. The volume fractions of γ and α phases in three different planes of each DSS was measured and the results are shown in Table 2. The results show that the volume ratio between γ and α phases in each alloy is almost the same in all plane orientation, although the shapes of the constituent phases are different.

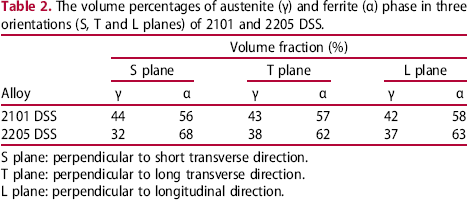

Table 2

The volume percentages of austenite (γ) and ferrite (α) phase in three orientations (S, T and L planes) of 2101 and 2205 DSS.

Alloy	Volume fraction (%)
S plane		T plane		L plane
γ	α	γ	α	γ	α
2101 DSS	44	56	43	57	42	58
2205 DSS	32	68	38	62	37	63

S plane: perpendicular to short transverse direction.

T plane: perpendicular to long transverse direction.

L plane: perpendicular to longitudinal direction.

Effects of temperature and chloride concentration on pitting corrosion behaviour

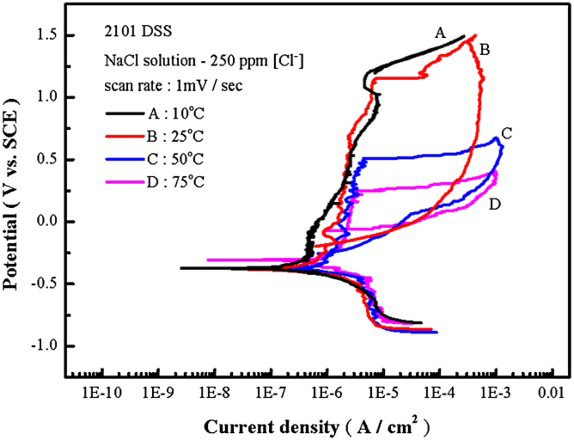

The cyclic polarisation curves of 2101 DSS determined in the deaerated solution containing 250 ppm Cl⁻ ion at different temperatures are shown in Figure 2.

Figure 2

Results of cyclic polarisation curve measurement of 2101 DSS in deaerated 250 ppm Cl⁻ ion contained NaCl solution at different temperatures.

As shown in this figure, no hysteresis loop was observed at 10°C, indicating the absence of pitting corrosion in this solution up to a potential as high as +1500 mV. A sharp increase in current density at + 1185 mV actually corresponded to the transpassive behaviour of the passive film formed on the surface of 2101 DSS, not associated with pitting corrosion. As the solution temperature was raised to 25°C and above, a hysteresis loop was seen at each testing temperature, revealing pitting corrosion characteristics. The pitting corrosion nucleation potential (E_np) was about + 1140 mV, while the pitting corrosion protection potential (E_pp) was about −170 mV. As the temperature was raised to 50°C, a significant decrease of E_np (+510 mV) was noted, indicating the increasing susceptibility to pitting corrosion. The temperature-dependent pitting corrosion behaviour was similar to others DSSs as reported elsewhere [7]. However, the value of E_pp was only slightly lowered to −240 mV. At 75°C, the values of E_np and E_pp for 2101 DSS in 250 ppm chloride-containing solution were + 250 and −60 mV, respectively.

The effects of Cl⁻ ion concentration and a solution temperature of the changes of cyclic polarisation curves of 2101 DSS were also explored (see Figure 3).

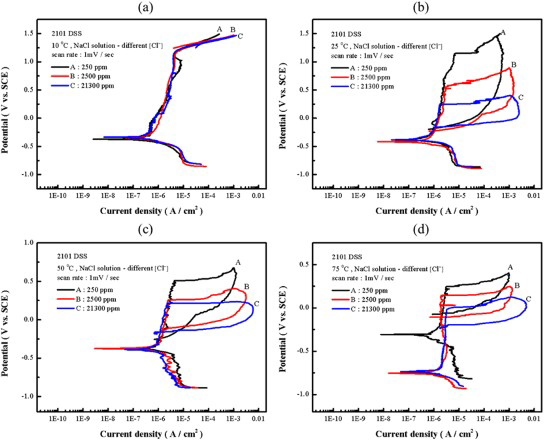

Figure 3

Cyclic polarisation curves of 2101 DSS in deaerated NaCl solutions with different Cl⁻ ion concentrations and at (a) 10°C, (b) 25°C, (c) 50°C, and (d) 75°C.

At 10°C, as can be seen in Figure 3(a), there were no hysteresis loops observed in all the solutions with different Cl⁻ ion concentrations tested. These results indicated that 2101 DSS was resistant to pitting corrosion at and below 10°C even at a very high Cl⁻ ion concentration. The effect of Cl⁻ ion concentration on the change of polarisation curve at 25°C is manifested in Figure 3(b). All cyclic curves exhibited hysteresis loops, showing the susceptibility to pitting corrosion in all Cl⁻ ion-containing solution at this temperature. The value of E_np decreased with increasing Cl⁻ ion concentration; however, the value of E_pp was almost the same (in the range of +380 ∼ +410 mV). The results suggested that nucleation of pitting corrosion was more sensitive to Cl⁻ ion concentration while pitting protection was nearly independent of it. The concentration-dependent pitting corrosion susceptibility was similar to that of austenitic stainless steels [8,9]. As the solution temperatures were increased to 50 and 75°C, the value of E_np continued to decrease with increasing solution temperature and Cl⁻ ion concentration, as shown in Figure 3(c) and (d), respectively. The dependences of E_np and E_pp on solution temperature and Cl⁻ ion concentration are listed and summarised in Table 3. The variations of the characteristic potentials, namely, transpassive potential, pitting nucleation potential, and pitting protection potential with Cl⁻ ion concentration and temperature are more clearly presented in Figure 4.

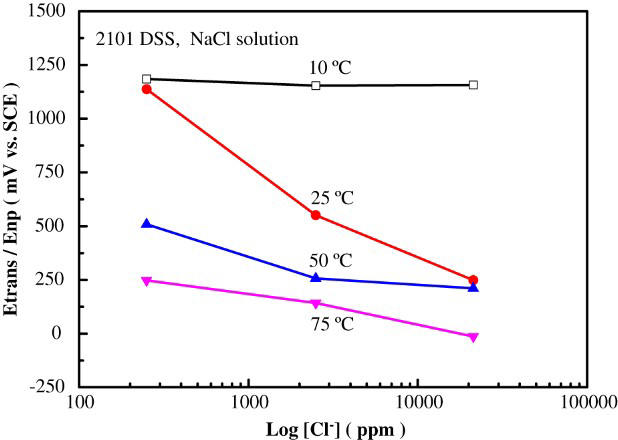

Figure 4

Effects of Cl⁻ ion concentration and solution temperature on the characteristic potentials of 2101 DSS determined by cyclic polarisation tests in NaCl solutions.

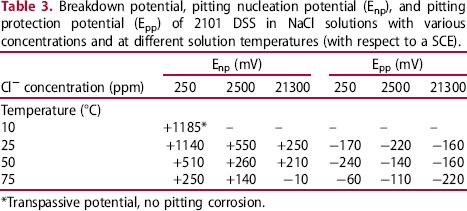

Table 3

Breakdown potential, pitting nucleation potential (E_np), and pitting protection potential (E_pp) of 2101 DSS in NaCl solutions with various concentrations and at different solution temperatures (with respect to a SCE).

	E_np (mV)			E_pp (mV)
Cl⁻ concentration (ppm)	250	2500	21300	250	2500	21300
Temperature (°C)
10	+1185*	–	–	–	–	–
25	+1140	+550	+250	−170	−220	−160
50	+510	+260	+210	−240	−140	−160
75	+250	+140	−10	−60	−110	−220

*Transpassive potential, no pitting corrosion.

After potentiodynamic polarisation test, the surface morphology of each sample was examined by SEM. Each SEM micrograph shown in Figure 5 demonstrates the surface appearance of 2101 DSS after polarisation test at a specific condition. As shown in this figure, there was no corrosion pit found on the surface at 10°C in the solution containing Cl⁻ ion at a concentration even as high as 21300 ppm. When the temperature was increased to 25°C and above, pitting corrosion was seen in all the Cl⁻ ion-containing solution. The size of the pit seemed to increase with increasing temperature and Cl⁻ ion concentration. More importantly, close examination of the SEM micrograph, pits preferentially appeared in the grains of α phase. Whether the chemical composition or the crystal structure played a more important role on pitting corrosion deserves further investigation in the future.

Figure 5

Surface morphologies of 2101 DSS after cyclic polarisation test in deaerated NaCl solutions with various Cl⁻ ion concentration and at different temperatures: (a) 250 ppm, 10°C; (b) 250 ppm, 25°C; (c) 250 ppm, 50°C; (d) 250 ppm, 75°C; (e) 2500 ppm, 10°C; (f) 2500 ppm, 25°C; (g) 2500 ppm, 50°C; (h) 2500 ppm, 75°C; (i) 21300 ppm, 10°C; (j) 21300 ppm, 25°C; (k) 21300 ppm, 50°C; (l) 21300 ppm, 75°C.

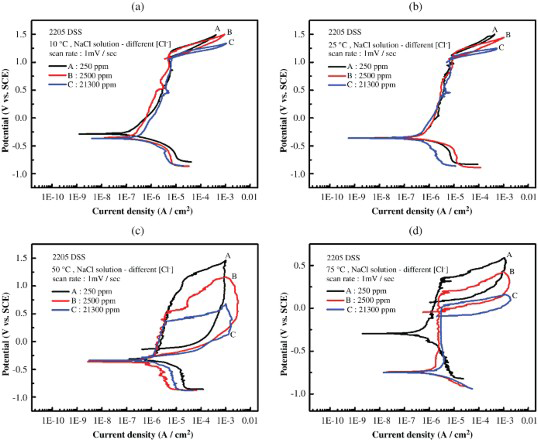

Similar investigation on pitting corrosion susceptibility of 2205 DSS was performed. The cyclic potentiodynamic polarisation curves obtained in NaCl solutions with various Cl⁻ ion concentrations and at temperature ranging from 10 to 75°C are demonstrated in Figure 6.

Figure 6

Cyclic polarisation curves of 2205 DSS in deaerated NaCl solutions with different Cl⁻ ion concentrations and at (a) 10°C, (b) 25°C, (c) 50°C, and (d) 75°C.

As shown in Figure 6(a) and (b), the hysteresis loops were absent at 10 and 25°C. Comparing with the results shown in Figure 3, the critical pitting temperature of 2205 DSS was higher than that of 2101 DSS, which was expected due to the higher Cr and the lower Mn contents in the former. At 50 and 75°C (see Figure 6(c) and (d)), the cyclic polarisation curves exhibited hysteresis loops, which are characteristics of pitting corrosion, in all the Cl⁻ ion-containing solutions. The values of E_np and E_pp obtained from the cyclic polarisation tests are summarised in Table 4 and Figure 7.

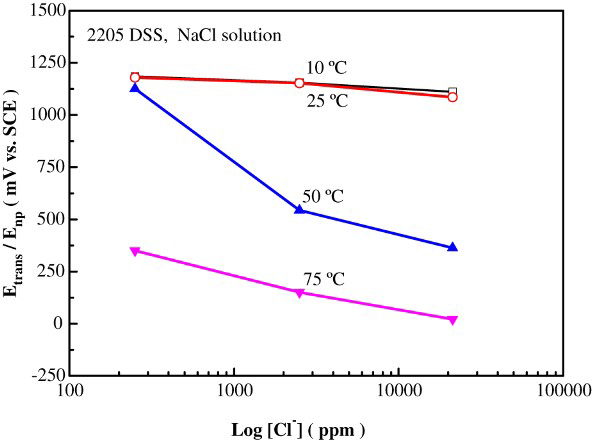

Figure 7

Effects of Cl⁻ ion concentration and solution temperature on the characteristic potentials of 2205 DSS determined by cyclic polarisation tests in NaCl solutions.

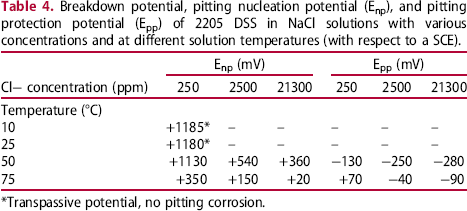

Table 4

Breakdown potential, pitting nucleation potential (E_np), and pitting protection potential (E_pp) of 2205 DSS in NaCl solutions with various concentrations and at different solution temperatures (with respect to a SCE).

	E_np (mV)			E_pp (mV)
Cl− concentration (ppm)	250	2500	21300	250	2500	21300
Temperature (°C)
10	+1185*	–	–	–	–	–
25	+1180*	–	–	–	–	–
50	+1130	+540	+360	−130	−250	−280
75	+350	+150	+20	+70	−40	−90

*Transpassive potential, no pitting corrosion.

The corresponding SEM micrographs showing the surface morphologies of 2205 DSS after cyclic polarisation tests are demonstrated in Figure 8. The surfaces were clean when the solution temperatures were held at 10 and 25°C, in agreement with the polarisation curves shown in Figure 6(a) and (b). Raising the temperature to a 50 and 75°C, respectively, corrosion pits were formed on the surfaces as shown in Figure 8. Similar to those appeared in Figure 5 for 2101 DSS, α phase was more favourable than γ phase acting as the pit nucleation site. The lacy-type of pit morphology, with a large cavity underneath, was common for both 2101 and 2205 DSSs in the conditions investigated.

Figure 8

Surface morphologies of 2205 DSS after cyclic polarisation test in deaerated NaCl solutions with various Cl⁻ ion concentration and at different temperatures: (a) 250 ppm, 10°C; (b) 250 ppm, 25°C; (c) 250 ppm, 50°C; (d) 250 ppm, 75°C; (e) 2500 ppm, 10°C; (f) 2500 ppm, 25°C; (g) 2500 ppm, 50°C; (h) 2500 ppm, 75°C; (i) 21300 ppm, 10°C; (j) 21300 ppm, 25°C; (k) 21300 ppm, 50°C; (l) 21300 ppm, 75°C.

Based on the above SEM results, the sites where pitting corrosion occurred after cyclic polarisation tests conducted in NaCl solutions at various temperatures are summarised in Table 5. The relative resistance to pitting corrosion between 2201 and 2205 DSSs, as well as that between their constituent phases (i.e. γ and α) are manifested. More close examination of the SEM micrographs shown in Figures 5 and 8 reveal that α phase is inferior to γ phase as far as pitting corrosion resistance is concerned, which is strongly temperature-dependent.

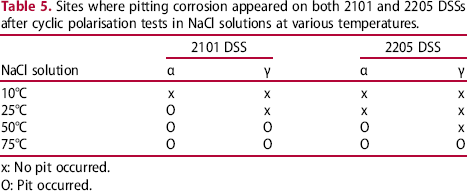

Table 5

Sites where pitting corrosion appeared on both 2101 and 2205 DSSs after cyclic polarisation tests in NaCl solutions at various temperatures.

NaCl solution	2101 DSS		2205 DSS
α	γ	α	γ
10°C	x	x	x	x
25°C	Ο	x	x	x
50°C	Ο	Ο	Ο	x
75°C	Ο	Ο	Ο	Ο

x: No pit occurred.

Ο: Pit occurred.

Effect of chemical composition on pitting corrosion behaviour

The superior pitting corrosion resistance of 2205 DSS to that of 2101DSS is attributed to its higher pitting resistance equivalent (PRE) number [10–14]. The PRE value may be defined as: (1) (2)

or, (3) depending on the emphases of N and Mn alloying element. A higher value of PRE generally gives rise to a higher pitting corrosion resistance. The beneficial roles of Mo and N are confirmed in many studies. Although N is extremely beneficial for stainless steel to combat pitting corrosion, as manifested by its high coefficient in the above equations, the difference in N coefficient (either 16 or 30) still remains, indicating the complex role of this element in corrosion performance. A few studies considered Mn as a detrimental element, as revealed in Equation (3), because of the easy formation of MnS. Other studies, on the contrary, neglected the negative influence of Mn when low S content stainless steels were used. Furthermore, Mn increases the solubility of N in stainless steel; therefore, it is beneficial in the pitting corrosion resistance [12–15].

Since the S contents of 2101 and 2205 DSSs used in this study were low, Equation (2) might be applied for PRE value determination. Based on the chemical compositions listed in Table 1, the PRE values of 2101 DSS and 2205 DSS were 28.4 and 37.8, respectively. The lower Cr and Mo, even with a relatively higher N content, 2101DSS exhibited a lower PRE value, which gave rise to a lower pitting corrosion resistance. The results obtained from polarisation tests and morphological examinations were in agreement with the PRE values in evaluating the pitting corrosion resistance of these two DSSs.

For DSS, the constituent phases have different concentrations of the partitioning alloying elements. According to the above PRE equation and the chemical compositions of the constituent phases listed in Table 1, the PRE values for α and γ phases in 2101 DSS were 26.4 and 29.5 respectively. For 2205 DSS, they were 40.7 and 36.6, respectively. Since the EDS results were semi-quantitative, the PRE values of the constituent phases calculated according to the chemical compositions listed in Table 1 might differ slightly from the true values. In both DSSs, the PRE values only differed slightly between α and γ phases. Both Mn and N are austenite stabilising elements and enriched in γ phase. In these low S content DSSs, the detrimental effect of Mn might be ignored, as evidenced by the high pitting corrosion resistance of γ phase (Mn-rich) comparing with that of α phase (lower Mn content). The effect of N on the enhancement of passivation and pitting corrosion resistance of a stainless steel is well known. One of the beneficial effects of N in stainless steel is associated with the formation of NH₃ and , which can be easily adsorbed on the steel surface and promotes the passivation characteristics [16–19].

Conclusions

Pitting corrosion resistance of both 2101 and 2205 DSSs decreased with increasing concentration of Cl⁻ ion and solution temperature. The critical pitting temperature of 2101 DSS in the solution with a Cl⁻ ion centration ranging from 250 to 21300 ppm was lower than that of 2205 DSS. The lower pitting corrosion resistance of 2101 DSS was attributed to its lower PRE as compared with that of 2205 DSS. SEM examination post cyclic polarisation test showed that the γ phase was more resistant to pitting corrosion than α phase. The high N content in the austenite phase played the key role in passivation against pitting corrosion of both DSSs investigated.

Footnotes

Acknowledgement

The supports from Bureau of Energy, Ministry of Economics of the Republic of China under contract of 104-D0303, and the Energy Research Center in National Cheng Kung University are greatly appreciated.

References

Olsson

Snis

Duplex – A new generation of stainless steels for desalination plants. Desalination. 2007; 205: 104–113. doi: 10.1016/j.desal.2006.02.051

Zhang

Jiang

Study of mechanical and corrosion properties of a Fe-21.4Cr-6Mn-1.5Ni-0.24N-0.6Mo duplex stainless steel. Mater Sci Eng A. 2008; 497: 501–504. doi: 10.1016/j.msea.2008.07.062

Gao

Jiang

Deng

Investigation of selective corrosion resistance of aged lean duplex stainless steel 2101 by non-destructive electrochemical techniques. Electrochim Acta. 2009; 54: 5830–5835. doi: 10.1016/j.electacta.2009.05.039

Smialowska

Wang

Effects of Cl⁻ concentration and temperature on pitting of AISI 304 stainless steel. Corrosion. 1998; 44: 732–737.

Zhang

Jiang

Influence of annealing treatment on the corrosion resistance of lean duplex stainless steel 2101. Electrochim Acta. 2009; 54: 5387–5392. doi: 10.1016/j.electacta.2009.04.023

Sun

Zhang

Potentiostatic electrochemical noise analysis of 2101 lean duplex stainless steel in 1 mol/L NaCl. J Mater Sci Technol. 2012; 28: 474–480. doi: 10.1016/S1005-0302(12)60085-1

Deng

Jiang

Gong

Critical pitting and repassivation temperatures for duplex stainless steel in chloride solutions. Electrochim Acta. 2008; 53: 5220–5225. doi: 10.1016/j.electacta.2008.02.047

Uhlig

Gilman

Pitting of 18-8 stainless steel in ferric chloride inhibited by nitrates. Corrosion. 1964; 20: 289–292. doi: 10.5006/0010-9312-20.9.289t

Leckie

Uhlig

Environmental factors affecting the critical potential for pitting in 18-8 stainless steel. J Electrochem Soc. 1966; 113: 1262–1267. doi: 10.1149/1.2423801

10.

Herbsleb

The influence of SO₂, H₂S and CO on pitting corrosion of austenitic chromium-nickel stainless steels with up to 4wt-precent molybdenum in 1 M NaCl. Werkst Korros. 1982; 33: 334–340. doi: 10.1002/maco.19820330603

11.

Rondelli

Vicentini

Cigada

Influence of nitrogen and manganese on localized corrosion behavior of stainless-steels in chloride environments. Werkst Korros. 1995; 46: 628–632. doi: 10.1002/maco.19950461104

12.

Liimatainen

Powder metallurgically produced high nitrogen steels. Mater Sci Forum. 1999; 318-320: 629–634. doi: 10.4028/www.scientific.net/MSF.318-320.629

13.

Jargelius-Pettersson

Application of the pitting resistance equivalent concept to some highly alloyed austenitic stainless steels. Corrosion. 1998; 54: 162–168. doi: 10.5006/1.3284840

14.

Merello

Botana

Botella

Influence of chemical composition on the pitting corrosion resistance of non-standard low-Ni high-Mn-N duplex stainless steels. Corros Sci. 2003; 45: 909–921. doi: 10.1016/S0010-938X(02)00154-3

15.

Liljas

Qvarfort

Influence of nitrogen on weldments in UNS S31803. In: Lula

, editor. Duplex stainless steel. Metals Park, Ohio, USA: American Society for Metals; 1983. p. 244–256.

16.

Jang

Lee

Interpretation of the relation between ferrite fraction and pitting corrosion resistance of commercial 2205 duplex stainless steel. Corros Sci. 2014; 89: 154–162. doi: 10.1016/j.corsci.2014.08.021

17.

Garfias-Mesias

Sykes

Tuck

The effect of phase compositions on the pitting corrosion of 25 Cr duplex stainless steel in chloride solutions. Corros Sci. 1996; 38: 1319–1330. doi: 10.1016/0010-938X(96)00022-4

18.

Olsson

The influence of nitrogen and molybdenum on passive films formed on the austenoferritic stainless-steel-2205 studied by AES and XPS. Corros Sci. 1995; 37: 467–479. doi: 10.1016/0010-938X(94)00148-Y

19.

Tsai

Reynders

Stratmann

Effect of applied potential on the stress corrosion cracking behavior of high nitrogen steels. Corros Sci. 1993; 34: 1647–1656. doi: 10.1016/0010-938X(93)90038-I
