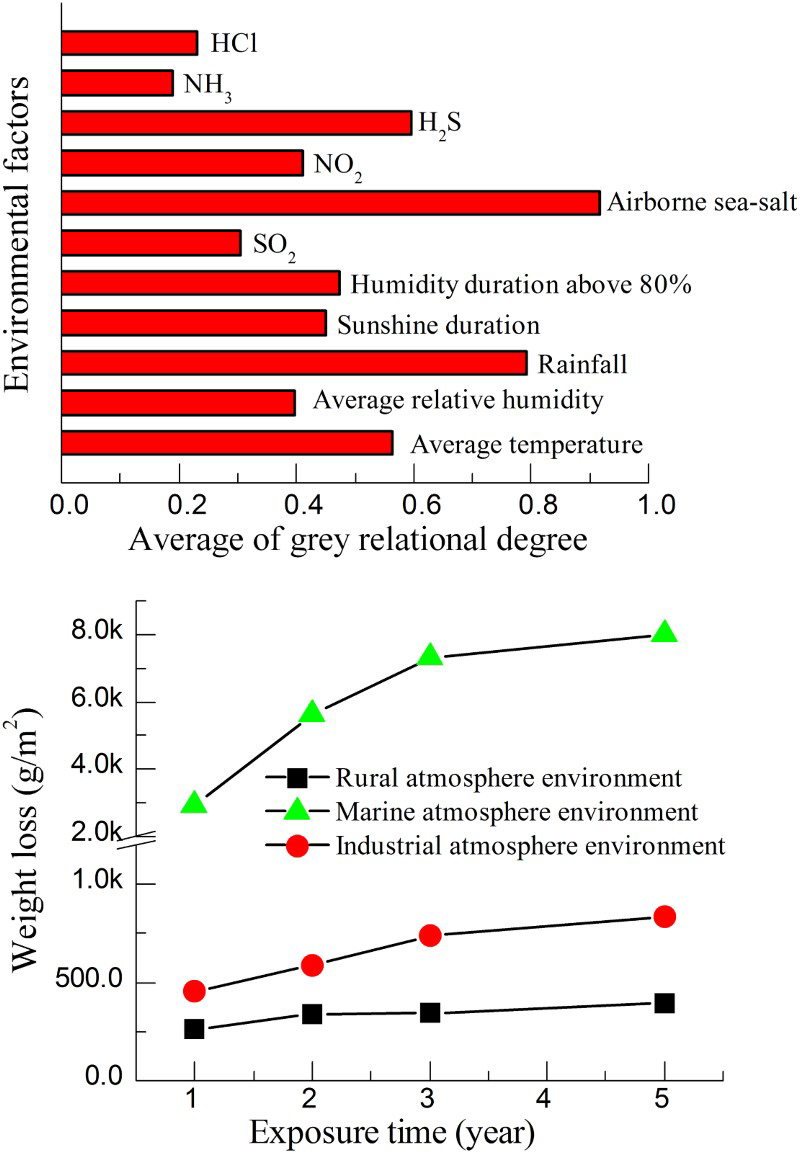

The atmospheric corrosion behaviour of 30CrMnSiA high-strength steel exposed in rural, industrial and marine atmosphere environments in China for 60 months was investigated in virtue of the weight loss, X-ray diffractometer (XRD), scanning electron microscope (SEM) and grey relational analysis. The results showed that 30CrMnSiA high-strength steel exhibited the highest corrosion susceptibility and the lowest corrosion susceptibility in marine atmosphere environment and rural atmosphere environment, respectively. Lepidocrocite and goethite were found as the major constituents of the rust layer in three types of atmosphere environments, and akaganeite was also detected in marine atmosphere environment. The rust layer exhibited the tendency of flaking away from the substrate and becoming dense in marine atmosphere environment and rural atmosphere environment, respectively. Grey relational analysis demonstrated that, among a variety of environmental factors, the airborne sea-salt was the primary factor influencing the atmospheric corrosion of 30CrMnSiA high-strength steel.
LeygrafCGraedelT.Atmospheric corrosion. New York: John Wiley & Sons, Inc.; 2000.
2.
CaoCN.Corrosion in natural environment of materials in China. Beijing: Chemical Industry Press; 2005.
3.
SyedS.Atmospheric corrosion of carbon steel at marine sites in Saudi Arabia. Mater Corros.2010; 61: 238–244. doi: 10.1002/maco.200905300
4.
AminiKSoltaniMANaghianA. Effect of tempering on the impact resistance of 30CrMnSi steel. MAJLESI J Mater Eng.2009; 3: 59–63.
5.
NekoueiRKAkhaghiRRavanbakhshA. A study of the effect of two-stage tempering on mechanical properties of steel 30CrMnSi using analysis on response surface in design of experiment. Met Sci Heat Treat.2015; 57: 694–701. doi: 10.1007/s11041-016-9945-3
6.
Editorial Committee of China Aeronautical Materials Handbook. China aeronautical materials handbookBeijing: Standards Press of China; 2002.
7.
de la FuenteDDíazISimancasJ. Long-term atmospheric corrosion of mild steel. Corros Sci2011; 53: 604–617. doi: 10.1016/j.corsci.2010.10.007
8.
CastañoJGBoteroCARestrepoAH. Atmospheric corrosion of carbon steel in Colombia. Corros Sci.2010; 52: 216–223. doi: 10.1016/j.corsci.2009.09.006
9.
WeiFI.Atmospheric corrosion of carbon steels and weathering steels in Taiwan. Br Corros J.1991; 26: 209–214. doi: 10.1179/000705991798269215
10.
ZhangQCWuJSWangJJ. Corrosion behaviour of weathering steel in marine atmosphere. Mater Chem Phys.2002; 77: 603–608. doi: 10.1016/S0254-0584(02)00110-4
11.
CuiZYLiXGXiaoK. Atmospheric corrosion behaviour of pure Al 1060 in tropical marine environment. Corros Eng Sci Technol.2015; 50: 438–448. doi: 10.1179/1743278214Y.0000000241
12.
WangBBWangZYHanW. Atmospheric corrosion of aluminium alloy 2024-T3 exposed to salt lake environment in Western China. Corros Sci.2012; 59: 63–70. doi: 10.1016/j.corsci.2012.02.015
13.
SyedS.Outdoor atmospheric corrosion of copper in Saudi Arabia. Corros Eng Sci Technol.2008; 43: 267–272. doi: 10.1179/174327807X234705
14.
ArabanVKahramMRezakhaniD.Evaluation of copper atmospheric corrosion in different environments of Iran. Corros Eng Sci Technol.2016; 51: 1–9. doi: 10.1080/1478422X.2016.1144265
15.
de la FuenteDCastañoJGMorcilloM.Long-term atmospheric corrosion of zinc. Corros Sci2007; 49: 1420–1436. doi: 10.1016/j.corsci.2006.08.003
16.
JiangQTZhangKLiXG. Atmospheric corrosion of Ma-rare earth alloy in typical inland and marine environments. Corros Eng Sci Technol.2014; 49: 651–655. doi: 10.1179/1743278214Y.0000000163
17.
XuanWFXuZQXiaoM.Equipment and natural environmental test (basic course). Beijing: Aviation Industry Press; 2009.
18.
LvWPanCSuW. Atmospheric corrosion mechanism of 316 stainless steel in simulated marine atmosphere. Corros Eng Sci Technol.2016; 51: 155–162. doi: 10.1179/1743278215Y.0000000042
19.
WangCWangZYWeiW. Statistical analysis and predictive model in corrosion research. J Chin Soc Corros Prot.2010; 30: 306–312.
20.
DengJL.Control problems of grey systems. Syst Control Lett.1982; 1: 288–294. doi: 10.1016/S0167-6911(82)80025-X
21.
DengJL.Introduction to grey system theory. J Grey Syst.1989; 1: 1–24.
22.
LiPTanTCLeeJY.Grey relational analysis of amine inhibition mild steel corrosion in acids. Corrosion. 1997; 53: 186–194. doi: 10.5006/1.3280459
23.
FuCYZhengJSZhaoJM. Application of grey relational analysis for corrosion failure of oil tubes. Corros Sci.2001; 43: 881–889. doi: 10.1016/S0010-938X(00)00089-5
24.
NihatTHasimP.Gray relational analysis of performance characteristics in MQL milling of 7075 Al alloy. Int J Adv Manuf Technol.2010; 46: 509–515. doi: 10.1007/s00170-009-2118-4
25.
LiuSFYangYJWuLFGrey system theory and application. Beijing: Science Press; 2007.
26.
GOST 4543-71 – Alloyed construction steel, Moscow, 1971.
ISO 9225-12 – Corrosion of metals and alloys – corrosivity of atmospheres – measurement of environmental parameters affecting corrosivity of atmospheres, Geneva, 2012.
29.
GB/T 24516.1-09 – Corrosion of metals and alloys – atmospheric corrosion – determination of meteorologic factors, Beijing, 2009.
30.
ISO 8565-11 – Metals and alloys – atmospheric corrosion testing – general requirement, Geneva, 2011.
31.
ISO 8407-09 – Corrosion of metals and alloys – removal of corrosion products from corrosion test specimens, Geneva, 2009.
32.
MaYLiYWangF.The atmospheric corrosion kinetics of low carbon steel in a tropical marine environment. Corros Sci.2010; 52: 1796–1800. doi: 10.1016/j.corsci.2010.01.022
33.
HaoLZhangSDongJ. Atmospheric corrosion resistance of MnCuP weathering steel in simulated environments. Corros Sci2011; 53: 4187–4192. doi: 10.1016/j.corsci.2011.08.028
34.
MorcilloMChicoBDíazI. Atmospheric corrosion data of weathering steels. A review. Corros Sci.2013; 77: 6–24. doi: 10.1016/j.corsci.2013.08.021
35.
BenarieMLipfertFL.A general corrosion function in terms of atmospheric pollution concentrations and rain pH. Atmos Environ.1986; 20: 1947–1958. doi: 10.1016/0004-6981(86)90336-7
36.
SurnamBYRChiuCWXiaoHP. Long term atmospheric corrosion in Mauritius. Corros Eng Sci Technol.2016; 50: 155–159. doi: 10.1179/1743278214Y.0000000240
37.
MaYLiYWangF.Corrosion of low carbon steel in atmosphere environments of different chloride content. Corros Sci.2009; 51: 997–1006. doi: 10.1016/j.corsci.2009.02.009
38.
KamimuraTHaraSMiyukiH. Composition and protective ability of rust layer formed on weathering steel exposed to various environments. Corros Sci.2006; 48: 2799–2812. doi: 10.1016/j.corsci.2005.10.004
39.
AlcántaraJChicoBSimancasJ. An attempt to classify the morphologies presented by different rust phases formed during the exposure of carbon steel to marine atmospheres. Mater Charact2016; 118: 65–78. doi: 10.1016/j.matchar.2016.04.027
40.
de la FuenteDAlcántaraJChicoB. Characterisation of rust surfaces formed on mild steel exposed to marine atmospheres using XRD and SEM/Micro-Raman techniques. Corros Sci.2016; 110: 253–364. doi: 10.1016/j.corsci.2016.04.034
41.
MorcilloMChicoBAlcantaraJ. SEM/Micro-Raman characterization of the Morphologies of marine atmospheric corrosion products formed on mild steel. J Electrochem Soc.2016; 163: C426–C439. doi: 10.1149/2.0411608jes
42.
MisawaTAsamiKHashimotoK. The mechanism of atmospheric rusting and the protective amorphous rust on low alloy steel. Corros Sci.1974; 14: 279–289. doi: 10.1016/S0010-938X(74)80037-5
43.
MorcilloMDíazIChicoB. Weathering steels: from empirical development to scientific design. A review. Corros Sci.2014; 83: 6–31. doi: 10.1016/j.corsci.2014.03.006
44.
WangJSTangXLiY. Observation and micro-electrochemical characterisation for micro-droplets in initial marine atmospheric corrosion. Corros Eng Sci Technol.2016; 51: 308–312. doi: 10.1080/1478422X.2015.1110373
