Exploring the effect of electron beam on swelling,gel fraction,mechanical and thermal properties of ethylene acrylic elastomer/millable polyurethane rubber blends
Restricted accessResearch articleFirst published online July, 2019
Exploring the effect of electron beam on swelling,gel fraction,mechanical and thermal properties of ethylene acrylic elastomer/millable polyurethane rubber blends

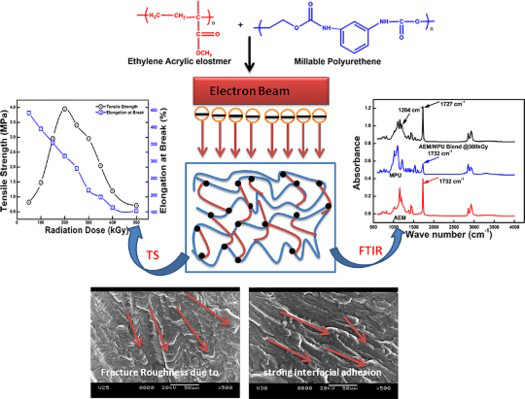

Ethylene acrylic elastomers (AEM) and millable polyurethane (MPU) blend have been prepared successfully using dicumyl peroxide (DCP) system and the blend ratio is optimised on the basis of the tensile results. The optimised unvulcanised blend ratio (60:40) is subjected to different electron beam (EB) dose to obtain uniform three dimensional crosslinking networks. The characteristic shifting of = CO vibration in the Fourier-Transform Infrared spectra confirms the formation of hydrogen bonding between the two phases. The phase morphology of the two phases in the optimised blend has been captured in SEM and the results show the successful integration of MPU in AEM phase. It is found that the swelling of the irradiated blend decreases with increase in EB dose, whereas the increase in gel fraction and the crosslink density is due to the irradiation-induced crosslinking. The thermal stability of the irradiated blend has been improved in compression to the pristine form of individual phase.
Jagur-GrodzinskiJ.Nanostructured polyolefins / clay composites : role of the molecular interaction at the interface. Polym Adv Technol. 2006;17(April):395–418. doi: 10.1002/pat.729
2.
AnandhanS, DePP, DeSK, Thermoplastic elastomeric blend of nitrile rubber and poly(styrene-co-acrylonitrile). I. effect of mixing sequence and dynamic vulcanization on mechanical properties. J Appl Polym Sci. 2003;88(8):1976–1987. doi: 10.1002/app.11893
3.
JhaA, BhowmickAK.Thermoplastic elastomeric blends of poly(ethylene terephthalate) and acrylate rubber: 1. Influence of interaction on thermal, dynamic mechanical and tensile properties. Polymer (Guildf). 1997;38(17):4337–4344. doi: 10.1016/S0032-3861(96)01028-2
4.
WangX, LuoX.A polymer network based on thermoplastic polyurethane and ethylene-propylene-diene elastomer via melt blending: morphology, mechanical properties, and rheology. Eur Polym J. 2004;40(10):2391–2399. doi: 10.1016/j.eurpolymj.2004.06.008
5.
RabieiS, ShojaeiA.Vulcanization kinetics and reversion behavior of natural rubber/styrene-butadiene rubber blend filled with nanodiamond - The role of sulfur curing system. Eur Polym J [Internet]. 2016;81:98–113. Available from:https://doi.org/10.1016/j.eurpolymj.2016.05.021
6.
RamaradS, RatnamCT, KhalidM, Improved crystallinity and dynamic mechanical properties of reclaimed waste tire rubber/EVA blends under the influence of electron beam irradiation. Radiat Phys Chem [Internet]. 2017;130:362–370. Available from:https://doi.org/10.1016/j.radphyschem.2016.09.023
7.
DuttaA, GhoshAK.Investigation on γ-irradiated PP/ethylene acrylic elastomer TPVs by rheological and thermal approaches. Radiat Phys Chem [Internet. 2018;144:149–158. Available from:https://doi.org/10.1016/j.radphyschem.2017.11.007
8.
StellerR, ZuchowskaD, MeissnerW, Crystalline structure of polypropylene in blends with thermoplastic elastomers after electron beam irradiation. Radiat Phys Chem. 2006;75(2):259–267. doi: 10.1016/j.radphyschem.2005.05.018
9.
GiriR, NaskarK, NandoGB.Effect of electron beam irradiation on dynamic mechanical, thermal and morphological properties of LLDPE and PDMS rubber blends. Radiat Phys Chem [Internet]. 2012;81(12):1930–1942. Available from:https://doi.org/10.1016/j.radphyschem.2012.08.004
10.
Mohammed ReffaiSIS, ChatterjeeT, NaskarK.Exploring the influence of radiation crosslinking on high-performance hydrogenated acrylonitrile butadiene rubber and polyamide 12 based blends with special reference to heat and oil resistance. Radiat Phys Chem [Internet]. 2018;148:50–59. Available from:https://doi.org/10.1016/j.radphyschem.2018.02.024
11.
GiurgincaM, ZaharescuT.Thermal and radiation behaviour of HNBR and CSPE blends. Polymer (Guildf). 2000;41(20):7583–7587. doi: 10.1016/S0032-3861(00)00121-X
Shiva KumarE, DasCK, BanikK, Viscoelastic properties of in situ composite based on ethylene acrylic elastomer (AEM) and liquid crystalline polymer (LCP) blend. Compos Sci Technol. 2007;67(6):1202–1209. doi: 10.1016/j.compscitech.2006.05.004
14.
SettanniG, ZhouJ, SuoT, Protein corona composition of PEGylated nanoparticles correlates strongly with amino acid composition of protein surface. 2016. Available from:http://arxiv.org/abs/1612.08814
SahooBP, NaskarK, TripathyDK.Conductive carbon black-filled ethylene acrylic elastomer vulcanizates: physico-mechanical, thermal, and electrical properties. J Mater Sci. 2012;47(5):2421–2433. doi: 10.1007/s10853-011-6065-8
17.
ŠebenikU, PoljanšekI, KrajncM.Modification of NR/BR blend with unsaturated thermo plastic polyurethane; polyurethane synthesis, blend morphology, vulcanization, and vulcanizate properties. E-Polymers. 2006;041:1–23.
18.
RahimanKH, UnnikrishnanG, SujithA, Cure characteristics and mechanical properties of styrene-butadiene rubber/acrylonitrile butadiene rubber. Mater Lett. 2005;59(6):633–639. doi: 10.1016/j.matlet.2004.10.050
19.
BalajiAB, RatnamCT, KhalidM, Effect of electron beam irradiation on thermal and crystallization behavior of PP/EPDM blend. Radiat Phys Chem [Internet]. 2017;141:179–189. Available from:https://doi.org/10.1016/j.radphyschem.2017.07.001
20.
From E, Of B, Rubber N. AKI-ITAR’, P.P. DE and SK DE. 1988;6(5):186–90.
21.
SahooBP, NaskarK, DubeyKA, Exploring the combined effect of electron beam and conductive carbon black on the mechanical, dynamic mechanical, thermal, and electrical properties of ethylene acrylic elastomer. Polym Plast Technol Eng [Internet]. 2016;55(15):1565–1576. Available from:https://www.tandfonline.com/doi/full/10.1080/03602559.2016.1163584
22.
History E. Thoughts About ‘Crosslinking.’ 2008;30(3):16–20.
23.
MoustafaAB, MounirR, El MiligyAA, Effect of gamma irradiation on the properties of natural rubber/styrene butadiene rubber blends. Arab J Chem. 2016;9:S124–S129. doi: 10.1016/j.arabjc.2011.02.020
24.
RamachandranP, NaskarK, NandoGB.Exploring the effect of radiation crosslinking on the physico-mechanical, dynamic mechanical and dielectric properties of EOC–PDMS blends for cable insulation applications. Polym Adv Technol. 2017;28(1):80–93. doi: 10.1002/pat.3862
