Abstract
Brazing is a 5000-year-old joining process which still meets advanced joining challenges today. In brazing, components are joined by heating above the melting point of a filler metal placed between them; on solidification a joint is formed. It provides unique advantages over other joining methods, including the ability to join dissimilar material combinations (including metal-ceramic joints), with limited microstructural evolution; producing joints of relatively high strength which are often electrically and thermally conductive. Current interest in brazing is widespread with filler metal development key to enabling a range of future technologies including; fusion energy, Solid Oxide Fuel Cells and nanoelectronics, whilst also assisting the advancement of established fields, such as automotive lightweighting, by tackling the challenges associated with joining aluminium to steels. This review discusses the theory and practice of brazing, with particular reference to filler metals, and covers progress in, and opportunities for, advanced filler metal development.
The nature of brazing
Brazing creates a permanent, strong, metallic bond between (potentially dissimilar) materials. The defining aspect of brazing is the melting of a filler metal in the joint; this alloy must be capable of wetting the base metal [1], and have a liquidus temperature above 450°C (to distinguish from soft soldering), but below the melting point of the materials being joined [2]. In practice this distinction between brazing and soft soldering is frequently blurred; jewellers often refer to their craft as soldering while using filler metals with melting ranges substantially above 450°C, while some advanced filler metals are pushing brazing process temperatures below this boundary. Brazing presents a number of unique features compared to alternative joining technologies, such as adhesives, fasteners or welding, and, as we survey below, it can be a very versatile process.
The principal advantage of brazing when compared to other joining techniques (and one of the main attractions for its use in advanced engineering) is its capability to join widely dissimilar materials, and to do so with minimal modification of the materials being joined. Whilst welding usually provides a stronger joint, it predominantly requires similar base metals and the intensive local heating causes thermal distortion, which is avoided by uniform heating of the assembly in furnace brazing. Nevertheless, brazed assemblies will have somewhat lower operating temperatures than fusion welds, and are often weaker. The strength of brazed joints is commonly greater than the filler metal but less than the parent material. Despite this, if designed and joined correctly, brazed joints can have sufficient strength that failure occurs in the parent material [2].
Brazing development
Brazing is not a recent process. It can be traced back 5000 years to Sumeria and Egypt [2], where evidence exists that ancient Egyptians joined gold and silver using alloys of these metals with copper to suppress the melting temperature. Wall paintings in Egyptian tombs from as early as 1475 BC depict slaves using reed blow pipes and charcoal fires to braze gold. Since these times, increasingly complex filler metals have evolved to meet the challenges of joining more advanced materials. In the 1930s Handy and Harman in the United States developed low temperature (<700°C) silver-containing brazing filler metals (AgCuZnCd and AgCuP systems). Emerging from the Second World War, nickel-based filler metals were invented to cater for the demands of the nascent aerospace industry. Technical progress caused the joining of aluminium alloys and affixing metals to ceramics to become focus areas for development of new brazing filler metals and brazing processes, and the evolution of new materials and requirements to combine them in different ways now demand ever more of brazing.
Recent reports of brazing research include sapphire-sapphire joining for use in aircraft windows and scratch resistant engineering components [3], joining of bulk metallic glasses to steel [4], gold-based filler metals to join graphite to superalloy in the petrochemical and nuclear industries [5], boron free-filler metals for joining corrosion-resistant steel in rocket nozzles and heat exchangers [6], indium-containing alloys for SiO2f/SiO2 composite materials in antenna radomes [7], and filler metals free of radiation sensitive elements (e.g. Ni and Co) for use with tungsten in fusion reactor diverters [8]. As can be seen, industrially pivotal research regarding brazing continues in a multitude of different sectors. Understanding this, it is the intention of this review not to focus on the fundamentals of brazing (which are covered most thoroughly in several handbooks [1,2]) but to assess in detail some of the recent developments, in particular in filler metals, and to highlight the demands modern engineering has for further advancement of brazing.
Filler metals
Filler metal is the term used in brazing to describe the alloy (or elemental metal) which forms the joint. It is placed between two (or more) components (the parent materials), and having a lower melting point than them, is melted and allowed to solidify, forming a joint within a brazing assembly. Optimised filler metal selection depends on a multitude of factors including; The materials being joined – metallurgical compatibility between filler and parent metals Service conditions – operating temperature and environment, the type, level and nature (static or dynamic) of mechanical loading or the presence of a corrosive medium (such as an electrolyte enabling galvanic corrosion). Joint design – appropriate flow properties for the joint clearance used Brazing process – certain filler metals are not compatible with certain brazing processes (e.g. volatile zinc-containing filler metals in vacuum brazing) Brazing temperature – limited to avoid changing parent material microstructure and properties (also affected by service conditions, as above) Filler metal form – e.g. wire, paste, foil etc. Legal requirements and regulations – certain elements are banned in particular applications (e.g. cadmium-containing brazes were prohibited from use on equipment in the dairy, food and pharmaceutical industries even before the widespread European ban introduced in 2012 [9,10]). Toxicity – The presence of certain elements within materials for use in biomedical applications is not permitted due to toxicity concerns; e.g. Cu2+ at levels above 0.5 mM is considered cytotoxic to mesenchymal stem cells [11,12].
The materials to be joined and the operating environment of the final joint are usually fixed before filler metal selection occurs. Often, a particular brazing process is preferred which limits applicable filler metals; the joint design and the brazing temperature will refine the choice and secondary criteria will be considered (e.g. aesthetics of the joint, filler metal cost). For ease of use, the filler metal selected should generally be the lowest melting temperature and most free-flowing that satisfies all other requirements of the application.
Additional filler metal classes not found in ISO17672:2016.
However, as more innovative and complex materials require joining, to themselves and to each other, it is apparent that the filler metals listed above are not always sufficient, providing a potent driving force to develop new (and in many cases, highly specialised) filler metals. As a result, the simple division into classes as above is not extensive enough to encompass all modern filler metals.
Brazing processes
Brazing can be found in many forms (some brief details of common processes are given in Table 3, further details can be found in practical guides such as Roberts’ Industrial Brazing Practice [2]), but the basic principles in all cases are similar and can be broadly described with the six stages shown in Figure 1.

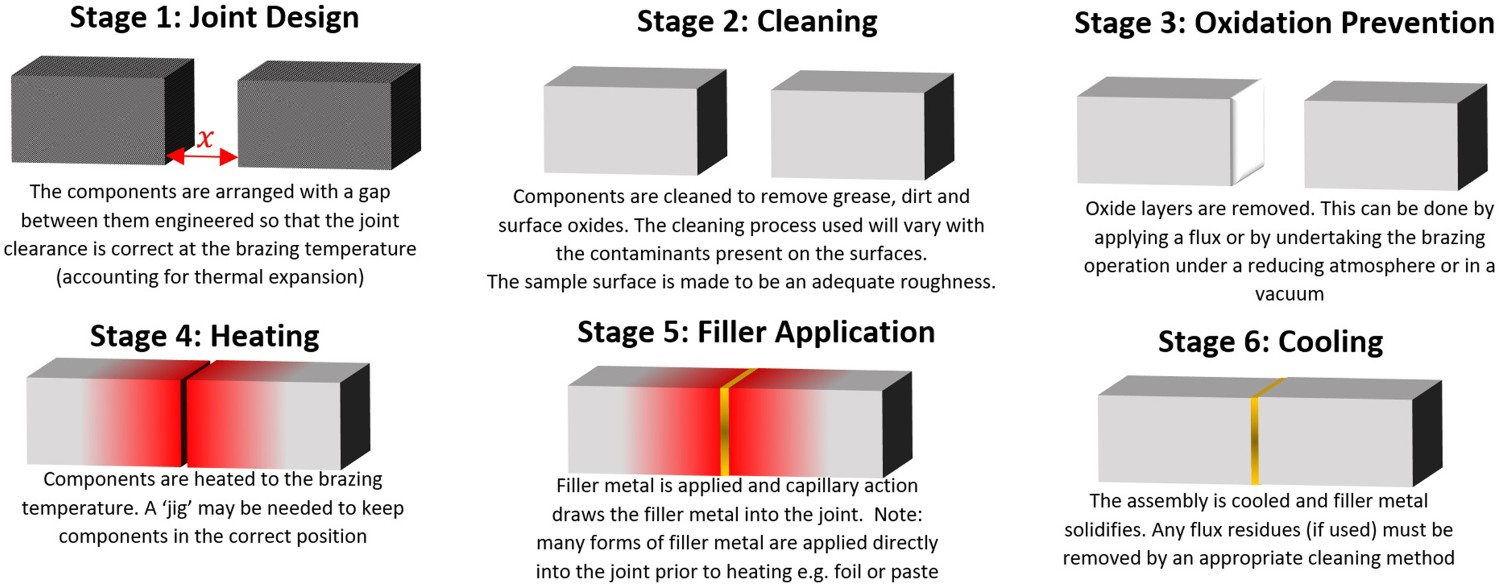

A diagrammatic representation of the 6 main stages required for a brazing operation, stages will vary with each specific brazing process.
A list of some major brazing techniques, the advantages and disadvantages of each, and their common applications.
Oxide removal
Oxide removal is an important part of the brazing process. This is often achieved with a flux; a mixture of complex chemical compounds that becomes molten during the brazing process and forms a layer over the joint, reacting with oxides and removing them from the bonding surfaces. Generally speaking, fluxes are not required in reducing atmosphere or vacuum brazing, but are needed for brazing in air. Brazing of certain materials, such as aluminium, can be undertaken in a vacuum in a manner described as ‘fluxless’, but this requires the presence of magnesium (either in the filler metal, in the base material or as elemental magnesium into the furnace) which acts as an oxygen getter and disrupts the aluminium oxide layer. Fluxes are not impermeable and thus do not prevent oxidation of the surface but will continue to react with and remove oxides formed by oxygen diffusion through the layer. Flux materials can have a wide array of properties, which require matching to the brazing operation.
The brazed joint
Joint factors affecting the brazing process
The strength and reliability of a brazed joint will be influenced by the cleanliness and surface roughness of the materials being joined, the gap between the joining parts and the filler metal selection.
Cleanliness of the joint
Surface contaminants, such as oil, grease, lubricants, dirt and oxide layers, inhibit wetting and capillary flow of the filler metal, and can prevent the flux from acting properly. While it is widely accepted in brazing that surface cleanliness is paramount in ensuring a high quality joint, there has been little systematic investigation of the effects. Bobzin et al. explored pre-cleaning and plasma cleaning of stainless steel and Inconel before brazing, and found that these treatments increased surface energy, and hence gave better wetting and improved joints [17].
Surface roughness

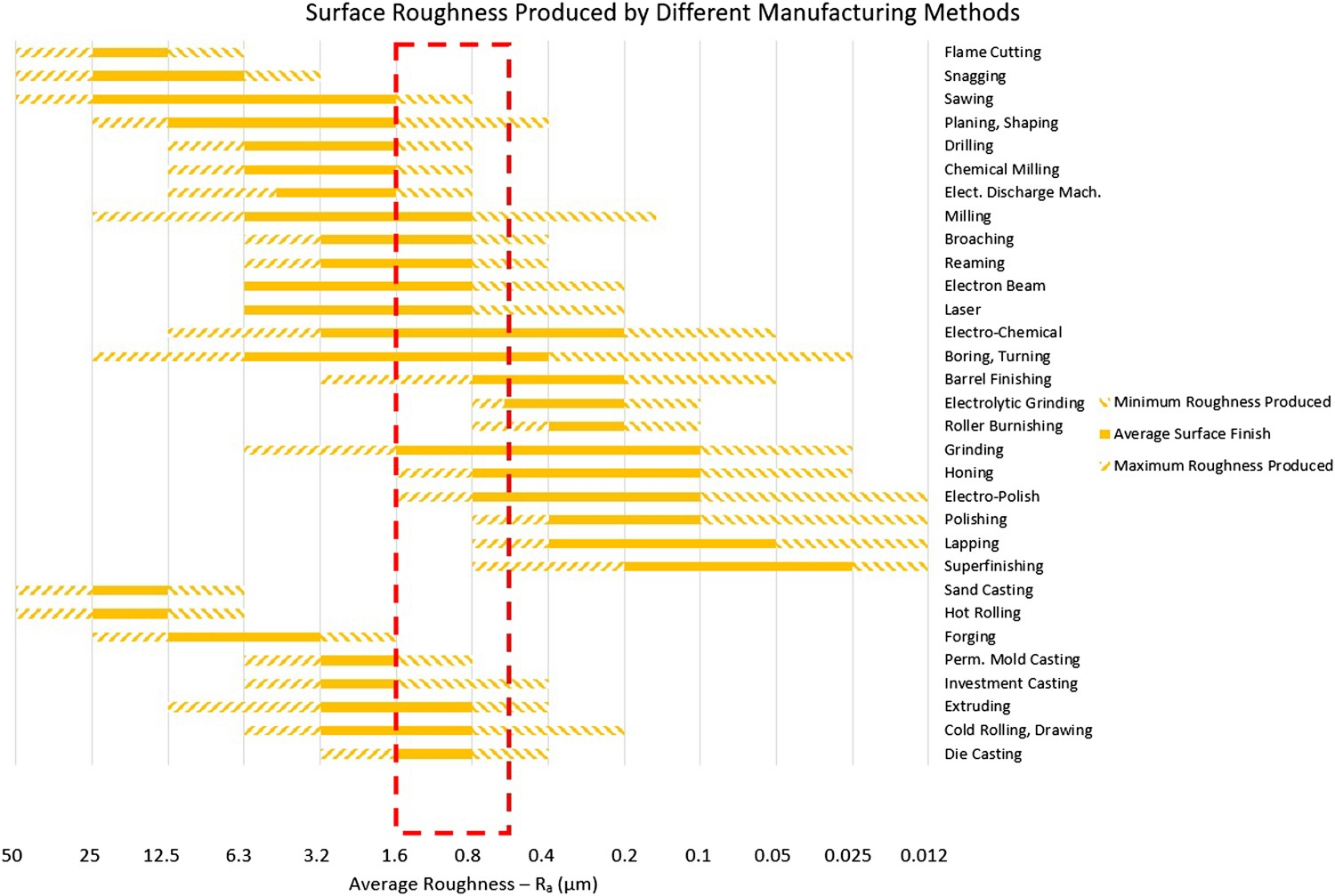

The physical surface texture will affect brazing, and this is described by the lay of the surface (which influences the direction of flow of the filler metal [18]), the waviness and the surface roughness. The latter, a measure of the small scale deviations of a material surface from flatness, is one of the most frequently characterised parameters in brazed joints.
Surface roughness is considered to have a critical impact on wettability and brazed joint quality, and has been investigated for a variety of base metals and molten fillers, with different findings on its influence and optimal characteristics. Most studies find that, at least to a point, smoother surfaces give better wetting and higher joint shear strength; evidence from Cu-9.7Sn-5.7Ni-7P on copper [19] links lower roughness to reduced void volume, and increasing shear strength and surface energy have been found down to an average surface roughness (Ra) of 0.1 µm on copper [20]. Work on brazing of ceramics (alumina, hafnium carbide and silica) by liquid copper, gallium and tin finds that roughening usually causes wettability to decrease [21], and that contact angles between a molten Al drop and a TiN surface decrease with Ra, down to at least Ra = 0.3 µm [22]. Similar results were also seen when roughening a Cu metallised Al2O3 surface, which reduces the wettability of Sn-Bi solders [23].
There is evidence to the contrary however. Hong & Koo found an improved shear strength due to increased wetting with rough surfaces, up to a point where roughness is such that only asperity contacts are bonded, with an optimum Ra of 0.79 µm [24]. From this Zaharinie et al. concluded an intermediate value (which they selected to be Ra = 0.2 µm) may be preferred [19], as roughness increases the joining interface area and provides additional capillary paths for the flow of the brazing filler metal, up to a point where spreading of the filler metal is more difficult, with surface asperities impeding flow. Evidence has also been reported of there being only limited correlation between roughness and wetting, including for filler metals on aluminium nitride [25], and in situations where wetting is dominated by chemical reactions [26], though the range of surface conditions examined was limited.
Overall the sparse population of surface roughness studies (over a wide breadth of filler metal/parent metal combinations) make it hard to draw a clear conclusion on the influence of surface roughness on brazed joints. It is likely that the ideal roughness for each combination of filler metal and parent material will differ, and even within a single system, the range of roughness examined is frequently too low to pinpoint the ideal. From a practical point of view, a common handbook recommendation for surface roughness in brazing is 30–80 microinches RMS [2], converted industrially to a range of Ra = 0.6–1.6 µm (consistent with most milled or machined finishes, [27] Figure 2). Further investigation into the influence of surface roughness is needed before a well-supported conclusion on the optimal surface roughness generally for brazing can be made.
Joint clearance
Another factor affecting the strength of a brazed joint is the joint clearance (the gap between the two pieces of parent material to be joined). This is important in generating the capillary pressure which drives flow into the brazing gap. The pressure difference (Δp) due to capillary action can be found using the Young–Laplace equation: Schematic illustrating the terms of importance in the Young–Laplace equation, which describes the pressure difference caused by capillary action, driving joint penetration by a molten filler metal during brazing.

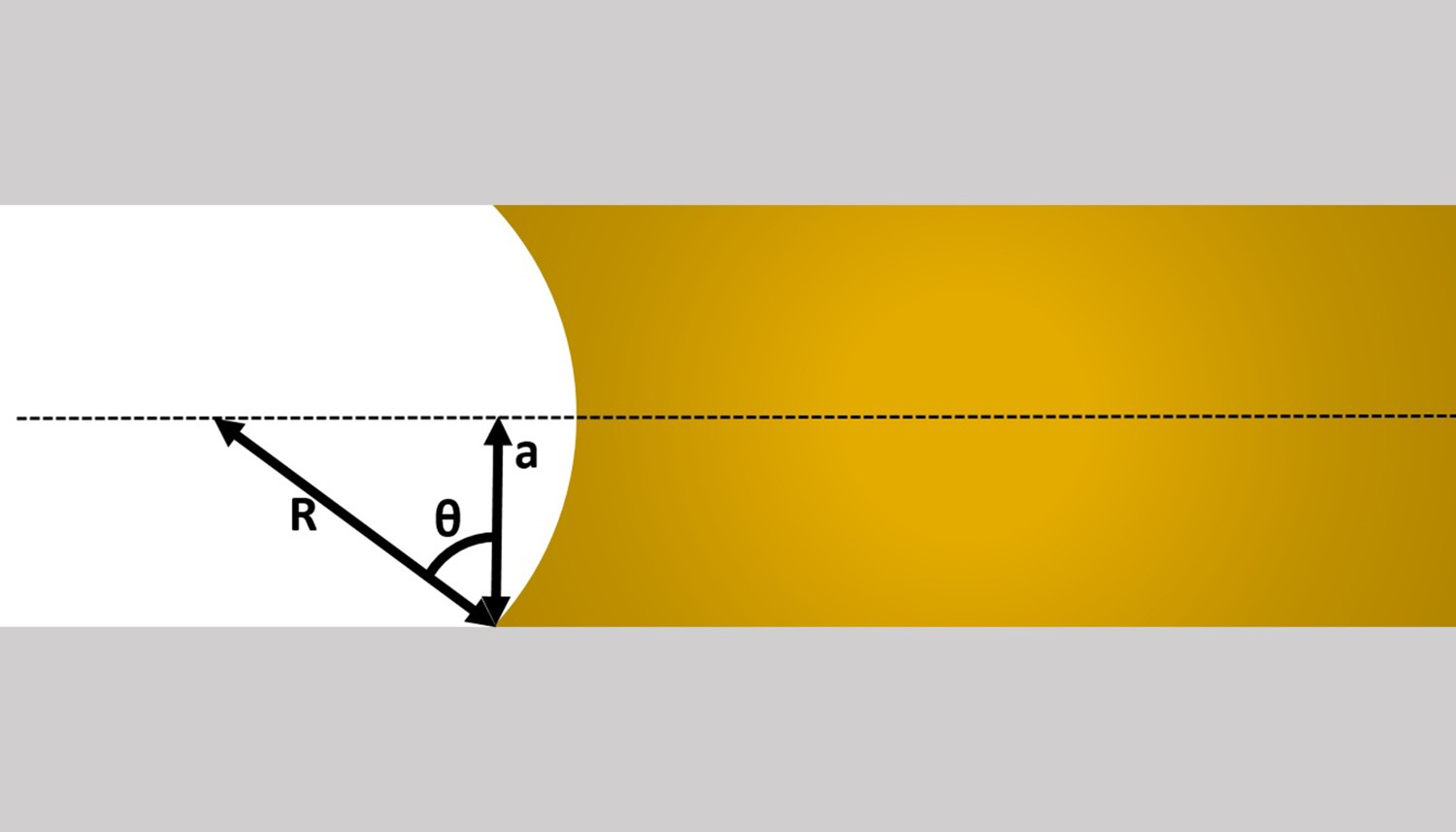

This radius is a function of the contact angle between the filler metal and the surface of the joint, θ, and the joint width, 2a:
Thus, there is an inverse relationship between joint clearance and capillary pressure (Figure 4), and it would be expected that the tightest joint clearance would give the best filling and the strongest brazed joint. However, the most widely known investigation into this effect, by Leach and Edelson at the Handy and Harman research laboratory in 1939, appears to suggest there is a limit to strength gains with narrower joints. Although the original report is no longer available, the data are commonly reproduced and discussed (e.g. [1]) and can be seen, converted to SI units, in Figure 5. These data (which correspond to 304 stainless steel butt joints using ISO 17672 Ag350 with a flux paste) indicate that there is an optimum brazed joint width (not the minimum achievable joint clearance), which will evidently vary with parent material and filler metal. It is interesting to note that the joint strength in all cases is significantly higher than the intrinsic strength of the ISO 17672 Ag350 filler metal (275 MPa) [1].

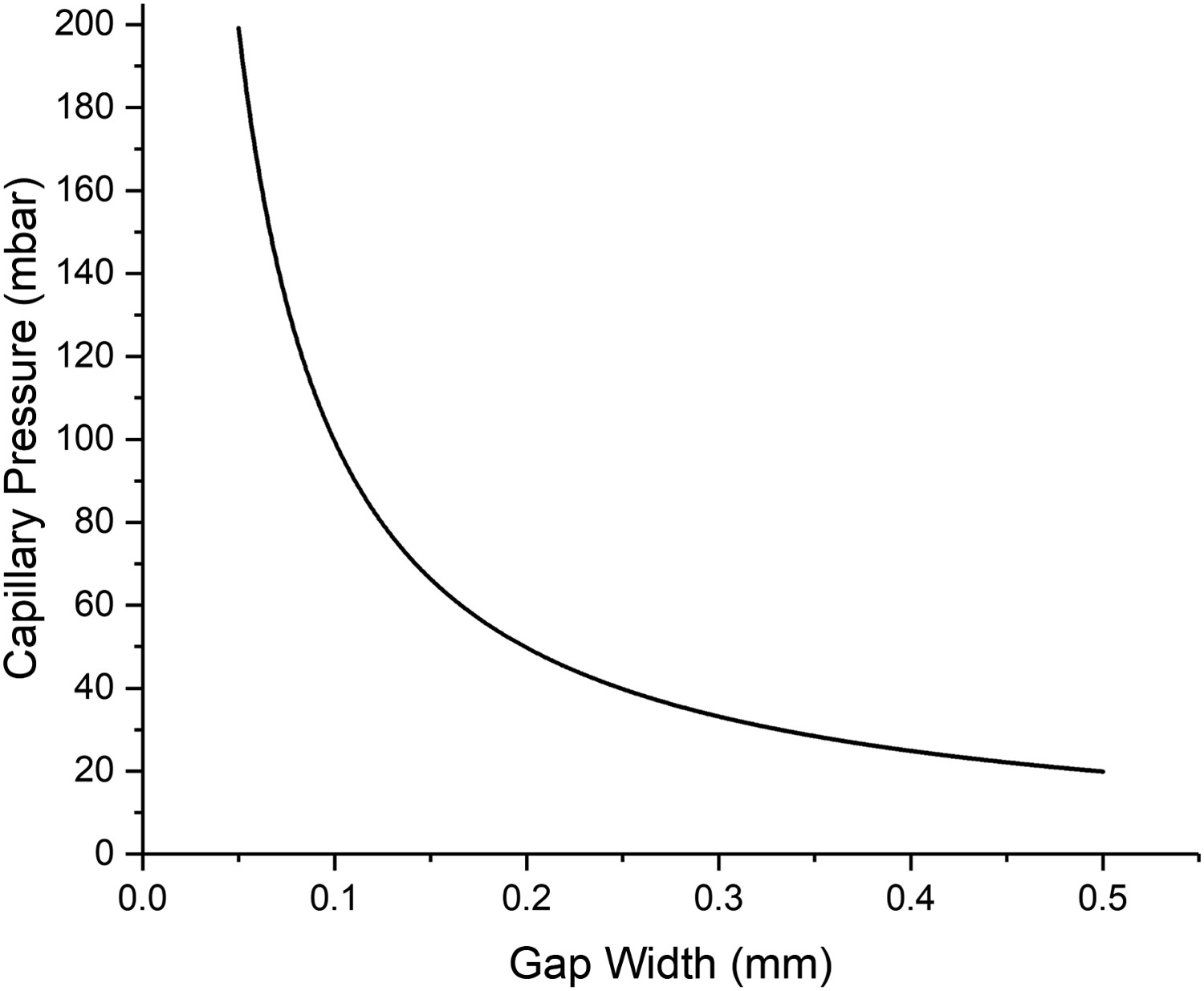

Plot illustrating the trend in capillary pressure with gap width, calculated using the Young–Laplace equation, taking γ (pure silver at T
m) = 0.914Nm−2 and θ = 57°

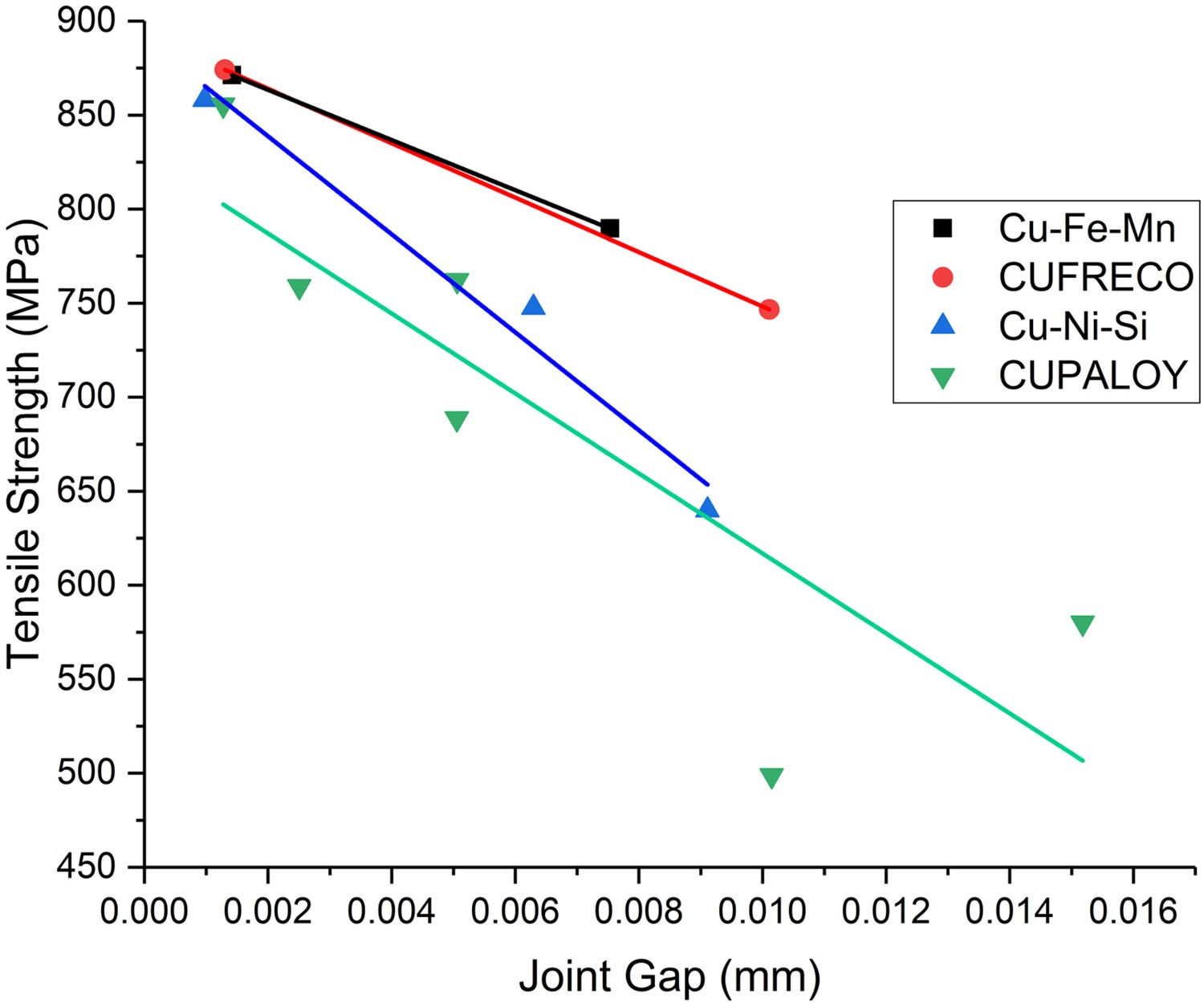

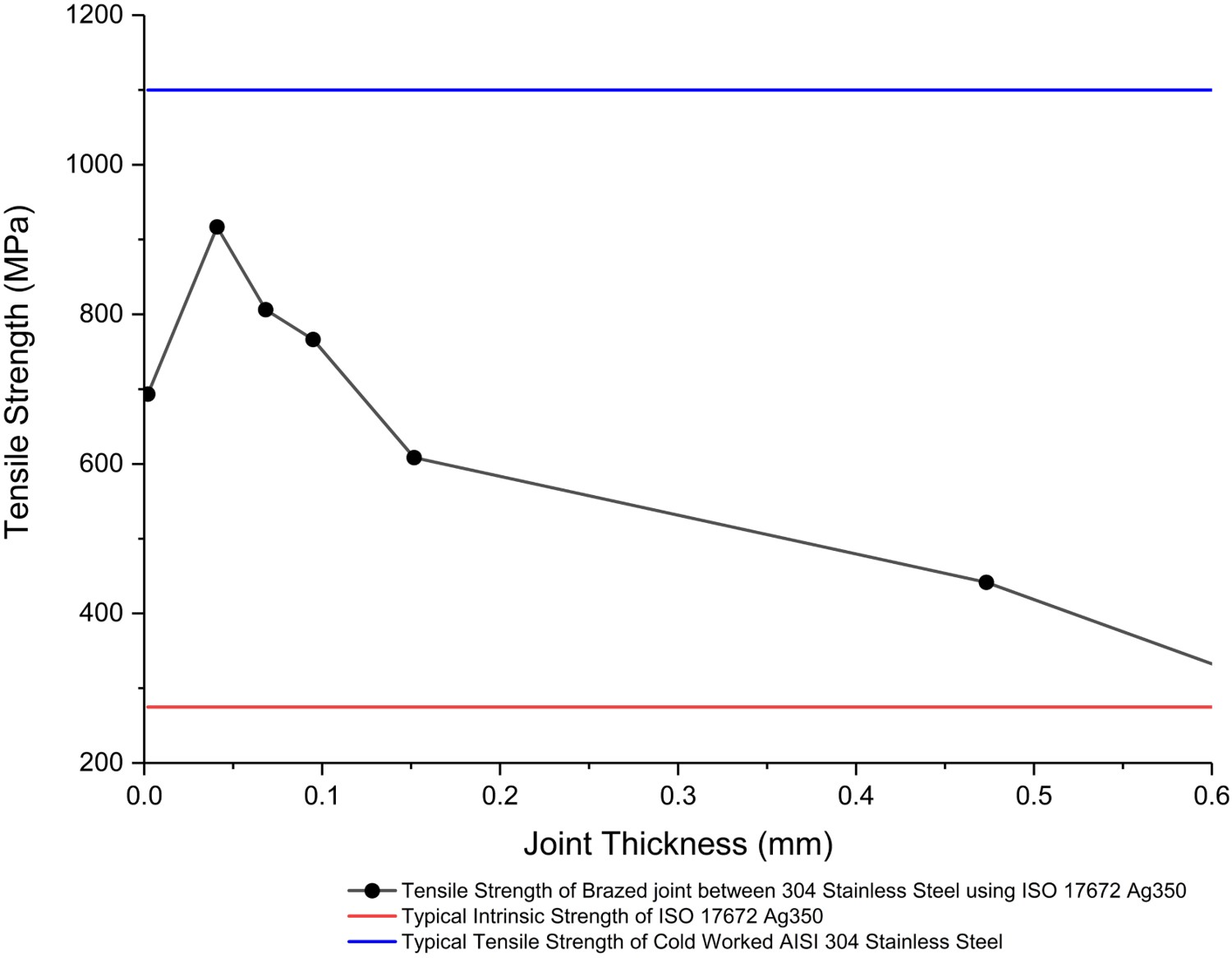

Later work by Gray [29] produced the data in Figure 6, showing no strength decrease at joint clearances down to 1 µm. The disagreement between these two experiments likely occurs as the original work by Leach was carried out under flux in air, which inevitably leads to some flux inclusion and joint strength reduction, particularly for a narrow joint, whereas the succeeding work by Gray was performed under vacuum without flux.
The increase in strength (above that of the filler metal alone) exhibited by brazed joints is due to the joint geometry preventing necking (Figure 7). The small volume of filler metal is constrained by its metallurgical bond to the parent material, and experiences very high triaxial tension, thus supporting higher nominal loads than it would in bulk, and often failing (where failure is in the joint) with limited ductility.

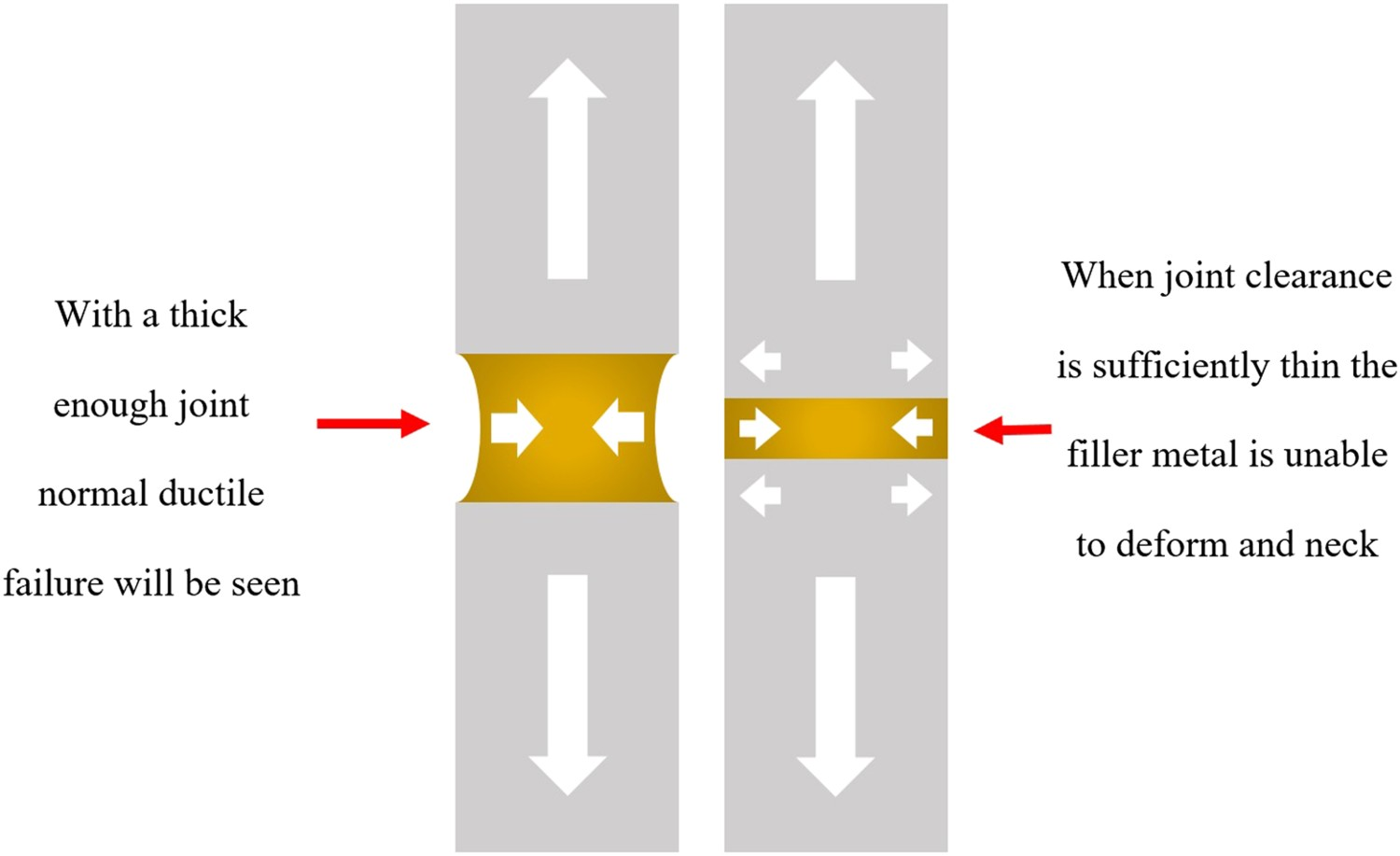

Diagram illustrating the increase in joint strength seen when tighter joint clearances are used.
Joint characteristics
Mechanical property requirements
Defining the mechanical properties of a filler metal by standard test methods (such as tensile testing) is relatively simple, however, as for a well-designed joint the bulk properties of a filler metal often have little relationship to the physical properties of the joint it creates this is of limited practical use. Other factors, such as proper surface preparation and joint geometry are more in focus in engineering practice, and the mechanical properties of the filler metal are typically neglected. To take the example of a lap joint, if the joint overlap is designed to be 3–4 times the thickness of the thinnest joint member, the assembly would be expected to fail in the parent material and not in the joint itself. If it were desirable to quantify the shear performance of the filler by testing such a joint, then the standard requirements would apply and the joint overlap would have to be less than twice the thickness of the thinnest part of the sample.
Electrical properties
Sometimes brazed joints are used in functional applications where conductivity is required; although the majority of electronics applications make use of lower melting point solders, permitting higher application temperatures may be desirable to increase robustness. Increased joint area (typically to at least 1.5 times the thinnest joint member) may be used to avoid noticeable performance reduction.
The effect of the introduction of a joint on the performance of a conductor can be demonstrated by imagining a uniform cross section conductor of length L, containing a simple joint consisting of a layer of solder or braze of length x (Figure 8 inset). When current flows through the conductor and joint in series, the total resistance of the assembly, RT
, is the sum of the resistances of the conductor, RC
, and the filler metal, RFM

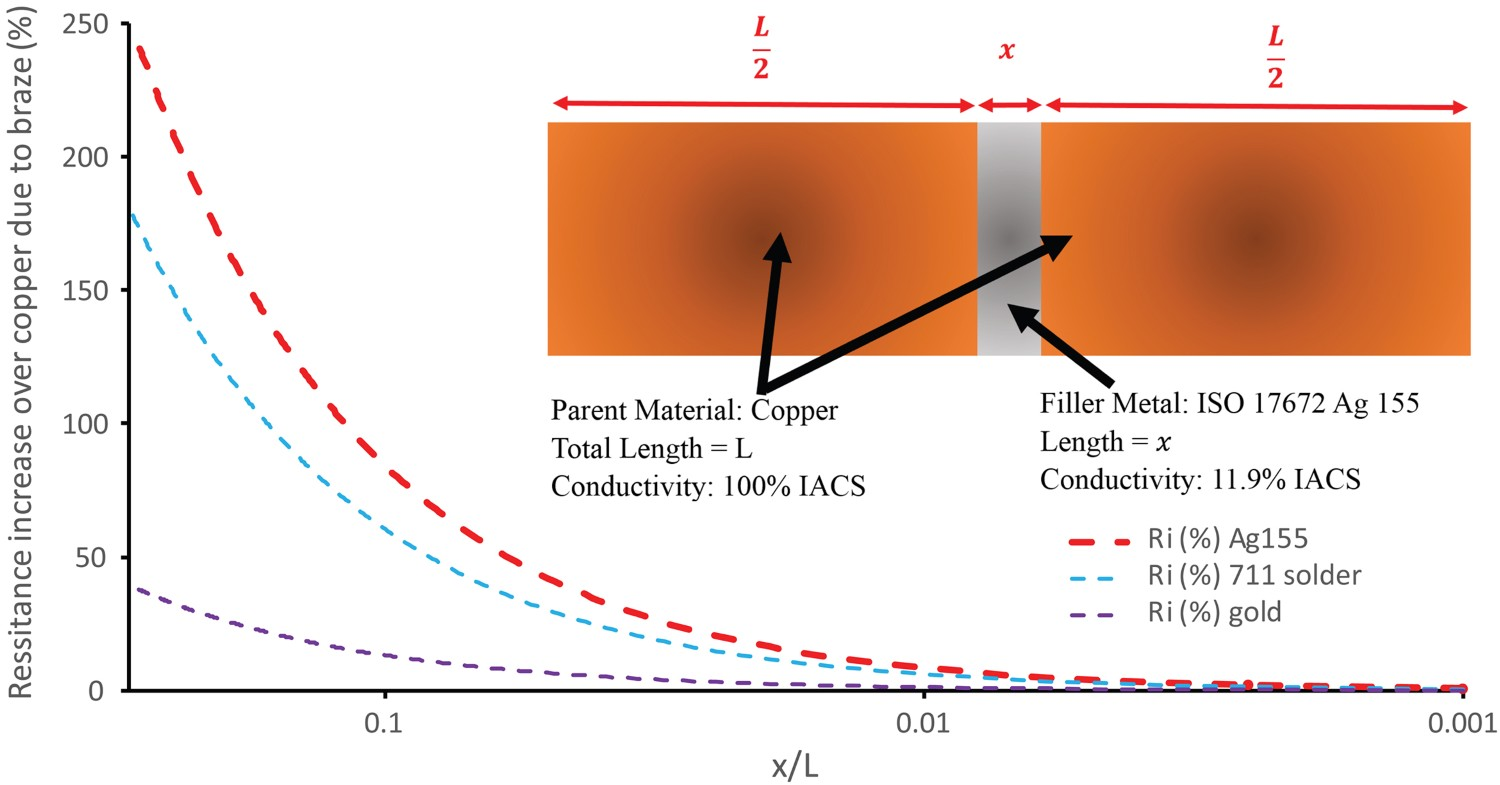

: Variation in resistance increase with relative joint size for a copper joined by ISO17672 Ag155 filler metal, BS EN ISO 9453:2014 Alloy number 711 solder and pure gold. Until the braze makes up a significant portion (>1%) of the joint length the resistance increase caused by the joint is low (<10% increase in resistance compared to pure copper).
Equation (5) is plotted graphically in Figure 8 for different braze or solder materials joining copper.
From Figure 8 it is seen that when the solder or braze makes up less than 1% of the total conductor length under consideration (x/L < 0.01), the increase in resistance in the examples shown is less than 10%. It is not until the thickness of the joint reaches 10% of the total length that the resistance may be doubled over that of copper alone, though at this level a significant difference between regular filler metals and high conductivity gold is seen. Brazed joints are typically thin, and so for many conductive situations concerned with resistivity over a length greater than a few millimetres, the pressure to reduce the resistivity of these joint materials, compared to the improvement of other parameters such as cost and service temperature, is relatively low. In microelectronics the dimensions can be low however, and consideration of braze/solder conductivity may be important.
Interface types found in brazed joints
The formation of a brazed joint requires the filler to wet the parent material (see section ‘Wetting’) and an interaction between the parent material and components of the filler metal. A bond may be formed by partial dissolution of the parent metal in the filler (erosion of the parent metal can arise if this is too extensive), or diffusion of the filler into the parent material, leading to an interaction zone. Alternatively, (more prevalent in active brazing) there may be a reaction between the two, producing intermetallic compounds at the interface (Figure 9).
Back Scattered Electron image of the interface between filler metal Ag-155 and high purity copper (left) and low carbon steel (right).
With the goal of understanding the principles behind bonding, recent research has focused on the interfacial interactions present in specific systems of current interest. For example, the joining of titanium (predominately Ti-6Al-4 V due to its aerospace applications) to aluminium (of various alloy specifications including 5A06 [30], A6061-T6 [31] and 5052 [32]) is of interest in aviation for hybrid structures (for example, aluminium honeycomb joined to a titanium skin [33]). Safe use of these hybrid structures demands extensive knowledge and control of the reactions that occur during joining [34]. Takemoto & Okamoto [35] found that the addition of silicon to Al based filler metals used to braze Al to Ti markedly reduced the interfacial zone width without significantly reducing the length of gap filled, up to 10at%Si where Ti7Al5Si12 formed at the interface. Chen et al. [30] discovered that when an Al-12Si filler metal is used the silicon diffuses to the interface and forms intermetallic compounds; the composition and distribution of which vary with heat input.
The interface is of particular interest in dissimilar joints, and other systems receiving attention with regard to interfacial compounds formed in brazing include; SiC [36–38], synthetic diamond [39–41], and tungsten carbide [42,43]. Thus, while there is an abundance of research investigating an array of systems, filler metals and parent materials, there is a lack of a systematic study. This could yield underlying principles determining which combinations of base and filler metals are most likely to be compatible, and allow more informed filler metal selection and development of new filler metals tailored to specific applications.
Common brazing filler metals
Core brazing properties
The variety of alloy compositions that can be used as filler metals is vast, and the selection criteria by which the correct filler metal for the application is chosen will vary dramatically. Nevertheless, certain core behaviours common to all filler metals in any application can be identified; the melting range of the alloy, the wetting behaviour with the materials it is to join and the flow through the joint under brazing conditions. These key behaviours are expanded upon below.
Melting behaviour
A filler metal clearly must melt to operate. The melting behaviour is specified by the solidus and liquidus temperature, with the melting onset temperature (the solidus) and the melting range (the difference between the two points) being most significant for brazing.
The first of these is easy to specify; a filler metal must have a solidus temperature above the maximum temperature it will experience in service, but below the solidus of the lowest melting parent material. The second is more complex; some filler metals have a narrow melting range and some a wide one. Melting range is often linked to flow and this may drive selection (see section ‘Flow’), as may the required heating rate. Narrow melting range (a small temperature range between the solidus and liquidus) alloys can be used with fast or slow heating rates. Using a slow heating rate, such as in furnace brazing, for a filler metal with a wide melting range can result in extensive time where a solid and liquid phase are in equilibrium and coexist [44]. This leads to liquation, where the liquid first formed (of a particular composition distinct from the bulk) flows into the joint gap, becoming physically separated from the solid residue. The resulting chemical inhomogeneity can be detrimental to the strength of the joint, and is often aesthetically displeasing.
Wetting

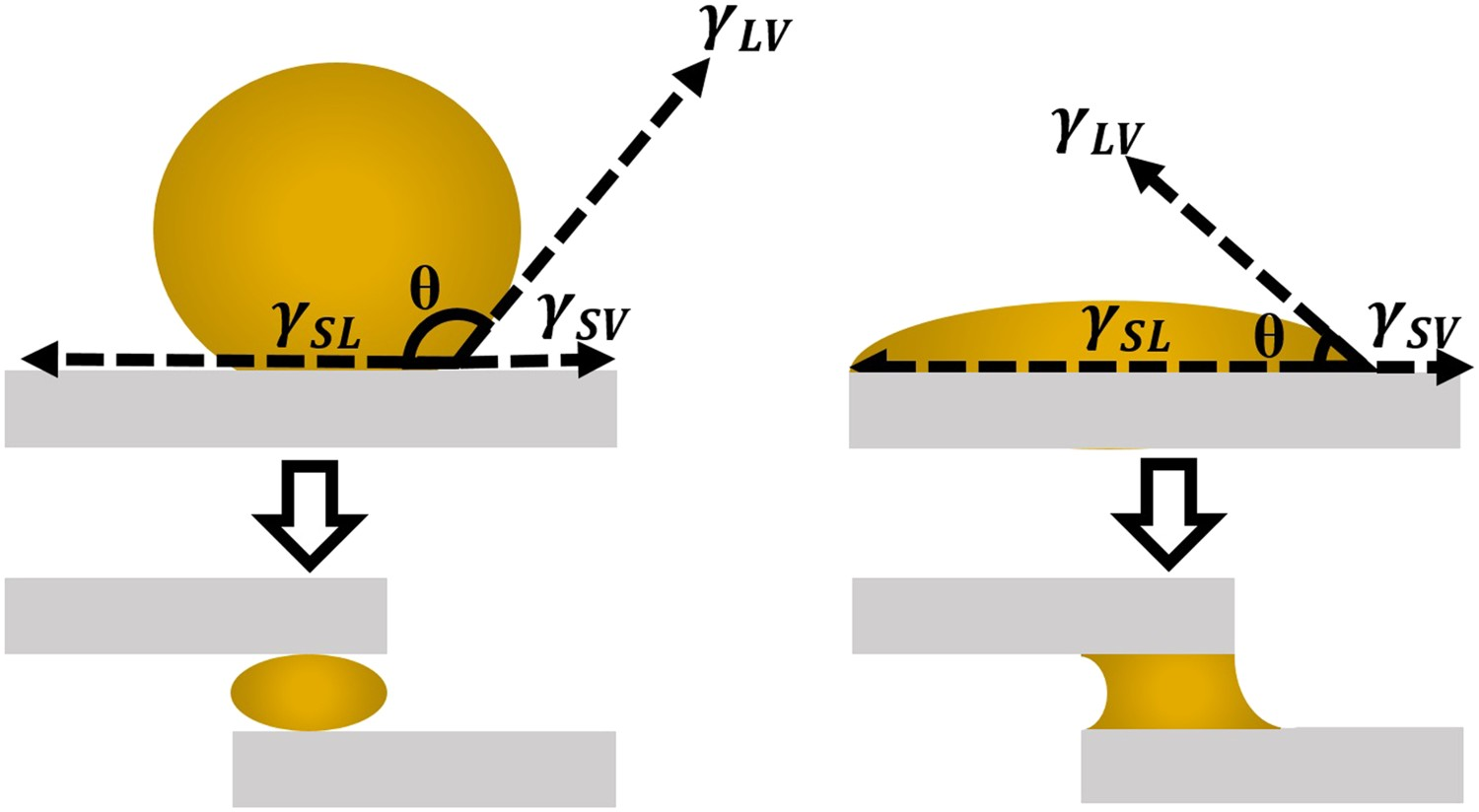

While not all brazing filler metals need to flow into a joint (where used as foils and pastes they may be pre-placed), wetting of the parent materials is essential. As described by Young’s well-known equation, wetting of a liquid droplet on a solid surface arises from the balance of three surface energy terms: γSL
, the interfacial tension between solid surface and liquid, γSV, the surface free energy of the solid, and γLV, the surface tension of the liquid: A non-wetting liquid with a contact angle (θ) of greater than 90° (left upper) and a wetting liquid with a contact angle of less than 90° (right upper). Redrawn from [46]. An example of a non-wetting liquid within a brazed joint (left lower) and an example of a wetting liquid in a joint (right lower).
Many factors influence a filler wetting a base metal including surface roughness, surface cleanliness, presence of oxide layers, temperature, and brazing time [47], which have been studied for various filler metal and surface combinations. In the case of wetting of stainless steel by a copper–silver eutectic, Ni and Sn additions to the eutectic did not produce measurable differences, but the Ti inclusions within the stainless steel being brazed led to wetting occurring at higher temperatures [48]. Small alloying additions can drastically influence wetting characteristics, and titanium has been identified as effective in increasing wetting, demonstrated by the formation of a CuAg2.9at%Ti alloy in situ by placing a small quantity of Ti on top of a CuAg drop on a sapphire surface. A high contact angle was observed for a period of time before good wetting occurred, interpreted as being due to the delay in the Ti dissolving and diffusing to the metal/sapphire interface [49]. Whilst most surface roughness studies utilise testing methods such as the well-known sessile drop test, other techniques exist to assess the influence of topography on wetting. Sekulic interpreted complex topography as a connected network of open microchannels and demonstrated that V-shaped capillary grooves allow liquid brazing filler metals (specifically Al-12Si on Al) to spread significantly more quickly than they would wet a flat substrate [50].
Flow
In some brazing applications the filler metal may need to flow to enter the joint gap, but even when pre-placed, flow characteristics can still be important in making sure that all of the joint gap is filled. Better flowing alloys can penetrate smaller capillary gaps, but if an alloy is too free-flowing in larger gaps it may fail to be retained in the joint, leading to voids and lower strength. The flow of an alloy is primarily dictated by the relative amounts of solid and liquid present at the brazing temperature. If the alloy melts at a single point (e.g. a eutectic composition or a pure metal) then it will be fully liquid at the brazing temperature and will flow easily. An alloy brazed within its melting range will have some quantity of solid and liquid present; if it is largely molten it will flow well, if there is a significant solid fraction the flow will be more sluggish.
Filler metal families
Many different filler metals exist, and are frequently organised into families, (such as in ISO:1762:2016 [13] where the classifications discussed below are established).
Low temperature brazing filler metals (class Al)
For low melting temperature materials (e.g. aluminium alloys), the fact that a filler metal must have a lower melting temperature than the materials it joins is a significant limitation. Most filler metals used for brazing aluminium are based on the aluminium-silicon system, with silicon supressing the liquidus temperature to 580–630°C (Figure 11).

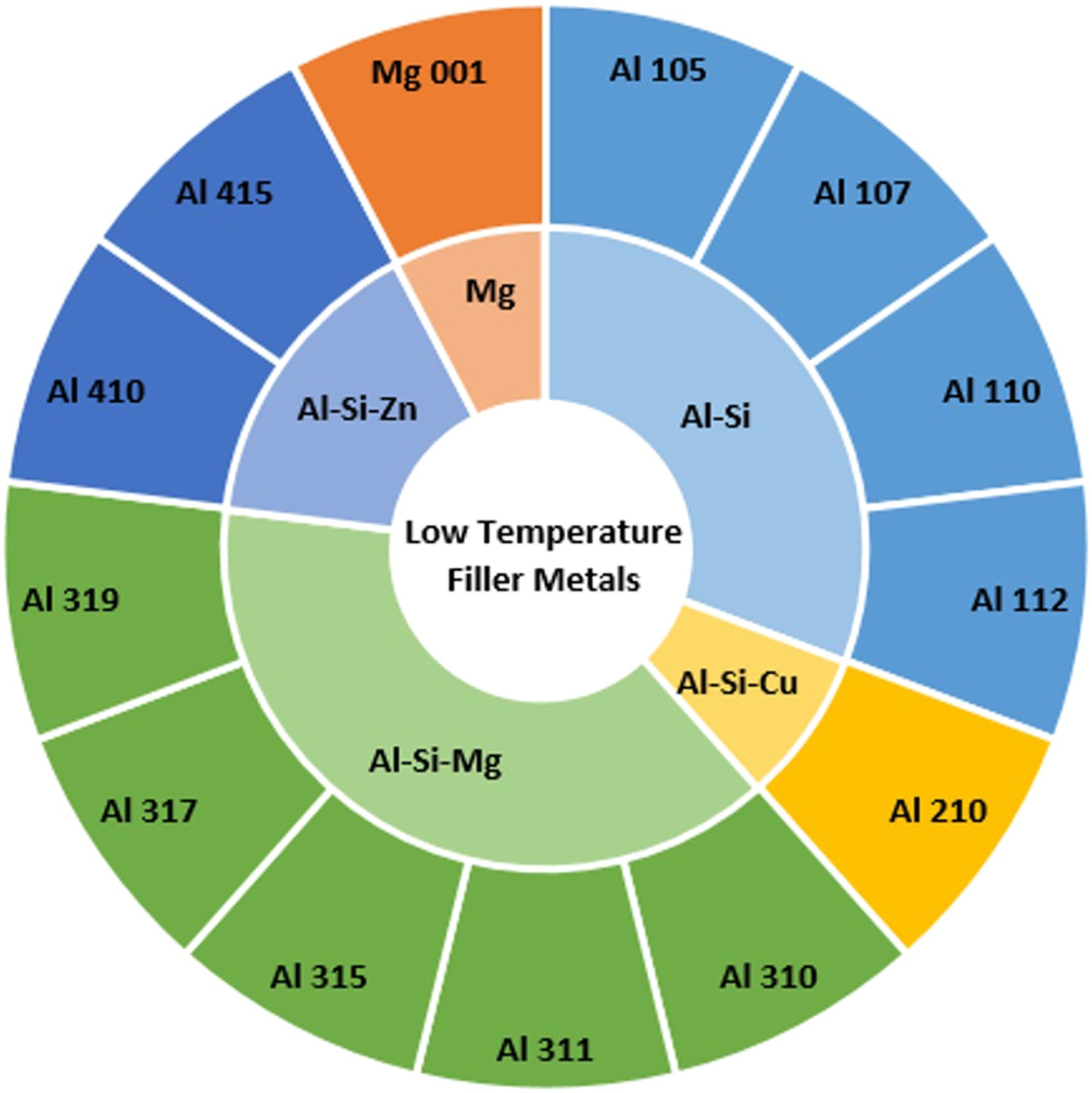

Sunburst chart displaying the low temperature filler metals (Class Al) defined in ISO:1762:2016 and the alloy systems they belong to.
In general, aluminium brazing requires more precise control than when brazing other materials. Even with silicon additions the gap between filler and parent metal melting point is low (on occasion as small as 10°C), leading to narrow process windows, and the stable Al2O3 oxide must be removed for successful brazing. Large scale industrial brazing of aluminium was not widely undertaken until 1980 when suitable temperature control was attained by furnace or chloride salt bath brazing, using fluxes with highly corrosive residues that required extensive post-brazing treatments [1]. Vacuum brazing at that stage was too expensive for all but specialist aerospace applications, and although Al brazing in air is possible with some fluxes, these are corrosive (FL10) or require high temperatures, near the melting point of aluminium (FL20), to be activated [51]. However, the increasing demand for air conditioning systems in modern cars required effective heat exchangers, whilst simultaneously the demand for weight reduction led to the replacement of brass and copper with aluminium in these structures. An improved method to braze aluminium was needed and this provided the impetus for the development of the NOCOLOK® (Solvay) brazing process. The flux used in this process is a mixture of fluoroaluminate salts which, once heated to its melting temperature (565–572°C, 5°C below the melting temperature of the standard filler Al-12wt-%Si), dissolves the aluminium oxide layer and prevents further oxidation [52]. This flux requires a nitrogen atmosphere, but not a vacuum and leaves behind a non-corrosive residue. The development of this process, and the flux in particular, permitted aluminium brazing at suitable cost to enable commercialisation of aluminium heat exchangers.
In the fabrication of aluminium heat exchangers and radiators, the filler metal is metallurgically bonded to the aluminium sheet during manufacture, with one side (or both) covered with a layer of aluminium-silicon cladding. The aluminium sheet is then assembled into shape and placed in a furnace to melt the outer cladding layer and form the bond.
With aluminium and its alloys in widespread use, especially in the automotive and aerospace industries, development of aluminium-containing filler metals is ongoing. Many high strength aluminium alloys cannot use the Al-12Si eutectic alloy as the degree of alloying suppresses the parent metal solidus and the use of Al-12Si can cause property degradation and even localised melting [53]. In an attempt to circumvent this, even lower melting point alloys found in the ternary Al-Cu-Si system have been investigated. Unfortunately, whilst copper supresses the melting temperature, it also enables CuAl2 intermetallic formation at the brazed interface, leading to embrittlement. Attempts to remedy this introduced Sn (and Mg as a wetting agent) to form an Al-7Si-20Cu-2Sn-1Mg alloy. A 6061 alloy brazed with this system showed a bonding strength of 196(±19) MPa, a significant improvement above a standard Al-12Si joint which could only demonstrate a 67(±7) MPa joint strength with the same 6061 alloy [54]. Tsao et al. used this filler metal to bond 3003 aluminium alloys at a lower temperature (575°C) than a standard Al-12Si alloy and found the joint strength to exceed the UTS of the 3003 alloy [55].
Further beneficial effects of Mg within the AlSi system include the creation of Mg2Si, with increased spreading (and thus enhanced wettability) correlating with increasing Mg2Si content [56]. Researchers have also added rare earth elements to Al–Si alloys. Small quantities of erbium added into Al-20Cu-7Si filler metal for brazing a 3003 aluminium substrate improved both the wettability and hardness without significantly impacting the melting temperature [53]. Lanthanum and cerium added to Al-12Si alloys showed an increase in wettability on LD2 and LD30 base alloys and a strength increase compared to AlSiMg alloys [57].
Aluminium based filler metals can also join aluminium to titanium, which could lead to structures which are lightweight, have good corrosion resistance and low cost. Germanium and rare earth additions to the base Al-12Si system allowed successful furnace brazing of 6061 aluminium to Ti-6Al-4 V at 530°C [58].
Silver-based alloys
Silver based alloys form a large segment of the market and are viewed as good general purpose filler metals which (depending on other alloy constituents) can wet most common engineering metals, including nickel, copper (and its alloys), low carbon and low alloy steels, stainless steel and tungsten carbide. The full range of ISO 17672:2016 [13] silver based filler metals are shown in Figure 12.

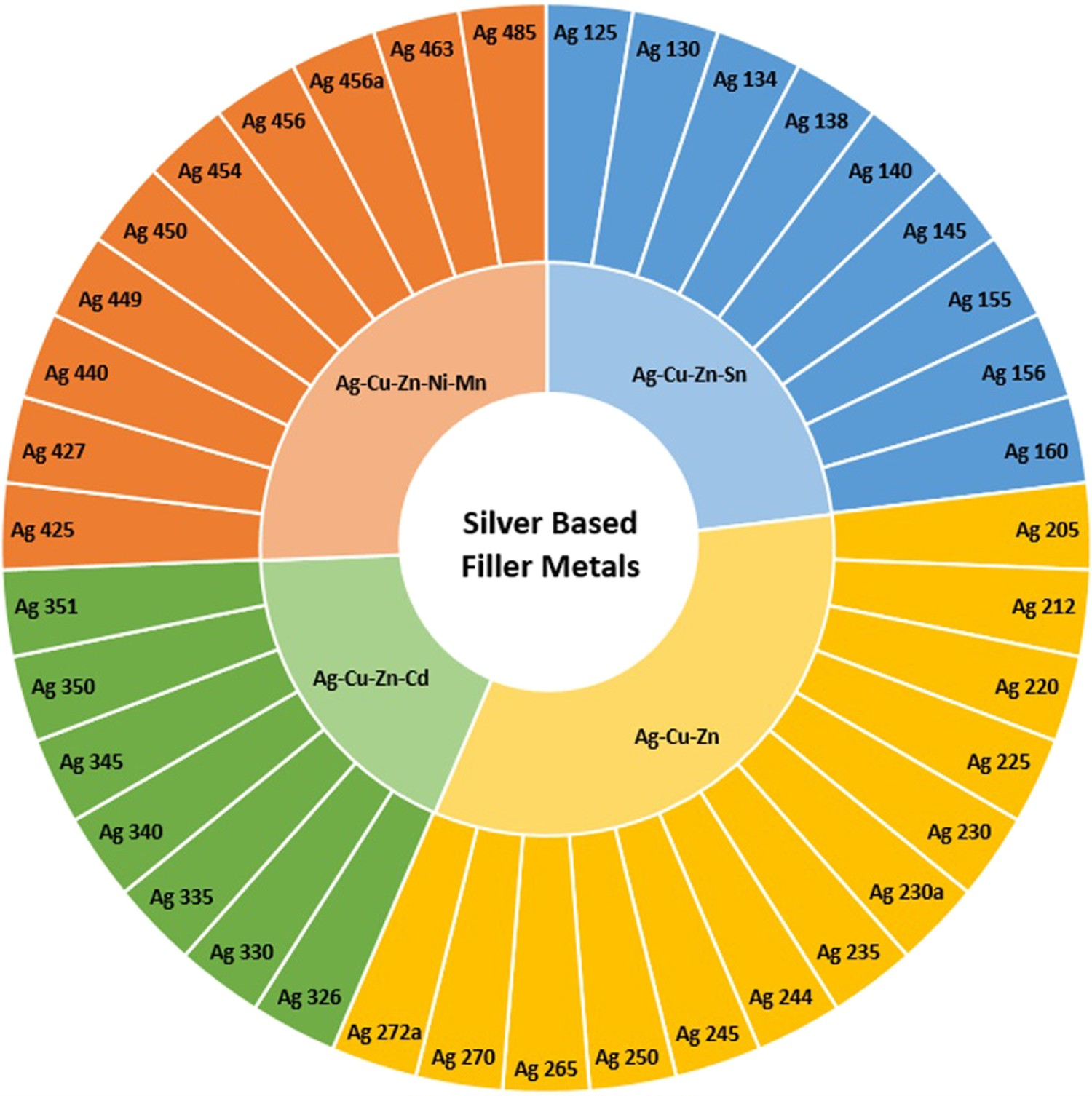

Sunburst chart displaying the silver based filler metals (Class Ag) defined in ISO:1762:2016 and the alloy systems they belong to.
An obvious drawback of such fillers is the cost, sensitive to the commodity price of silver due to their high silver content, and they thus tend to be used where other alternatives are not possible. Although copper–phosphorus alloys are often preferred when joining copper and its alloys (being used in around 60% of brazed joints on these materials [2]) there are several situations in which they are unsuitable, including where there will be exposure to environmental sulphur [59] or seawater (both of which will lead to rapid corrosion) or if the service temperature is too high (> 150°C). In these cases, silver based filler metals are preferred.
The major constituents of common silver bearing filler metals received attention as early as the 1940s in the case of the silver-zinc binary [60] but the ternary Ag-Cu-Zn system on which most are now based was not evaluated until 1977 [61] and received relatively little further attention, until recently. Interest was reignited when the health concerns of the then dominant cadmium-containing filler metals became known in the late 1970s, causing many companies to rapidly develop alternatives. Investigations conducted into various ternary and quaternary systems based on silver, copper and zinc, including: Ag-Cu-Zn-Ga [62], Ag-Cu-Zn-Ni [62], Ag-Cu-In [63], Ag-Cu-Sn [64] and Ag-Cu-Zn-Sn [62] eventually led to tin being selected as a suitable replacement for cadmium [65,66], with many manufacturers adopting filler metals of the Ag-Cu-Zn-Sn quaternary system. Eventually, legislation introduced in the European Union (Commission regulation (EU) No 494/2011) banned the sale of brazing filler metals with cadmium concentrations ≥ 0.01wt-% (barring specialist military and aerospace applications) [10]. The exact structure of phases, the microstructures and the thermal properties in the Ag-Cu-Zn system are still under investigation, with literature contributions being published as recently as 2018 [67]. It is anticipated that investigations into this family of filler metals in service will continue; however, beyond the development of thrifted alloys with reduced silver, and hence cost (such as Bluebraze, Umicore; 20–35% Ag), composition innovations are improbable.
Copper–phosphorus and copper-based alloys (Class CuP and Class Cu)

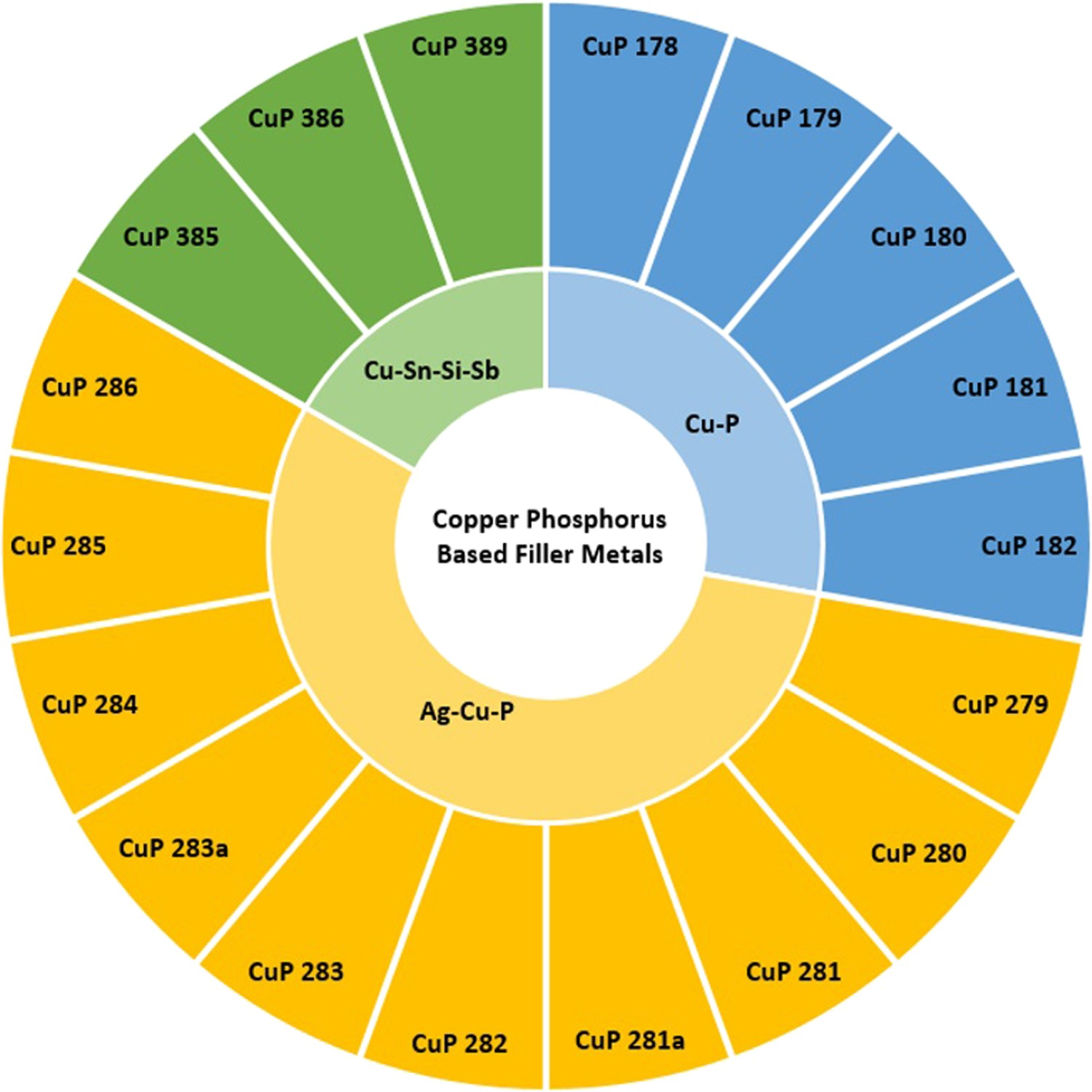

Copper is a common component of many brazing filler metals (Figure 13 and 14); providing the ability to wet nickel and (to some degree) iron. Whilst these alloy systems still find widespread use, current development within this family is minimal.

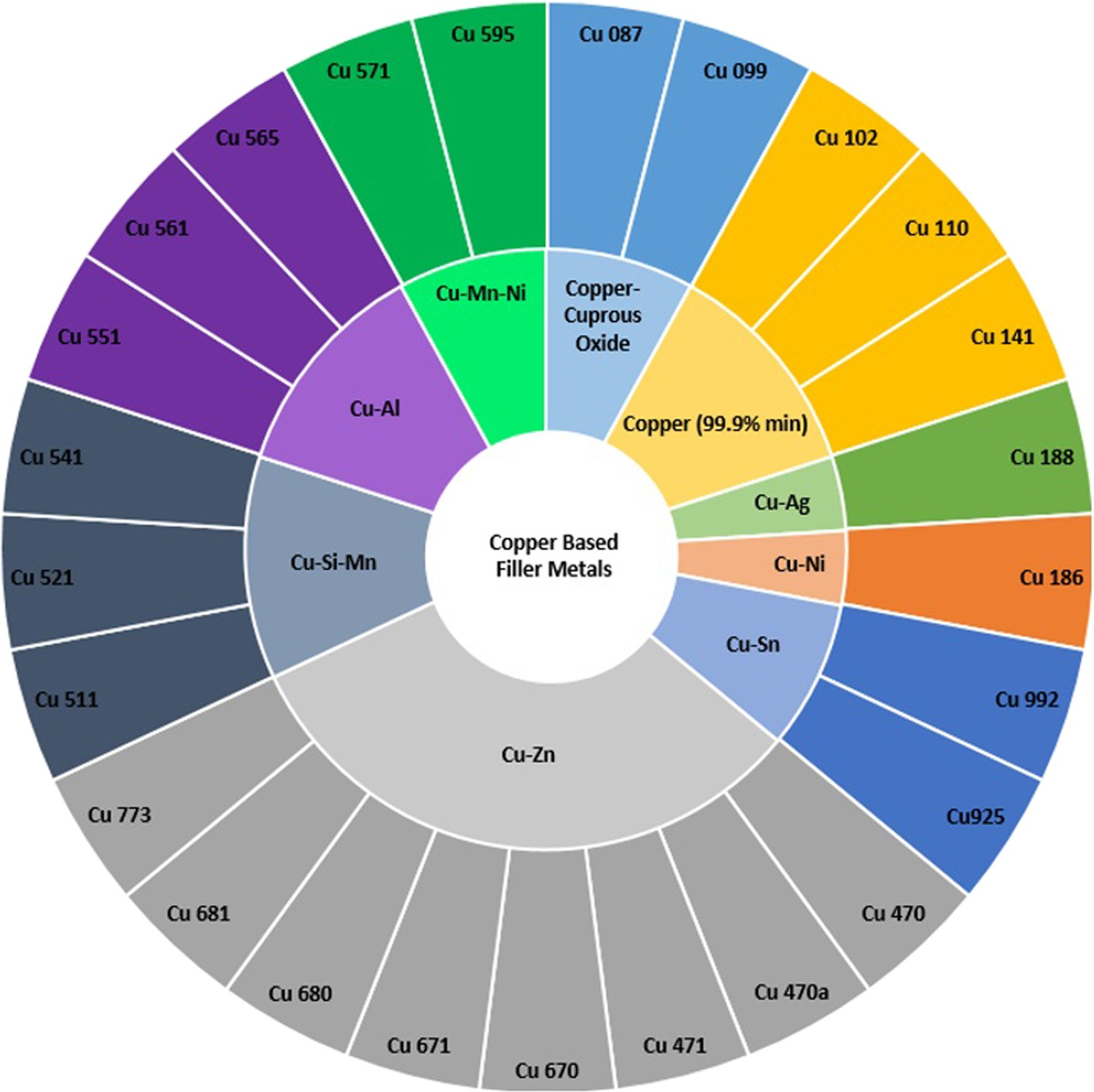

Sunburst chart displaying the copper based filler metals (Class Cu) defined in ISO:1762:2016 and the alloy systems they belong to. Sunburst chart displaying the copper–phosphorus-based filler metals (Class CuP) defined in ISO:1762:2016 and the alloy systems they belong to.
Copper–phosphorus alloys are comprised of a majority copper and 5–7.5wt-% phosphorus. Other minor additions include silver (up to 20wt-%) and tin (up to 7.5wt-%). The primary advantage of copper–phosphorus alloys over other filler metals is that when joining pure copper in air they do not require a flux, leading to time and cost benefits. The phosphorous reacts with atmospheric oxygen to form phosphorus pentoxide, which reacts with surface copper oxide forming a fusible slag, which also does not induce corrosion [2].
There are significant drawbacks to this class however. The alloys tend to be brittle, limiting the forms they are available in (typically directly extruded rod), and the loads which can be safely experienced in service. Any copper alloy containing Ni or Fe (including all brasses) cannot be brazed with copper–phosphorous alloys as the nickel and iron phosphide phases formed are very brittle.
Current research and development on copper and copper–phosphorus-based filler metals is focussed on heat exchangers in the automotive industry [68–71]. Up to the 1970s all vehicles used copper-based radiator systems, while, as noted in the section ‘Low temperature brazing filler metals (class Al)’, from this point increased interest in aluminium for this application was seen. To combat this, in the 1990s the International Copper Association developed copper-brass radiators (and the filler metals used with them). Earlier copper alloys lost their deformation-induced strength at temperatures associated with brazing and were designed to be soldered. When modern ‘anneal resistant’ copper with chromium precipitates was developed, a filler metal was needed for joining them at an appropriate temperature (590–650°C). This led to the development of OKC600 (Aurubis), a copper based filler metal with 4.2wt-% Ni, 15.6wt-% Sn, and 5.3wt-% phosphorus [72]. It was the development of this filler metal (and the CuproBraze® (International Copper Association) process as a whole) that enabled copper-brass heat exchangers to compete with aluminium once again. Aluminium radiator systems have some drawbacks [73], such as losing their strength when operating temperatures exceed 150°C, and in these instances copper alloys may be preferred [68].
However, outside of this particular application current research on copper filler metals is concerned with the behaviour in service and understanding failures, rather than compositional refinement or property enhancement. Examples include investigations into the effects of multiple furnace exposures [74], high cycle fatigue [75] and shield gas influence [76]. With development focussing on materials such as aluminium and nickel superalloys, as well as incorporating ceramics, it is looking less probable that copper based filler metals will be an area of substantial research in the near future.
High temperature brazing filler metals (class Ni, Class Pd and Class Au)
High temperature filler metals are frequently from one of three families, being predominantly based on nickel (class Ni), palladium (class Pd) or gold (class Au) (Figure 15). No alloy listed in ISO:1762:2016 [13] in any of these three filler metal families has a solidus temperature below 800°C, and as such they are used for brazing in applications where a high service temperature is required and high processing temperature can be tolerated, such as in jet engines and gas turbines. Pd and Au classes also find significant use in vacuum tube type devices and in metal-ceramic joining. Turbine blades in service experience exceedingly high temperatures and the filler metals used to repair them must have a high operating temperature.

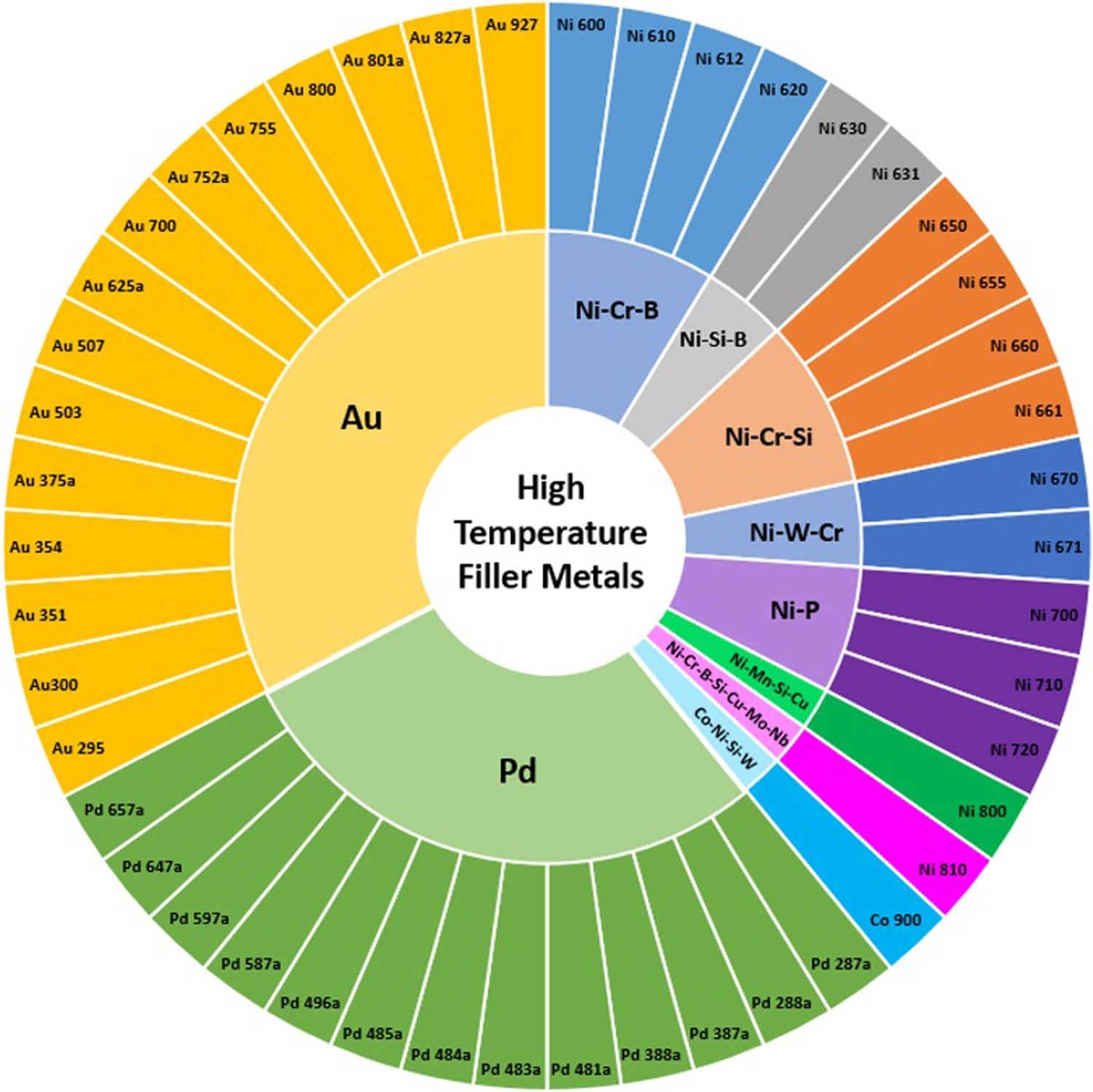

Sunburst chart displaying the nickel, palladium and gold based filler metals (Class Ni, Class Au and Class Pd) defined in ISO:1762:2016 and the alloy systems they belong to.
The high temperature brazing filler metals are largely one of two types of alloy: Eutectic alloy systems (predominantly nickel or nickel-chromium based) with strong melting point depressants such as silicon, boron and phosphorus. They are used where high service temperatures are experienced and good corrosion resistance is necessary, such as in brazing of nickel and cobalt based superalloys and stainless steels. Solid solution systems based on precious metals (palladium, gold and silver) with nickel and copper additions. They are often used on aerospace components in vacuum or inert gas furnace brazing, and possess good mechanical properties at elevated temperature and good oxidation resistance. The large working range of members of this family make them a good choice for step brazing procedures (where multiple brazed joints are needed but cannot be undertaken in a single operation, and multiple brazing steps are carried out at decreasing temperature, using a lower melting point filler metal each time) [2].
The last 20 years has seen relatively few modifications to brazing filler metals for high temperature applications. Eutectic alloy compositions have seen development of the melting point suppressants with metalloids such as silicon and boron most commonly used, though investigations into phosphorus additions have been made [77]. The incorporation of phosphorus allowed the development of the first iron-based amorphous brazing foil (VITROBRAZE® VZ2099 (Vacuumschmelze) [77]). Other elements have also been investigated as additions including: zirconium and hafnium [78] (which demonstrate homogeneity after brazing as well as desirable capillary characteristics); germanium [79]; and beryllium [6]. The principal advantage for phosphorus is its superior melting point suppression compared to silicon or boron. With increasing phosphorus content, it is possible to reduce the nickel content in favour of iron (reducing cost) without significant increase in the filler metal melting point [77].
Common problems with brazed joint formation
Problems identified with brazed joints can be divided into issues which occur during joint formation (such as porosity, voids and the formation of deleterious intermetallic phases) and those which occur in service (such as corrosion).
Porosity and voids
In the region of the joint, brazing has many of the same characteristics as casting processes, and some similar defects to those encountered in casting may form. Unfilled space within the joint can be classified as either porosity (spherical in nature and resulting from gas entrapment in the molten filler, such as from hydrogen absorption and subsequent release on solidification, or the volatilisation of filler metal constituents) or voids (which can be any size and shape, caused by entrapped gas, flux residues or other contaminants).
Gas and flux filled voids are often more prevalent in slower flowing filler metals [80] as flow of a filler metal through a joint helps to transport gas and molten flux (where used) to a free surface where it can escape. Filler metal flow through a joint can be encouraged by maintaining a temperature gradient across it, with molten filler metals flowing to the hottest point or area. Where critical (e.g. for leak tightness) void content can be assessed non-destructively by ultrasonic methods [81].
Deleterious intermetallic phases
When brazing, a metallurgical bond is formed between filler metal and parent material, demanding an interaction between the two. However, this can lead to the formation of interfacial phases detrimental to the mechanical properties. A good example of this is in the joining of nickel superalloys with nickel-based filler metals containing metalloid elements (e.g. boron, silicon and phosphorus) which suppress the melting point of the filler metal down to 1000–1250°C, whilst simultaneously improving wetting and flow of the filler metal on the superalloy surface [82]. Unfortunately, these melting point suppressants will form brittle intermetallic phases such as nickel borides and nickel silicides within the interface region of the joint which can lead to a reduction in strength and corrosion resistance [82]. Research into alternative melting point suppressants such as hafnium attempts to address these issues; Ni-Hf-Cr filler metals were found to form no brittle phases during brazing and were rollable. Steel samples brazed with these alloys showed tensile strengths of 587 MPa, comparable to conventional Ni-based fillers (although due to the oxygen affinity of hafnium, a vacuum greater than 2×10−4 mbar was required) [82]. The use of boron-containing nickel-based filler metals to join steels similarly results in deleterious intermetallic phases, but replacement with beryllium avoids phases which reduce joint strength [6].
Repair of superalloy turbine blade components using filler metals with manganese additions as the melting point suppressant has been investigated [83,84]; the solubility of manganese within nickel allows for faster processing as the melting point suppressant does not have to be diffused away from the braze gap to allow solidification as a single phase, which must be done with boron, leading to longer processing times [84]. Studies using germanium instead of manganese found similar results with single phase solidification giving joints with a UTS 90% of that of the parent material when tested at 980°C [79].
Problems occurring in service
In service joints can experience problems due to mechanical loading and corrosion. While good joint design and brazing practice assist in alleviating such issues, these problems are extensive topics in their own right, and will be covered only in the respects that are specific to brazing here.
Mechanical loading
Failure due to mechanical loading is often due to poor joint design; for example, the occurrence of stress concentrations in certain areas (especially sharp corners) may cause local cracking. When designing brazed joints, it is imperative to evaluate where stresses will be experienced and design accordingly (see the section ‘Mechanical property requirements’).
Corrosion
Corrosion is an insidious problem in many materials, and can be particularly complex in brazed joints as they frequently involve different parent materials, a filler metal, and potentially interfacial phases. The presence of different materials in contact (and often in areas that are difficult to observe) provides an ideal environment for high corrosion rates in certain cases, which is often hard to detect. The combination of different materials also presents the risk of generating galvanic couples which could drive accelerated corrosion in aqueous environments; thus the joint assembly and operating environment need to be considered holistically to address corrosion issues, and testing of brazed joints is normally carried out on a case by case basis.
Interfacial corrosion is particularly problematic for stainless steels brazed with common silver-based filler metals (e.g. AgCuZnSn). Exposure to moisture in service dissolves the interfacial bonding layer and joint failure can occur after as little as three months’ immersion in water. A full account of these phenomena has been provided by Jarman [85,86]. This type of corrosion can be effectively prevented by using filler metals not containing zinc or cadmium [1,2].
Galvanic corrosion requires metallic contact between two metals of differing nobility, and an electrolytic connection between them; current will then flow between the two metals and through the electrolyte. The less noble metal becomes an anode and the more noble metal, a cathode, with increased corrosion being observed on the anodic material. It can occur between individual phases in an alloy; in multicomponent filler metal systems with multiple phases, or systems which produce multiple phases after interaction with the parent metal during brazing (microgalvanic corrosion) [87–89].
Galvanic corrosion at a more macroscale also has particular relevance for brazing because the filler metal used is often based on a different metal than the parent material it is joining. The relative area of the cathode and anode can drastically alter behaviour; as it is current density that influences corrosion rates, if the anode is small and the cathode is large then the anode will corrode much more rapidly than if the electrodes were of similar sizes or the cathode was smaller. In brazed joints the braze is often substantially smaller than the parent and thus if the filler metal is less noble, rapid corrosion at the joint could occur. Galvanic corrosion is not restricted to any particular metals, and has been investigated in brazed joints including DHP (Deoxidised High Phosphorus) copper [80], Zircaloy-4 [87,89], steel and titanium [90,91] and Ti-6Al-4V [92].
Dezincification is a particular case of galvanic corrosion in which zinc rich phases are attacked. It occurs in brasses and in Ag-based filler metals which are exposed to seawater (particularly with limited aeration and stagnant water). The corrosion of the zinc-rich phase leaves behind a spongy silver/copper mass which has very poor mechanical properties and may easily fail. Higher silver content provides resistance to dezincification (43wt-% Ag for a ternary AgCuZn filer metal or 50wt-% Ag for a quaternary AgCuZnSn or AgCuZnCd) [2], and it has been claimed that small additions of nickel (2–3wt-%) can enhance dezincification resistance [2,93].
Advanced brazing systems
The materials to be joined evidently have a large role in determining the joining method (for example, high Al/Ti superalloys are difficult to weld and so are brazed, albeit with a nickel plated layer to aid wetting), and also control the brazing filler metal to be used. However, with more advanced materials and more complex requirements for joining in advanced engineering, brazing systems beyond those in the classical groupings discussed in the section ‘Common brazing filler metals’ have been developed in recent years, with major families discussed here.
Active brazing alloys
One of the key features of brazing is its ability to bond a wide range of materials, including ceramics; oxides (e.g. alumina), nitrides (e.g. cubic boron nitride) and carbides (e.g. silicon carbide) in either ceramic-ceramic joining [94–99] or metal-ceramic joining [100–103]. Formerly ceramic brazing would have involved metalising the ceramic, allowing the filler metal to wet and bind to it; active metal brazing can avoid this. Active alloys contain chemically reactive elements, such as titanium, which promote wetting of the filler metal as it reacts with the ceramic. Figure 16 shows the reaction zone thickness with time for brazing Si3N4 at different temperatures with a titanium and non-titanium containing filler [104]. The rate of reaction zone growth is clearly increased with titanium, indicating that the effect is not solely promotion of wetting, and the straight line fit in the root time plot indicates a diffusion mechanism behind the process.

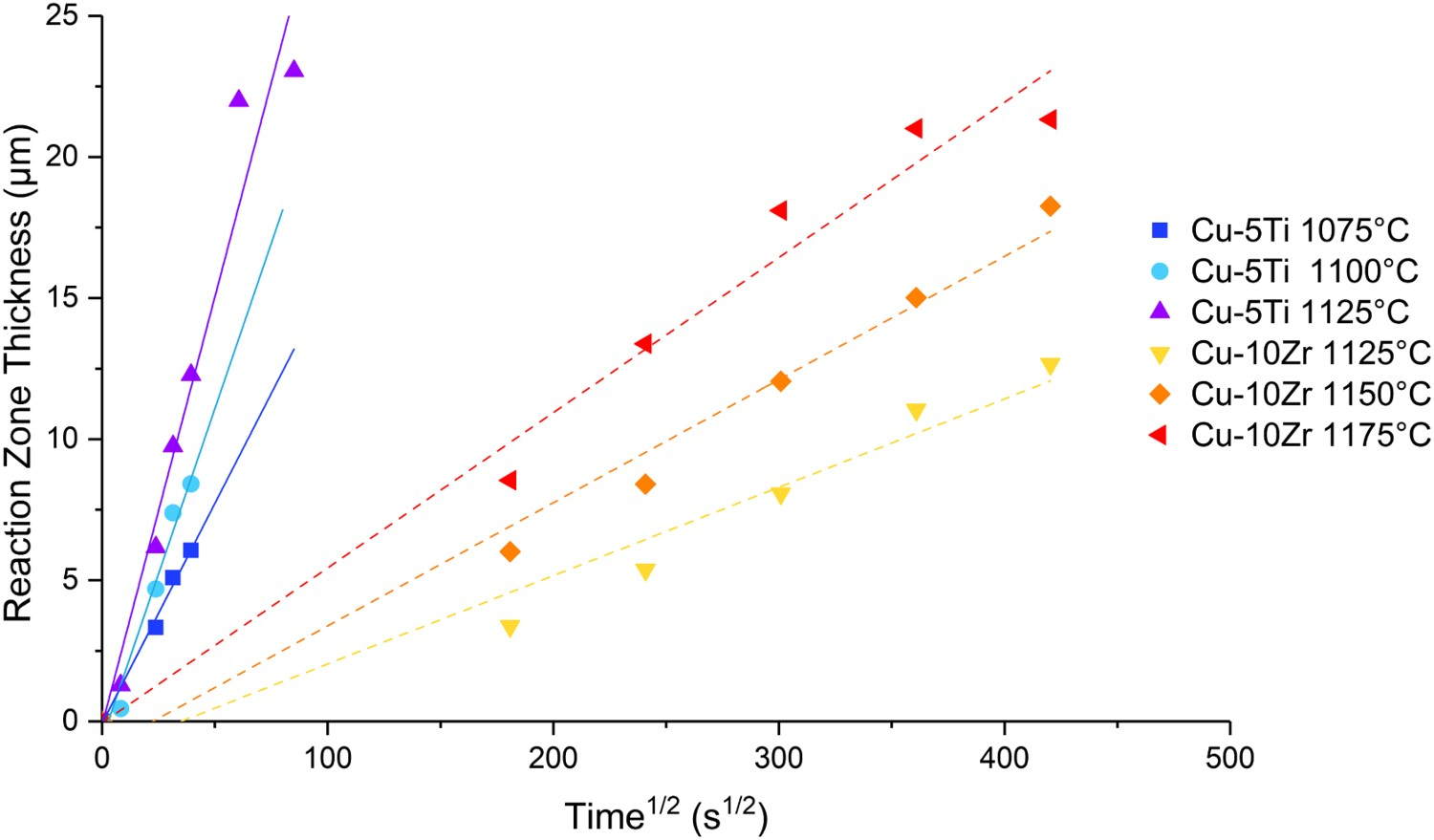

The reaction zone thickness with time for brazing Si3N4 at different temperatures with a titanium and non-titanium containing filler (after [45]).
The amount of titanium that can be incorporated into active filler metals is limited by the increase in liquidus temperature tolerable and the risk of reaction with atmospheric oxygen. The chemical activity of the Ti addition can be increased by the inclusion of elements which have a low solubility for Ti, such as indium or tin [105], or silver [106,107]. Alternatively, metallic Ti can be applied independently of the filler metal, as a tri-foil or cored wire, as powder in a polymeric binder [108], or as TiH2, which breaks down to produce titanium at elevated temperature [109,110], forming an alloy in-situ.
Some of the active filler metals reported and used in metal-ceramic joints, with the elements identified as active shown in bold.
Brazing alloys designed to mitigate residual stress
When brazing dissimilar materials (be it metal–metal or metal-ceramic) differential thermal contraction on cooling from the brazing temperature will give rise to residual stresses in the joint [129,130]; indeed, residual stresses sufficient to cause failure can even be formed in joints between the same material just due to the Coefficient of Thermal Expansion (CTE) mismatch with the filler where a thick (∼10 μm) layer of intermetallic is formed [131]. In the plane of the joint, the lower CTE material (usually the ceramic) is placed in compression and the higher CTE material (usually the metal) in tension (while the resulting Poission contraction means that stresses normal to the plane of the joint are compressive in the metal and tensile in the ceramic [132]). Stresses are most intense at the interface, and diminish rapidly with distance away from it [133]. The joint will be stress-free at the brazing temperature, with stresses developing on cooling [130]; therefore, the capability of the filler to accommodate strain is key to the joint strength [117,134].
The residual stress distributions observed are frequently inhomogeneous [130], and are greater in materials with higher yield stresses [135], implying that residual stresses reach sufficiently high levels to cause plasticity. Indeed, good agreement between models and experiment cannot be obtained if only elastic deformation is considered [129]. Stress levels vary greatly with the materials being brazed, the shape and size of the parent components and where in the joint is being examined, but reported values typically reach several hundred megaPascals.
Residual stresses in joints have been assessed by X-Ray Diffraction (XRD) [136] and neutron diffraction [132,133,137] (it is noteworthy that stresses within filler metal layers of normal thickness have not yet been resolved due to the size of sampling volume). For joints between plates which are sufficiently thin to bend under the residual stresses, the induced curvature can be used to gauge the stress level [130], or, where the interface can be accessed, the difference in crack length generated by indentation in a stress free region and that in a region with residual stresses can be used as a measure [138]. Particular materials may allow other techniques, such as peak shifts in Raman spectroscopy where diamond [139,140] or cubic boron nitride [141] are involved in the joint. Stress values are also commonly accessed by Finite Element Modelling methods [135,141–143] (good agreement between such models and experiments have been found [129,134], though microstructure change-dependent effects are not always well captured [144]).
It should be noted that residual stress is not always characterised directly, but inferred from properties such as the variation in shear strength of the joint [145]. In the complex situation of a brazed joint between dissimilar materials it may not be possible to clearly ascribe differences in strength to residual stresses alone, especially as it has been shown that some brazing parameters can affect strength without significantly altering residual stresses [139].
Composite fillers
The addition of other, chemically non-interacting, materials into the filler metal (sometimes confusingly described as fillers themselves) to form a composite filler has been used, initially to reduce cost [146] but more recently to reduce residual stress [147]. In general, the filler metal will have higher CTE than the ceramic, so the added materials are selected for low CTE (such as Si3N4 [121], Al2O3 [123,148], TiN, [122], BN [126] or titanium compounds [149]), and are dispersed in particulate form throughout the filler metal, reducing the overall CTE, and thus the residual stresses. Finite Element Modelling suggests that further reductions are possible with a non-uniform distribution of the added particles [143]. Such additions can also cause strengthening, both as they tend to be high strength ceramic materials [146], and as they act as nucleation sites and refine the microstructure in the joint [149], though it has been reported, for the case of Ti-compounds, that they can reduce the effectiveness of the active metal [149].
When adding particles to the filler metal, there can be difficulty in obtaining a uniform distribution [121] and in finding appropriate particles with good wetting [150]. For this reason, development of filler metals in which second phases are created in situ has occurred. For example, in joining Si3N4 an Ag–Cu filler metal with titanium additions and SiC particles was observed to form fine, homogenously distributed, Ti5Si3 particles [151], and additions of boron to titanium bearing filler metals (e.g. Cu-Al-Ti with TiB2 [150] or WB [145]) can result in the formation of TiB whiskers [152–154].
Ductile interlayers to relieve stress
Residual stresses in the joint may change the conclusion discussed earlier that thinner joints will have greater mechanical performance. Rather, a wider joint, with layers of different characteristics, may be able to accommodate differential strain with plasticity induced in ductile layers [155] leading to there being an optimum joint thickness that is greater than the minimum achievable [156].
A deliberate strategy that utilises this is the inclusion of an interlayer (interlayer brazing). This is often a ductile material that can undergo plastic deformation to accommodate some of the residual stress, though it can also incorporate a harder material to alter CTE [157]. Ductile interlayers, such as copper, result in generally lower residual stresses than hard layers with low CTE, such as molybdenum [158]. Note that, the interlayer is not the filler metal (the part that is responsible for bond formation), but a separate part of the braze material design and structure. Examples of interlayer materials effective at reducing residual stress include aluminium [157], copper [144,159], ceramic-reinforced iron [157] and tungsten [144].
In some situations, thicker interlayers show reduced residual stresses (Figure 17(a)), while interlayer CTE does not seem to have a great effect, the overall strain field being dominated by the two materials being joined [137]. Models (neglecting the brazing layer) suggest that the CTE of the interlayer may have a more significant influence on the residual stresses if it is high [160]. Analytical approximations to Finite Element models have been developed by Park et al. for the strain energy in the ceramic as a measure of the risk of fracture [155]. The equations, used to generate Figure 17(b) showing predicted ceramic strain energy for circular joints of increasing radius, for different interlayer materials, indicate that there is no sensitivity to the interlayer thickness, provided this is less than the joint width. The strongest sensitivity is to the joint area (cubic dependency) and the yield stress of the interlayer (squared dependency). It is noteworthy that the experiments showing an effect of interlayer thickness in Figure 17(a) use niobium as an interlayer, which, with high yield stress, is predicted in Figure 17(b) to permit higher stress levels to form.

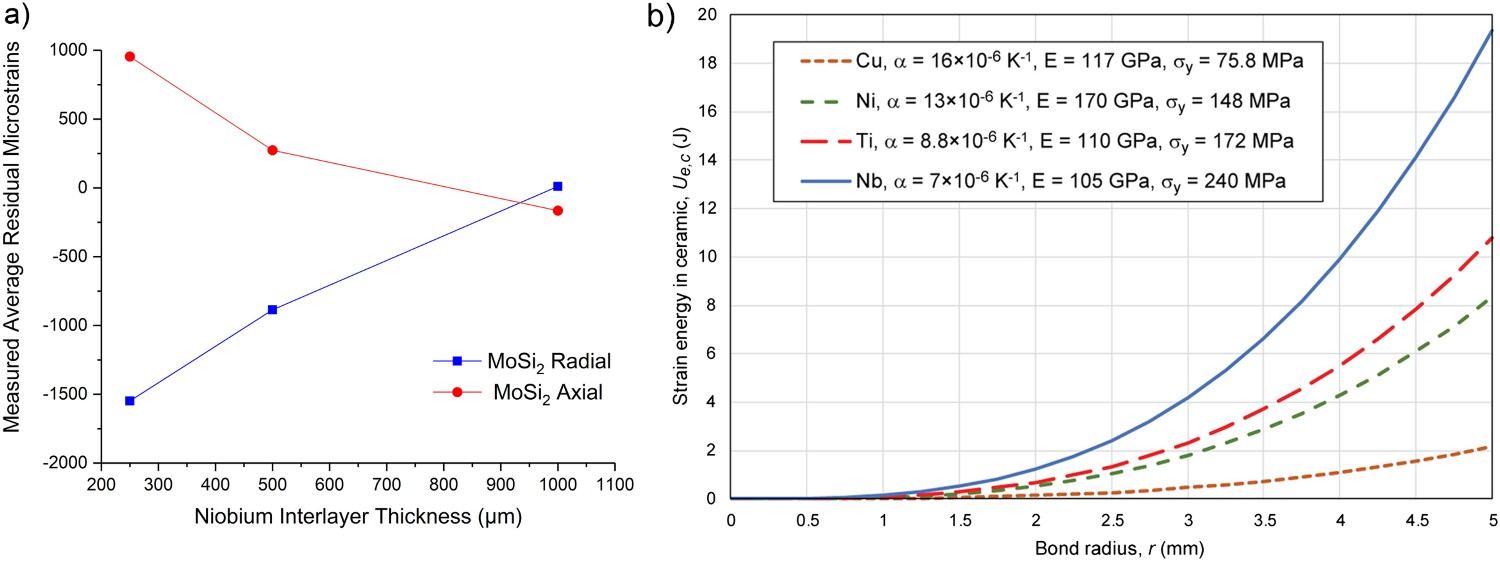

(a) Neutron diffraction-determined residual stress levels for the ceramic in a MoSi-stainless steel joint with increasing interlayer thickness, replotted from [137] and (b) the calculated strain energy (a measure of the fracture risk) following the analytical equations in Park et al. [155], for different joint radii, r, in a joint between zirconia and Ni superalloy, using a series of different interlayer materials (Cu, Ni, Ti and Nb).
The idea of the interlayer as a phase within which deformation releases residual stresses suggests that promotion of yielding may be desirable. The yield strength of a material can be influenced by the incorporation of controlled porosity [161]. This also provides gaps at the interface, allowing for further stress reduction (a square pattern cut into the interlayer by Electro Discharge Machining can result in joints of a higher strength than those without gaps, even though the bonding area is reduced [162]).
Interlayers consisting of porous metals (woven wire mesh, foams or sponges) have been applied [163]. For example, Ag-Cu-Ti fillers have been used for metal-ceramic joining with an interlayer of 0.2–0.6 mm 316 stainless steel foam (of unspecified porosity or pore dimensions) [163], 0.2 mm thick nickel foam (of the electrodeposited type, with porosity >90% and pore diameter around 1 mm) [142,164], and with 3 mm of copper foam (porosity >96% and nominal pore size 0.6 mm) [165] showing significant predicted residual stress reduction and experimental shear strength increase (in the case of the copper foam, a greater increase than when the same quantity of copper was included as a dense foil interlayer). Foams have even been further engineered for the purpose by inclusion of carbon nanotubes [166] and it has also been claimed that some foam materials can react with active filler metal components and reduce the formation of undesirable brittle phases [165,166].
Alloys for small contact area joints
For many joining methods, thin sections, which easily melt or undergo shape change can pose challenges. Brazing does not suffer from this limitation, and is frequently used to connect faces to honeycomb cores in sandwich panels (Figure 18) (honeycomb foils can have thicknesses of ∼100 µm [167]), and has been found to be effective for metallic foams [168,169]. In these investigations, it is frequently found that the brazed joint area, which is more massive than the thin honeycomb cores, is stronger than the core itself as the stresses developed in the joint are lower [169–171]. Where foams are explored for heat exchange, brazing has been found to lead to the lowest thermal resistance of assessed bonding methods [172]. Brazing is also used to bond metal foams as cores in sandwich panels [173] and in making porous metals from woven wire, as reviewed in [174].
A section of a nickel-based honeycomb sandwich. The face sheet of the honeycomb sandwich is marked I, the core is marked II and the brazing region is marked III [167]. Reprinted from Materials Characterisation, 60, Qiuming Zhang & Xiaodong He, Microstructural Evolution and mechanical properties of a nickel-based honeycomb sandwich, 178–182., Copyright (2009), with permission from Elsevier.
Brazing of thin sections may be for high temperature use where adhesives will not serve and high strength and resistance to oxidation may be requirements. As well, erosion (dissolution of the parent metal to a high degree) must be considered. Brazed honeycomb sandwich panels may be encountered in thermal protection in reusable space launch vehicle designs, such as the NASA X-33 vehicle [175], abradable seals in jet engines [176] or in catalytic converters [177]. Such situations normally see nickel superalloy face sheets and honeycomb cores, which can be brazed with conventional nickel alloys (e.g. ISO 17972-Ni620 [167,178,179] or ISO 17972-Ni650 [176]; ISO 17972-Ni620 can also join stainless steels [180]). Mobile species in nickel brazing can however lead to problematic erosion (which is described in [177]). Novel alloys developed in the Ni-Pd-Fe-Si system avoid boron and gain high temperature strength from the iron content [181].
Wide gap brazing
In some instances, brazing is used in repair, rather than manufacture. Here, many of the aims are the same; to form a permanent, high strength joint between two materials, which can withstand service conditions. The difference is that the join is made along a failure (fracture or fatigue usually) and hence the conformation between the surfaces is not as exact as in engineered joints. This leads to the method being termed Wide Gap Brazing; joint thicknesses are greater than 0.127 mm [182] (this latter reference provides an extensive review of the subject).
Wide Gap Brazing was invented by GE, and was originally applied to aviation vanes. The principle (Figure 19) is to combine powders of the filler metal (e.g. nickel-boron) and the additive metal (of similar composition to the metal being joined, usually a superalloy), possibly with a binder. The additive metal acts to 1) partially fill the void space; 2) provide an accessible sink for the melting point suppressants to diffuse into, 3) create narrow gaps within the joint, which are penetrated by the filler metal by capillary action and 4) permit alloy composition adjustment in the joint region [183]. The brazing thermal treatment melts the filler metal which interacts with the joint surfaces and the additive metal powder, allowing the boron to diffuse away from the filler, and give a high temperature joint. It is important to note that the additive metal is not an inert component (a ‘filler’ in the filler metal), but its presence allows an intermetallic-free joint to be formed, with correspondingly better properties [184]. Many other versions of the process have since been developed, using (largely proprietary) compositions of filler metal and superalloy. These are applied for repairs to turbine components, both in aviation and in power generation [185].

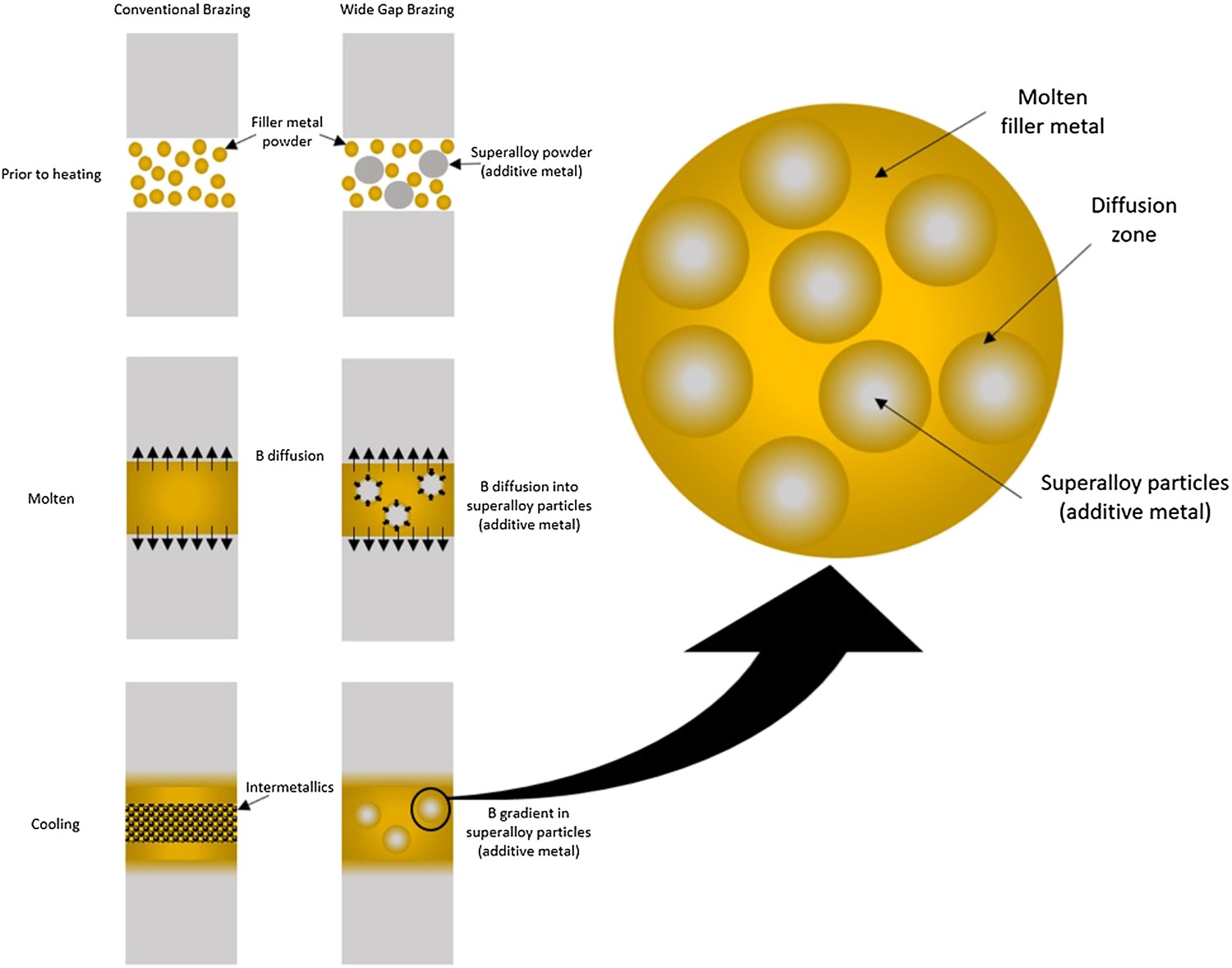

Schematic of the wide gap brazing method.
It is important for strength, ductility [186,187], creep and fatigue performance [185,188] that there is sufficient time and temperature for the joint to form with little voiding and for dispersion of the melting point suppressant to avoid brittle intermetallics. On the other hand, as the melting point suppressant is taken up by the additive metal particles there is a risk they will melt. Should this happen, the re-solidification microstructure can form a hard eutectic, which displays poor fatigue life [189]. Resistance to re-melting can be achieved by ensuring the additive particle size is not too small, and that brazing is carried out without additional superheat. The goal is that the solidification in the joint is isothermal, being brought about by the change of composition as the molten filler metal interacts with the solid additive metal [182]. Very little interdiffusion takes place in the solid state, but it is rapid once liquid; use of a foil form of filler metal has been found to increase the densification and to result in reduced formation of intermetallic phases [190].
Wide gap brazing has proved a useful repair strategy for a number of components in turbines; however, approaching the mechanical properties of new materials requires detailed process understanding and optimisation for each specific repair [188]. This limits the method from use for certain critical parts, such as rotatives, and a better systematic understanding of how to achieve the best mechanical properties could widen the field of application.
The process can also be used where the usual small tolerances needed for brazing are not readily achievable, such as in the assembly of very large or difficult to machine components. In such a setting the process has also been used to bond dissimilar materials (nickel superalloy and stainless steel) [191] (Figure 20).
Wide gap brazed microstructure. Scanning Electron Micrographs of 304 stainless steel to X-750 Ni superalloy joints, braze at 1423 K, (a) using 4777 filler metal only, and (b) 4777 filler metal with 30vol% additive metal [191]. Reprinted from Journal of Materials Processing Technology, 113, X.W Wu, R.S Chandel, H.P Seow, H Li, Wide Gap Brazing of stainless steel to nickel-based superalloy, 215–221., Copyright (2001), with permission from Elsevier.
With additive repair now being considered in aerospace to allow the repair of high value components [192], wide gap brazing understanding could be applied in building up deposited repairs, which would be particularly appropriate for application in powder-based additive technologies.
Future challenges
For much of its history, brazing has needed to develop new filler metals, improving properties to meet various challenges, such as higher strength and operating temperature, and reducing the cost (notably in the filler metal families based on precious metals). However, the developments now required for brazing take filler metal development beyond a traditional metallurgical focus and will require the input of other research communities in uncovering new understanding and making the technological developments needed; this includes materials scientists working on ceramics and nanotechnology, those developing functional materials and devices, the users of advanced characterisation facilities and materials modellers. We present some of the most pressing challenges and significant opportunities below.
Key applications
Brazing will be a critical joining process for the implementation of many advanced technologies currently coming to the fore. Research is already underway in the field of joining nanoscale electronics (highly miniaturised electronic components utilising nanoparticles, nanowires and nanotubes [193]), where it is the joining of nanoscale components (rather than the synthesis of the nanomaterials themselves) that is limiting development, with poor bonding between components or substrates leading to mechanical and electrical failures [194]. Carbon nanotubes have been vacuum brazed using a commercially available Ti doped AgCu active brazing filler metal [195] and silver nanowires joined using Au80Sn20 solder [196]. Whilst nanowires can also be joined via direct fusion methods, joining of nanoparticles is harder as controlling the melting depth is challenging and particles tend to melt fully and coalesce. As nanoscale brazing or soldering does not require any melting of the nanoparticles, it offers a potential route to circumvent this issue [197]. Nanobrazing can be performed on mixtures of nanoparticles using a laser of a specific wavelength such that the photon energy matches the absorption band of one type of particle, which is heated and melts, with the other nanoparticles remaining solid. This has been applied to Au and Pt [198], and Ag and Pt [197], but further research is required for wider exploitation. For widespread use of any nanojoining technique further understanding will be needed on the fundamental aspects of the process, such as the driving forces behind the joining mechanisms, the influence of surface topography, and the effect of crystal orientations, particularly for dissimilar material joining [193]; an area in which brazing has always excelled.
Another prime area where brazing innovation is essential is in the joining of components within Solid Oxide Fuel Cells (SOFCs, devices which produce electricity from oxidising a fuel, with higher efficiency and reduced environmental impact than most other power generation methods [199]). Within fuel cells each cathode-electrolyte-anode cell is joined to others to produce a ‘stack’ providing useable power output, and the joints must withstand high operating temperatures. Many different joining methods have been used but brazing, and in particular a recently developed technique known as reactive air brazing (RAB) [200], is the most commonly used method [201]. Reactive Air Brazing utilises a filler metal consisting of a noble metal (Ag) and a reactive metal (Cu). During brazing in air (which is required to prevent electrochemical degradation of the cathode materials which can occur under vacuum [202]) the reactive metal oxidises, improving the wettability of the braze on the ceramic. Since emerging as a leading technique for joining SOFC fuel cell stacks, much development of RAB filler metals has ensued, including the incorporation of porous nickel interlayers to replace copper as the reactive metal [199], and Al2TiO5 ceramic to adjust the thermal expansion coefficient [203]. Density Functional Theory calculations have been used to suggest potential multi-cation oxides (such as CuAlO2, CuGaO2 and Cu3TiO4) which may be superior to CuO in the next generation of reactive air brazes. With the assistance of ab-inito modelling techniques, little-employed in filler metal development previously, these innovative new approaches in brazing will assist in reaching the prize of negligible emissions and high efficiency (45–60% [204]) offered by SOFCs.
Increased operating temperature (retaining strength and corrosion resistance) is still a focus for development, but the authours would argue that there is a case for research on filler metals with lower melting temperatures as well. Extending the temperature envelope covered by brazing-like processes to temperatures below the traditional (but arbitrary) 450°C and closing the gap between many brazing filler metals and soft solders would meet a number of needs, including allowing for increased temperature margin of safety for electrical interconnects, brazing of highly alloyed high-strength aluminium grades (for example, the 7000 series) for aerospace heat exchangers and the bonding of functional materials, such as thermoelectrics or novel electrode materials in SOFCs, with sufficient capability for the required operating temperatures, but without a processing temperature where the properties of the material will be altered. Development of such filler metals will require understanding of systems containing the low melting point elements, which are currently little explored, and ways to control the microstructure to reduce the deleterious effect of the intermetallic phases which typically result from the use of significant amounts of melting point suppressants. Alternative approaches are possible, and nanoparticle additions have been used to lower process temperatures to <370°C in RAB filler metals [205].
There is also a need for improvement in one of the most distinctive features of brazing, the ability to form thermally-stable joints between dissimilar materials. As designs are optimised for efficiency, it is increasingly common to want to use different materials for different parts of a component. Automotive lightweighting may favour the replacement of steel with aluminium, but this is not a wholesale substitution, and so joining steel to aluminium has become one of the most pressing of modern brazing challenges. Joint formation can be achieved, though it is still considered difficult [206], due to the extremely low solid solubility of Fe in Al and the formation of hard, brittle
New directions for development and research
Brazing is a practical subject and has perhaps concentrated more on the what than the why; filler metals are developed for specific applications and assessed against the important criteria in each case, while fundamental understanding of the processes is less explored. As a result, the use of advanced characterisation techniques in the field has been less extensive than in other areas of modern materials research. One example of the power of X-ray Computed Tomography (XCT) to observe joint filling is shown in work from fusion engineering to bond a copper cooling pipe and a tungsten monoblock. The method was used find voids caused by a lack of wetting, and was capable of resolving defects as small as 10 μm in size [210]. Other methods capable of assessing residual stresses on a finer scale and to greater precision would be of great use in engineering filler metals and brazed joints for bonding ceramics to metals for use in cutting tools for arduous environments.
It is likely that significant discoveries could be made by in operando observation of the brazing process, both to determine the flow of the filler metal (the XCT work above was post-braze only), and also to track the development of the phase structure (particularly intermetallics) within the joint region. Particularly challenging for characterisation would be the boron used as a melting point suppressant in nickel brazing alloys, but tracking how this constituent moves and the phases it exists in during brazing would be extremely valuable knowledge for process optimisation.
One area that has not been ignored in brazing is the potential for the discovery of new alloys motivated by the developments in High Entropy Alloys [211]. While there is still some debate about their physical metallurgy [212], one concept advanced is that where there are multiple elements present in high relative proportions (close to equiatomic) the high levels of entropy will favour solid solutions over intermetallic compounds. The formation of brittle intermetallics is a challenge in some areas of brazing, and the presence of multiple elements in the filler metal could facilitate bond formation between dissimilar materials. Some attempts have already been made in using HEA compositions as filler metals [213,214] and it is likely that there will be further developments in HEA compositions designed specifically for brazing [215].
As a final example, it may be that as well as other communities contributing to advances in brazing, the knowledge from the field may be of benefit to other areas. Additive Manufacturing (AM) technology is developing rapidly, with attention now being paid to the design of specific alloys suited to the process. In doing this, researchers most often make comparison to welding [216], with a need for material to undergo melting and solidification in contact with its own solid. But as AM becomes more complex, with developments into the use of AM for repair, and employing in-situ alloy formation, multiple materials or graded structures, some of the approaches from brazing may become valuable.
Summary
Brazing has been used in many engineering feats since it was first employed as a joining technique in antiquity. However, it is a testament to the versatility of the technology that it is still pivotal for some of the biggest engineering challenges facing mankind. Filler metals are adapted to particular joints, and advances in materials necessitate continuing development of filler metals. This progress will help push the boundaries in established technologies such as gas turbines and in the automotive industry and the development of new filler metals and processes will pave the way for leaps forward in clean energy generation (SOFCs and nuclear fusion) and in the rapidly progressing field of nanotechnology as development of nanoelectronics becomes the next challenge of the information age. It is the view of the authors that development of new filler metals and new brazing processes will be imperative across all these fields and more, and that despite being a technology 5000 years in development, brazing’s most advanced challenges are only just beginning to unfold.
