Formation of a nanoporous layer on the surface of silver and copper by dealloying of thermal diffusion coatings Me 5 Zn 8 (Me=Ag,Cu) in a deep eutectic solvent
Restricted accessResearch articleFirst published online February, 2023
Formation of a nanoporous layer on the surface of silver and copper by dealloying of thermal diffusion coatings Me 5 Zn 8 (Me=Ag,Cu) in a deep eutectic solvent

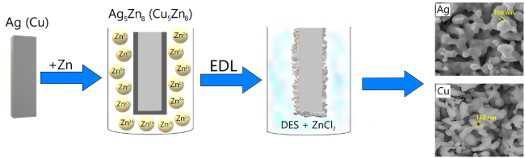

Selective anodic dissolution of pre-galvanized surfaces was used to obtain nano-porous layers of approximately 10 microns thick on copper and silver specimens. To achieve single-phase homogeneous thermal diffusion layers of Cu5Zn8 and Ag5Zn8, we used a zinc plating process carried out in molten eutectic (KCl–NaCl–ZnCl2) at Т = 370°С. Dealloying of these coatings in a deep eutectic solvent (choline chloride/urea + 0.1 mol/l ZnCl2) at T = 133°C produced a typical bi-continuous structure of pores and ligaments (100 nm) on the surface of the silver and the copper.
WeissmüllerJ, SieradzkiK.Dealloyed nanoporous materials with interface-controlled behavior. MRS Bull. 2018;43(1):14–19.
2.
KunduraciM.Dealloying technique in the synthesis of lithium-ion battery anode materials. J Solid State Electr. 2016;20:2105–2111.
3.
ZhaoC-H, WadaT, De AndradeV, . Imaging of 3D morphological evolution of nanoporous silicon anode in lithium ion battery by X-ray nano-tomography. Nano Energy. 2018;52:381–390.
4.
LiH, FangX, LiG, . Investigation on fabrication and capillary performance of multi-scale composite porous wick made by alloying-dealloying method. Int J Heat Mass Tran. 2018;127:145–153.
5.
SuL, GanY-X.Nanoporous Ag and Ag–Sn anodes for energy conversion in photochemical fuel cells. Nano Energy. 2012;1:159–163.
6.
InkrottDK, WillinghamRL, BalsterT, . Preparation and electrochemical catalytic property of Au–Ni alloy with porous structure. J Alloy Compd. 2011;509:l47–l51.
7.
ZhangFM, WangLL, LiP, . Preparation of nano to submicro-porous TiMo foams by spark plasma sintering. Adv Eng Mater. 2017;19:1600600.
8.
HeidenM, HuangS, NaumanE, . Nanoporous metals for biodegradable implants: initial bone mesenchymal stem cell adhesion and degradation behavior. J Biomed Mater Res A. 2016;104:1747–1758.
9.
RenYB, LiJ, YangK.Preliminary study on porous high-manganese 316L stainless steel through physical vacuum dealloying. Acta Metall Sin-Engl. 2017;30:731–734.
10.
DelgadoJ, BenkiraneA, ClaverC, . Advances in the preparation of highly selective nanocatalysts for the semi-hydrogenation of alkynes using colloidal approaches. Dalton Trans. 2017;46:12381–12403.
11.
YangW, MaW, ZhangZ, . Ligament size-dependent electrocatalytic activity of nanoporous Ag network for CO2 reduction. Faraday Discuss. 2018;210:289–299.
12.
LiZ, XingL, LiB, . Research on electrochemical oxidation of formaldehyde on the nanoporous silver electrode in alkaline solution. ECS Electrochemistry Letters. 2015;4(6):H24–H27.
13.
YanZ, WesleyL, GregoryS, . Photoelectrochemical carbon dioxide reduction using a nanoporous Ag Cathode. ACS Appl Mater Interfaces. 2016;8:24652–24658.
14.
LushengS, YongX-G.Nanoporous Ag and Ag–Sn anodes for energy conversion in photochemical fuel cells. Nano Energy. 2012;1:159–163.
15.
ChaoxiongM, MichaelJ-T, JonP-C.Nanoporous silver film fabricated by oxygen plasma: a facile approach for SERS substrates. ACS Appl Mater Interfaces. 2016;8:23978–23984.
GanYX, ZhangY, GanJB.Nanoporous metals processed by dealloying and their applications. AIMS Mater Sci. 2018;5(6):1141–1183.
21.
ErlebacherJ, AzizMJ, KarmaA, . Evolution of nanoporosity in dealloying. Nature. 2001;410:450–451.
22.
ZhangZ, WangY, QiZ, . Generalized fabrication of nanoporous metals (Au, Pd, Pt, Ag, and Cu) through chemical dealloying. J Phys Chem C. 2009;113:12629–12636.
23.
McCueI, GaskeyB, GeslinP-A, . Kinetics and morphological evolution of liquid metal dealloying. Acta Mater. 2016;115:10–23.
24.
RozhentsevD, TkachevN.Communication – High-temperature electrochemical synthesis of nanoporous iron by dealloying of ferromanganese in a LiCl-KCl eutectic. J Electrochem Soc. 2021;168(6): art. № 061504, 4.
25.
RozhentsevDA, ShurovNI, TkachevNK.Synthesis of a Pd2In–Pd3 In bi-continuous nanoporous structure by electrochemical dealloying in molten salts. Dalton Trans2021;50:16720–16725.
26.
KulikNP, ShurovNI, TkachevNK.Selective anodic dissolution of Ag–Zn alloys in the eutectic melt of alkali metal chlorides at 300°С. Rus J Electrochem. 2021;57(6):344–354. (in Russian).
27.
HansenBB, . Deep eutectic solvents: a review of fundamentals and applications. Chem Soc Rev2021;121(3):1232–1285.
28.
AchkarT, Greige-GergesH, FourmentinS.Basics and properties of deep eutectic solvents: a review. Environ Chem Lett. 2021;19:3397–3408.
29.
ZhangQ, VigierK, RoyerS, . Deep eutectic solvents: syntheses, properties and applications. Chem Soc Rev2012;41:7108–7146.
30.
ZhangQB, AbbottAP, YangC.Electrochemical fabrication of nanoporous copper films in choline chloride–urea deep eutectic solvent. Phys Chem Phys2015;16:14702–14709.
31.
MassalskiTB.Binary alloy phase diagram. Metals Park, OH: American society for metals; 1986.
32.
ShurovNI, AnfinogenovAI, ChebykinVV, . Transport reactions in salt melts and their applied aspects. High temperature material process. 2002;6(1):101–108.
33.
GorelikSS, DobatkinSV, KaputkinaLM.Recrystallization of metals and alloys. Moscow: MISIS; 2005. p.15 (in Russian)
34.
IvanovMA, PertsovNV, ProkopenkoVA, . Collection of Science Practices. Kyiv: Naukova Dumka; 2004, Vol. 2, p. 265–275. (in Russian)
35.
IvanovMA, PertsovNV, ProkopenkoVA, . Colloidal-Chemical Foundations of Nanoscience. 2005, Vol. 13, p. 413–423.
