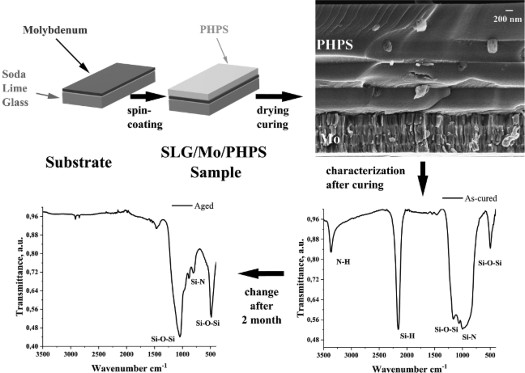

Silicon dioxide thin films are a promising alternative to protective glass in solar cells. In this work, one-layer and four-layer thin films of a perhydropolysilazane (PHPS) were spin-coated from solution in dibutyl ether and cured by exposure to moderate temperatures or ultraviolet (UV) light to obtain glassy SiOx layers. Optical and morphological properties as well as their long-term stability were studied using XPS, FTIR, UV-Vis spectroscopy, and SEM microscopy with EDX analysis. The results showed that the process of converting PHPS layers to SiOx continues after the completion of the curing procedure for both methods. However, the composition of the thermally cured films is similar to silicon oxide, while the UV-cured samples demonstrate a composition similar to silicon dioxide due to differences in the reactions occurring during the curing process. The prolonged transformation process opens up possibilities for creating self-improving protective coatings based on PHPS.
PragerL, DierdorfA, LiebeH, Conversion of perhydropolysilazane into a SiOx network triggered by vacuum ultraviolet irradiation: access to flexible, transparent barrier coatings. Chem – Eur J. 2007;13(30):8522–8529. doi:10.1002/CHEM.200700351.
2.
PragerL, HelmstedtU, HerrnbergerH, Photochemical approach to high-barrier films for the encapsulation of flexible laminary electronic devices. Thin Solid Films. 2014;570:87–95. doi:10.1016/J.TSF.2014.09.014.
3.
KimD, JeonGG, KimJH, Design of a flexible thin-film encapsulant with sandwich structures of perhydropolysilazane layers. ACS Appl Mater Interf. 2022;14(30):34678–34685. doi:10.1021/acsami.2c06699.
4.
WangY, DingG, MaoJY, Recent advances in synthesis and application of perovskite quantum dot based composites for photonics, electronics and sensors. Sci Technol Adv Mater. 2020;21(1):278–302. doi:10.1080/14686996.2020.1752115.
5.
ZhanY, GrottenmüllerR, LiW, Evaluation of mechanical properties and hydrophobicity of room-temperature, moisture-curable polysilazane coatings. J Appl Polym Sci. 2021;138(21):50469. doi:10.1002/APP.50469.
6.
OhishiT, YamazakiY.Formation and gas barrier characteristics of polysilazane-derived silica coatings formed by excimer light irradiation on PET films with vacuum evaporated silica coatings. Mater Sci Appl. 2016;8(1):1–14. doi:10.4236/MSA.2017.81001.
7.
NiizekiT, NagayamaS, HasegawaY, Structural study of silica coating thin layers prepared from perhydropolysilazane: substrate dependence and water penetration structure. Coatings. 2016;6(4):64. doi:10.3390/COATINGS6040064.
8.
KuboT, KozukaH.Conversion of perhydropolysilazane-to-silica thin films by exposure to vapor from aqueous ammonia at room temperature. J Ceram Soc Jpn. 2006;114(1330):517–523. doi:10.2109/jcersj.114.517.
9.
LeeJS, OhJH, MoonSW, A technique for converting perhydropolysilazane to SiOx at low temperature. Electrochem Solid State Lett. 2010;13(1):II23–II25. doi:10.1149/1.3264092.
10.
MorlierA, CrosS, GarandetJP, Thin gas-barrier silica layers from perhydropolysilazane obtained through low temperature curings: a comparative study. Thin Solid Films. 2012;524:62–66. doi:10.1016/J.TSF.2012.09.065.
11.
MorlierA, CrosS, GarandetJP, Structural properties of ultraviolet cured polysilazane gas barrier layers on polymer substrates. Thin Solid Films. 2014;550:85–89. doi:10.1016/J.TSF.2013.10.140.
12.
FunayamaO, TashiroY, KamoA, Conversion mechanism of perhydropolysilazane into silicon nitride-based ceramics. J Mater Sci. 1994;29(18):4883–4888. doi:10.1007/BF00356538.
13.
KozukaH, NakajimaK, UchiyamaH.Superior properties of silica thin films prepared from perhydropolysilazane solutions at room temperature in comparison with conventional alkoxide-derived silica gel films. ACS Appl Mater Interf. 2013;5(17):8329–8336. doi:10.1021/am400845y.
14.
KimS-D, KoP-S, ParkK-S.Perhydropolysilazane spin-on dielectrics for inter-layer-dielectric applications of sub-30 Nm silicon technology. Semicond Sci Technol. 2013;28(3):035008, doi:10.1088/0268-1242/28/3/035008.
15.
GünthnerM, PschererM, KaufmannC, High emissivity coatings based on polysilazanes for flexible Cu(In,Ga)Se2 thin-film solar cells. Sol Energy Mater Sol Cells. 2014;123:97–103. doi:10.1016/J.SOLMAT.2014.01.027.
16.
ChannaIA, DistlerA, ZaiserM, Thin film encapsulation of organic solar cells by direct deposition of polysilazanes from solution. Adv Energy Mater. 2019;9(26):1900598. doi:10.1002/AENM.201900598.
17.
KimJ, JangJH, KimJ-H, Inorganic encapsulation method using solution-processible polysilazane for flexible solar cells. ACS Appl Energy Mater. 2020;3(9):9257–9263. doi:10.1021/ACSAEM.0C01593.
18.
WangD, MaJ, LiP, Flexible hard coatings with self-evolution behavior in a low earth orbit environment. ACS Appl Mater Interfaces. 2021;13(38):46003–46014. doi:10.1021/acsami.1c13807.
ZhuJ, ShenG, JiangW, The preparation and properties study of novel hydrophobic/superhdrophobic coatings based on fluorine modified perhydropolysilazane. J Dispers Sci Technol. 2021. doi:10.1080/01932691.2021.1974871.
21.
ChenN, Reeja-JayanB, LiuA, ICVD cyclic polysiloxane and polysilazane as nanoscale thin-film electrolyte: synthesis and properties. Macromol Rapid Commun. 2016;37(5):446–452. doi:10.1002/MARC.201500649.
22.
ShokriB, FirouzjahMA, HosseiniSI. FTIR analysis of silicon dioxide thin film deposited by metal organic-based PECVD. In Proceedings of 19th international symposium on plasma chemistry society; Bochum, Germany; 2009. p. 26–31.
23.
DerrickMR, StulikD, LandryJM.Infrared spectroscopy in conservation science. Los Angeles (CA): The Getty Conservation Institute; 1999.
24.
ShiY, HeL, GuangF, A review: preparation, performance, and applications of silicon oxynitride film. Micromachines (Basel). 2019;10(8):552, doi:10.3390/mi10080552.
AkkayaA, BoyarbayB, EtinHC, A study on the electronic properties of SiO x N y /p-Si interface. Silicon. 2018;10:2717–2725. doi:10.1007/s12633-018-9811-6.
27.
MoulderJF, StickleWF, SobolPE, Handbook of X-Ray photoelectron spectroscopy. In: ChastainJ, editor. Perkin-Elmer corporation. Eden Prairie: Physical Electronics Division; 1992.
