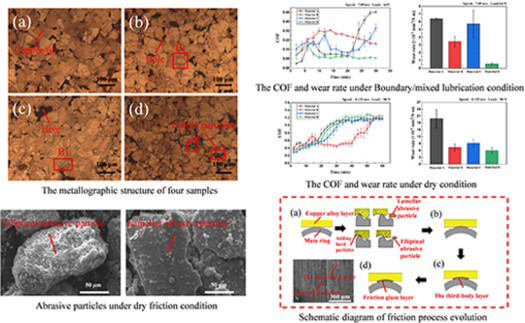

The effects of molybdenum disilicide (MoSi2) and ferrophosphorus (FemPn) particles on the tribological properties of copper-tin bismuth (CuSn10Bi3) bimetallic bearing materials were studied in this paper. The samples of CuSn10Bi3 containing MoSi2 and/or FemPn were prepared by powder sintering technology and the metallographic structure of four kinds of self-lubricating copper alloy composite materials after sintering was observed. The tribological properties of the copper alloy composites under starved lubrication conditions were investigated and its worn surfaces and wear debris were discussed and analysed. The results show that the addition of MoSi2 and/or FemPn particles can effectively refine the grain size, optimise the grain boundary morphology, and improve the mechanical properties of the alloys. Under extreme working conditions, the hard particles reinforced copper-based alloy samples have better wear resistance and anti-seizure resistance.
LiuRTXiangXChenFSTribological performance of graphite containing tin lead bronze–steel bimetal under reciprocal sliding test. Tribol Int. 2011;44(2):101–105.
2.
PrasadBK.Sliding wear behaviour of bronzes under varying material composition, microstructure and test conditions. Wear. 2004;257(1–2):110–123.
3.
WangYYangQChenJGraphite and nickel containing tin bronze-steel bimetals as lead free bearing materials. Mater Res. 2016;19:770–775.
4.
ThomsonJZavadilRSahooMDevelopment of a lead-free bearing material for aerospace applications. Int J Metalcast. 2010;4(1):19–30.
5.
WatanabeY.High-speed sliding characteristics of Cu–Sn-based composite materials containing lamellar solid lubricants by contact resistance studies. Wear. 2008;264(7-8):624–631.
6.
KerrIPriestMOkamotoYFriction and wear performance of newly developed automotive bearing materials under boundary and mixed lubrication regimes. Proc Inst Mech Eng, Part J. 2007;221(3):321–331.
7.
YinYGJiaoXNYouTResearch on the tribology performance of copper-bismuth bearing material. Appl Mech Mater. 2012;217–219:322–325.
8.
OksanenVTLehtovaaraAJKallioMH.Load capacity of lubricated bismuth bronze bimetal bearing under elliptical sliding motion. Wear. 2017;388–389:72–80.
9.
La FontaineAKeastVJ.Compositional distributions in classical and lead-free brasses. Mater Charact. 2006;57(4-5):424–429.
10.
YangDYLiZYZhaoGREnhanced antiwear property of Cu-Sn-Bi bimetal composites with TiB2 under different working conditions. Tribol Trans. 2022;65(1):78–87.
11.
ZushiKSakaiKSugawaraHDevelopment of lead free copper based alloy for piston pin bushing under higher load engines. SAE Tech Pap. 2006;01:1105.
12.
SakaiKZushiKSugitaMDevelopment of lead free copper based alloy for three layers bearings under higher load engines. SAE Tech Pap. 2004;01:1600.
13.
KitaharaTImaiTIshigoODevelopment of lead-free copper alloy bearing material with improved conformability. SAE Tech Pap. 2015;01:0520.
14.
XuLYangYWangSImproved both mechanical and anti-oxidation performances of ZrB2-SiC ceramics with molybdenum disilicide addition. Mater Chem Phys. 2019;223:53–59.
15.
HanssonKHalvarssonMTangJEOxidation behaviour of a MoSi2-based composite in different atmospheres in the low temperature range (400–550 °C). J Eur Ceram Soc. 2004;24(13):3559–3573.
16.
PetrovicJJ.Mechanical behavior of MoSi2 and MoSi2 composites. Mater Sci Eng A. 1995;192–193:31–37.
17.
HawkJAAlmanDEPetrovicJJ.Abrasive wear of Si3N4-MoSi2 composites. Wear. 1997;203–204:247–256.
18.
HawkJAAlmanDE.A comparative study of the abrasive wear behavior of MoSi2. Scr Metall Mater. 1995;32(5):725–730.
19.
ScitiDGui cc iardiSBellosiAProperties of a pressureless-sintered ZrB2–MoSi2 ceramic composite. J Am Ceram Soc. 2010;89(7):2320–2322.
20.
ScitiDBrachMBellosiA.Oxidation behavior of a pressureless sintered ZrB2–MoSi2 ceramic composite. J Mater Res. 2005;20(4):922–930.
21.
NiralaAUpadhyayaA.Experimental characterization and sintering behavior in mixed atmosphere (N2 and H2) of Fe3P-added ferritic stainless steel (434L). J Mater Eng Perform. 2020;29(5):2926–2935.
22.
XiongDWangXLiWFacile synthesis of iron phosphide nanorods for efficient and durable electrochemical oxygen evolution. Chem Commun. 2016;52(56):8711–8714.
23.
KiraTYokotaHKamiyaS.Development of anti-corrosive and wear resistant copper alloy for bushings. JSAE Rev. 1999;20(2):297–302.
24.
YokotaHDesakiTHayakawaHNewly development lead free copper alloy bushing for fuel injection pump. SAE Tech Pap.2006;01:1103.
25.
HutchingsM.ITribological properties of metal matrix composites. Mater Sci Technol. 1994;10(6):513–517.
26.
ZhangGYinYLiJ.Tribological properties of lead-free Cu–FeS composites under dry sliding condition. J Mater Res. 2017;32(2):354–362.
27.
GebretsadikDWHardellJPrakashB.Seizurebehaviour of some selected Pb-free engine bearing materials under lubricated condition. Tribol Int. 2017;111:265–275.
28.
LehmannJSSchwaigerRRinkeMHow tribo-oxidation alters the tribological properties of copper and Its oxides. Adv Mater Interfaces. 2021;8(1):2001673.
29.
SaxtonDCarpenterJSevenskiG inventor; Federal-Mogul LLC, assignee. Wear resistant lead free alloy bushing and method of making. United States patent US 9657777B2. 2017 May 23.
30.
MeschterPJ.Low-temperature oxidation of molybdenum disilicide. Metall Trans s A. 1992;23(6):1763–1772.
31.
StottFHJordanMP.The effects of load and substrate hardness on the development and maintenance of wear-protective layers during sliding at elevated temperatures. Wear. 2001;250(1–12):391–400.
32.
ChaurasiaSKPrakashUDabhadeVEffect of phosphorus addition on dry sliding behavior of Fe–P alloys prepared by powder metallurgy. Metallogr Microstruct Anal. 2018;7(3):347–355.
33.
LiJXiongD.Tribological behavior of graphite-containing nickel-based composite as function of temperature, load and counterface. Wear. 2009;266(1-2):360–367.
34.
LiZZhaoGWangHMicrostructure and tribological behaviors of diffusion bonded powder sintered Cu–Sn based alloys. Mater Res Express. 2021;8(11):116505.
35.
JuškėnasRMockusZKanapeckaitėSXRD studies of the phase composition of the electrodeposited copper-rich Cu–Sn alloy. Electrochim Acta. 2006;52(3):928–935.
