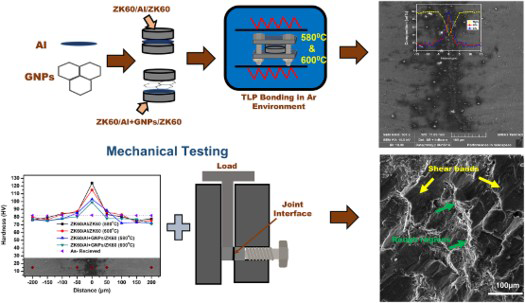

Transient liquid phase bonding of ZK60 magnesium alloy was performed by incorporating aluminium foil as an interlayer, unaided and in combination with graphene nanoplatelets. The solitary incorporation of aluminium foil increased the shear strength of magnesium alloy in comparison to the addition of graphene nanoplatelets with aluminium foil. The fractured surfaces revealed a mixed-mode fracture while the hardness profile across the interface showed the increase in hardness in the bonded region, which was due to the formation of Al12Mg17 intermetallic.
YouSHuangYKainerKURecent research and developments on wrought magnesium alloys. J Magnes Alloys. 2017; 5(3):239–253. doi:10.1016/j.jma.2017.09.001.
2.
XieXShenJChengLEffects of nano-particles strengthening activating flux on the microstructures and mechanical properties of TIG welded AZ31 magnesium alloy joints. Mater Des. 2015; 81:31–38. doi:10.1016/j.matdes.2015.05.024.
3.
LiWYFuTHütschLEffects of tool rotational and welding speed on microstructure and mechanical properties of bobbin-tool friction-stir welded Mg AZ31. Mater Des. 2014; 64:714–720. doi:10.1016/j.matdes.2014.07.023.
4.
MaLHeDLiXMicrostructure and mechanical properties of magnesium alloy AZ31B brazed joint using a Zn-Mg-Al filler metal. J Mater Sci Technol. 2010; 26(8):743–746. doi:10.1016/S1005-0302(10)-60117-X.
5.
ComminLRotinatRPierronFIdentification of shear bands in wrought magnesium alloy friction stir welds and laser beam welds. Mater Sci Technol. 2009; 25(10):1215–1221. doi:10.1179/174328409X421-997.
6.
LiuLMZhaoLMWuZH.Influence of holding time on microstructure and shear strength of Mg–Al alloys joint diffusion bonded with Zn–5Al interlayer. Mater Sci Technol. 2011; 27(9):1372–1376. doi:10.1179/026708310X12699498462887.
7.
SuSFLinHKHuangJCElectron-beam welding behavior in Mg-Al-based alloys. Metall Mater Trans A. 2002; 33(5):1461–1473. doi:10.1007/s11661-002-0069-6.
8.
CookGOSorensenCD.Overview of transient liquid phase and partial transient liquid phase bonding. J Mater Sci. 2011; 46(16):5305–5323. doi:10.1007/s10853-011-5561-1.
9.
DuvallDSOwczarskiWAPaulonisDF.TLP bonding: a new method for joining heat resistant alloys. WeldJ. 1974; 53(4):203–214.
10.
GuXYSunDQLiuL.Transient liquid phase bonding of TiC reinforced magnesium metal matrix composites (TiCP/AZ91D) using aluminum interlayer. Mater Sci Eng A. 2008; 487(1–2):86–92. doi:10.1016/j.msea.2007.09.064.
11.
LiYYangCPengZMicrostructure and formation mechanism of ultrasound-assisted transient liquid phase bonded magnesium alloys with Ni interlayer. Materials. 2019; 12(22):3732. doi:10.3390/ma12223732.
12.
SunDQLiuWHGuXY.Transient liquid phase bonding of magnesium alloy (Mg–3Al–1Zn) using copper interlayer. Mater Sci Technol. 2004; 20(12):1595–1598. doi:10.1179/174328413X13789824293506.
13.
TorunOKarabulutABaksanBDiffusion bonding of AZ91 using a silver interlayer. Mater Des. 2008; 29(10):2043–2046. doi:10.1016/j.matdes.2008.04.003.
14.
SunDQGuXYLiuWH.Transient liquid phase bonding of magnesium alloy (Mg–3Al–1Zn) using aluminium interlayer. Mater Sci Eng A. 2005; 391(1–2):29–33. doi:10.1016/j.msea.2004.06.008.
15.
MunirKWenCLiY.Graphene nanoplatelets-reinforced magnesium metal matrix nanocomposites with superior mechanical and corrosion performance for biomedical applications. J Magnes Alloys. 2020; 8(1):269–290. doi:10.1016/j.jma.2019.12.002.
16.
SunXLiCDaiXMicrostructures and properties of graphene-nanoplatelet-reinforced magnesium-matrix composites fabricated by an in situ reactionprocess. J Alloys Compd. 2020; 835:155125. doi:10.1016/j.jallcom.2020.155125.
17.
ZhangTShenJLüLEffects of graphene nanoplates on microstructures and mechanical properties of NSA-TIG welded AZ31 magnesium alloy joints. Trans Nonferrous Met Soc China. 2017; 27(6):1285–1293. doi:10.1016/S1003-6326(17)60149-3.
18.
JafarianMKhodabandehAManafiS.Evaluation of diffusion welding of 6061 aluminum and AZ31 magnesium alloys without using an interlayer. Mater Des. 2015; 65:160–164. doi:10.1016/j.matdes.2014.09.020.
MofidMALoryaeiE.Investigating microstructural evolution at the interface of friction stir weld and diffusion bond of Al and Mg alloys. J Mater Res Technol. 2019; 8(5):3872–3877. doi:10.1016/j.jmrt.2019.06.049.
21.
SaremiSGMirsalehiSEShamsipurA.Transient liquid phase bonding of AZ31 magnesium alloy: metallurgical structure and mechanical properties. J Manuf Process. 2018; 35:140–148. doi:10.1016/j.jmapro.2018.08.002.
22.
DehnaviFBakhtiariR.Effect of microstructure aspects on mechanical properties of nanoparticle-assisted transient liquid phase (NP-TLP) joints for AZ31 alloy. J Manuf Process. 2021; 68:42–55. doi:10.1016/j.jmapro.2021.05.032.
23.
RashadMPanFTangAEffect of graphene nanoplatelets addition on mechanical properties of pure aluminum using a semi-powder method. Prog Nat Sci Mater Int. 2014; 24(2):101–108. doi:10.1016/j.pnsc.2014.03.012.
24.
RashadMPanFTangADevelopment of magnesium-graphene nanoplatelets composite. J Compos Mater. 2014. doi:10.1177/0021998313518360.
25.
KhanMUd DinRWadoodAEffect of graphene nanoplatelets on the physical and mechanical properties of Al6061 in fabricated and T6 thermal conditions. J Alloys Compd. 2019; 790:1076–1091. doi:10.1016/j.jallcom.2019.03.222.
26.
KhanMRehmanAAzizTCold formability of friction stir processed aluminum composites containing carbon nanotubes and boron carbide particles. Mater Sci Eng A. 2017; 696:552–557. doi:10.1016/j.msea.2017.04.074.
