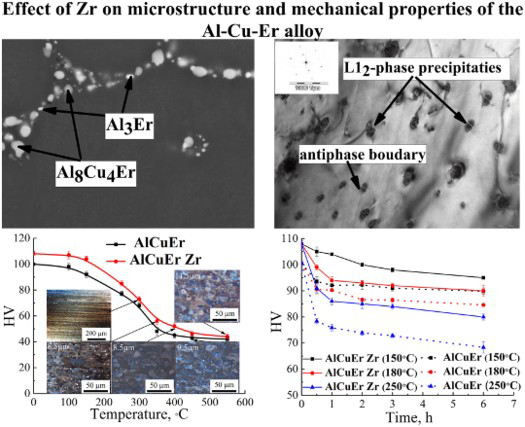

The microstructure and mechanical properties of the Al–4Cu–2.7Er–0.3Zr alloy were investigated. The precipitates of the L12 structured phase with sizes 37 ± 12 nm were formed in lines and homogenously distributed inside the aluminium matrix after annealing at 605°C for 1 h. The as-rolled Al–4Cu–2.7Er–0.3Zr alloy developed an increased hardness after 1 h annealing at 100–550°C and 0.5–6 h annealing at 150–250°C due to precipitation of the Al3(Er,Zr) phase. Addition of Zirconium improved the tensile properties relative to those of the Zr-free alloy by approximately 20 MPa: yield strength = 273–296 MPa and ultimate tensile strength = 296–328 MPa in the alloys annealed at 100–150°C.
ZhangLMassetPJTaoXThermodynamic description of the Al–Cu–Y ternary system. Calphad. 2011; 35:574–579. doi: 10.1016/j.calphad.2011.09.008
3.
PozdniakovAVBarkovRY.Microstructure and materials characterisation of the novel Al–Cu–Y alloy. Mater Sci Tech.2018; 34(12):1489–1496. doi: 10.1080/02670836.2018.1460536
4.
ZhangLMassetPJCaoFPhase relationships in the Al-rich region of the Al–Cu–Er system. J Alloys Compd.2011; 509:3822–3831. doi: 10.1016/j.jallcom.2010.12.029
5.
ZhangLGLiuLBHuangGXThermodynamic assessment of the Al–Cu–Er system. Calphad. 2008; 32:527–534. doi: 10.1016/j.calphad.2008.05.002
6.
PozdnyakovAVBarkovRZhSEvolution of microstructure and mechanical properties of a New Al–Cu–Er wrought Alloy. Phys Met Metallorg.2019; 120(6):614–619. doi: 10.1134/S0031918X19060097
7.
PozdniakovAVBarkovRAmerSMMicrostructure, mechanical properties and superplasticity of the Al–Cu–Y–Zr alloy. Mater Sci Eng A.2019; 758:28–35. doi: 10.1016/j.msea.2019.04.118
8.
WenSPGaoKYLiYSynergetic effect of Er and Zr on the precipitation hardening of Al–Er–Zr alloy. Scr Mater.2011; 65:592–595. doi: 10.1016/j.scriptamat.2011.06.033
9.
LiHGaoZYinHEffects of Er and Zr additions on precipitation and recrystallization of pure aluminum. Scr Mater.2013; 68:59–62. doi: 10.1016/j.scriptamat.2012.09.026
10.
WenSPGaoKYHuangHPrecipitation evolution in Al–Er–Zr alloys during aging at elevated temperature. J Alloys Compd.2013; 574:92–97. doi: 10.1016/j.jallcom.2013.03.237
11.
PozdniakovAVBarkovRProsviryakovASEffect of Zr on the microstructure, recrystallization behavior, mechanical properties and electrical conductivity of the novel Al-Er-Y alloy. J Alloys Compd.2018; 765:1–6. doi: 10.1016/j.jallcom.2018.06.163
12.
MochugovskiyAGMikhaylovskayaAVTabachkovaNThe mechanism of L12 phase precipitation, microstructure and tensile properties of Al-Mg-Er-Zr alloy. Mater Sci Eng A.2019; 744:195–205. doi: 10.1016/j.msea.2018.11.135
13.
PozdnyakovAVOsipenkovaAAPopovDAEffect of Low Additions of Y, Sm, Gd, Hf and Er on the structure and hardness of Alloy Al–0.2%Zr–0.1%Sc. Met Sci Heat Treat.2017; 58(9–10):537–542. doi: 10.1007/s11041-017-0050-z
14.
PozdniakovAVYarasuVBarkovRMicrostructure and mechanical properties of novel Al-Mg-Mn-Zr-Sc-Er alloy. Mater Lett.2017; 202:116–119. doi: 10.1016/j.matlet.2017.05.053
15.
HeLZLiXHLiuXTEffects of homogenization on microstructures and properties of a new type Al–Mg–Mn–Zr–Ti–Er alloy. Mater Sci Eng A.2010; 527:7510–7518. doi: 10.1016/j.msea.2010.08.077
16.
PozdnyakovAVBarkovR.Effect of impurities on the phase composition and properties of a new alloy of the Al–Y–Er–Zr–Sc system. Metallurgist.2019; 63(1–2):79–86. doi: 10.1007/s11015-019-00796-w
17.
RobsonJDPrangnellPB.Modelling Al3Zr dispersoid precipitation in multicomponent aluminium alloys. Mater Sci Eng A.2003; 352:240–250. doi: 10.1016/S0921-5093(02)00894-8
18.
RobsonJD.Optimizing the homogenization of zirconium containing commercial aluminium alloys using a novel process model. Mater Sci Eng A.2002; 338:219–229. doi: 10.1016/S0921-5093(02)00061-8
