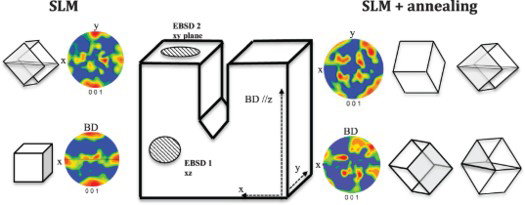

This work analyses the texture and microstructure gradients emerging in a 316L stainless steel processed by selective laser melting, using an island scan strategy, followed by annealing. Laser processing leads to the alignment of different crystallographic directions with the build direction at the mid and top layers, as well as to gradual structural coarsening. Annealing triggers discontinuous recrystallisation at highly strained regions, such as grain boundaries and laser track centre lines, resulting in the onset of new texture gradients. The development of the mentioned texture gradients is rationalised based on a competition between thermal gradient-driven growth and epitaxial growth.
YadollahiA, ShamsaeiN.Additive manufacturing of fatigue resistant materials: challenges and opportunities. Int J Fatigue. 2017;98:14–31. doi: 10.1016/j.ijfatigue.2017.01.001
4.
ZhengB, ZhouY, SmugereskyJE, Thermal behavior and microstructure evolution during laser deposition with laser-engineered net shaping: part II. Experimental investigation and discussion. Metall Mater Trans A. 2008;39:2237–2245. doi: 10.1007/s11661-008-9566-6
5.
ManvatkarVD, GokhaleAA, Jagan ReddyG, Estimation of melt pool dimensions, thermal cycle, and hardness distribution in the laser-engineered net shaping process of austenitic stainless steel. Metall Mater Trans A. 2011;42:4080–4087. doi: 10.1007/s11661-011-0787-8
6.
MaM, WangZ, WangD, Control of shape and performance for direct laser fabrication of precision large-scale metal parts with 316L stainless steel. Opt Laser Tech. 2013;45:209–216. doi: 10.1016/j.optlastec.2012.07.002
7.
NiendorfT, LeudersS, RiemerA, Highly anisotropic steel processed by selective laser melting. Metall Mater Trans A. 2013;44:794–796. doi: 10.1007/s11663-013-9875-z
8.
ZhangK, WangS, LiuW, Characterisation of stainless steel parts by laser metal deposition shaping. Mater Des. 2014;55:104–119. doi: 10.1016/j.matdes.2013.09.006
9.
YadollahiA, ShamsaeiN, ThompsonSM, Effects of process time interval and heat treatment on the mechanical and microstructural properties of direct laser deposited 316L stainless steel. Mater Sci Eng A. 2015;644:171–183. doi: 10.1016/j.msea.2015.07.056
10.
WangZ, PalmerTA, BeeseAM.Effect of processing parameters on microstructure and tensile properties of austenitic stainless steel 304L made by directed energy deposition additive manufacturing. Acta Mater. 2016;110:226–235. doi: 10.1016/j.actamat.2016.03.019
11.
WangX, DengD, QiM, Influences of deposition strategies and oblique angle on properties of AISI316L stainless steel oblique thin-walled part by direct laser fabrication. Opt Laser Tech. 2016;80:138–144. doi: 10.1016/j.optlastec.2016.01.002
12.
TrelewiczJR, HaladaGP, DonaldsonOK, Microstructure and corrosion resistance of laser additively manufactured 316L stainless steel. JOM. 2016;68:850–859. doi: 10.1007/s11837-016-1822-4
13.
RöttgerA, GeenenK, WindmannM, Comparison of microstructure and mechanical properties of 316 L austenitic steel processed by selective laser melting with hot-isostatic pressed and cast material. Mater Sci Eng A. 2016;678:365–376. doi: 10.1016/j.msea.2016.10.012
14.
ZietalaM, DurejkoT, PolanskiM, The microstructure, mechanical properties and corrosion resistance of 316 L stainless steel fabricated using laser engineered net shaping. Mater Sci Eng A. 2016;677:1–10. doi: 10.1016/j.msea.2016.09.028
15.
LiJ, DengD, HouX, Microstructure and performance optimisation of stainless steel formed by laser additive manufacturing. Mater Sci Tech. 2016;32:1223–1230. doi: 10.1080/02670836.2015.1114774
16.
GuoP, ZouB, HuangC, Study on microstructure, mechanical properties and machinability of efficiently additive manufactured AISI 316L stainless steel by high-power direct laser deposition. J Mater Proc Tech. 2017;240:12–22. doi: 10.1016/j.jmatprotec.2016.09.005
17.
BartolomeuF, BuciumeanuM, PintoE, 316L stainless steel mechanical and tribological behavior – a comparison between selective laser melting, hot pressing and conventional casting. Addit Manuf. 2017;16:81–89. doi: 10.1016/j.addma.2017.05.007
18.
ShumingZ, XianfengS, JialinY, Densification behavior and mechanical properties of nanocrystalline TiC reinforced 316L stainless steel composite parts fabricated by selective laser melting. Opt Laser Tech. 2018;103:239–250. doi: 10.1016/j.optlastec.2018.01.005
19.
WangYM, VoisingT, McKeownJT, Additively manufactured hierarchical stainless steels with high strength and ductility. Nat Mater. 2017;17:63–71. doi: 10.1038/nmat5021
20.
WangD, SongC, YangY, Investigation of crystal growth mechanism during selective laser melting and mechanical property characterization of 316L stainless steel parts. Mater Des. 2016;100:291–299. doi: 10.1016/j.matdes.2016.03.111
21.
SaeidiK, GaoX, ZhongY, Hardened austenite steel with columnar sub-grain structure formed by laser melting. Mater Sci Eng A. 2015;625:221–229. doi: 10.1016/j.msea.2014.12.018
22.
CasatiR, LemkeJ, VedaniMJ.Microstructure and fracture behavior of 316L austenitic stainless steel produced by selective laser melting. Mater Sci Tech. 2016;32:738–744. doi: 10.1016/j.jmst.2016.06.016
23.
AlMangourB, GrzesiakD, YangJM.Scanning strategies for texture and anisotropy tailoring during selective laser melting of TiC/316L stainless steel nanocomposites. J Alloys Comp. 2017;728:424–435. doi: 10.1016/j.jallcom.2017.08.022
24.
AlMangourB, GrzesiakD, BorkarT, Densification behavior, microstructural evolution, and mechanical properties of TiC/316L stainless steel nanocomposites fabricated by selective laser melting. Mater Des. 2018;138:119–128. doi: 10.1016/j.matdes.2017.10.039
25.
AlMangourB, GrzesiakD, YangJM.Scanning strategies for texture and anisotropy tailoring during selective laser melting of TiC/316L stainless steel nanocomposites. J Alloys Comp. 2016;680:480–493. doi: 10.1016/j.jallcom.2016.04.156
26.
SunZ, TanX, TorSB, Simultaneously enhanced strength and ductility for 3D-printed stainless steel 316L by selective laser melting. NPG Asia Mater. 2018;10:127–136. doi: 10.1038/s41427-018-0018-5
27.
AlMangourB, BaekMS, GrzesiakD, Strengthening of stainless steel by titanium carbide addition and grain refinement during selective laser melting. Mater Sci Eng A. 2018;712:812–818. doi: 10.1016/j.msea.2017.11.126
28.
GuD, ChenH.Selective laser melting of high strength and toughness stainless steel parts: the roles of laser hatch style and part placement strategy. Mater Sci Eng A. 2018;725:419–427. doi: 10.1016/j.msea.2018.04.046
29.
AlMangourB, GrzesiakD, ChenJ, Thermal behavior of the molten pool, microstructural evolution, and tribological performance during selective laser melting of TiC/316L stainless steel nanocomposites: experimental and simulation methods. J. Mater. Proc. Tech. 2018;257:288–301. doi: 10.1016/j.jmatprotec.2018.01.028
30.
MoatRJ, PinkertonAJ, LiL, Crystallographic texture and microstructure of pulsed diode laser-deposited Waspaloy. Acta Mater. 2009;57:1220–1229. doi: 10.1016/j.actamat.2008.11.004
31.
ThijsL, KempenK, KruthJP, Fine-structured aluminium products with controllable texture by selective laser melting of pre-alloyed AlSi10Mg powder. Acta Mater. 2013;61:1809–1819. doi: 10.1016/j.actamat.2012.11.052
32.
ThijsL, Montero-SistiagaML, WauthleR, Strong morphological and crystallographic texture and resulting yield strength anisotropy in selective laser melted tantalum. Acta Mater. 2013;61:4657–4668. doi: 10.1016/j.actamat.2013.04.036
33.
AntonysamyAA, MeyerJ, PrangnellPB.Effect of build geometry on the β-grain structure and texture in additive manufacture of Ti6Al4V by selective electron beam melting. Mater Char. 2013;84:153–168. doi: 10.1016/j.matchar.2013.07.012
34.
KunzeK, EtterT, GrässlinJ, Texture, anisotropy in microstructure and mechanical properties of IN738LC alloy processed by selective laser melting (SLM). Mater Sci Eng A. 2015;620:213–222. doi: 10.1016/j.msea.2014.10.003
35.
CarterLN, MartinC, WithersPJ, The influence of the laser scan strategy on grain structure and cracking behaviour in SLM powder-bed fabricated nickel superalloy. J Alloy Comp. 2014;615:338–347. doi: 10.1016/j.jallcom.2014.06.172
36.
ZhouX, LiK, ZhangD, Textures formed in a CoCrMo alloy by selective laser melting. J Alloy Comp. 2015;631:153–164. doi: 10.1016/j.jallcom.2015.01.096
37.
DivyaVD, Muñoz-MorenoR, MesséOMDM, Microstructure of selective laser melted CM247LC nickel-based superalloy and its evolution through heat treatment. Mater Char. 2016;114:62–74. doi: 10.1016/j.matchar.2016.02.004
38.
Muñoz-MorenoR, DivyaVD, DriverSL, Effect of heat treatment on the microstructure, texture and elastic anisotropy of the nickel-based superalloy CM247LC processed by selective laser melting. Mater Sci Eng A. 2016;674:529–539. doi: 10.1016/j.msea.2016.06.075
39.
HelmerH, BauereissA, SingerRF, Grain structure evolution in Inconel 718 during selective electron beam melting. Mater Sci Eng A. 2016;668:180–187. doi: 10.1016/j.msea.2016.05.046
40.
PopovichVA, BorisovEV, PopovichAA, Functionally graded Inconel 718 processed by additive manufacturing: crystallographic texture, anisotropy of microstructure and mechanical properties. Mater Des. 2017;114:441–449. doi: 10.1016/j.matdes.2016.10.075
41.
ClootsM, KunzeK, UggowitzerPJ, Microstructural characteristics of the nickel-based alloy IN738LC and the cobalt-based alloy Mar-M509 produced by selective laser melting. Mater Sci Eng A. 2016;658:68–76. doi: 10.1016/j.msea.2016.01.058
42.
IshimotoT, HagiharaK, HisamotoK, Crystallographic texture control of beta-type Ti–15Mo–5Zr–3Al alloy by selective laser melting for the development of novel implants with a biocompatible low Young's modulus. Scripta Mater. 2017;132:34–38. doi: 10.1016/j.scriptamat.2016.12.038
43.
NadammalN, CabezaS, MishurovaT, Effect of hatch length on the development of microstructure, texture and residual stresses in selective laser melted superalloy Inconel 718. Mater. Des. 2017;134:139–150. doi: 10.1016/j.matdes.2017.08.049
44.
WanHY, ZhouZJ, LiCP, Effect of scanning strategy on grain structure and crystallographic texture of Inconel 718 processed by selective laser melting. J Mater Sci Tech. 2018;34:1799–1804. doi: 10.1016/j.jmst.2018.02.002
45.
FangXY, LiHQ, WangM, Characterization of texture and grain boundary character distributions of selective laser melted Inconel 625 alloy. Mater Char. 2018, in press.
46.
SunSH, HagiharaK, NakanoT.Effect of scanning strategy on texture formation in Ni-25 at.%Mo alloys fabricated by selective laser melting. Mater Des. 2018;140:307–316. doi: 10.1016/j.matdes.2017.11.060
